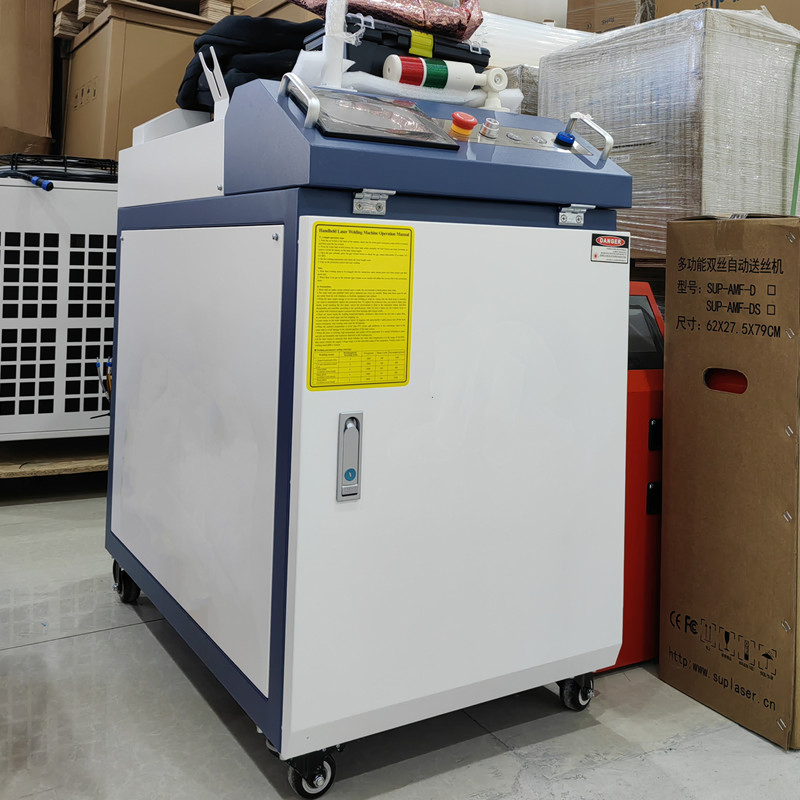

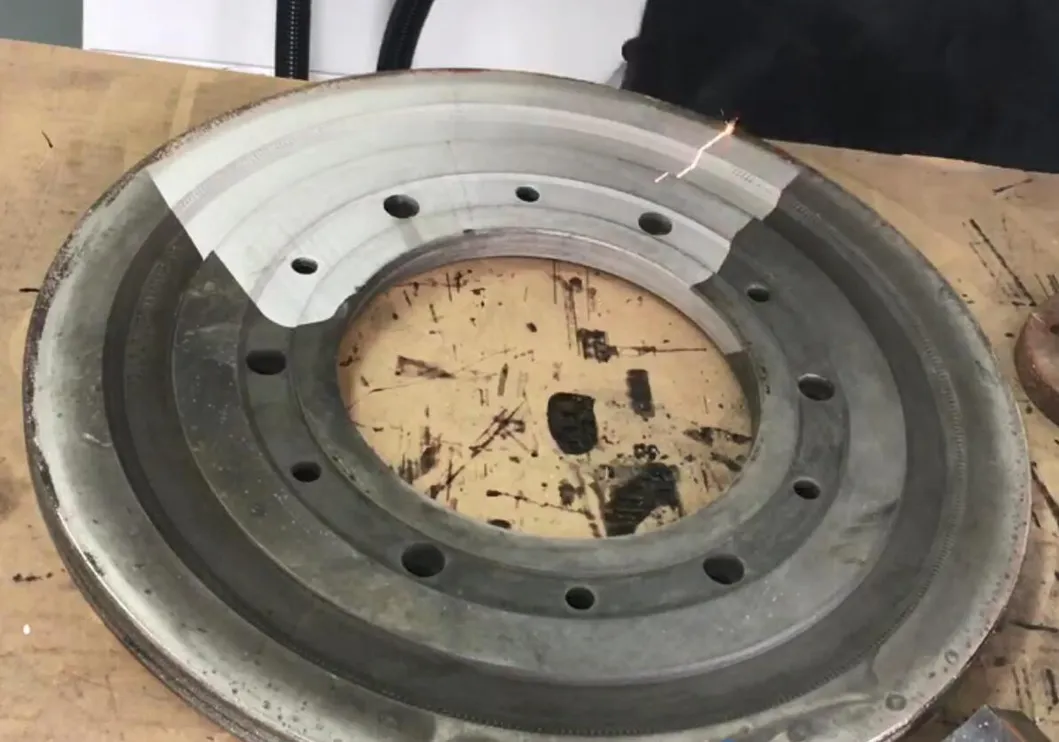

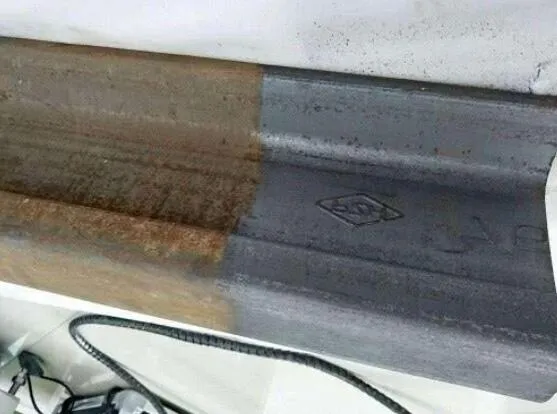

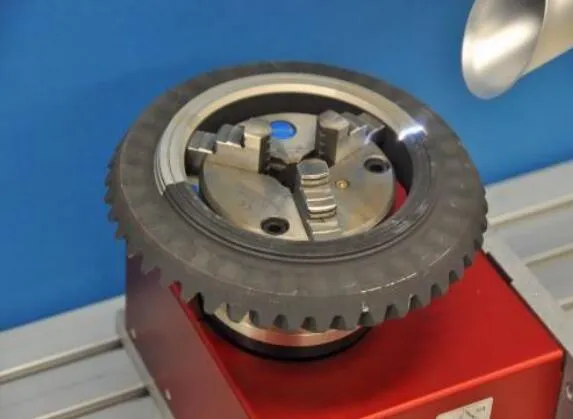

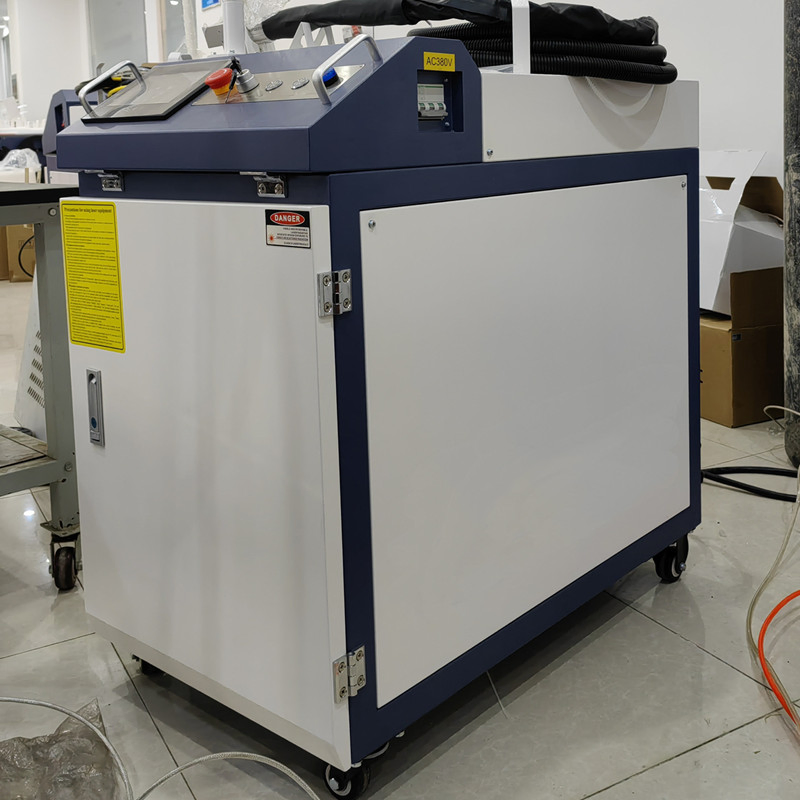

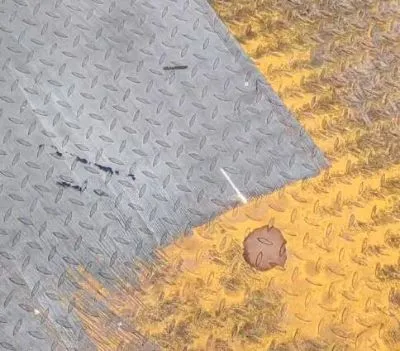

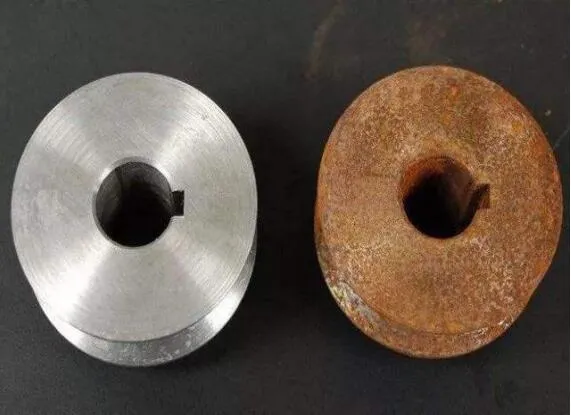

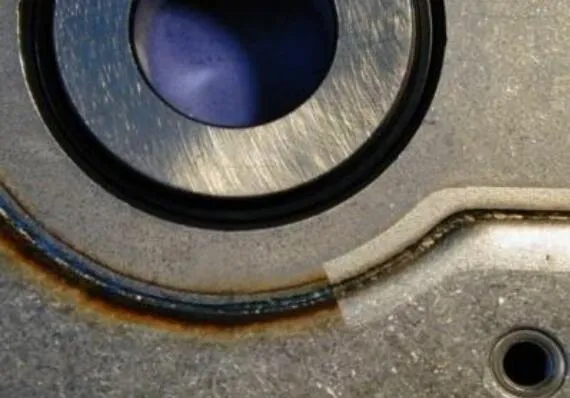

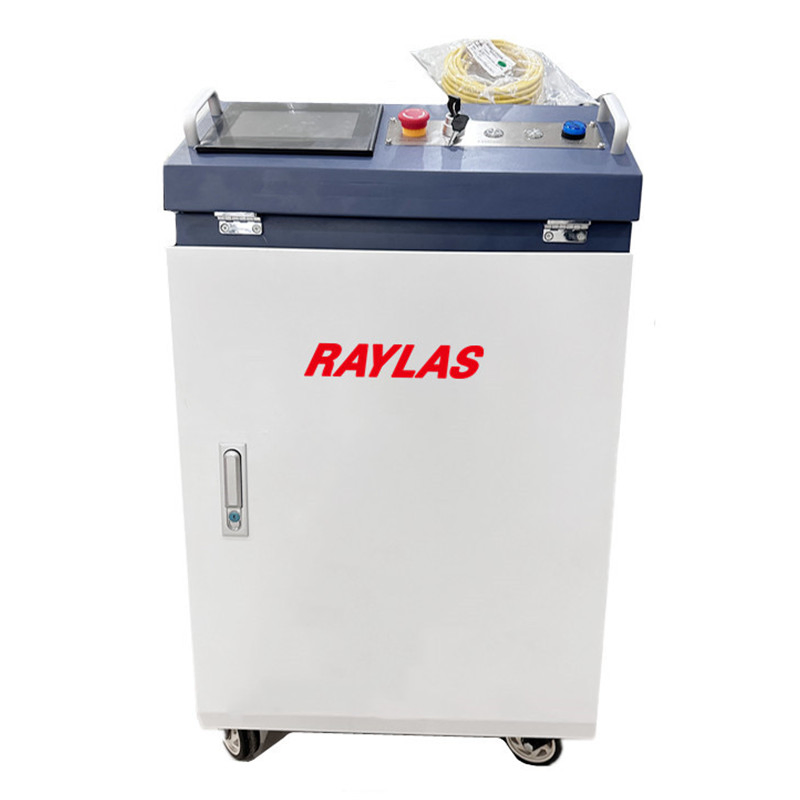

Cabinet continuous laser cleaner is equipped with ergonomic handles and high-quality wheels for manoeuvrability and flexible steering, especially in confined spaces. It makes work easier and more comfortable. It can efficiently remove rust, stains, oil, plating, etc. on the surface of the work piece, which can be applied to the industries of machining, food processing, electronic circuits, etc. By using the characteristics of precise positioning, it can meet the processing of various modelling work pieces and achieve the effect of efficient cleaning.
Features:
Laser Cleaning / Rust removal / oil removal / paint removal / coating removal
Advantages:
Removable/lockable bottom wheels. Portable Laser cleaning machine.
| Equipment Name | Cabinet continuous laser cleaning machine | |||
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Working Voltage | 220V(50Hz/60Hz) | 380V(50Hz/60Hz) | ||
| Cleaning Speed | 5-30m²/h | 8-50m²/h | 10-70m²/h | 15-90m² |

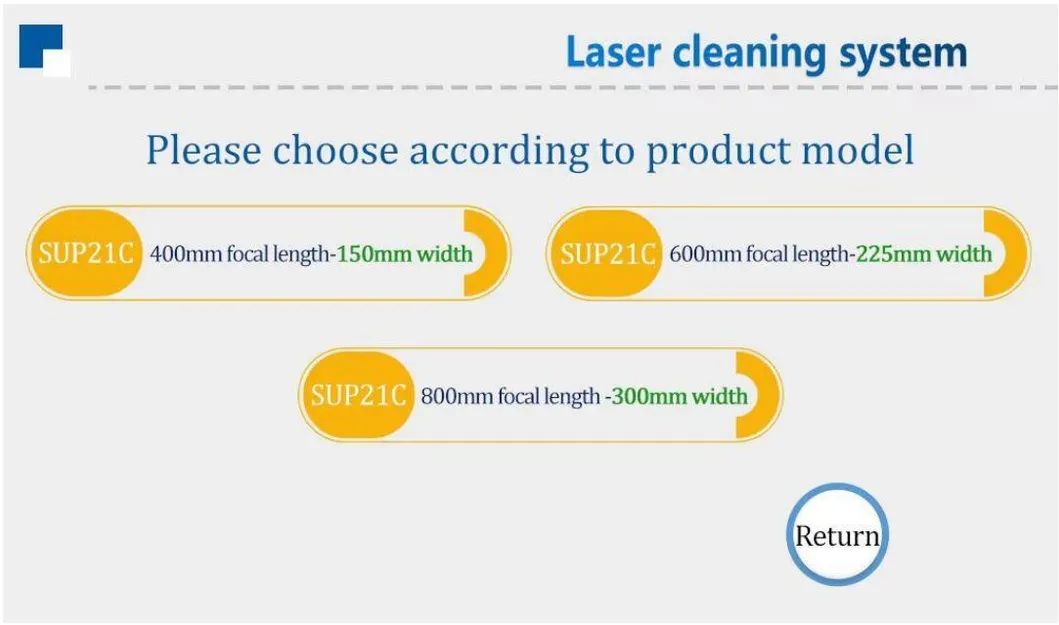

| Focus Focal Length | D20*3.5 F400m/D20*3.5 F800mm | |||
| Cooling Method | Water cooling | |||
| Laser Wavelength | 1064±10nm | |||

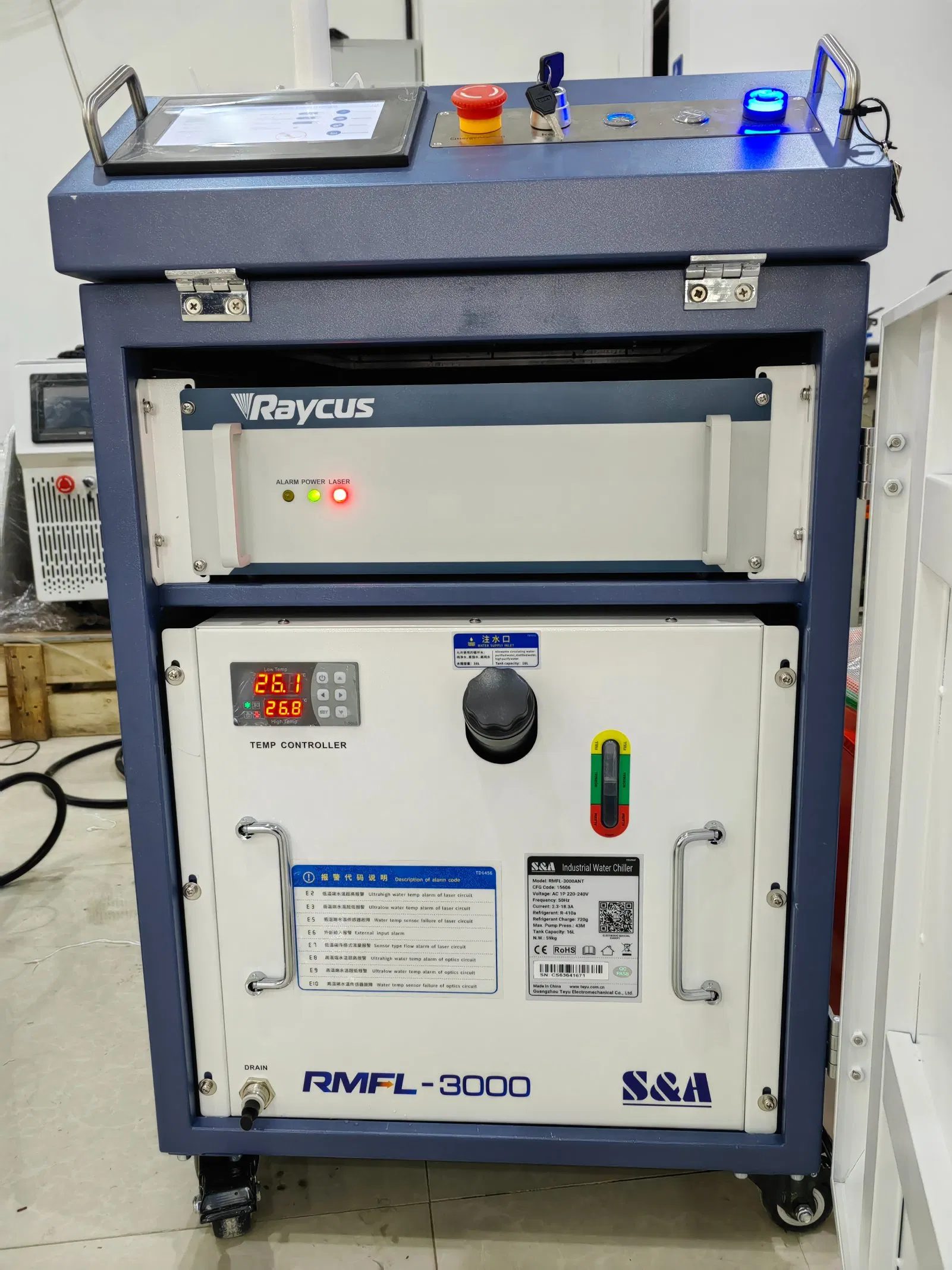

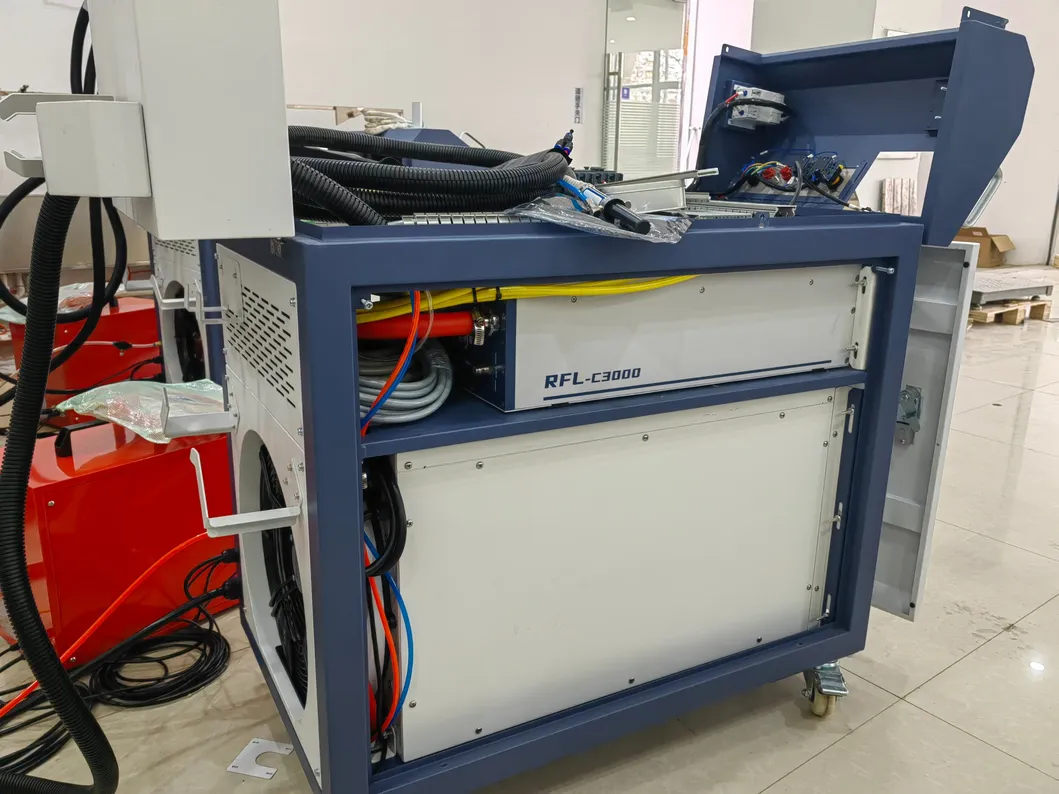

FIBER LASER is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter range, can be customized. Mainly used in metal welding and cleaning and other fields such as new energy, 3C, precision machining.
Multiple safety alarms, smaller size, flexible operation and easy to use.

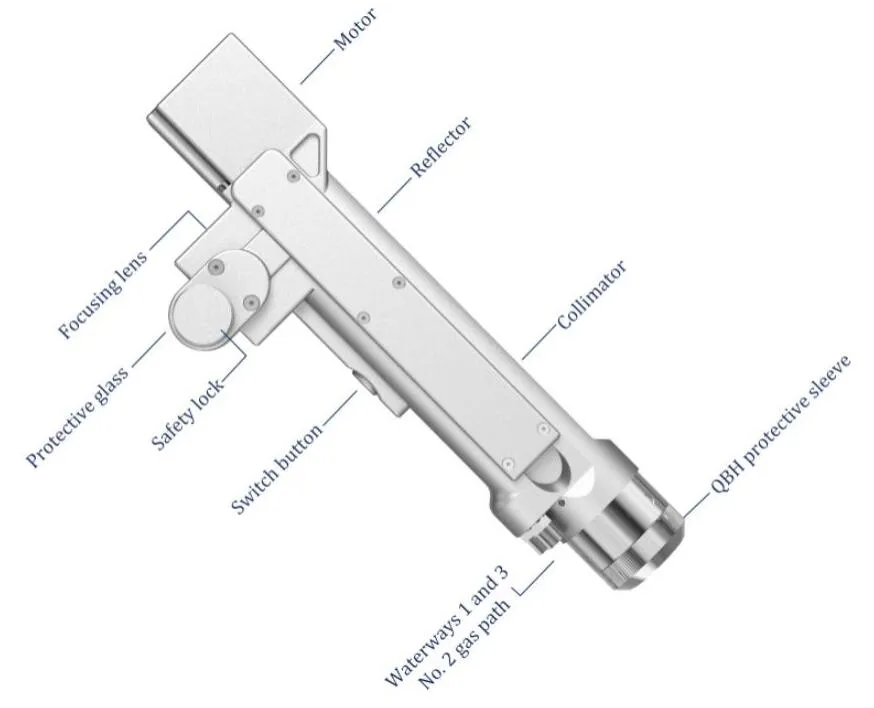

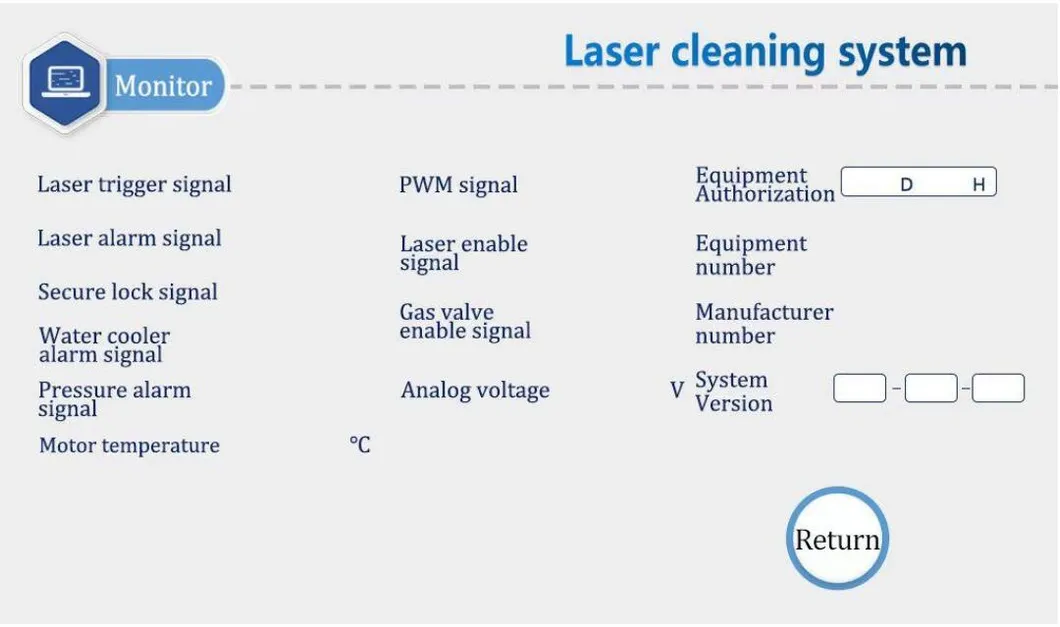

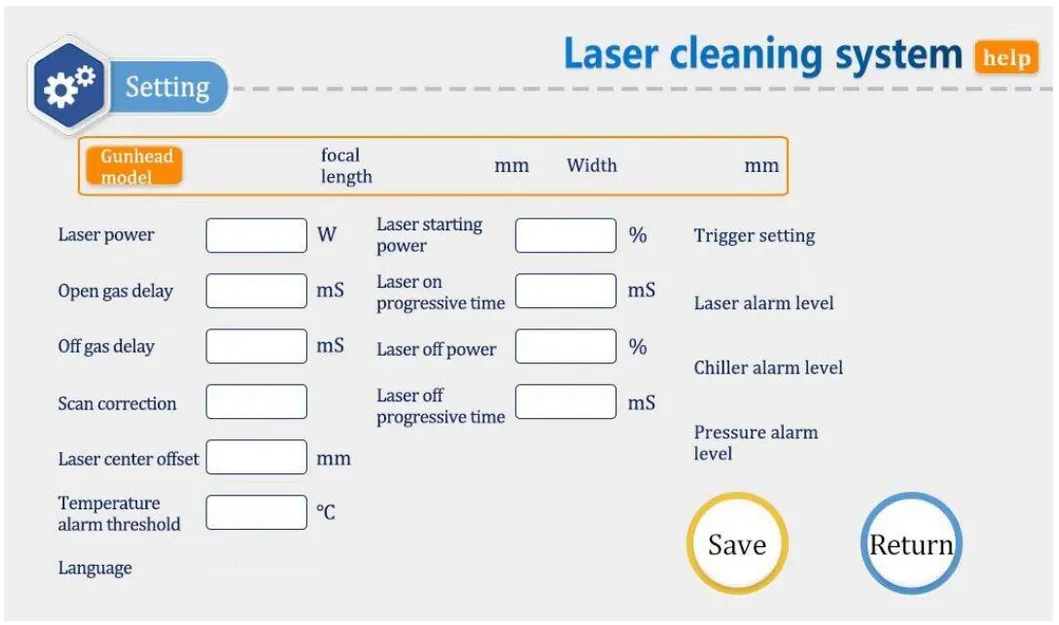

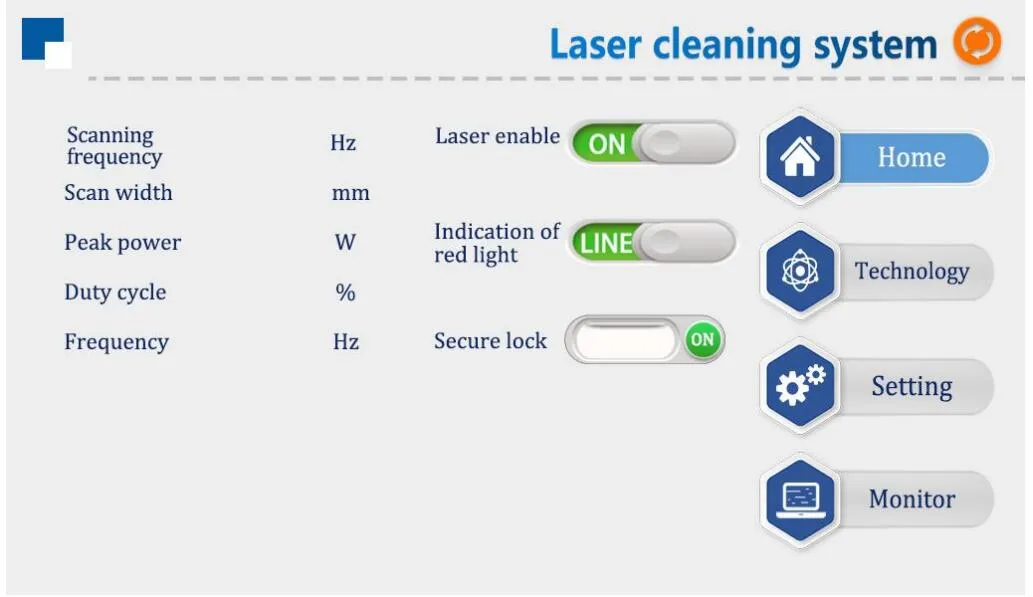

More stable: All parameters are visible, real time monitoring of the status of the whole machine, to avoid problems in advance, more convenient to troubleshoot and solve problems, to ensure the stable operation of the welding head.
Process: All parameters are visible, the cleaning quality is more perfect. Stable parameters and high repeatability: Greatly improve efficiency, while also reducing operator requirements.

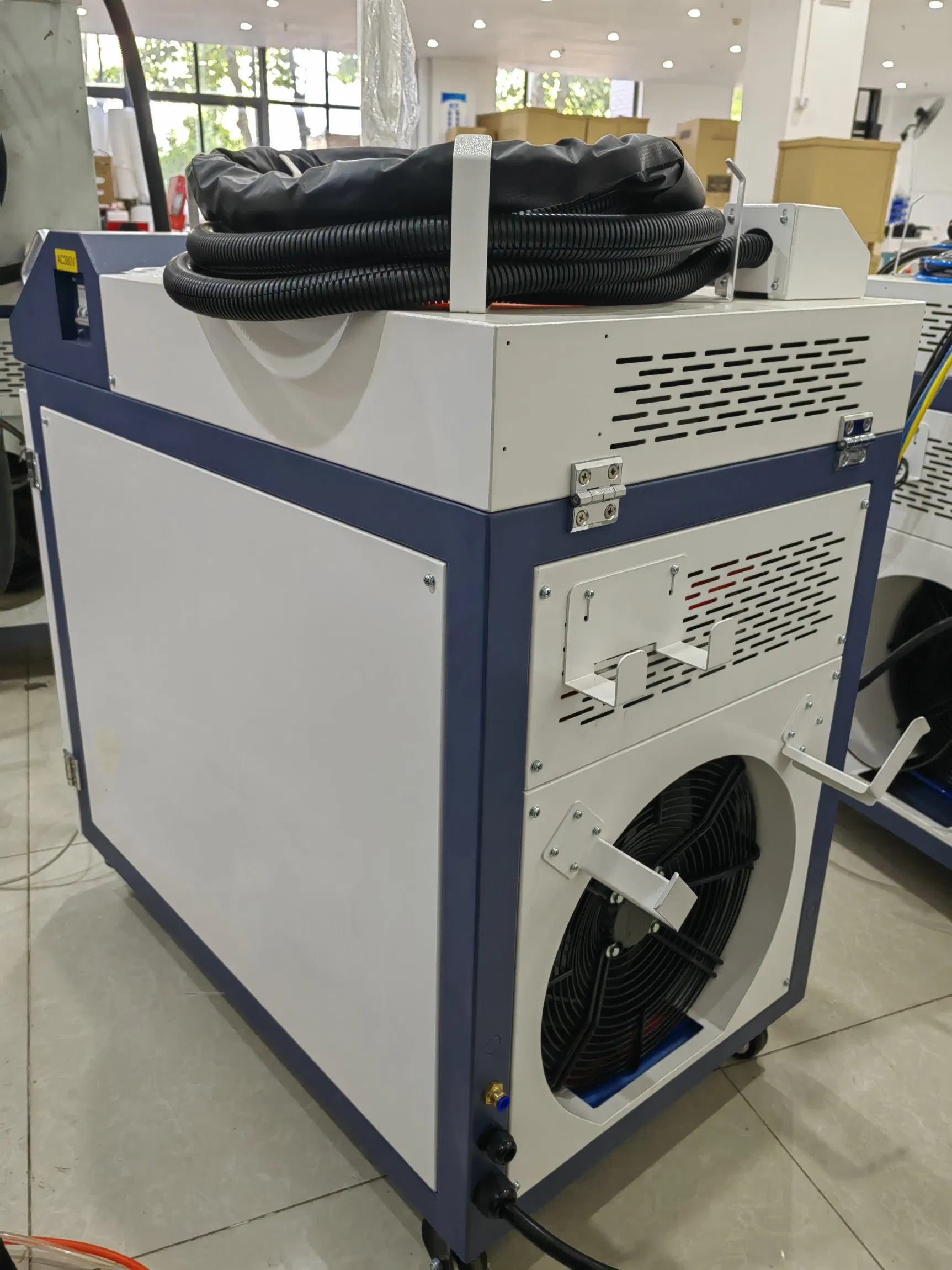

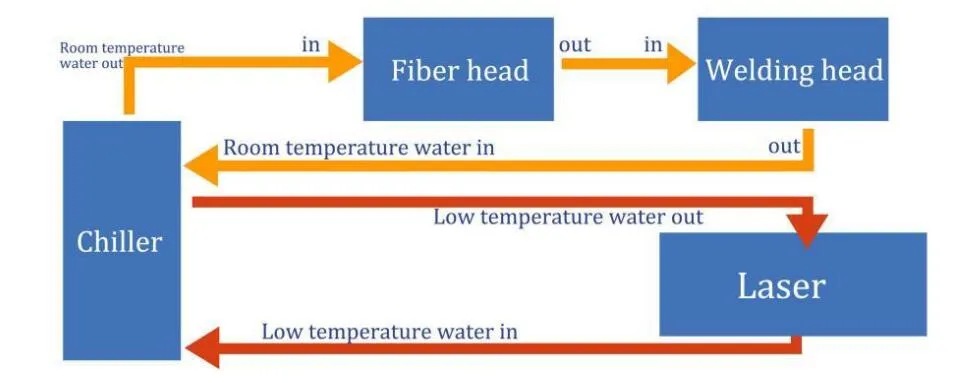

The water pipe and gas pipe interface can be installed with a hose with outer diameter 6mm inner diameter 4mm. Access and exit pipeline of waterway (regardless of entry and exit direction).

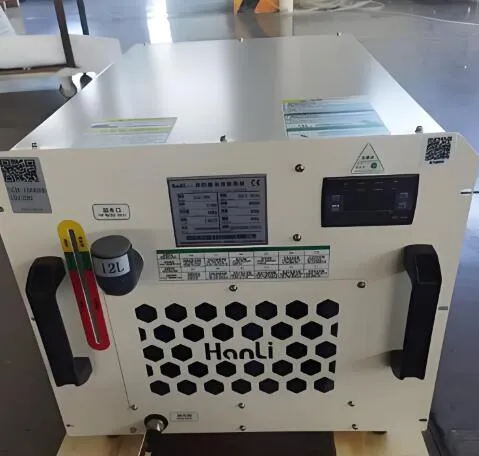

The cooling system is divided into waterway section of welding head and waterway section of optical fiber head.
Parameter serial number: We can preset about 20 groups of welding parameters according to different materials. Just need to press the up and down button to choose the parameter.
Power: The output power of the laser. The adjustment range is between 10%-100%, and the common welding range is between 50%-100%.
Frequency: Laser output speed. The adjustment range is between 50Hz-20KHz, and the common welding range is between 50-200HZ. The common cutting range is between 1000HZ-5000HZ.
Duty cycle: The ratio of the duration and total time with the laser beams in one cycle. The common welding range is between 40%-80%.
