| Model NO. | Laser-QX |
| Control Type | Handheld |
| Warranty | 1 Year |
| Laser Source | Max/Raycus/Bwt |
| Laser Power | 1500W/2000W/3000W |
| Working Temp. | 0~40degree/≤80% |
| Cooling Mode | Water Cooling |
| Supply Voltage | 110V 220V 380V |
| Cleaning Width | 100-600mm |
| Material | Metal |
| Transport Package | Standard Export Wooden Package |
| Specification | 103*56*90CM, 130KG |
| HS Code | 8479899990 |
| Capacity | 2000pieces/Month |
| Package Size | 103.00cm * 56.00cm * 90.00cm |
| Gross Weight | 126.000kg |

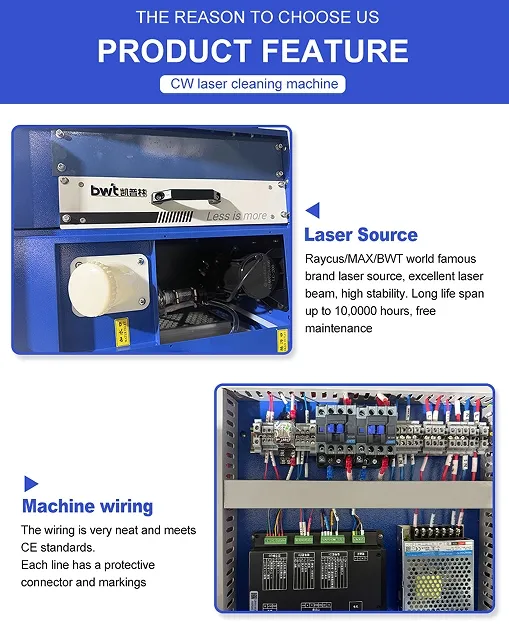

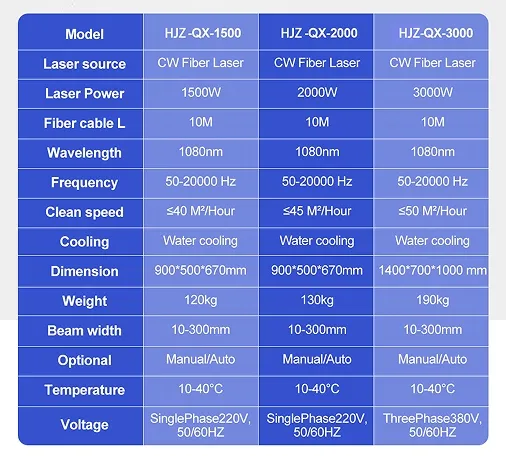

| Laser source | Raycus/MAX/BWT fiber laser |
| Laser power | 1500W/2000W/3000W/6000W |
| Supply voltage | Single-phase 220V±10%, 50/60Hz AC, support 110V/380V |
| Machine power consumption | 2500W (within water chiller) |
| Setting up environment | Flat, no vibration, no impact |
| Working temperature | 0ºC~40ºC |
| Working humidity | ≤80% |
| Average laser power | ≥200 W |
| Power range (%) | 10-100 (adjustment) |
| Repeat frequency (KHz) | 10-50 (adjustment) |
| Cleaning efficiency (m2/h) | 12 |
| Focal length (mm) | 210/160 changeable |
| Cooling mode | Water cooling |
| Size | 1080mm×720mm×1080mm |
| Weight | 200Kg |
| Scanning width | 10-600mm |
| Mobile mode | Handheld |
No damage to the base of the material due to the non-touch surface cleaning performance.
Precise cleaning technique targeted at specific areas within a selected scope.
No need for chemical agents or other secondary consumables, ensuring environmentally friendly operations.
Easy to operate; supports handheld configuration or automatic cleaning integrated via robotic arm.
High-speed operation with minimal cleaning time, producing consistent high-quality finishing results.
Stable and highly compact integrated design requiring no additional ongoing maintenance.

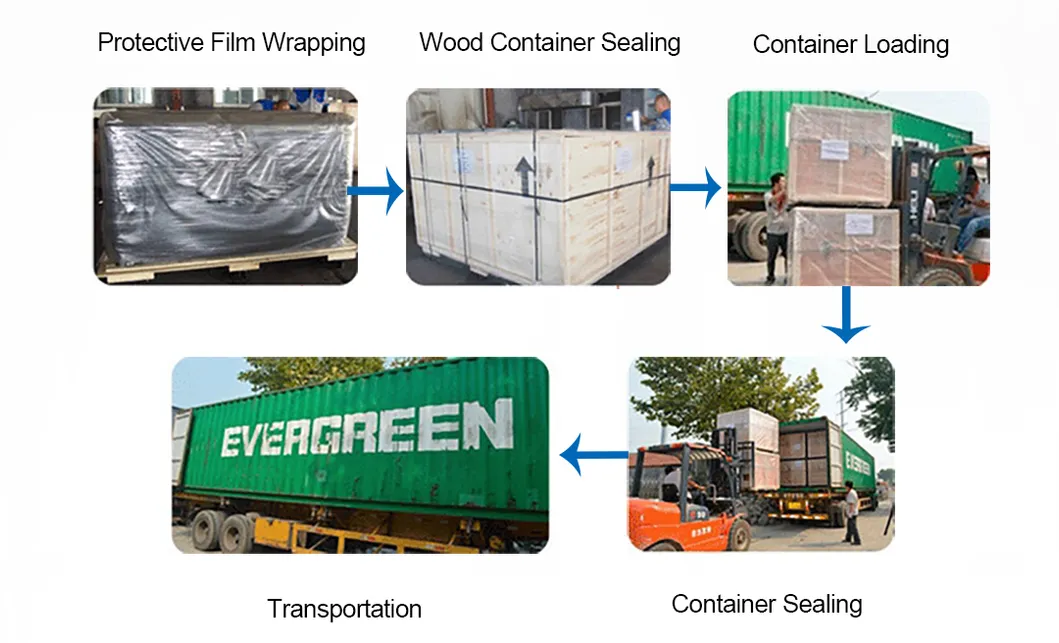

The machine and accessories are wrapped cleanly and securely with a high-quality protective plastic sheet layer.
The complete package structure is enclosed in a standard heavy-duty export plywood case for maximum safety.
Flexible shipping options are supported, enabling delivery by sea, train, or air according to customer requirements.
Q1 Are you a trading company or manufacturer?
We are a factory with over 10 years of professional experience in the laser manufacturing field.
Q2 How long is the delivery time for the machine?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
Q3 What is the warranty policy on this equipment?
We provide a comprehensive 1-year warranty on the laser metal marking/cleaning machine along with lifelong repair support and 24-hour online technical assistance.
Q4 Does laser cleaning damage the base metal substrate?
No, this machine uses non-touch surface cleaning performance, which delivers high cleaning efficiency without causing any damage to the base material.
Q5 How can we get operations training for our workers?
Training can be processed in three ways: hands-on training at our factory, on-site training at your target factory by sending an engineer, or remote training through online tools like Skype and TeamViewer.
Q6 What types of packaging are used for transport?
The machinery is first covered with protective plastic sheeting to avoid humidity, and then securely packed in an export-grade standard plywood wooden case.
