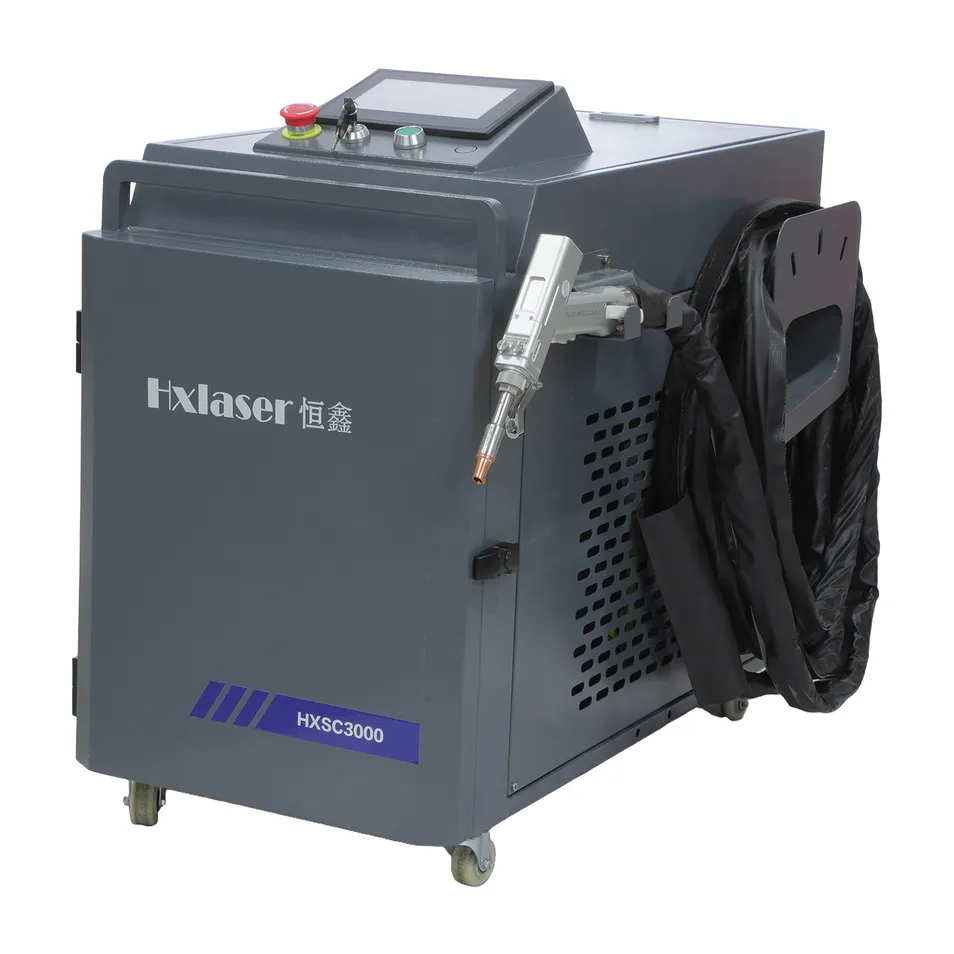

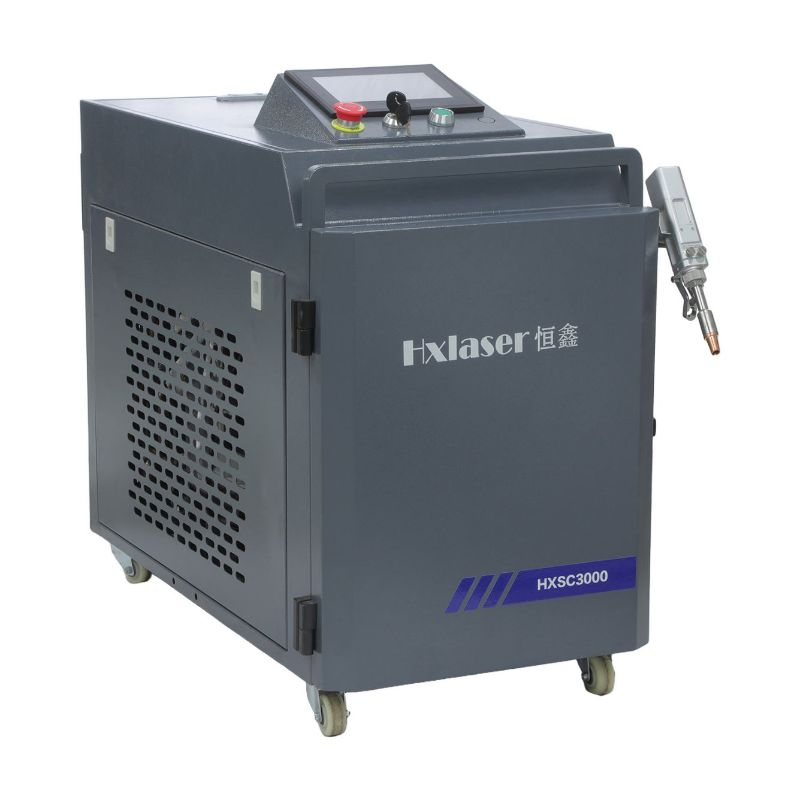

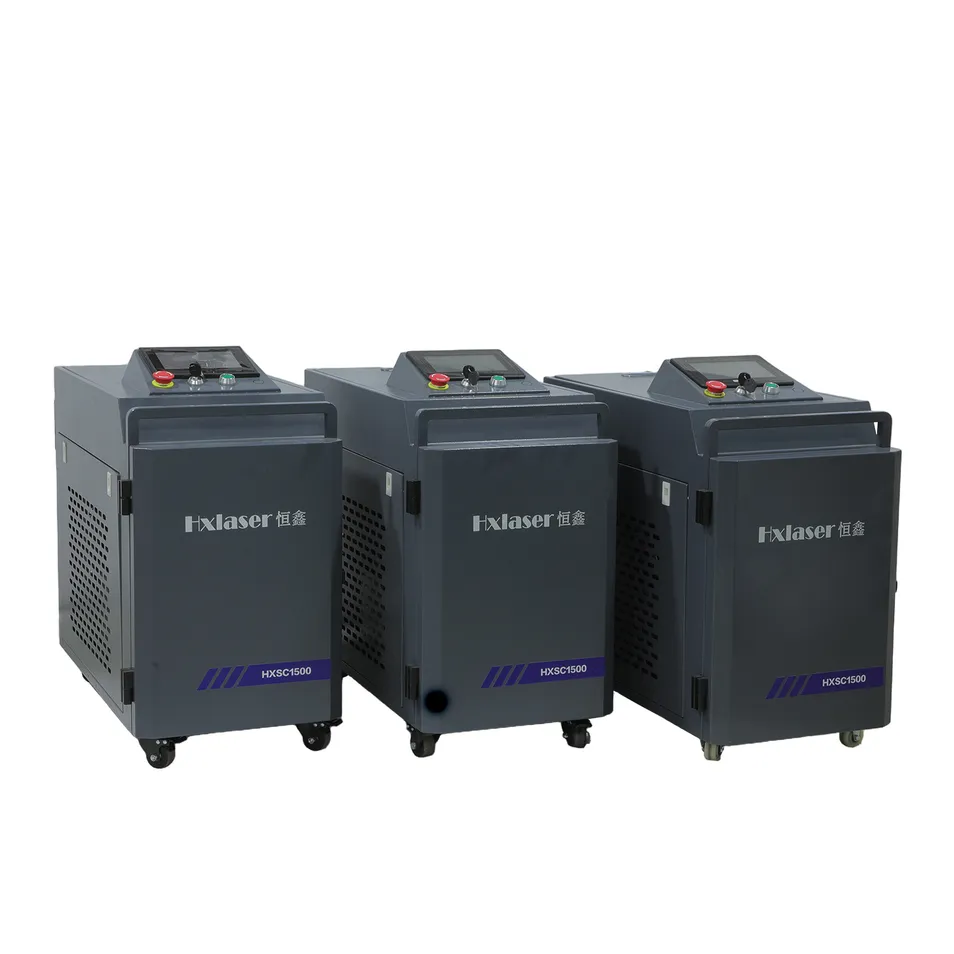

This handheld laser welding machine utilizes a fiber laser with high photoelectric conversion efficiency. Equipped with a 10 - meter imported optical fiber cable, it enables flexible outdoor welding. Suitable for complex welds and various components, it allows weld width adjustment to ensure smooth, flat, and attractive weld appearances. With no consumables, a compact size, low operating costs, and an intelligent wire feeder for large - weld products.

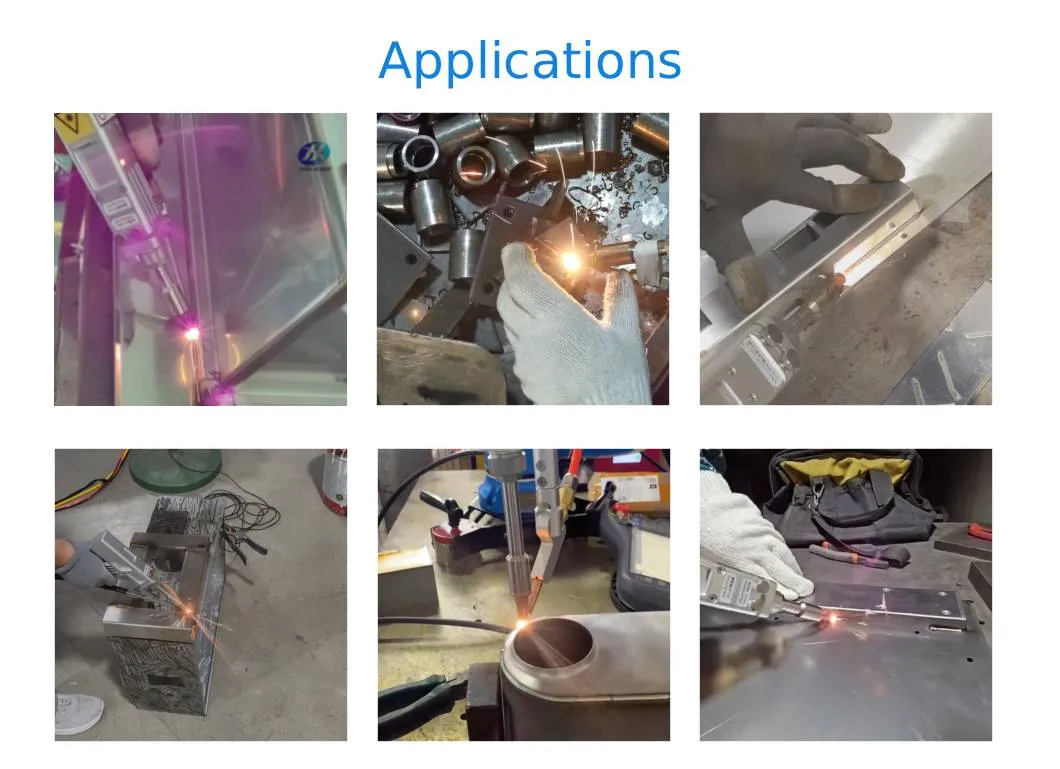

Widely applied in the sheet metal fabrication industry, kitchen & sanitary equipment sector, home appliance manufacturing, advertising equipment field, stainless steel door/window production, housewares industry, furniture manufacturing, and automotive components sector.
| Handheld laser welding machine | Welding ability | ||
|---|---|---|---|
| Machine name | Handheld laser welding machine | Weld seam requirements | ≤1.6 mm |
| Laser generator | Continuous fiber laser | Material thickness | 0.3 - 8.0 mm (Depending on power) |
| Laser power | 1200W/1500W/2000W/3000W | welding material | CS / SS / COPPER / ALU/ALLOY METAL |
| Laser control mode | PC automatic control | Cooling system | |
| Output power range | 10 - 100% | Cooling water temperature | Laser at ≤25℃, QBH Room temperature |
| Laser wavelength | 1080 ± 10 nm | cooling water | Deionized water or distilled water |
| Fiber length | 10 m | Cooling method | Dual temperature dual control |
| Welding system | Other | ||

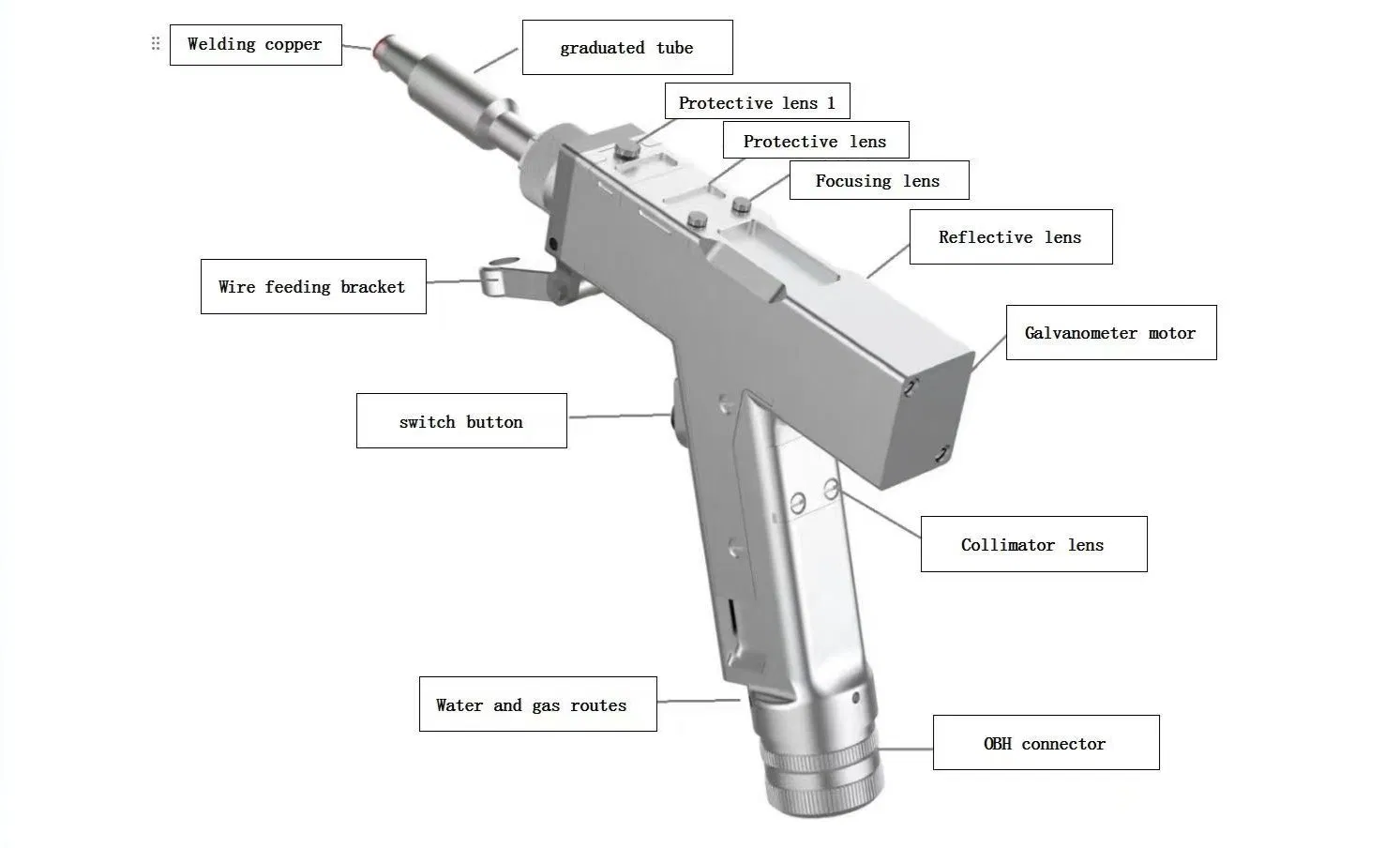

| Welding joint | Swinging welding head | Operating environment | Temperature 5 - 40℃, Relative humidity <70%, No condensation |
| Welding mode | Spot welding/continuous welding | Laser type | Class ⅳ |
| scanning speed | 50-5000 mm/s | Machine size | 860 × 480 × 780 mm |
| Scan width | 0 - 5 mm | Machine weight | 120 KG |
| Welding gun weight | 750 g | Electricity requirements | AC220V(380V) / 50HZ60A |
| Wire feeding system | Intelligent automatic wire feeding | Whole machine power | ≤12.0 kw |
Utilizes fiber laser technology with superior electro-optical conversion efficiency.

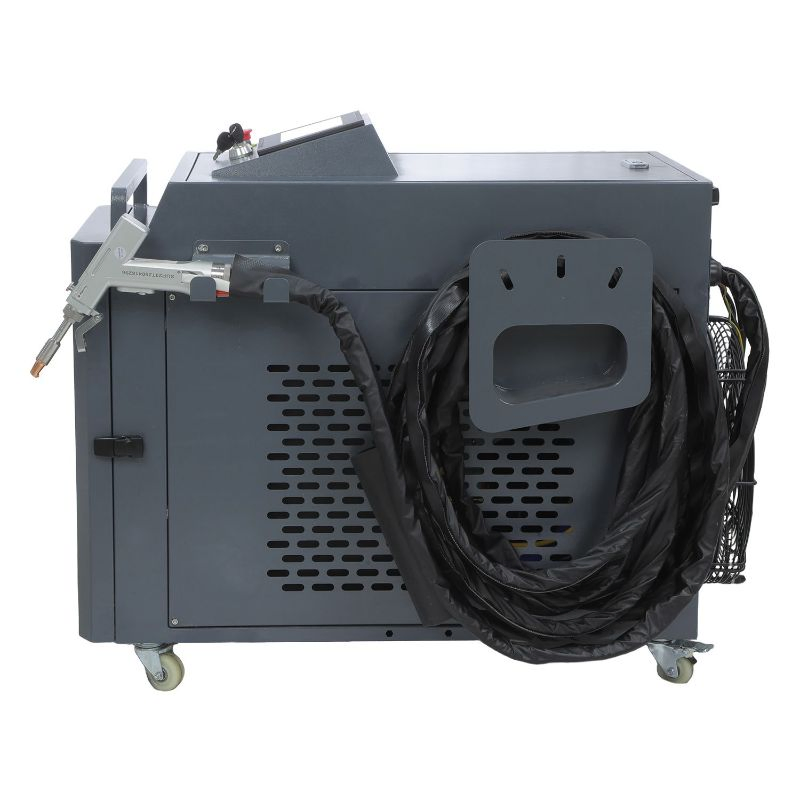

Equipped with 10m high-quality fiber optic cable for outdoor welding applications.

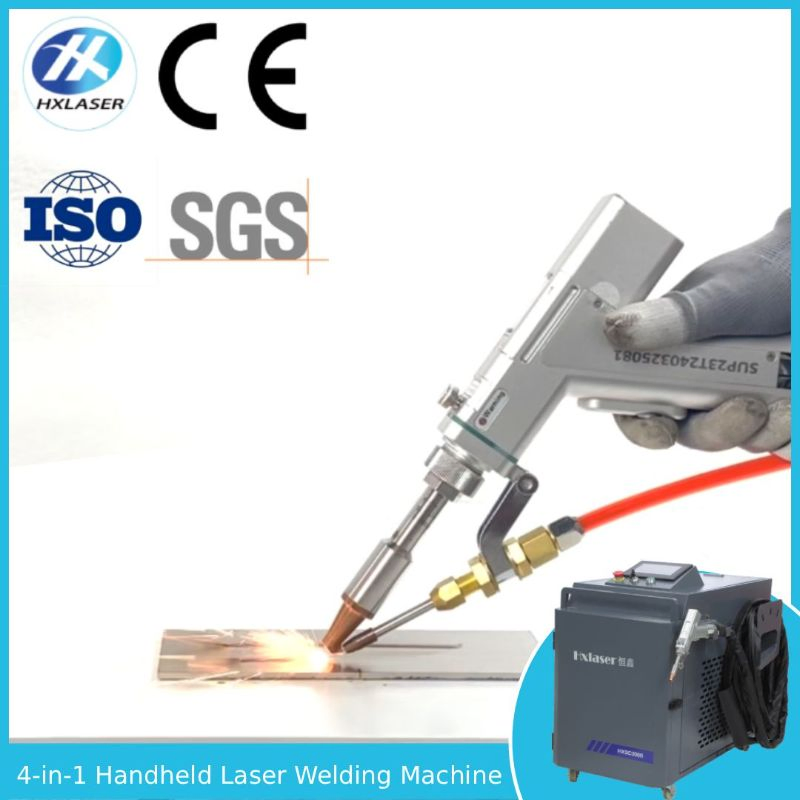

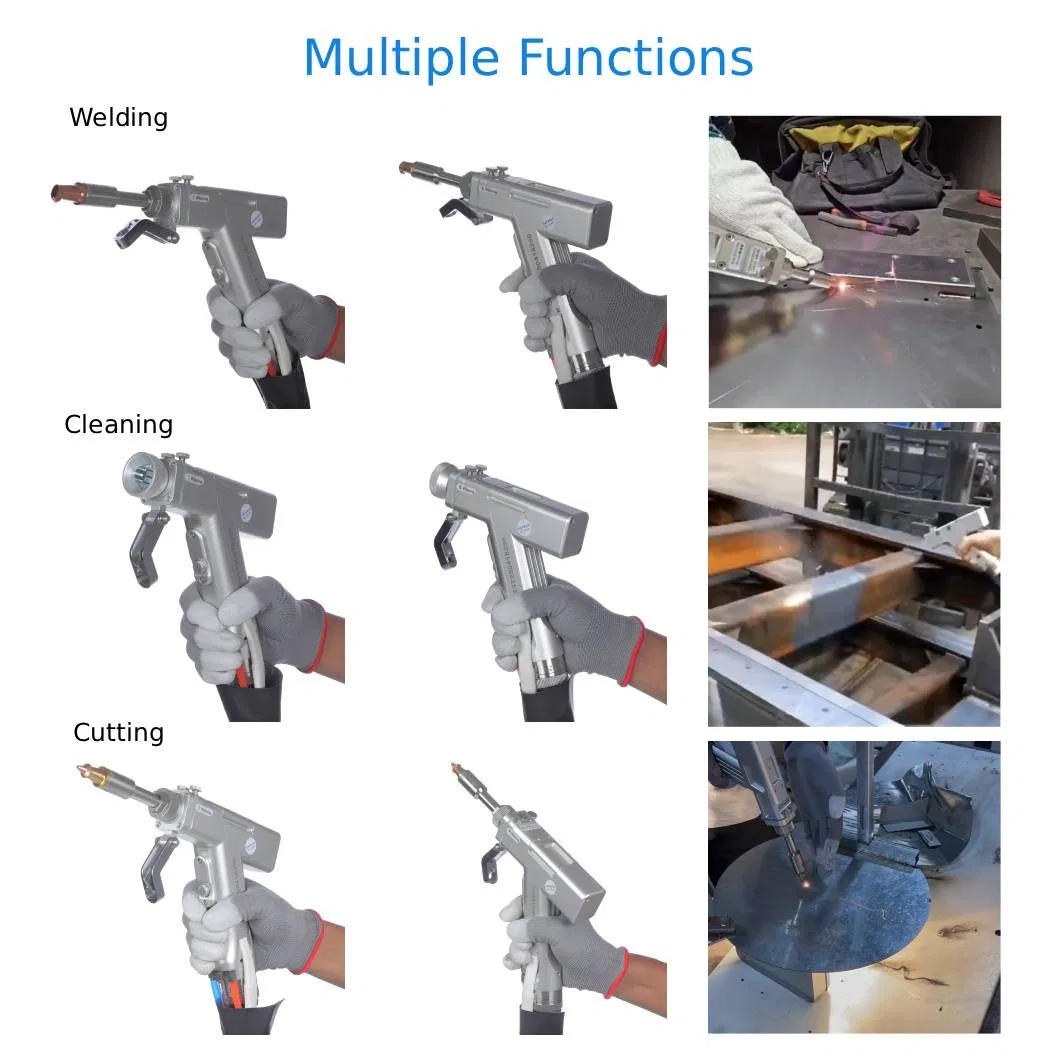

Processes complex weld seams, spot welding, and seam welding across diverse components.
Integrated red beam indicator enables accurate observation and positioning.
Customizable seam width; produces smooth, flat, visually appealing welds with broad applicability.
Selectable welding modes compatible with various materials and complex geometries.

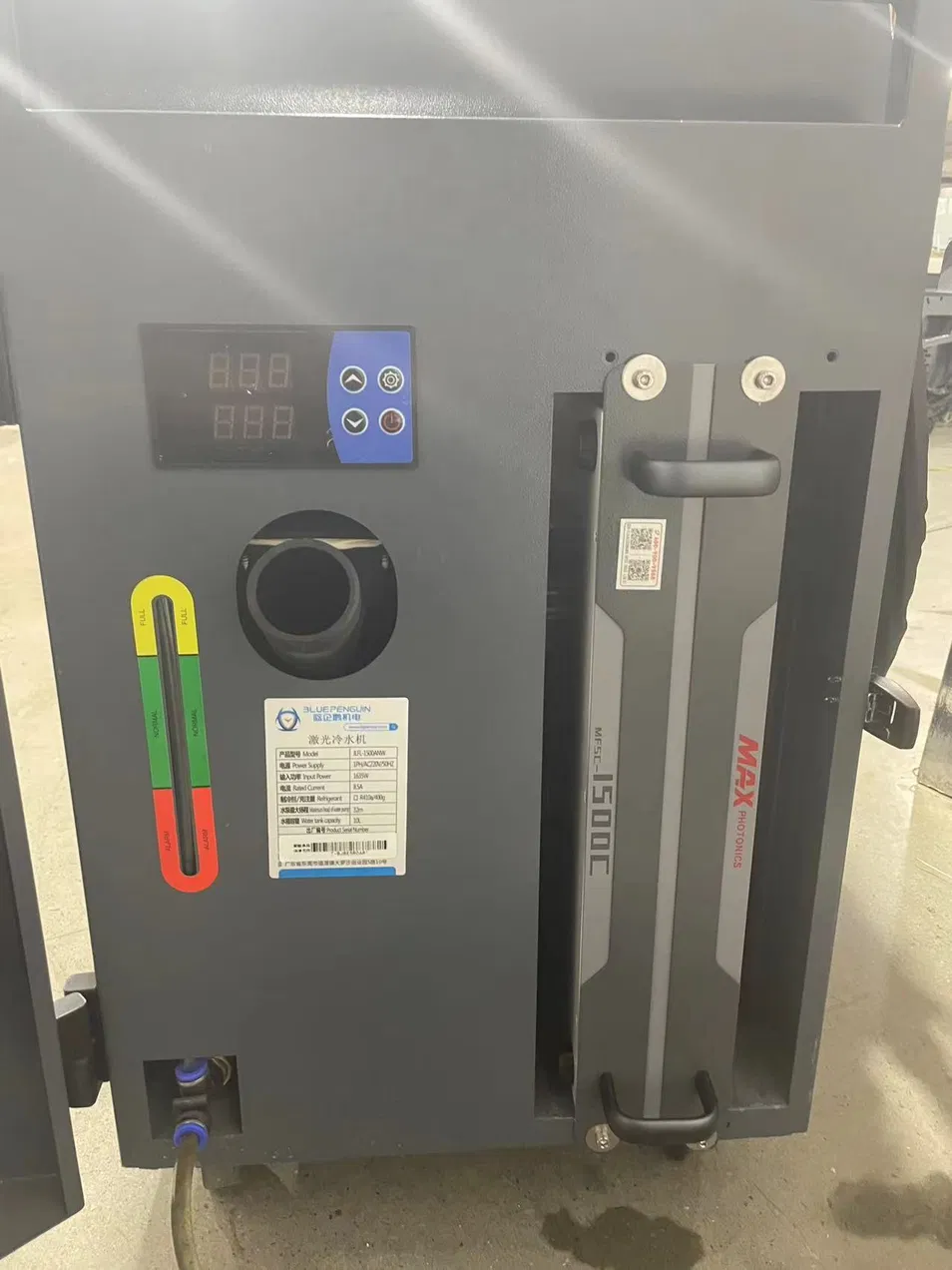

Purified cooling medium extends component lifespan and simplifies maintenance.
Zero pollution, minimal heat-affected zone (HAZ), and negligible deformation.
No consumables required. Compact design enables flexible operation with low running costs.

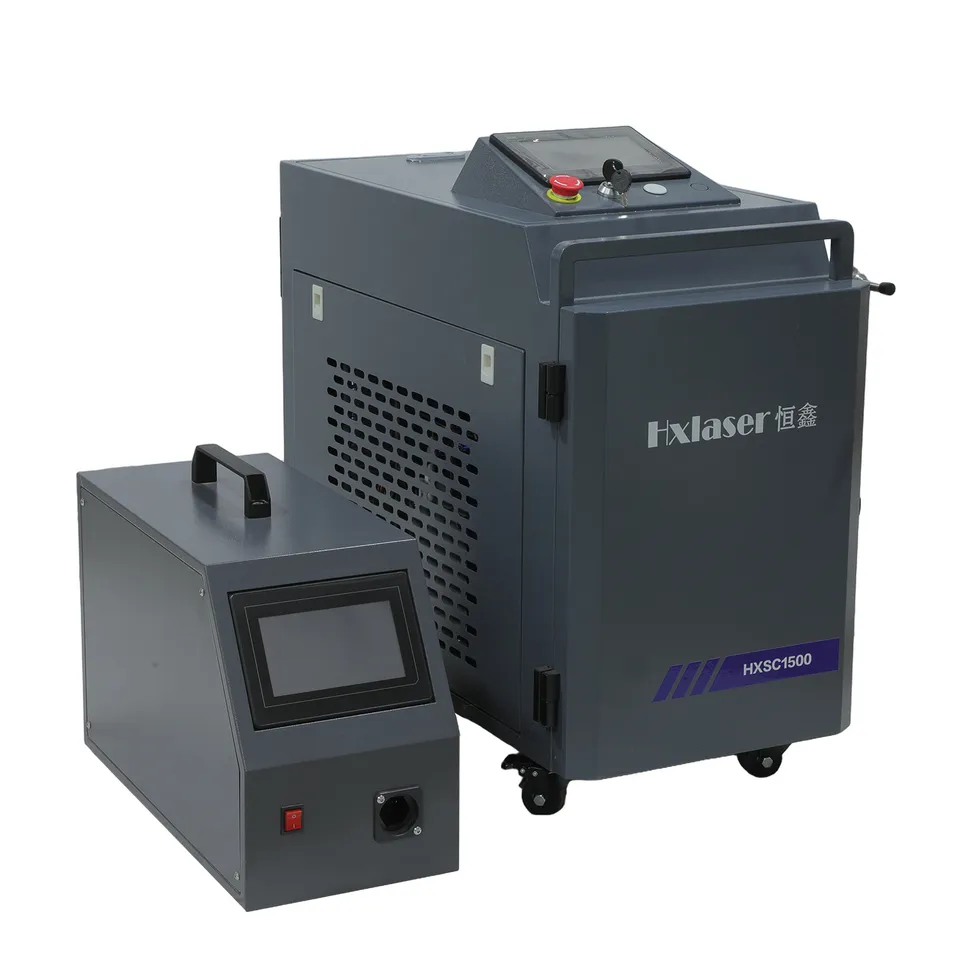

Compatible with smart wire feeder for robust large-seam welding and expanded applications.
| Project name | Handheld laser welding machine | Traditional welding |
|---|---|---|
| Employment cost | Easy to operate, low labor cost | Difficulty in recruiting, high labor cost |
| Physical harm | Low radiation, less occupational disease, low physical harm | Occupational disease, obvious physical harm |
| Welding speed | 4 times faster than argon arc welding | Slow speed, low efficiency |
| Products material utilization | Material utilization 80% - 90% | More scrap, Material utilization about 50% |
| Thermal impact | Energy saving, with small thermal impact on welding | Large thermal impact, power consumption large |
| Welding deformation | Small, not deformed | Large deformation amount |
| Welding quality | The weld is beautiful, dense, strong, no weld dent or pool, without grinding or polishing | The weld is coarse and irregular, needs to be polished |
| Welding environment | No smoke, no arc light, high safety | Odorous gas, arc light |
| Welding material | Little spatter, uniform performance | There are spatters, limited by material changes |
| Learning difficulty | Beginners master within 30 minutes | We need professional technicians, high technical requirements |
It is highly compatible with a variety of metals including Carbon Steel (CS), Stainless Steel (SS), Copper, Aluminum (Alu), and various metal alloys.
This laser welding system is highly efficient, processing welds up to 4 times faster than traditional argon arc welding.
No, the machine features an intuitive interface and ergonomic design. Beginners can comfortably master standard operations within 30 minutes.
The machine is equipped with a 10-meter imported optical fiber cable, allowing wide-range, highly flexible indoor and outdoor operation.
No, the handheld laser welding machine operates without consumables, helping significantly reduce overall maintenance and running costs.
Yes, the scan width is adjustable from 0 to 5 mm, allowing operators to achieve smooth, aesthetic, and clean welds customized to the joint.
