| Content | DPL-100 |
| Supply voltage | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) Optional single battery, 100W continuous work 80-90min |
| Power consumption | <600W |
| Working environment temperature | 5ºC~40ºC |
| Working environment humidity | ≤80% |
| Average laser power | ≥100W |
| Power instability | <5% |
| Laser Working Mode | Pulse |
| Pulse width | 150-190ns |
| Maximum monopulse energy | 1.7mJ |
| Power regulation range(%) | 10-100( Gradient Adjustable) |
| Repeat frequency(kHz) | 20-200(Gradient Adjustable) |
| Fiber length | 1.5m |
| Cooling mode | Air cooling |
| Scan range (length * width) | 0mm~100 mm, continuously adjustable; Biaxial supporting 9 scanning modes |
| Scanning speed | Max 10 m/s |

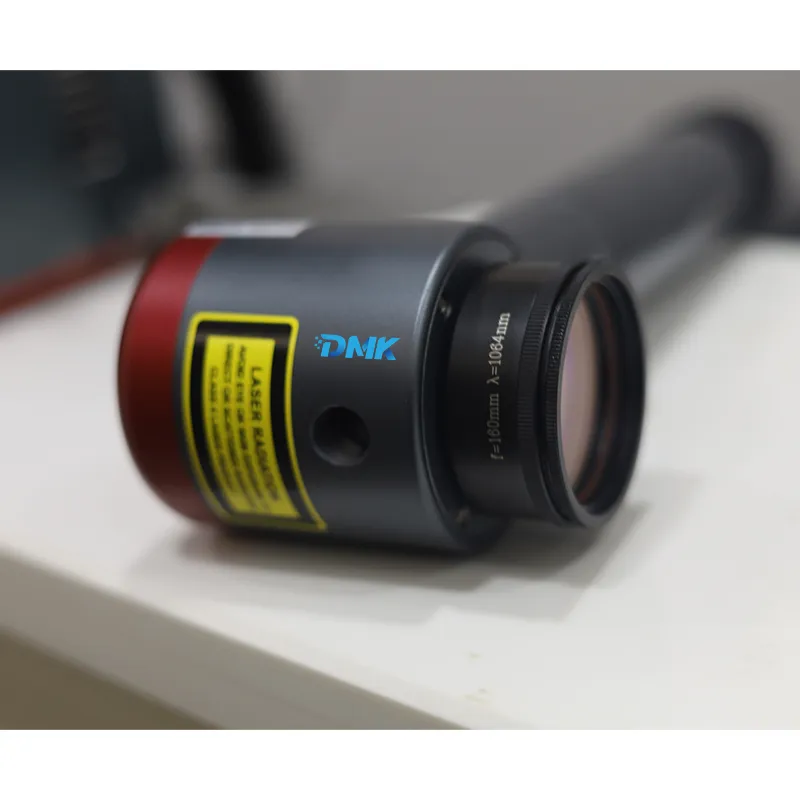

| Field mirror focal length(mm) | 160mm( Optional 210mm/254mm/330mm/420mm) |
| Depth of focus | About 5 mm |

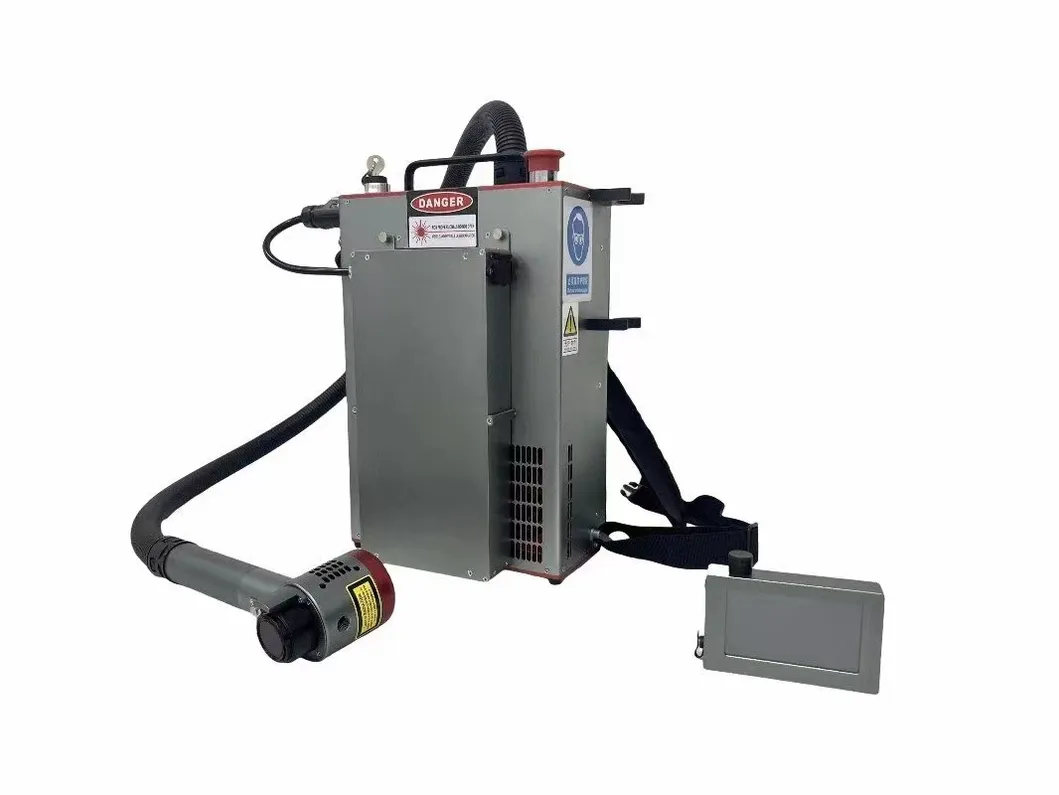

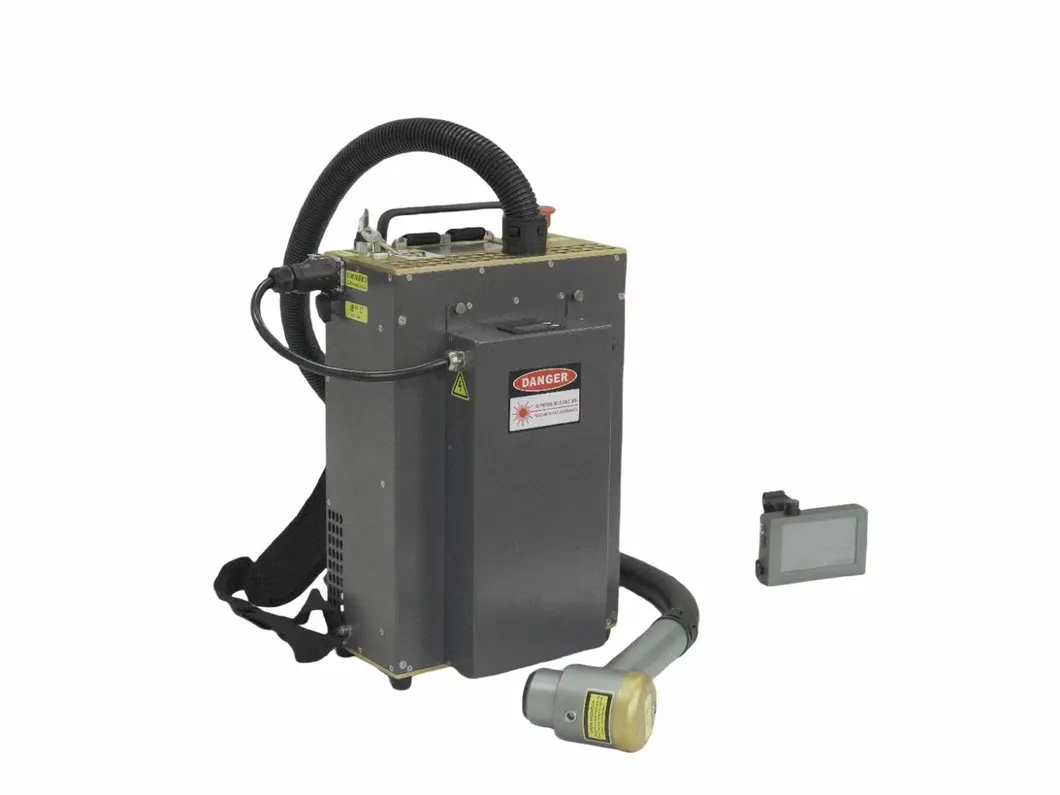

The laser cleaning equipment is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.
Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.
The system operates on a standard AC220V±10% (50/60Hz) power adapter with a DC48V output. There is also an optional battery configuration that supports continuous 100W operations for about 80 to 90 minutes.

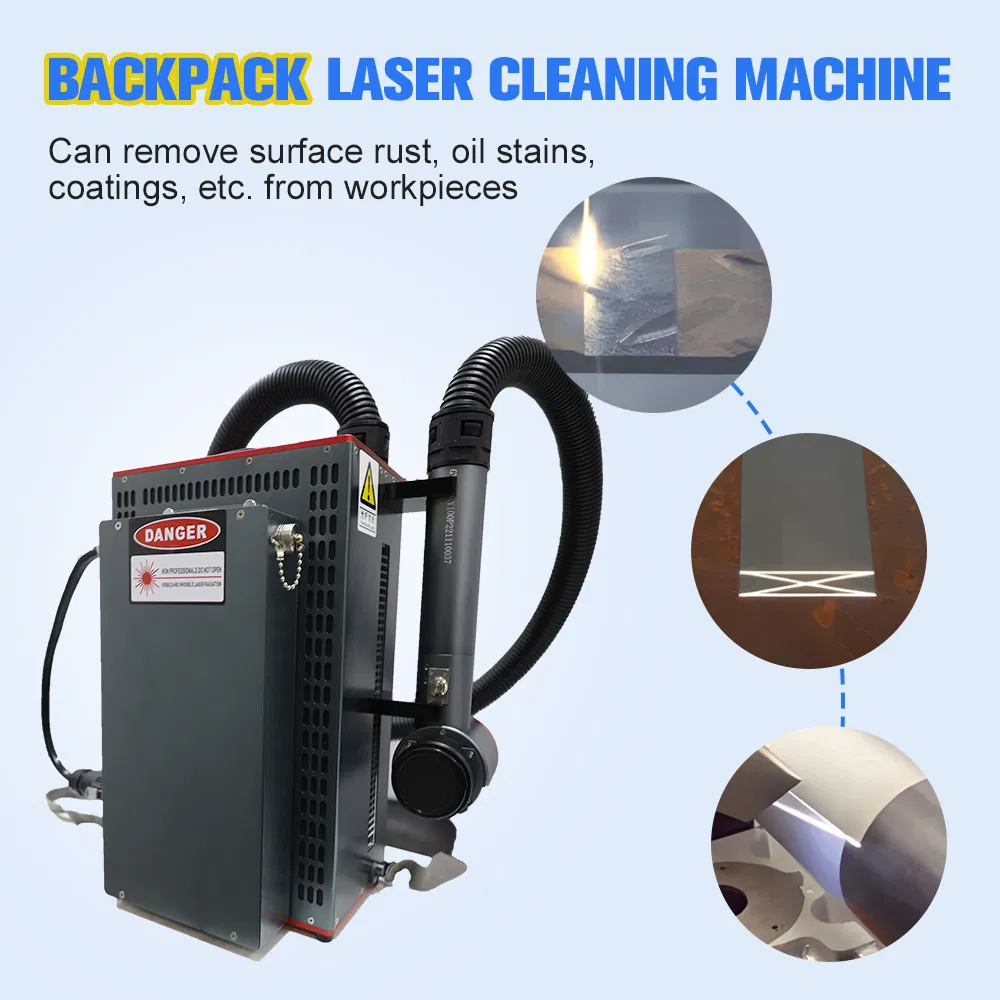

The machine is designed to remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from various substrates without causing damage to the base materials.

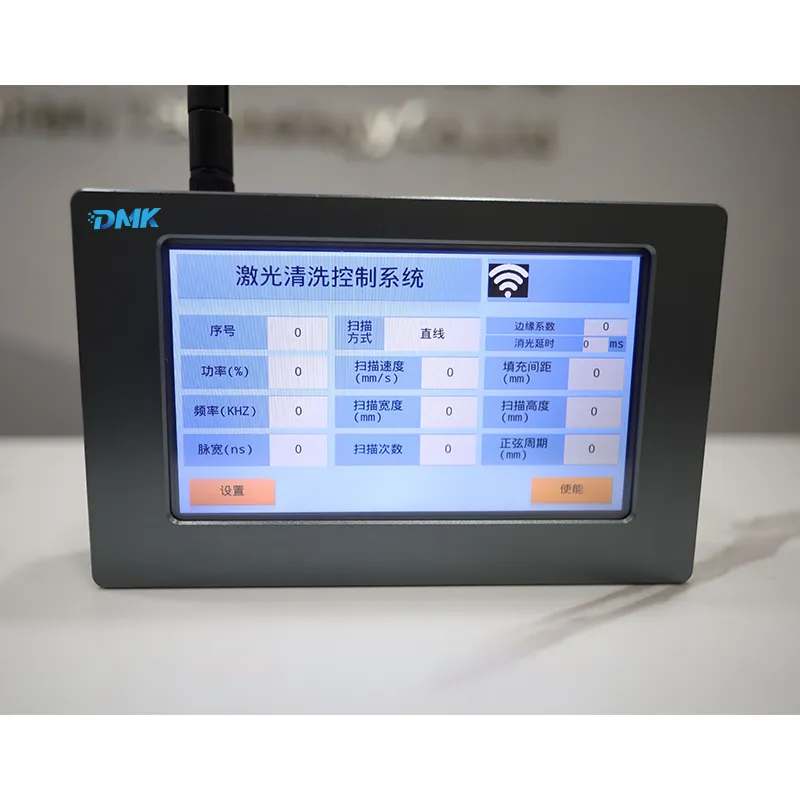

It has an adjustable scan range from 0mm to 100mm. The biaxial support accommodates 9 distinct scanning modes, allowing a maximum scanning speed of up to 10 meters per second.

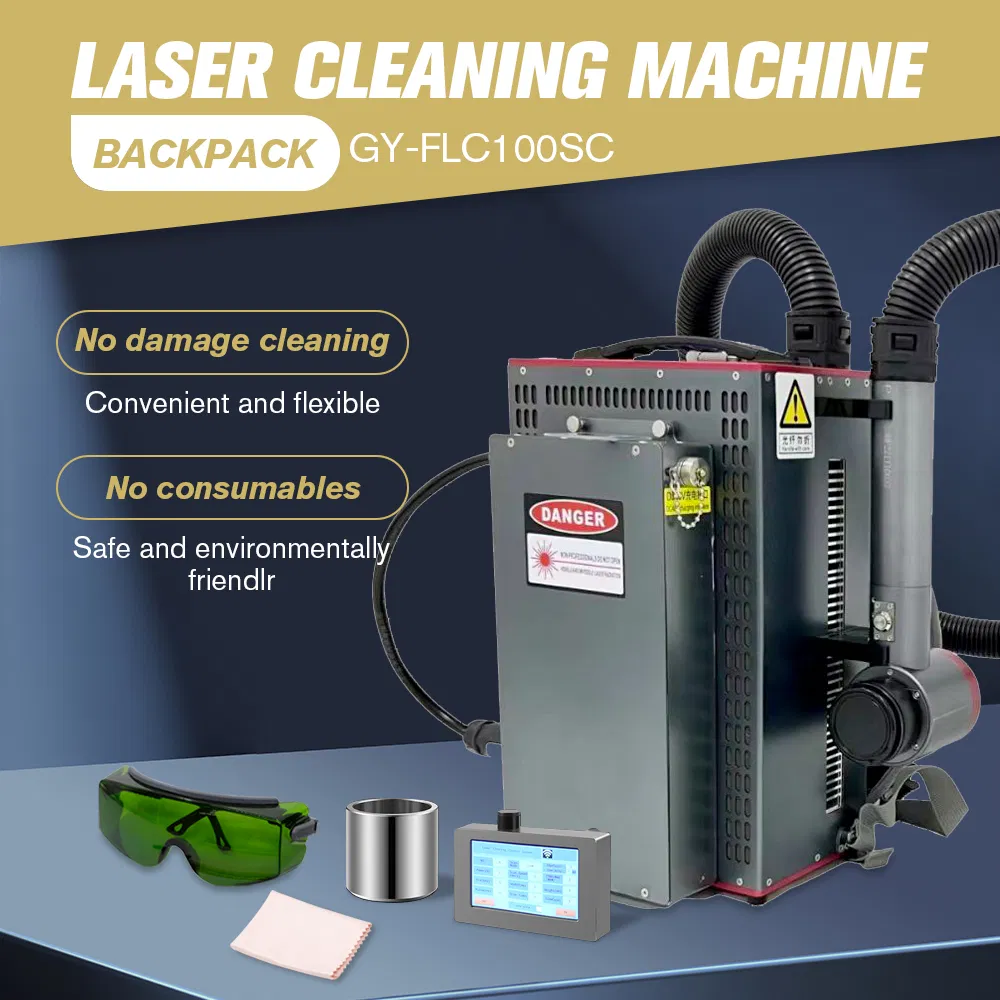

Unlike traditional systems, laser cleaning requires no chemical reagents, no medium, no dust, and no water. It is a non-contact cleaning technology that avoids substrate wear and provides high-speed, environmentally-safe, and highly targeted surface treatment.
No, the DPL-100 utilizes an integrated air-cooling mode, which reduces machine complexity, footprint, and maintenance compared to water-cooled setups.
