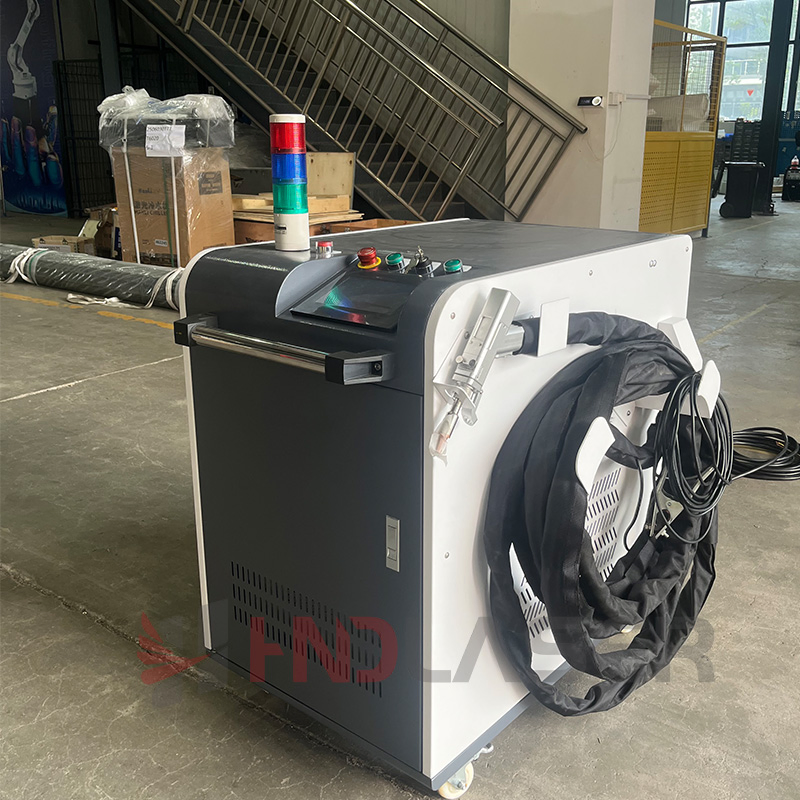

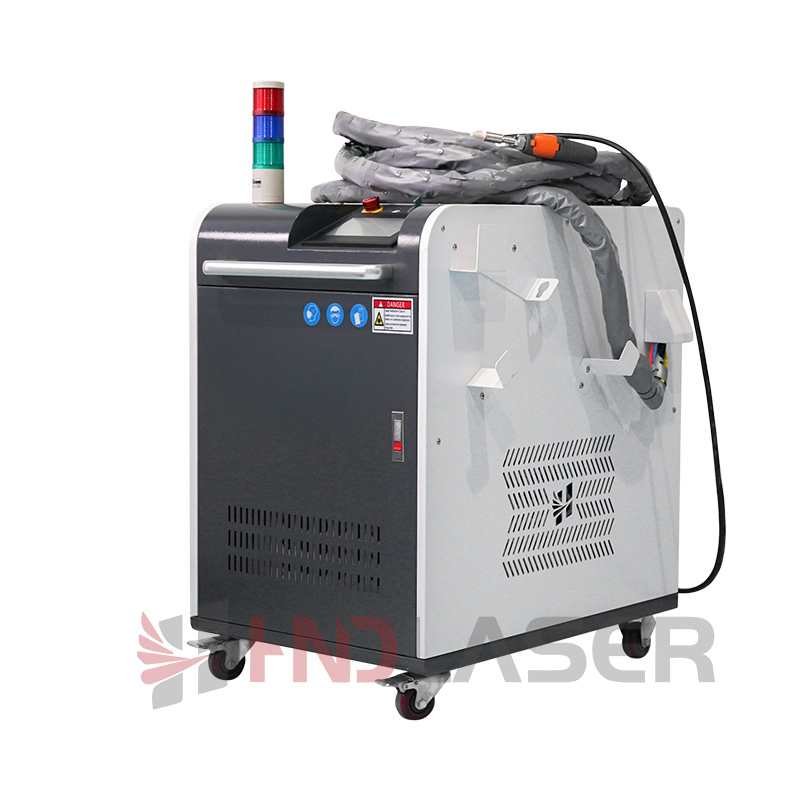

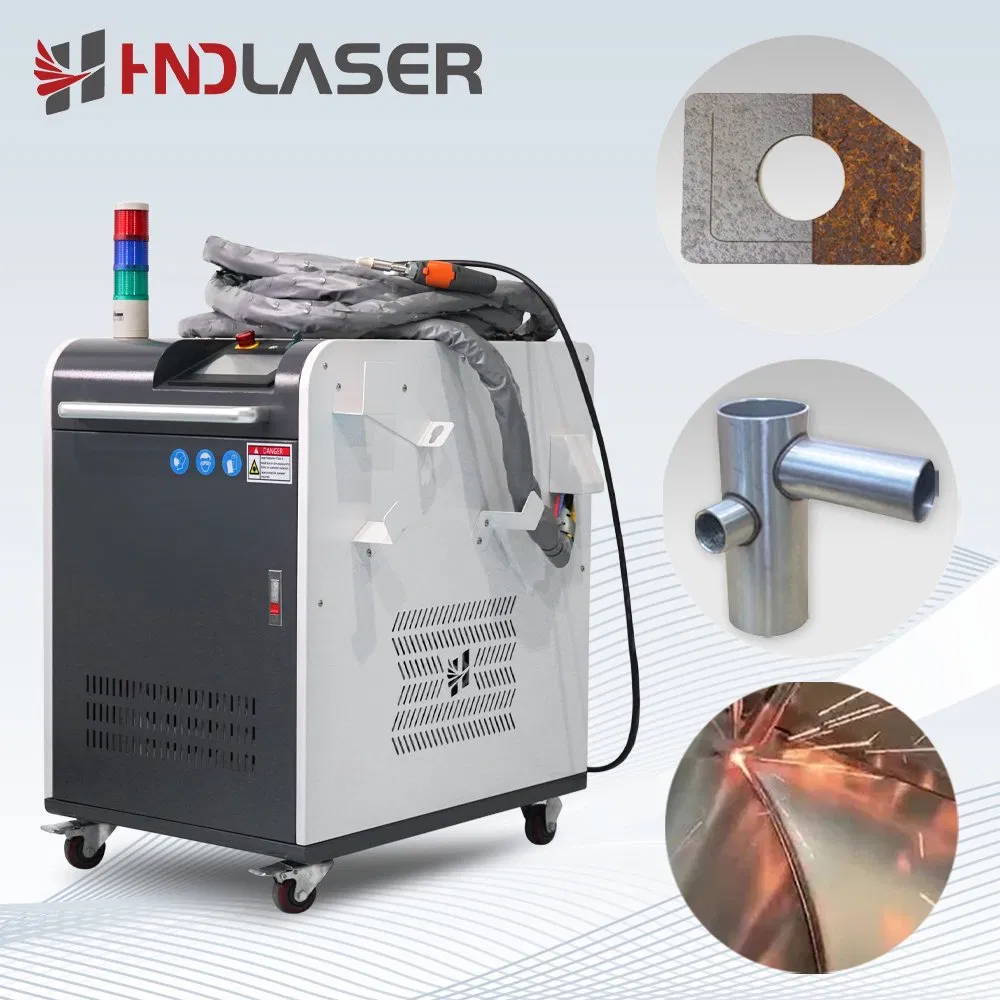

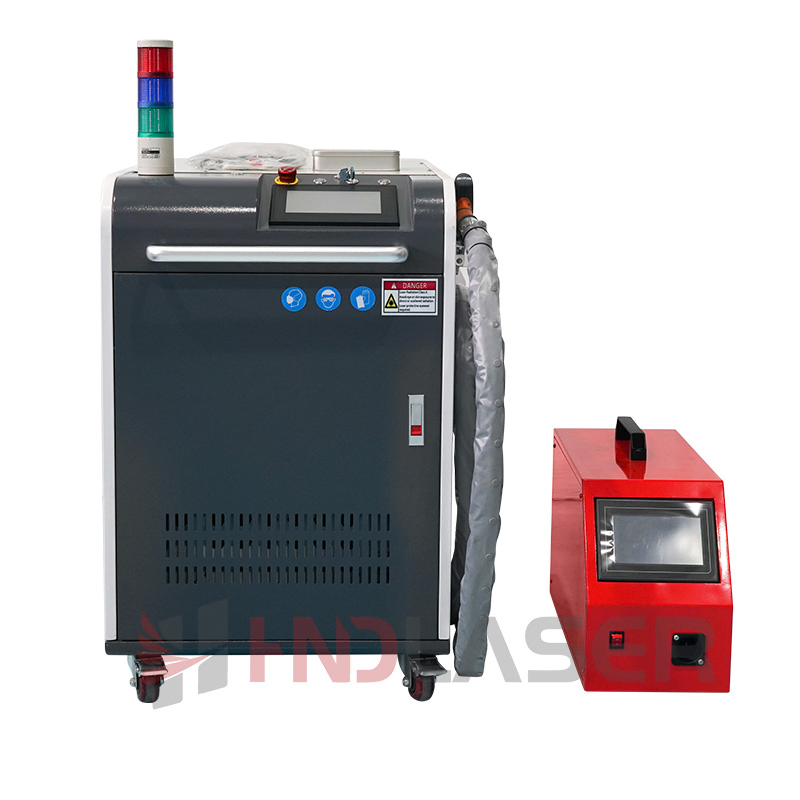

1500W 2000W 3000W Mini Handheld Aluminum Metal Hardware Portable Gun Lazer Welder Cleaner Fiber Laser Cleaning Welding Soldering Cutting Machine 3 in 1 Price

Customization: Available
After-sales Service: 24 Hours Online Service
Warranty: 1 Year

Product Description

Experience the ultimate in laser welding with our SGS-certified machine, a testament to our commitment to quality and excellence.
(Tailored solutions to meet your unique requirements)

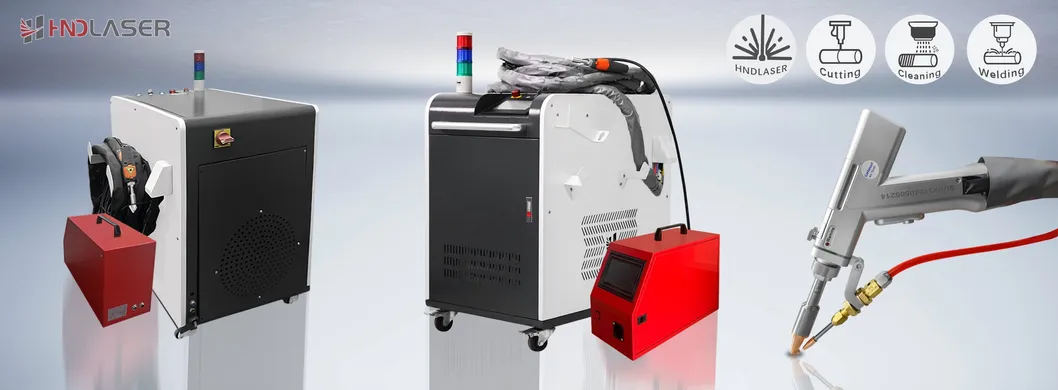

Fiber Laser Cleaning Welding Soldering Cutting Machine

Step into a realm of unmatched assurance with our high-power laser welding machine, gloriously endorsed by the prestigious SGS certification. This hallmark of excellence guarantees our equipment's superior mechanical performance, while rigorously adhering to global safety and stability standards. For discerning business owners, dedicated managers, and skilled operators, this is more than just a certification-it's a steadfast promise of exceptional reliability and unwavering safety, ensuring flawless operation and absolute peace of mind with every use.

Technical Specifications

Model NO.
NW1500/2000/3000S
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Laser Power
1500/2000/3000W
Laser Type
Cw Fiber Laser
Wavelength
1080nm
Fiber-Optic Wire Length
10m
Wobble Type
Single Wobble
Electricity Demand
AC220V
Working Life
100, 000 Hours
Cooling Method
Water Cooled
Functions
Welding, Cutting, Cleaning
Optical Fiber Length
10m
Language
English/French/Czech/Spanish, and Over 20 Other Languages
Certificate
FDA/CE Certificate
Advantages
Low Power Consumption, Easy Maintenance
Transport Package
Wooden Box
Specification
1000*650*1100mm
HS Code
8456110090
Production Capacity
3000/Y
Package Size
75.00cm * 120.00cm * 153.00cm
Package Gross Weight
220.000kg

Product Highlights

Wide range of welding materials: carbon steel, stainless steel, aluminum alloy, brass, copper, pickling sheet, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy and other metal materials.

  • 1 Easy to move The volume of the whole machine is less than 1m³, and the weight is light: 160Kg.
  • 2 Easy to hold The welding torch head is small in size, stainless steel body, light in weight: 700g.
  • 3 Precise and stable The laser control system is precise, the beam is stable, and the weld quality is consistent.
  • 4 High safety performance 7-inch large screen interface, infrared sensor on the gun head grip, safe operation.
  • 5 High efficiency and high quality The operation is simple, the welding speed is fast, the welding forming effect is good, the welding seam is beautiful, and no secondary processing is required.
  • 6 Low energy consumption and long life Adaptive fan speed regulation, the best laser life and energy consumption ratio.
  • 7 Patent appearance Unique appearance patent design, magnesium aluminum alloy shell, good toughness and high strength.

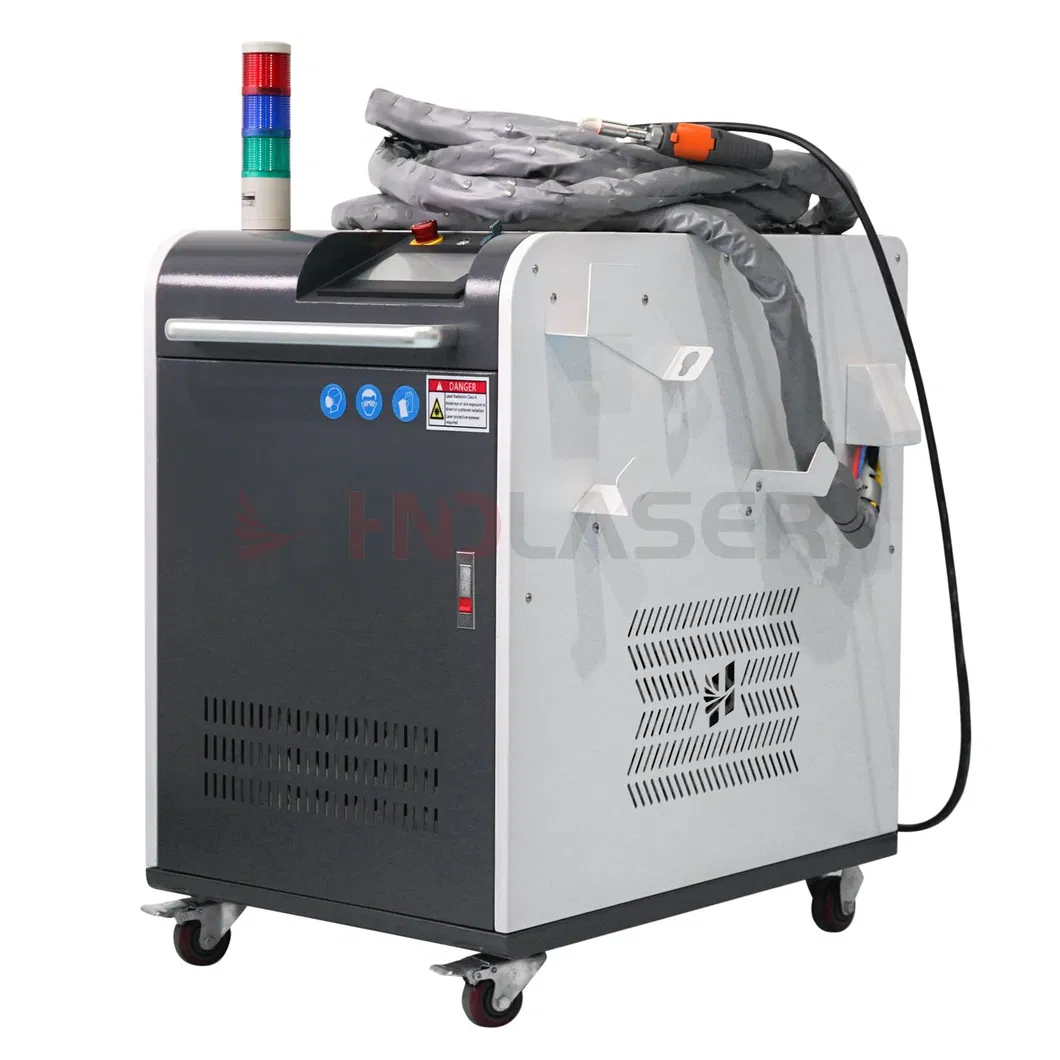

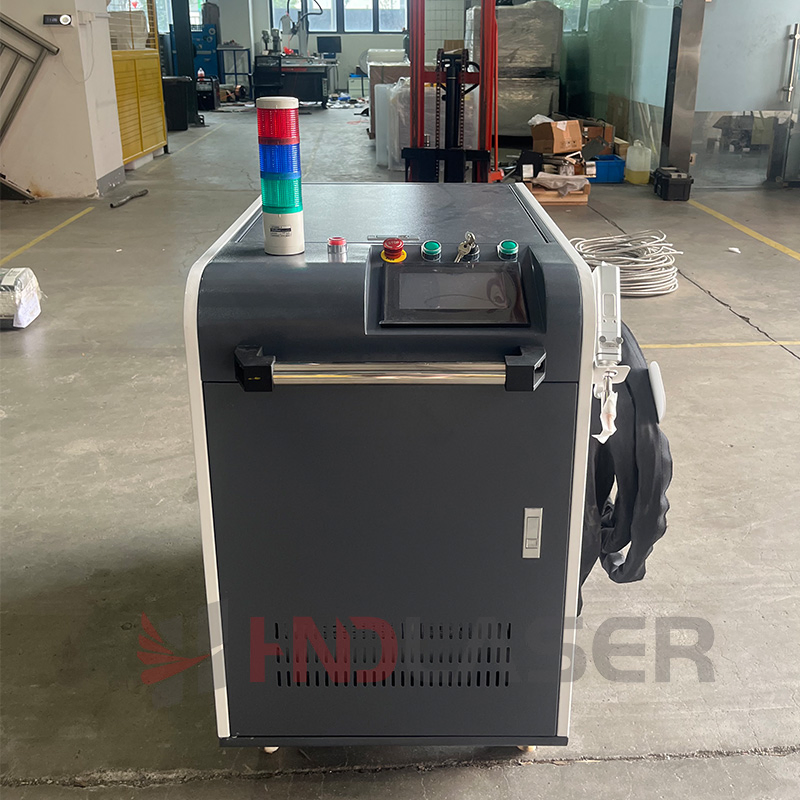

Laser Welder Machine Details

Main Features

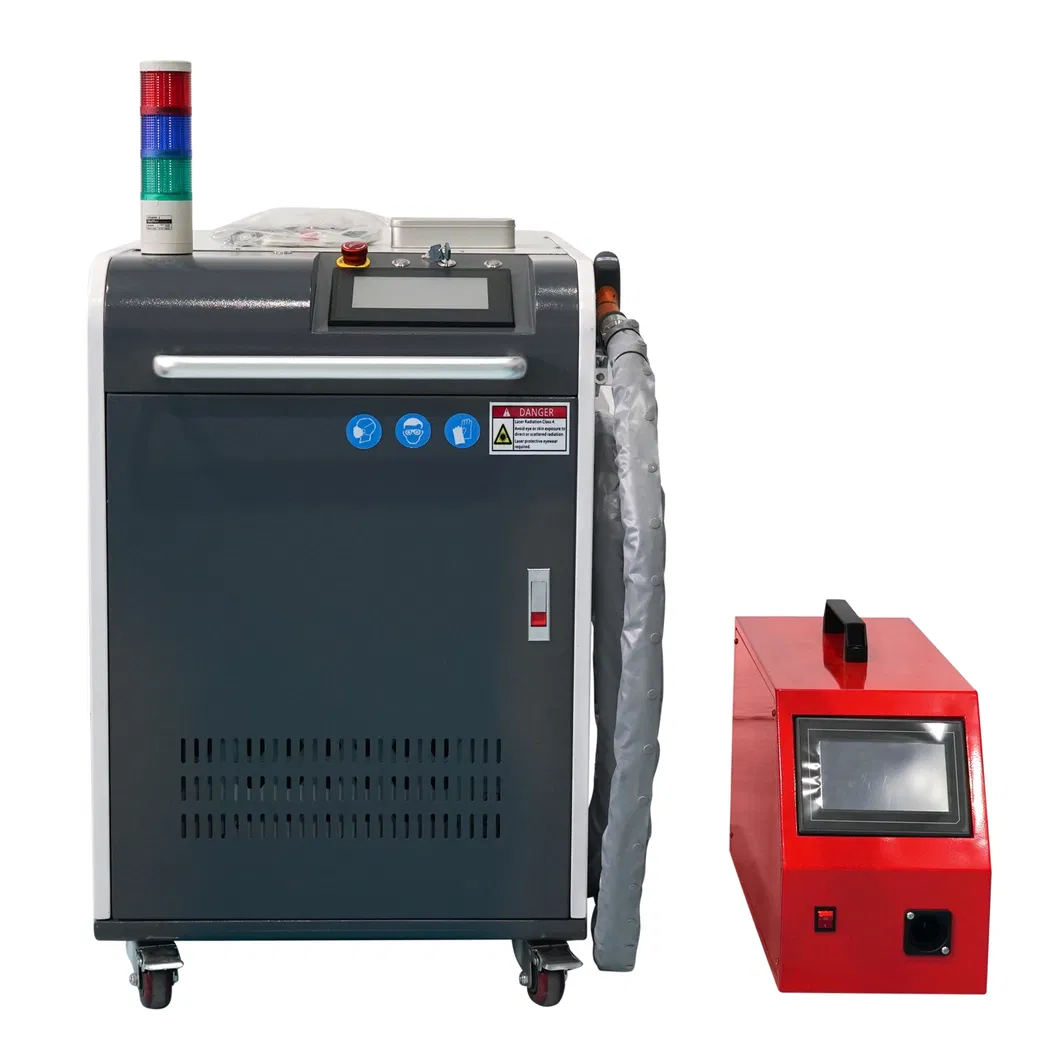

Laser Machine Main Features

Industry-Leading Partnerships

By partnering with industry titans such as SCHNEIDE, PILZ, OMRON, MEANWELL, SMC, and WEIDMULLER, we ensure our equipment operates with unmatched stability and reliability.
  • 3-in-1 Laser Capability Seamlessly merging the essential capabilities of welding, cutting, and cleaning. Enjoy swift transitions between applications with no need to swap the gun head or torch.

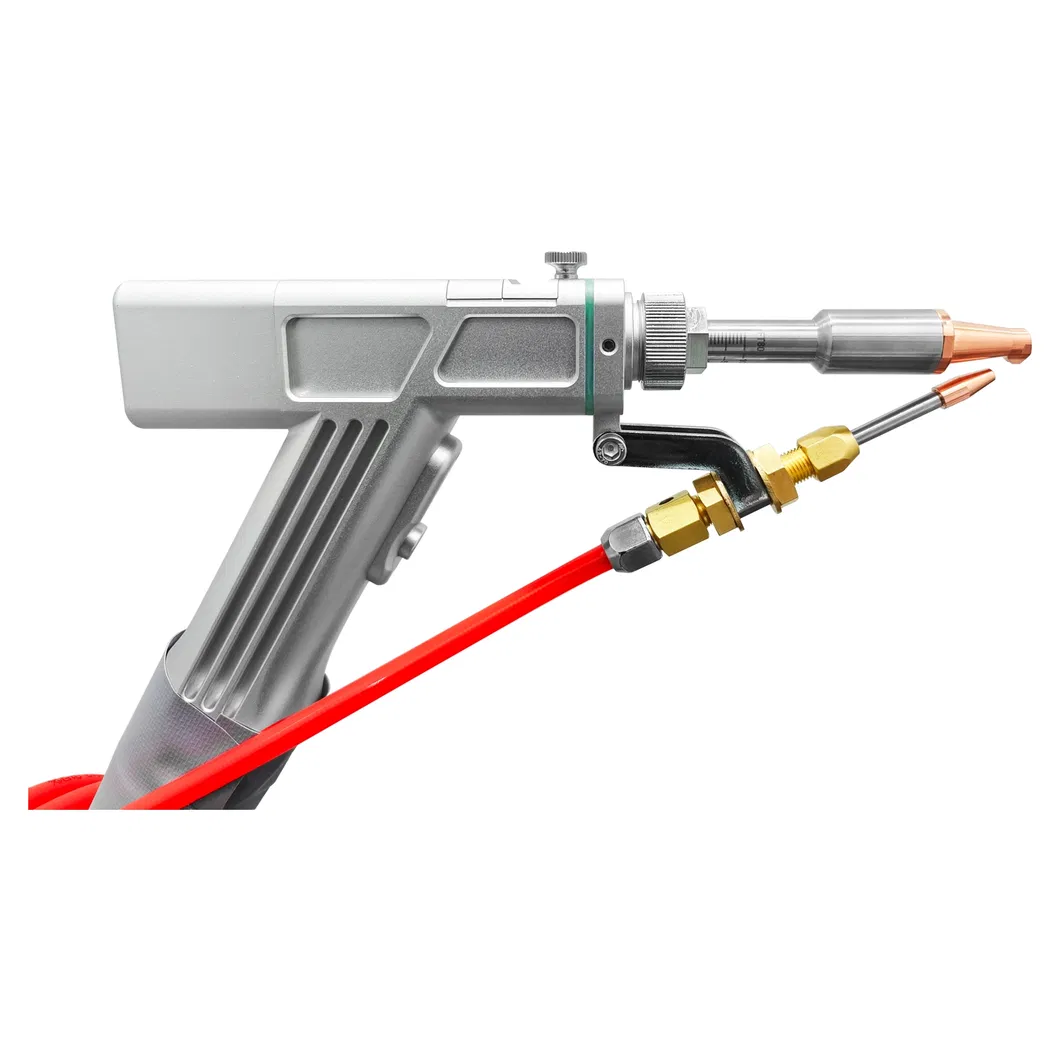

  • Lightweight Torch Engineered for optimal ease and flexibility, our torch, weighing just 0.7KG, ensures reduced operator fatigue.
  • Modular Structure Design Simplifies troubleshooting and maintenance, allowing for quick identification and resolution of module-specific issues.
  • MIG Wire Compatibility Compatibility with standard MIG wires eliminates the need for specialized laser wires, delivering enhanced flexibility.

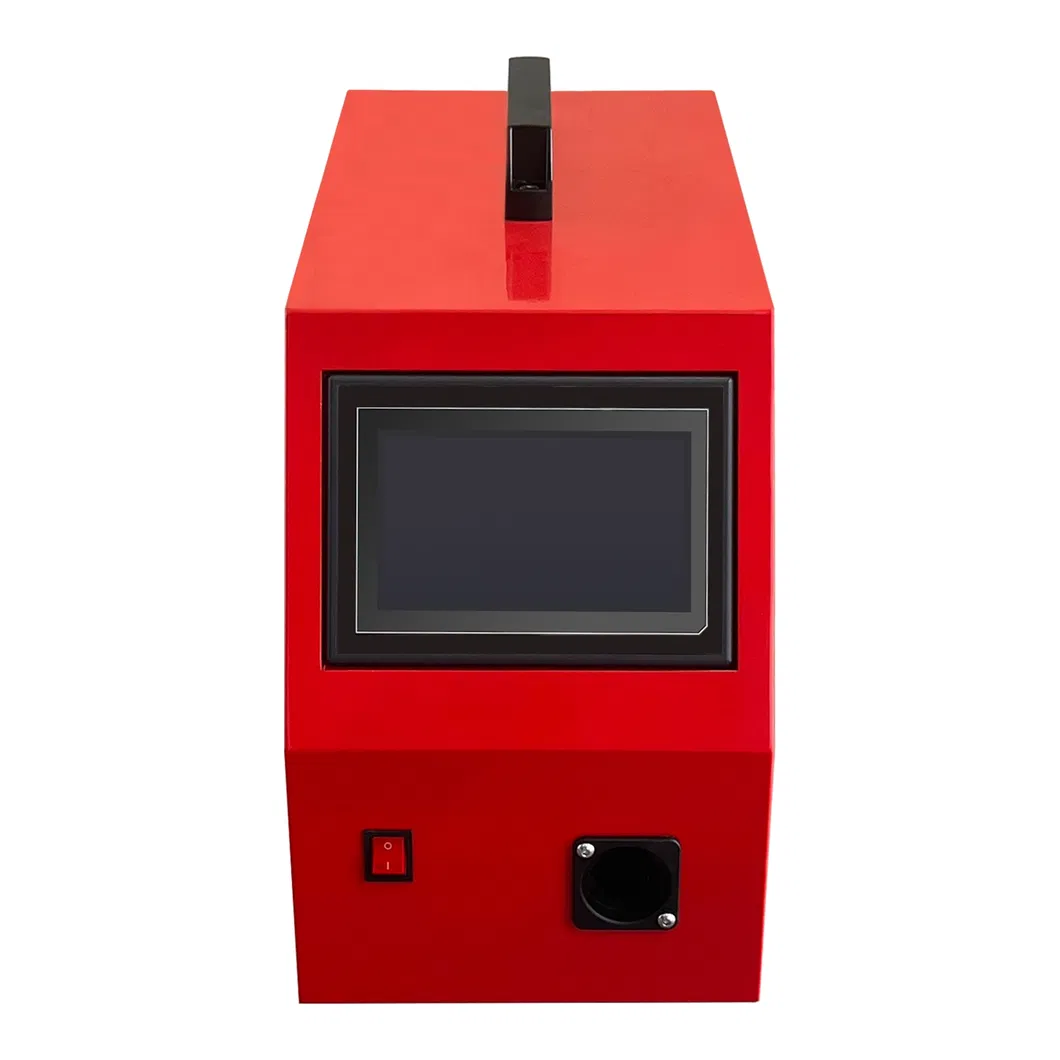

  • Automatic Wire Feed System Operators can achieve hands-free operations, ensuring consistent, superior-quality welding results.

Maximum Welding Thickness

Power Material Category Stainless Steel Carbon Steel Galvanized Sheet Aluminum
1500W Max. Welding Thickness 3mm 3mm 3mm 3mm
2000W 5mm 5mm 5mm 4mm
3000W 7mm 7mm 7mm 5mm
100% penetration with one-sided welding

Advantages & Accessories

Standard Package List

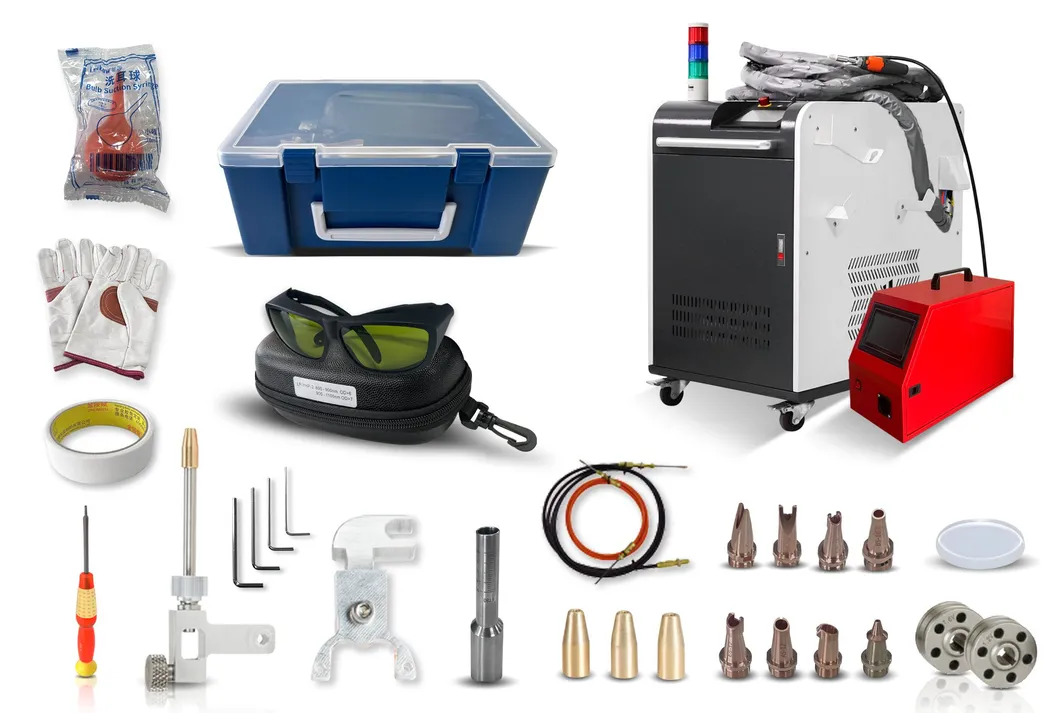

Laser welding machine package list
Replacement (parts) Quantity
Laser welding machine1
Laser torch/gun1
Auto wire feeder1
Wire feeding wheel4
Wire feeding hose1
Nozzle1 kit
Scale tube1
Wire guide tube1
Protective lens10
Google1
Gloves1
Tools box1
Air blower1
Traceless tape1
Screwdriver1
Wrench1 kit
Wire roller - SS1

Technical Parameters

NO. Project Parameter Details
1Model numberNWS
2Laser power1500W / 2000W / 3000W
3Laser levelClass IV (IEC 60825-1)
4Laser typeCW Fiber Laser
5Wavelength1080 nm
6Fiber-optic wire length10 m
7Interface typeQBH
8Wobble typeSingle wobble
9Maximum wobble5 mm
10Cooling methodWater cooled

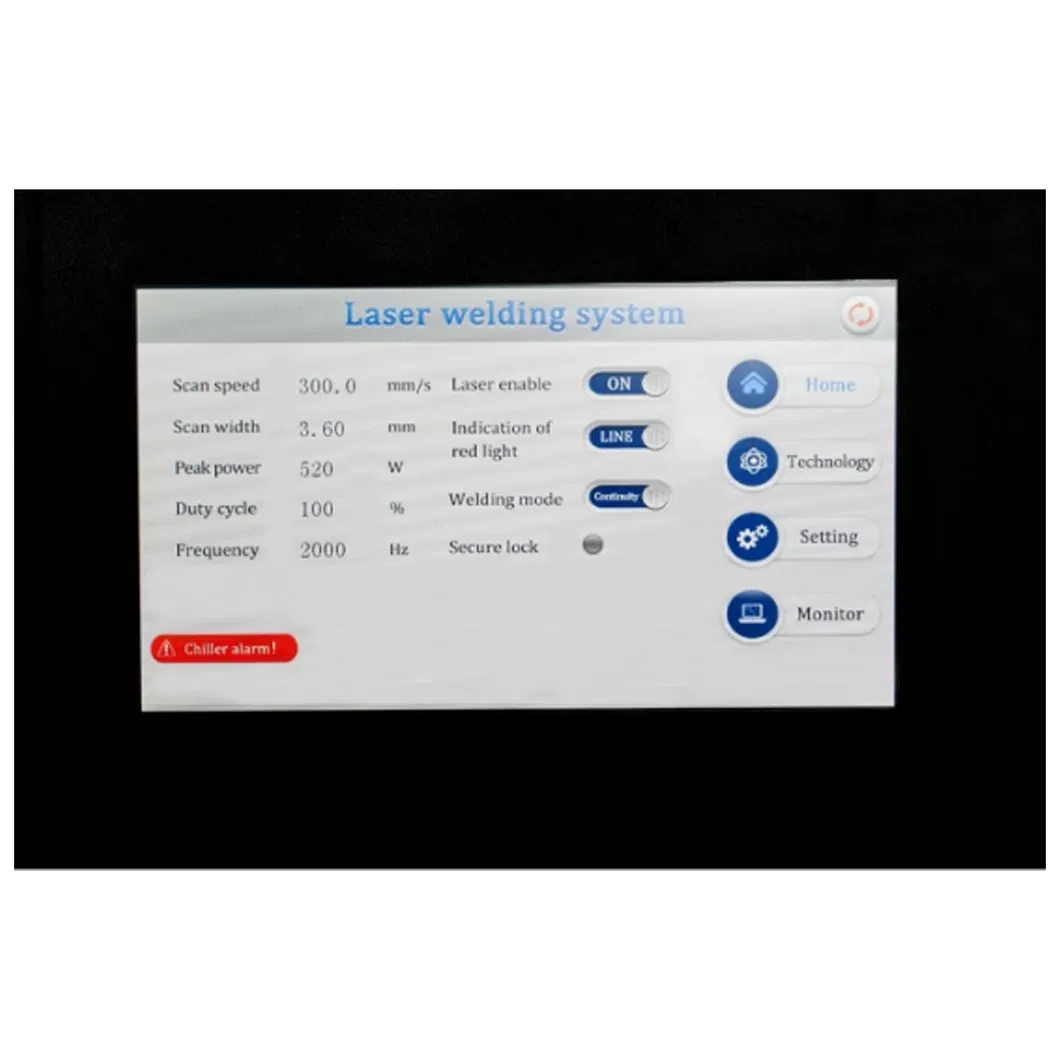

11Display7-inch capacitive touch screen
12LanguageMore than 20 languages
13Temperature0-45ºC
14Power consumption7000 W / 9000 W / 14000W (Max)
15Electrical requirementL/N/PE 100 - 380 VAC, 50/60 Hz

Materials & Reactions

Materials Reaction Type
Metal Stainless steel √√
Aluminum
Anodized aluminum √√
Brass
Nickel alloy √√
Copper
Galvanized steel
Gold, silver, nickel, platinum √√
Carbon steel √√
Titanium √√
Gold

Excellent Reaction: √√      Good reaction: √      Poor reaction: -

Applications

Welding Applications Overview

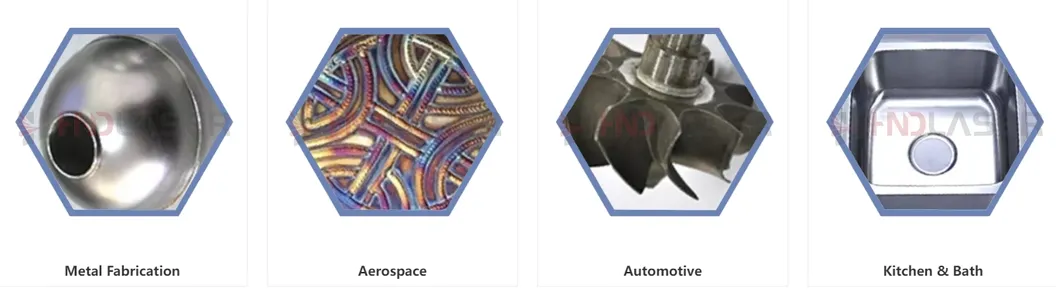

Welding Material Application Samples

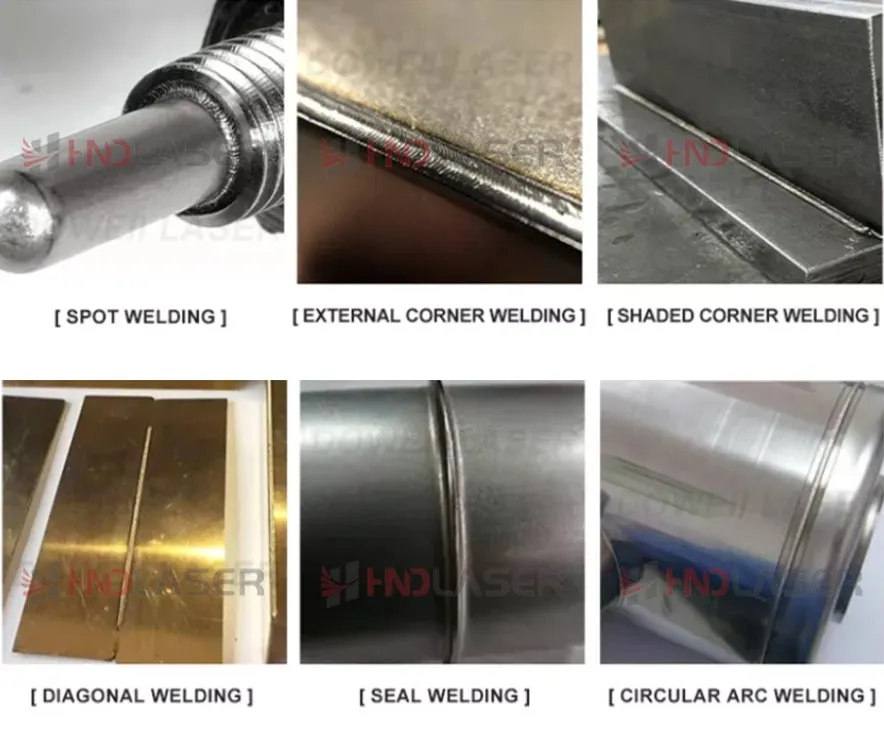

Diverse Welding Shapes and Joints

Focus On Details

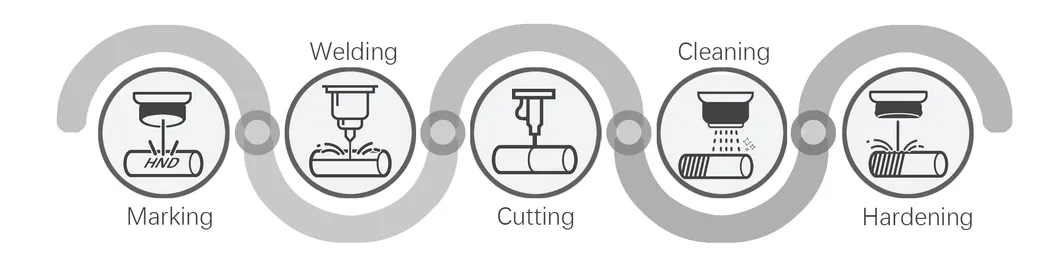

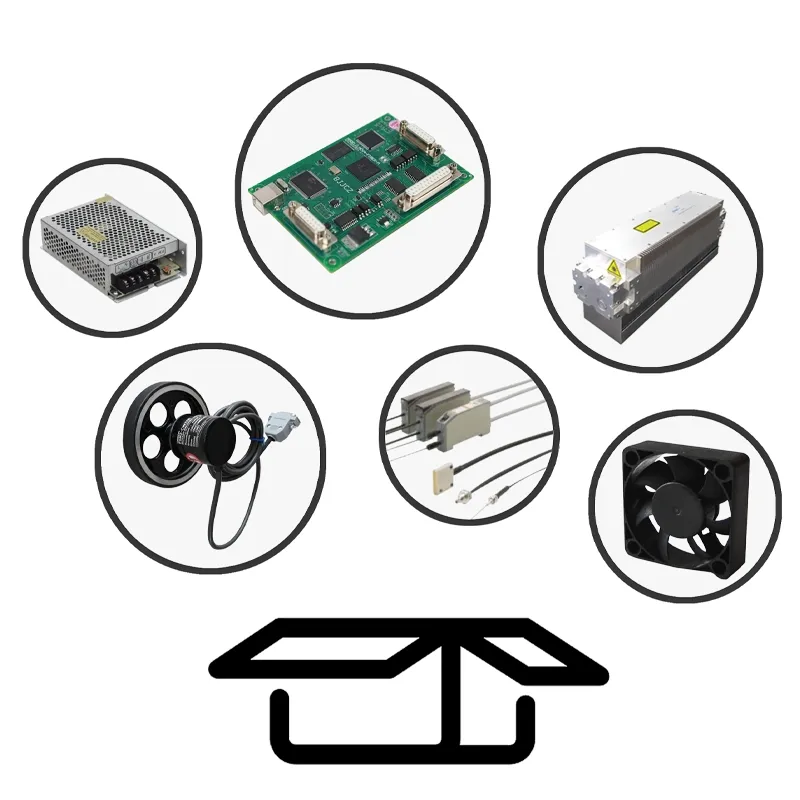

Focus on Laser Components

Exhibitions & Fairs

Industrial Exhibitions and Trade Fairs

Plants & Teams

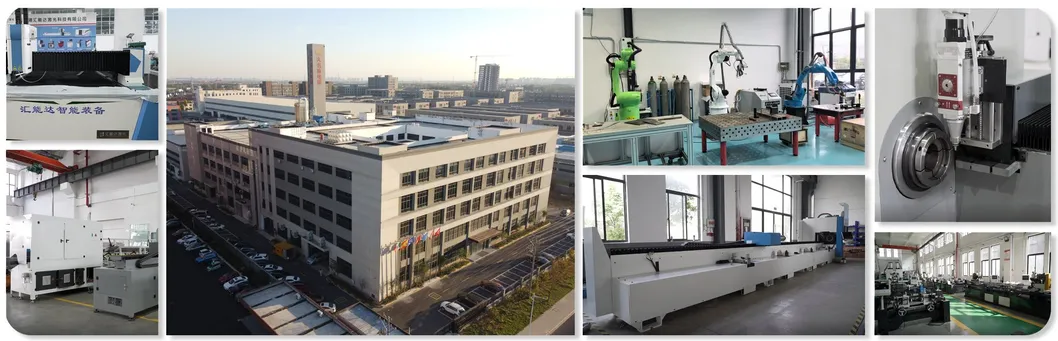

Production Plants and Engineering Teams

Certification Display

Endorsed by a renowned third party, we extend a comprehensive machine warranty service. Our dedicated team stands ready to support any inquiries or needs you may have.

Quality and Safety Certifications

Frequently Asked Questions

Q1: What about the warranty period?
A1: Rest assured, if any challenges arise with the main components of the machine (excluding consumables) during the warranty period, they will be swiftly replaced or repaired at no additional cost to you.
Q2: I'm uncertain about the perfect model for my application. Could you assist in making the right choice?
A2: Of course! To provide you with the best guidance possible, kindly share: (1) The specific type of material you intend to work with. (2) The thickness specifications of the material in question. (3) The size you envision for the weld seam.
Q3: Could you elaborate on the payment terms?
A3: We offer a variety of flexible payment methods including TT, Western Union, PayPal, LC, and even Cash, ensuring convenience for you.
Q4: Are CE certification and other necessary clearance documents provided?
A4: Certainly, all necessary original documentation is possessed. After shipping, the CE document, a detailed packing list, commercial invoice, and the sales contract will be promptly provided to ensure smooth customs clearance.
Q5: What steps should I take if I'm not familiar with the machine's operation or face issues post-receipt?
A5: We supply a comprehensive user manual accompanied by detailed images and a USB disk to guide you methodically, and offer monthly updates keeping you abreast of any enhancements.
Q6: What is the procedure to obtain a sample and verify the quality and results of the product?
A6: Simply dispatch your sample to us, and a complimentary test will gladly be performed to demonstrate the product's efficacy.
