Overview
Basic Info
Model NO.
GT500
Control Type
Handheld
Warranty
1 Year
Fiber Length
10m
Cooling Method
Air-Cooling
Packing Weight
100kg
Operating Current
16A
Transport Package
Wooden Packing
Specification
690*435*530
Origin
China
HS Code
8456110090
Production Capacity
500 Pieces/Years
Packaging & Delivery
Package Size
80.00cm * 68.00cm * 70.00cm
Package Gross Weight
100.000kg
Product Parameters
| Parameter |
Value |
| Equipment model |
GT-500 |
| Average laser power |
500W |
| Central wavelength |
1064 nm |
| Fiber length |
10m |
| Power regulation range |
10%~100%, adjustable |
| Laser pulse frequency |
20kHz ~ 4000kHz, adjustable |
| Laser linewidth |
X: 5mm ~ 120mm, adjustable
Y: 5mm ~ 70mm, adjustable |
| Field mirror model |
F254 |
| Minimum bending radius of optical fiber |
150mm |
| Instability of laser output |
<5% |
| Cooling mode |
Wind cooling |
| Polarization direction |
arbitrarily |
| Net weight |
56kg (Subject to actual conditions) |
| Laser head |
1.4kg |
| Crate size |
Length * width * height: 813.5mm * 435.5mm * 530mm (subject to actual delivery) |
| Operation type |
Hand-held |
| Supply voltage |
AC 220±10%V |
| Mains frequency |
50/60 Hz |
| Operating temperature range |
0ºC ~ 40ºC |

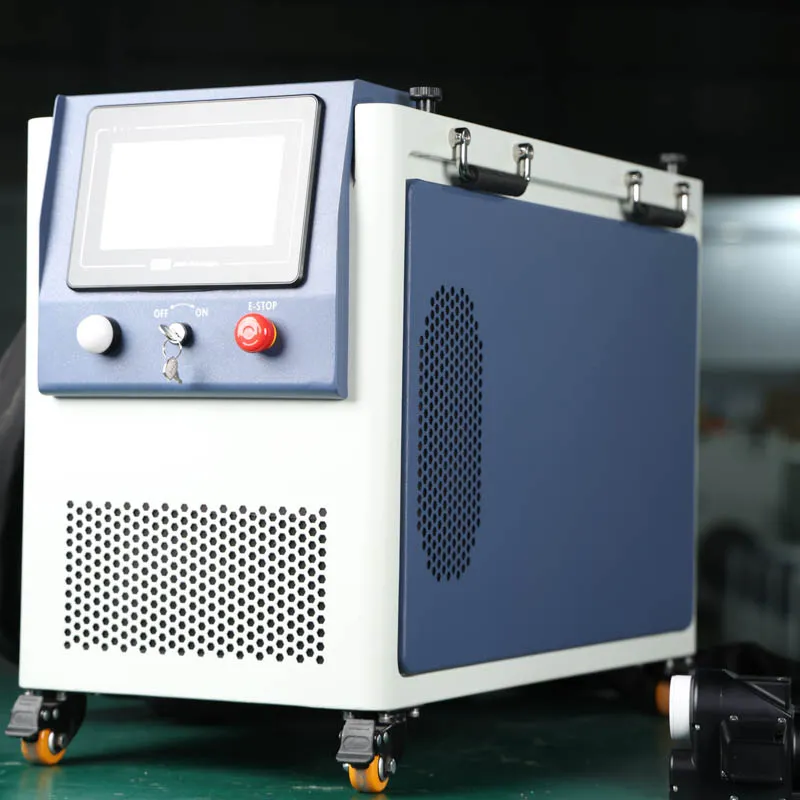

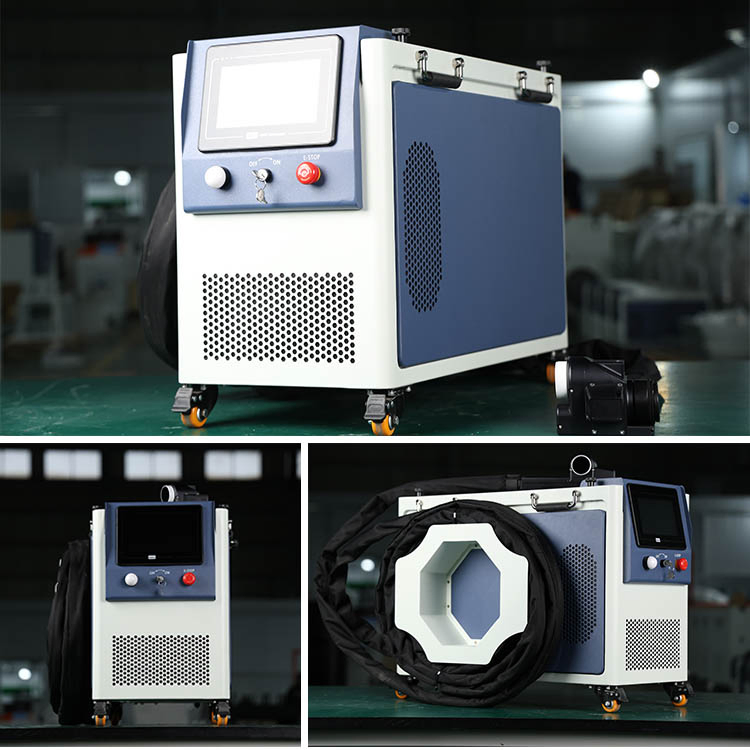

Detailed Photos

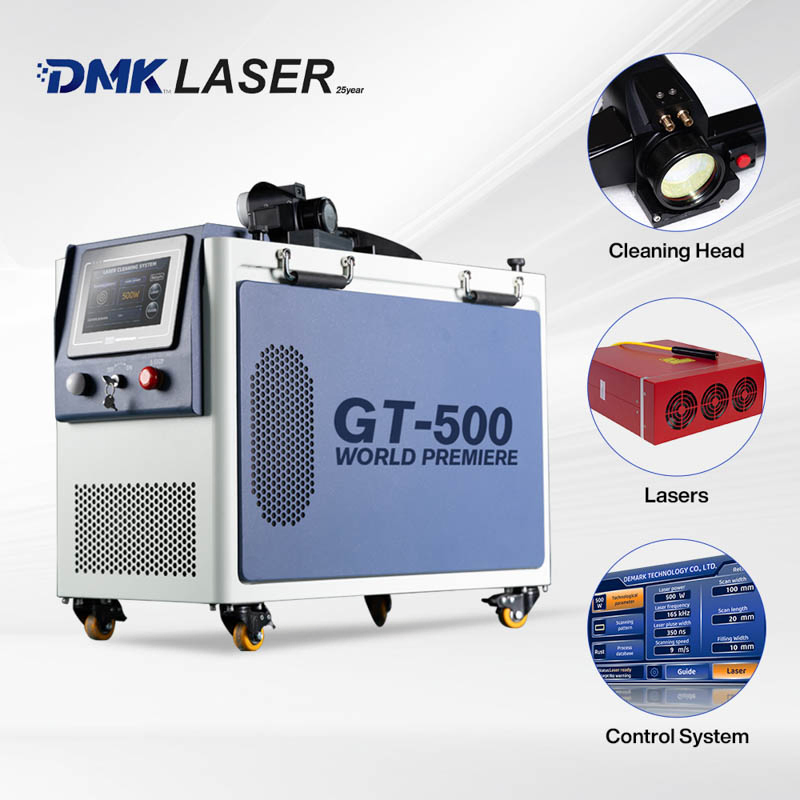

Why choose GT-500 cleaning machine?
🔷
Three-in-one stable heat dissipation:
1. The unique structural design ensures instant response and matching between laser heat dissipation capability and heat generation.
2. Cleaning head heat dissipation device based on thermodynamic/pneumatic design.
3. Integrated package heat dissipation design.
🔷

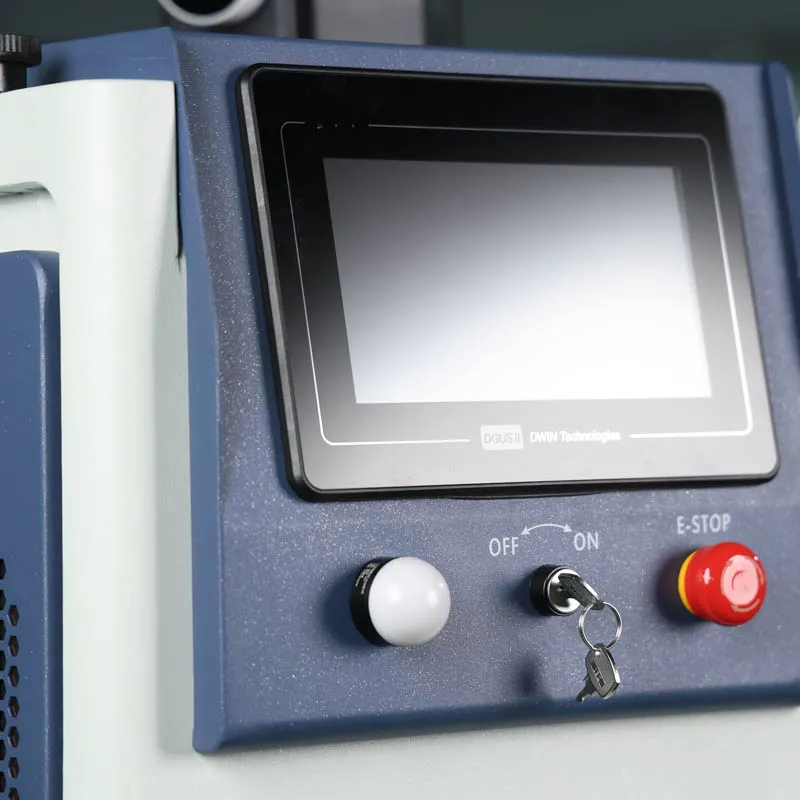

Simple operation upgrade control system:
Supports multiple mode switching, easy and efficient cleaning.
🔷

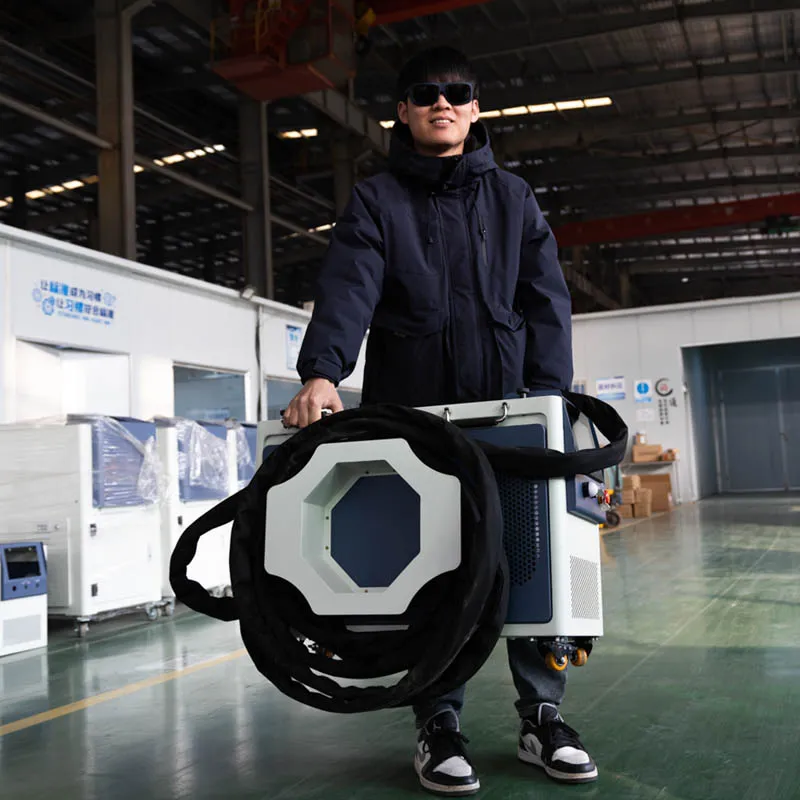

Small and lightweight:
Easily handles indoor and outdoor cleaning work.
Frequently Asked Questions
Q1: What are the primary applications of the GT-500 laser cleaning machine?

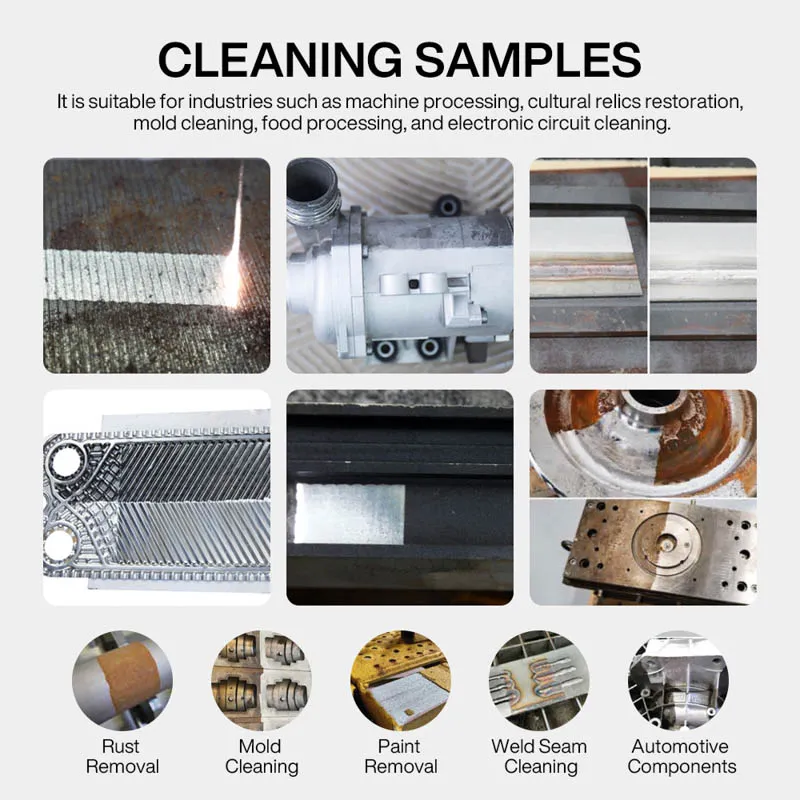

The GT-500 is highly effective for surface treatment, including rust removal, paint stripping, oil removal, and general metal cleaning for steel and stainless steel components.
Q2: How does the air-cooling system benefit operation?
The advanced wind cooling system implements a thermodynamic and pneumatic design, ensuring instant response heat dissipation without needing bulky external water chillers. This makes the unit smaller and lighter.
Q3: Can the size of the laser cleaning beam be adjusted?
Yes, the laser linewidth is fully adjustable: from 5mm to 120mm on the X-axis, and from 5mm to 70mm on the Y-axis, allowing users to customize the cleaning path to fit different surface areas.
Q4: Is the GT-500 suitable for mobile and outdoor cleaning?
Absolutely. With a net machine weight of 56kg and an ultra-lightweight handheld cleaning head weighing only 1.4kg, the GT-500 is specifically designed for flexible and highly portable operation across both indoor and outdoor jobs.
Q5: What is the warranty and reliability of this laser cleaner?
The GT-500 comes with a 1-year warranty. Its laser output instability rate is kept under 5%, ensuring highly reliable, consistent cleaning power over extended periods.
Q6: What power input is required to run the machine?
The unit requires a standard single-phase power supply of AC 220V ±10% at a frequency of 50/60 Hz, drawing an operating current of 16A.
