Free Spare Parts Stainless Steel Aluminum 4 in 1 Soldadura Laser Welder 3000W 2kw Portable Rust Removal Fiber Laser Cutting Cleaning Welding Machine Price 1500W

Basic Info

Model NO.

FW-1500/FW-2000/FW-3000

Technical Class

Continuous Wave Laser

Control

Manual

Power Density

Heat Conduct Welding

Laser Classification

Optical Fiber Laser

Type

Portable Welding Machine

Support Languages

English /Russian/Spanish/French

Functions

Welding Cutting Cleaning

Laser Source

Ipg /Max /Raycus

Fiber Cable

10m/15m

Keywords

4 in 1 Laser Welder

Laser Power

1500W/2000W/3000W

Cooling System

Water Cooling

Laser Head

Cleaning/Cutting/Welding/Weld Seam Cleaning

Wire Feeding Diameter

0.8/1.0/1.2/1.6/2.0

Voltage

220V/380V

Transport Package

Wooden Box

Specification

1300mm*620mm*1200mm

Origin

Shandong, China

4 IN 1 Water Cooling Handheld Fiber Laser Welding Machine for Metal

Welding / Cutting / Cleaning / Pass Cleaning

Wide Compatibility: Optional laser powers of 1500W, 2000W, and 3000W. Capable of welding thicknesses up to 10mm. Custom 6000W welding machine also available.
Four Working Modes: Welding + welding seam cleaning + cleaning + cutting. Simple switching by replacing the copper nozzle and system settings.
Wobble Welding: Adjustable welding width from 1mm to 5mm.
Easy to Use: Pre-set parameters stored in the system help minimize operator training time.

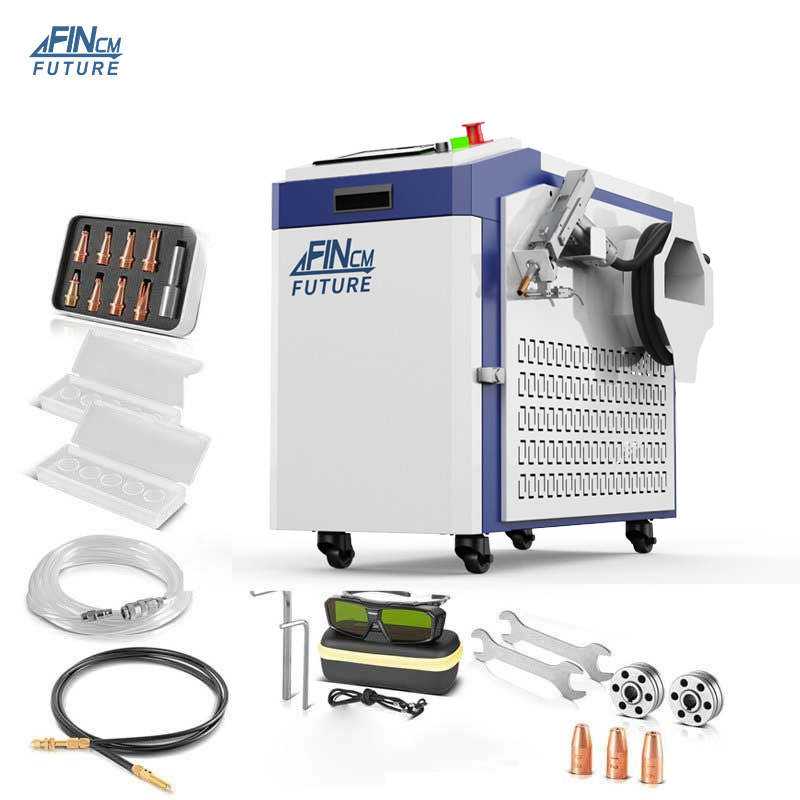

Essential Accessories: Includes a free set of essential consumable parts to keep you running without interruptions.

Free Spare Parts Stainless Steel Aluminum 4 in 1 Soldadura Laser Welder 3000W 2kw Portable Rust Removal Fiber Laser Cutting Cleaning Welding Machine Price 1500W

Specification

Model		FW-1500	FW-2000	FW-3000
Power		1500W	2000W	3000W
Weld Thickness (Recommended)	Stainless Steel	0.5-4mm	0.6-6mm	0.6-8mm
	Carbon Steel	0.5-4mm	0.6-6mm	0.6-9mm
	Aluminum Alloy	0.5-4mm	0.6-6mm	0.6-10mm
	Galvanized Sheet	0.5-4mm	0.6-6mm	0.6-11mm
Welded Materials		Stainless steel, carbon steel, aluminum, galvanized sheet, copper
Laser Wavelength		1080 ± 10 nm
Machine Size		51.18 inch24.41 inch47.24inch / 1300mm620mm1200mm
Laser Power Brand		Max / Raycus / Customized
Mode of Operation		CW
Welding Joint Interface		QBH
Fiber Wire Length		10m/15m/20m
Cooling Method		Water Cooling

Product Details

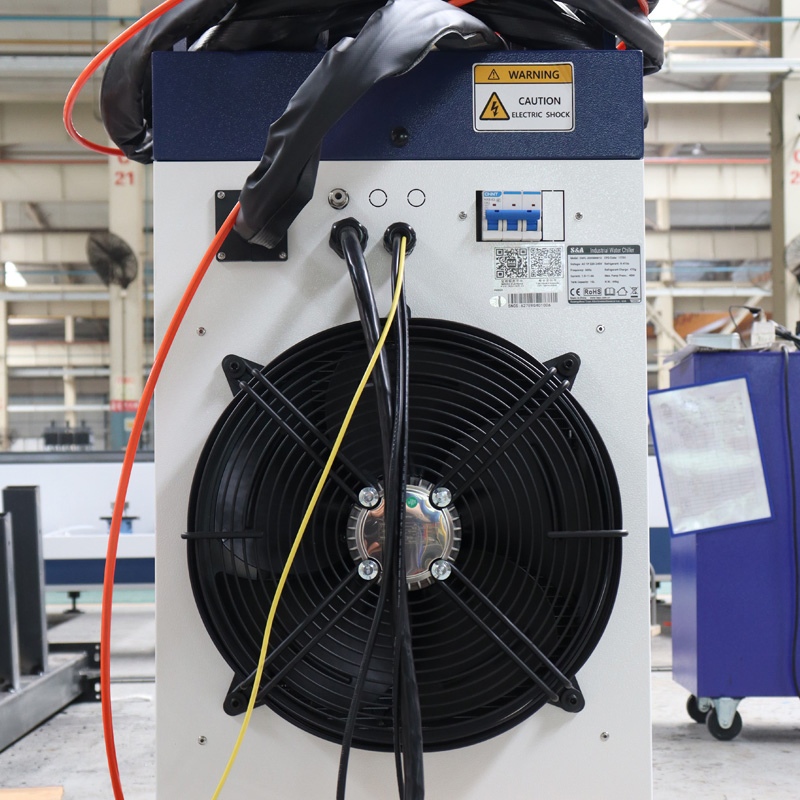

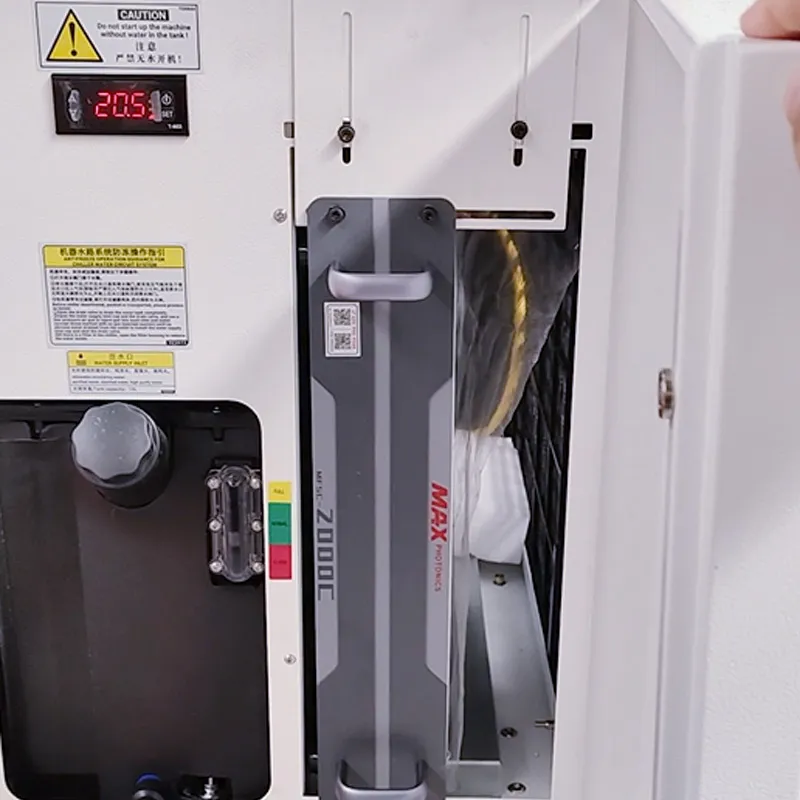

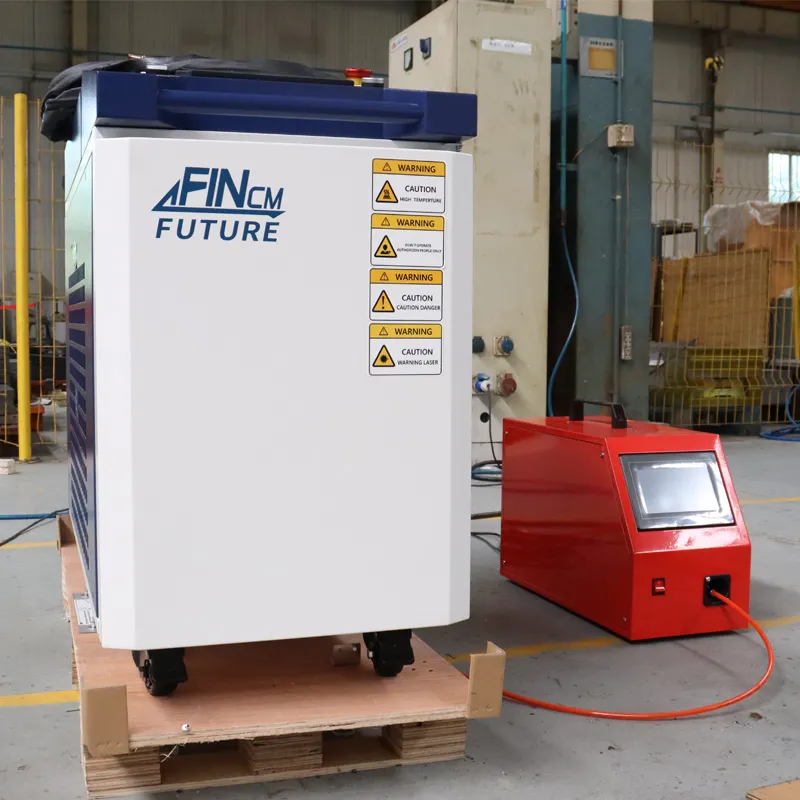

Max Laser Source & S&A Water Chiller

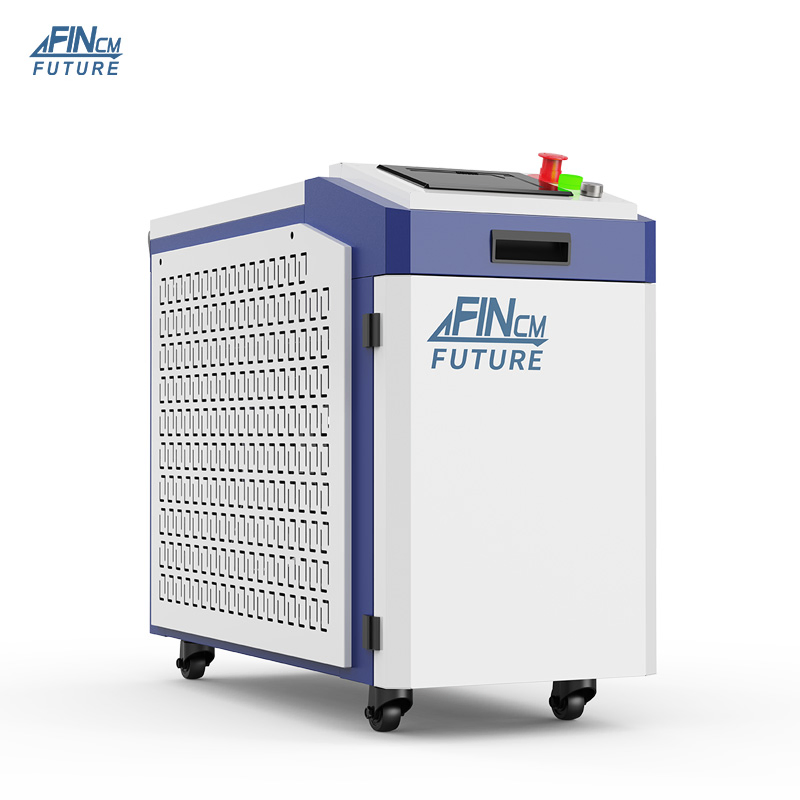

Cabinet-style integrated design.
Combines the laser chiller and handheld laser welder into a lightweight, mobile unit.
Eliminates the cumbersome need for a separate cabinet.

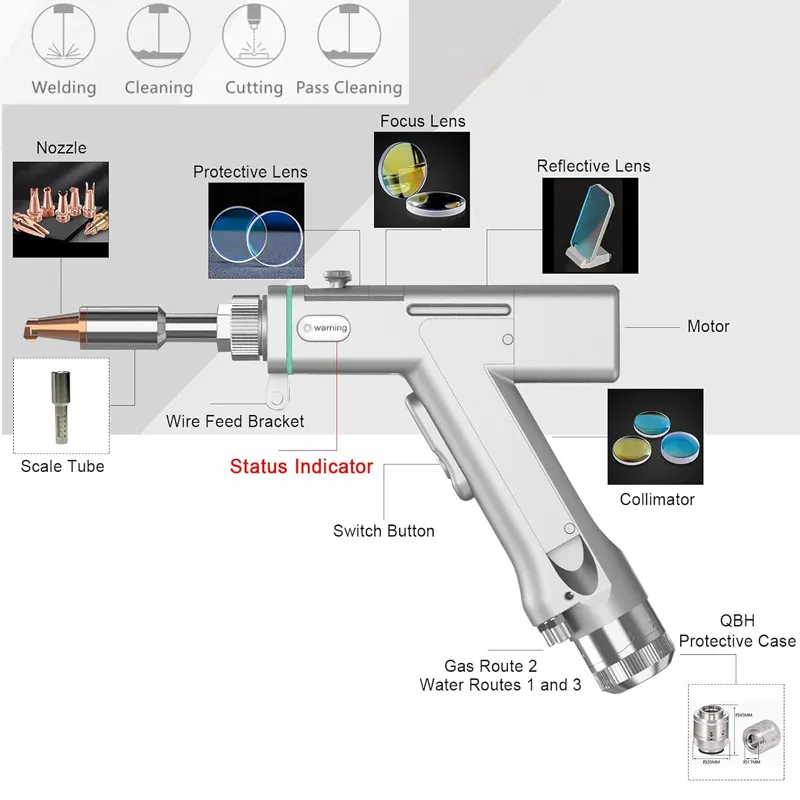

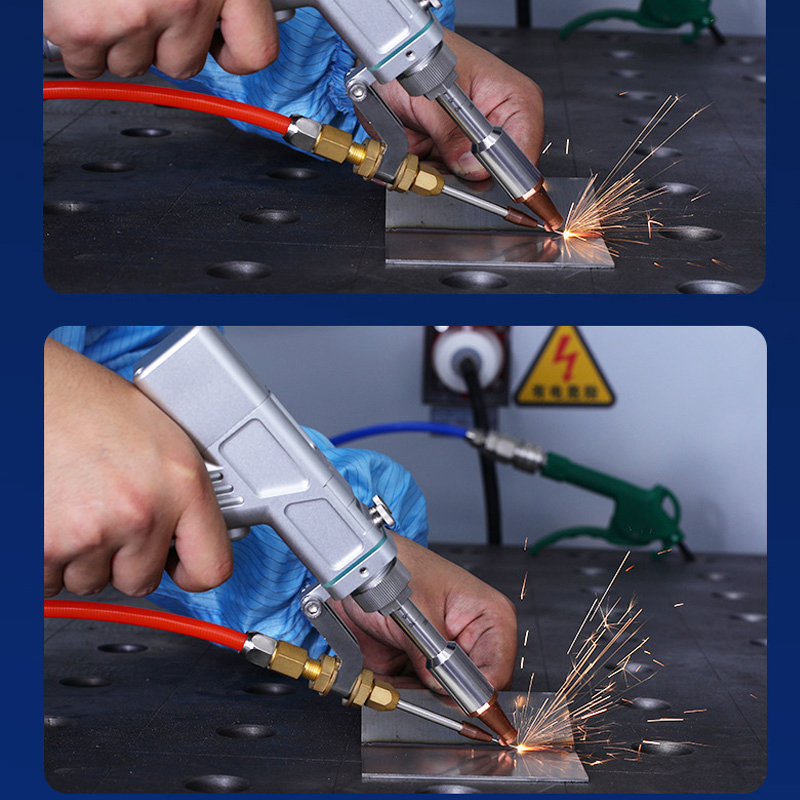

Laser Welding Head (0.7kg)

Smaller size, lighter weight, and flexible operation.
Supports hand-held continuous welding, spot welding, cleaning, cutting, and pass cleaning.
Integrates manual and automatic operation.

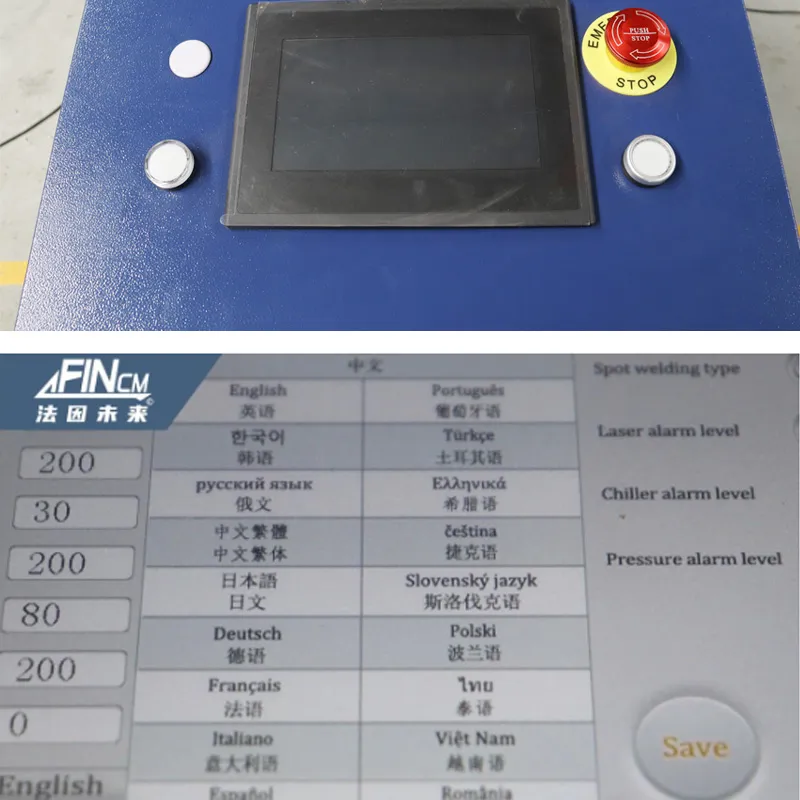

Smart Control Panel

Full touch screen operation interface, adjustable at any time.
Supported Languages: English, Russian, Spanish, French, Portuguese, Turkish, Korean, Japanese, German, Italian, Polish, Greek, Czech, Slovak, Romanian, Thai.

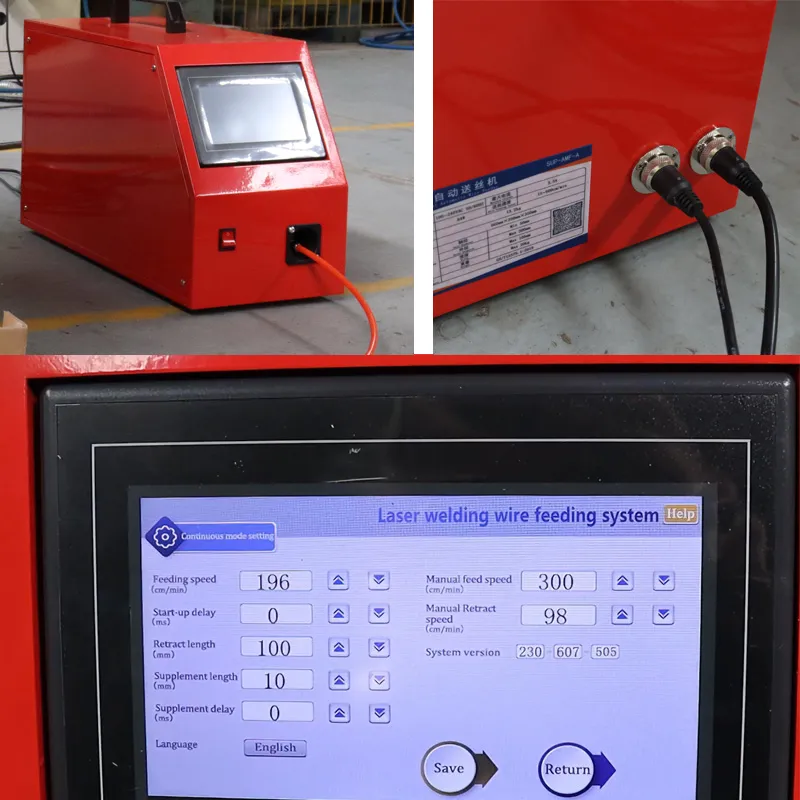

Auto Wire Feeder

Fully automatic and stable wire feeding, preventing jams and misruns.
Intuitive parameter settings.
Real-time monitoring of working status with fast fault diagnosis.
Welding wire compatibility: 0.8mm/1.0mm/1.2mm/1.6mm.

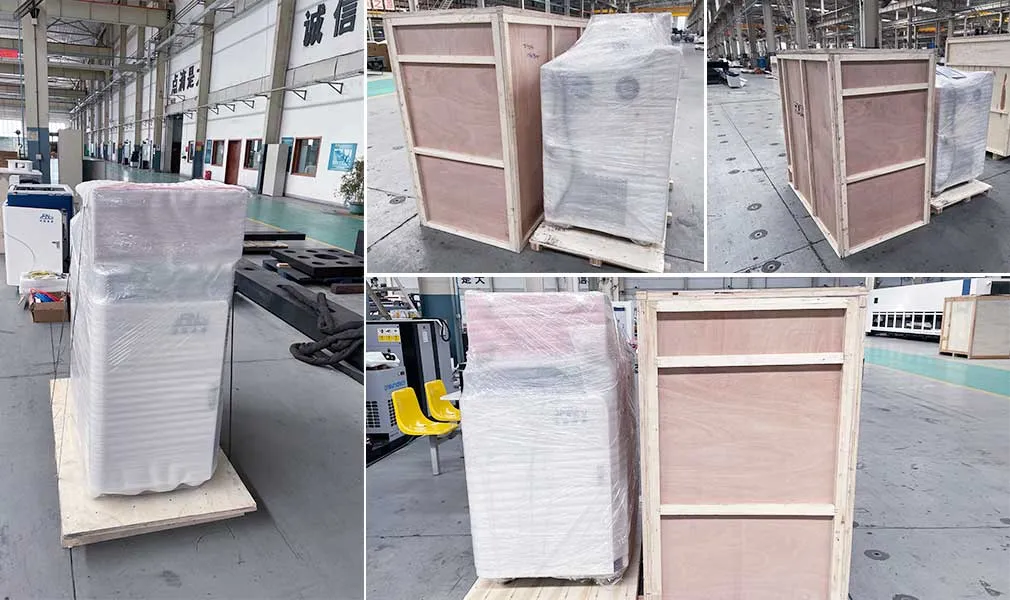

Packing & Delivery

Package Size

130.00cm * 62.00cm * 120.00cm

After Sales Service

Step 1

Delivery and Installation

The equipment will be delivered to the designated installation site at the customer's facility. Specialized engineers will be dispatched to carry out the installation on-site.

Step 2

Commissioning and Debugging

Upon completion of the installation, comprehensive commissioning and debugging will be conducted to ensure the equipment operates properly and fully meets all functional requirements.

Step 3

On-Site Training

Engineers will provide on-site training at the customer's facility. Training covers equipment maintenance, safety precautions, standard operating procedures, and basic troubleshooting techniques.

Step 4

Final On-Site Acceptance

After completing all training and setup steps, final on-site acceptance will be conducted by the customer. The assigned engineer will only leave once acceptance is formally confirmed.

Exhibition

Certifications

Frequently Asked Questions

1. What materials can a fiber laser cutting machine process?

Fiber lasers are ideal for cutting carbon steel, stainless steel, aluminum, brass, copper, and other non-ferrous metals with high efficiency and precision.

2. What thicknesses can a fiber laser cutter handle?

Depending on the laser power, fiber laser machines can cut thin sheets as well as thick plates - for example, a 6kW machine can typically cut up to 25mm carbon steel and 20mm stainless steel.

3. What is the difference between fiber laser and CO2 laser cutting?

Fiber lasers offer faster cutting speeds, lower maintenance, better energy efficiency, and superior performance especially on reflective materials compared to CO2 lasers.

4. How do I choose the right laser power for my application?

It depends on the material type, thickness, and production needs. Higher power allows for thicker material cutting and faster processing, while lower power is cost-effective for thin materials.

5. What are the basic maintenance requirements?

Routine maintenance includes lens cleaning, checking the cutting head and fiber, regular lubrication of mechanical parts, and ensuring proper cooling system function to maintain stable performance.
