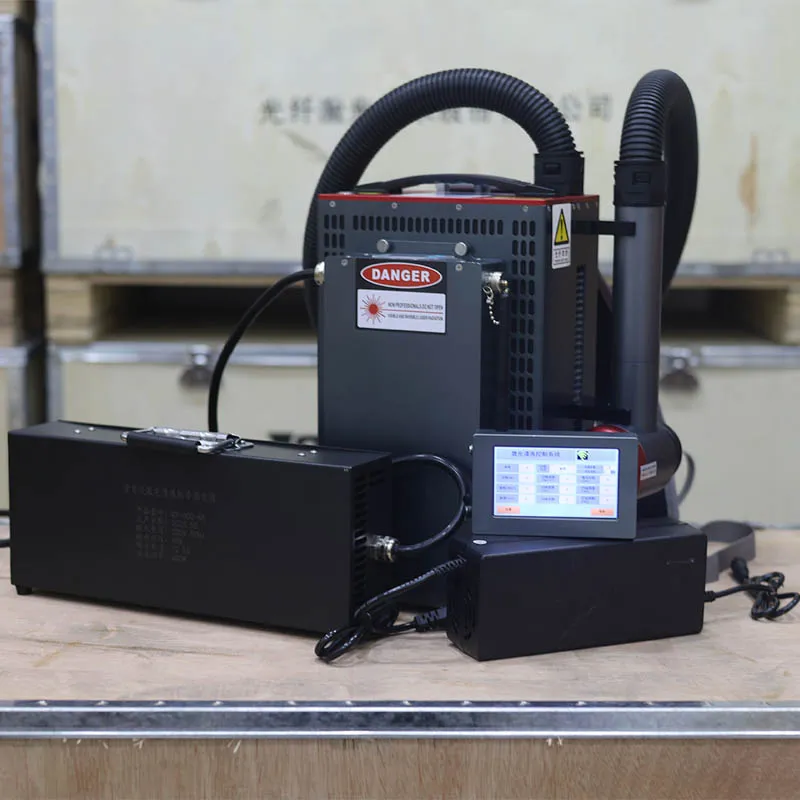

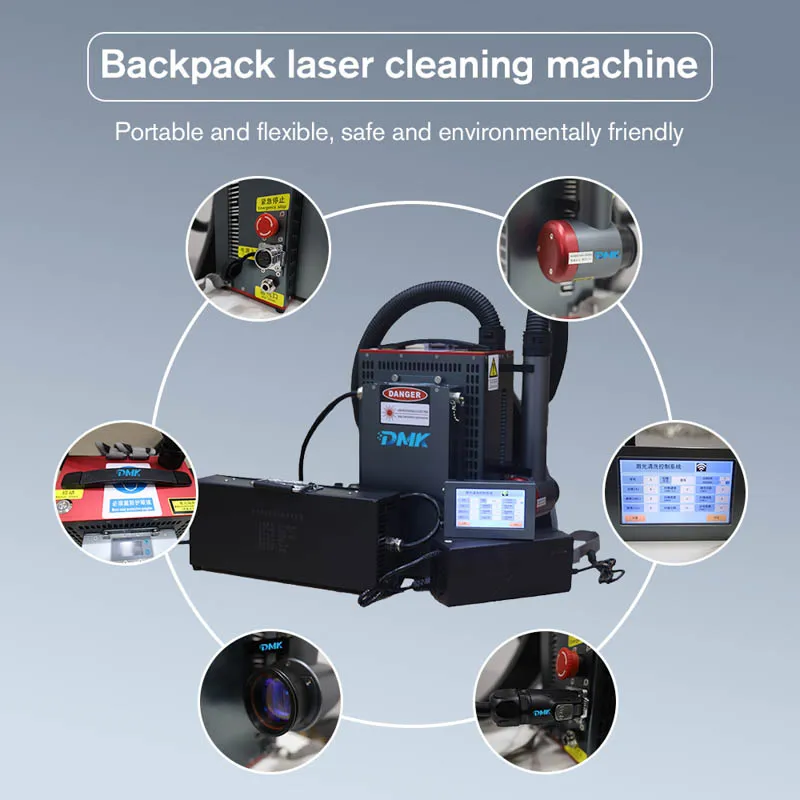

The laser cleaning equipment is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation.
Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.
Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.
| Content | DPL-100 |

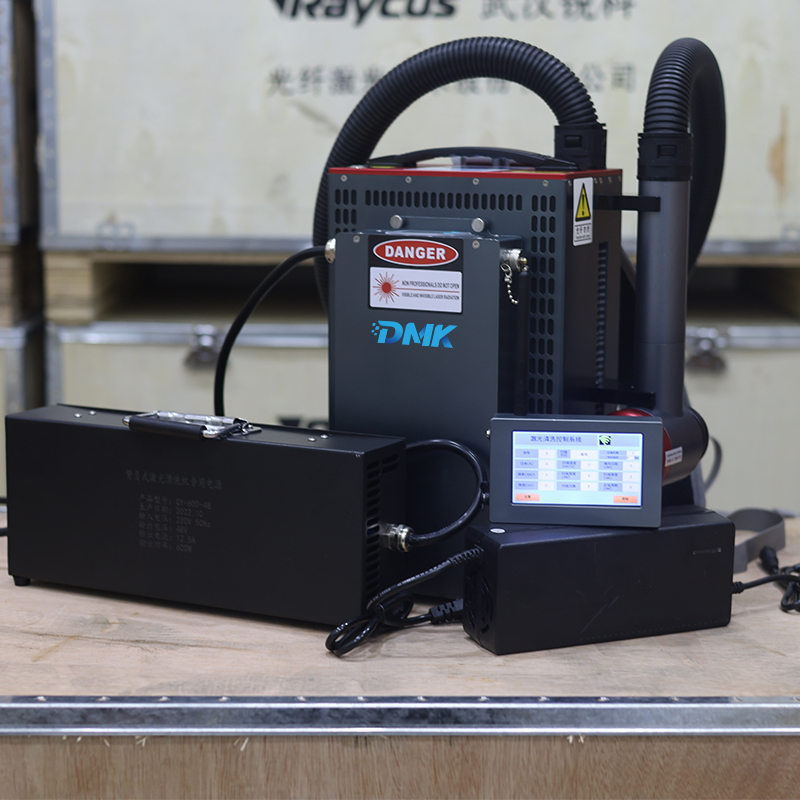

| Supply voltage | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) Optional single battery, 100W continuous work 80-90min |
| Power consumption | <600W |
| Working environment temp. | 5ºC~40ºC |
| Working environment humidity | ≤80% |
| Average laser power | ≥100W |
| Power instability | <5% |
| Laser Working Mode | Pulse |
| Pulse width | 150-190ns |
| Maximum monopulse energy | 1.7mJ |
| Power regulation range(%) | 10-100 (Gradient Adjustable) |
| Repeat frequency(kHz) | 20-200 (Gradient Adjustable) |
| Fiber length | 1.5m |
| Cooling mode | Air cooling |
| Scan range (L * W) | 0mm~100 mm, continuously adjustable; Biaxial supporting 9 scanning modes |
| Scanning speed | Max 10 m/s |

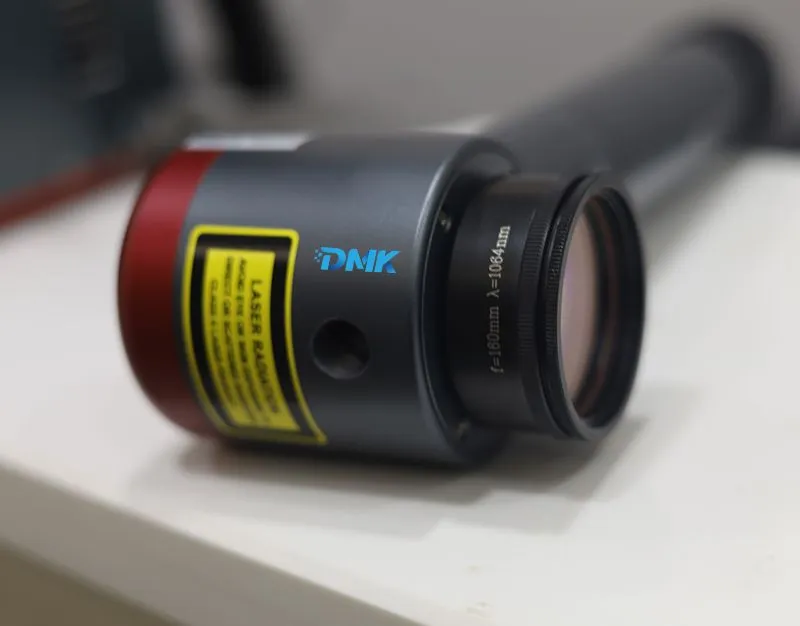

| Field mirror focal length(mm) | 160mm (Optional 210mm/254mm/330mm/420mm) |
| Depth of focus | About 5 mm |
