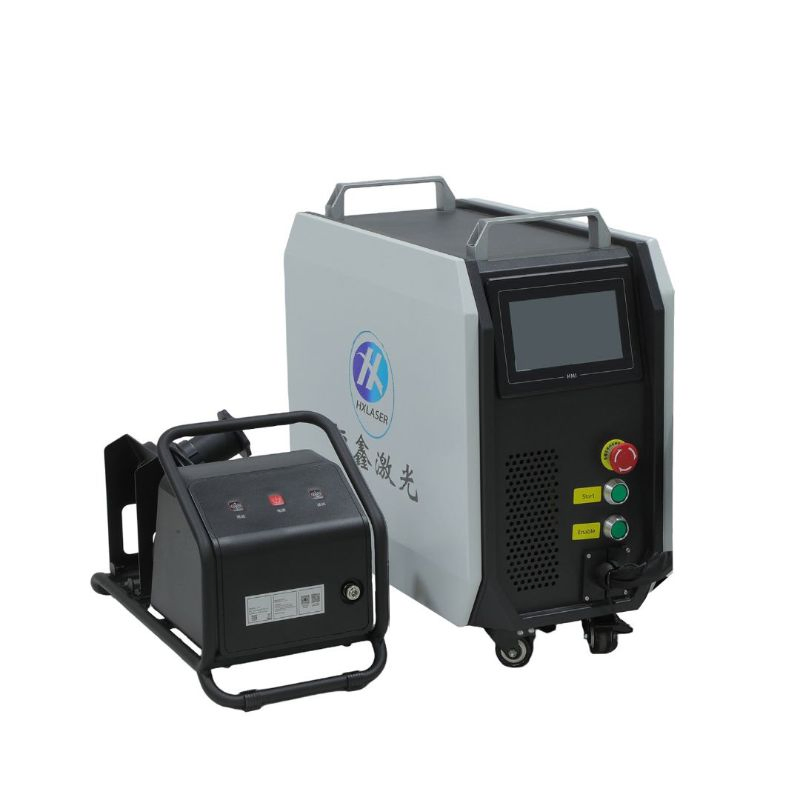

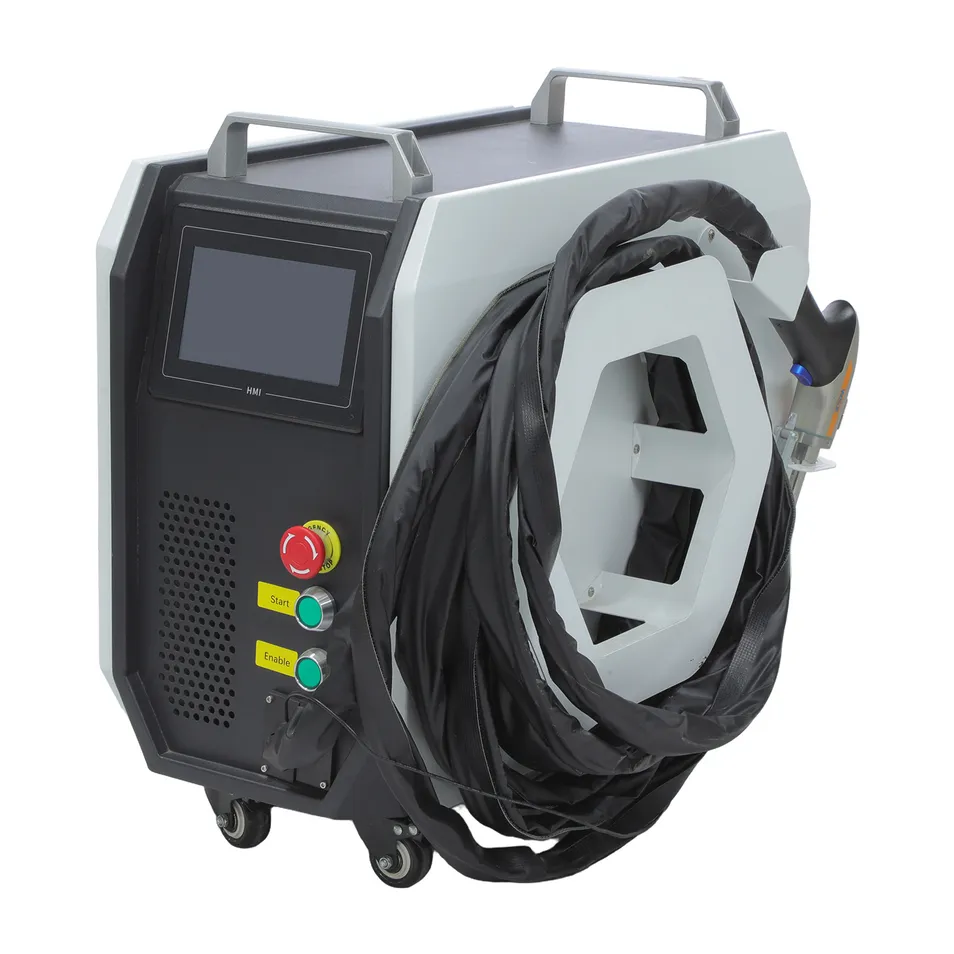

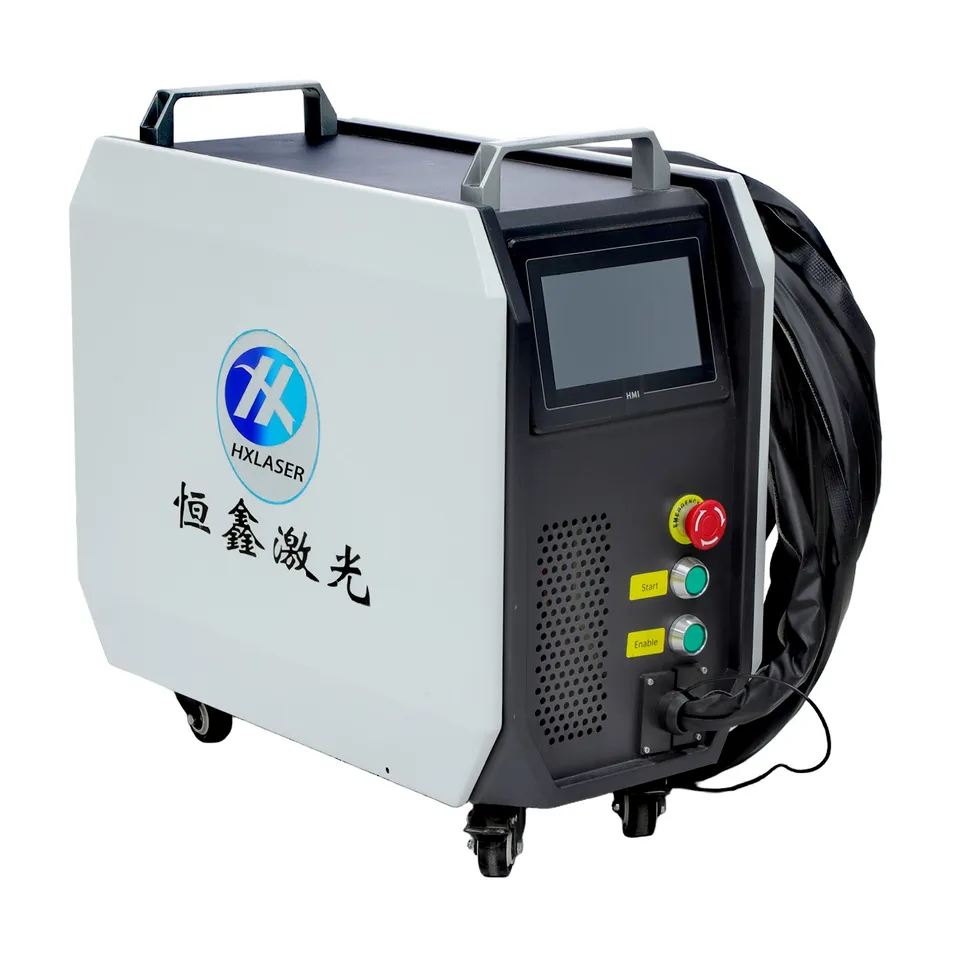

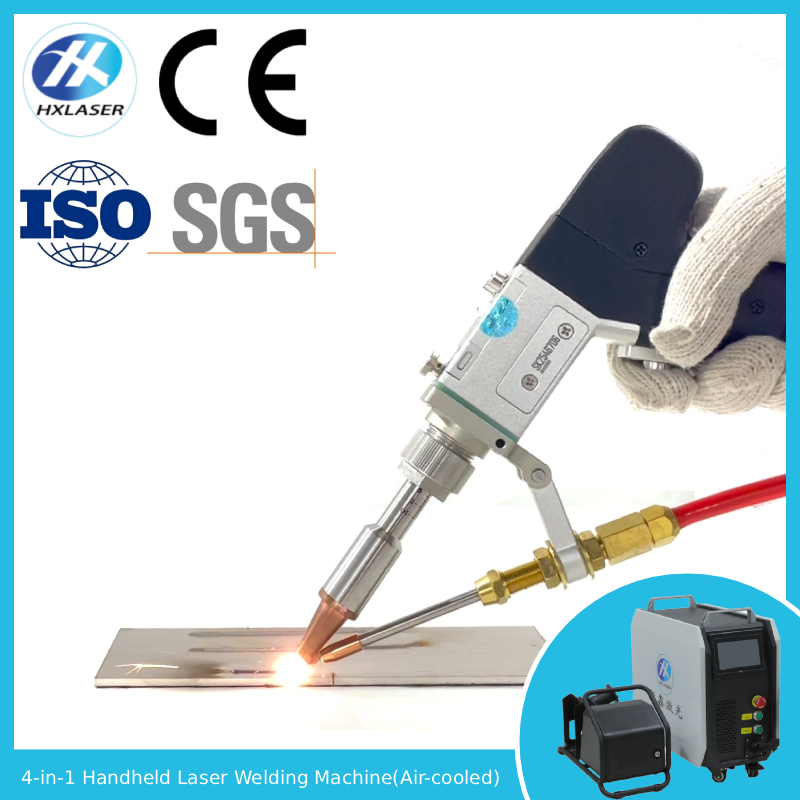

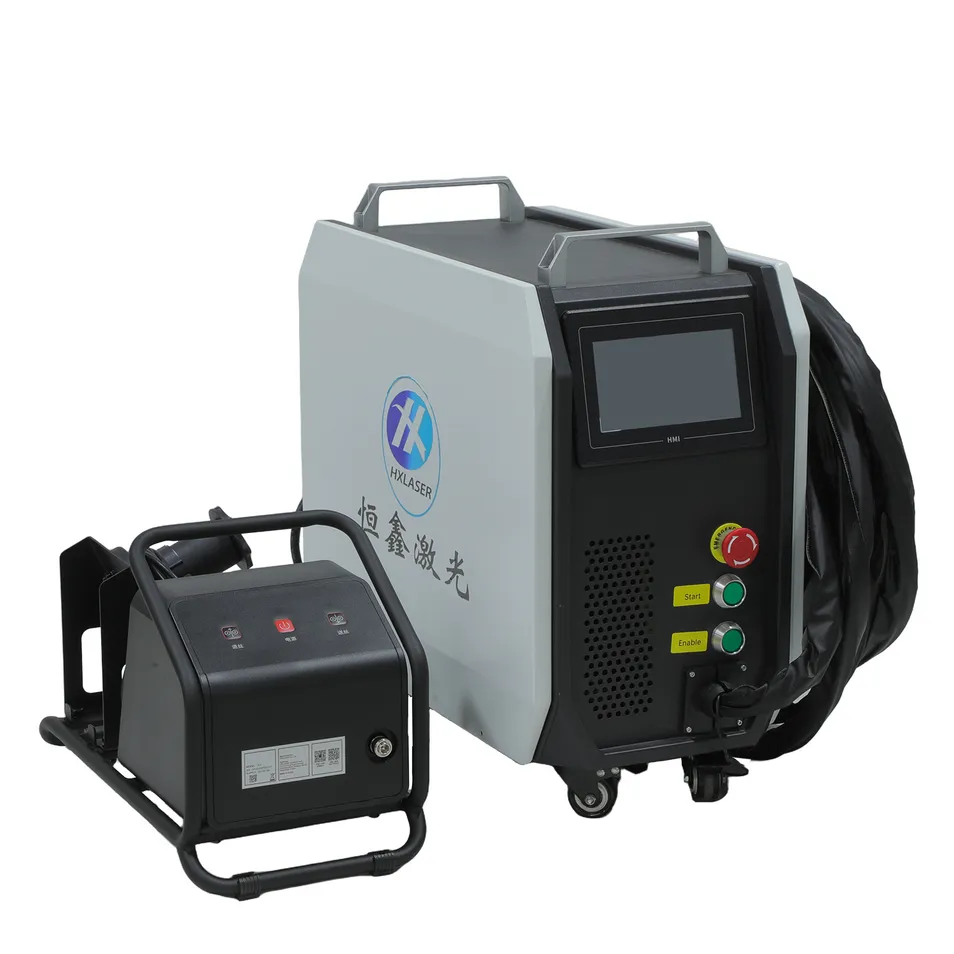

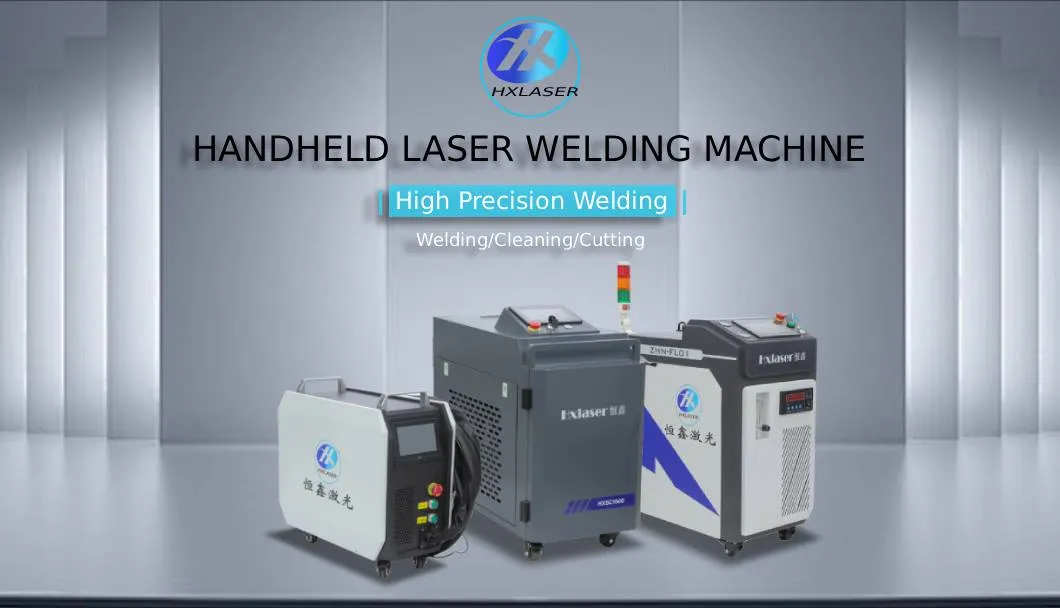

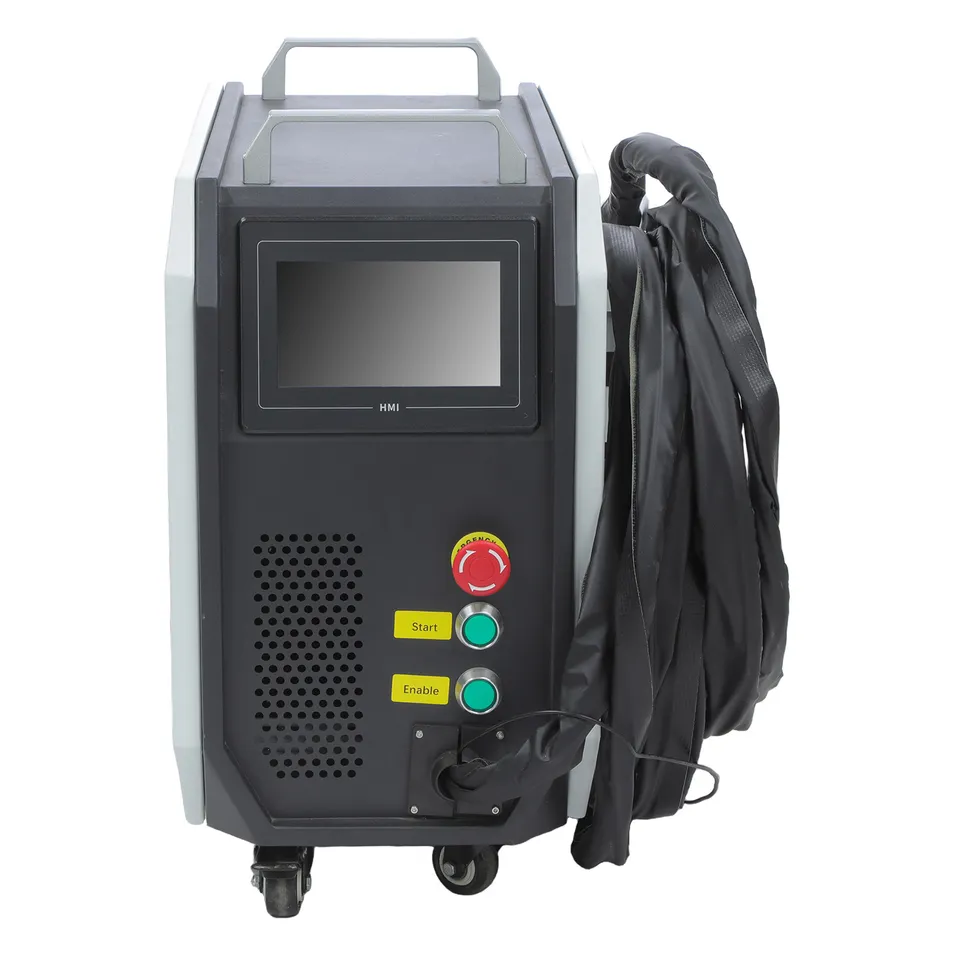

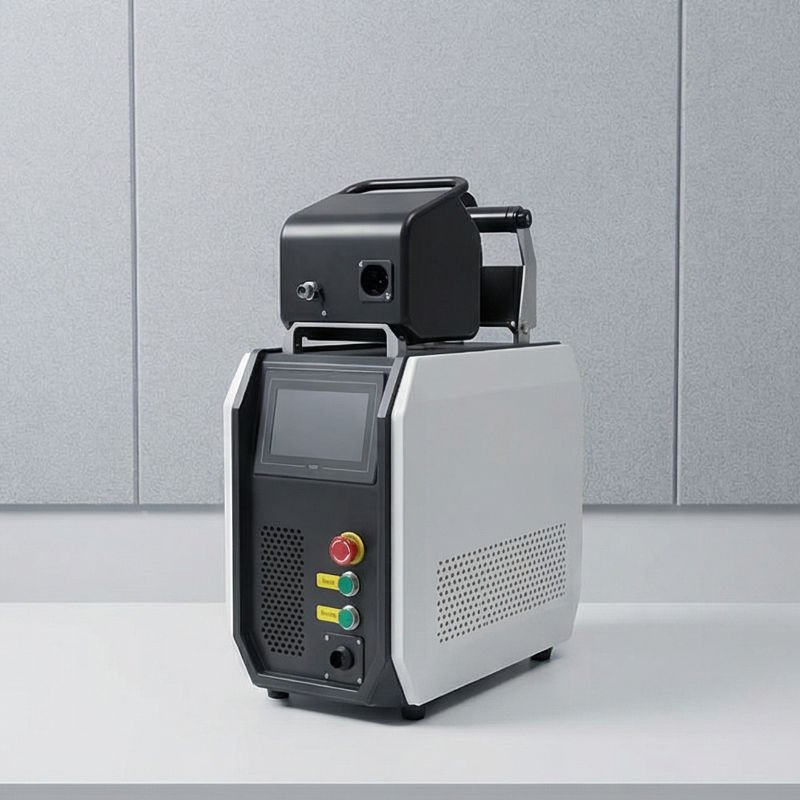

This handheld laser welding machine utilizes a fiber laser with high photoelectric conversion efficiency. Equipped with a 10 - meter high-quality optical fiber cable, it enables flexible outdoor welding. Suitable for complex welds and various components, it allows weld width adjustment to ensure smooth, flat, and attractive weld appearances. With no consumables, a compact size, low operating costs, and an intelligent wire feeder for large - weld products, it is widely used in industries such as sheet metal, kitchen & bathroom, home appliances, etc. Also the air-cooled type is ideal for welding at outdoor and construction sites.
| Handheld laser welding machine | Welding ability | ||
| Machine name | Handheld laser welding machine | Weld seam requirements | ≤0.5 mm |
| Laser generator | Continuous fiber laser | Material thickness | 0.3 - 5.0 mm (Depending on power) |
| Laser power | 800W / 1200W / 1500W | welding material | CS / SS / COPPER / ALU/ALLOY METAL |
| Laser control mode | Handheld | Cooling system | |
| Output power range | 10 - 100% | Cooling method | Air cooling |
| Laser wavelength | 1080 ± 10 nm | ||
| Fiber length | 10 m | ||
| Welding system | Other | ||
| Welding joint | Swinging welding head | Operating environment | Temperature 5 - 40℃, Relative humidity <70%, No condensation |
| Welding mode | Spot welding/continuous welding | Laser type | Class ⅳ |
| scanning speed | 60 - 3000 mm/s | Machine size | 600*380*580mm |
| Scan width | 0 - 5 mm | Machine weight | ≤ 45 KG |
| Welding gun weight | 700 g | Electricity requirements | AC220V(380V) / 50HZ60A |

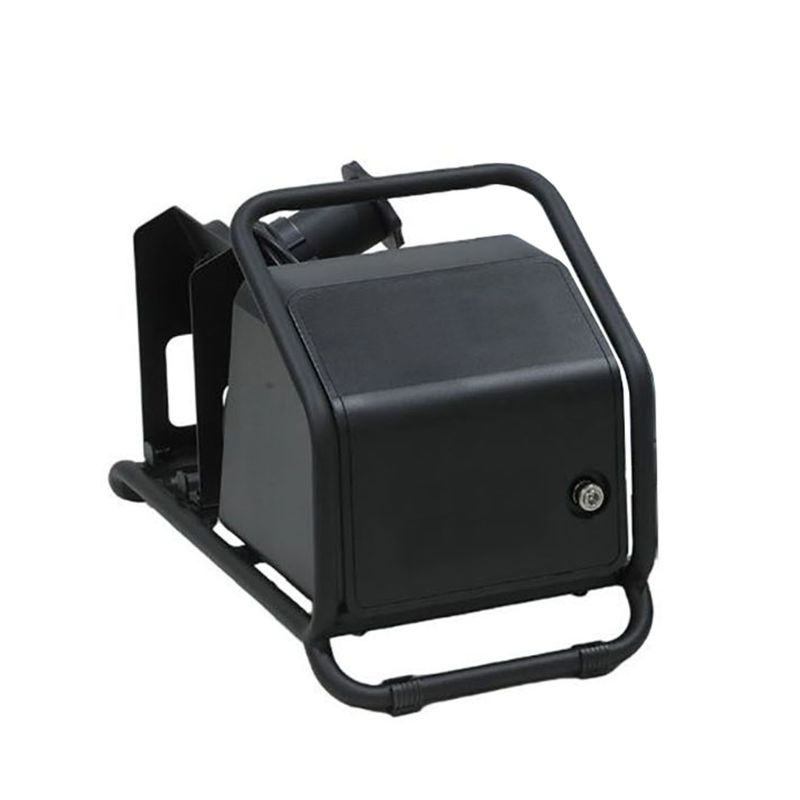

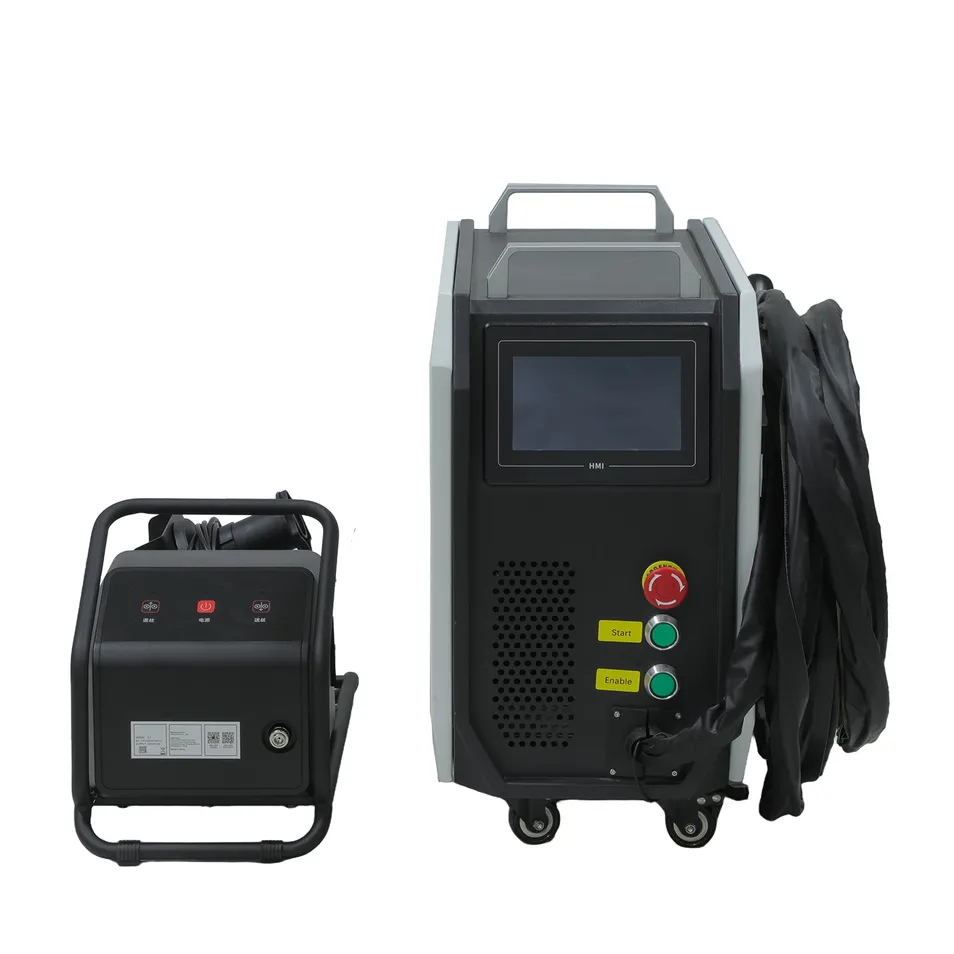

| Wire feeding system | Intelligent automatic wire feeding | Whole machine power | ≤ 8.0 kw |
| Project name | Handheld laser welding machine | Traditional welding |
|---|---|---|
| Employment cost | Easy to operate, low labor cost | Difficulty in recruiting, high labor cost |
| Physical harm | Low radiation, less occupational disease, low physical harm | Occupational disease, obvious physical harm |
| Welding speed | 4 times faster than argon arc welding | Slow speed, low efficiency |
| Products material utilization | Material utilization 80% - 90% | More scrap, Material utilization about 50% |
| Thermal impact | Energy saving, with small thermal impact on welding | Large thermal impact, power consumption large |
| Welding deformation | Small, not deformed | Large deformation amount |
| Welding quality | The weld is beautiful, dense, strong, no weld dent or pool, without grinding or polishing | The weld is coarse and irregular, needs to be polished |
| Welding environment | No smoke, no arc light, high safety | Odorous gas, arc light |
| Welding material | Little spatter, uniform performance | There are spatters, limited by material changes |
| Learning difficulty | New hands: ½ hour to learn machine operation | We need professional technicians, high technical requirements |
