Laser cleaning is a new technology based on the interaction between laser and substance, which can achieve the effect of removing surface pollution and attachments. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, green environmental protection and online, especially suitable for high-speed online cleaning in designated areas.

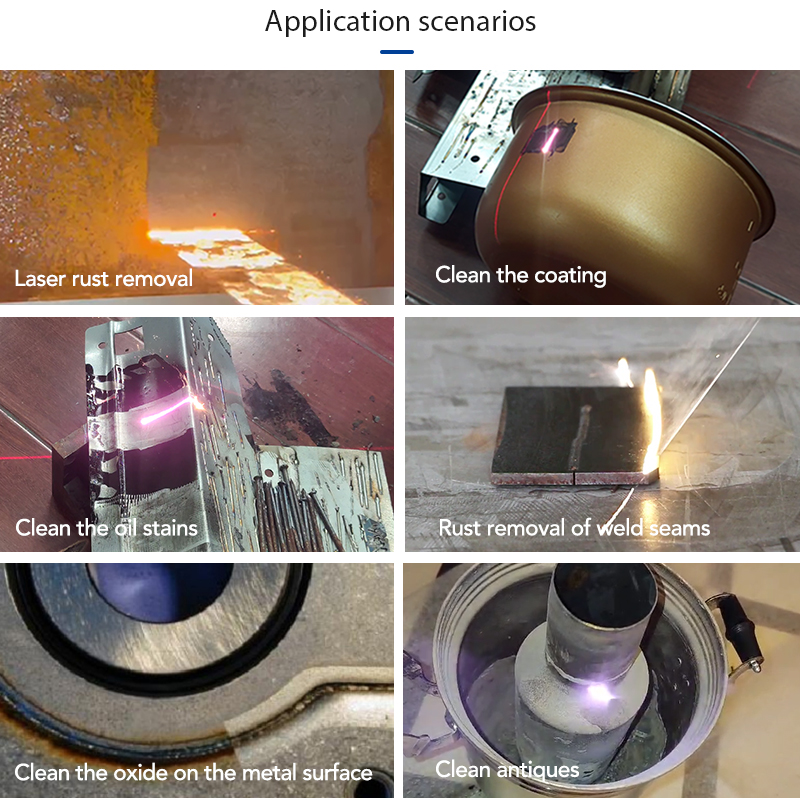

The laser cleaning equipment is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.

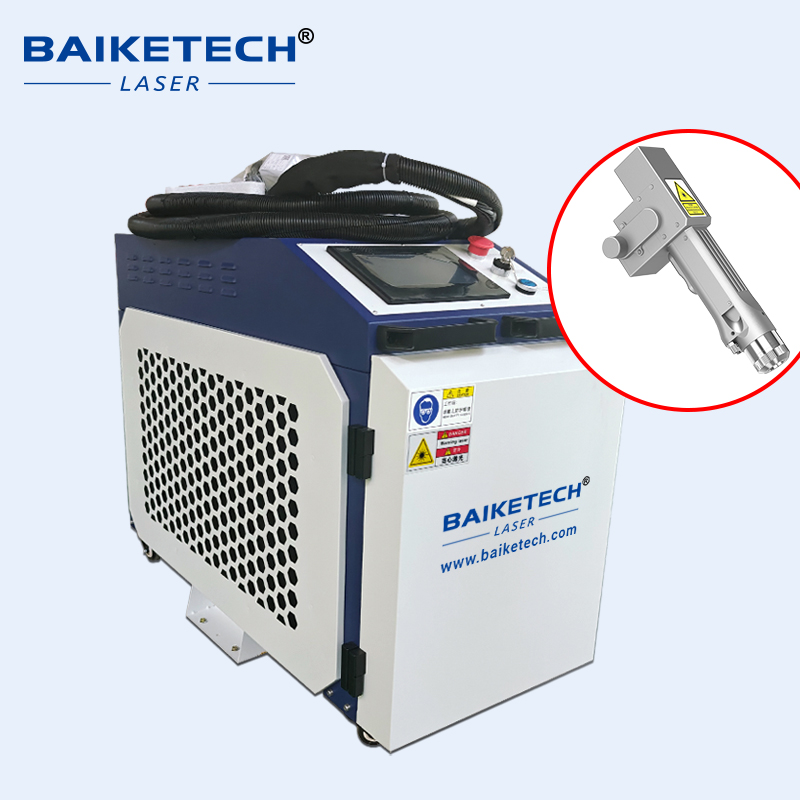

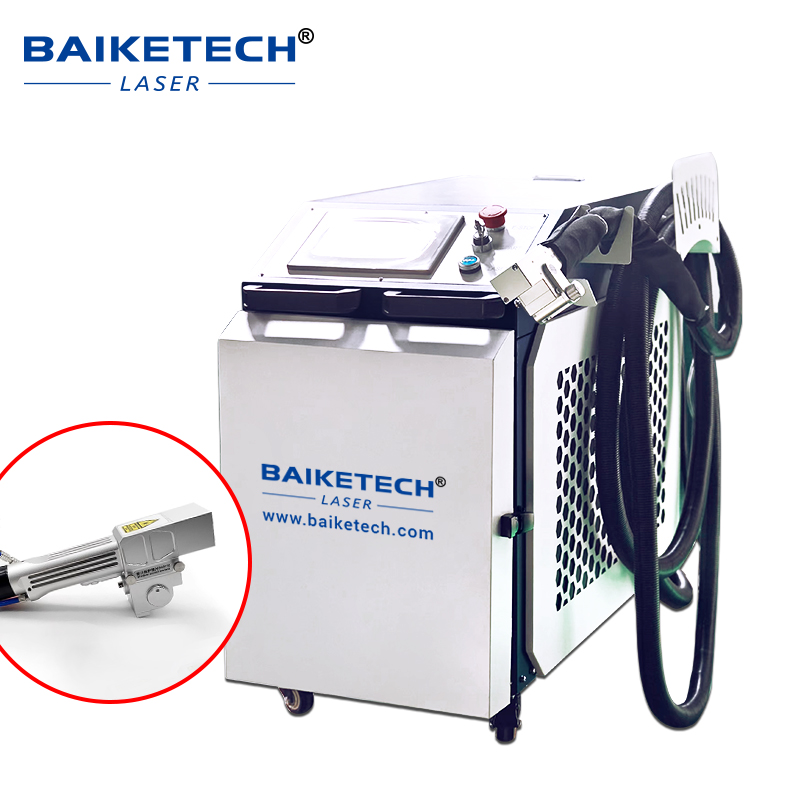

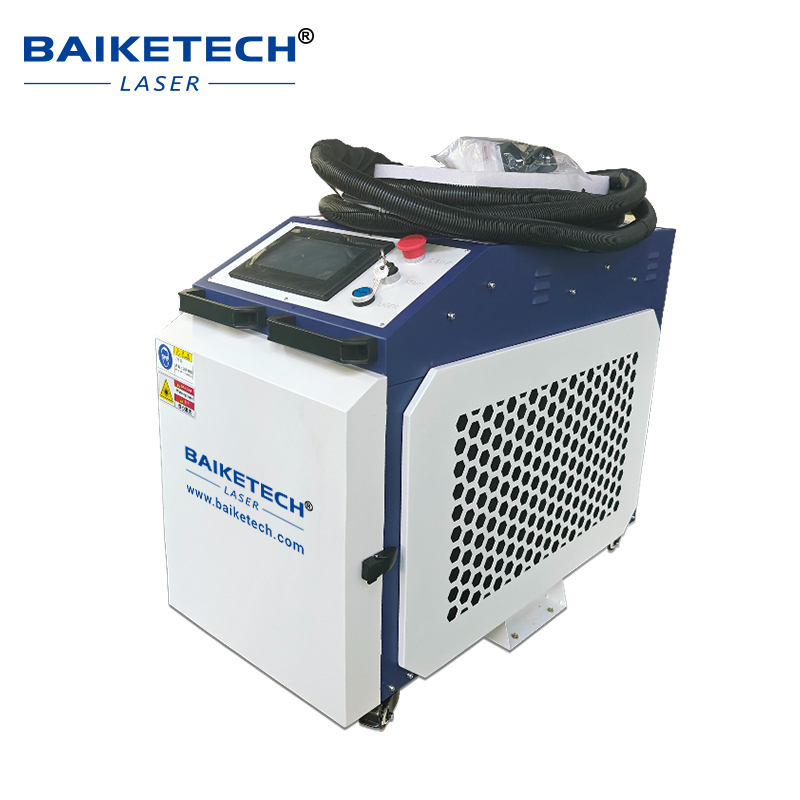

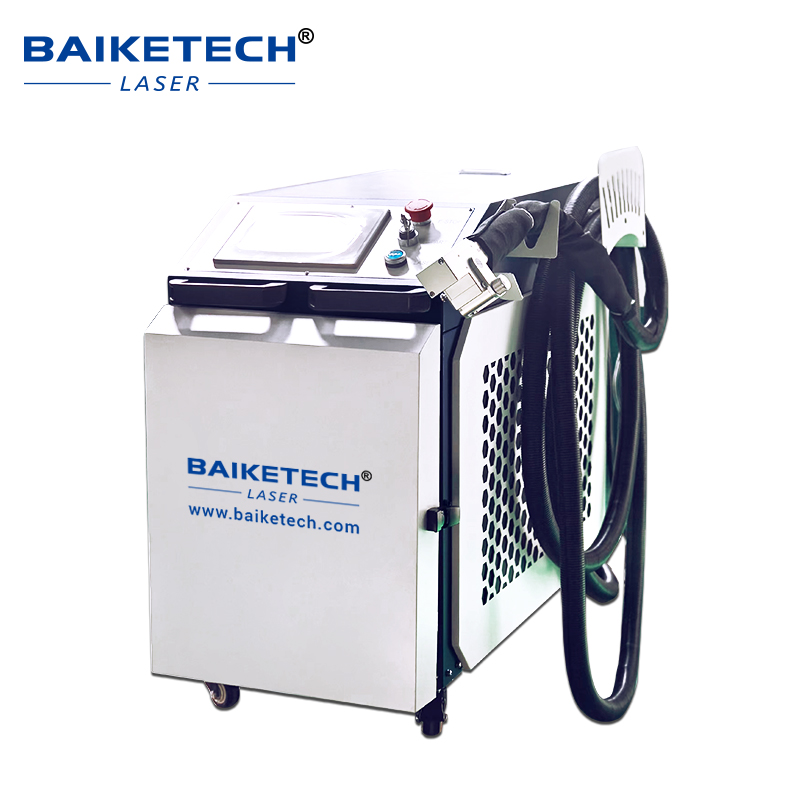

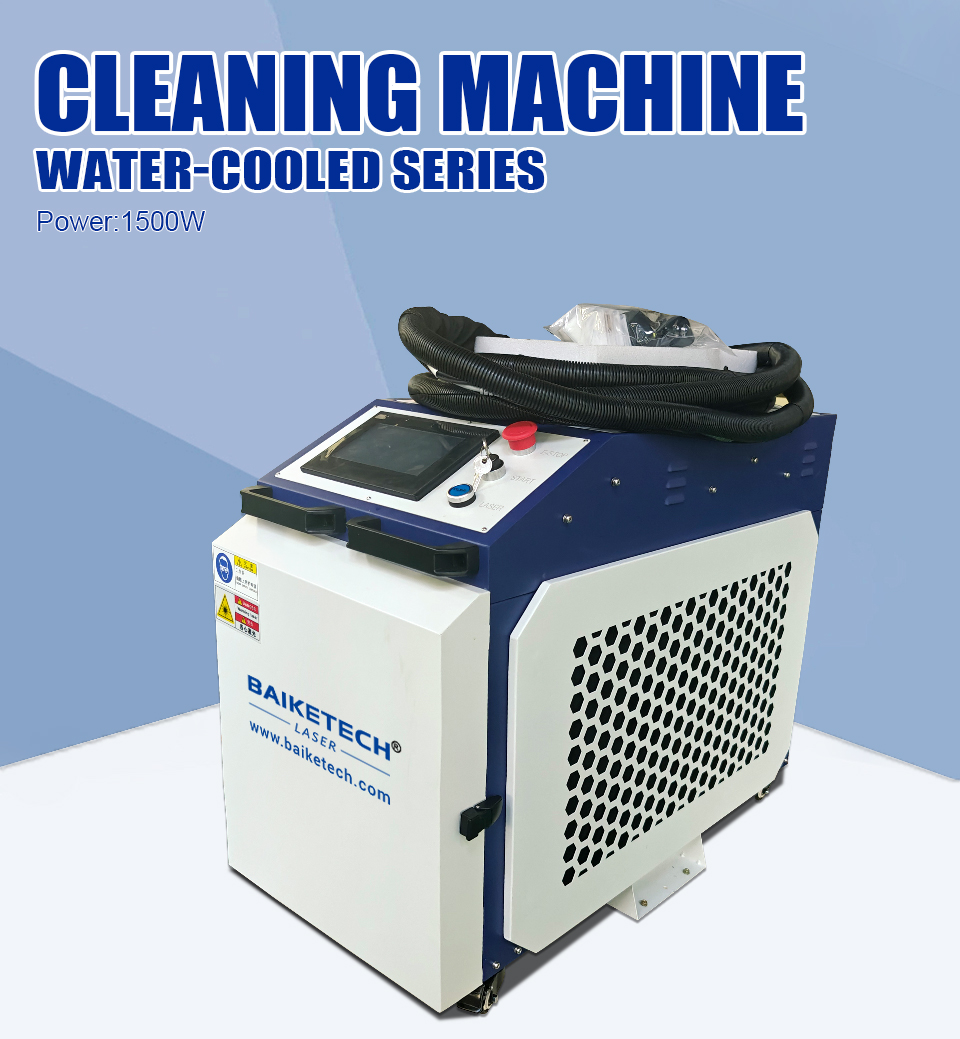

| Type | 1500W CW Laser Cleaner |
| Supply voltage | Single phase 220V/380V, 50/60Hz AC |
| Working environment temperature | 5℃ ~ 40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥1500W |
| Power instability | <2% |
| Laser Working Mode | Continuous |
| Power regulation range (%) | 10-100 (Gradient Adjustable) |
| Repeat frequency (kHz) | 20-200 (Gradient Adjustable) |
| Fiber length | 10m |
| Cooling mode | Water cooling |

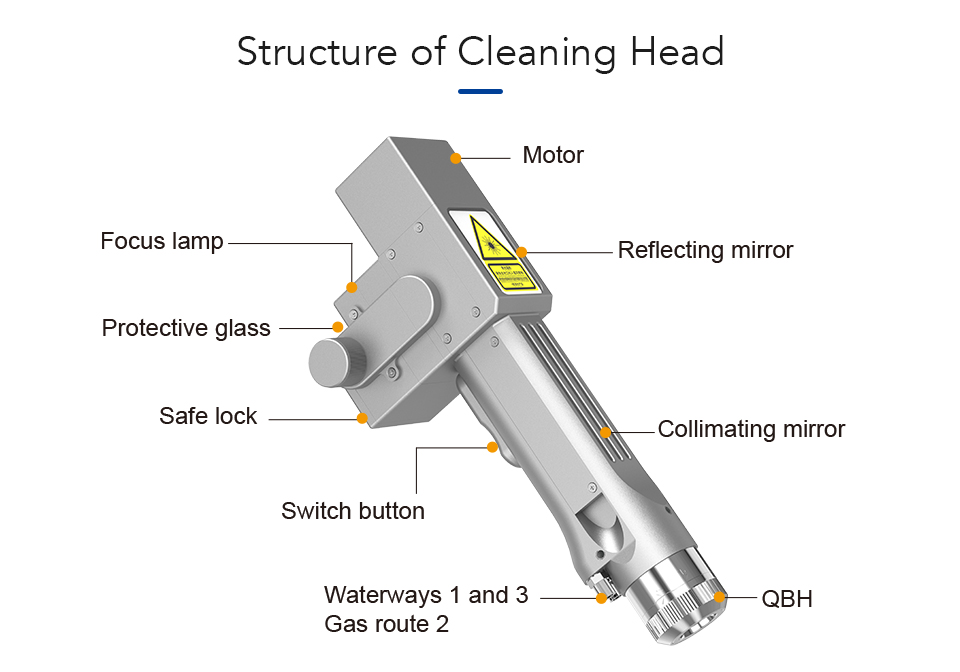

| Cleaning Head Parameters | |
| Scan range (length * width) | 5mm~400mm, continuously adjustable |
| Scanning frequency | A maximum of 300Hz |
| Field mirror focal length (mm) | 500mm (500-800mm optional) |
| Mechanical parameters | |
| Machine size (Length, width and height) | 884*525*693 |
| Machine Weight | ≈145Kg |
| Cleaning head weight (including isolator) | ≤ 1.2Kg |
| Mode of operation | Handheld/automated |
Ergonomic design, operation labor intensity is greatly reduced; Easy to operate, can be hand-held automatic cleaning.

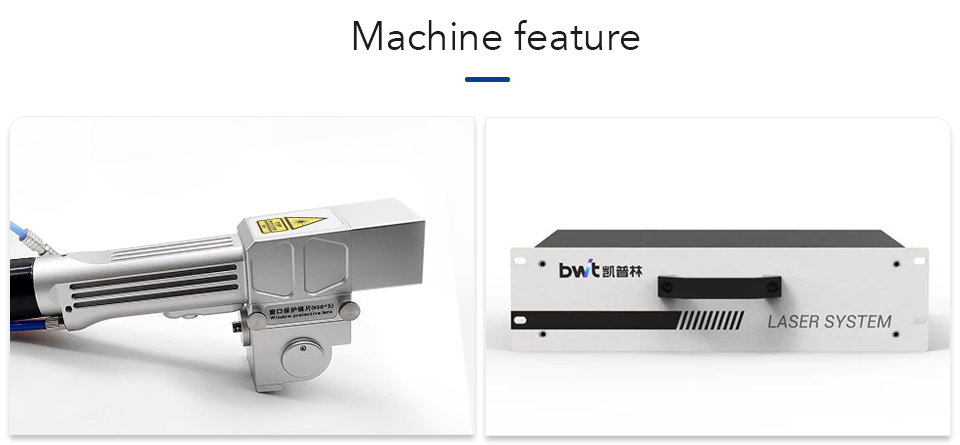

The laser has a high electro-optical conversion efficiency and good power stability. Simple structure, long service life and low maintenance cost.
The chiller ensures the efficiency, accuracy and stability of the laser cleaning equipment by cooling the laser light source, optical components and cleaning system.

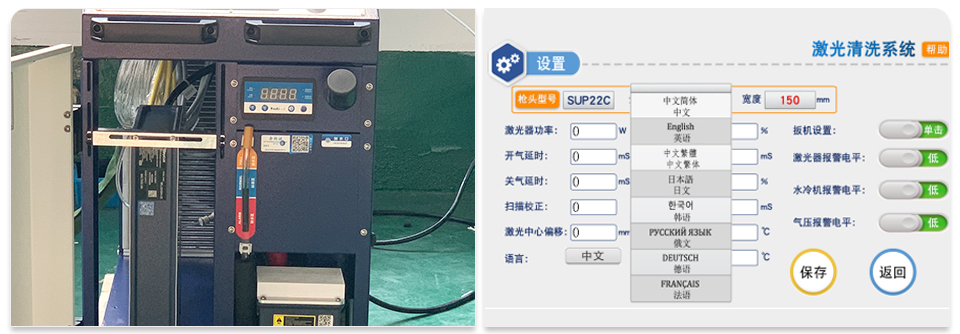

The control system can set the parameters of the laser and also control the movement of the optical system to meet the requirements of different cleaning tasks.
Yes, advantages include non-contact cleaning which reduces the chance of material damage, no consumables like chemicals or abrasives, less environmental impact since it doesn't use chemicals, and it allows for precise area cleaning which is useful for intricate parts or sensitive areas.
There can be a risk of thermal damage if the laser power is too high or if the material is heat-sensitive. However, continuous laser cleaning machines are designed to minimize this risk by having controls to adjust the power and the duration of the laser exposure.
Yes, like all industrial equipment, they require regular maintenance to ensure optimal performance. This includes cleaning the lenses, checking the laser alignment, and servicing the moving parts according to the manufacturer's specifications.
Safety precautions include wearing appropriate eye protection, ensuring the machine is operated by trained personnel, having a designated working area, and following the manufacturer's instructions for safe operation and maintenance. Additionally, monitoring for potential hazards such as fumes or residual heat is important.

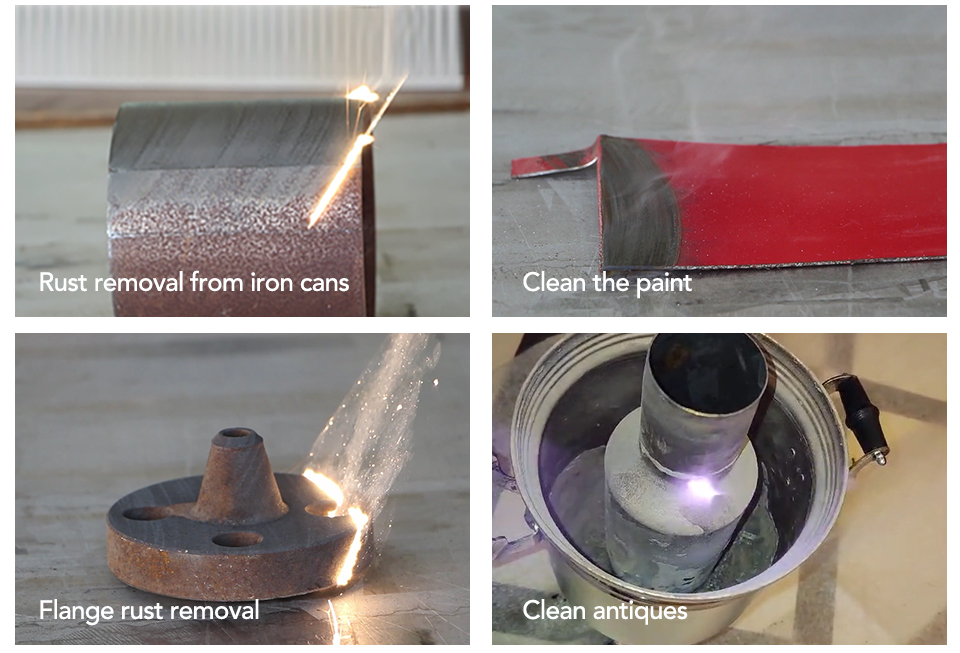

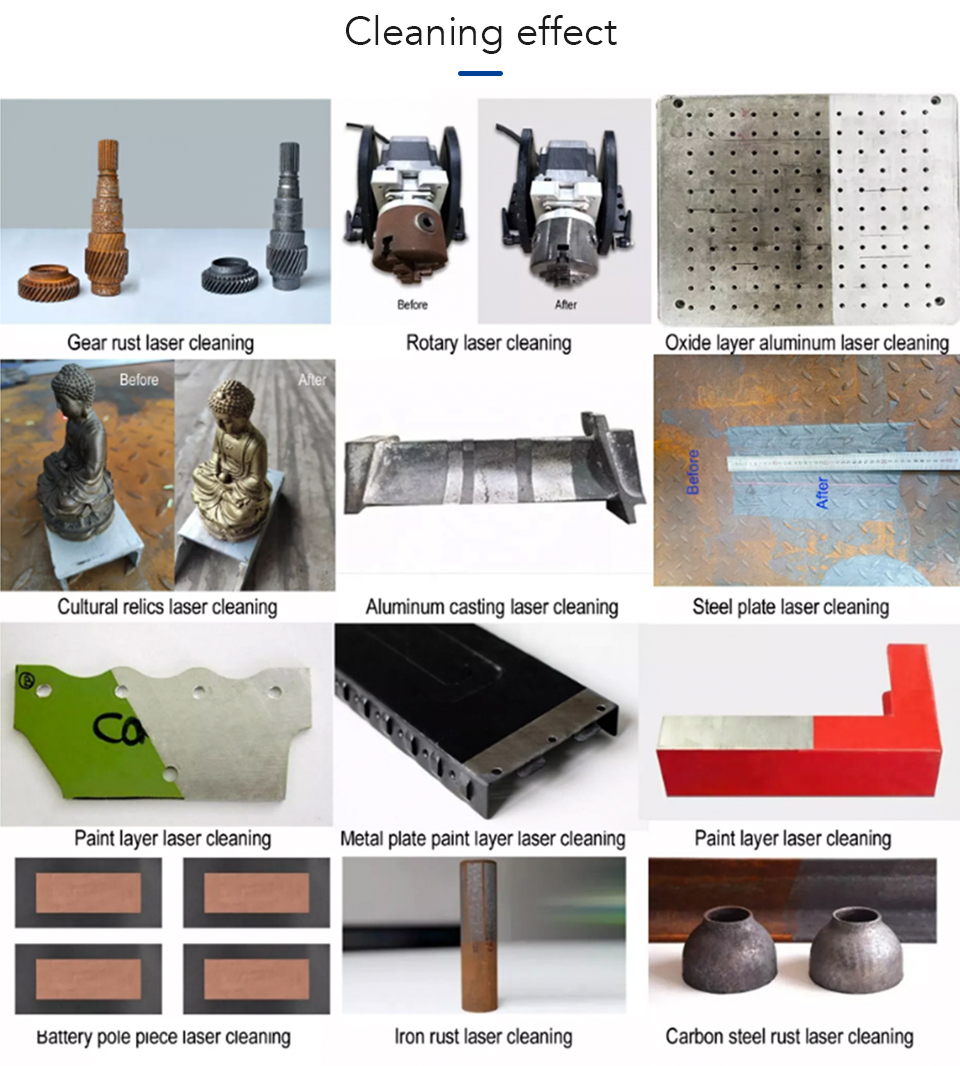

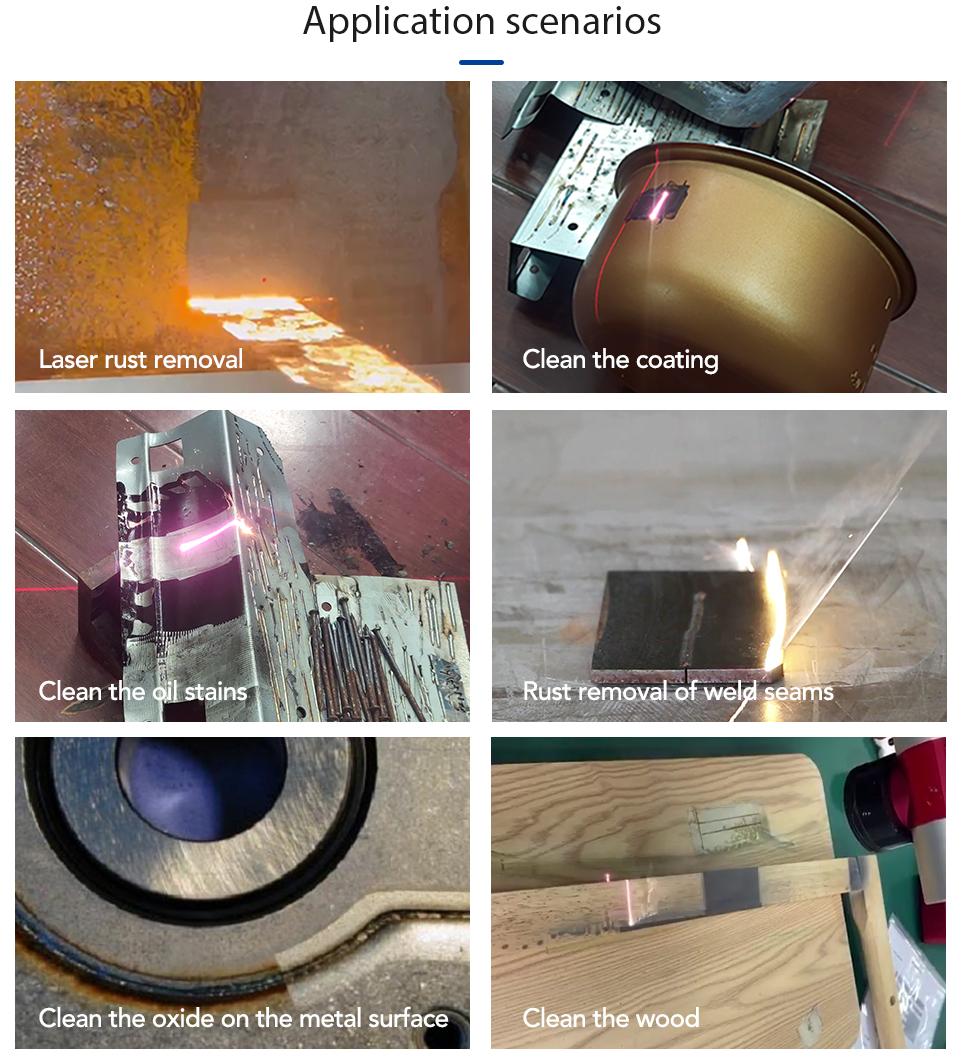

It is designed to fit surface cleaning and delivers high cleanliness. It can remove object surface resin, paint, oil stains, dirt, rust, coating, and oxidation layers. It is widely used in industries covering ships, auto repair, rubber molds, high-end machine tools, tracks, and environmental protection.
We offer a one-year warranty (not including consumables) except for human damage.
