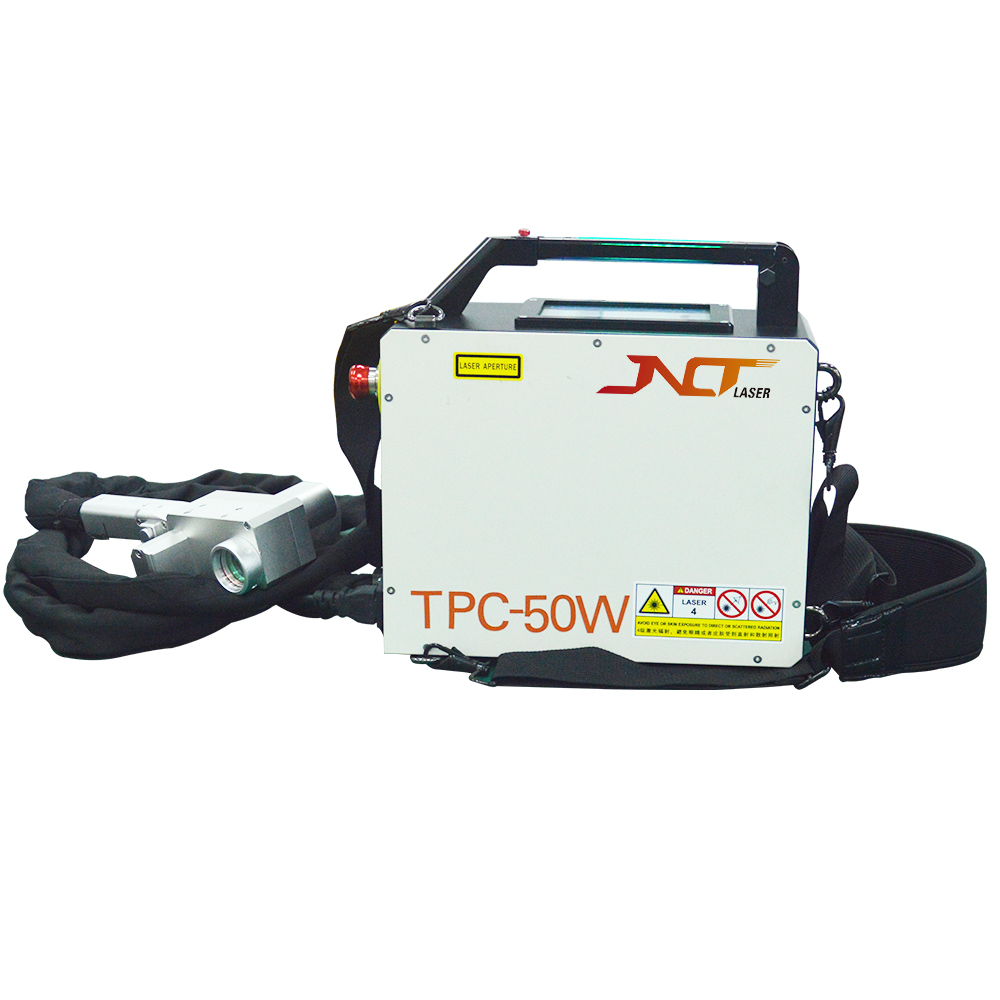

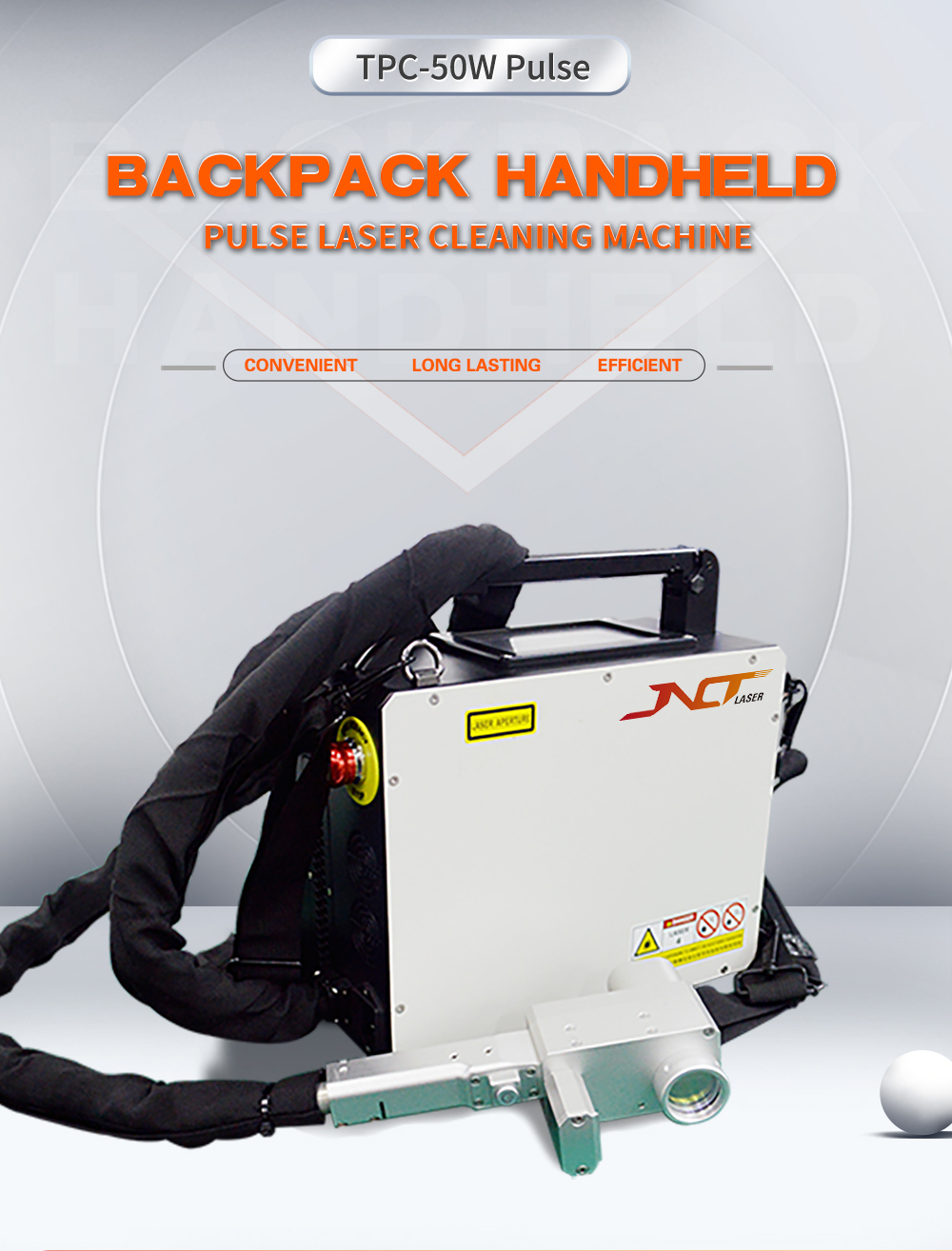

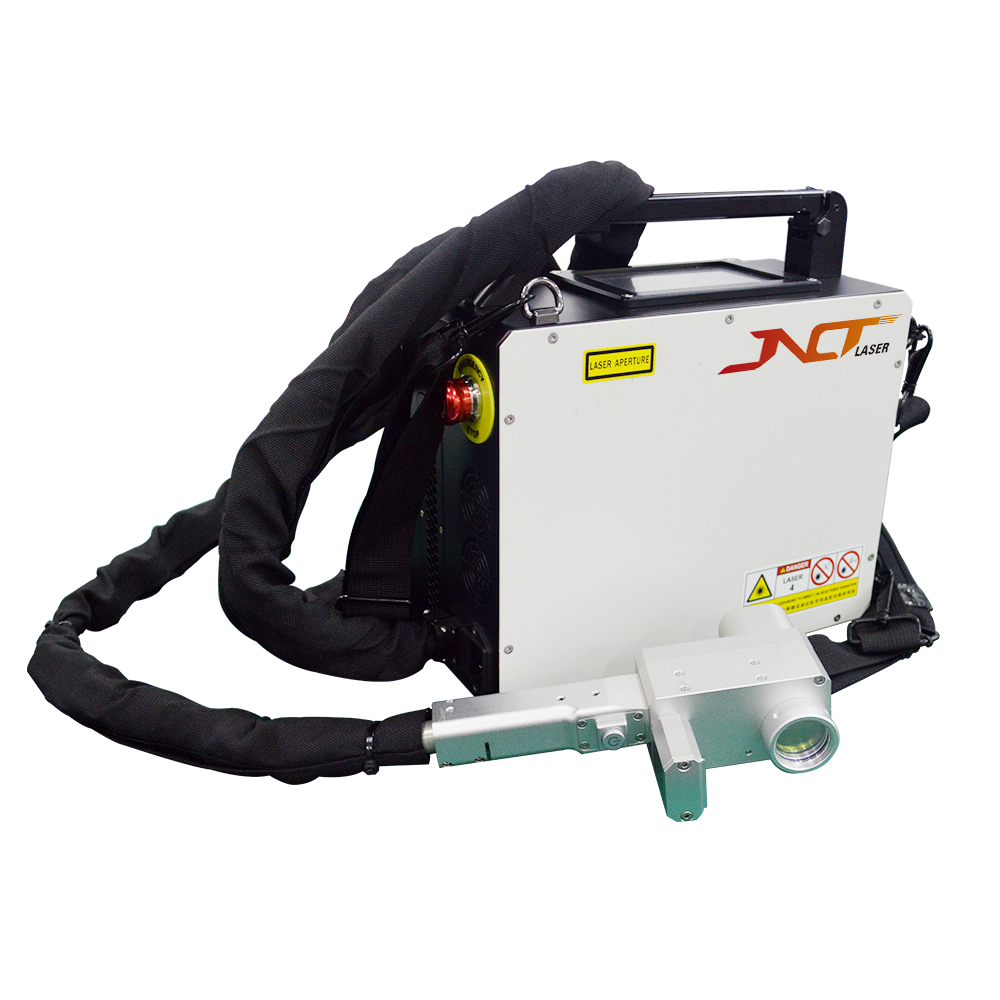

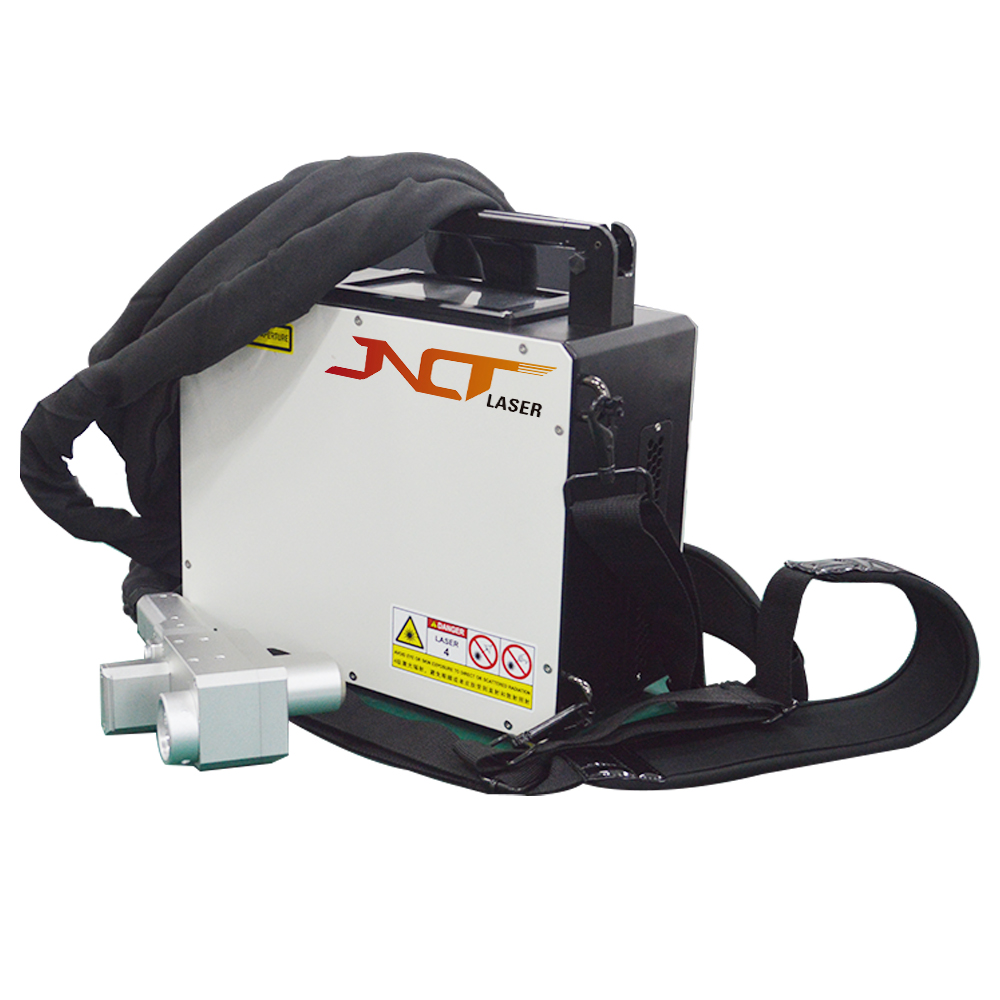

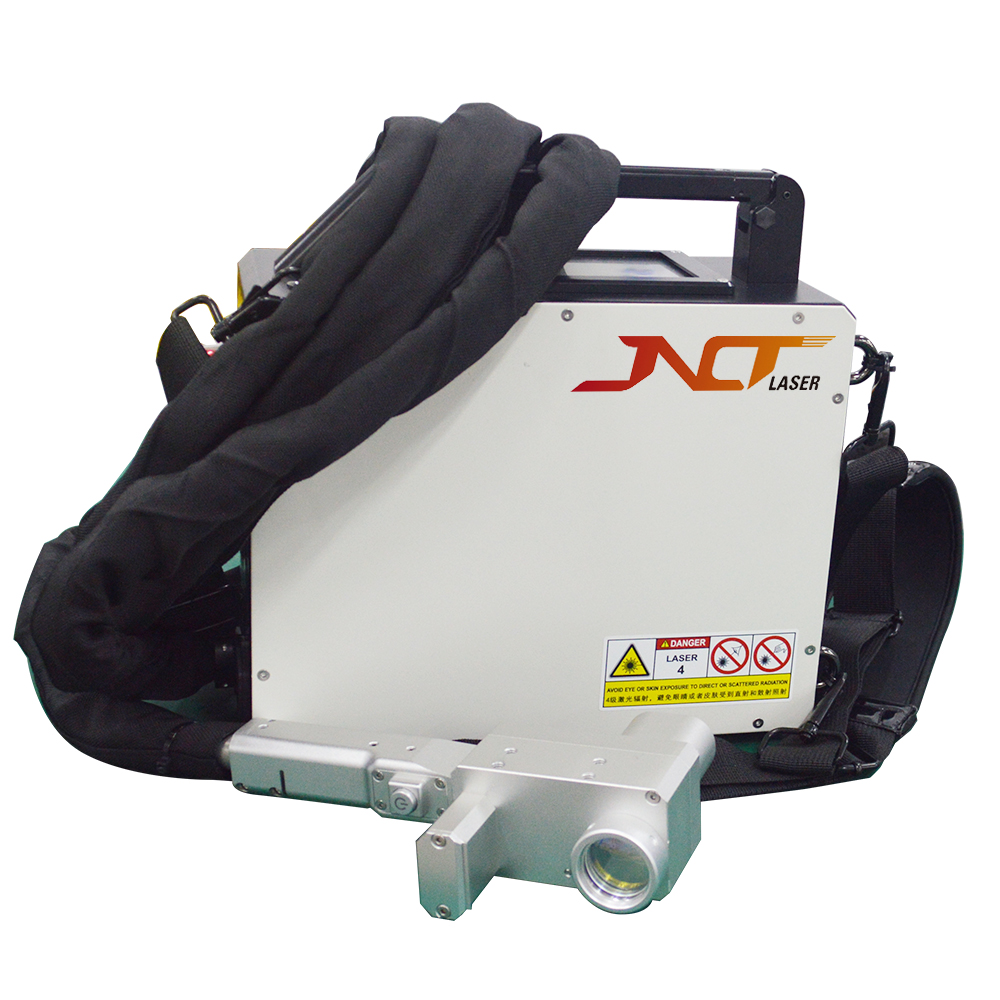

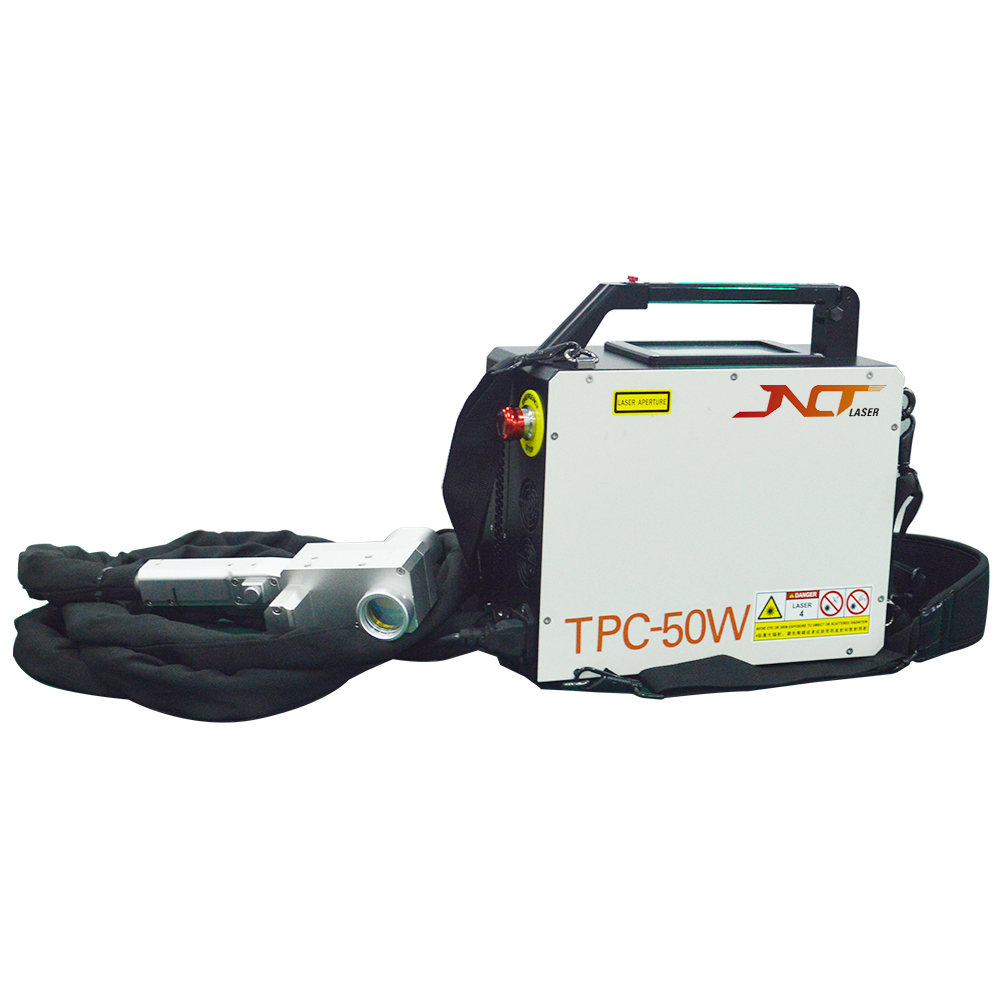

TPC-50W is a backpack type laser rust removal machine for cleaning historical sculpture. Free to work outside like on bridge and wall.
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important.
Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.

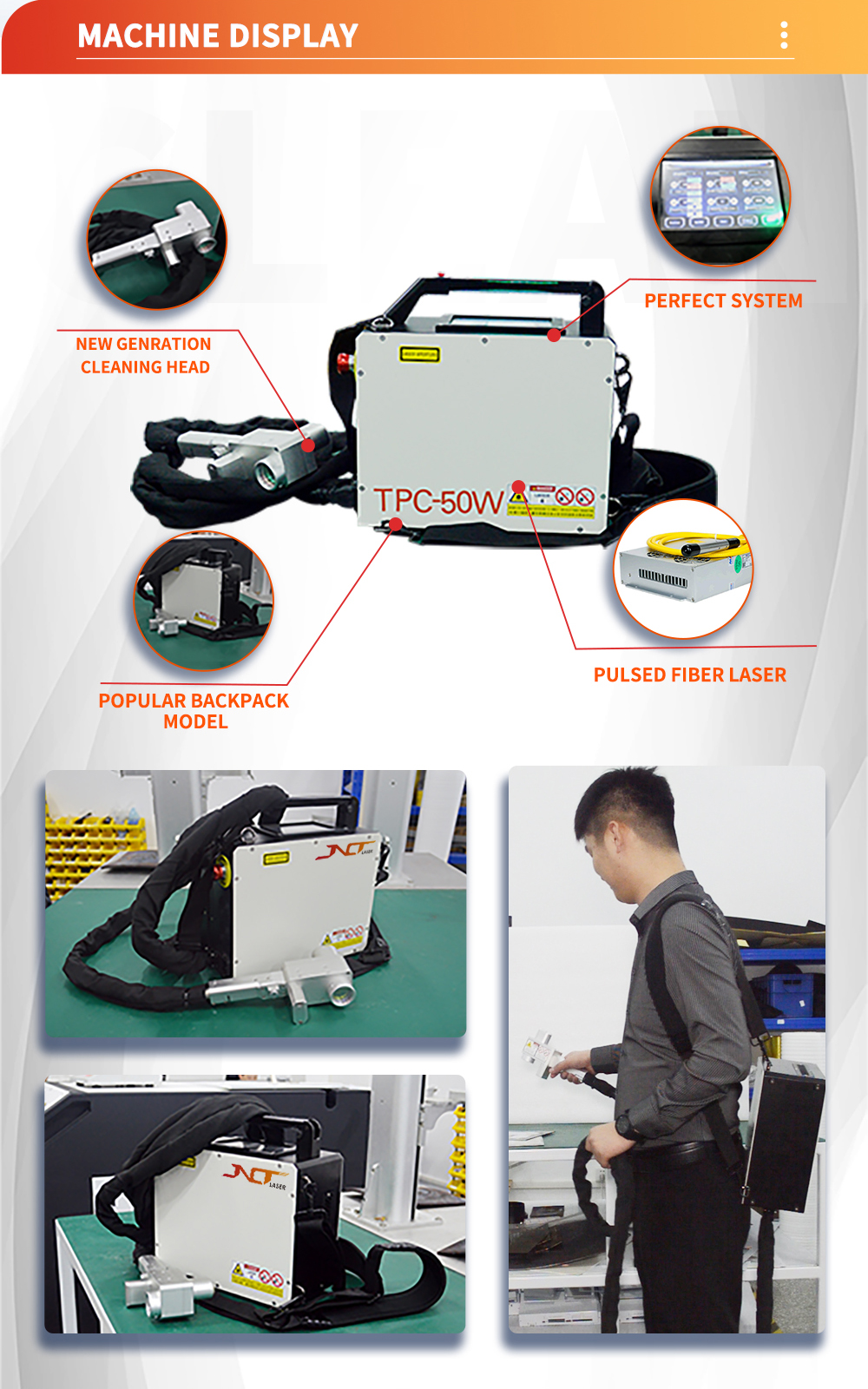

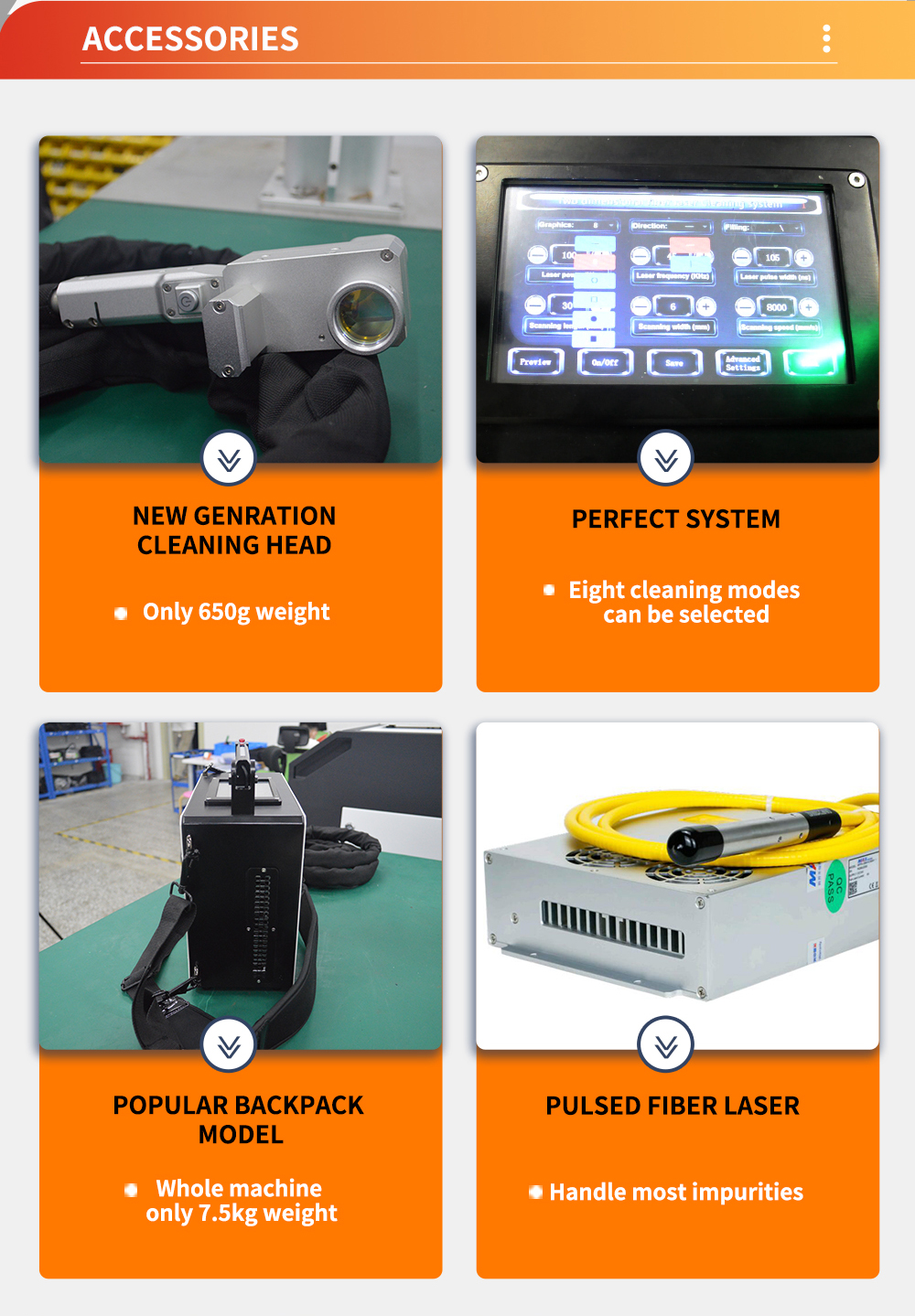

Backpack Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

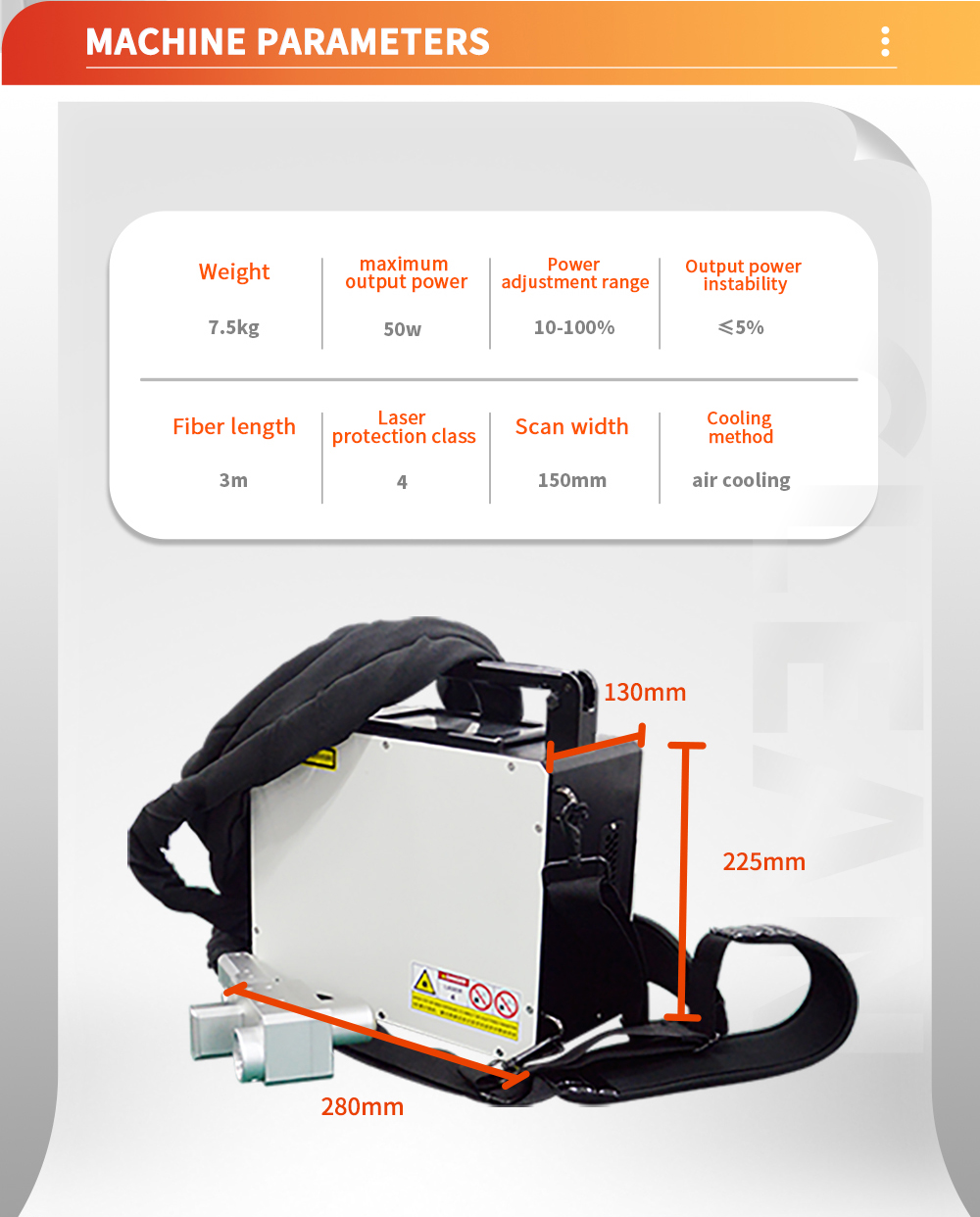

| No | Item | Specification Details |
|---|---|---|
| 1 | Model | TPC-50W |
| 2 | Laser source | fiber laser |
| 3 | Laser Power | 50W |
| 4 | Laser Wavelength | 1064nm |
| 5 | Pulse Energy | 1 mJ |
| 6 | Pulse frequency | 1-2000KHz |
| 7 | Scanning speed | 0-7000mm/s |
| 8 | Cooling | Air cooling |
| 9 | Beam width | 10-70mm |
| 10 | Optional | Manual |

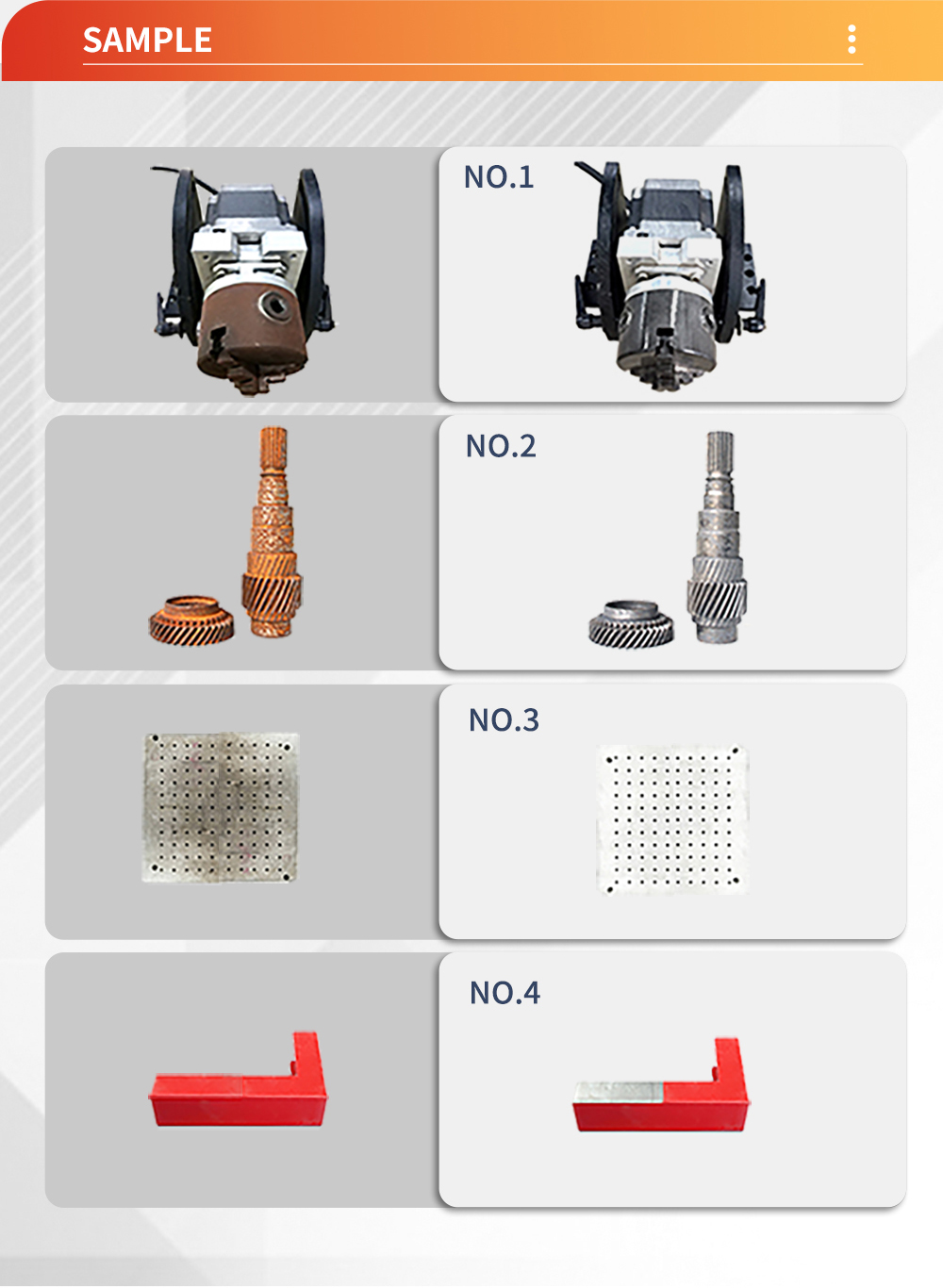

Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, and laser cleaning, such as coating, etc. This type is especially designed for cultural relics.
