LASER CLEANING MACHINE

Laser cleaning is a new technology based on the interaction between laser and substance, which can achieve the effect of removing surface pollution and attachments. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection and intelligently controlled by computer, especially suitable for high-speed online cleaning in designated areas.

Product Features

Non-contact cleaning, no damage to the parts matrix;
Accurate cleaning, can achieve precise position, precise size selective cleaning;
Do not need any chemical cleaning solution, no consumables, safe and environmental protection;

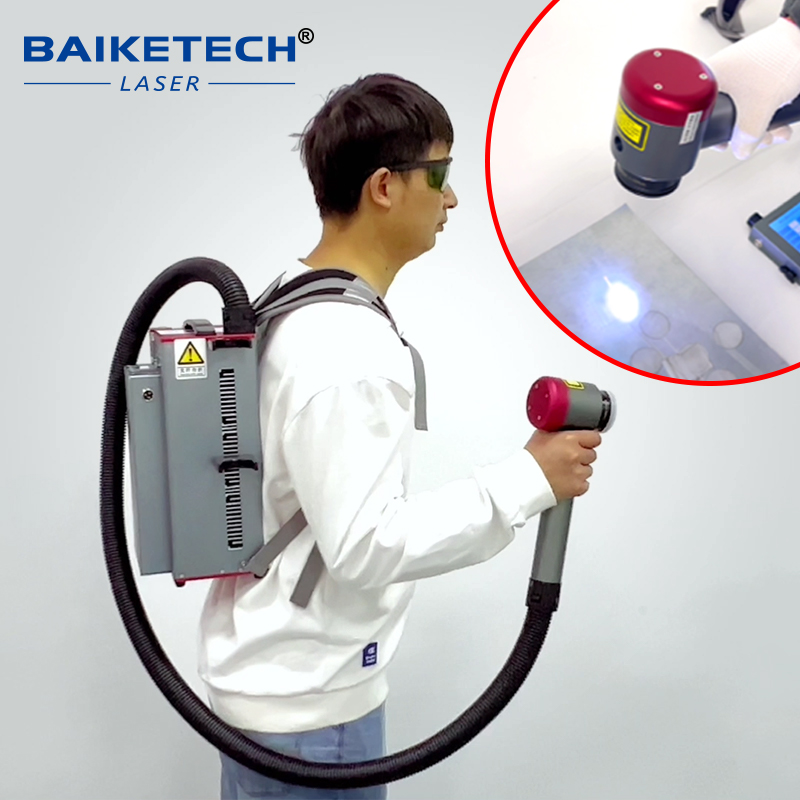

Simple operation, can be hand-held or with the robot to achieve automatic cleaning;
Ergonomic design, operation labor intensity is greatly reduced;
High cleaning efficiency, saving time;
Laser cleaning system is stable, almost no maintenance.

Technical Parameters

MOPA Laser Cleaning Machine Specifications
Product Name	MOPA laser cleaning Machine
Average Laser Power	50W
Power Instability	< 5%
Laser Working Mode	Pulse
Pulse Width	10-500ns
Maximum Monopulse Energy	1.5mj/15mj/50mj
Power Regulation Range (%)	0-100 (Gradient Adjustable)
Repeat Frequency (kHz)	1-3000 (Gradient Adjustable)
Fiber Length	5m
Cooling Mode	Air cooling
Laser Head Scan Range	0mm~100 mm, continuously adjustable; supporting 8 scanning modes
Scanning Frequency	The maximum is not less than 300Hz
Field Mirror Focal Length	160mm (Optional 210mm/254mm/330mm/420mm)
Depth of Focus	About 5 mm
Package Size (mm)	12006501050
Gross Weight (kg)	170
Cleaning Head Weight	< 1.5Kg
Mode of Operation	Handheld/automated
Supply Voltage	Single phase 220V±10%, 50/60Hz AC
Power consumption	< 4000W
Working environment temperature	5℃ ~ 40℃
Working environment humidity	≤ 80%

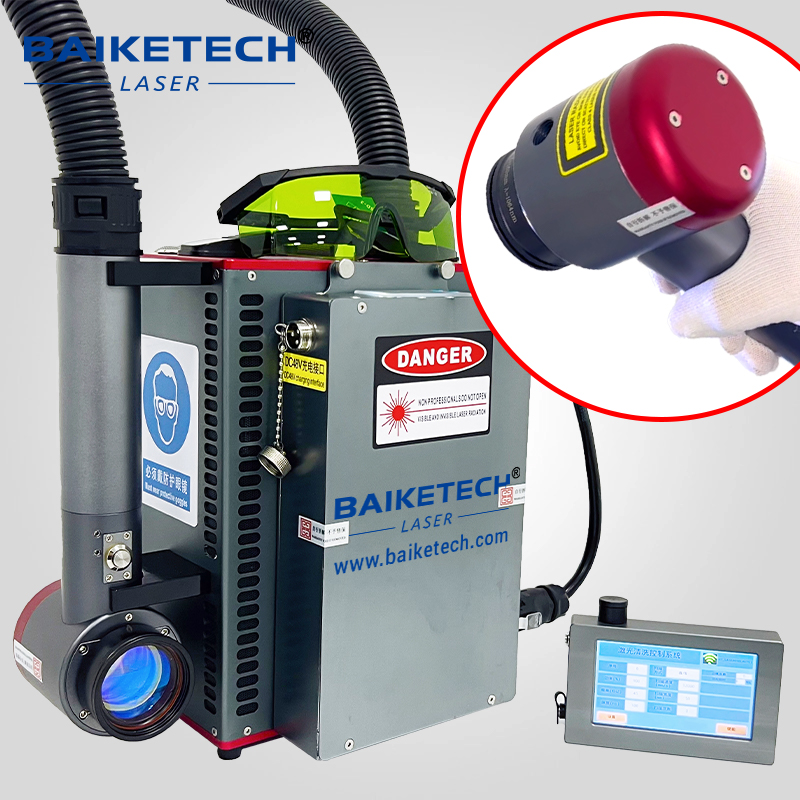

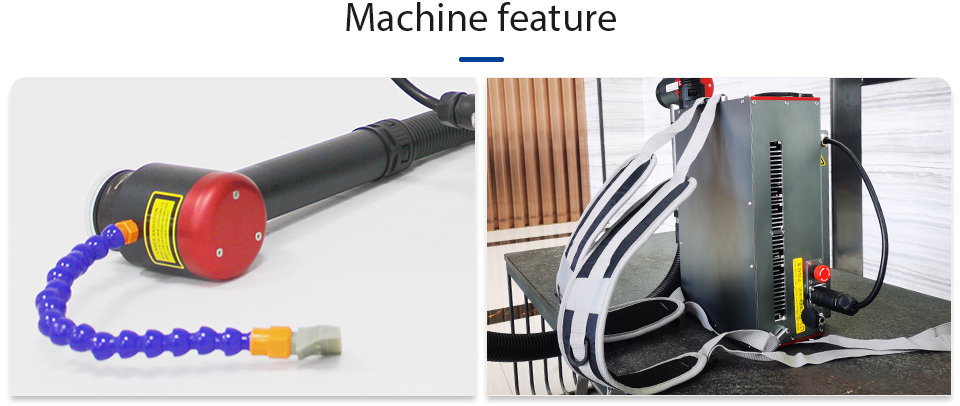

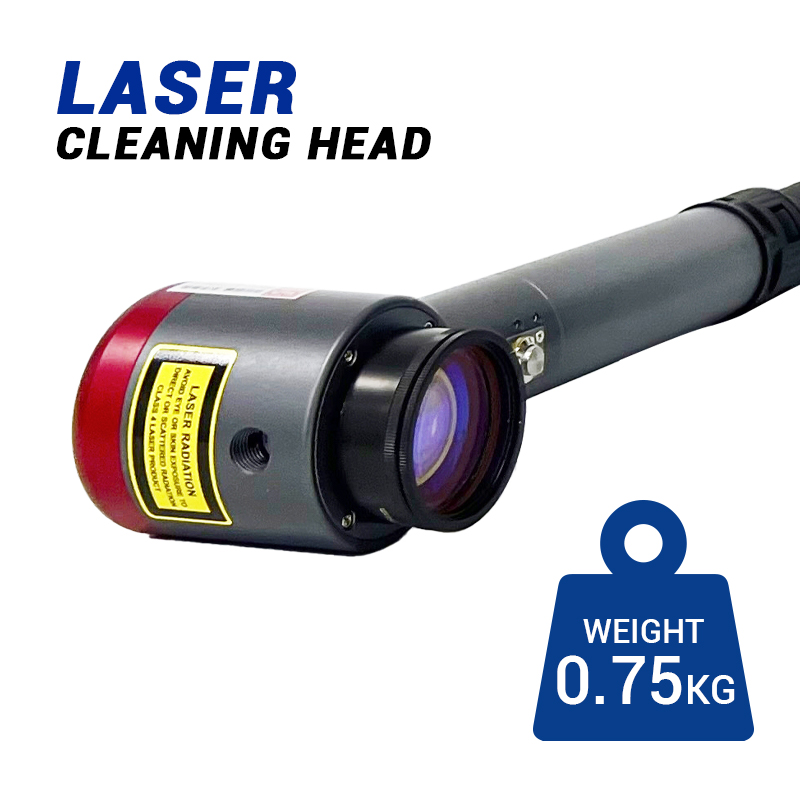

Cleaning head

Ergonomic design, operation labor intensity is greatly reduced; Easy to operate, can be hand-held automatic cleaning.

Laser cleaning system

Operation interface provides 8 cleaning modes: linear mode, rectangular mode, rectangular mode2, circular mode, sine mode, spiral mode, free mode, ring mode.

Heat dissipation design

Unique structural design ensures instant response and matching between the heat dissipation capacity and heat generation of the laser.

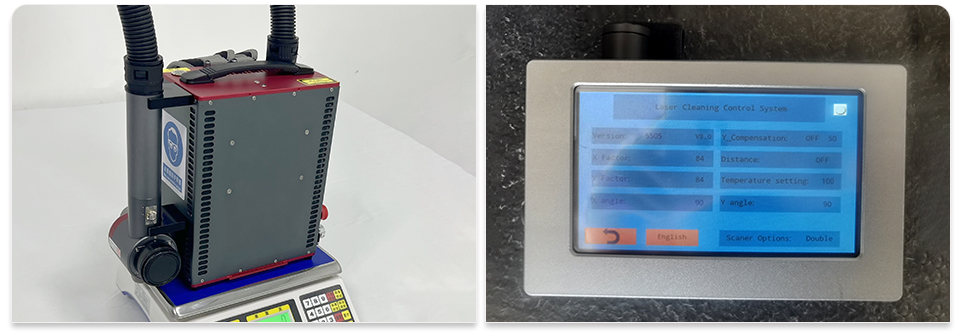

Control Panel

Equipped with an intelligent operating panel, different buttons and simple interface, the machine is easy to operate.

Frequently Asked Questions

Q What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?

Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs.

Q Can Pulsed Laser Cleaning Machines be used on any type of material?

While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light, it's important to check the compatibility with your specific material first.

Q What are the precautions during the use of the cleaning machine?

Electrical power supply of the cleaning equipment is 220V 50Hz AC power supply; About 2m of ventilation must be left around the equipment. In the course of operation, labor protective equipment should be worn according to regulations, and protective glasses must be worn near the laser beam; Do not place flammable and explosive items near the cleaning machine! Such items should avoid direct or reflective laser.

Q How long do Pulsed Laser Cleaning Machines last?

With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.

Q How about the Warranty?

We offer a one-year warranty (not including consumables) except for human damage.

Q How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. Or 15-20 days if the goods are not in stock, it is according to quantity.
