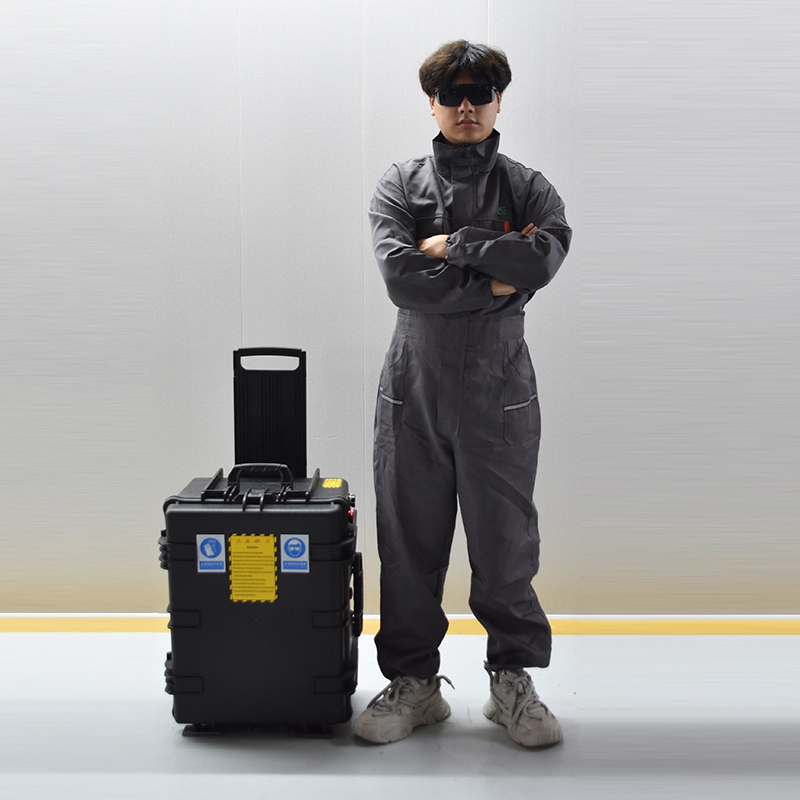

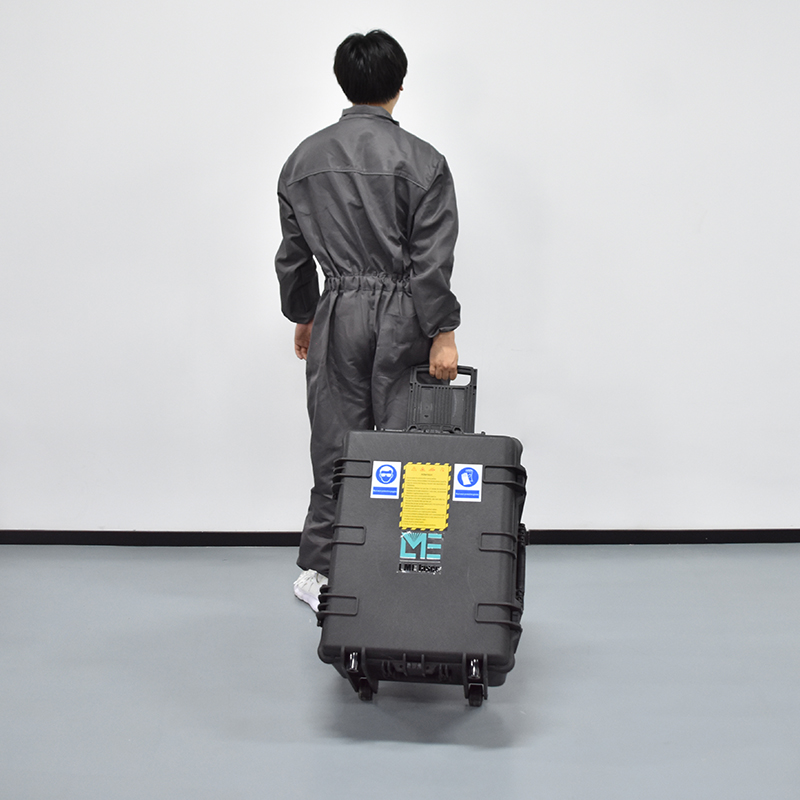

This is a Mini pulse laser cleaning machine, small and light, easy to carry, suitable for different construction sites. With optional power configurations of 100W, 200W, 300W, and 500W, and customizable control systems, it offers simple operation for user convenience. Mainly used in rust removal, paint removal, glue removal, coating removal, and plating removal. It is ideal for cleaning rust layers, thick paint layers, surface roughening, welding seam cleaning, and other process links with extremely high efficiency. Widely used in aviation, ships, cultural relics protection, automobile peripherals, food industry, rails, rubber molds, and other industries.
| No. | ITEM | DATE / SPECIFICATION |
|---|---|---|
| 1 | Product Name | Pulse fiber laser rust removal machine |
| 2 | Laser power | 100W / 200W / 300W / 500W |
| 3 | Wavelength type | Pulse |
| 4 | Power stability | Better than 5% |
| 5 | Power adjustment range(%) | 10-100 (gradient adjustable) |
| 6 | Repetition frequency(KHz) | 20-200 (gradient adjustable) |
| 7 | Fiber length | 5m |
| 8 | Cooling method | Air-cooling |
| 9 | Scanning range | 5mm ~ 120mm, Continuously adjustable |
| 10 | Focal length of field lens (mm) | 160mm (Optional 160mm-500mm) |
| 11 | Depth of focus | Max 10mm |
| 12 | Overall size | 350*280*650 mm |
| 13 | Total Weight | 35KG |
| 14 | Cleaning head weight | About 1kg |
| 15 | Voltage | 220V / 380V, 50 / 60HZ |
| 16 | Working temperature | 5°C ~ 40°C |

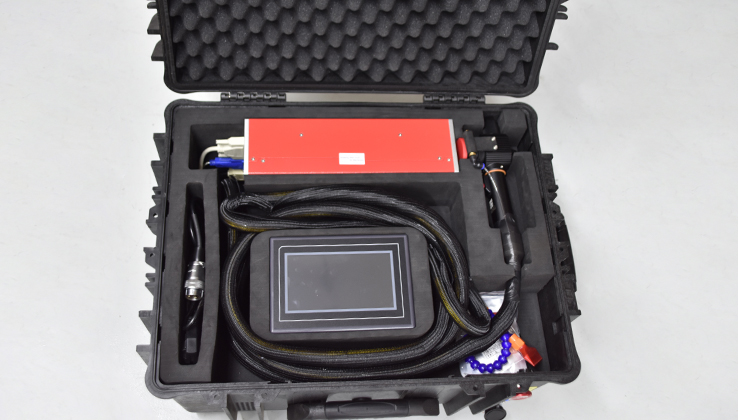

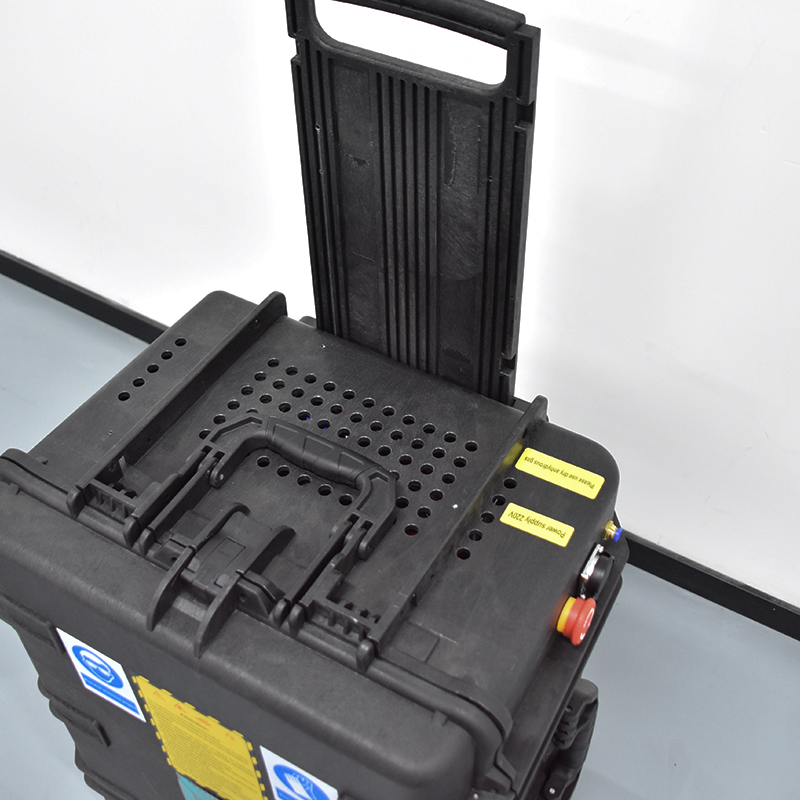

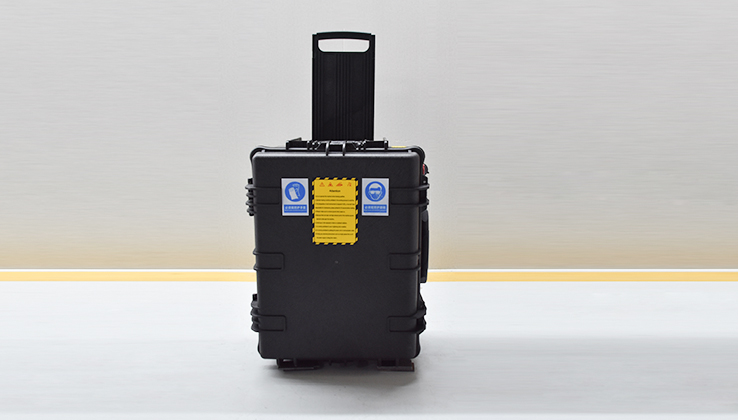

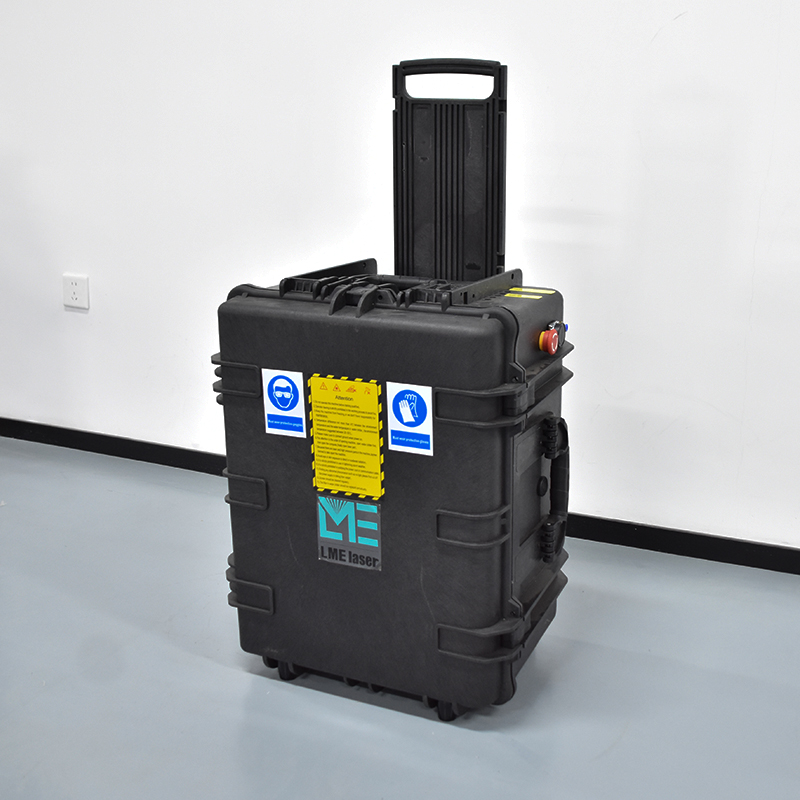

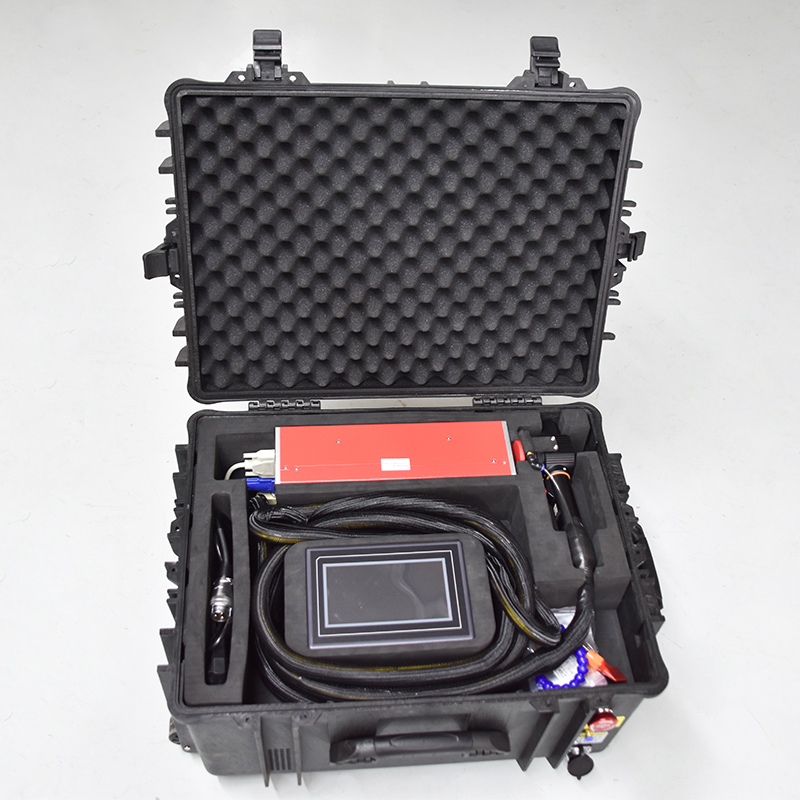

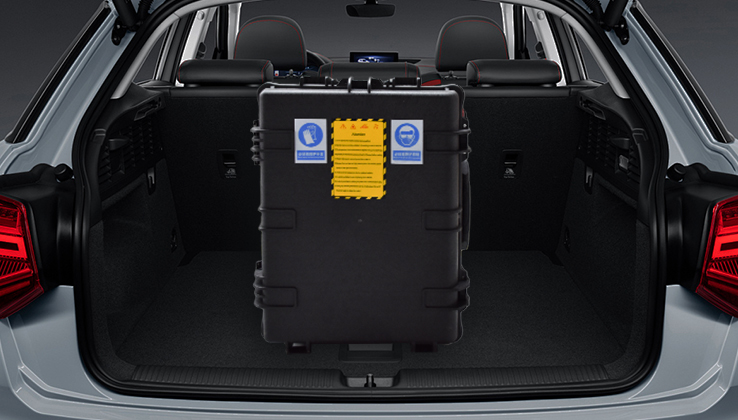

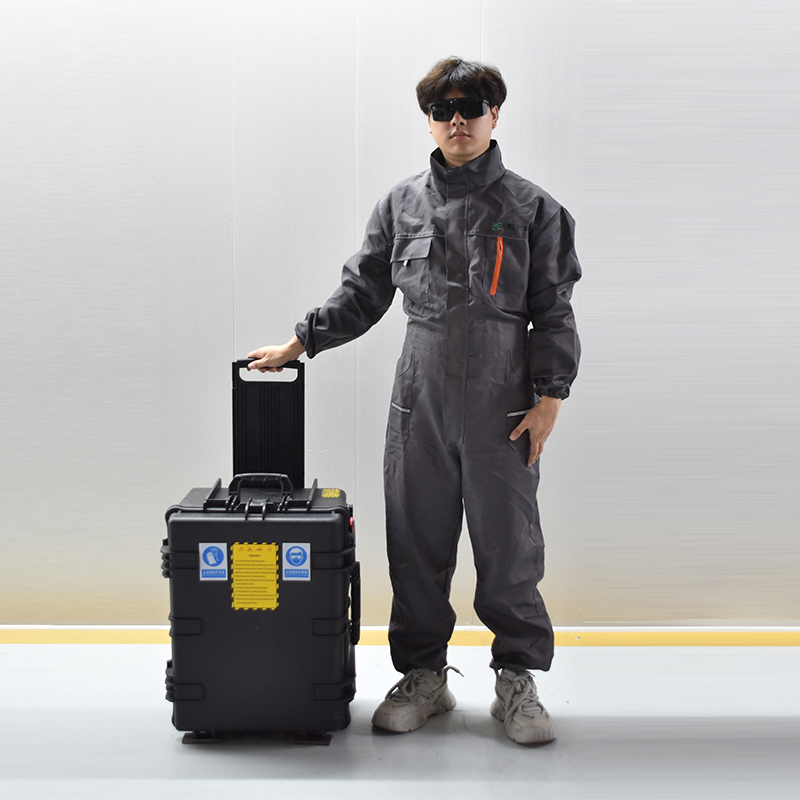

Small box design, compact structure, small and light. Can be carried to any office, easy to carry.
The system is stable and reliable, featuring a compact structure, accurate optical path, good sealing, delicate appearance, light weight, and easy installation.

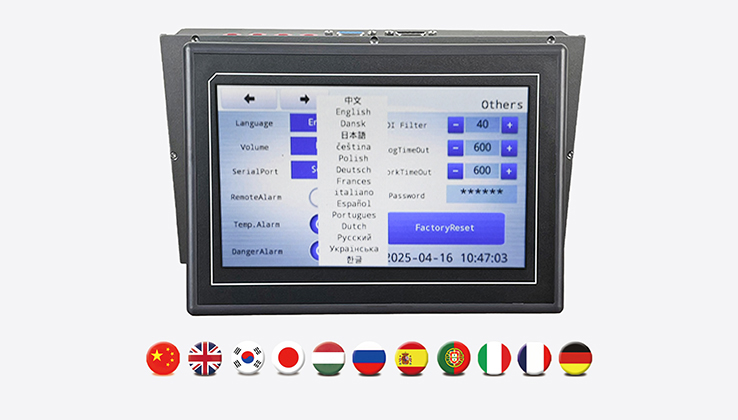

Supports 25 language switching. Features 10 security alarm protection systems to ensure stability. Supports multiple I/O Modbus, multiple communication methods, control functions, and customizable interface logo.

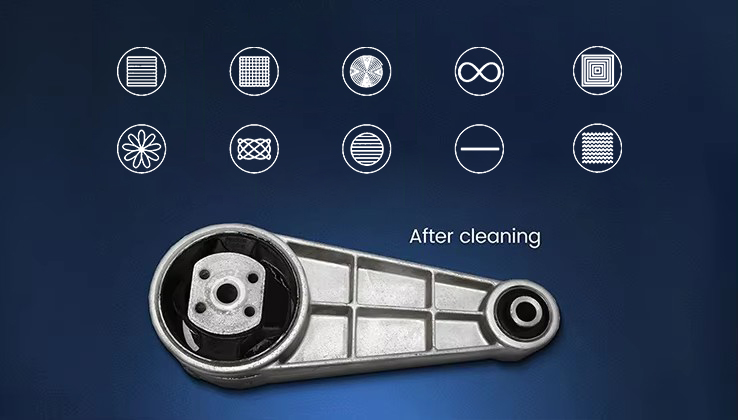

Supports 10 cleaning modes applicable to many complex cleaning scenarios. Real-time control supports slow rise and slow drop of laser power, achieving better cleaning effect without substrate damage.

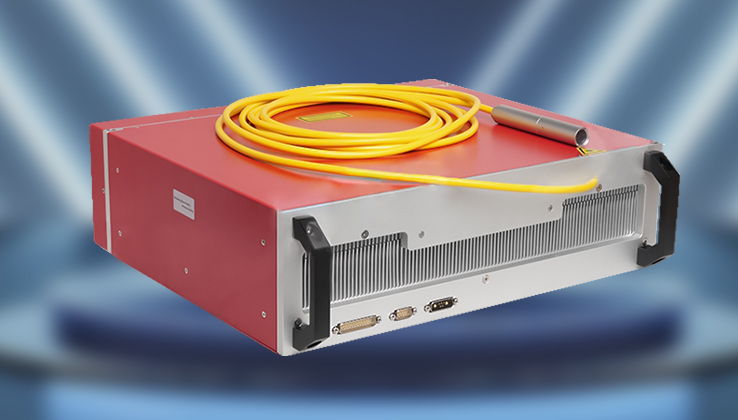

Uses a direct electrically modulated semiconductor laser as a seed source (MOPA) solution, providing perfect laser characteristics and good pulse shape control ability.
The machine comes with a 2-year warranty, offering high stability and cost-effectiveness. Built with famous brand parts and undergoing strict quality inspection, it represents a trusted choice.

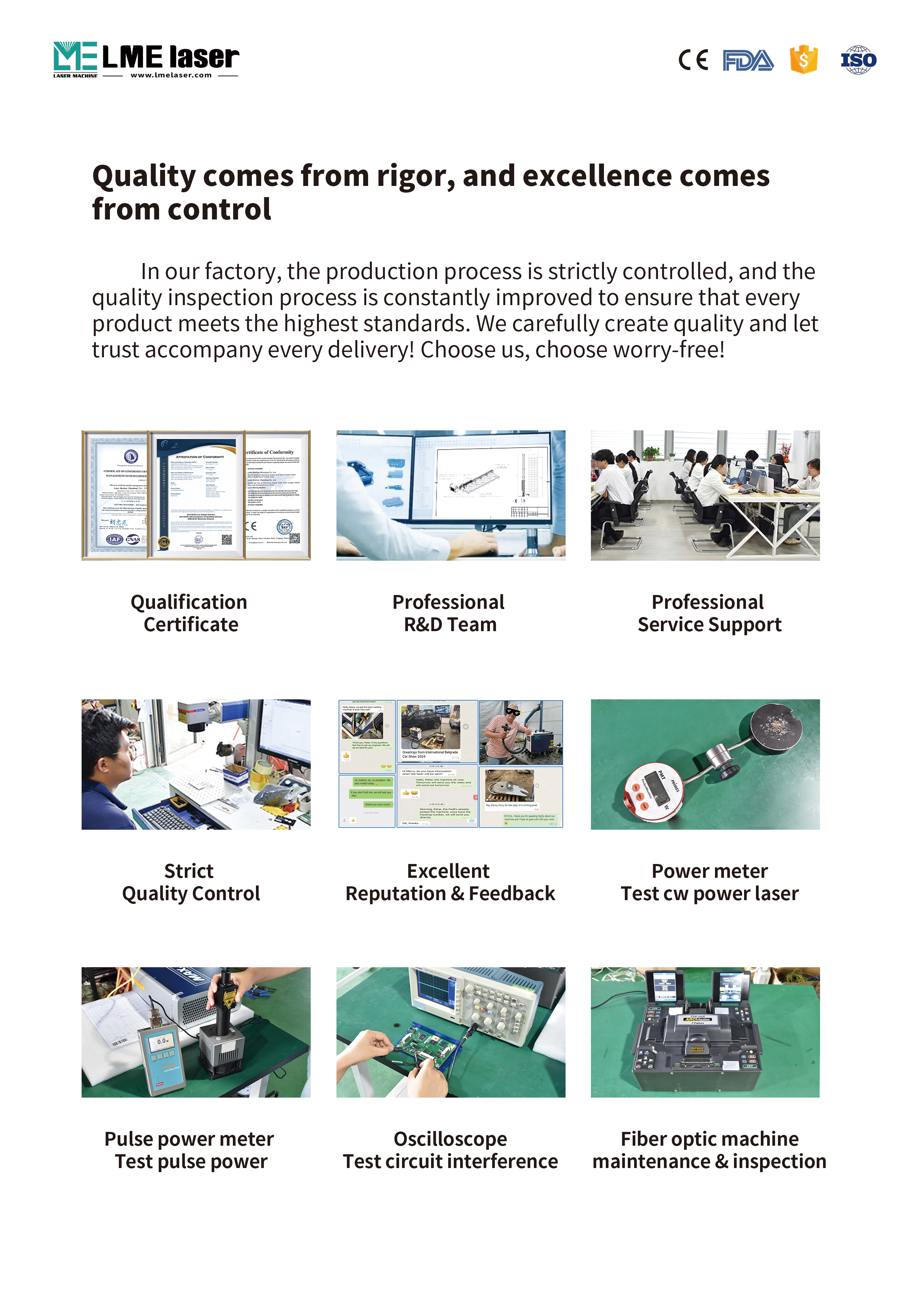

Compliant with ISO9001, CE, and FDA certifications, making it popular and highly recognized in global markets.

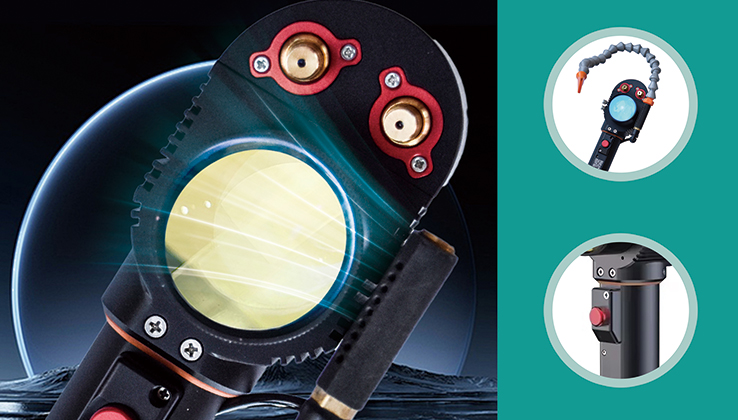

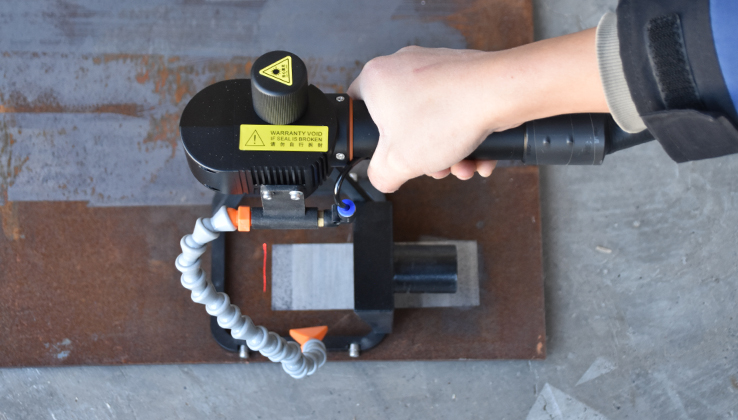

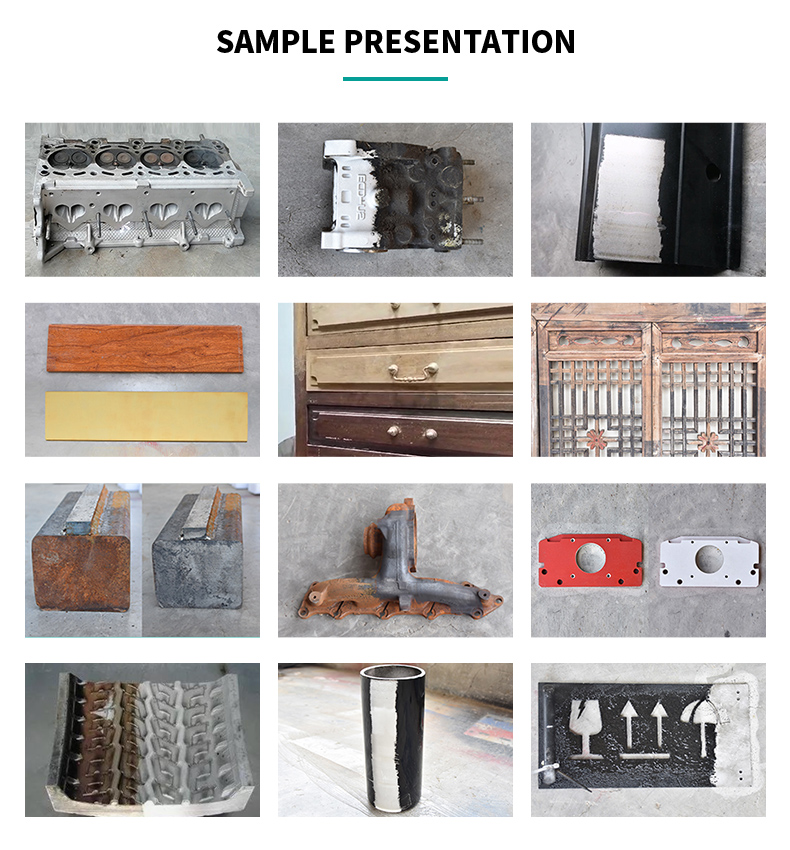

Operates very fast and cleans exceptionally well. Mainly used for removing paint from automotive parts and cleaning rust from metal components.
Mainly applied in rust removal, paint removal, glue removal, coating removal, and plating removal. It is suitable for cleaning rust layers and thick paint layers, and handles surface roughening and welding seam cleaning with high efficiency. Broadly applied in aviation, shipbuilding, cultural relics restoration, automotive, food processing, rails, and rubber mold manufacturing.
