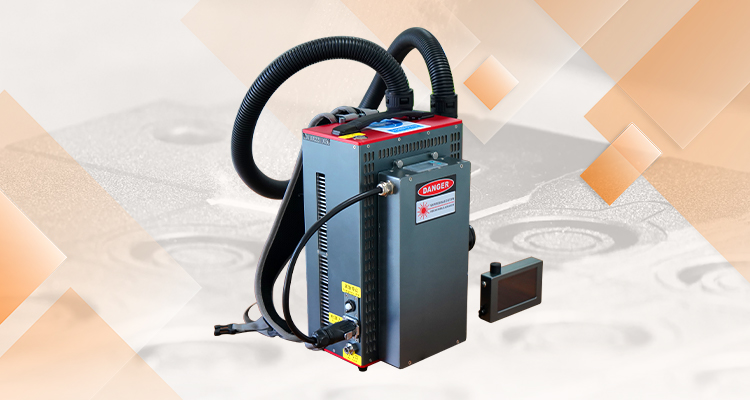

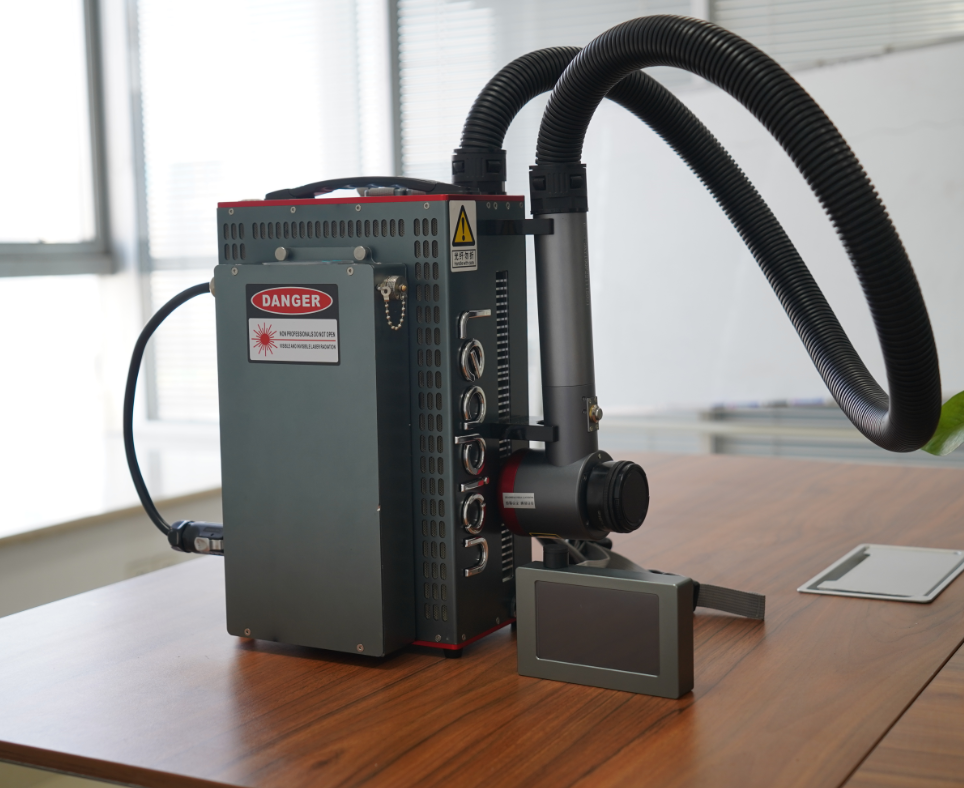

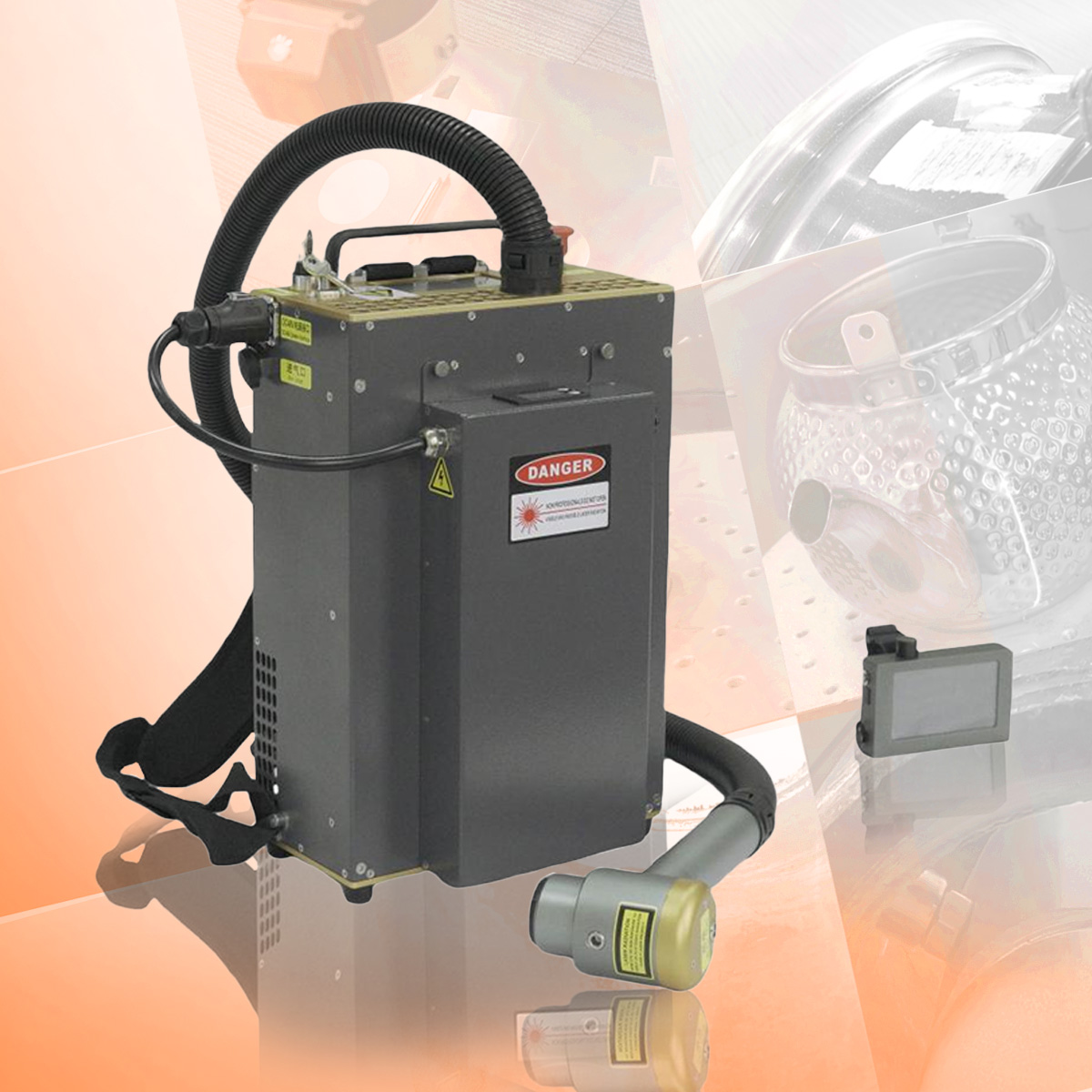

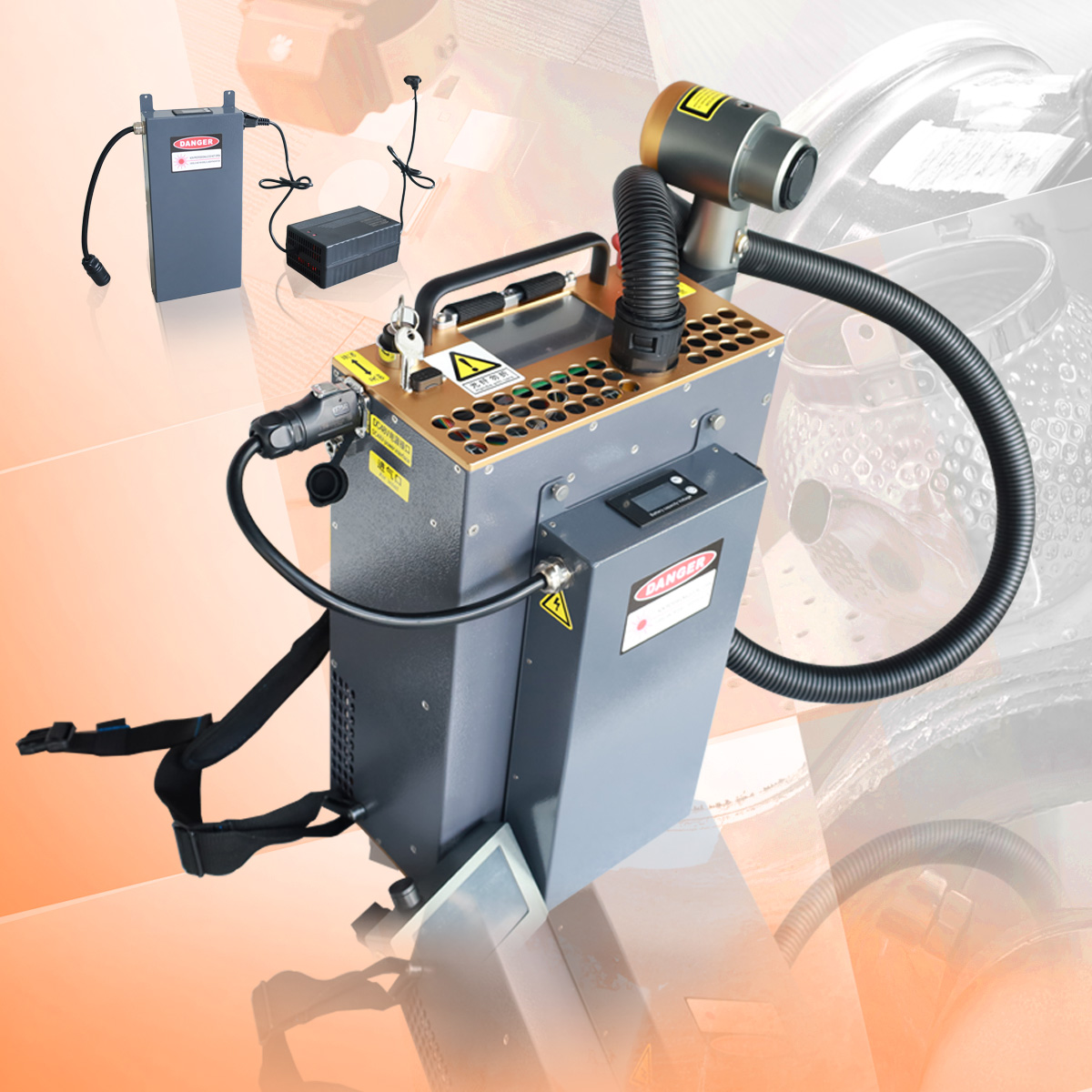

The Pulse Laser Cleaning Machine Backpack Style For Battery is a pulse laser cleaner developed for customers who have outdoor travelling needs. This model is easy to carry so that it can cope easily with outdoor unplugged situations, anytime and anywhere for cleaning operations. With JPT laser source, the cleaning effect is remarkable, improving the efficiency of the work, and the surface of the material has less damage for the requirements of the higher level of crafts. It is friendly to the cleaning of highly demanded crafts.

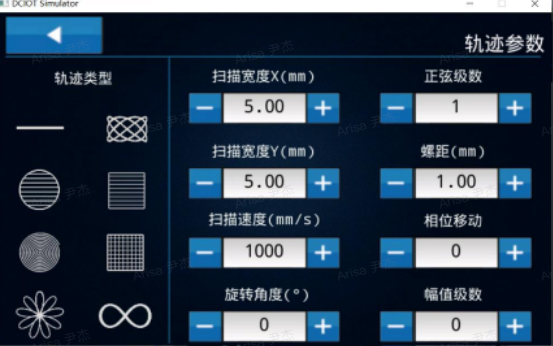

The control system has a variety of built-in cleaning modes, and the operator can choose the appropriate cleaning mode according to the actual situation.
| Field Lens Model | Scan Area |
|---|---|
| F100 | 56*56mm |
| F160(Standard) | 84*84mm |
| F210 | 110*110mm |
| F254 | 135*135mm |
| F330 | 150*150mm |
| F420 | 195*195mm |

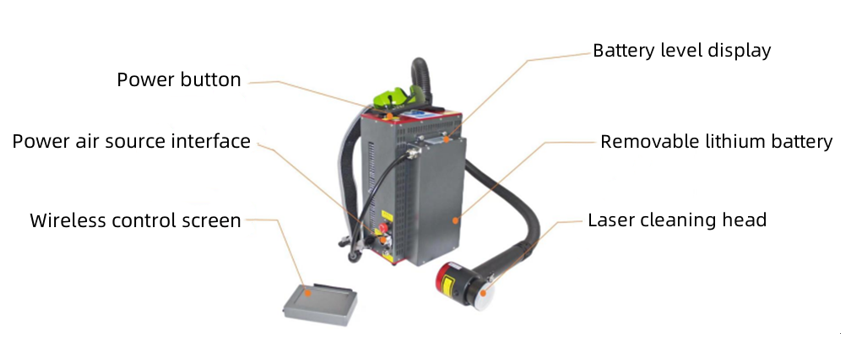

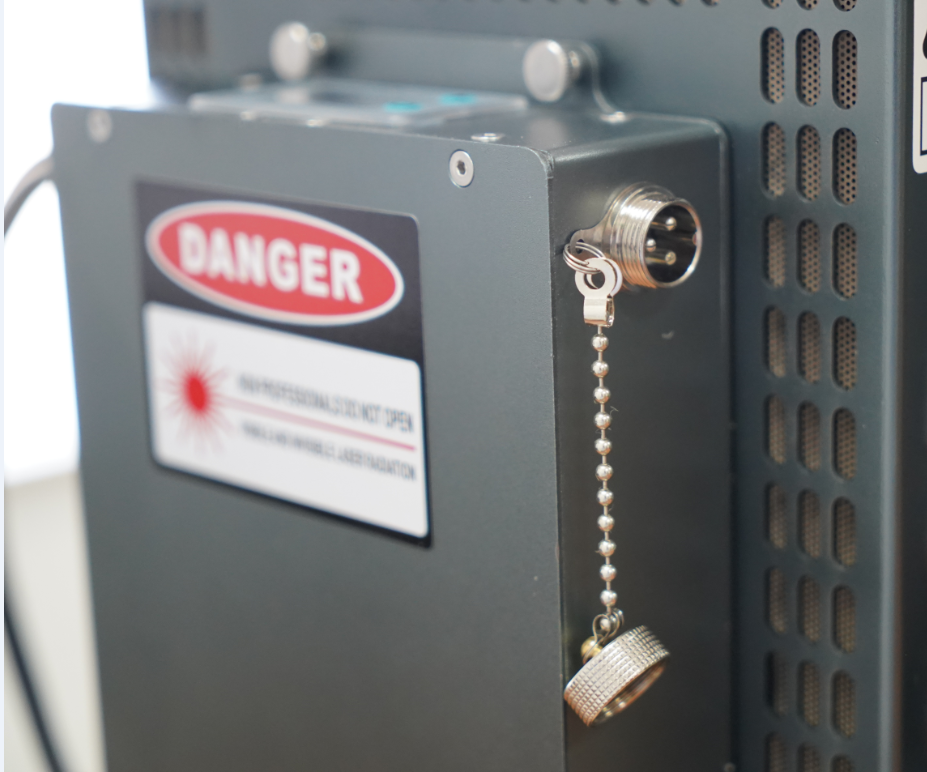

Our machines are equipped with more reliable removable lithium batteries. The battery has a long cycle life, stable voltage and the ability to withstand its strong, so that it can output a stronger high power and whole machine consumption under 600W. Equipped with screen display power, it also can be plugged in to use, 100W full power can support 80-90 minutes of continuous work. Light weight and a small size also makes your outside work easier.

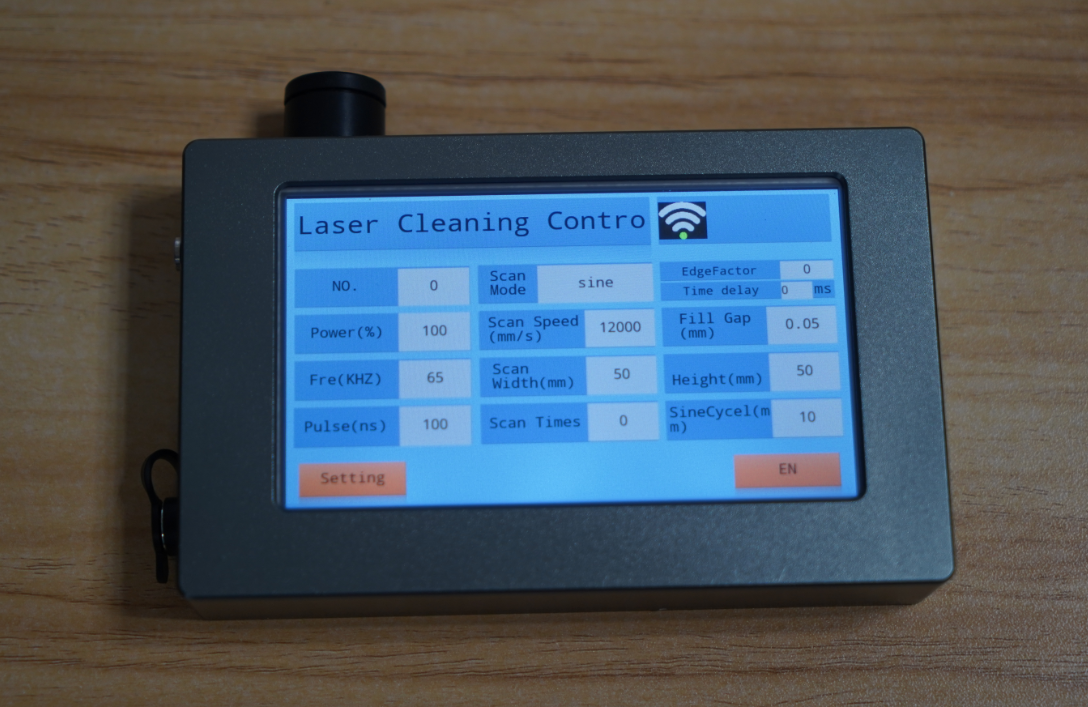

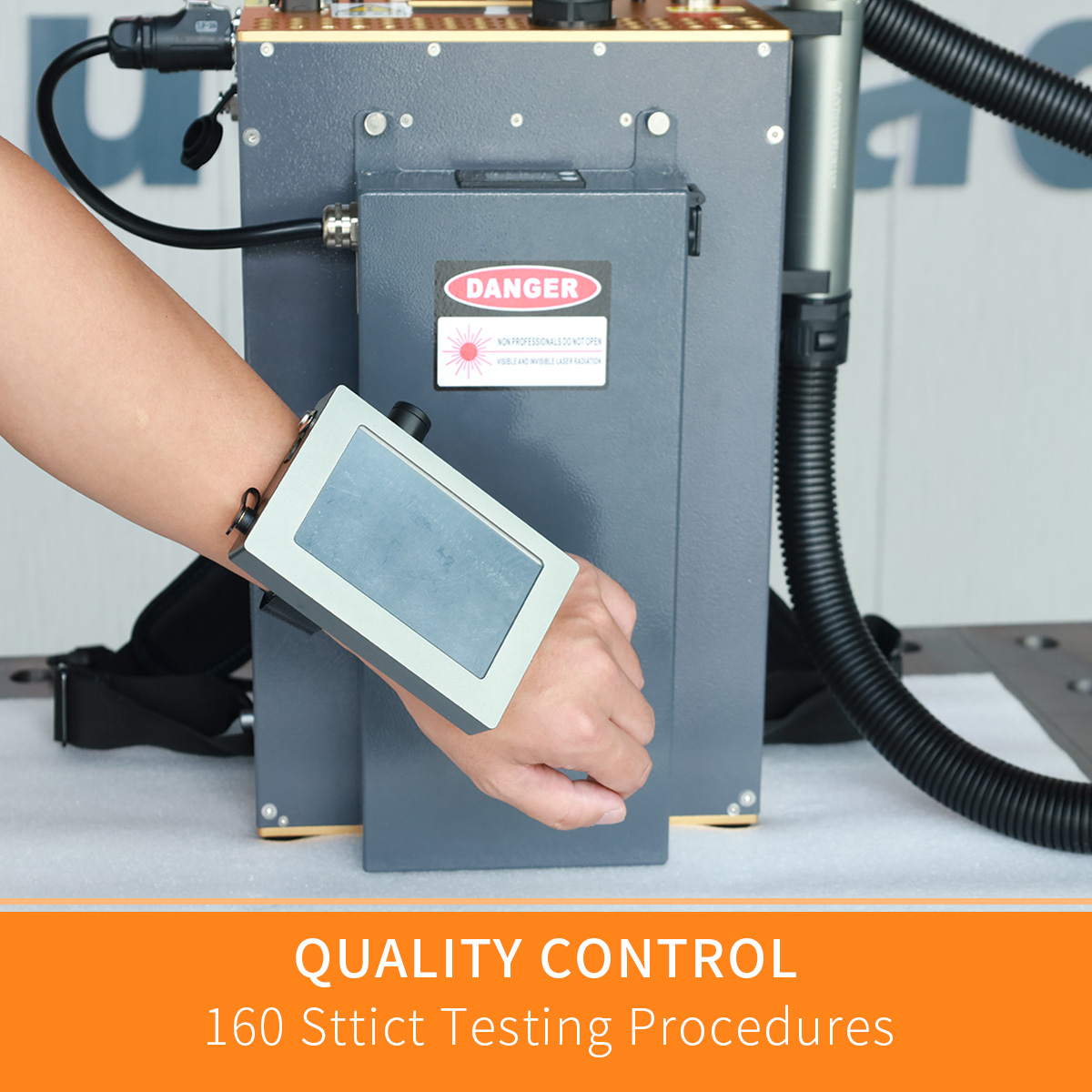

Machine is equipped with a wireless control screen, it can be detached from the machine for easy control, improving flexibility, and not limited by distance and location. Intelligent display makes operation easier, it also can control the switching of 8 cleaning modes for you to choose. For machine daily use, it also can support multiple language switching from the wireless control screen, more convenient for your use.
| Parameter | Specification |
|---|---|
| Model | UC-CPB Backpack Battery Air Cooled Type Pulsed Laser Cleaning Machine |
| Laser Power | 100w (without option) |
| Laser Output power adjustment range | 10% - 100% |
| Pulse Width | 150-190ns |
| Scanning Range | 0-100mm, continuously adjustable |
| Fiber Wire Length | 1.5m |
| Support Languages | 9: Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc. Support customized languages |
| Cooling Method | Air Cooling |
| Working Temperature | 5℃ ~ 40℃ |
| Working Environment Humidity | ≤80% |
| Overall Power Consumption | <600W |
| Voltage | Standard AC220V±10% 50/60Hz power adapter (output DC48V) |

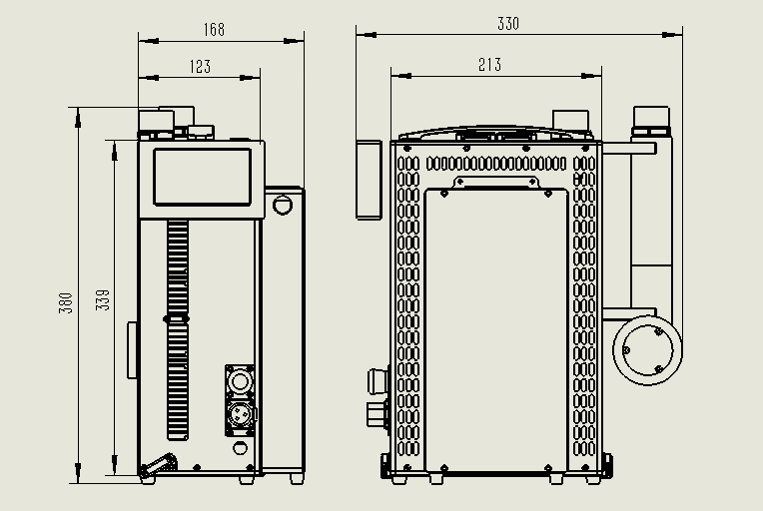

| Machine Dimension | 213mm*168mm*339mm |
| Package Dimension | 600*400*360mm |
| Package Weight | 19KG |
| Material Layer Type | Cleaning Performance Speed |
|---|---|

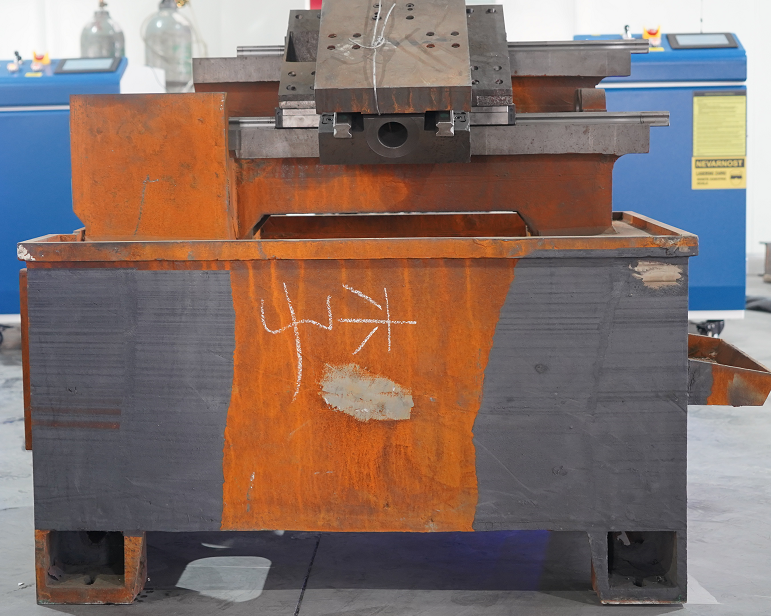

| Carbon Steel Rust < 25mm | 5 m²/h |
| Aluminium Oil Layer < 8mm | 2 m²/h |
| Paint Layer < 10mm | 0.16 m²/h |

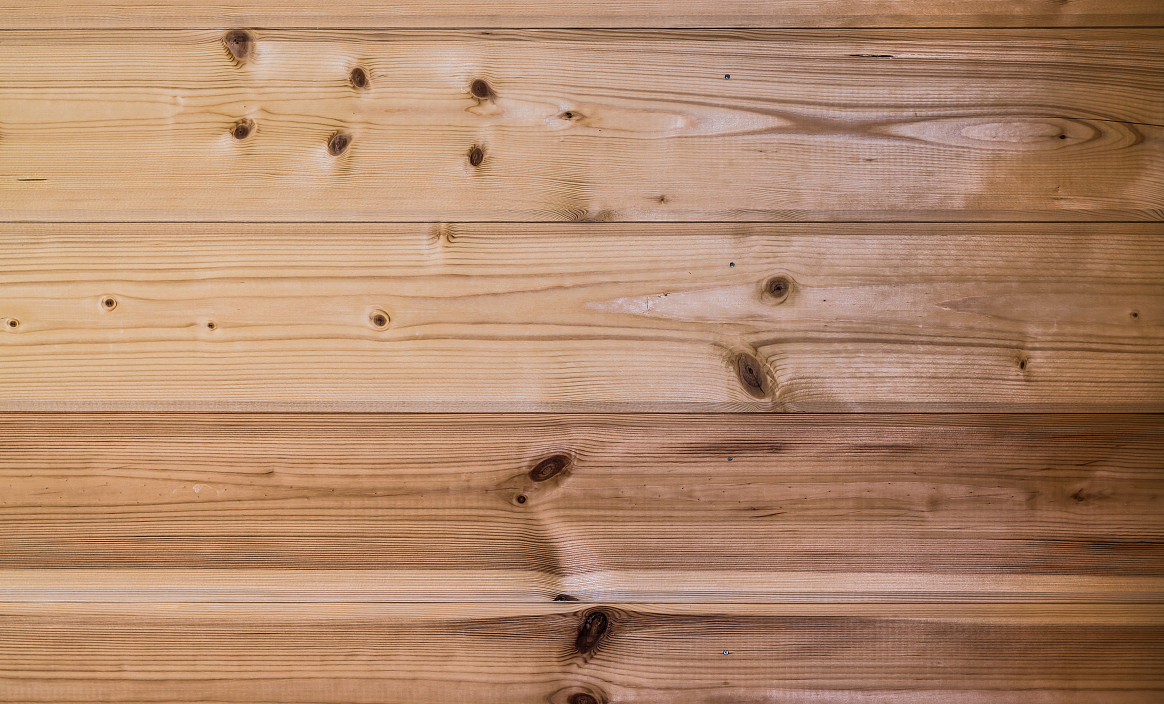

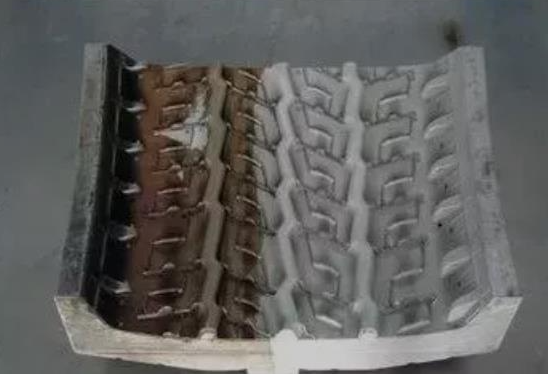

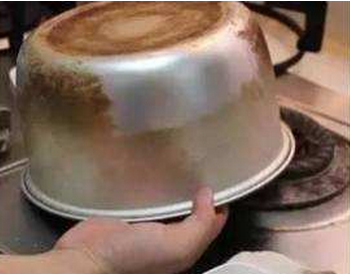

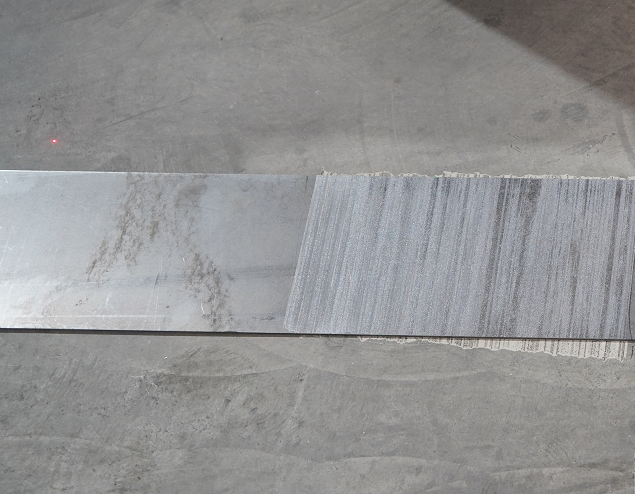

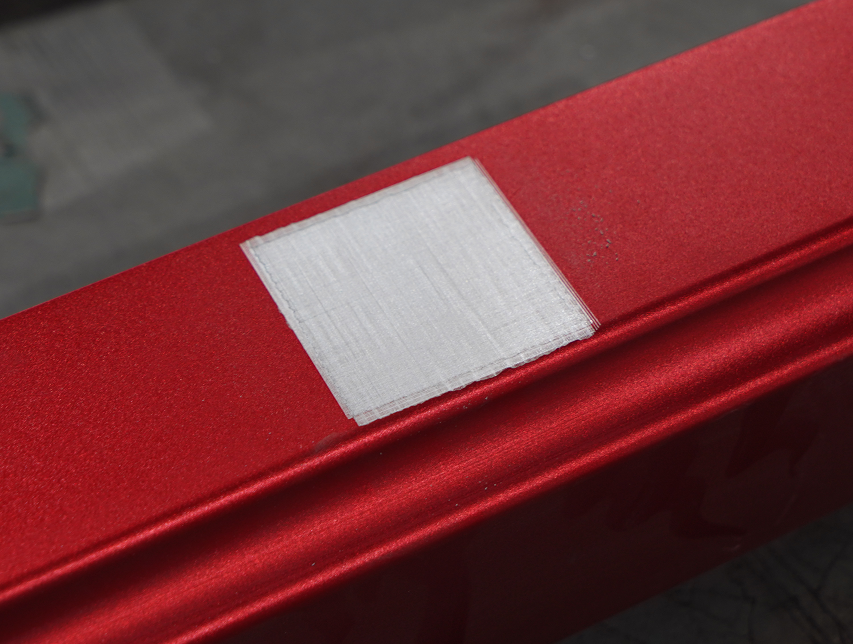

Pulse laser cleaning machine is suitable for efficient cleaning of pollutants on the surface of various materials, including metal, non-metal, wood, glass, ceramics, etc., and is environmentally friendly and pollution-free. Especially for removing stains on the surface of wood, removing carbon deposits inside automobile engines, cleaning precision devices, etc.
| Shipment Method | Sea Freight, Land Freight, Air Freight, International Express, etc. |
| Package Method | Wooden Case |
| Noted | If you would like to ship this device by air freight, please advise prior to purchase. Because air shipment requires electromagnetic inspection, this usually costs about 80USD. |
Founded in 2007, our company has been dedicated to integrating the R&D, manufacturing, marketing and maintenance of laser machines. We specialize in manufacturing Laser Welding Machines, Laser Cleaning Machines, Laser Marking Machines, CNC Routers, CO2 Laser Engraving Machines, etc.
