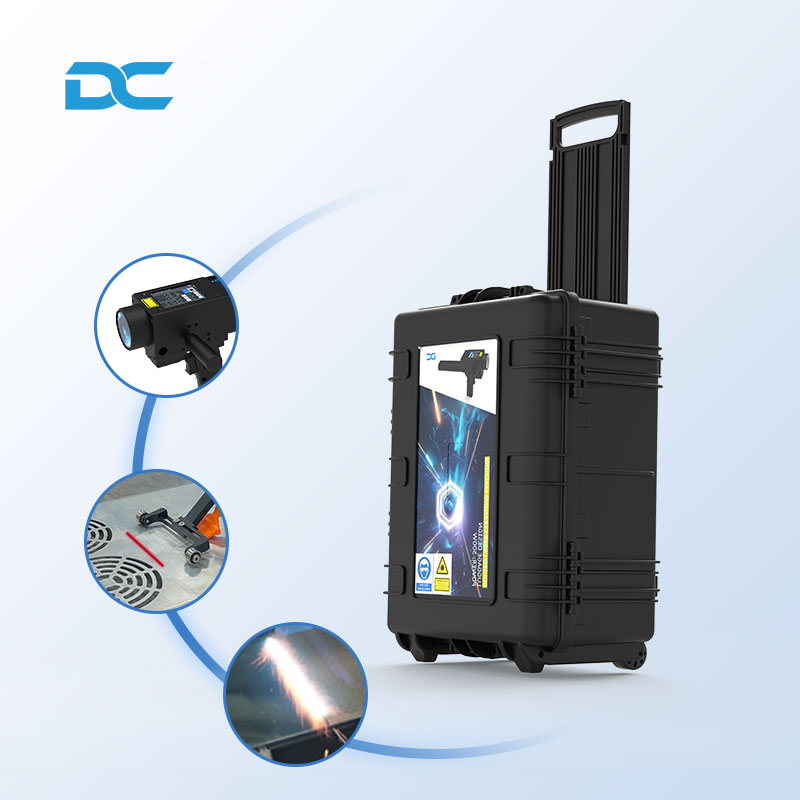

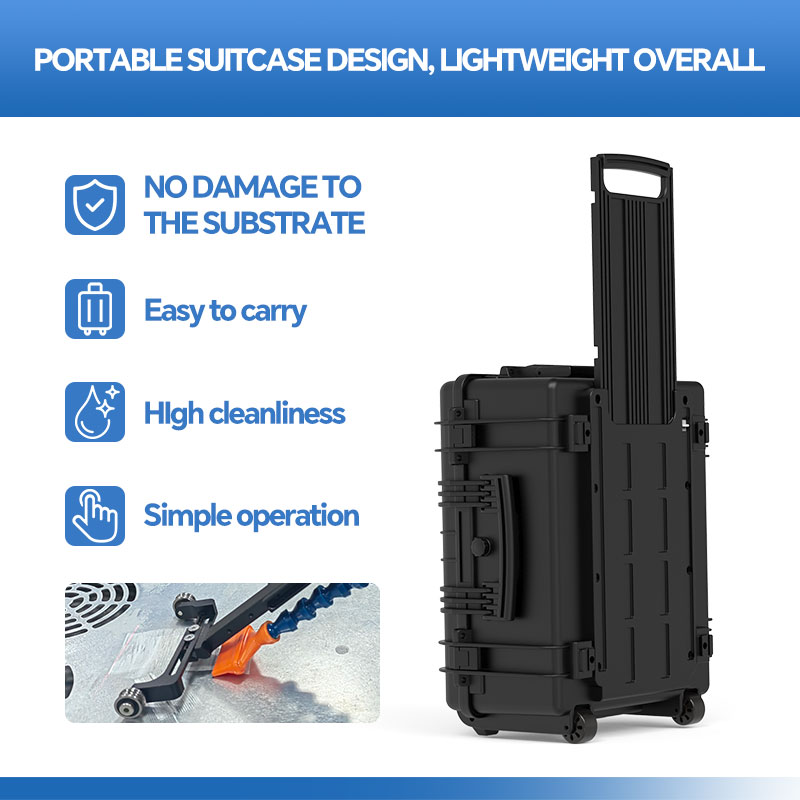

Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
1 / 5
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine

Dachuan Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine

Send Inquiry

Product Description

Handheld 500W Portable Pulsed Fiber Laser Cleaner Wood Metal Stone Stainless Steel Aluminum Paper Laser Cleaning Machine
High-efficiency precision cleaning solution for multi-surface applications

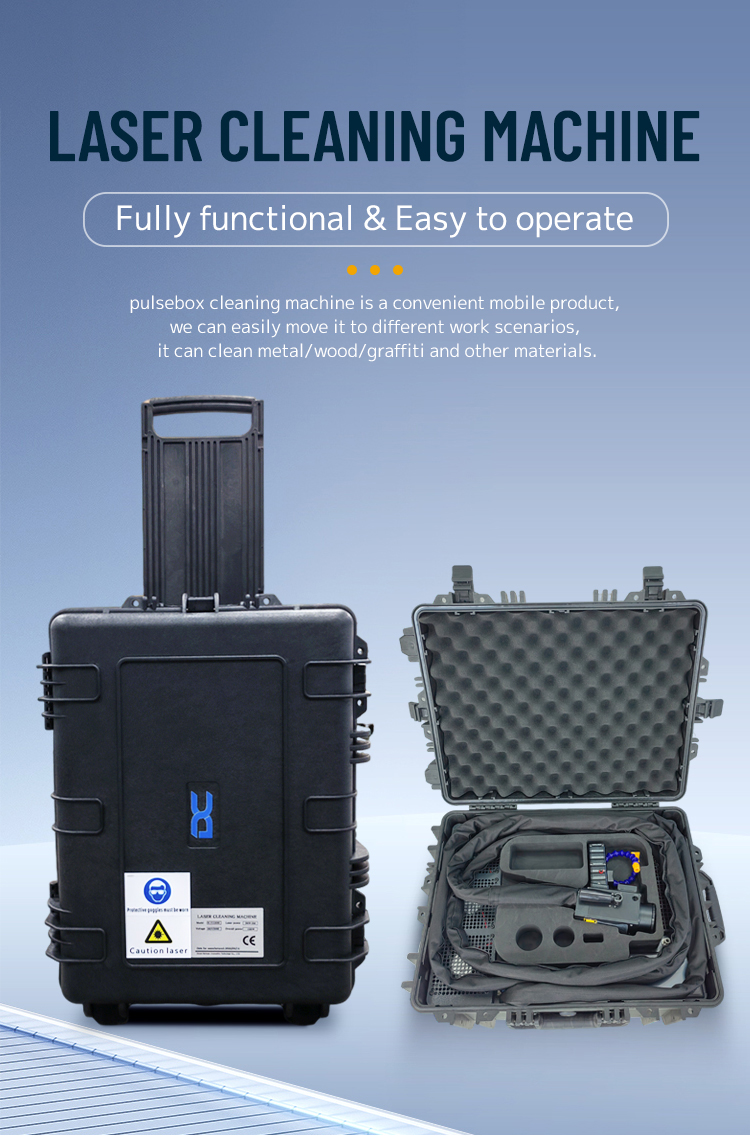

Portable Pulsed Fiber Laser Cleaner Display Laser Cleaning Performance Demo
Technical Specifications
Specification Parameter 100W Model (DC-LG100SL) 200W Model (DC-LG200SL) 300W Model (DC-LG300SL)
Laser Power 100W 200W 300W
Laser Brand JPT JPT JPT
Power Supply Single-phase 220V±10%, 50/60Hz AC Single-phase 220V±10%, 50/60Hz AC Single-phase 220V±10%, 50/60Hz AC
Overall Power Consumption < 800W ≤ 1500W ≤ 2000W
Working Ambient Temperature 5℃ ~ 40℃ 5℃ ~ 40℃ 5℃ ~ 40℃
Working Environment Humidity 80% or less 80% or less 80% or less
Average Laser Power ≥ 100W ≥ 200W ≥ 300W
Power Instability < 5% < 5% < 5%
Laser Work Mode Pulse Pulse Pulse
Pulse Width 2-500ns adjustable 13-500ns 2-500ns
Maximum Monopulse Energy 1.5 mJ 2mJ 1.5 mJ
Power Adjustment Range 0-100% (gradient adjustable) 0-100% (gradient adjustable) 0-100% (gradient adjustable)
Repetition Rate 1-4000 kHz (gradient adjustable) 1-4000 kHz (gradient adjustable) 1-4000 kHz (gradient adjustable)
Fiber Length 5m 5m 5m
Cooling Method Air cooling Air cooling Air cooling
Scan Range (Length * Width) 0-100mm, continuously adjustable; Dual axis (9 modes) 0-145mm, continuously adjustable; Dual axis (8 modes) 0-145mm, continuously adjustable; Dual axis (9 modes)
Field Mirror Focal Length 160mm (optional 210/254/330/420mm) 210mm (optional 160/254/330/420mm) 210mm (optional 160/254/330/420mm)
Host Dimensions (L*W*H) Approx. 617mm x 469mm x 291mm Approx. 617mm x 469mm x 291mm Approx. 617mm x 469mm x 291mm
Packaging Dimensions (L*W*H) Wooden case: approx. 760*560*480mm Wooden case: approx. 760*560*480mm Wooden case: approx. 760*560*480mm
Machine Weight About 28Kg About 28Kg Approx. 29Kg
Package Weight 48Kg 48Kg 49Kg
Cleaning Head Weight < 0.9Kg < 0.9Kg < 0.9Kg
Operation Mode Handheld Handheld Handheld
Product Features & Structure

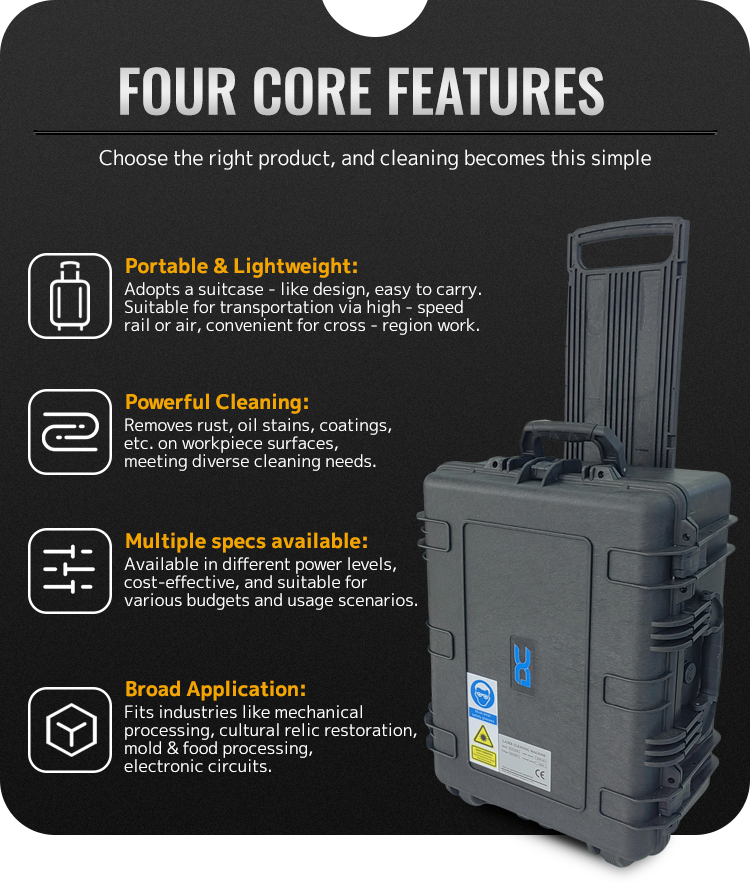

Laser Cleaner Detail View 1
Laser Cleaner Detail View 2
Laser Cleaner Detail View 3

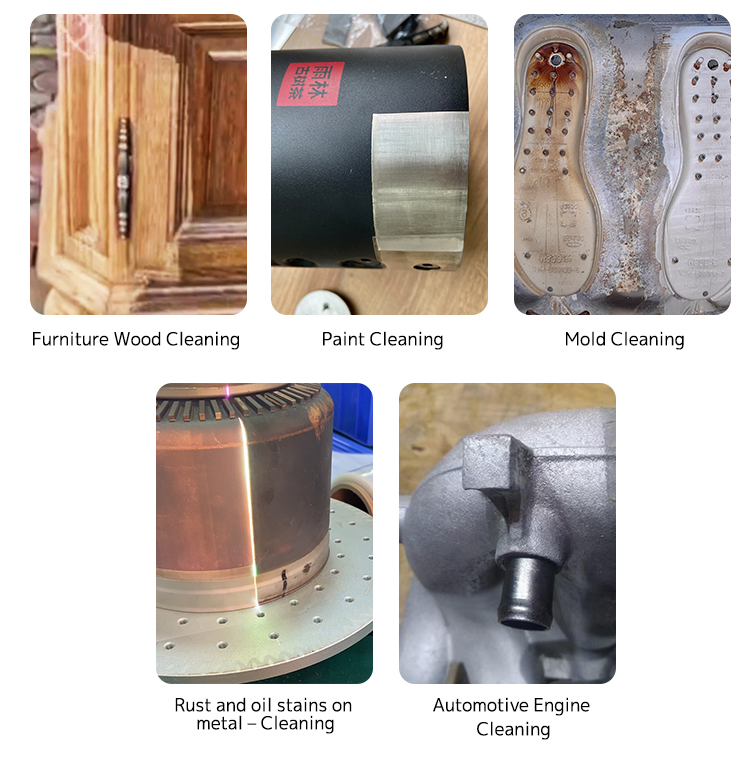

Multi-Surface Application Demos

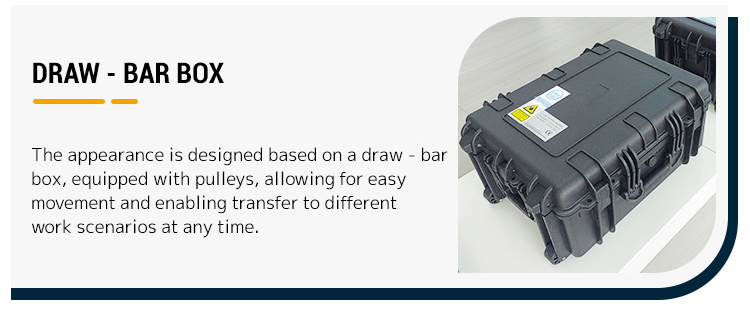

Cleaning Application Demo 1

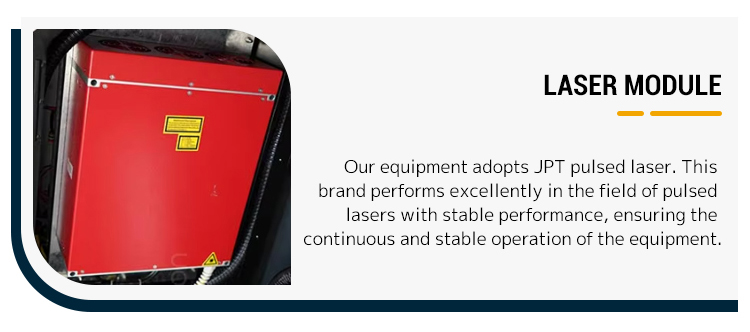

Cleaning Application Demo 2

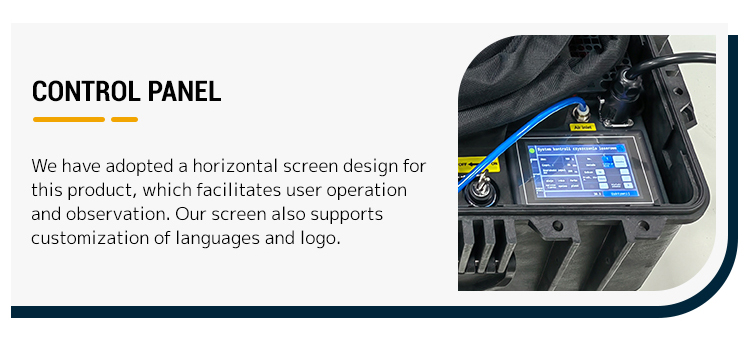

Cleaning Application Demo 3

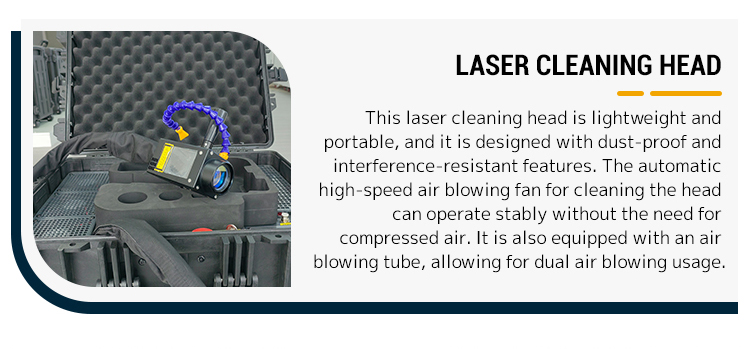

Cleaning Application Demo 4
Detailed Components & Build Quality
Component Detail 1

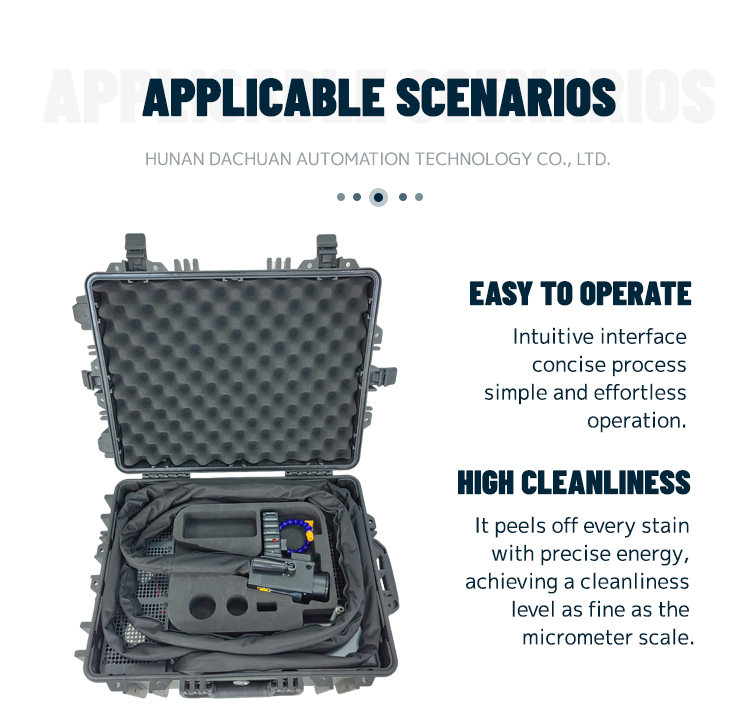

Component Detail 2
Component Detail 3
Component Detail 4

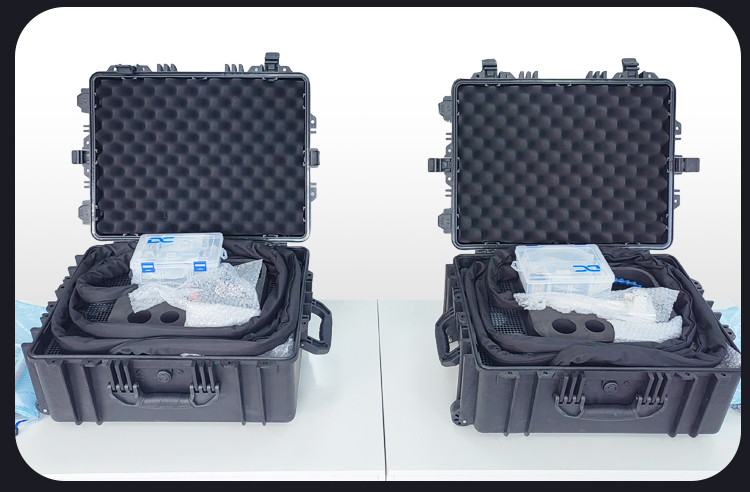

Component Detail 5

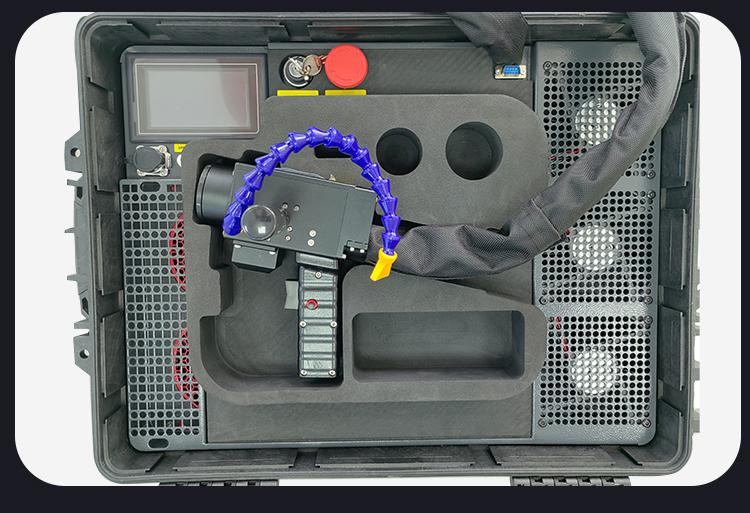

Component Detail 6
Component Detail 7
Component Detail 8
Component Detail 9
Component Detail 10
Component Detail 11
Component Detail 12
Component Detail 13
Frequently Asked Questions
Q How do we choose the most suitable laser cleaning machine?
In order to recommend the most suitable machine model to you, please tell us the following details:
1. What kind of surface material do you want to clean, such as metal surface, plastic surface, etc.?
2. Do you want to clean the surface of oil, rust, paint or other stains?
Q When I receive this machine, I cannot operate it, how can I ask for help?
Our after-sales staff will send you the operation video and manual of the machine, and our technical engineers will conduct training and guidance online. If necessary, we can send engineers to your site for training, or you can send operators to our factory for training.
Q What should I do if something goes wrong with my device during use?
Our equipment has a whole machine warranty of 1 year, and the laser has a warranty of 2 years. Within the scope of the warranty, if there is any problem with the equipment, we will provide spare parts free of charge (except man-made damage). After the warranty period, lifetime service is still available. If you have any questions, please let us know and we will provide you with a solution.
Q What are the payment options?
We accept payment terms including: T/T, VISA, Western Union, and online bank payments.
Q What are the transportation methods of the equipment?
Shipping by sea is the normal way. If there are special requirements, they need to be confirmed and agreed upon by both parties.
