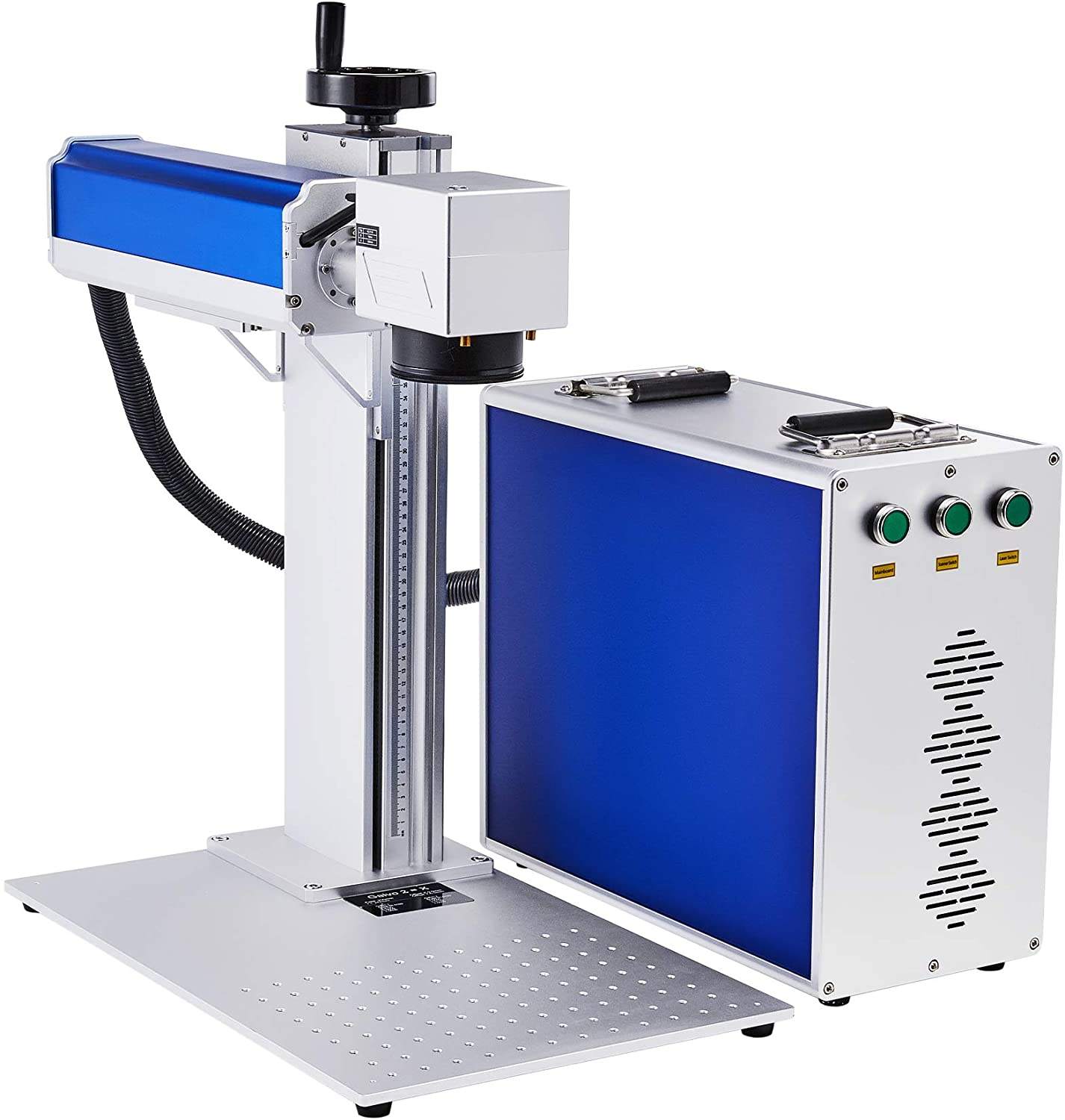

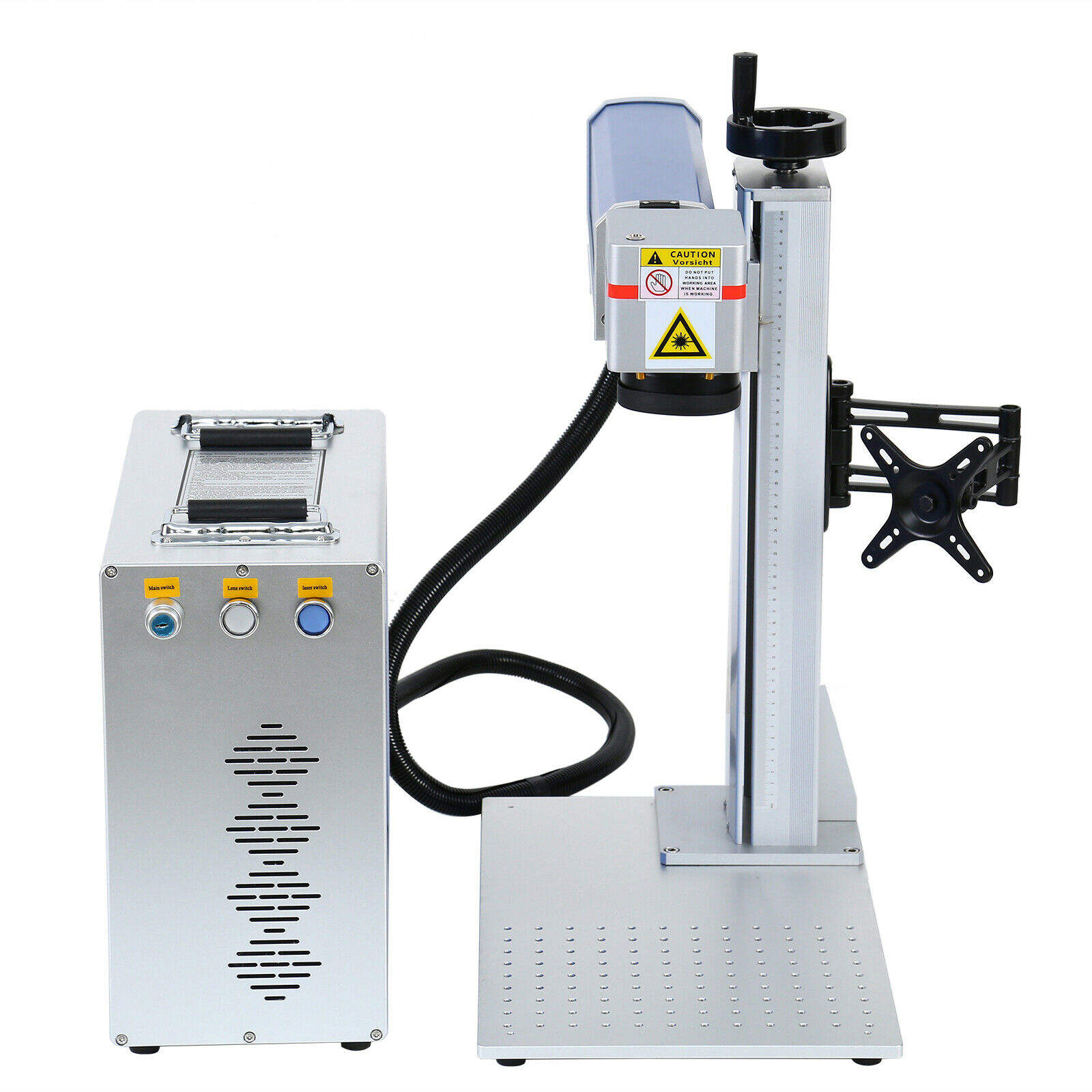

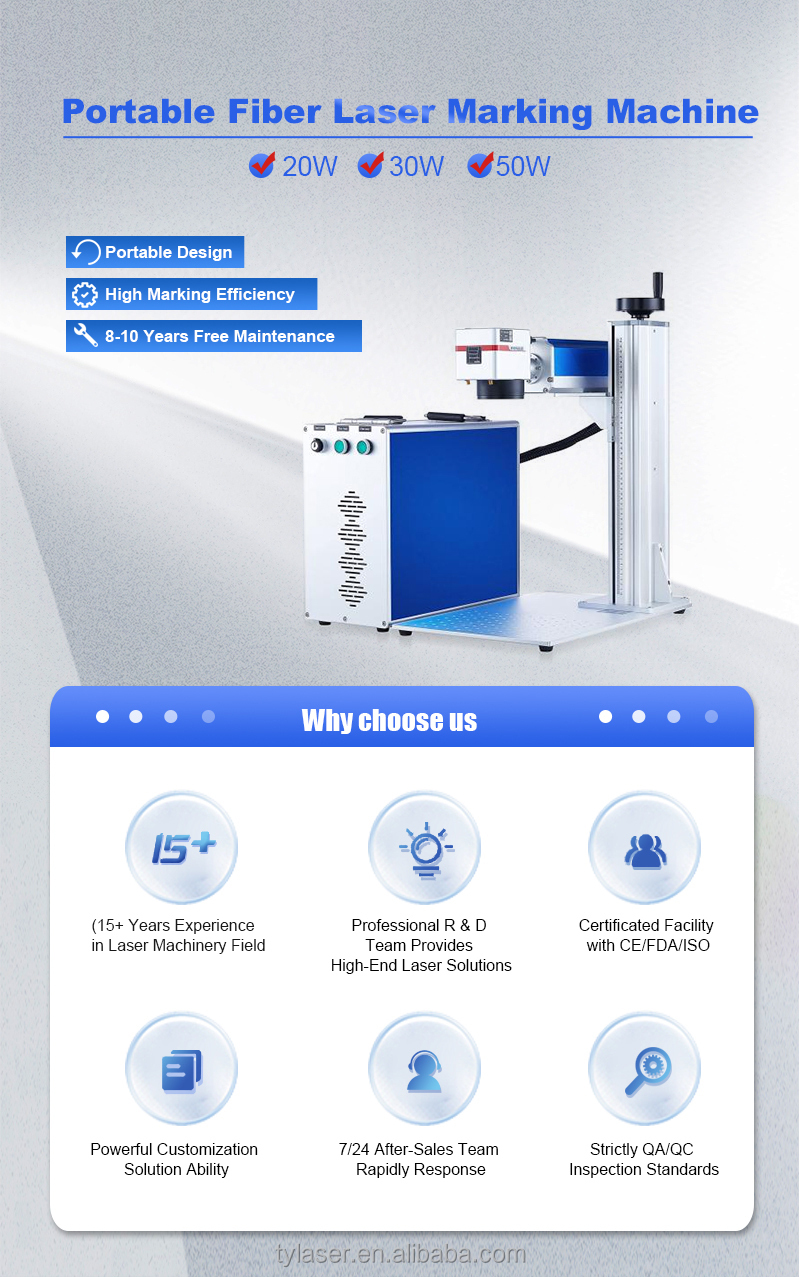

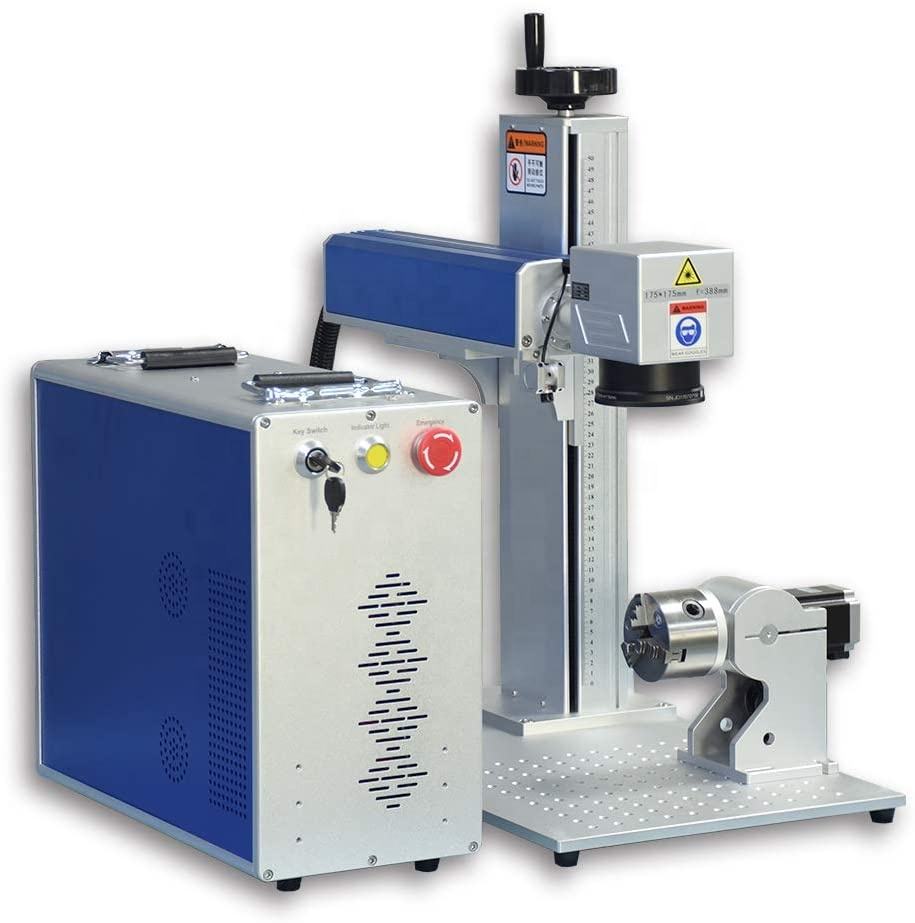

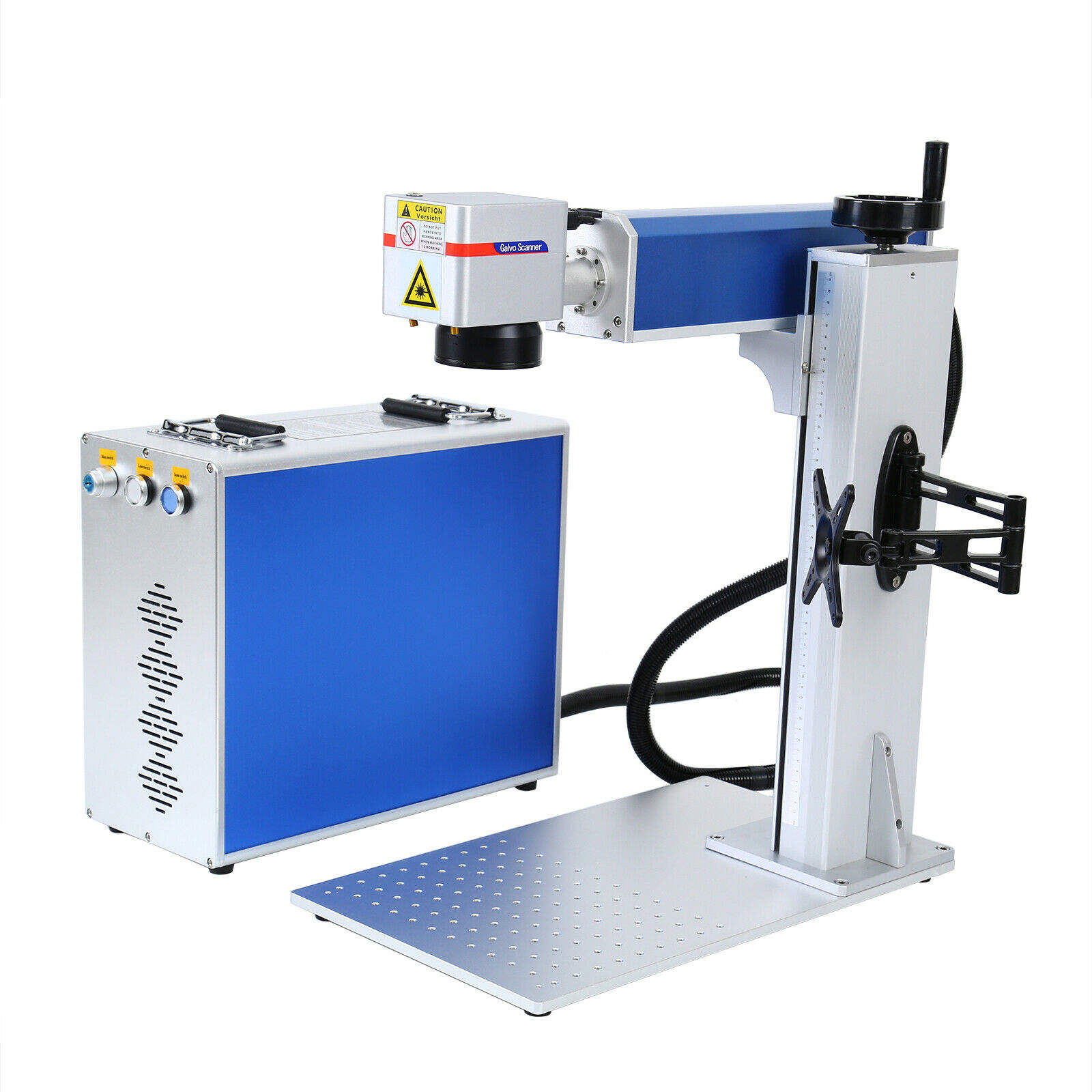

| Product | Portable Fiber Laser Marking Machine |
| Laser Source | JPT/GZ/Raycus |
| Laser Type | Fiber Laser |
| Laser Power | 20w/30w/50w/100w |
| Laser Wavelength | 1064nm |
| Frequency | 20-100KHz |
| Marking Depth | 0.01-0.5MM |
| Marking Speed | 10000MM/S |
| Minimum Line Width | 0.02MM |
| Repeated Accuracy | 0.002MM |
| Marking Area | 110*110mm 175*175mm 300*300mm (optional) |
| Software | JCZ Ezcad |
| Power Supplier | 110/220v±10%, 50/60Hz |
| Cooling System | Air cooling |
| Working Temperature | 10-35℃ |
| Power Consumption | 800W-1000W |
| Graphic File Format | PLT, DXF, AI, BMP, JPG, DST, GIF, TAG, PNG, TIF |
| Machine Weight | 55-65kg |
| Machine Size | 77*61*55cm |
| Packing | Plywood box |

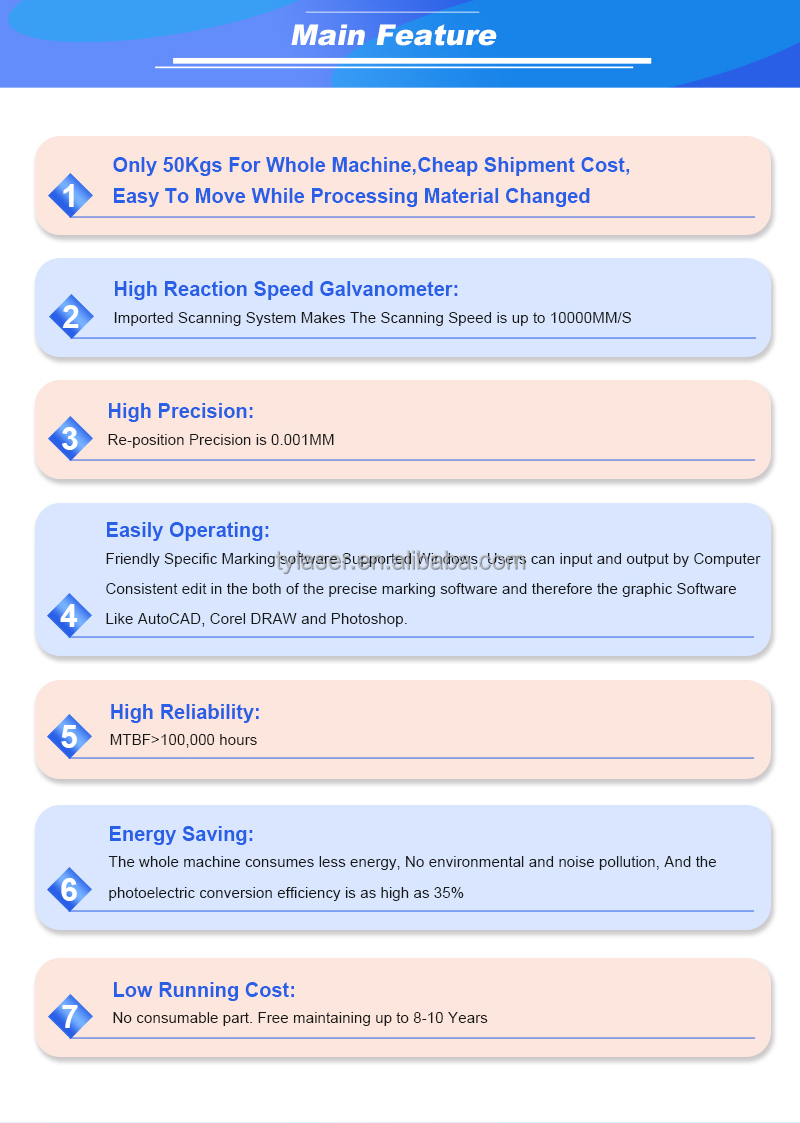

Supports 110x110mm, 175*175mm, 200*200mm, 300*300mm. Larger areas are achievable via an electric xy moving platform (e.g. 300*400mm, 300*500mm).

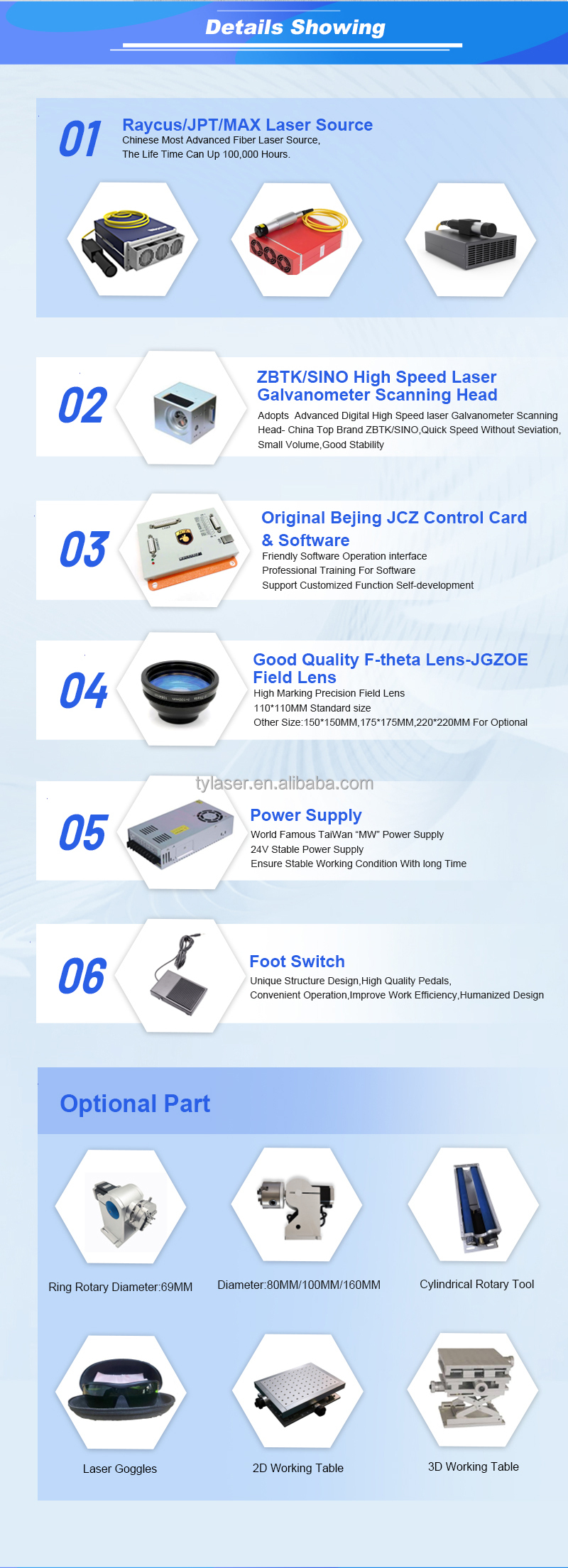

Original Raycus laser technology offers a fine, thin beam. Combined with a stable precision slider, it's ideal for seamless splicing of large-size image marking.
Provides exceptional engineering capabilities with precision down to 0.001mm.
Extremely durable design with an operational life span reaching 80,000 to 100,000 hours.
Operates cleanly without the need for periodic consumables, reducing overall cost.
Ready to use out of the box with no manual laser path adjustments required.
Maintenance-free design guarantees uninterrupted production schedules.
Eco-friendly operation consuming only 0.5kw per hour.
Simplifies installation and user training with supplied step-by-step setup guidance videos.
The machine uses high-quality laser sources (such as Raycus, JPT, or GZ) which can reach an operational lifetime of 80,000 to 100,000 hours.
The machine is equipped with JCZ Ezcad software. It supports a wide variety of graphic file formats including PLT, DXF, AI, BMP, JPG, DST, GIF, TAG, PNG, and TIF.
No. The machine is designed with low power consumption, requiring only about 0.5kw per hour (with an overall power consumption between 800W to 1000W). It requires no consumables during operation.
The system features a repeated accuracy of up to 0.002mm and can reach a precision of 0.001mm. The maximum marking speed is up to 10,000mm/s.
The system utilizes an integrated air cooling system. The recommended working temperature range for optimal performance is 10-35℃.
Yes, it is designed for easy operation. A complete installation and training video is provided to assist customers in setting up and operating the machine quickly.
