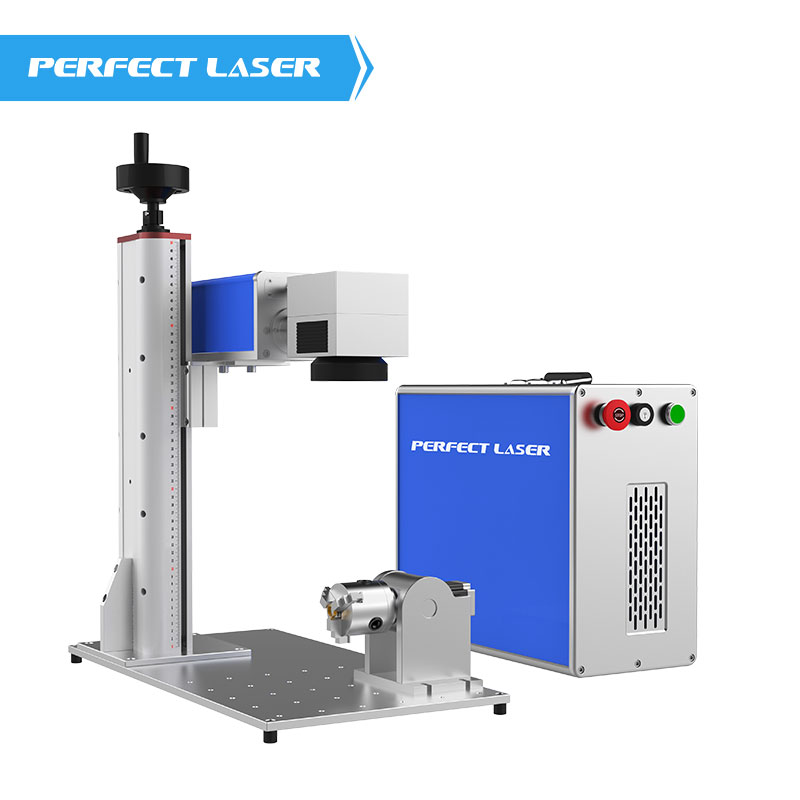

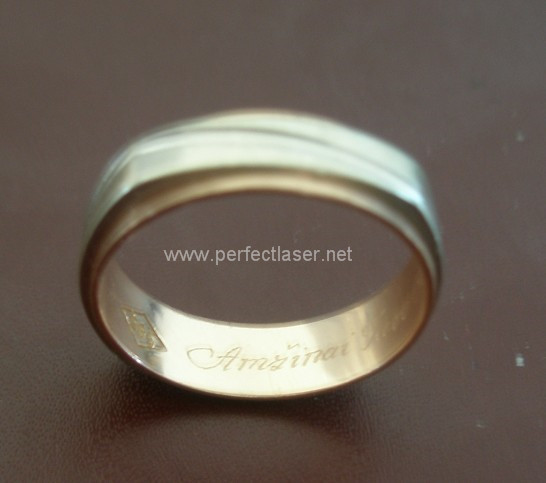

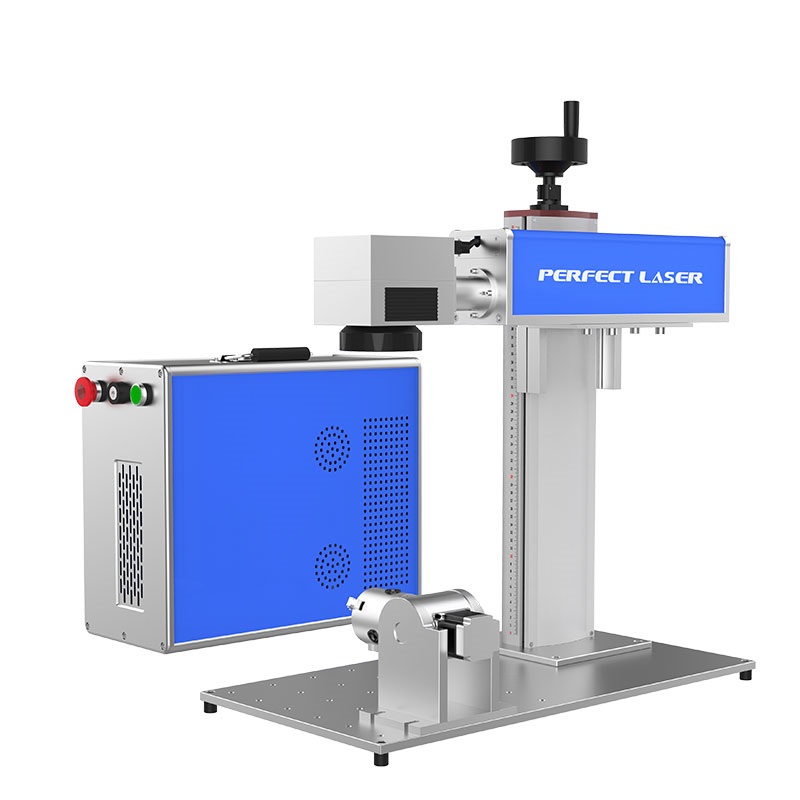

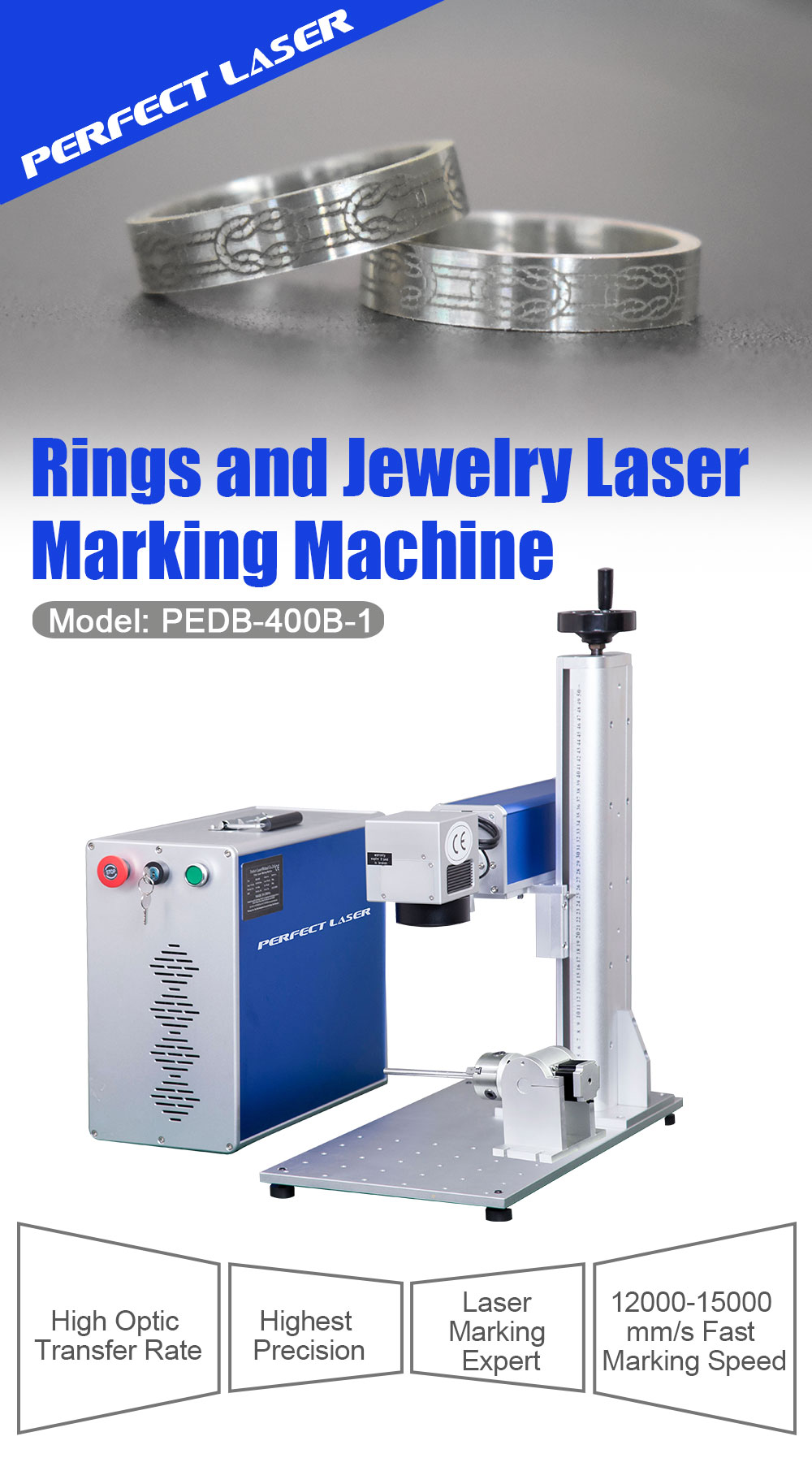

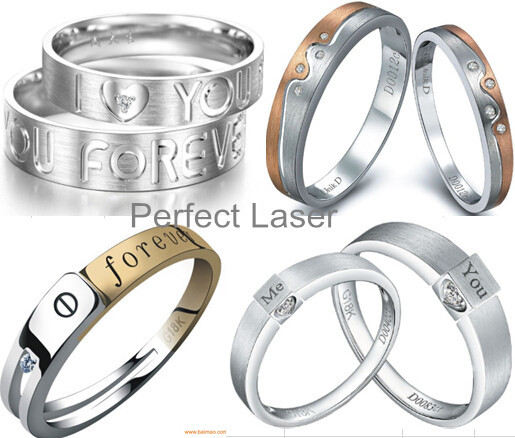

Couples like to mark lover's names or special dates on rings and jewelry. Our Jewelry Laser Engraving Machine 50W Fiber Laser With Rotary uses a fiber laser source and high-speed scanning galvanometer system to realize marking functions. The electro-mechanical light conversion efficiency is extremely high with high reliability. The laser metal engraving machine is cooled by air cooling, and the overall size is compact.
1. This jewelry laser marking machine can mark metal and a variety of non-metallic materials, making it suitable for applications requiring fine, high-precision, and deep processing.
2. The system is widely used in metal products, tool accessories, precision instruments, eyeglasses and watches, jewelry, auto parts, plastic buttons, building materials, food, medicines, electronic components, integrated circuits (IC), electrical appliances, mobile communications, PVC pipes, medical equipment, sanitary ware, and other manufacturing industries.
| Parameter | Specifications | ||
|---|---|---|---|
| Model No | PEDB-400B1 50W Rotary (50W Fiber Laser Engraving Metal Stainless Steel Iron Brass Tungsten Ring Jewelry Laser Marking Machine) | ||
| Type | Desktop | ||
| Computer | Not included | ||
| Laser Source | Pulsed, High Energy Ytterbium Fiber Lasers | ||
| Mode of operation | Pulsed | ||
| Polarization | Random | ||
| Nominal average output power | 50W | ||
| Central emission wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | ||
| Emission Bandwidth (FWHM) | <10 nm | ||
| Long-term average power instability | <5% | ||
| Pulse width, (FWHM) | 100 ns | ||
| Laser switching ON time | 180 μsec | ||
| Laser switching OFF time | 180 μsec | ||
| Pulse Repetition Rate* kHz | 20-80 kHz | ||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | ||
| Typical beam quality, M2 | <1.8 | ||
| Output fiber delivery length | 3m | ||
| Operating voltage | 220V | ||
| Net Dimensions | 80*38*72cm | ||
| Net Weight | 53 kgs | ||
| Gross Weight | 70 kgs | ||
| Scanning Speed | 0-10000mm/s | ||
| Marking Speed | 0-7000mm/s | ||
| Marking size | 110mm×110mm (F-theta 160) | ||
| Spot size | ≤ 40 micron (F-theta 160) | ||
| Cooling unit | Air cooled | ||
| Pilot laser | 650nm diode laser, visible red light for marking guide | ||
| Continuous working time | ≥16h | ||
| Humidity | 45~85% (no condensation) | ||
| Operating temperature | 0~40℃ | ||
| Control units | Laser Mark (English Version) | ||
Free Pre-Sales Consulting & Sample Marking: We offer 12-hour quick pre-sales response and free consulting. All types of technical support are available for users. Sample marking and testing are available free of charge. We offer progressive system designs to all distributors and users.
Strict Quality Control: Adopting advanced testing equipment such as laser power meters, laser testing systems, CNC high-precision processing machines, and 3D measuring systems, we implement a strict quality control system to ensure excellent machine quality.
5-7 Days Quick Delivery: We maintain mass production and stock of ready items to provide 5-7 days quick delivery. For customized setups or special requirements, we prioritize production schedules accordingly.
Your Best Choice: We cooperate based on complete trust and comfort, serving as a highly reputable supplier. We value every opportunity and customer relationship.
1 Year Quality Guarantee: We offer a 1-year guarantee for our machinery and a 3-month guarantee for consumables. Extended guarantee periods are available for long-term customers.
12-Hour Quick Feedback: We provide easy-to-learn training videos, instruction books, and operation manuals, alongside troubleshooting guides for simple maintenance.
Technical Assistance: We offer extensive online technical support, including detailed installation guides. For maintenance requests, we can provide customized step-by-step videos to guide you through the process.
Free Training Service: We provide free, hands-on training with every machine sold to ensure you feel fully comfortable operating your new laser system.
All products have been guaranteed by European CE certificate, ISO9001:2000...
