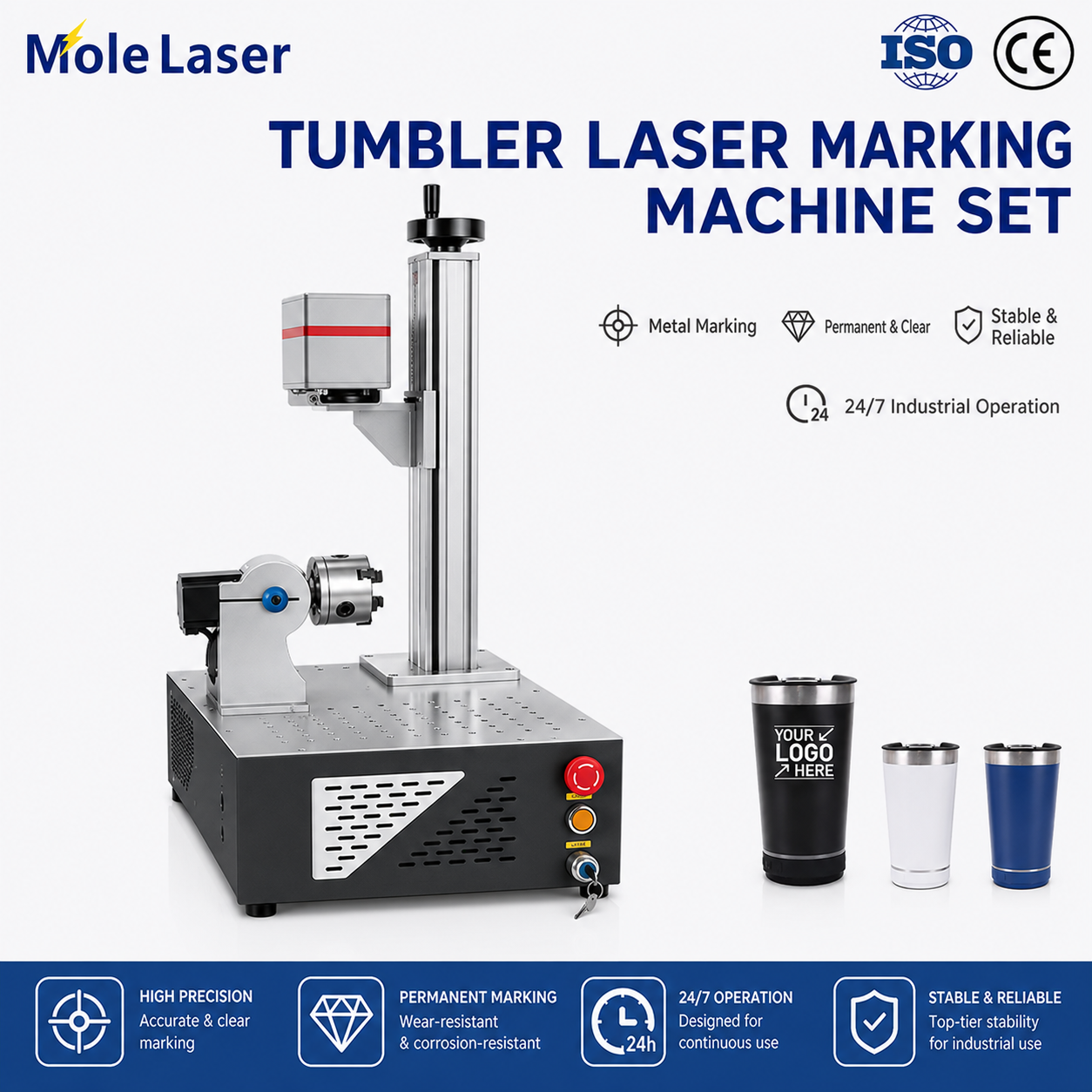

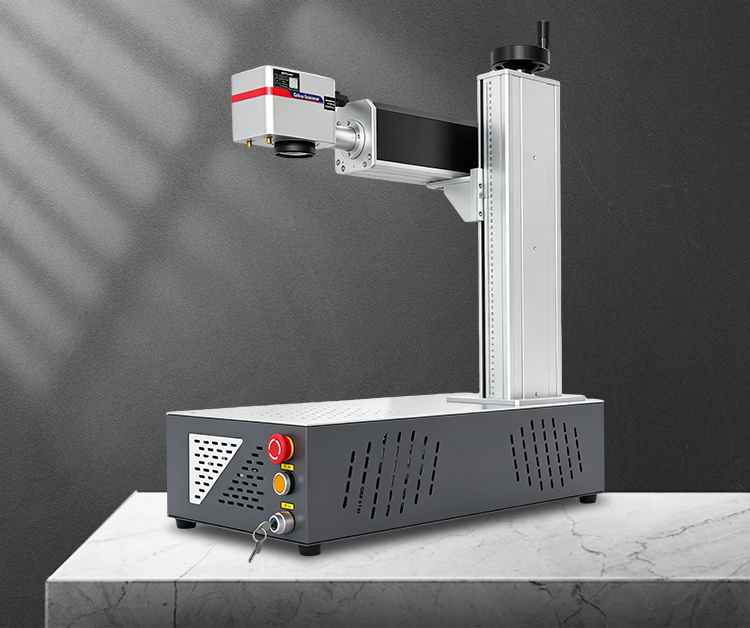

Jigsaw Machine
1 / 5
| Category | Parameter | Specification |
|---|---|---|
| Listings | ||
| General Info | Product Data Sheet | 20w/30w/50w Customizable |
| Hardware Configuration | ||

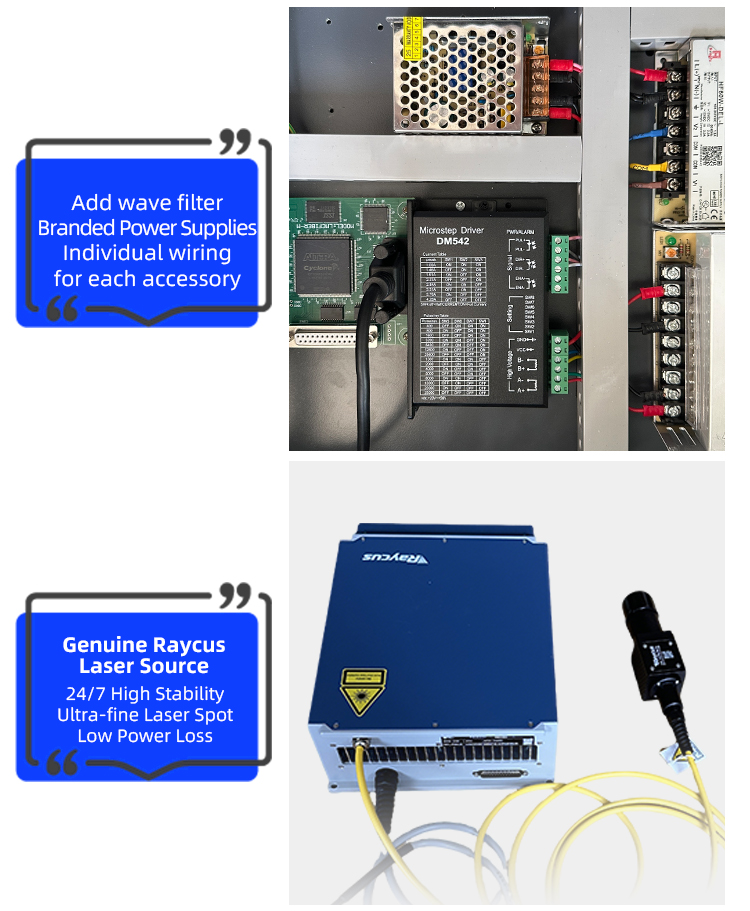

| Laser Configuration | Laser Source | RAYCUS/MAX |
| Scanning | Galvo Scanner | SINO-GALVO / (Mole customization) |
| Field Area | Marking Area | 110 / 150 / 200 / 300mm (Customizable) |
| Controller | Control Board | Genuine EZCAD Control Board/ Genuine BSL Control Board/ |
| Operation | Marking Software | Genuine EZCAD Software |
| Thermal Control | Cooling Method | Built-in Air Cooling, Silent Heat Dissipation Fan |
| Alignment | Red Light Pointer | Leituo |
| Laser Properties | ||
| Beam Specs | Beam Quality \(M^{2}\) | <1.4 |
| Fiber Length | Output Fiber Cable Length | 3m |
| Power Output | Average Output Power | 60 / 100 / 200w |
| Energy | Maximum Pulse Energy | 2 / 1.5 / 1mJ |
| Frequency | Tunable Frequency Range | 1-4000kHz |
| Duration | Pulse Width | 2-500ns |
| Stability | Output Power Instability | <5% |
| Adjustment Range | Power Adjustment Range | 0-100% |
| Spectral Specs | Spectral Width @3dB | <15 |
| Polarization | Polarization Direction | Random |
| Protection | High Reflection Resistance | Yes |
| Aperture | Beam Diameter | 7.0 ± 0.5mm |
| Spectral Band | Laser Wavelength | 1064nm |
| Environment | Operating Temperature Range | 0-40℃ |
| Software Info | ||
| System Compatibility | OS Compatibility | Windows 7 / 8 / 10 / 11/MAC(Lightburn) |
| Localization | Supported Languages | English, Chinese, German, Russian, Korean, Japanese, Italian, French |
| Administration | Management Permissions | Multi-user Management Permissions |
| Supported Formats | ||
| Typography | Fonts | Standard fonts (English, Chinese, Numbers, etc.) |
| Data Import | File Formats | PLT, DXF, JPG, PNG, DWG, PSD, EPS, etc |
| Machine Parameters | ||
| Energy Consumed | Total Power Consumption | 500W |
| Required Input | Input Voltage: | 110V–240V, 50/60Hz |
| Physical Info | Dimensions | 500×370×637mm |
