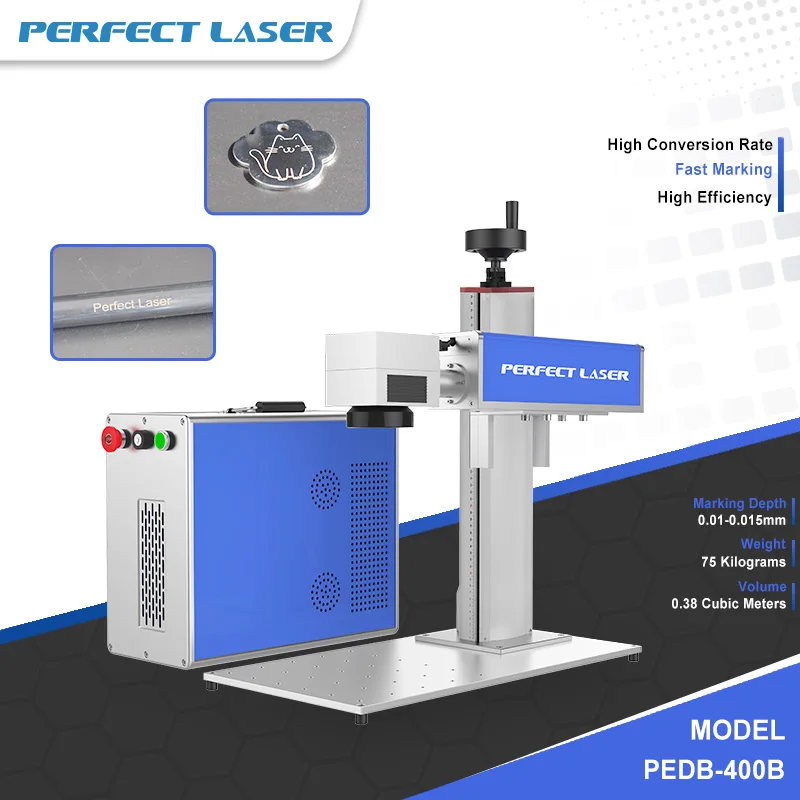

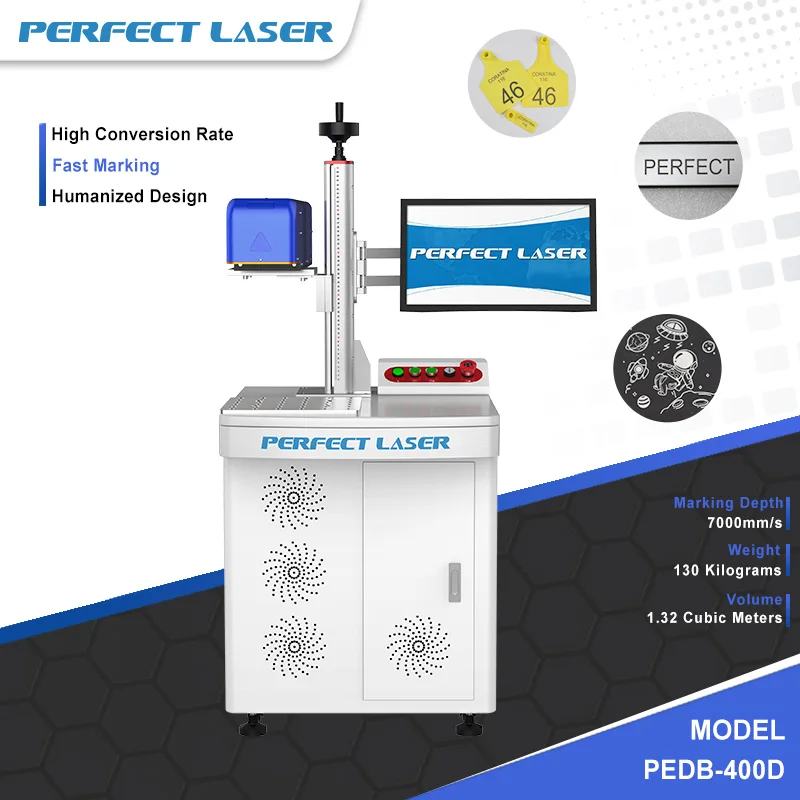

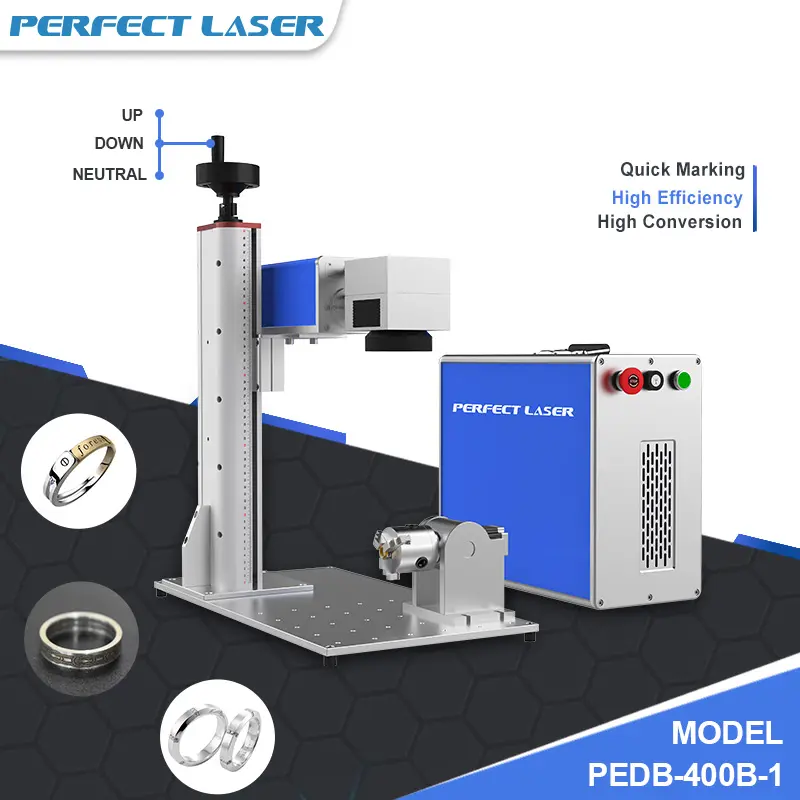

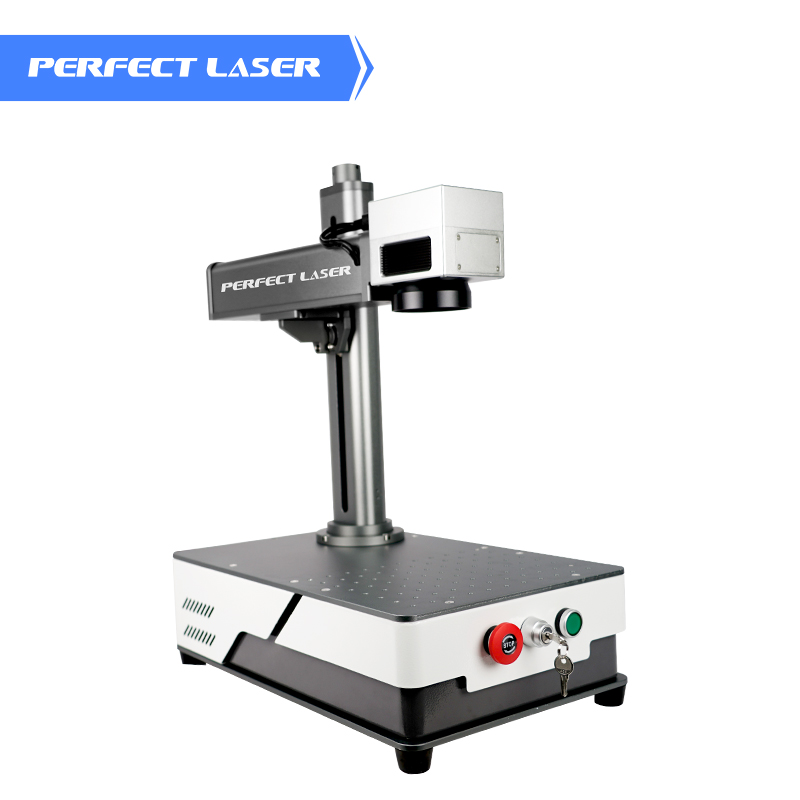

| Product Name | Laser marking machine |
| Repeatability | 0.002mm |
| Pulse Frequency | 20-80KHZ |
| Voltage | 90-240v |
| Focus mode | Manual / Auto |
| Use environment | Clean or less dust; No dust, no fumes, no corrosive gases |
| Support Format | JPEG/BMP/PLT/JPG/DXF, etc |
| Marker content | English, numbers, punctuation, Chinese, graphics, barcodes, etc. |
| Output Power Stability | <3% |
| Cooling Method | Air Cooling, Water cooling |
| Working Temperature | 10-45℃ |
| Oil mist, condensation | NO |
| Support Language | Multi-languages can be chosen |
| Support System | Windows Operating System |
A: The equipment is compatible with metals (stainless steel, copper, aluminum, gold, silver, etc.) and non-metals (engineering plastics, acrylic, wood, leather, ceramics, etc.). For high-hardness metals (such as titanium alloy) and high-reflective materials (such as mirror stainless steel), the marking effect of models with different powers can be optimized by customizing parameters.

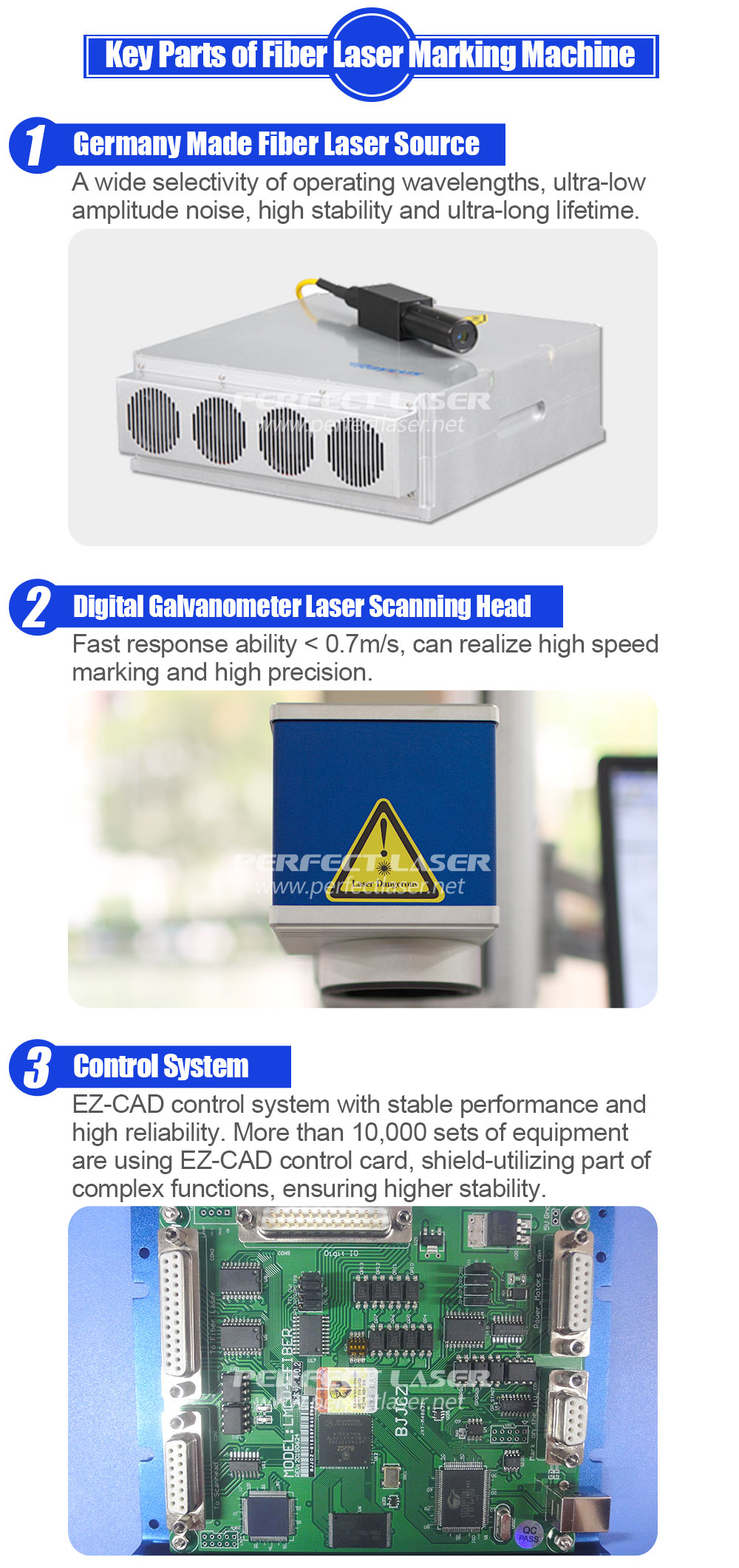

A: The standard configuration adopts Raycus lasers, with power covering 20W/30W/50W/100W; customized imported lasers such as IPG, MAX, and JPT are also available. The galvanometer system is standard with Sino Galvo, and imported galvanometers can be replaced according to customer needs to improve marking accuracy.
A: 20W/30W is suitable for fine marking (such as electronic components, jewelry engraving); 50W is suitable for deep metal marking and plastic marking; 100W can realize high-intensity operations such as engraving of thick metal materials and mold marking.
A: The fiber laser source lifetime can reach up to 100,000 hours, equivalent to 8-10 years of operations. It functions with low running costs, no wearing parts, and requires no consumables or maintenance.
A: The machine runs on the Windows Operating System and supports dedicated marking software. You can easily adjust the laser power and pulse frequency in real-time. It is compatible with major graphic programs like AutoCAD, CorelDRAW, and Photoshop.
A: The machine is highly accurate with a re-position precision of 0.002mm. Its imported scanning system enables high-speed operations, achieving a scanning speed of up to 7000m/s.
