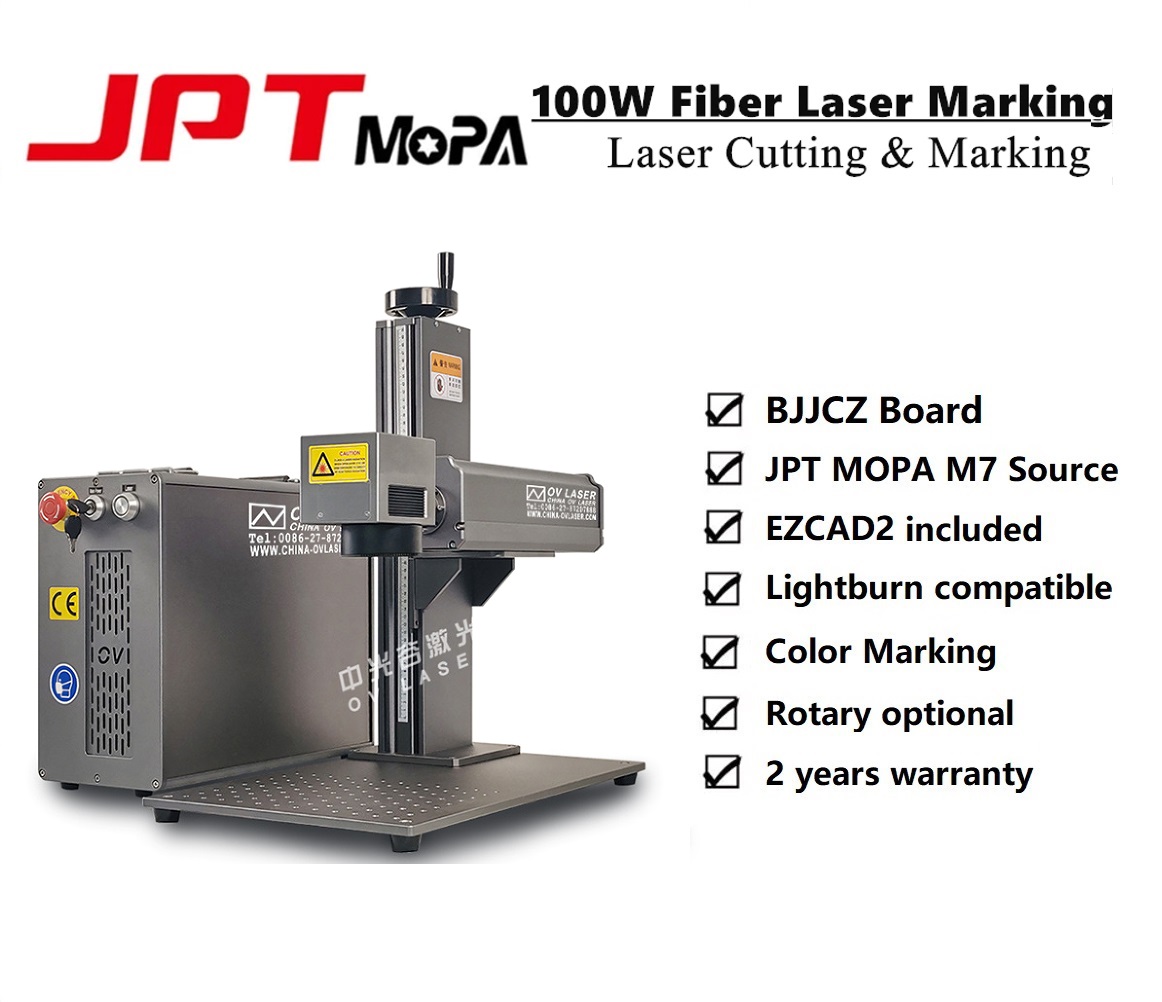

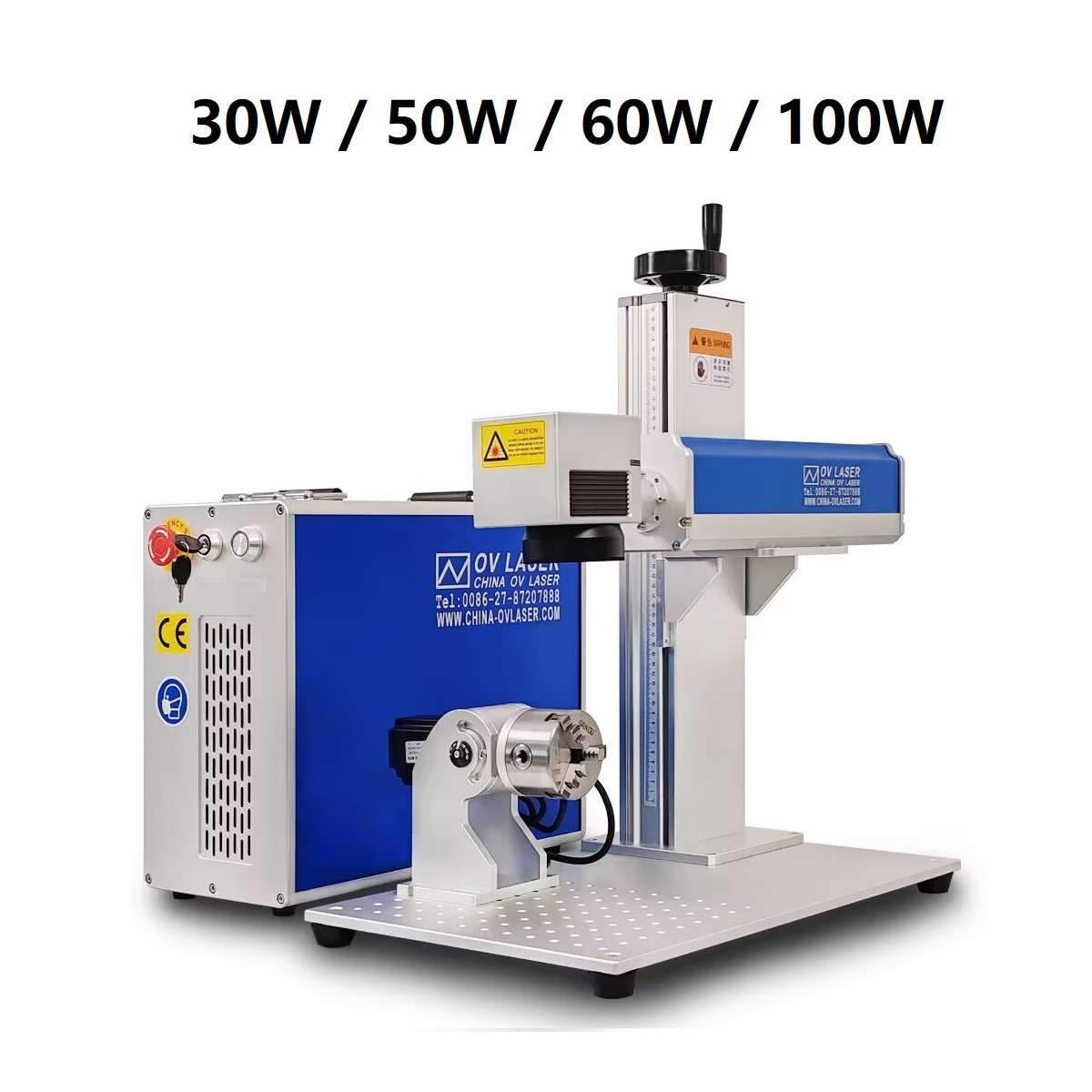

We offer 30W, 50W, 60W, and 100W configurations:

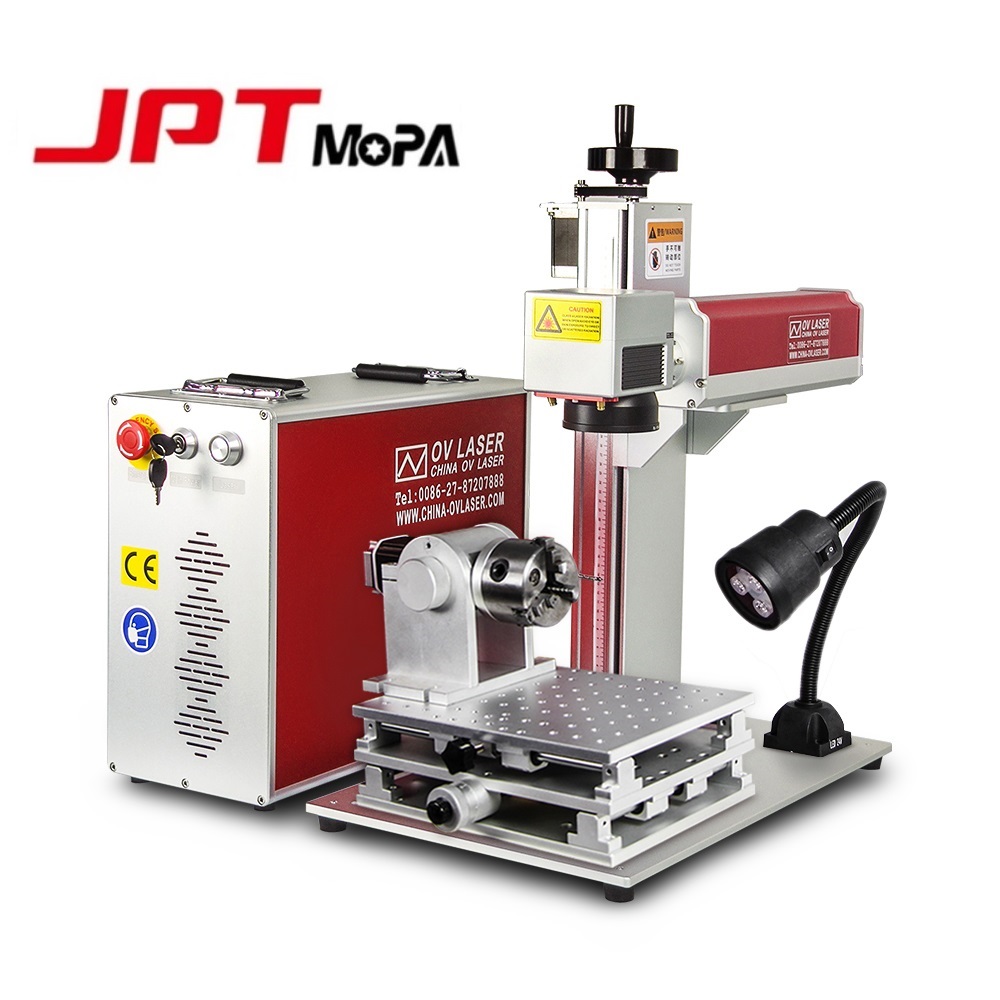

(1) Laser Source Brand: 30W and 50W models use Raycus laser sources. 60W and 100W models utilize JPT MOPA laser sources. MOPA lasers feature a wider frequency range (1-4000Khz) for finer engraving results and color marking on stainless steel.
(2) Cutting Speed & Depth: 50W, 60W, and 100W models can deep engrave and cut thin metal sheets. Higher wattage delivers faster cutting speeds.
Compatible with standard EzCAD2 and supports Lightburn software seamlessly.
Default lens size is 110x110mm. Optional larger lens sizes include 150x150mm, 175x175mm, 200x200mm, and 300x300mm.
Standard machine configuration is manual focus. Auto-focus functionality is optional.
Expand capabilities with accessories including: D80mm cup rotary, D69mm ring rotary, metal cutting fixture, pen rotary, smoke extractor, and more.

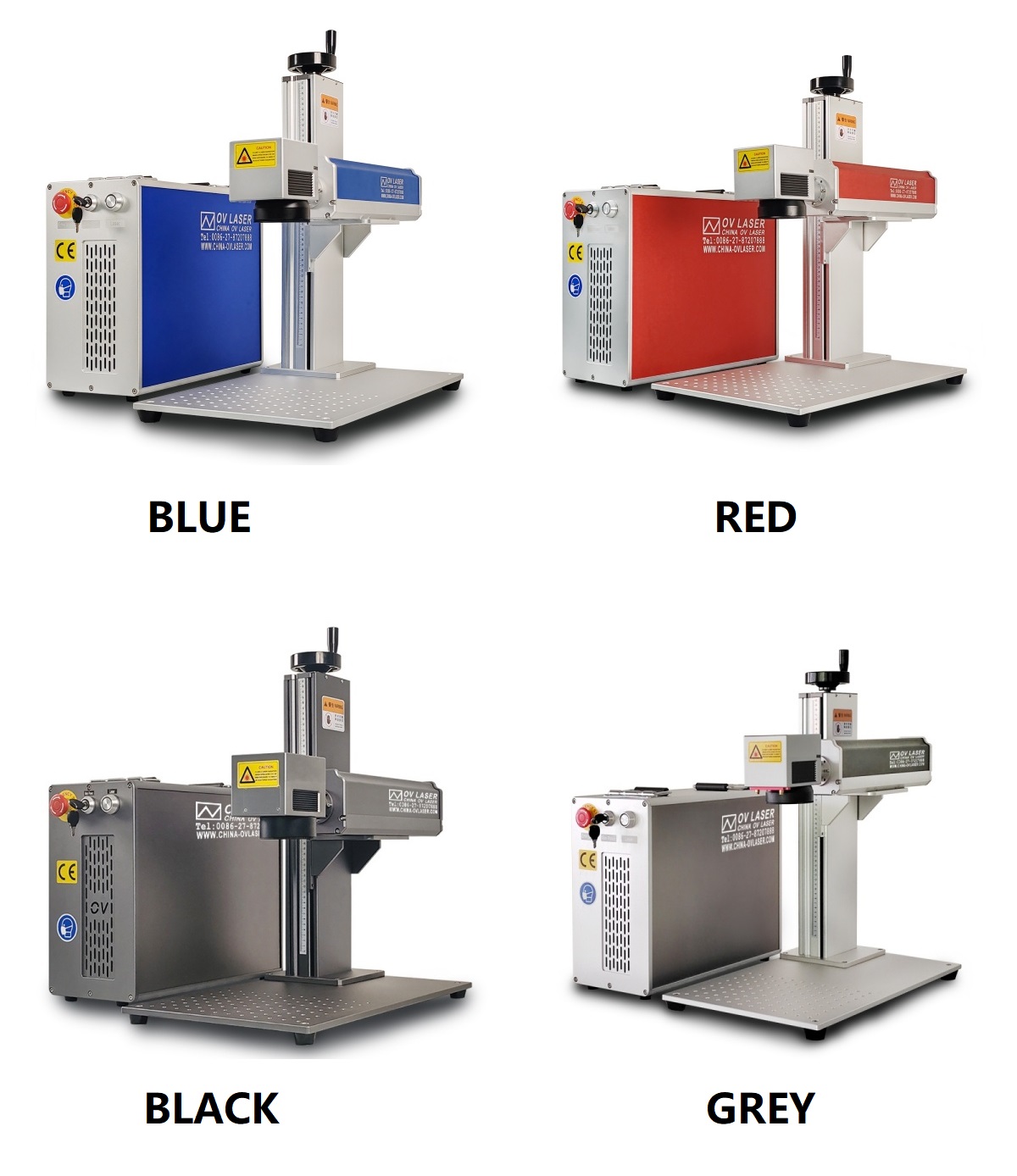

Blue / Red / Black / Grey. Which color do you like?

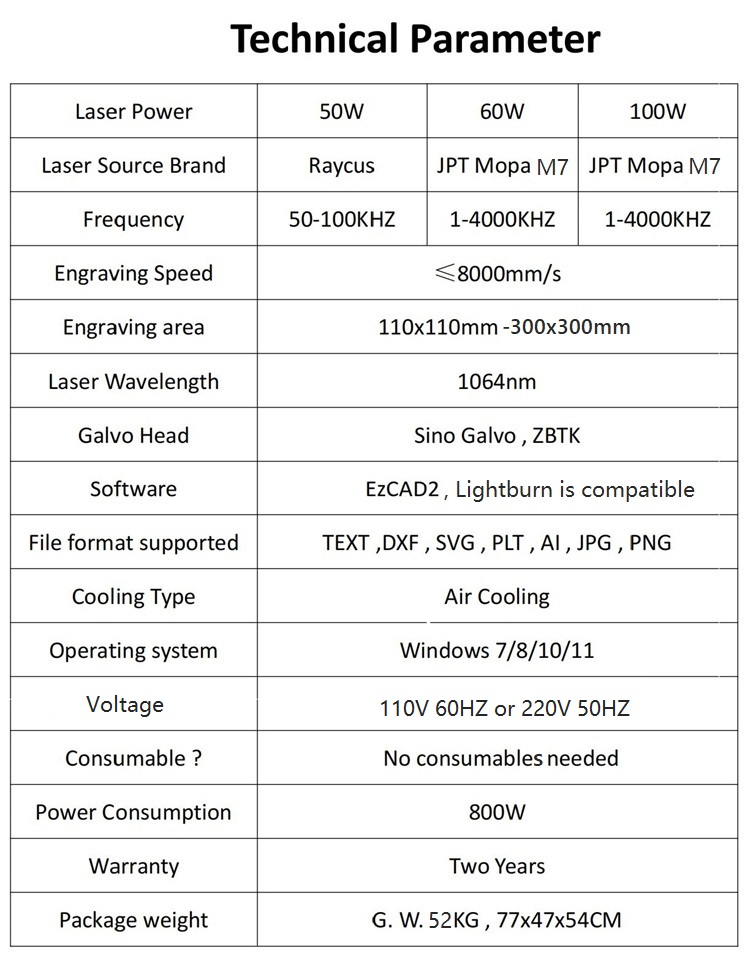

| Product Name | Fiber Laser Engraving machine |
|---|---|
| Laser Source | Raycus / JPT |
| Frequency Range |
30W Raycus: 30-60KHZ 50W Raycus: 50-100KHZ 50W JPT LP: 1-600KHZ 60W 100W JPT Mopa: 1-4000KHZ |
| Engraving Speed | ≤8000mm/s |
| Output Power Range | 10%-100% |

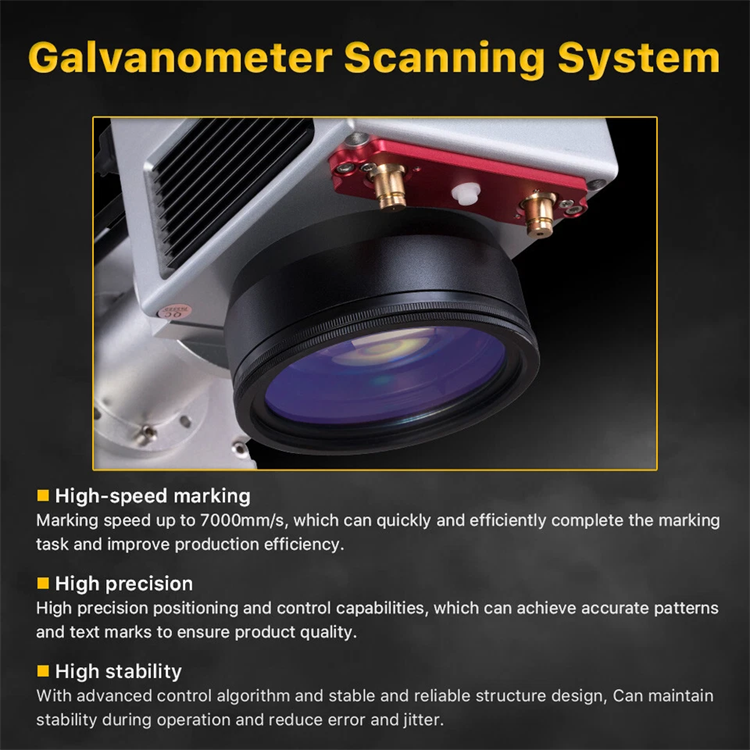

| Galvo Head | ZBTK, Sino Galvo |
| Software | Free EzCAD2, Lightburn compatible |
| Supported File Format | TEXT, PLT, SVT, AI, DXF, JPG, PNG, etc. |
| Engraving Area | Standard 110*110mm (Optional 150*150mm / 175*175mm / 200*200mm / 300*300mm) |
| Laser Wavelength | 1064nm |
| Cooling Type | Air Cooling |
| Power Supply | 110V 60HZ / 220V 50HZ |
| Warranty | Two Years |
| Optional Accessories | Ring rotary, cup rotary, pen rotary, 2D XY worktable, metal cutting fixture, auto focus, etc. Contact us for more details and prices. |

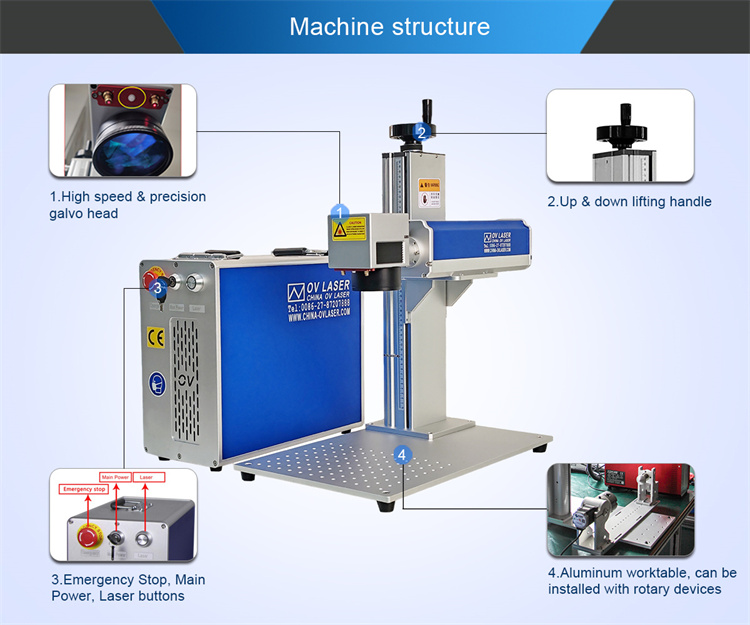

We use quality parts for our laser machines:

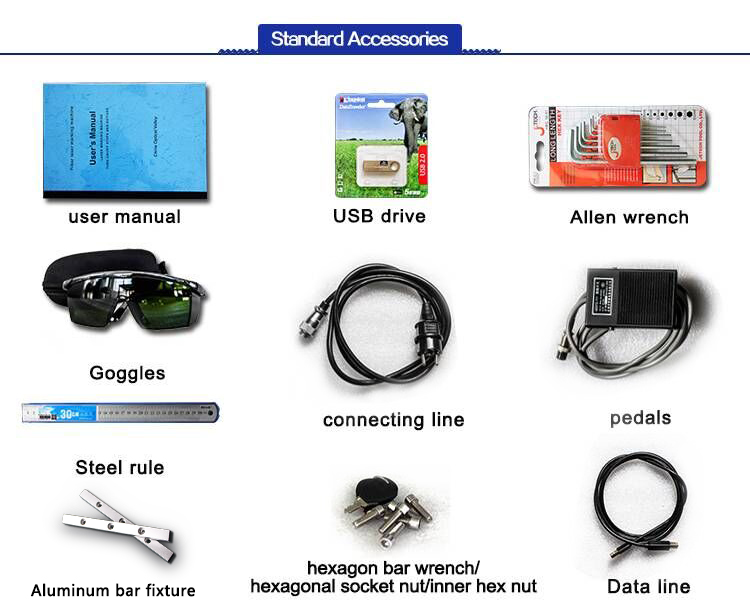

Basic accessories included:
Optional Accessories:

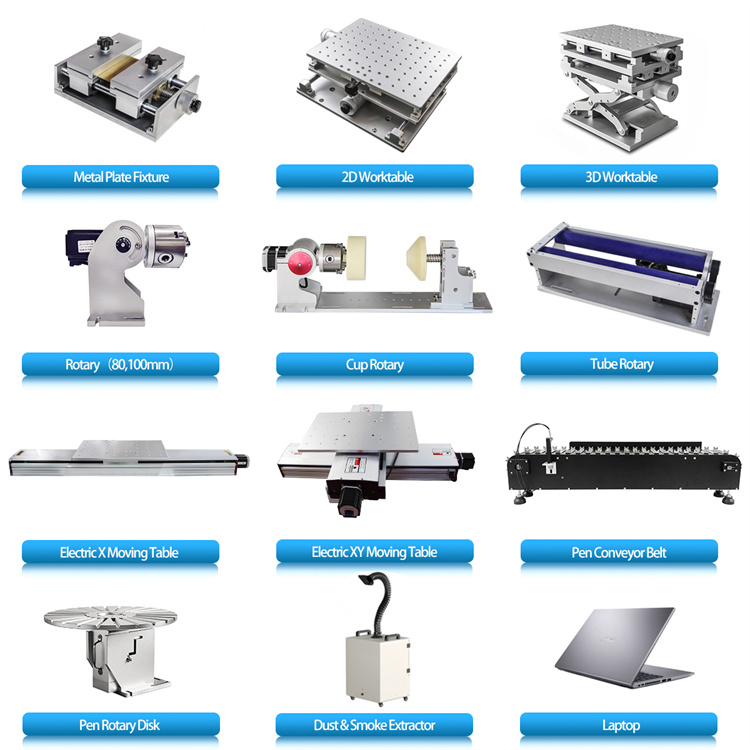

We also supply optional accessories like 2D XY worktable, D80mm cup rotary, D69mm ring rotary, metal cutting fixture, electric up-down column, pen rotary, and more. Send inquiry to get more details and videos.

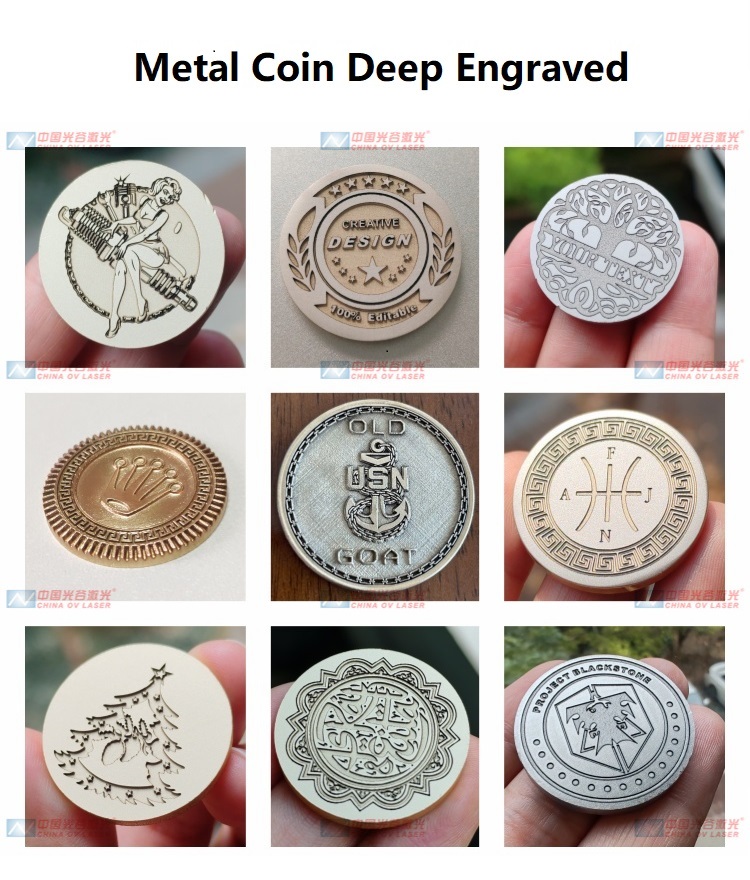

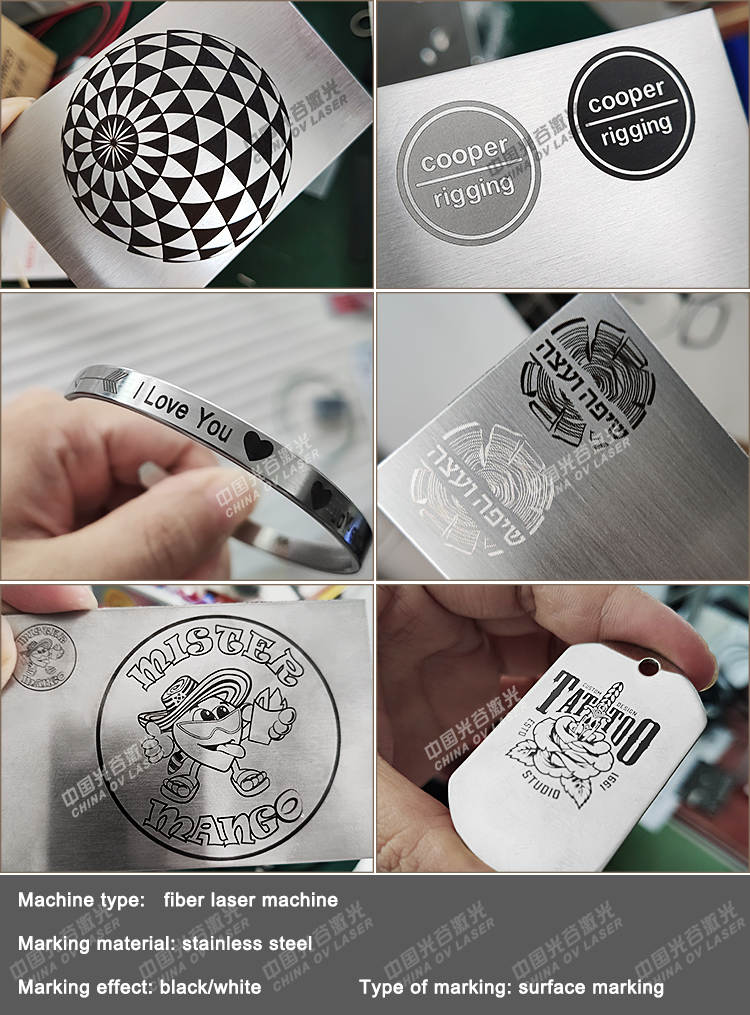

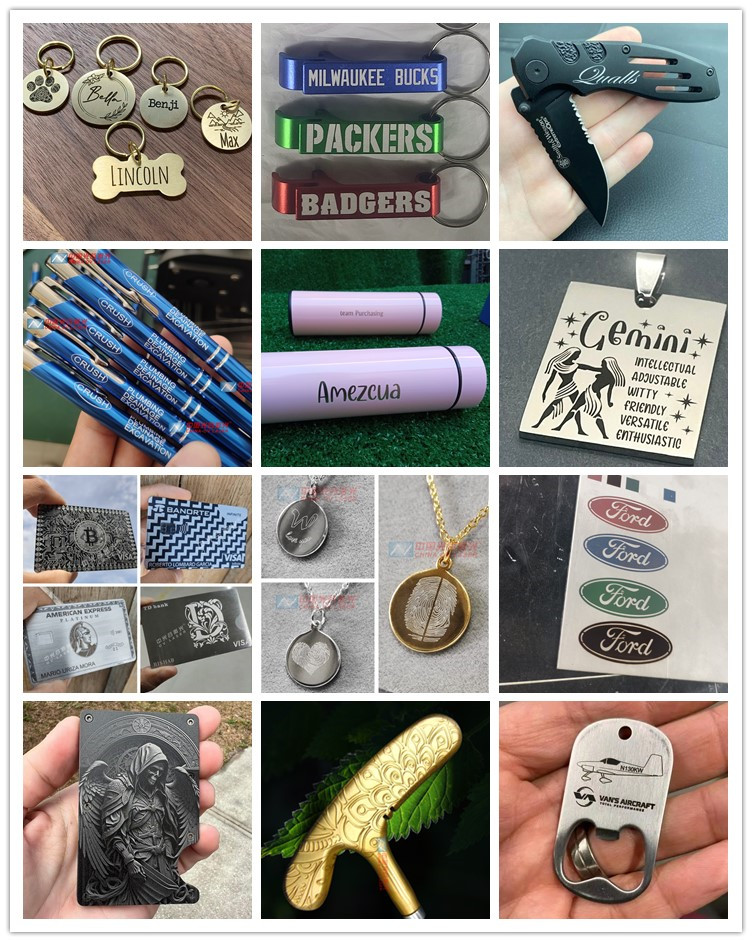

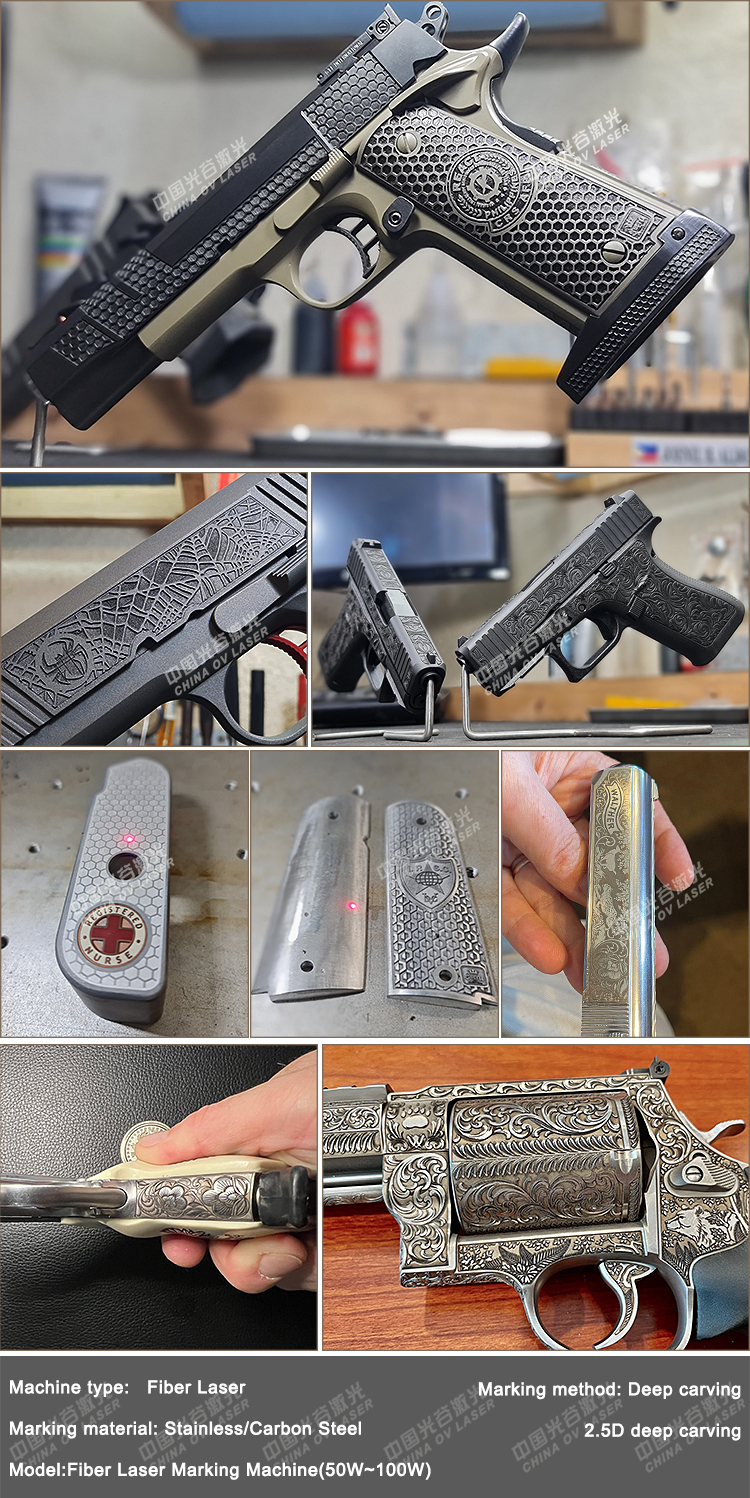

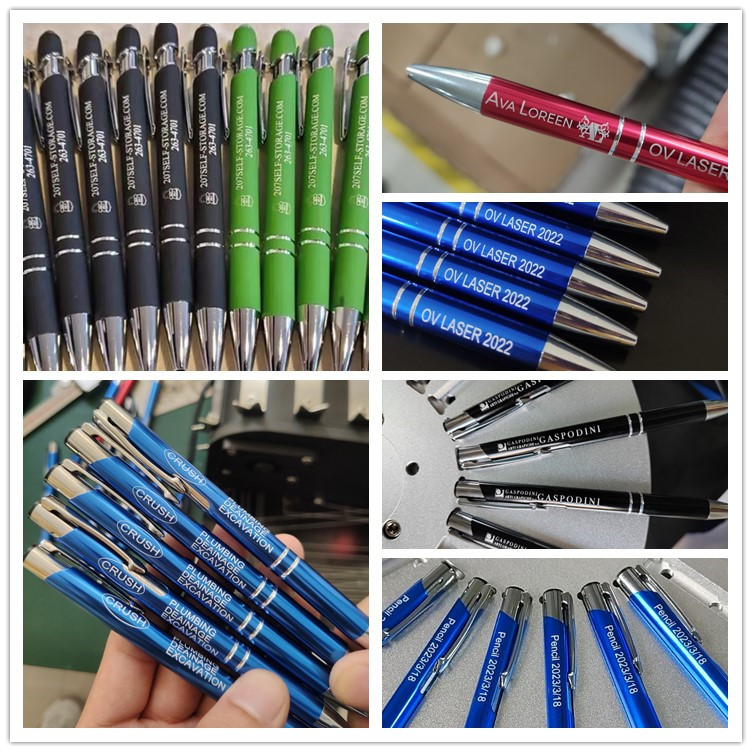

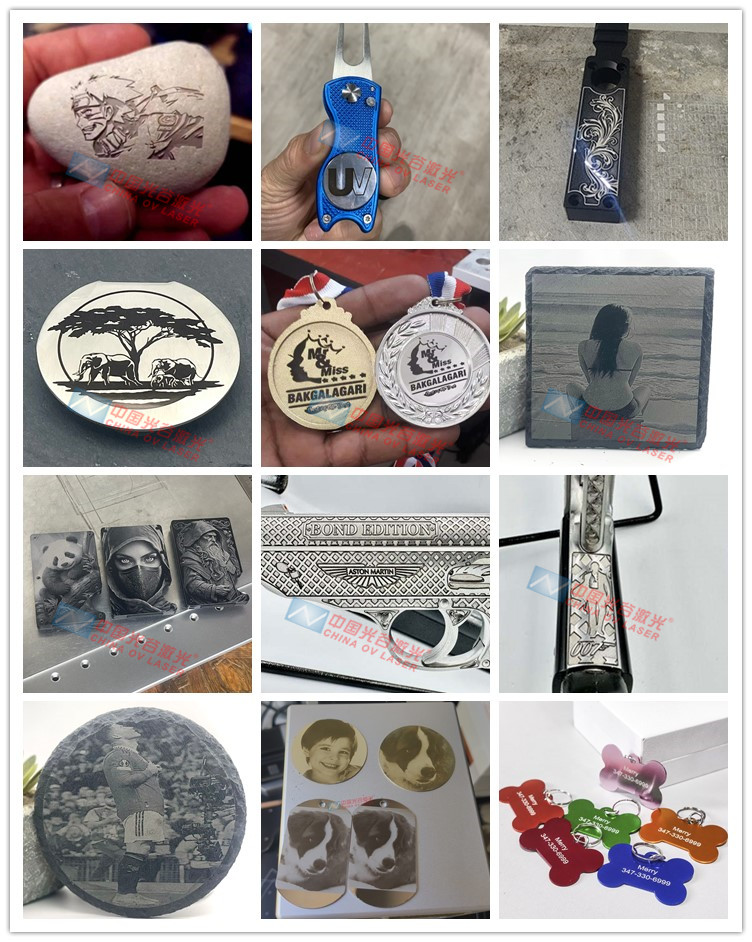

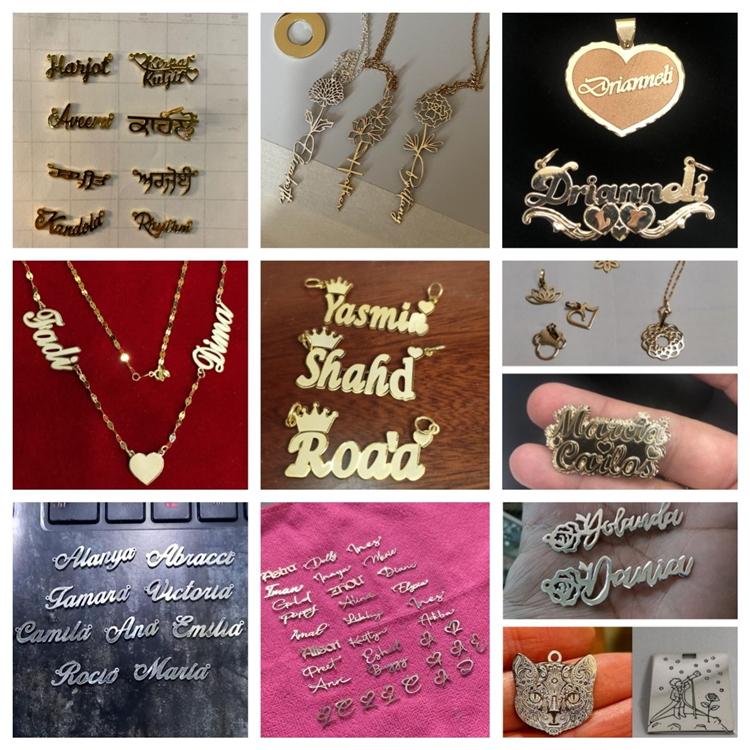

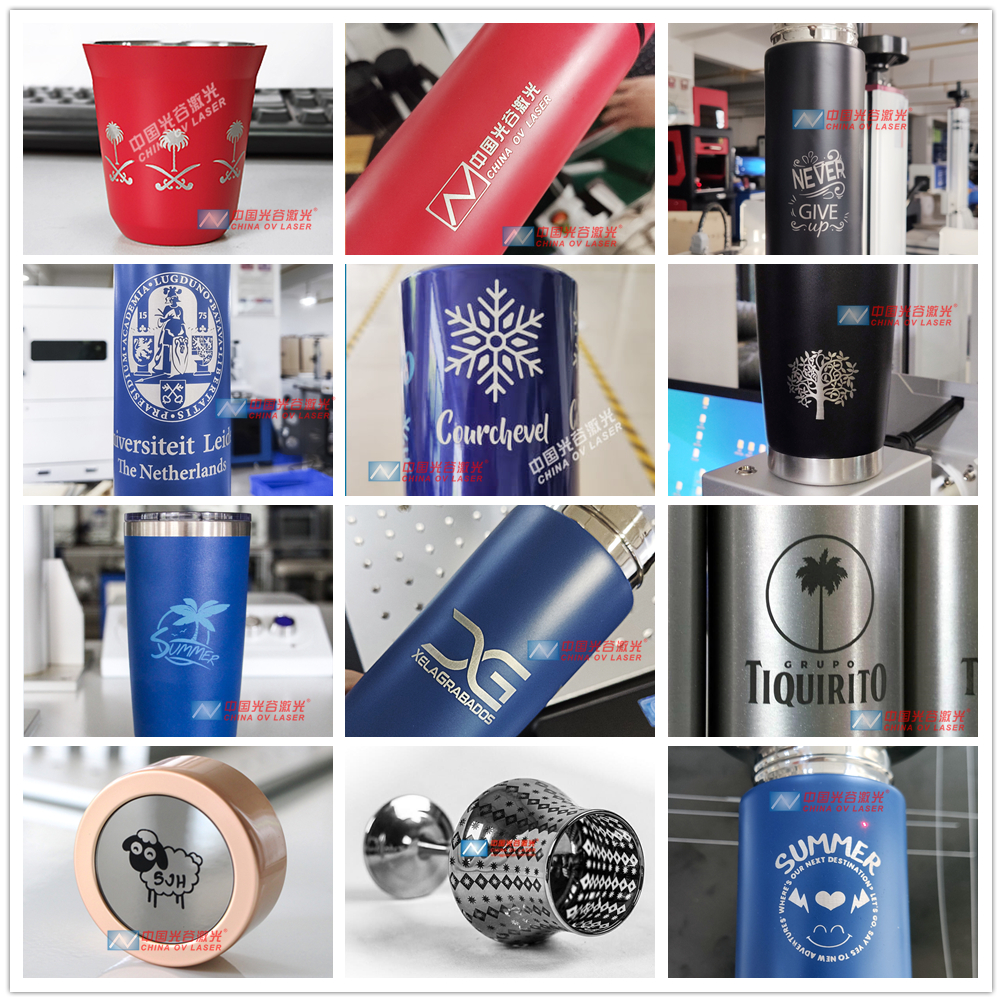

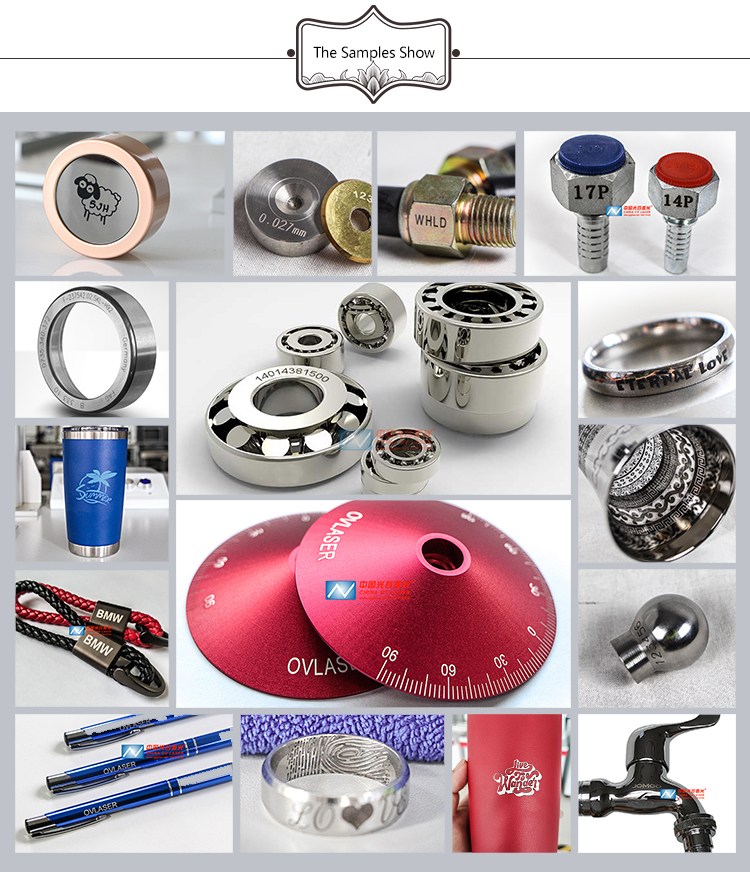

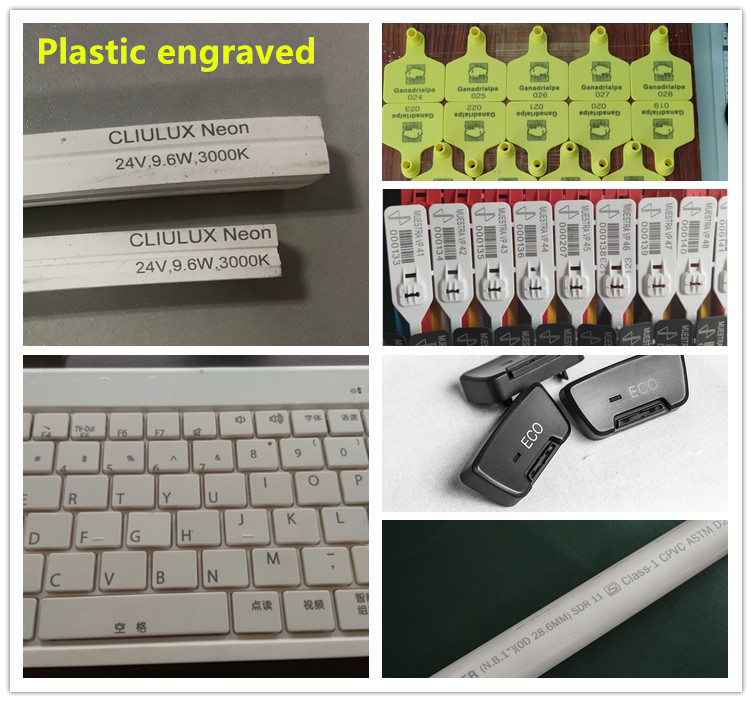

This fiber laser is widely used on all metals and most plastics. It can engrave metal tumblers, keychains, pens, dog tags, medals, jewelry, watches, slate coasters, coins, knives, tiles, stone, and much more.

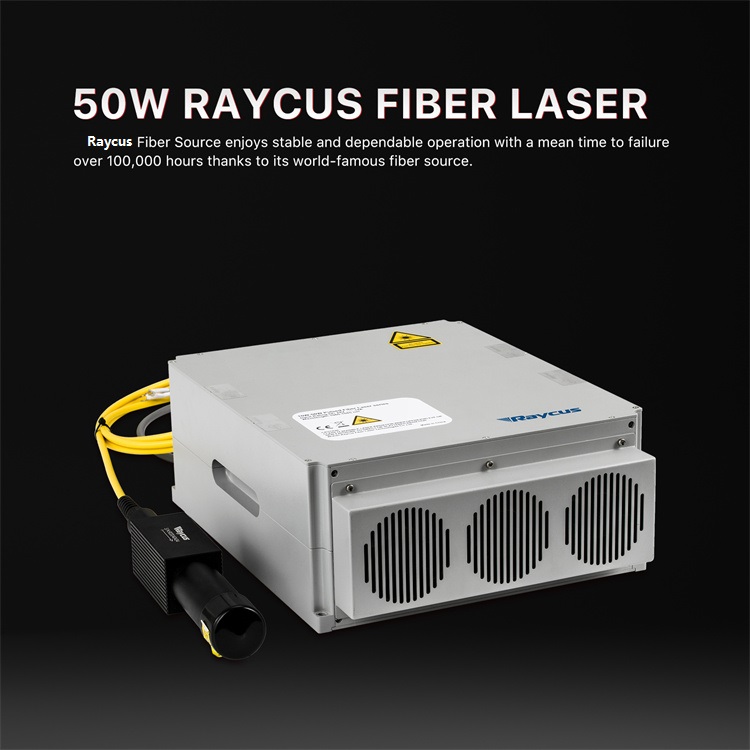

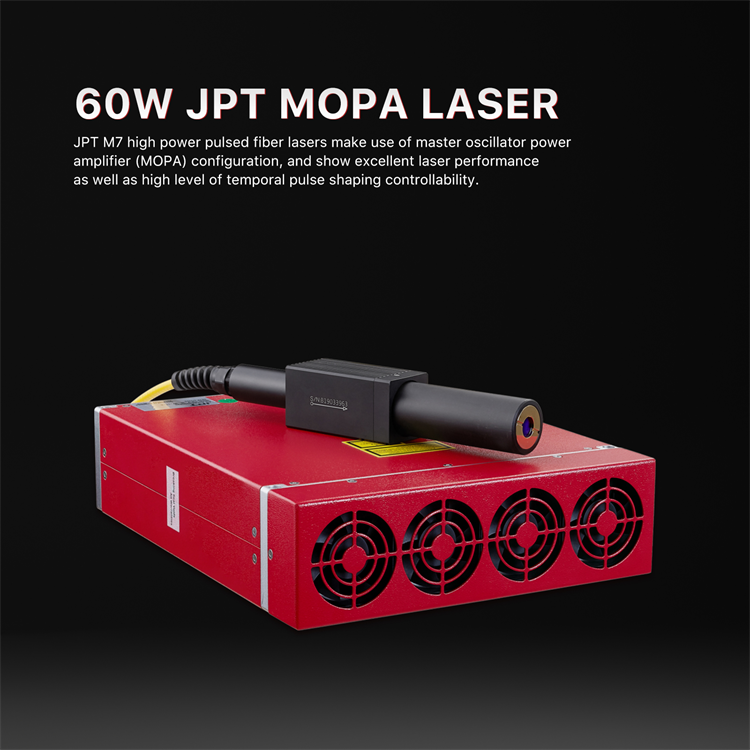

Raycus laser sources (30W/50W) are ideal for standard metal engraving and deep cutting. JPT MOPA laser sources (60W/100W) feature adjustable pulse widths and a wider frequency range (1-4000Khz), which allows for finer engraving, dark marking on anodized aluminum, and color marking on stainless steel.

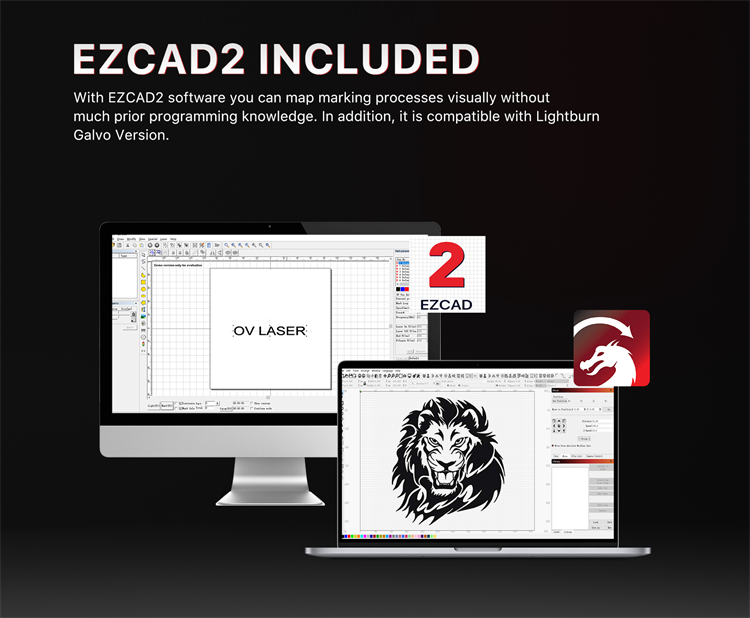

The machine comes with EzCAD2 software. Additionally, the motherboard is fully compatible with Lightburn software, giving you flexibility in your design and production workflows.
The standard lens size is 110x110mm, which provides the best focus density for general marking. If you need a larger working area, we offer optional lenses in sizes of 150x150mm, 175x175mm, 200x200mm, and 300x300mm.
Yes, our 50W, 60W, and 100W configurations are powerful enough to cut thin metal sheets (such as brass, copper, and stainless steel) in addition to high-speed engraving.
We provide free online training, pre-configured starting parameter lists, custom settings advice tailored to your materials, and lifetime online troubleshooting to ensure you get optimal results from day one.
