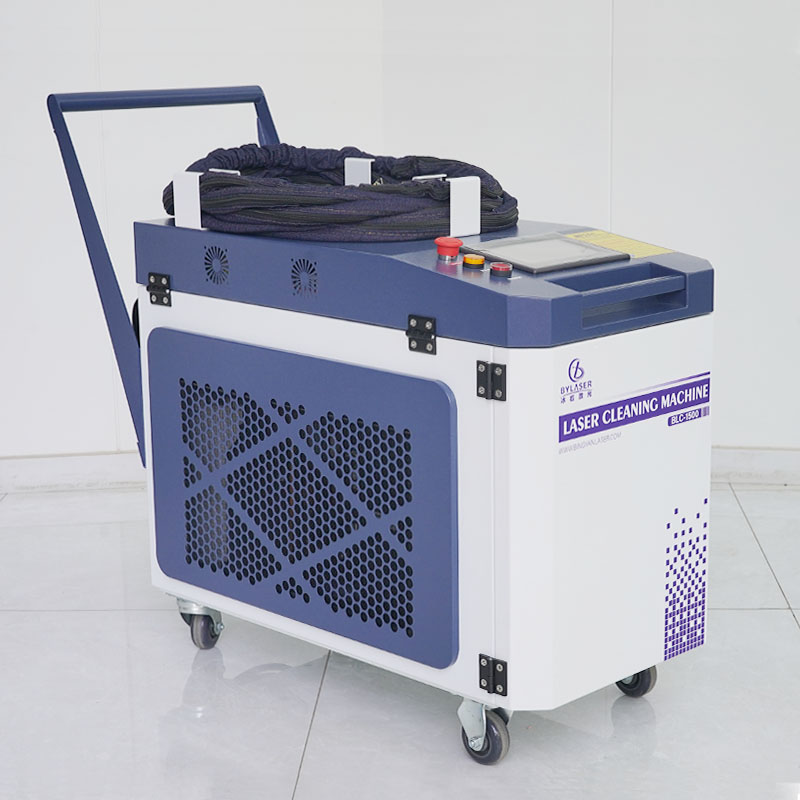

Handheld Laser Cleaning Machine
-
Flexible voltage selection: 220V / 380V (single-phase / three-phase) to meet different environmental requirements.
-
Large touch screen: Easy to operate, 16 languages freely switch, convenient for global users.
-
Built-in air pump, no external air source, easy to use. The cleaning head is equipped with an air blowing protection device to improve cleaning efficiency, protect the cleaning head and prolong the life.
-
Excellent quality assurance: Products through CE and EU certification, to ensure environmental protection, safety and reliability.
-
Brand-new accessories and MAX laser source ensure ultra-long service life, stable and reliable.
-
Professional equipment debugging and quality testing, strict control of every link, to ensure high-quality operation of equipment, excellent performance, and improved work efficiency.
-
Overall unit has 1-year free warranty (without any additional cost), one-to-one service, Respond quickly to your every question and provide a hassle-free after-sales experience.
-
Free sample testing: You can witness the excellence of the cleaning equipment and ensure that it fully meets your needs.
Send samples for free testing.
OEM & ODM Supported.
What is the laser cleaning machine?
Removal of oils, resins, glues, dust, stains, and production residues. Roughening of metal surfaces.
- 1: Paint removal, rust removal, and oil stain removal before welding or bonding; treatment of oxides and residues after welding.
- 2: Mold cleaning, such as tire molds, electronic molds, and food molds. Removal of oil stains after precision component production and processing.
- 3: Treatment of oxides, paint removal, and rust removal during the production or maintenance of aerospace, ships.
- 4: Cleaning of metal surfaces in narrow spaces. Cleaning of cultural relics, rocks, and exterior surfaces of buildings.
- 5: Cleaning of mechanical parts, cleaning of pipes and fittings, cleaning of automobile parts, cleaning of old paint on aircraft, etc.
Send samples for free testing.
OEM & ODM Supported.
Technical Parameters
| Product Model |
BLC-1000 |
BLC-1500 |
BLC-2000 |
BLC-3000 |
| Power |
1000W |
1500W |
2000W |
3000W |
| Laser wavelength |
1080±10nm |
| Fiber mode |
Continuous |
| Laser fiber length |
10m (15m can be customized) |
20m |
| Adjustable widths |
1-160mm |
| Voltage |
AC220V±10% |
AC380V±7% |
| Optional Accessories |
Alternators / Transformers: AC220 to 380V, AC460V to 380V |
| Total power |
6kw |
8kw |
10kw |
13kw |
| Cooling mode |
Water cooling (deionized water, distilled water or pure water) |
| Host size |
845*460*605mm |
905*480*630mm |
1240*584*1148mm |
| Package Size |
1120*565*1050mm |
1430*720*1220mm |
| Net weight |
106kg |
113kg |
137kg |
225kg |
| Gross weight |
138kg |
145kg |
169kg |
285kg |
| Tank capacity |
16L (need to add water 14-15L; distilled water, deionized water or pure water as medium) |
Sample Show
The laser cleaning machine can efficiently remove resin, oil stains, stains, dirt, rust, coating, plating, and paint on the surface of the workpiece, meeting the cleaning requirements of complex shapes and fine positioning in the industrial processing field, achieving a cleaner cleaning effect with higher cleanliness, and a lower overall cost.
Frequently Asked Questions
What materials can this laser cleaning machine clean?
This laser cleaning machine can efficiently remove rust, paint, coating, plating, oil stains, resins, glues, dust, and production residues from various metal surfaces (such as steel, aluminum, copper) and select non-metal materials.
Does the machine require an external air source?
No. This machine features a built-in air pump, so no external air source is required. It is designed to be plug-and-play for maximum convenience. Additionally, the cleaning head has an air blowing protection device to extend its operational lifespan.
Is the machine compatible with different power grids worldwide?
Yes, we provide flexible voltage selection (220V single-phase or 380V three-phase) to meet different local infrastructure requirements. We also offer optional alternators and transformers for specialized voltage conversions.
How easy is it to operate the control system?
It features a large, intuitive touchscreen control system that supports 16 languages. Users can easily switch languages and navigate settings without technical difficulty.
What kind of warranty and after-sales support do you offer?
We provide a 1-year free warranty on the entire unit with no additional hidden costs. We also offer responsive, one-to-one service to address your technical questions and ensure a worry-free experience.
Can I test sample materials before buying?
Yes, we support free sample testing. You can send your sample workpieces to us, and we will perform test runs to verify the cleaning effect and ensure the parameters meet your expectations.
