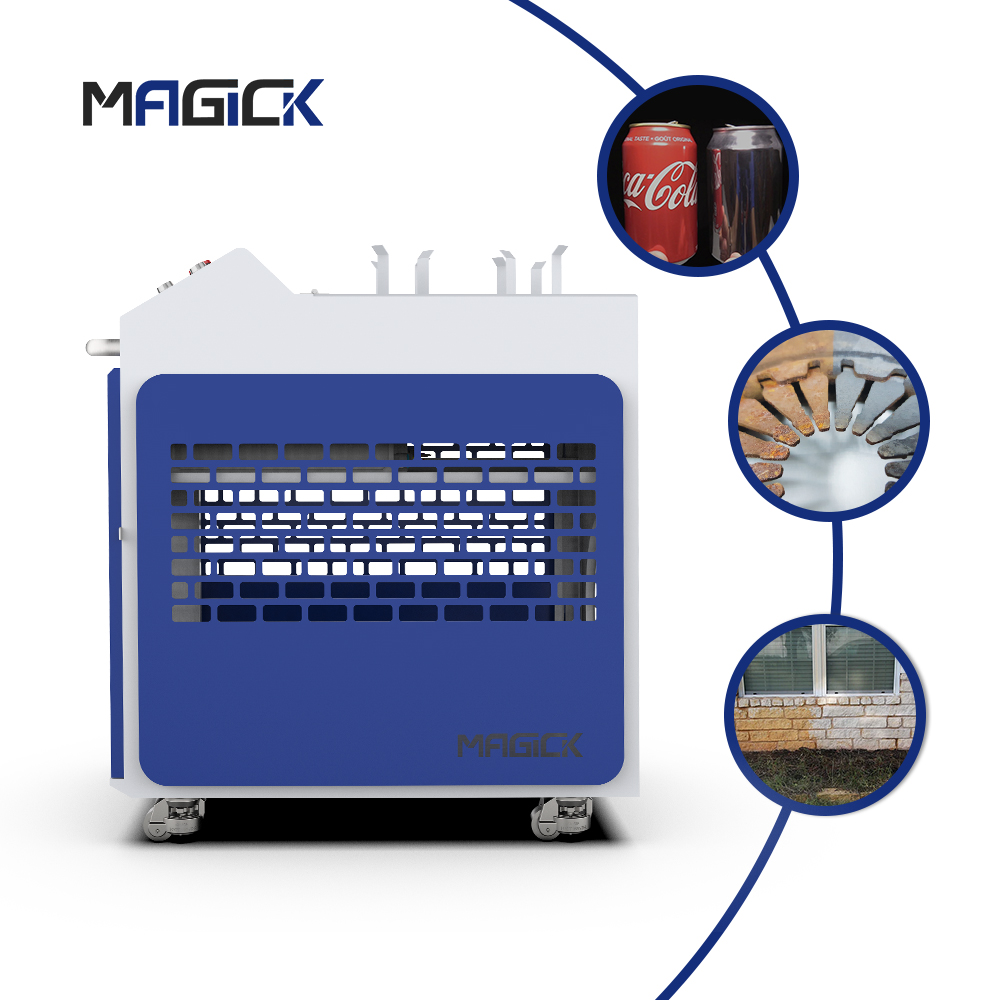

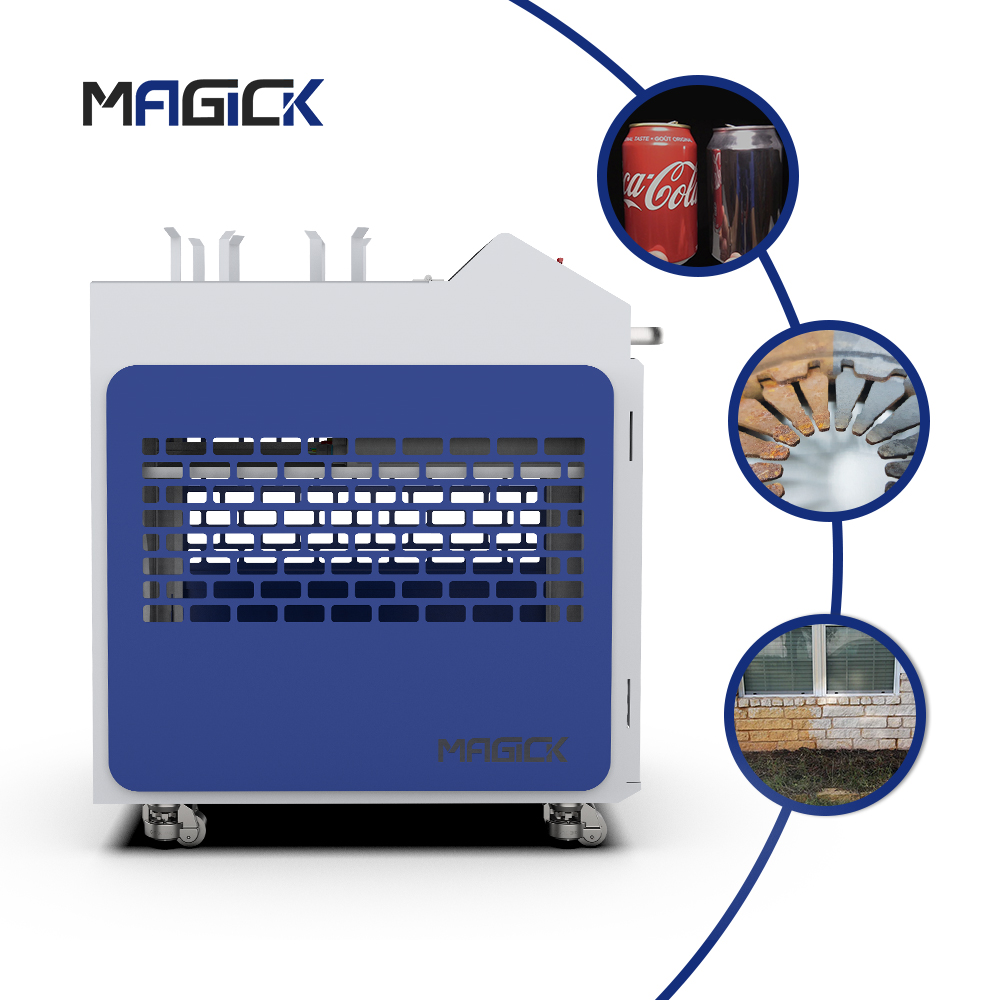

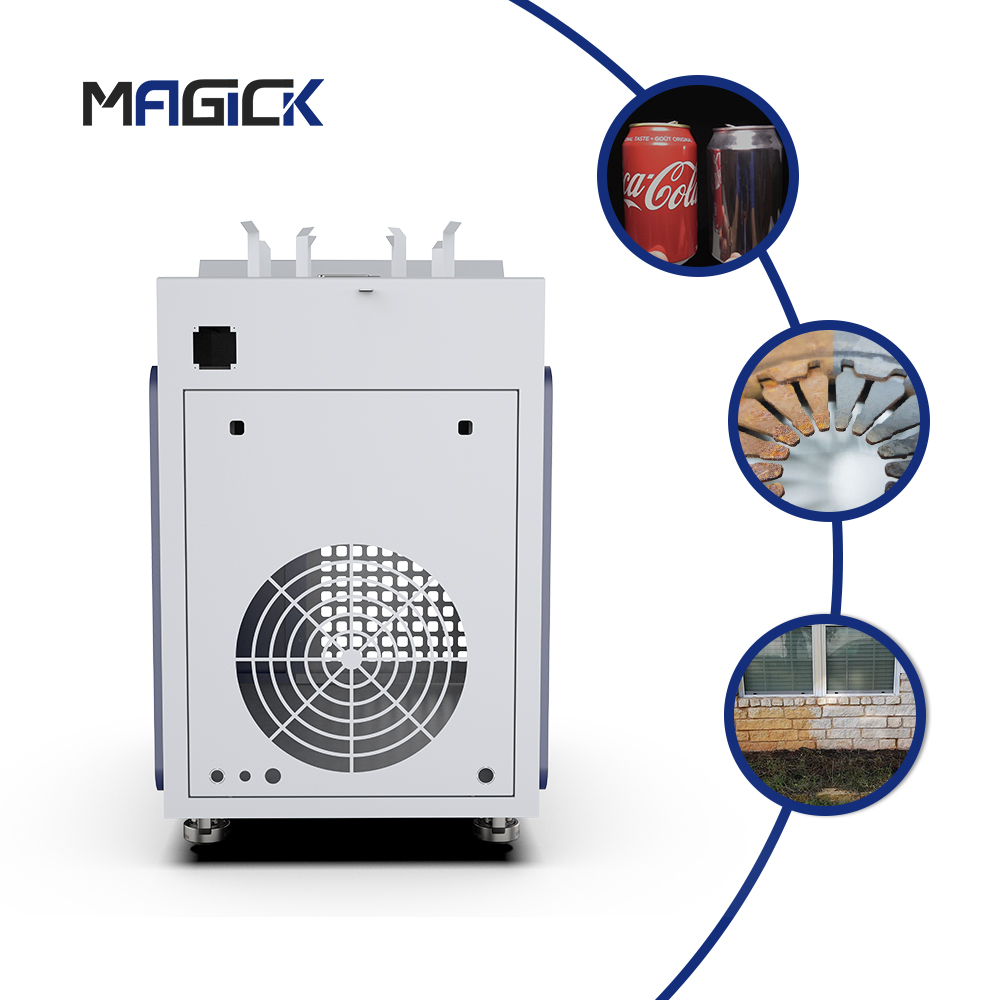

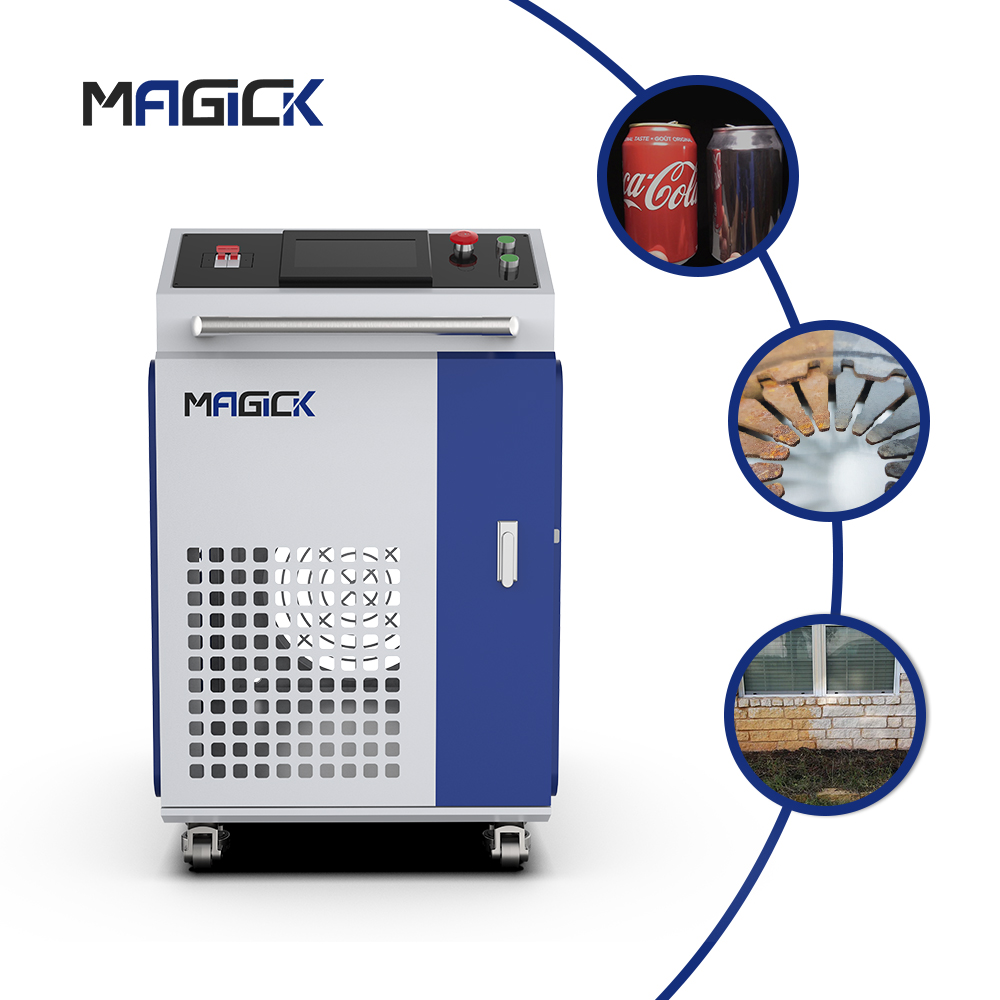

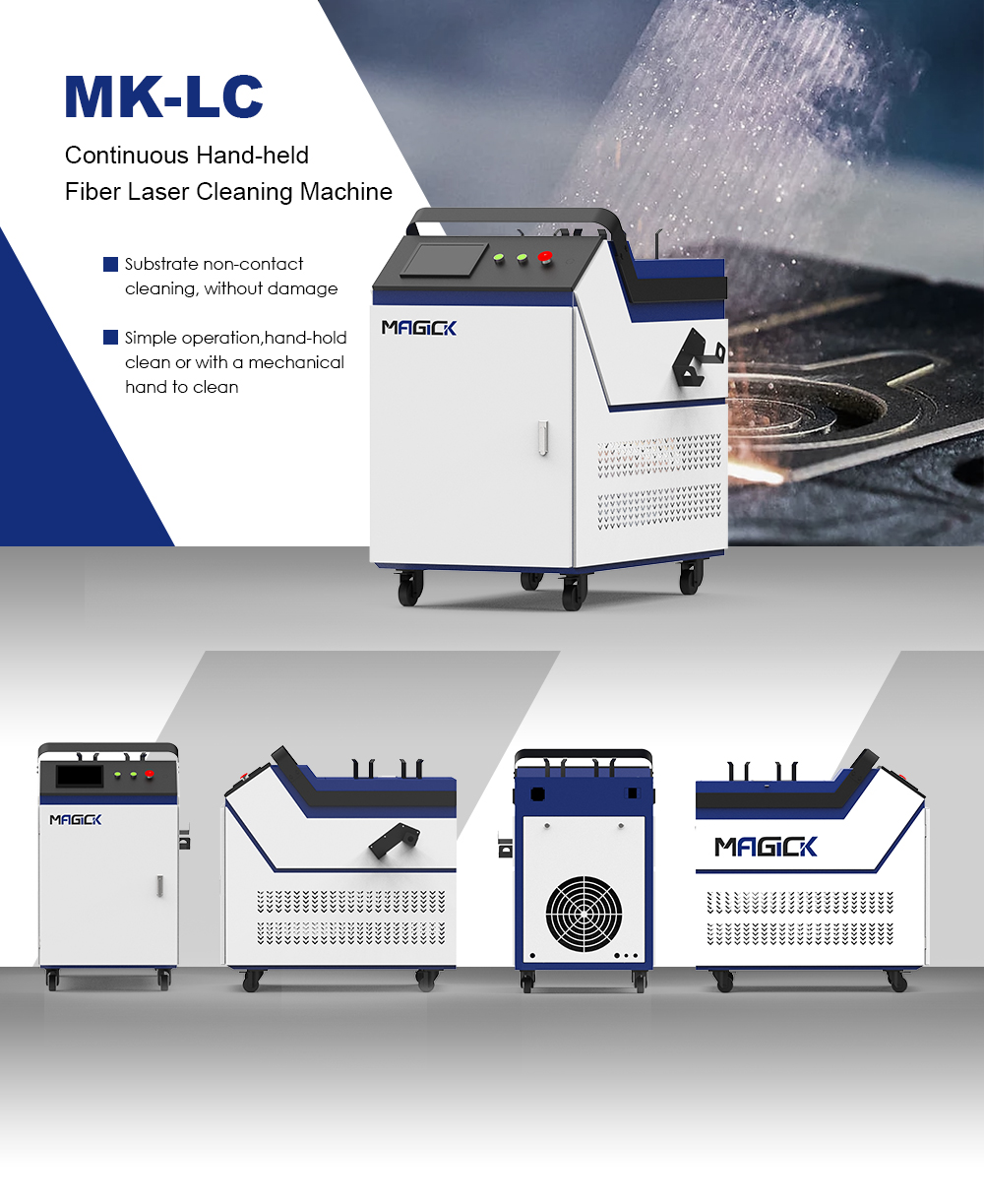

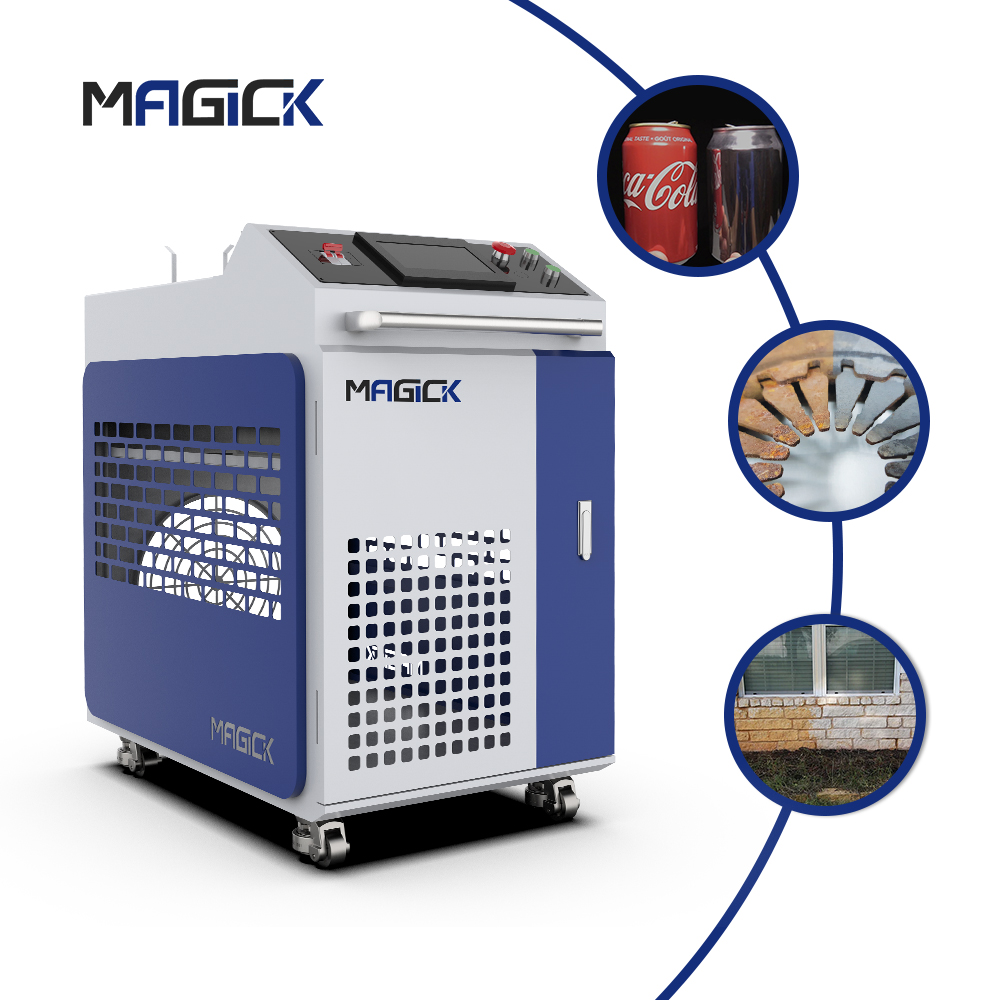

Laser cleaning machine is a new generation of high-tech surface treatment products. It’s easy to install, control and automate. It can remove the object surface resin, paint, oil pollution, stains, dirt, rust, coatings, and oxide coatings. It is widely used in various industries, covering ships, steam repairs, rubber molds, high-end machine tools, track, and environmental protection.
| Type | MK-1000C |
| Laser Type | Fiber laser |
| Pulse Formation | Q-Switched (Quality factor) |
| Average Power (W), Max | 100 |
| Average Power (W), Output Range (If adjustable) | 0-100 |
| Pulse-Frequency (KHz), Range | 20-200 |
| Scanning Width (mm) | 10~80 |
| Expected Focal Distance (mm) | 160mm |
| Fiber Length (m) | 5m |
| Cooling Type | Air cooling |
| Input Power | 220V, 50/60H |
| Power Consumption (W) | 800W (including Chiller) |
| Dimensions (mm3) | 850mm X 700mm X 880mm |
| Weight | 140 |
Cleaning of edges and corners can be realized: the optical device makes the laser beam move back and forth quickly on the workpiece. Different scan patterns and speeds are available depending on the desired cleaning effect. A linear scanning motion can be used to clean micro-contamination; if a deeper cleaning is required, use overlapping scanning or increase the power of the device.

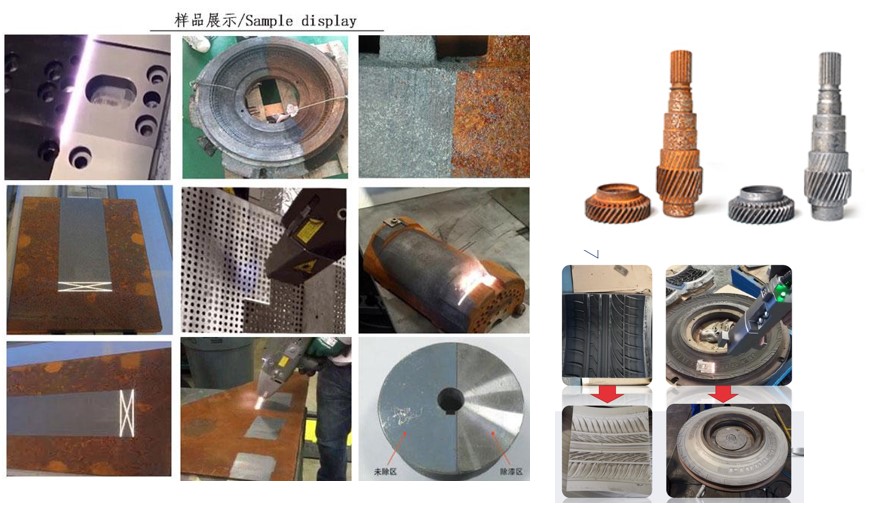

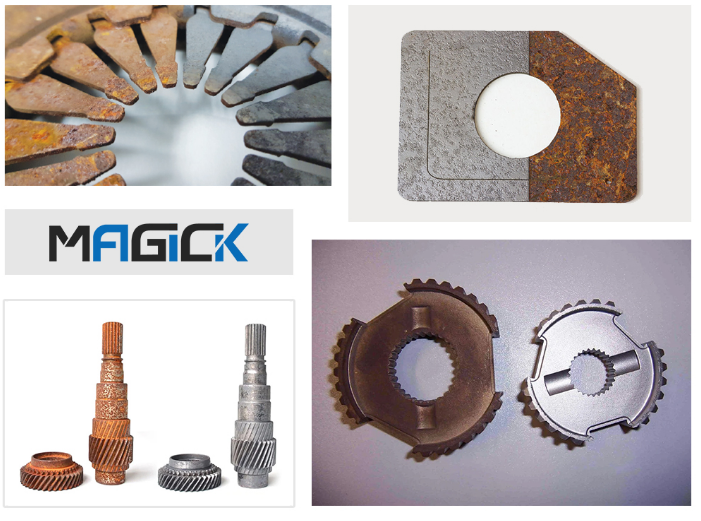

The laser can clean its surface, such as aluminum, carbon fiber composite material or coated parts, without damaging the underlying material. Alternatively, by choosing a different parameter set, the same laser can also roughen the surface, increasing the strength of the bond. The flexibility of laser tools allows them to be applied to a wide variety of tasks required, costing approximately five times less than comparable wet chemical cleaning processes.
"Clean" not only means that the effect of laser cleaning is very clean, but also the cleaning process itself is a green process. Unlike wet chemical processes, it does not use toxic solvents. Moreover, the noise and damage to the substrate caused by the abrasive method are avoided.

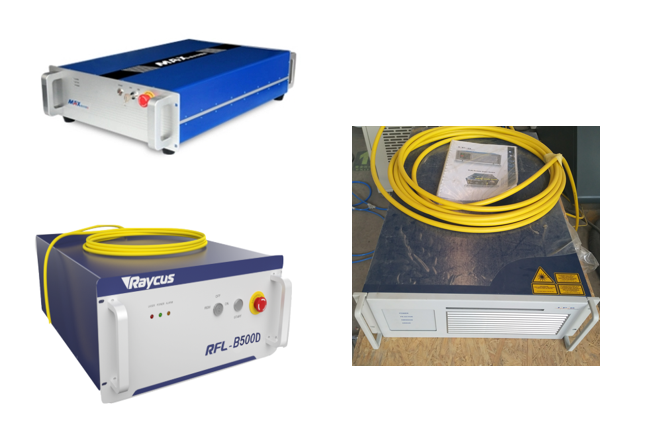

Max, Raycus, JPT, IPG options available. Features a relatively thin core, better beam quality than multi-mode options, and a high concentration of energy density.

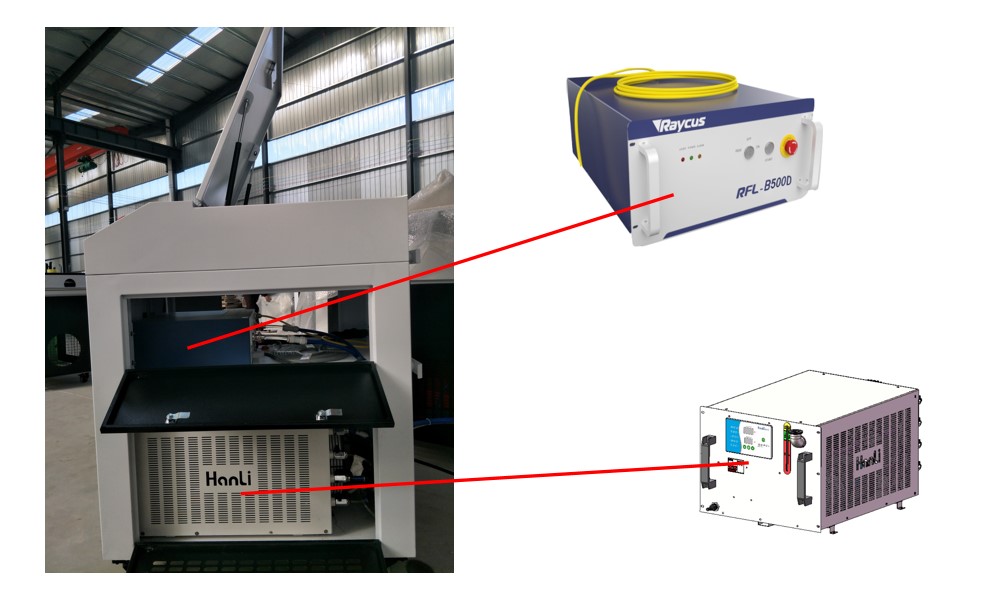

Reasonable layout design, convenient machine maintenance, and reserved space for future upgrades.

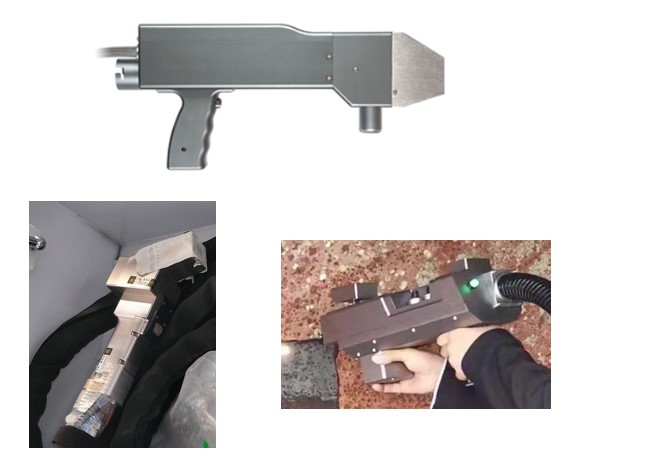

1. The original 90-degree light emission makes cleaning operation more convenient.
2. The scanning trajectory is a straight line, and the energy distribution is more uniform.
3. Unique design of the air outlet and the knob-type dust cover greatly increases the service life of the protective mirror.
4. Safety lock and double-click light protection make operation safer.
5. Supports 800mm focus (0-300mm width cleaning) and 400mm focus (0-150mm width cleaning).

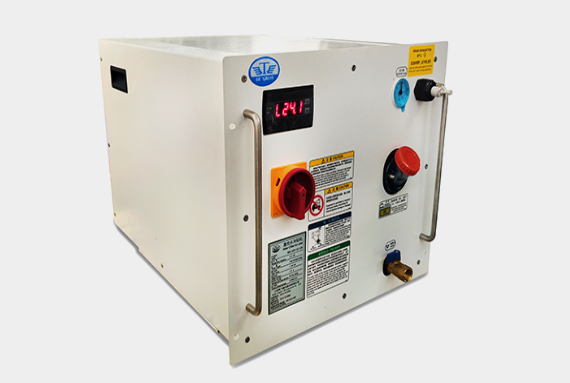

Water chiller: utilizes coolant to lower the temperature of the laser source and cutting head. Optional cooling methods are configurable according to power output requirements.

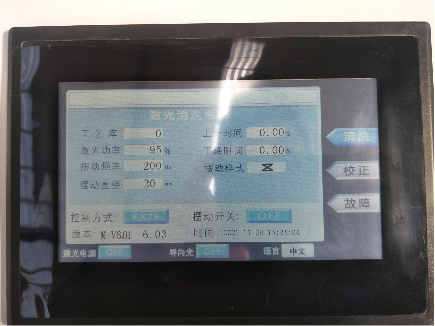

Easy to use control software. Supports English, Chinese, Korean, Russian, Japanese, German, French, Italian, Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai, Vietnamese, Romanian, and more.

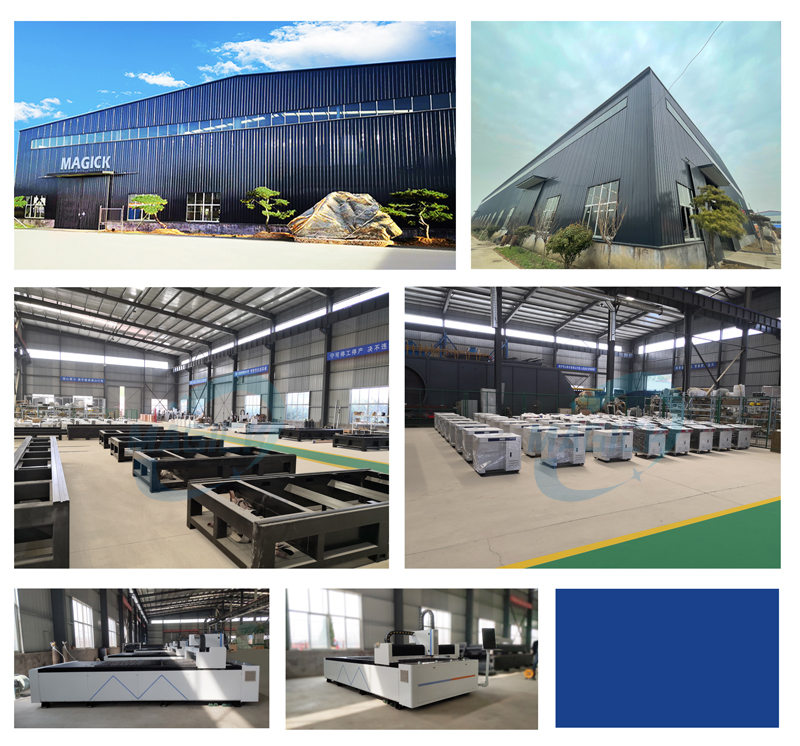

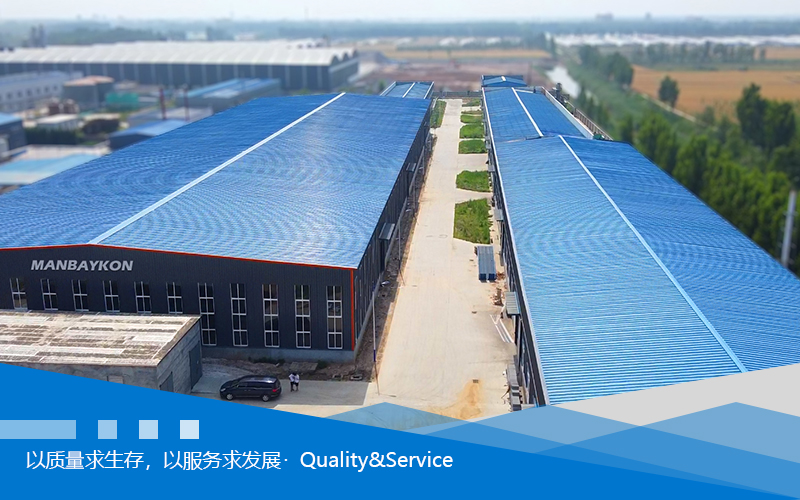

A professional manufacturer of Industrial Laser Equipment. Our machines are widely used in metal processing industries worldwide. All of our products have successfully passed ISO, CE, and RoHS agency testing. We offer robust and reliable laser equipment solutions, providing 2-3 years of complete quality assurance services to ensure an optimal customer experience. Backed by dedicated engineering support and professional sales service, our products are exported to more than 100 countries.
