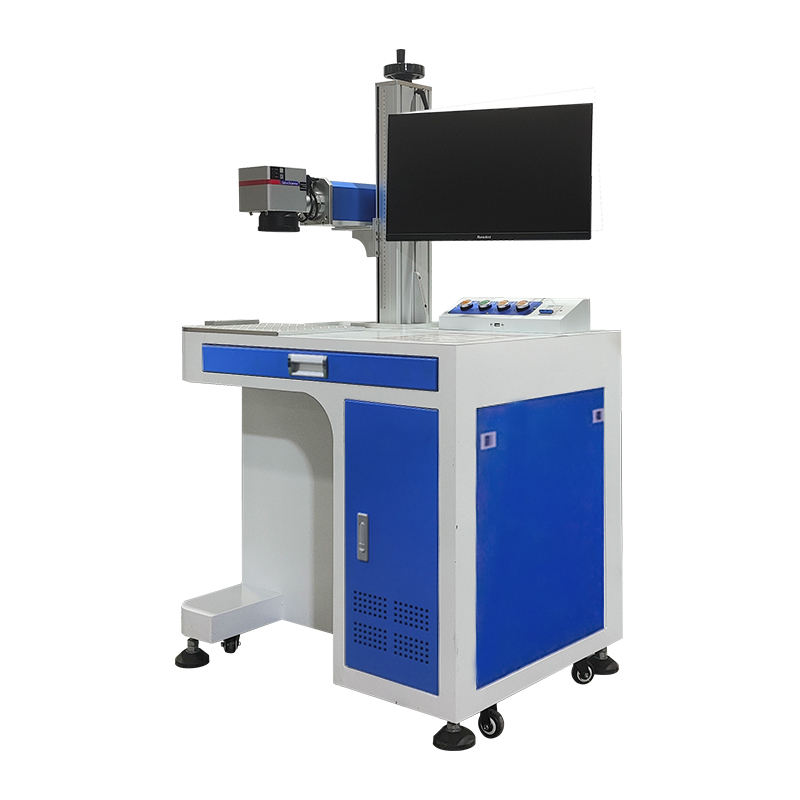

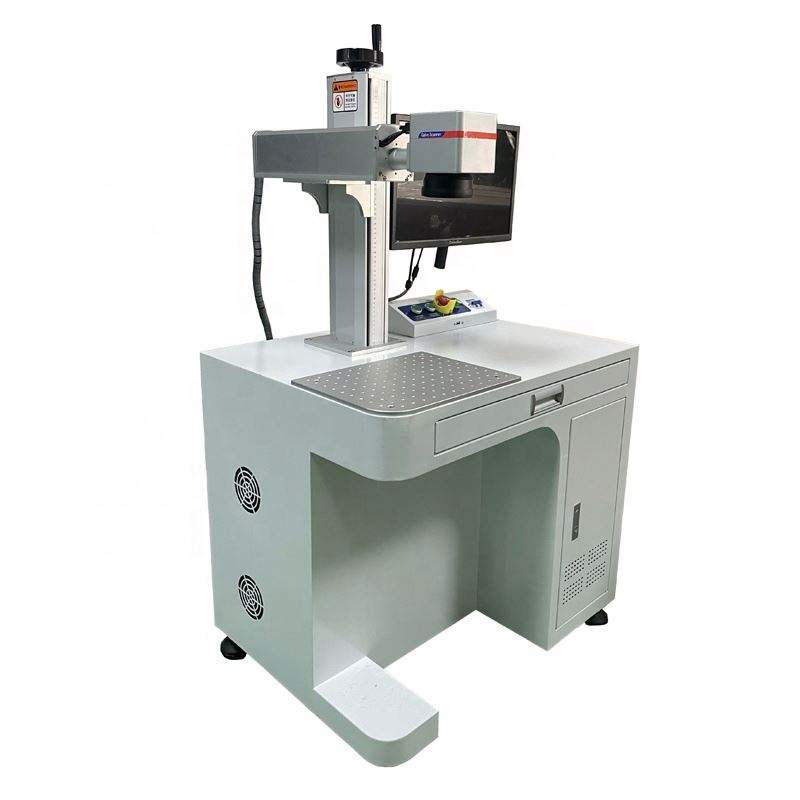

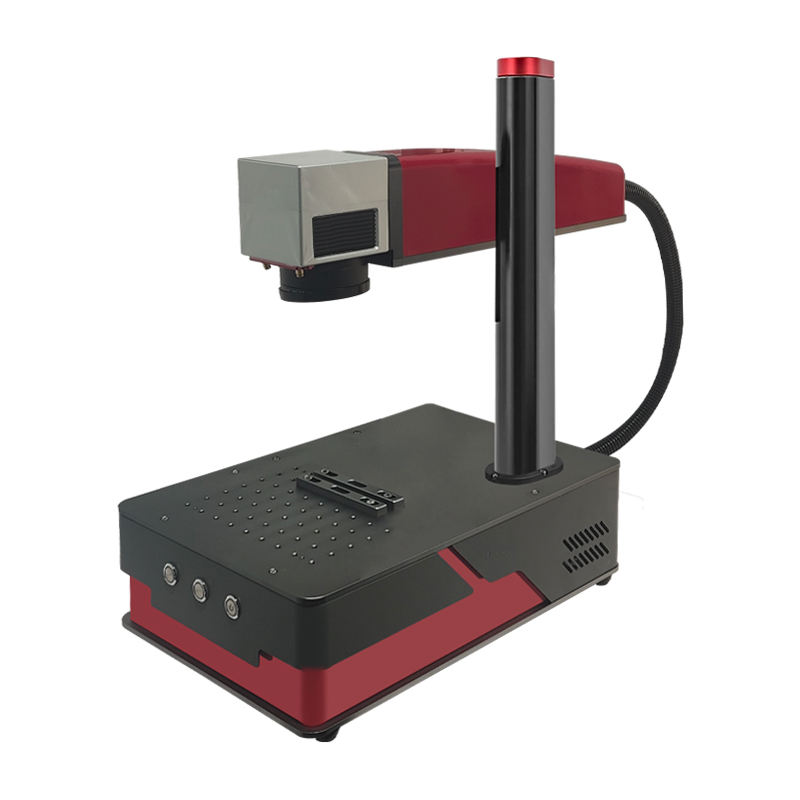

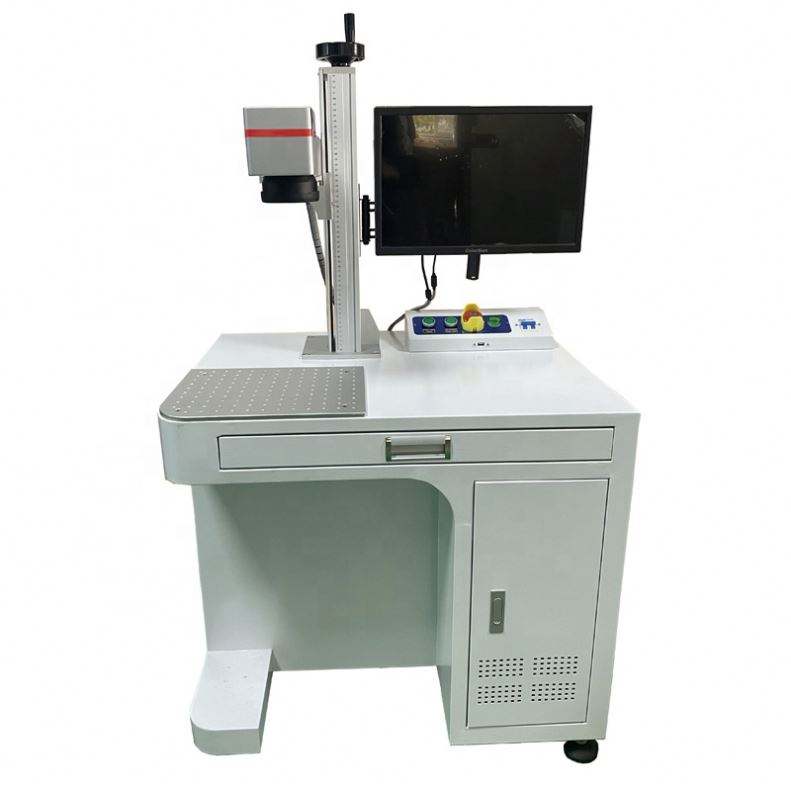

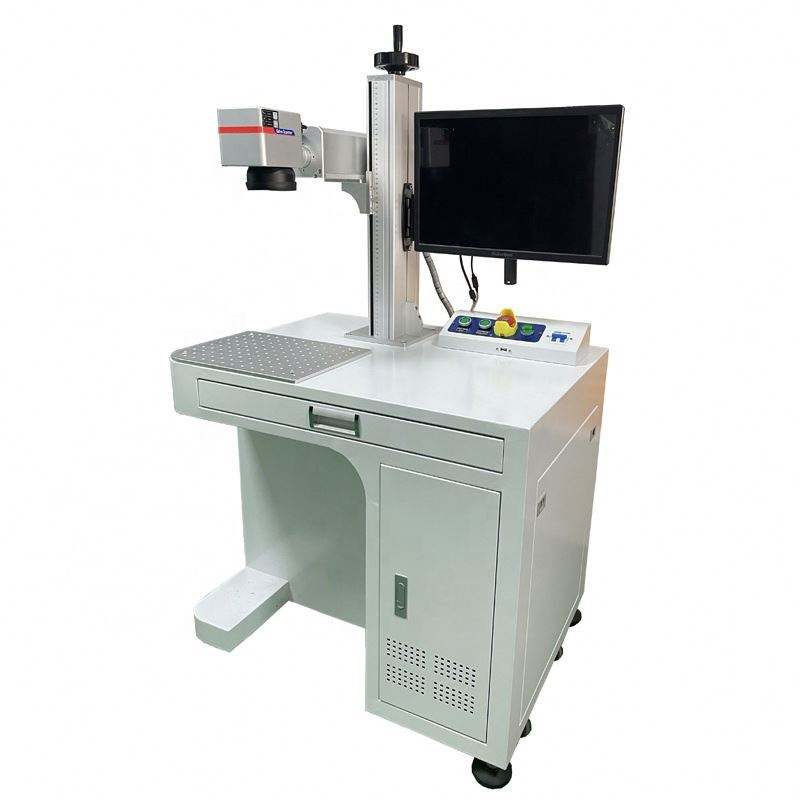

50W Fiber Laser Marking Machine with EZCAD Controller for Hardware Manufacturing and Metal Processing

Product Description

Fiber Laser Marking Machine for Stainless Steel Carbon Steel Copper Marking Metal Marking Nameplate
50W Fiber Laser Marking Machine with EZCAD Controller for Hardware Manufacturing and Metal Processing
Machine Details

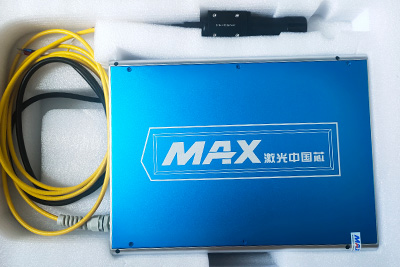

Laser source
Laser source

Good beam quality, stable performance, long service life (100,000 hours), and maintenance-free. MAX, Raycus, JPT and other brands can choose.

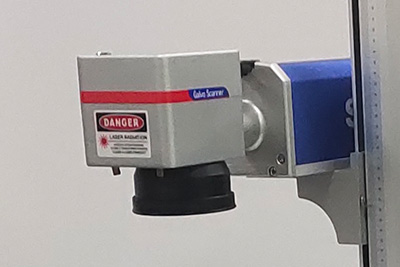

High quality galvanometer
High quality galvanometer

The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.

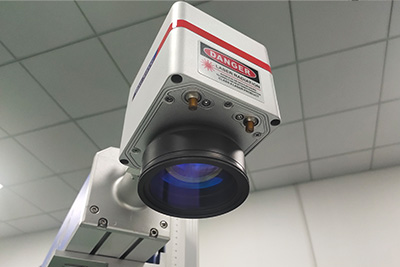

F-theta lens
F-theta lens

Intelligent F-theta lens with plenty of energy and high light transmission for good marking results.

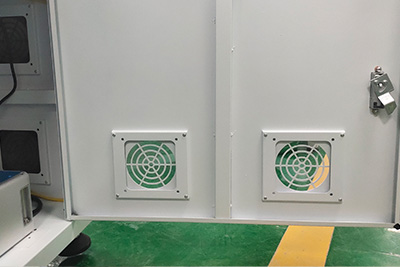

Built-in air cooling
Built-in air cooling

With built-in air cooling design, the heat dissipation performance is better, can effectively extend the service life of optical components.

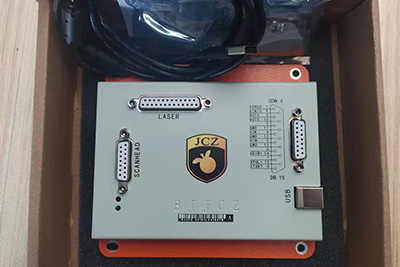

Control panel
Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

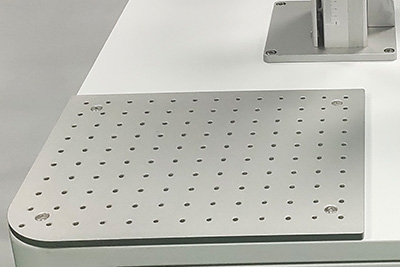

Flexible workbench
Flexible workbench

With positioning holes, the positioning is convenient and fast, and the position is adjustable.

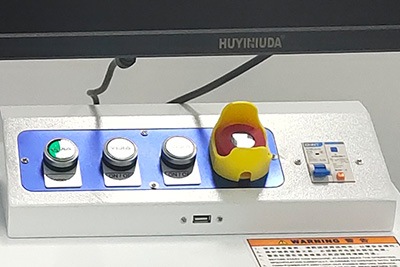

Safety protection
Safety protection

Equipped with an emergency stop button to ensure quick power cut-off in case of abnormality, and customizable laser shield.

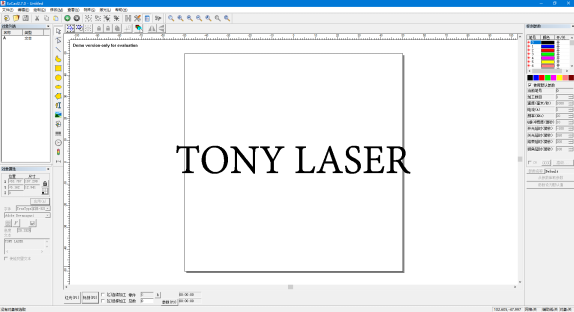

Marking software
Marking software

User interface is friendly, easy to use, supports multiple file formats, and can adjust marking parameters according to different materials and needs.

Machine Configuration
Model TN-F20A/TN-F30A/TN-F50A/TN-F60A/TN-F60A/TN-F100A
Laser power 20W/30W/50W/60W/70W/100W
Marking area 110*110mm-600*600mm (depend on the actual laser power)
Laser wavelength 1064nm
Working accuracy ±0.002mm
Marking Depth 0-0.5mm
Minimum font for marking 0.15mm
Minimum character 0.2mm
Marking speed 0-7000mm/s
Operating system Win7 and Win10 / 32 bit and 64 bit
Laser source MAX Brand (Raycus can be choose)
Repetition frequency 20-100KHz
Cooling mode Air Cooling
Graphic format supported AI, PLT, DXF, BMP, DST, DWG, DXP
Environmental requirements Temperature: 10-35℃, Humidity: 5-75%
Working voltage 220V±10%, 50/60 Hz
Applicable material All metal (Stainless steel, Carbon steel, Brass, etc.) and some plastic (ABS, PVC, PES, ETC.)
Optional D80 Rotating Shaft / D57 Small Chuck / 2D Table (X.Y direction) / Cutting Fixture
Net weight / gross weight (KG) 100KG / 115KG
Machine dimension 860*760*1130mm (L*W*H)
Optional Configuration

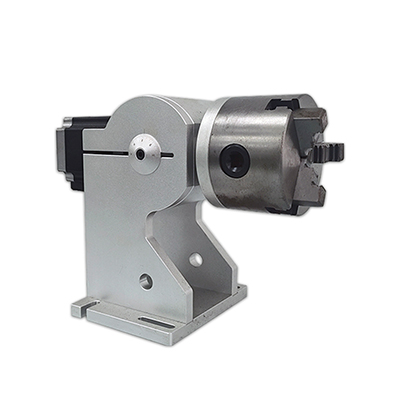

D80 Rotating Shaft
D80 Rotating Shaft

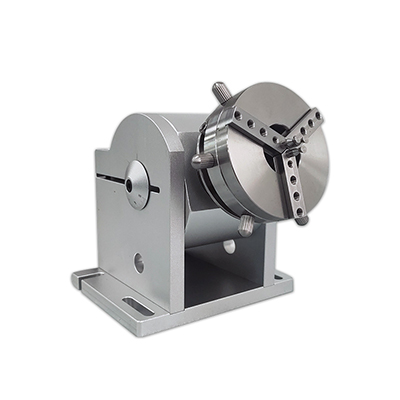

D57 Small Chuck
D57 Small Chuck

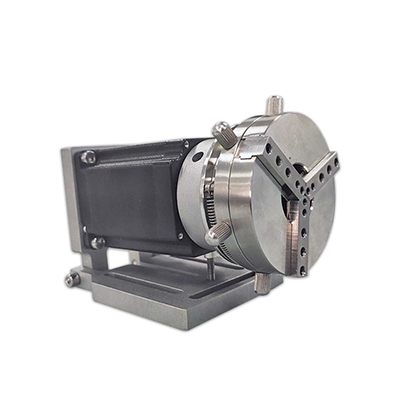

D57 Mini Chuck
D57 Mini Chuck

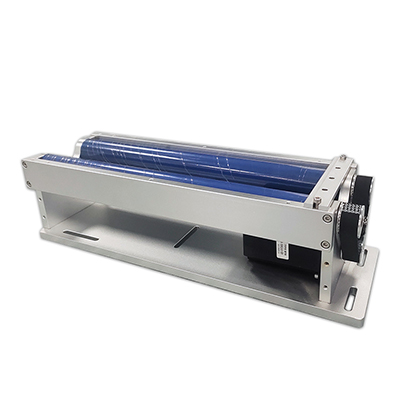

Rotating Shaft
Rotating Shaft

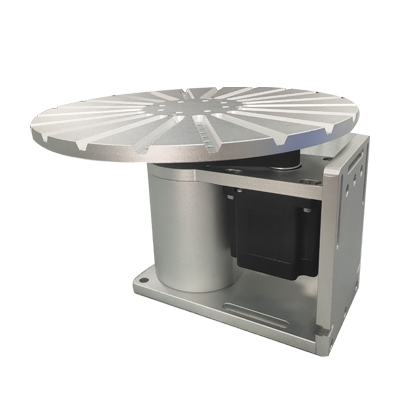

Round Turntable
Round Turntable

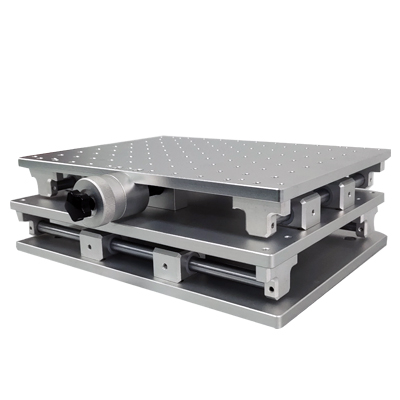

2D Table (X.Y direction)
2D Table (X.Y direction)

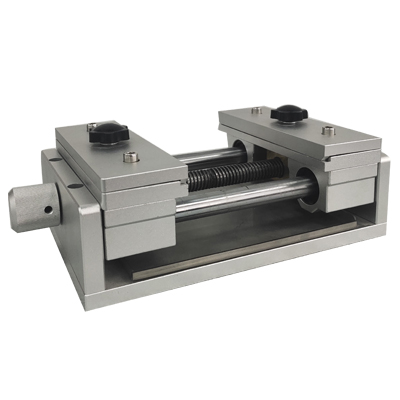

Cutting Fixture
Cutting Fixture
Lighting
Lighting
FAQ
What is a fiber laser marking engraving machine?
Fiber laser marking engraving machine is a high-precision processing equipment that uses fiber laser technology to mark and engrave materials. It is widely used in multiple industries, such as electronics, automobiles, medical, etc.
What are the advantages of fiber laser marking?
Fiber laser marking has many advantages such as high precision, high speed, durability, low maintenance cost, no consumables, etc., which is suitable for large-scale production.
Is the operation of fiber laser marking engraving machine complicated?
Fiber laser marking engraving machine is usually equipped with a user-friendly operation interface, the operation is relatively simple, and usually only basic computer skills are required to use it.
Does the maintenance requirement of fiber laser marking engraving machine is high?
Fiber laser marking engraving machine has low maintenance requirements, and the service life of laser fiber system is long. Usually, it only needs to clean the equipment regularly and maintain a good working environment.
How durable is the laser marking?
The marking of fiber laser marking can be maintained for many years, is not easy to fade and wear, and is suitable for demanding product marking needs.
How about the warranty?
We have 2 years warranty and lifelong maintenance.
