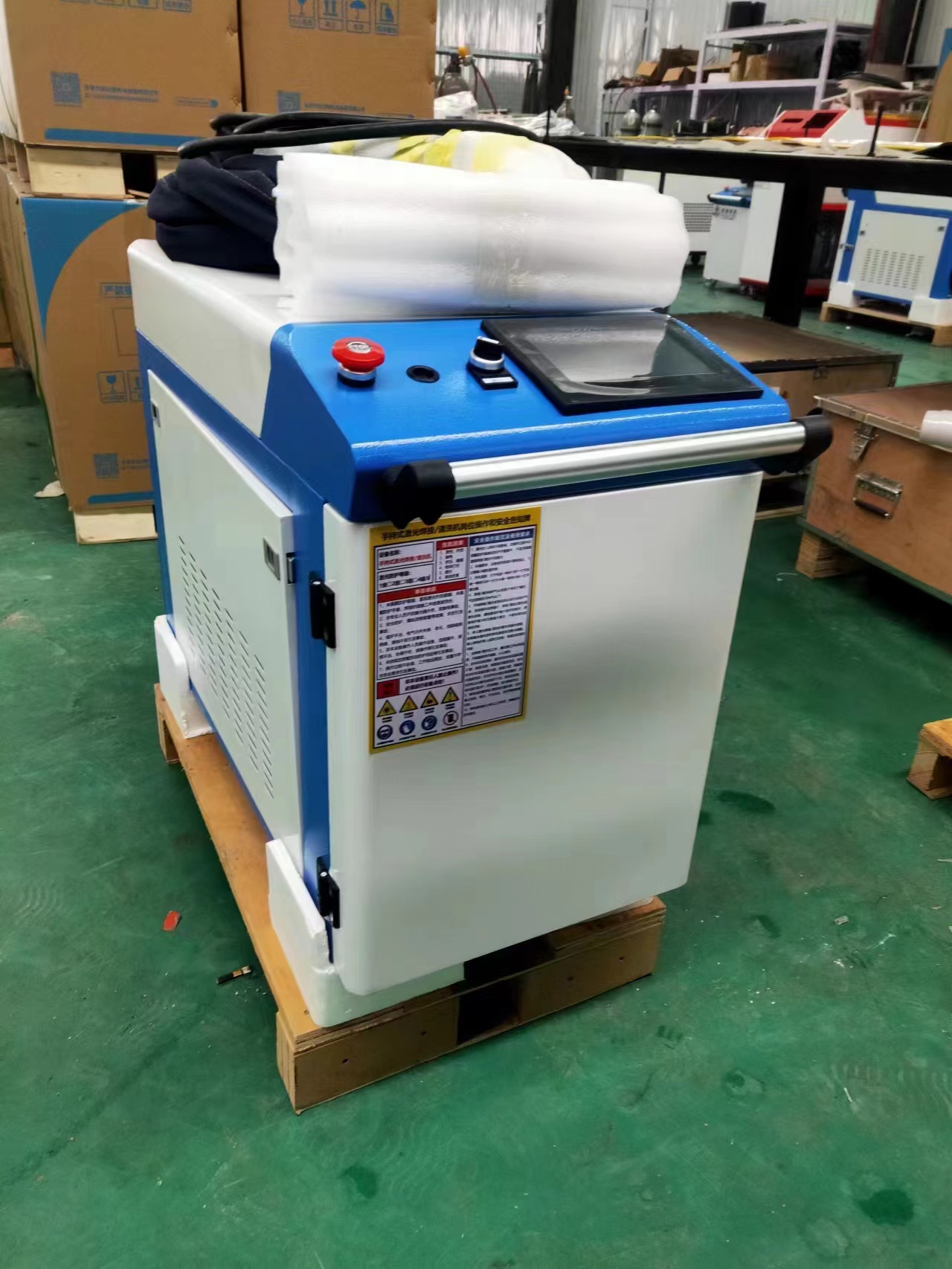

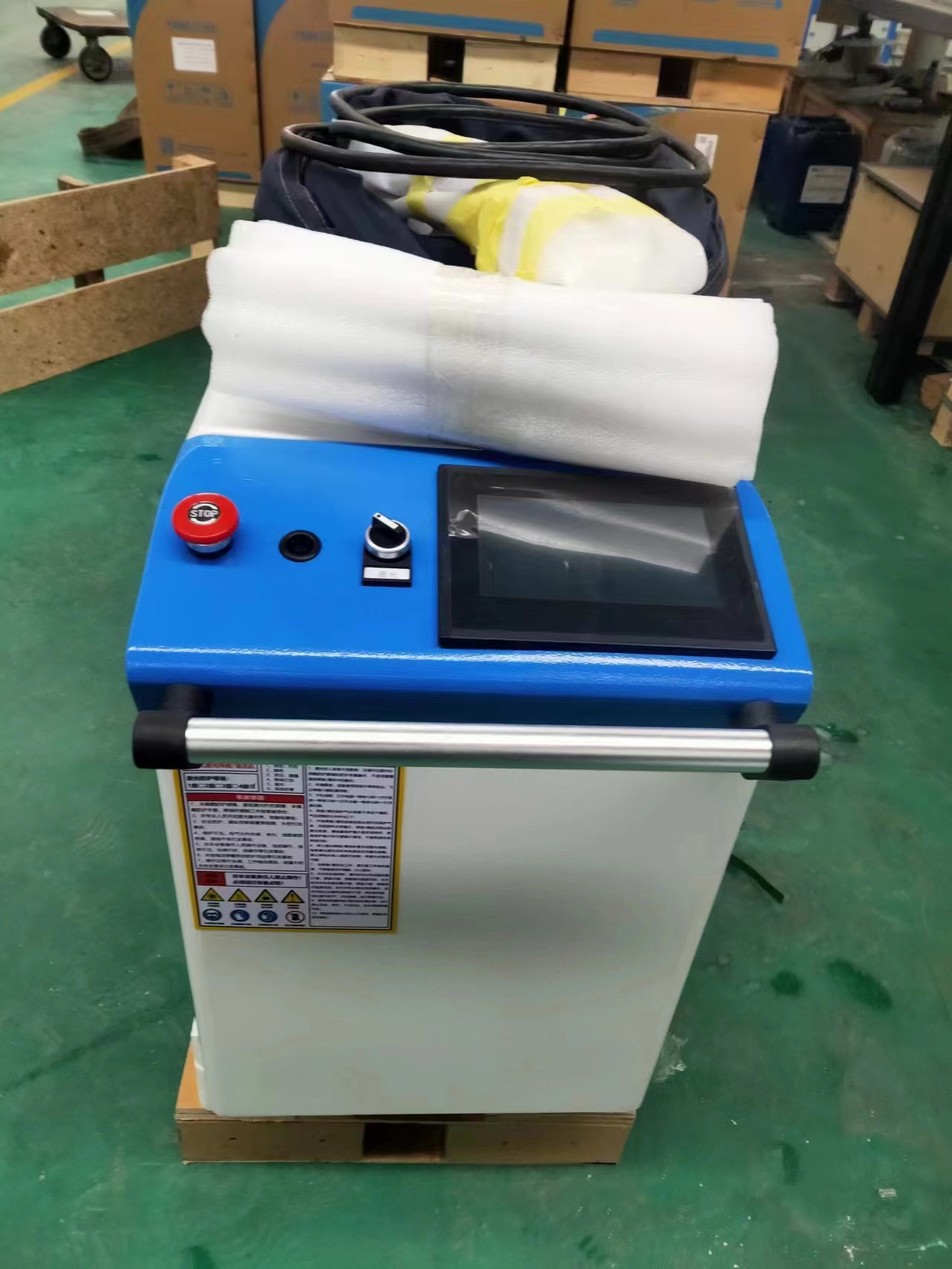

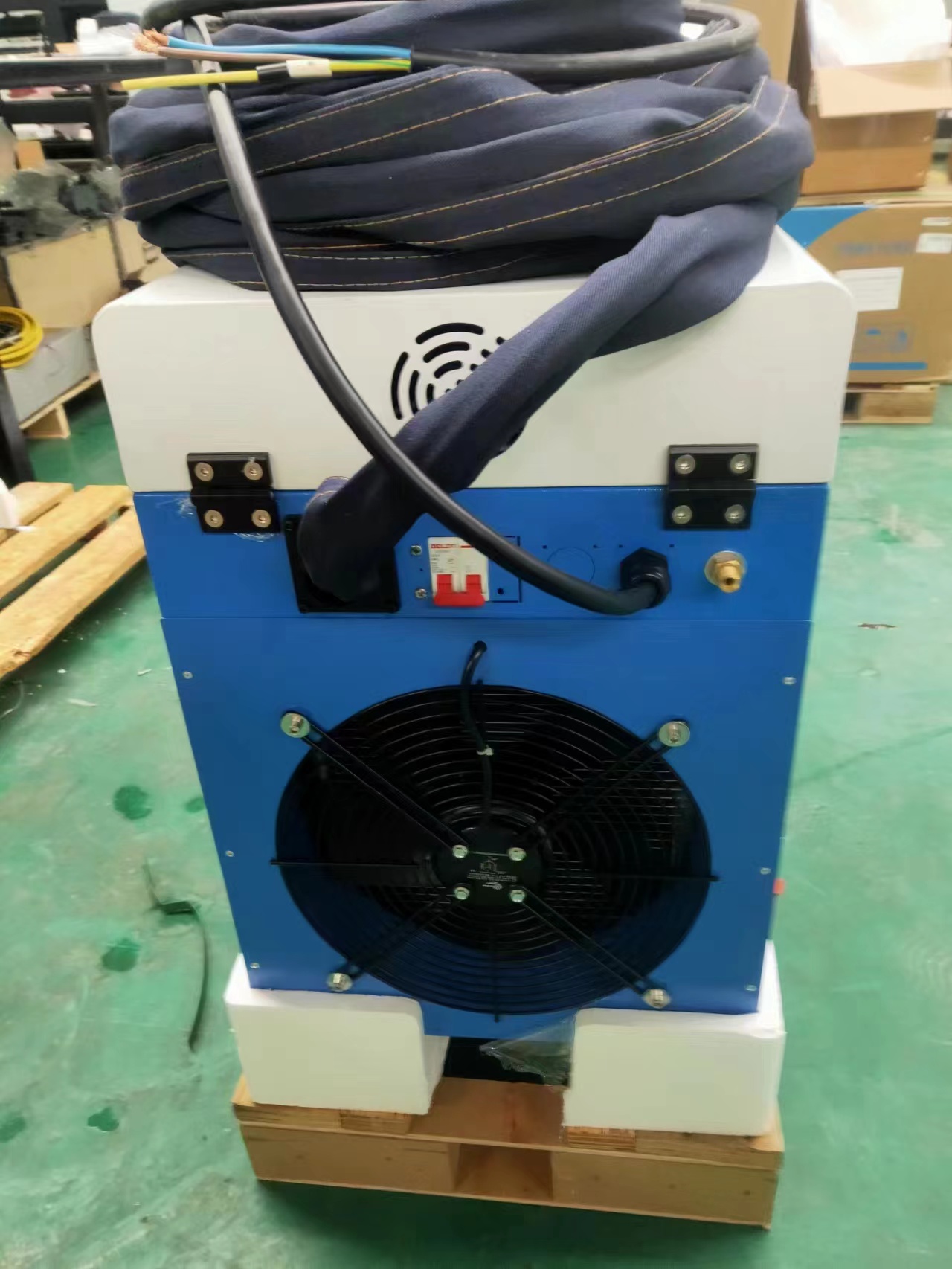

1500w Portable Handheld Price of Channel Letter Cnc Metal Automatic Fibre Laser Hand Welding and Cutting Machine for Sale

Product Description

Product Description

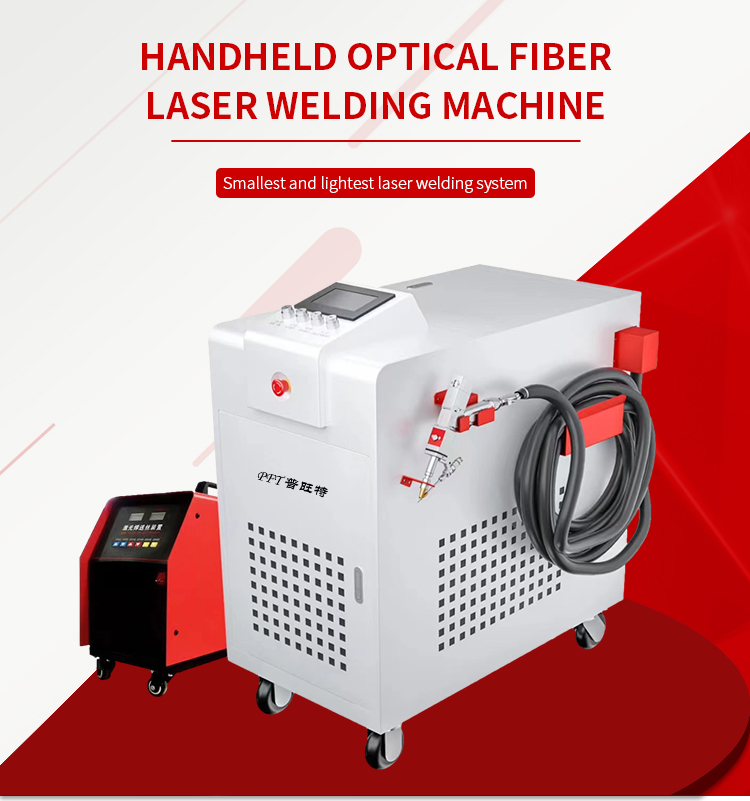

Handheld optical fiber laser welding machine overview
Handheld optical fiber laser welding machine details

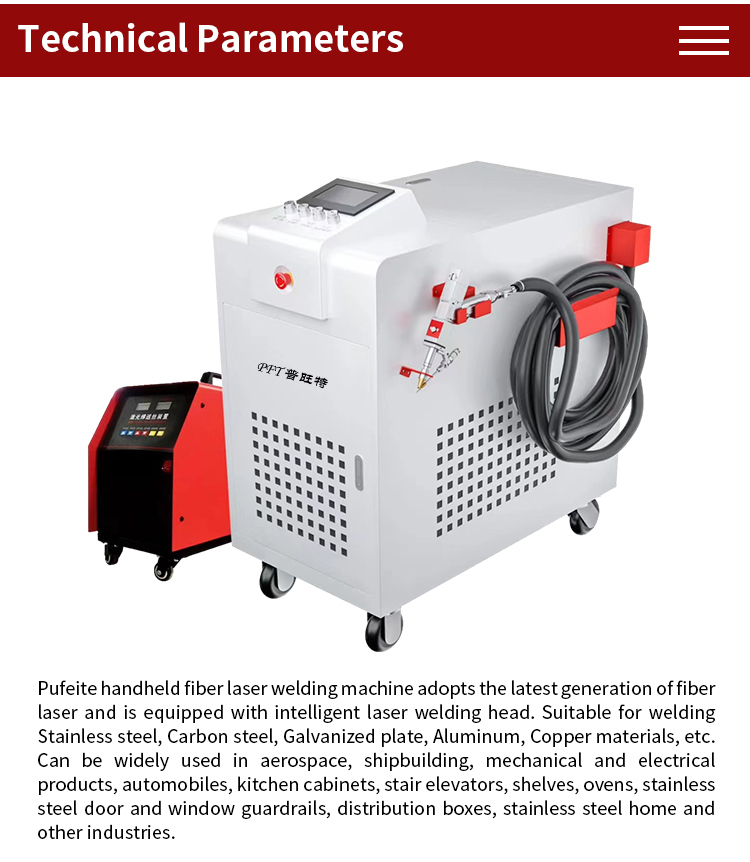

Handheld optical fiber laser welding machine perspective
Product Name Handheld optical fiber laser welding machine
Laser Power 1000W, 1500W, 2000W, 3000W
Laser Wavelength 1080nm
Fiber Length 10m in standard configuration and 15m in maximum
Operating Mode Continuous/Modulation
Welding Speed 0-120mm/s
Cooling Water Machine Industrial thermostatic water tank
Operating Environment Temperature Range 15-35°C
Working Environment Humidity Range <70% No Condensation
Welding Thickness Range 0.5-8mm
Welding Line Requirements ≥0.5mm
Working Voltage AC220V/380V

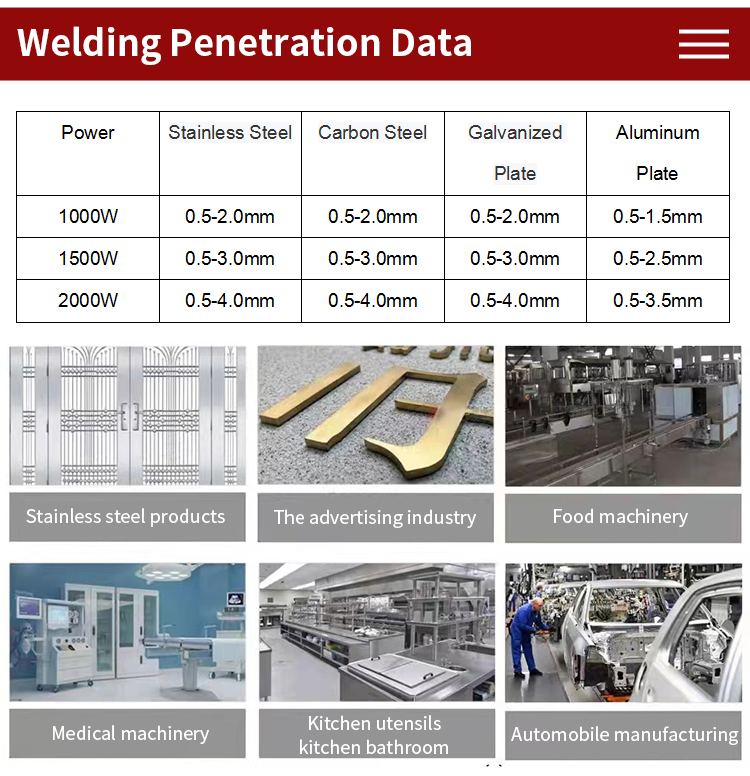

Laser welding process detail 1

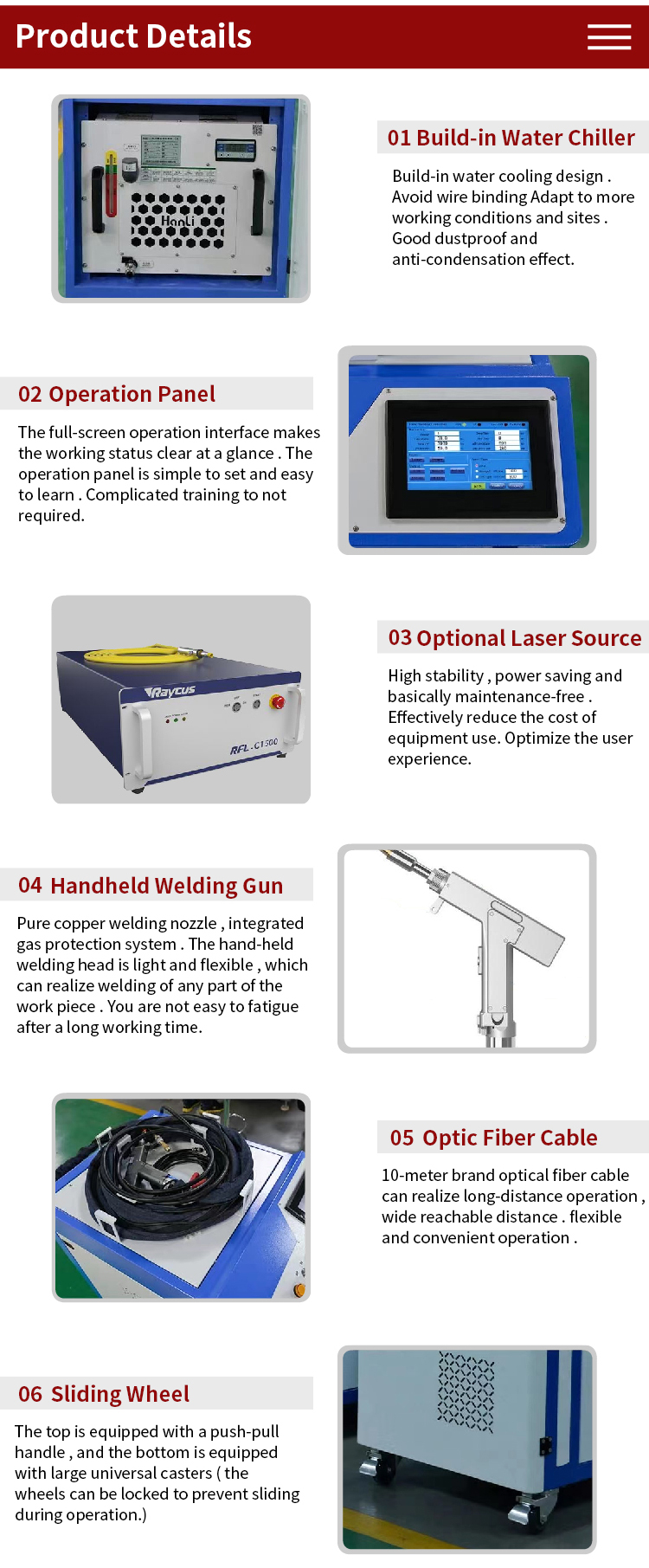

Laser welding process detail 2
Laser welding process detail 3

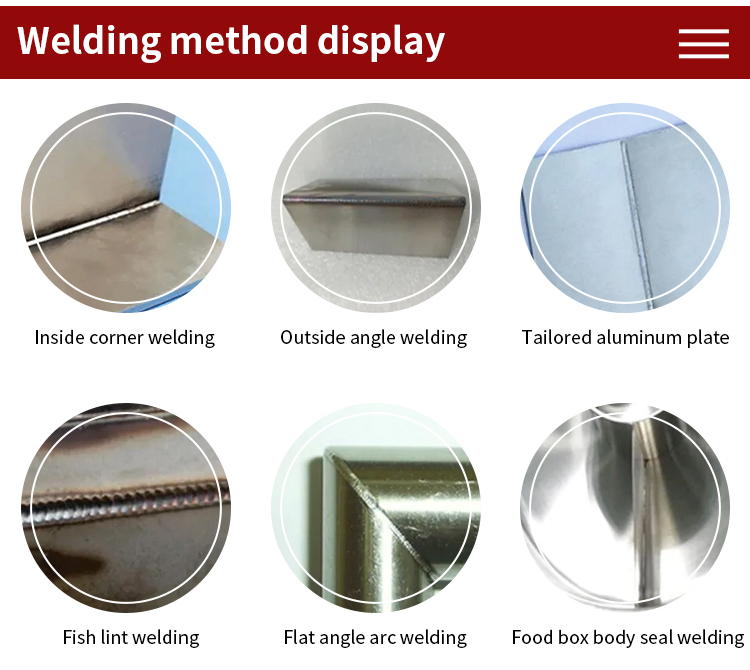

Laser welding application 1
Laser welding application 2
Laser welding application 3
Welding sample display 1

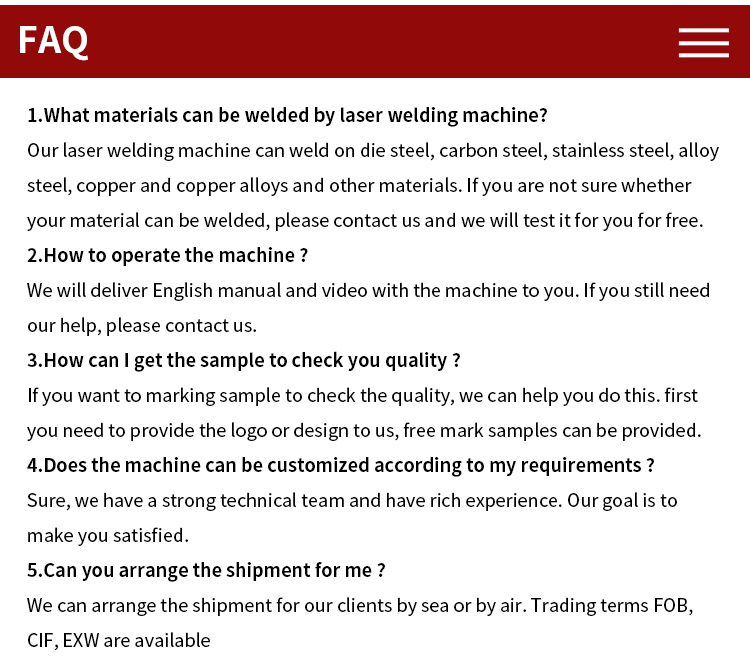

Welding sample display 2
Welding sample display 3

Frequently Asked Questions

What materials can be welded with this handheld laser welding machine?

This machine is suitable for welding a wide range of metals, including stainless steel, carbon steel, aluminum, brass, copper, and galvanized sheets, delivering precise and clean results.

Is it easy for a beginner to operate this laser welder?

Yes, it is highly intuitive. The handheld design is ergonomic and lightweight, and the control interface is user-friendly, requiring minimal training compared to traditional TIG or MIG welding.

What is the standard and maximum fiber cable length?

The standard configuration comes with a 10-meter fiber optic cable, which can be customized up to a maximum of 15 meters, offering excellent flexibility for long-distance and large-scale welding tasks.

What kind of cooling system is built into the machine?

The system features an integrated industrial thermostatic water cooling tank to maintain optimal operating temperatures, ensuring stable continuous performance and extending the lifespan of the laser source.

What are the voltage requirements for operation?

The machine supports AC220V or AC380V working voltage, depending on the chosen laser power rating and configuration requirements.
