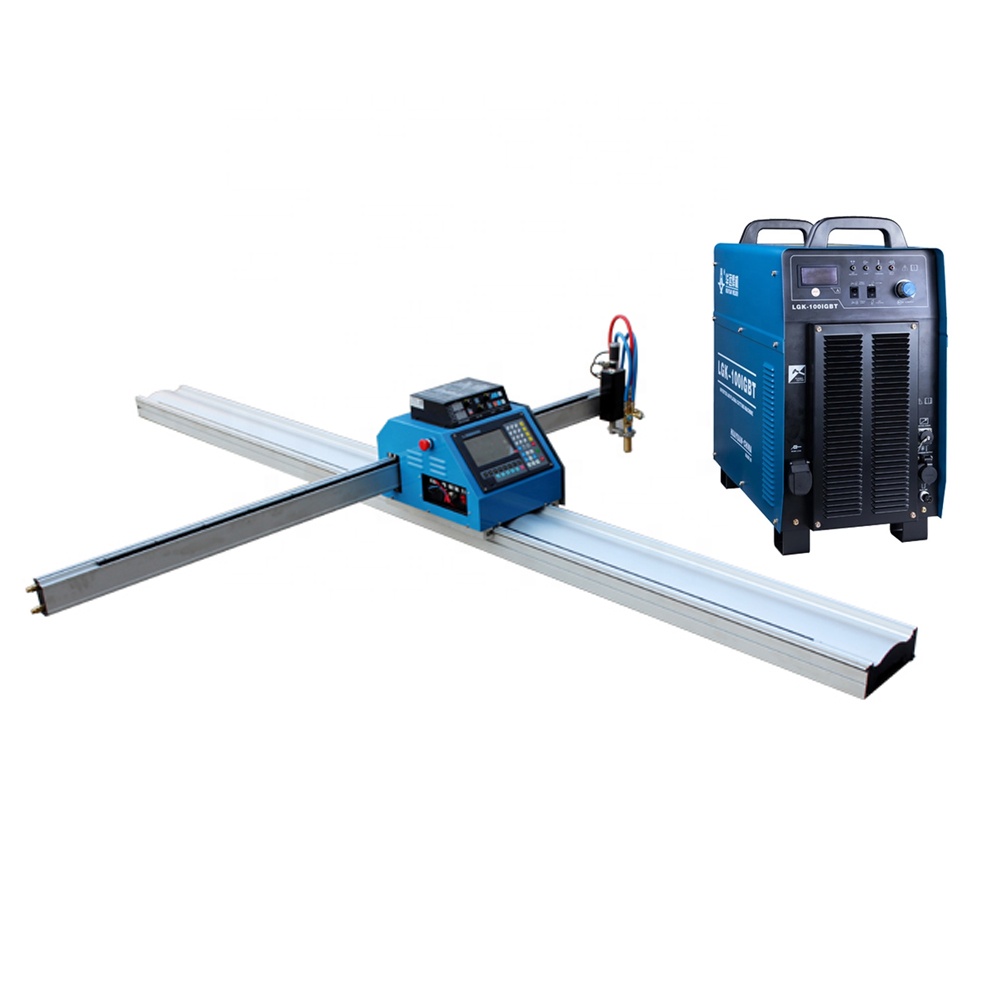

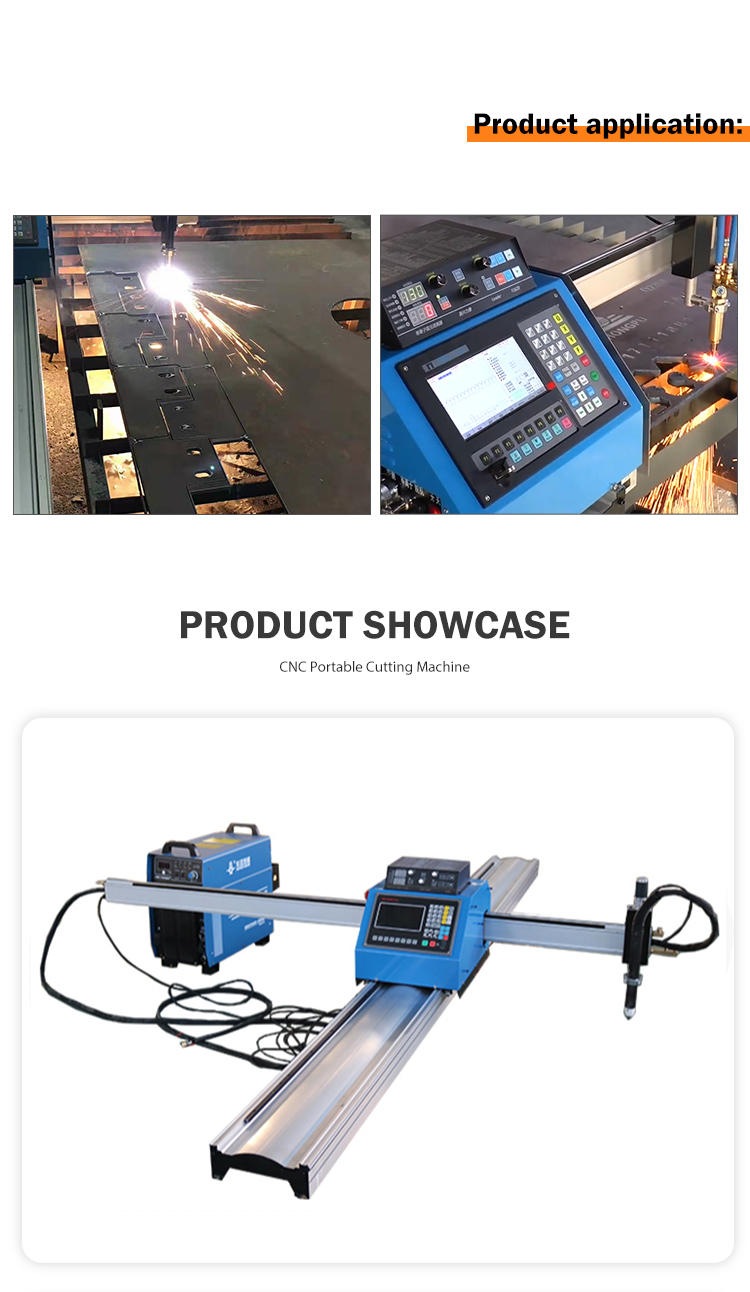

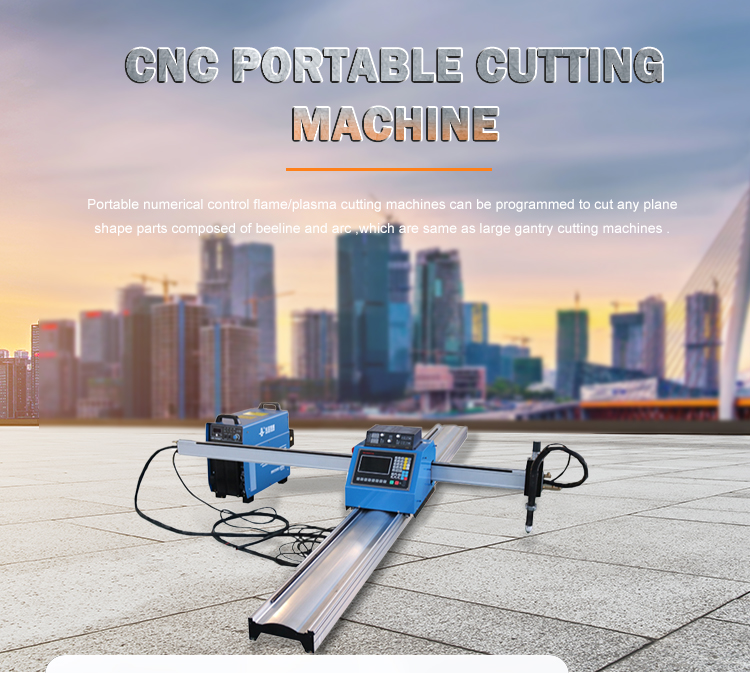

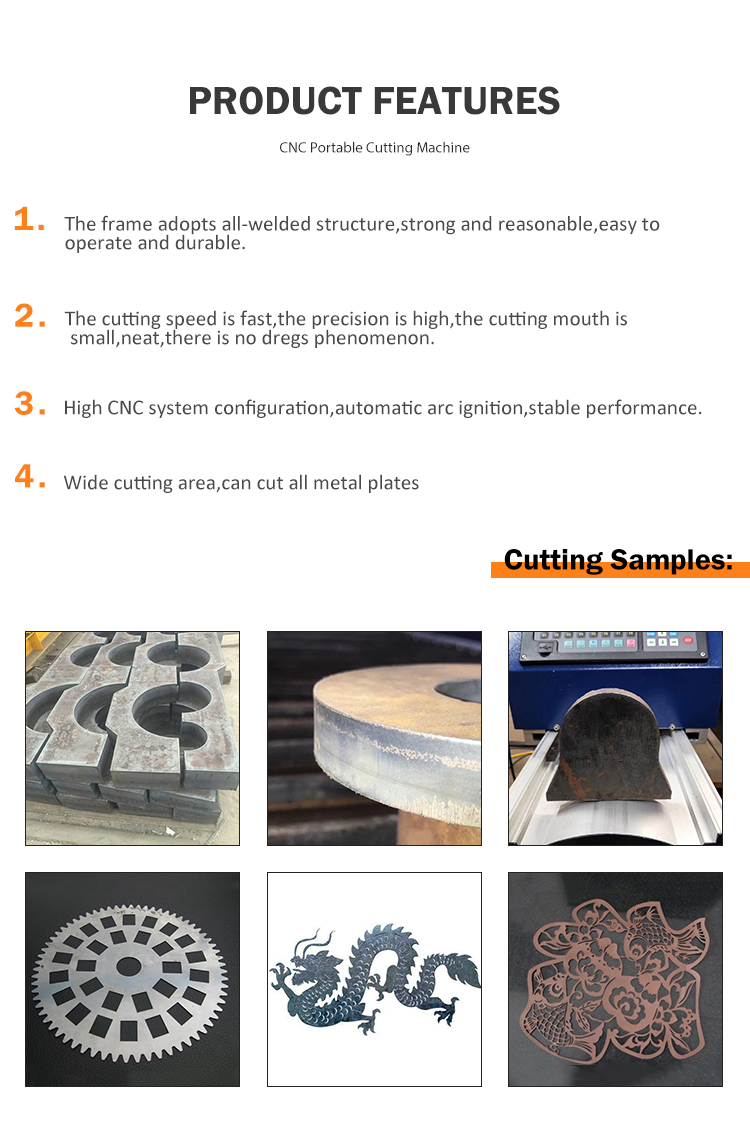

In order to cater to customers requirements of high speed and high accuracy, our machinery structures are comprehensively optimized to control factors that affect machine performance when designing, processing, and manufacturing, including friction, backlash, rigidity, inertia, and so on. We also utilize computer analysis to evaluate the dynamic characteristics of the machine.

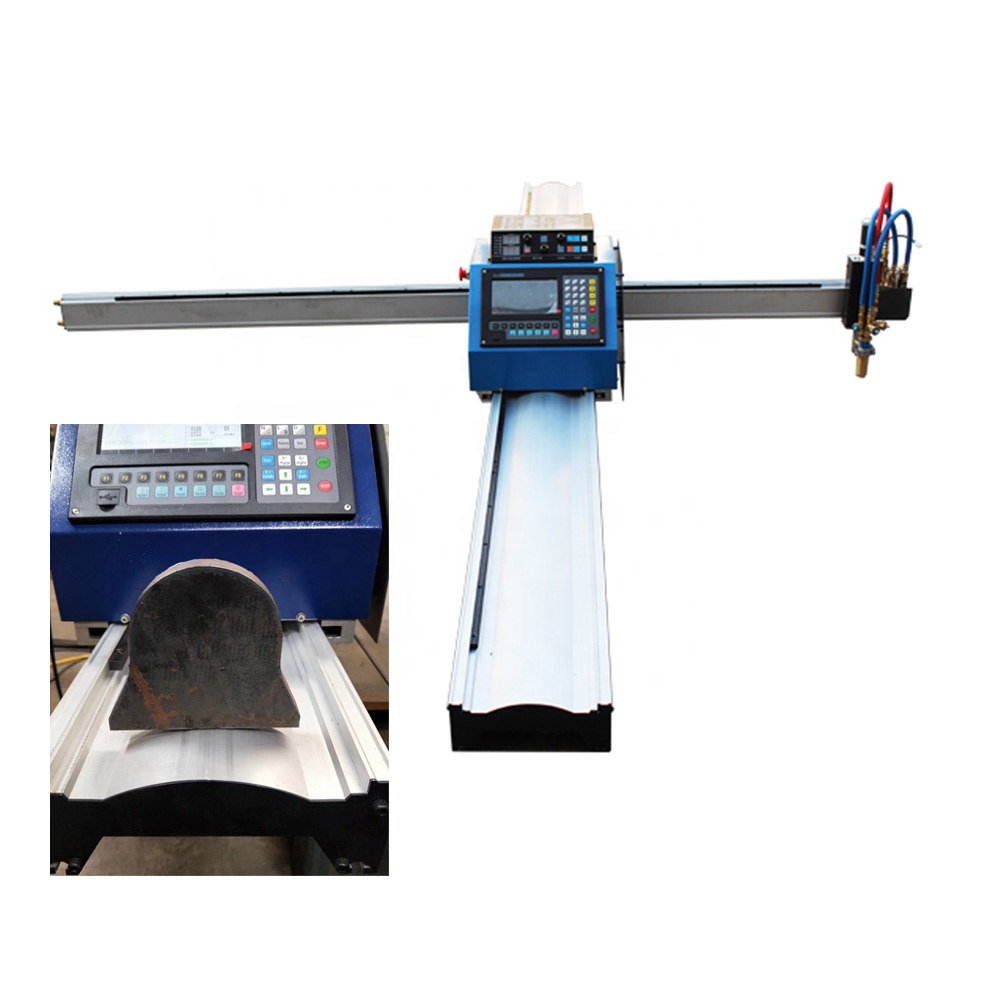

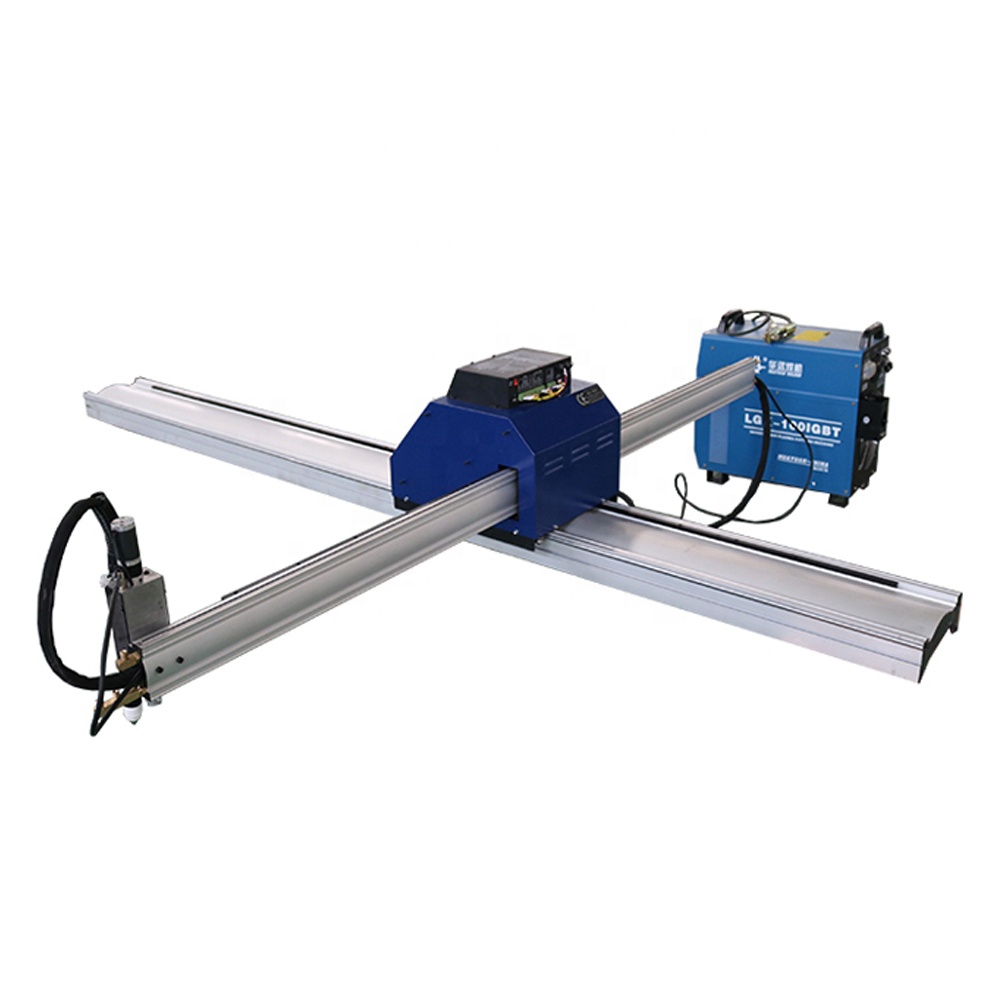

Machine body adopts industrial aluminum, which possesses high intensity and rigidity.

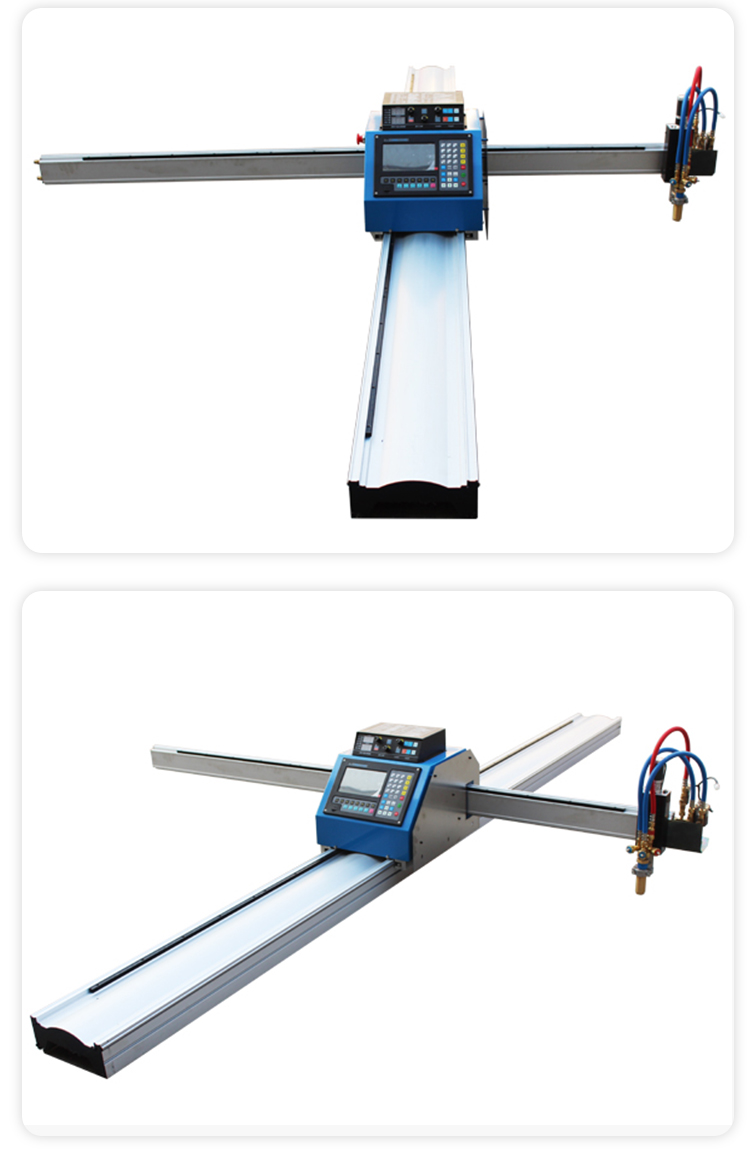

Horizontal guide adopts high precision linear guide to ensure the horizontal guide precision.
It adopts high precision stepper motor with biaxial core guide vertically and horizontally. The gear is of high precision, and the whole transmission is realized through the action of gear and gear rack.
The gear rack is made of special alloy steel which meets the standard of 7 grades after high finishing, thermal treatment, and re-finishing. All these processes ensure high-precision transmission and long service life.

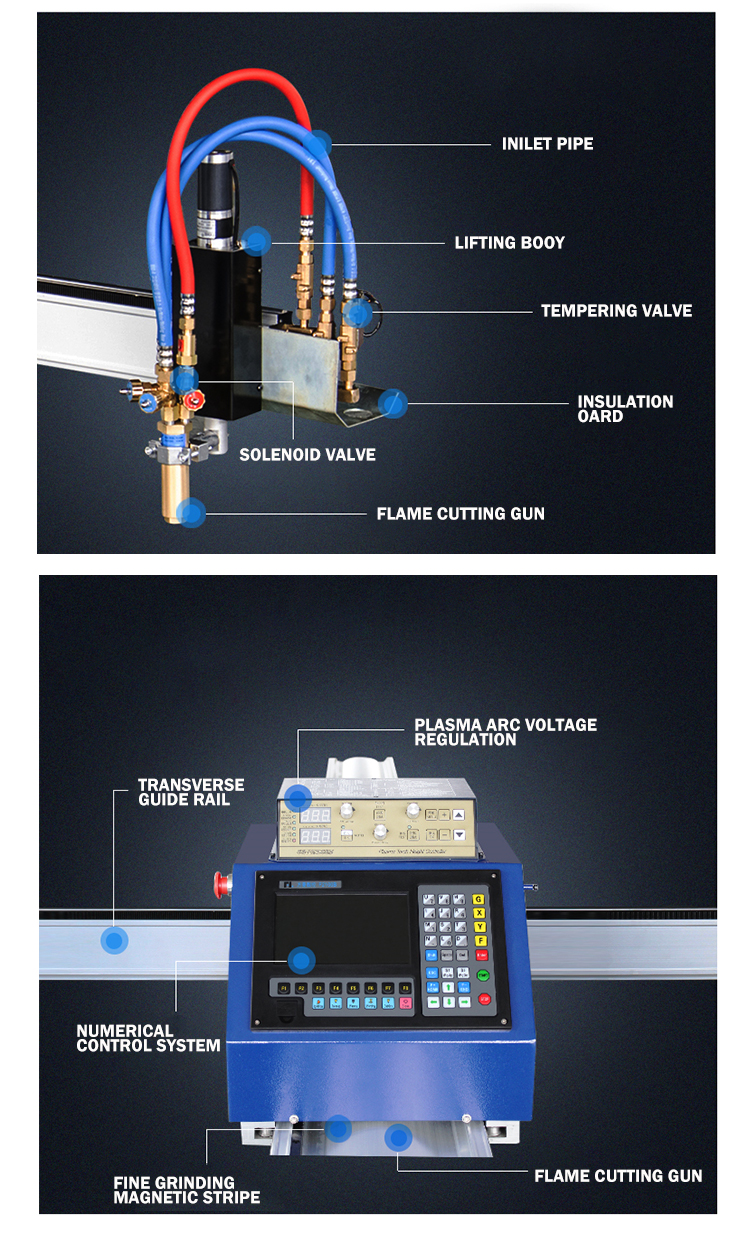

Electric torch hanger: Driven by DC reduction motor, the cutting torch makes linear lifting movements by means of a screw rod and precision guide.
(2) The electrical control parts

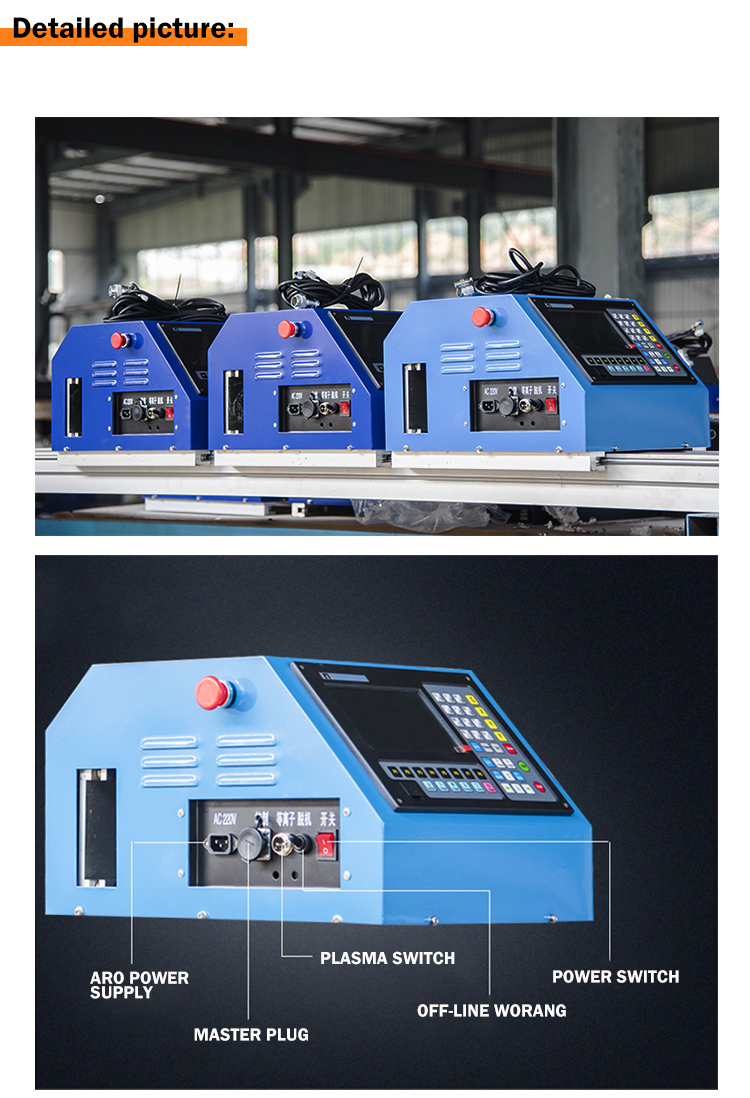

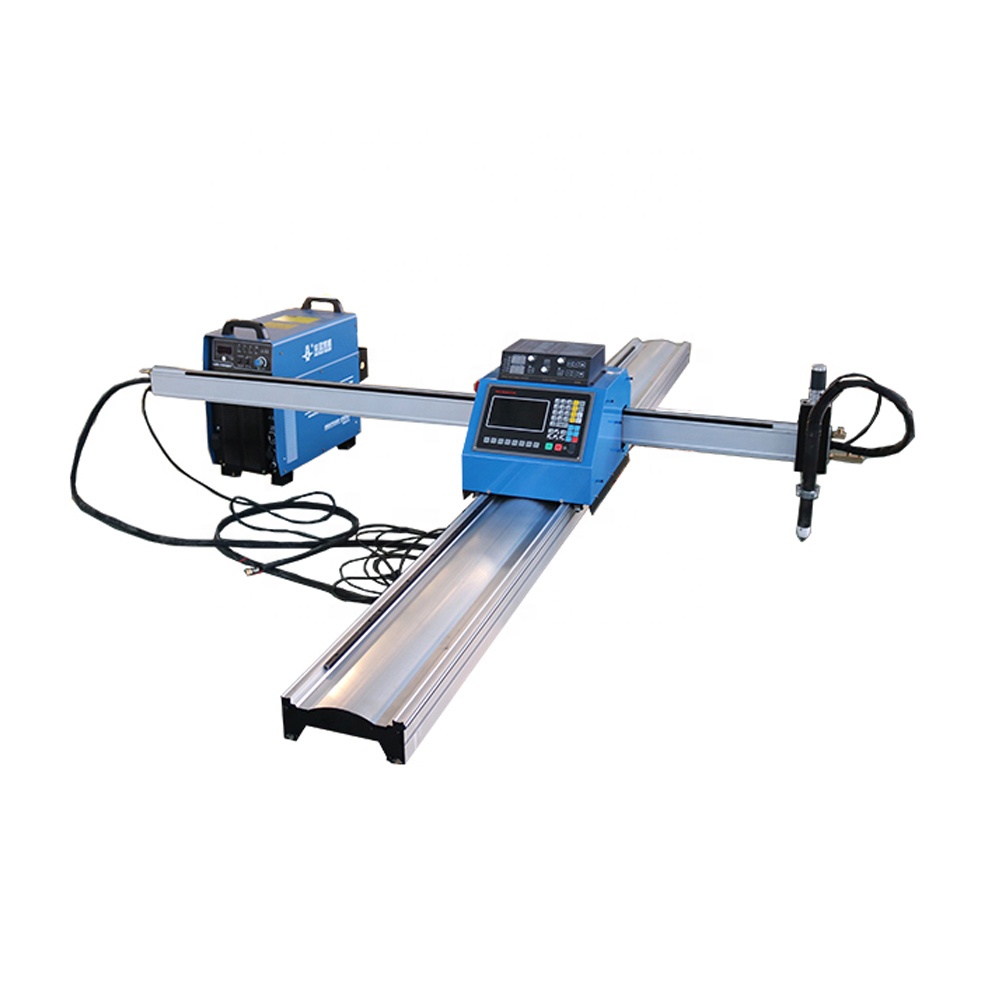

The electrical control system of the CNC cutting machine consists of the CNC system, electrical control system, and step-by-step motor system. The CNC cutting system adopts a modular structure which is logical, standardized, and easy to maintain. It widely adopts integrated circuits that offer the advantages of compact size and stable performance.
The CNC cutting system can display fault history, and features fault alarm and self-diagnosis functions, which effectively protect the safety of personnel and equipment. Meanwhile, it also features a multi-language menu which is highly convenient for man-machine dialogue. It supports various input methods for easy operation and can realize automatic programming via PC communication, saving time while guaranteeing stable and reliable operation.
(3) CNC Control System
CNC Control System 2012
A 7.5-inch LCD display
USB interface
Coordinate axis number: 2
Compounding axis number: 2
Maximum programming range: +99999.999mm
Minimum programming range: -99999.999mm
Locus of control: Straight line, arc, and arbitrary curve by linear arc approximation
The machine feed speed range: 50-12000mm/min
Breakpoint memory and quick return to breakpoints
3. Operational Reliability
Parameter
Specification Requirement
Altitude
1000M(MAX)
Environment temperature
+40°C (MAX) -10°C(MIN)
Maximum Daily range of temperature
±10°C
Relative humidity
under 95% monthly average under 90%
Seismic Intensity
no more than six degrees
Installation site
the company of the buyer
Pollution grade
H grade
FAQ
Q1: When the machine can’t work well, what should I do?
(1) Salesmen are online 24-hours; they can check the problems with engineers and provide solutions as soon as possible.
(2) Our machine comes with a one-year warranty. If any machine parts malfunction under "normal use", new parts will be sent by air for free.
(3) An operation CD and manual will be offered along with the machine to ensure you can operate it easily.
Q2: What kinds of payment methods are accepted?
T/T, Paypal, Western Union, or online trade assurance orders.
Q3: Can you manufacture products according to custom requests?
Yes, we are a professional manufacturer. Simply provide the drawings or customization requirements.
Q4: What are the effective cutting dimensions of the machine?
The machine has an effective cutting length of 3000mm and an effective cutting width of 1500mm, with a guide length of 3500mm.

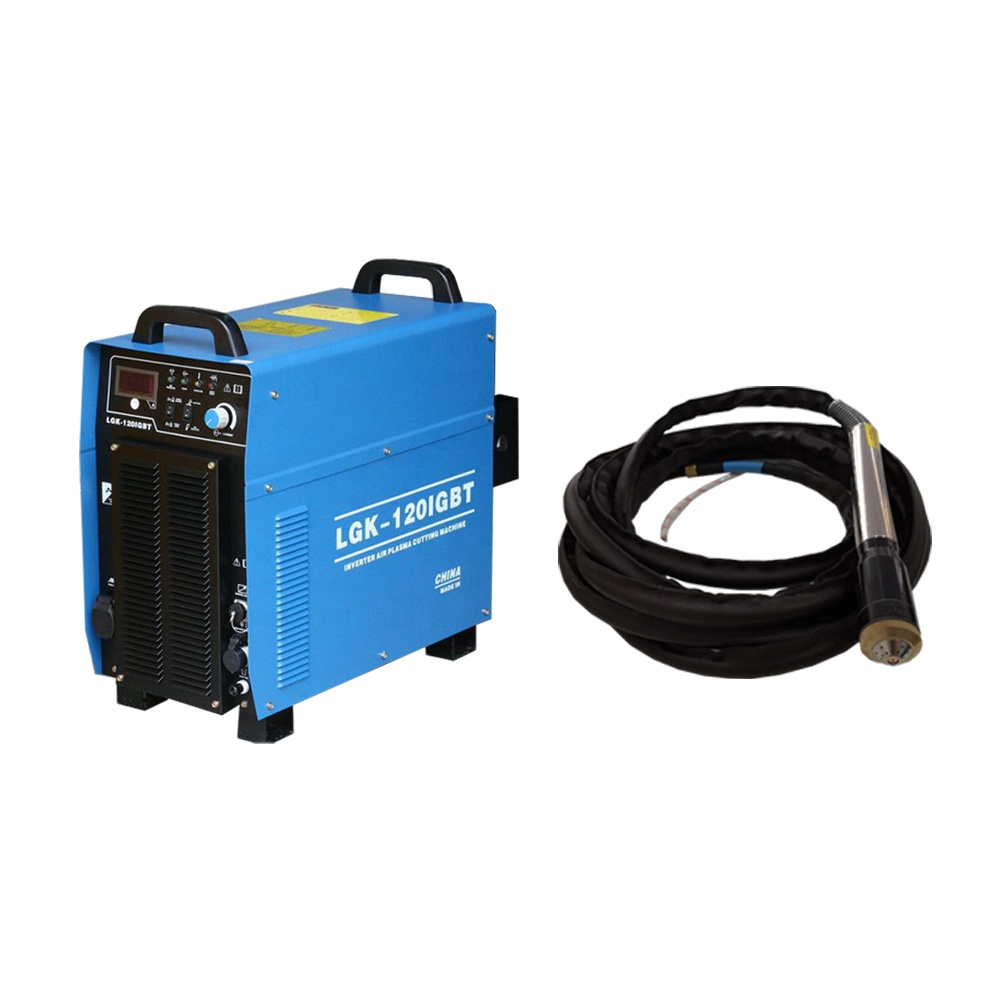

Q5: What are the power and gas source requirements?
The system requires a power source of 380VAC ±10% at 50-60Hz. The cutting gas source requires compressed air.
Q6: What is the maximum speed and positioning accuracy of the machine?
The maximum cutting speed is 2000mm/min. Both the linear position accuracy and repeat position accuracy are within ≤0.5mm.
