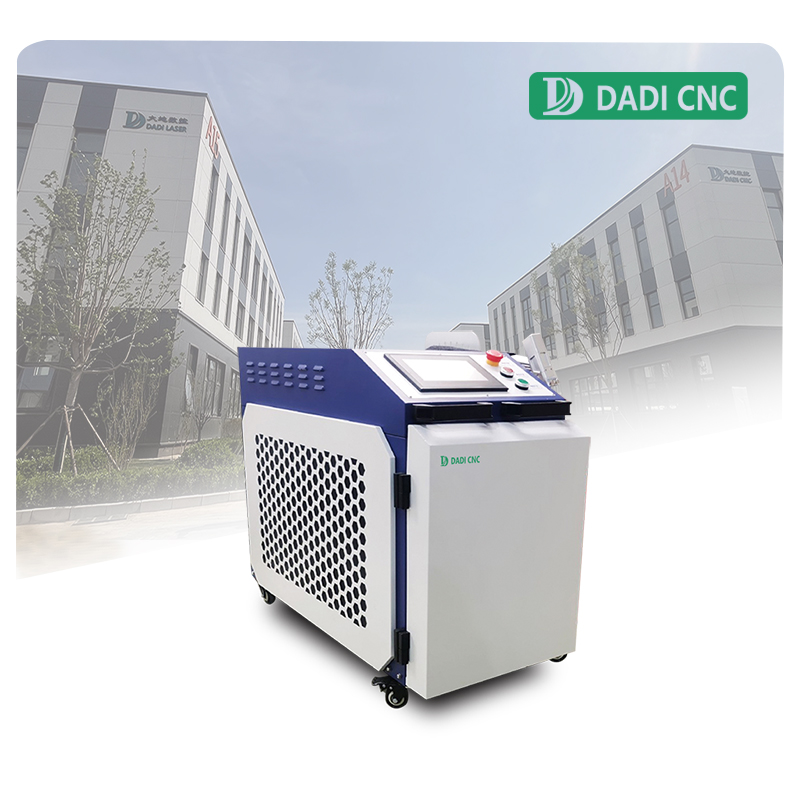

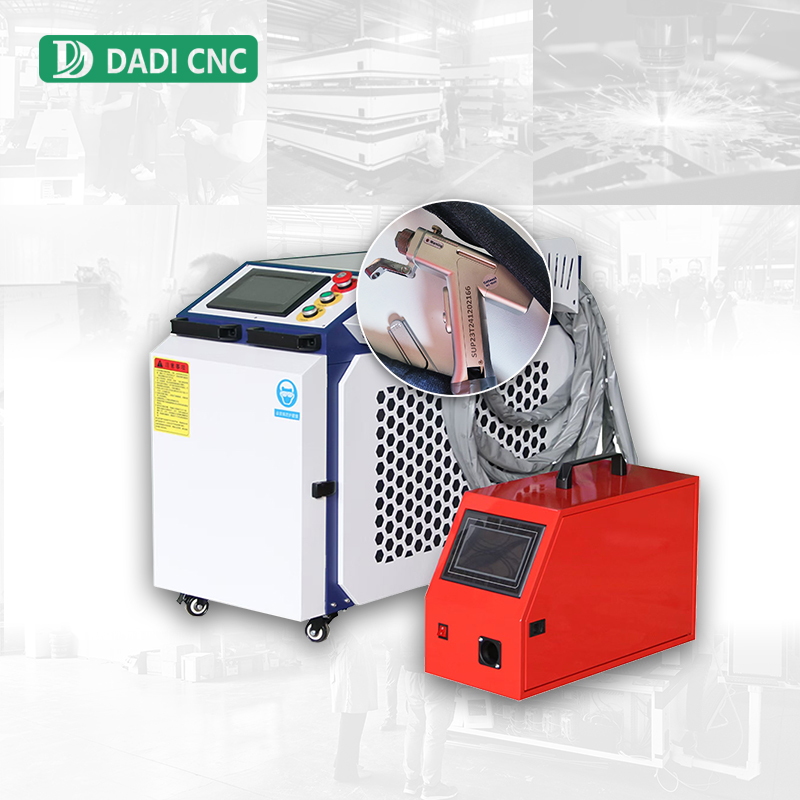

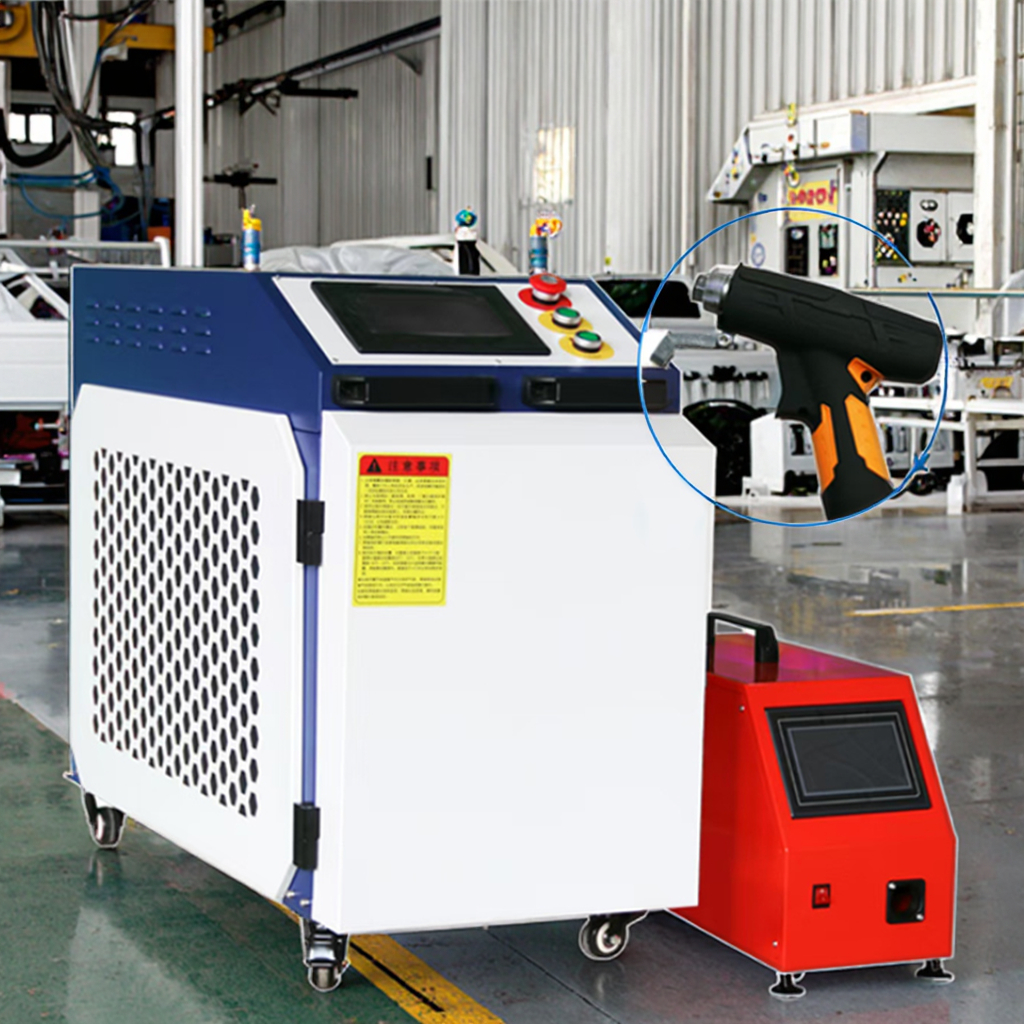

4-in-1 fiber laser cutting, 1500W 2000W 3000W handheld laser welding, 4-in-1 handheld laser welding, Metal stainless steel sheet laser welding, Easy-to-operate fiber laser welding

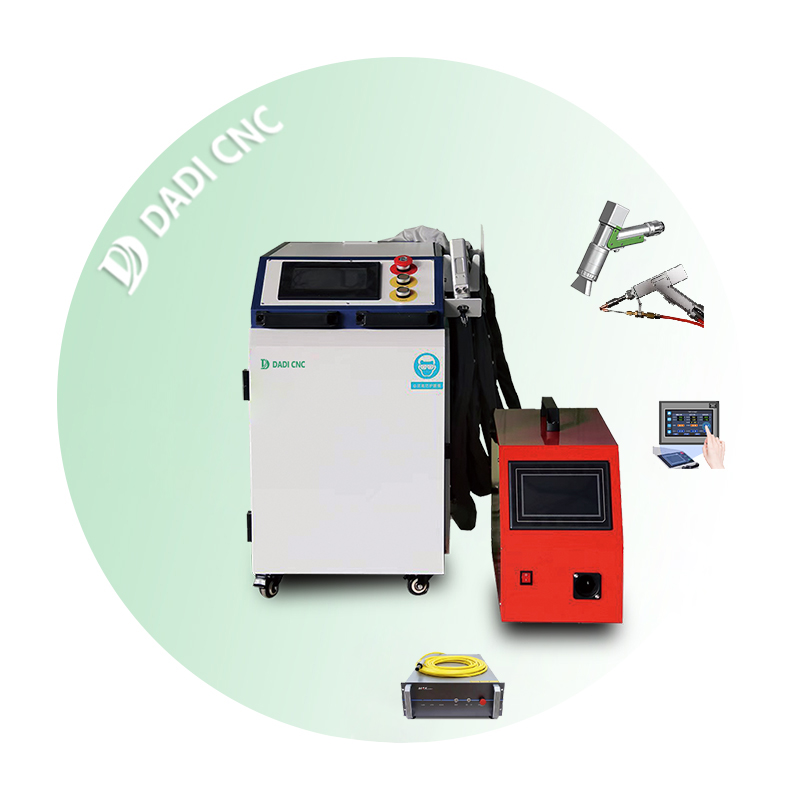

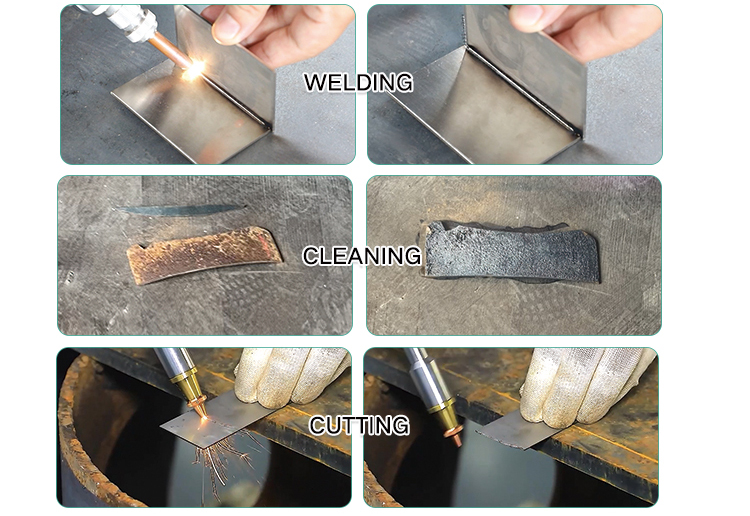

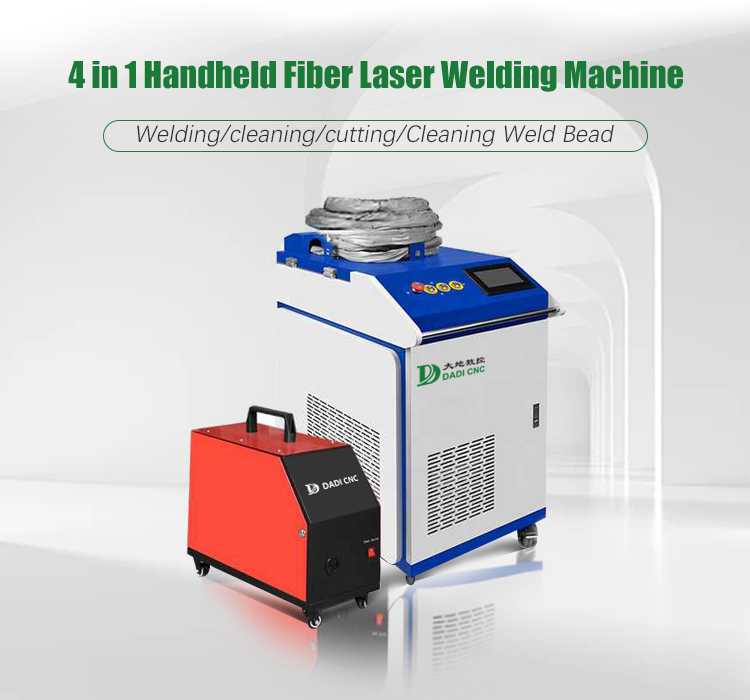

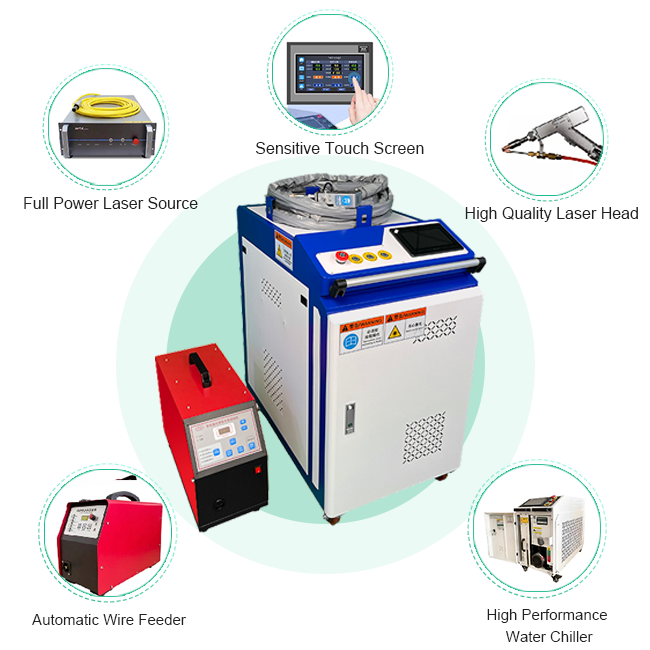

4 in 1 laser welding machine: Fast welding speed, Low energy consumption, Welding/cleaning/Cutting/Cleaning Weld Bead.

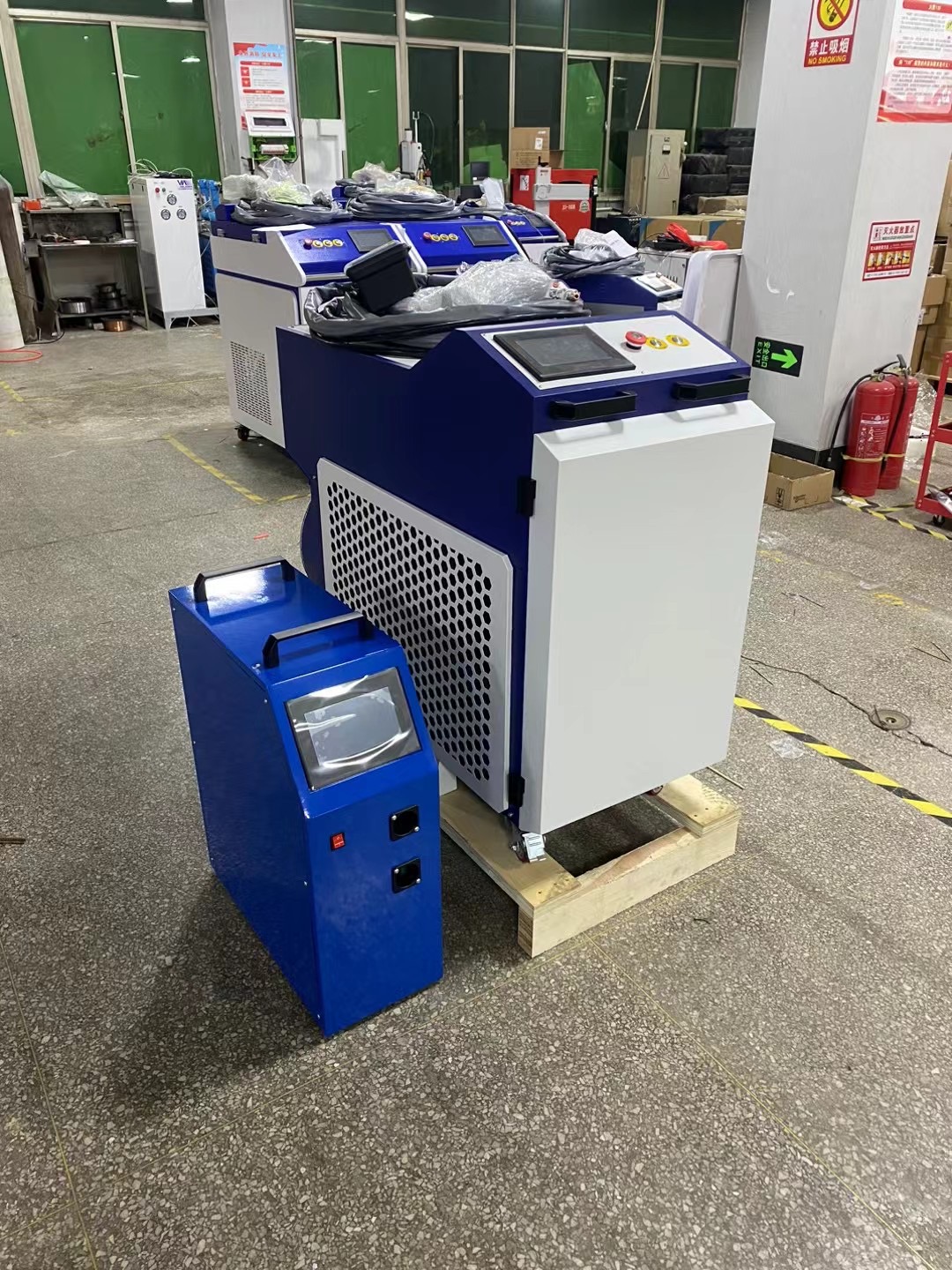

Mobility: Equipped with universal wheels, easy to move and suitable for various site needs.
User Interface: The parameters of the human-machine operation interface are adjustable, intuitive and simple, and easy to adjust.
| Model | DA-LW |
| Laser Power | 1000W/1500W/2000W/3000W |
| Laser source | Raycus/Max/JPT/BWT (optional) |
| Welding Ability | Stainless steel 3mm, carbon steel 3mm, galvanized plate 3mm, aluminum plate 1mm |
| Support Languages | 18: Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German, Spanish, Russian, French, Portuguese, Italian, Hungarian, Czech, Finnish, Vietnamese |
| Laser frequency | 50Hz-5KHz |
| Output fiber length | 5m/10m/15m (can be customized) |
| I/O interface | I/O RS232 |
| Sighting system | Red light |
| Cooling method | 5-45℃, Constant temperature circulating water cooling |
| Average consumed power | 2500/2800/3500/4000W |
| Power supply | AC220V /380V+/-10% ; 50Hz (or 60Hz) |
| Air humidity | 10-90% |
| Dimensions | 1200*610*1300mm |
| Weight | 200KG (About) |

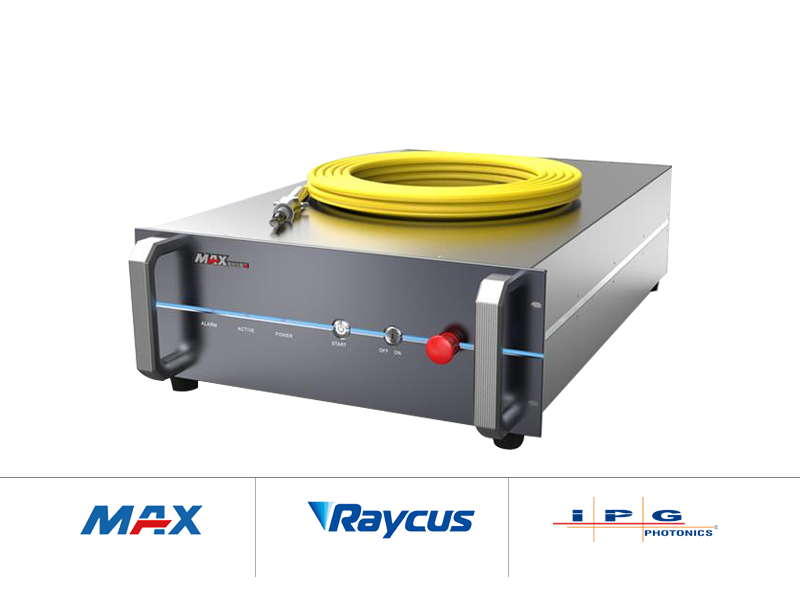

Brand: Raycus (MAX/JPT/BWT Optional)
Power: 1000W/1500W/2000W/3000W
Continuous fiber laser adopts modular design. Highly integrated system, maintenance-free, and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and others.

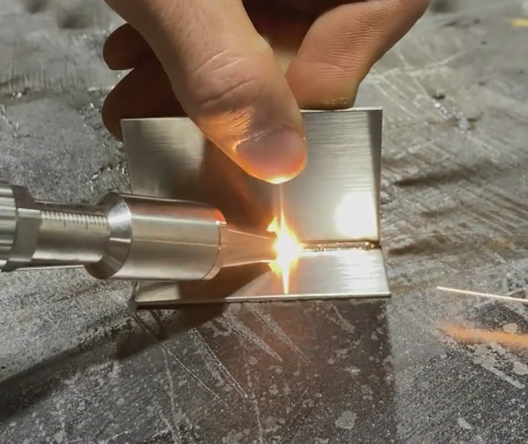

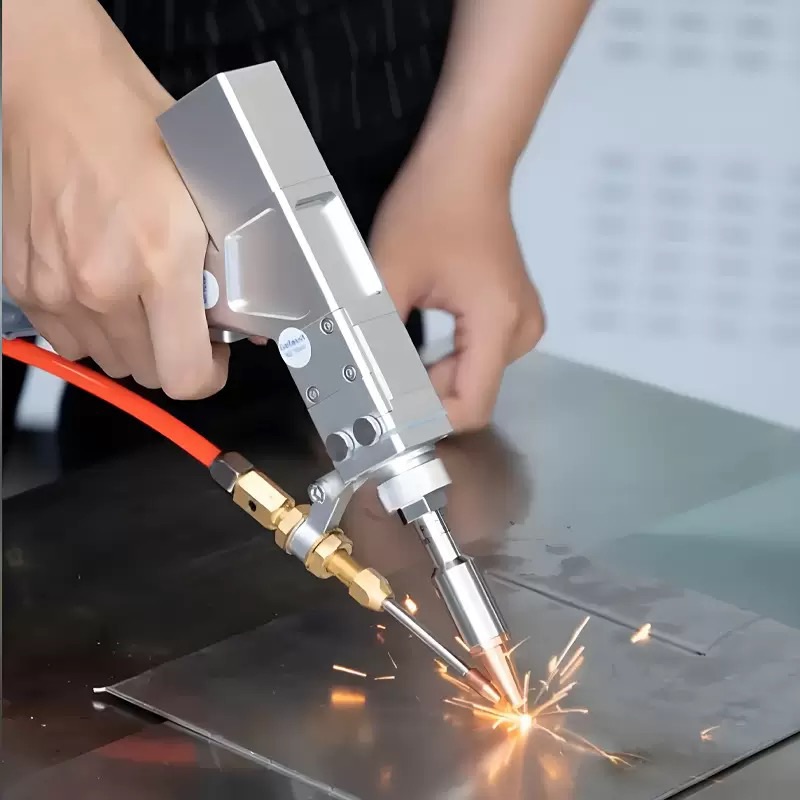

Equipped with lightweight welding head, can support multi-point temperature measurement real-time monitoring, dust resistance and anti-interference performance is excellent, work efficiency to a higher level, and efficient and convenient, focusing mirror, protection mirror drawer, easy to replace.

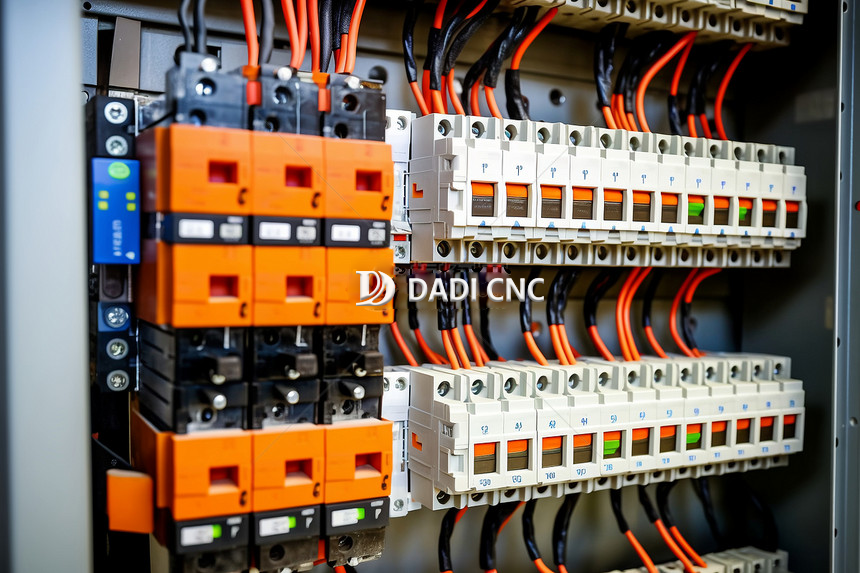

The newly developed control system, set a number of safety alarms, smaller volume, flexible operation, more stable, all parameters can be seen, welding quality is more perfect, deformation is small, high penetration, real-time monitoring of the state of the whole machine, avoid problems in advance.

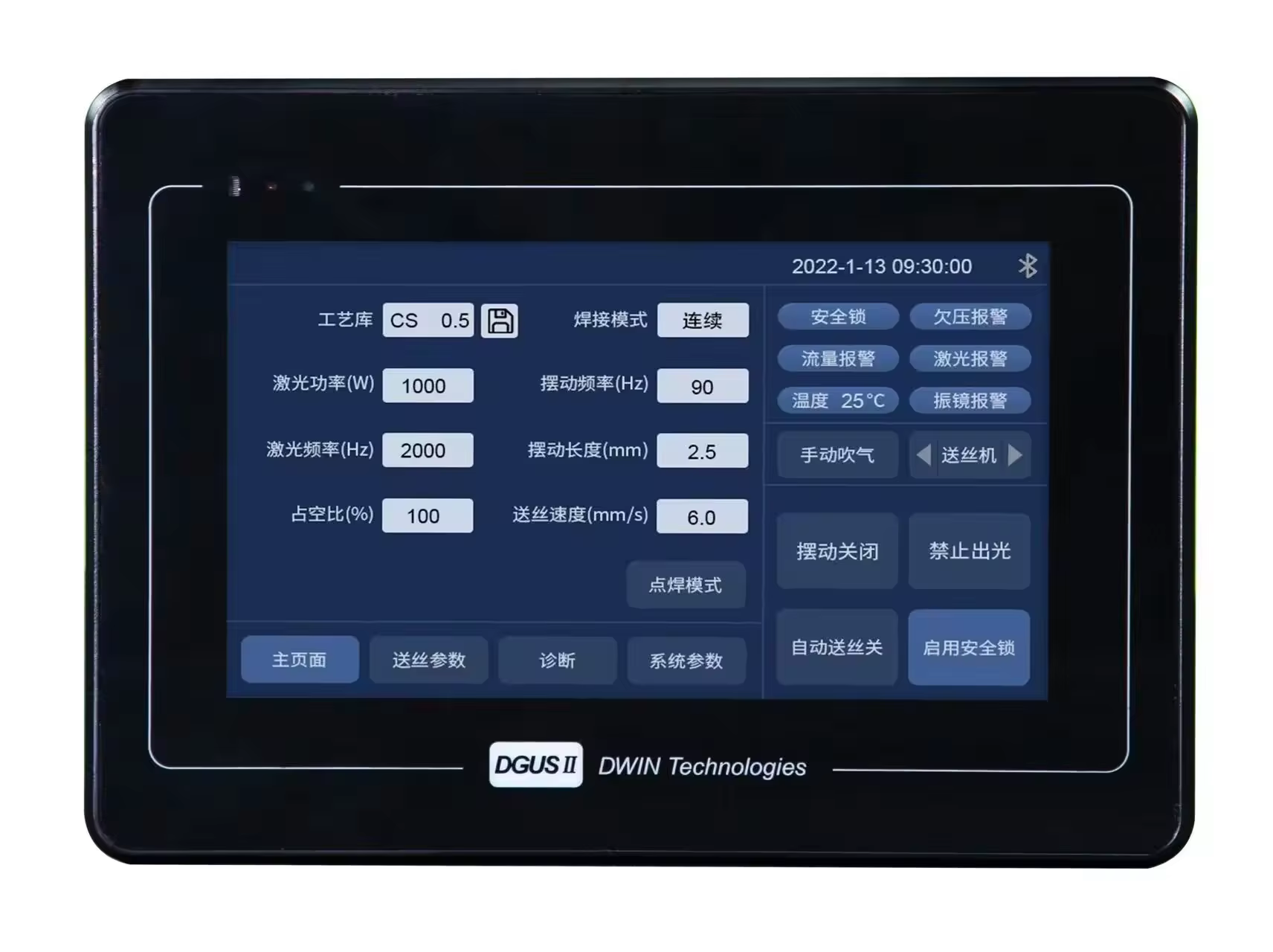

Touch screen makes you change the parameters quickly when wearing gloves and easy to set up and operate. Multiple sets of parameter can be saved, and there is no need to adjust again for multiple welding times in the future after one test.

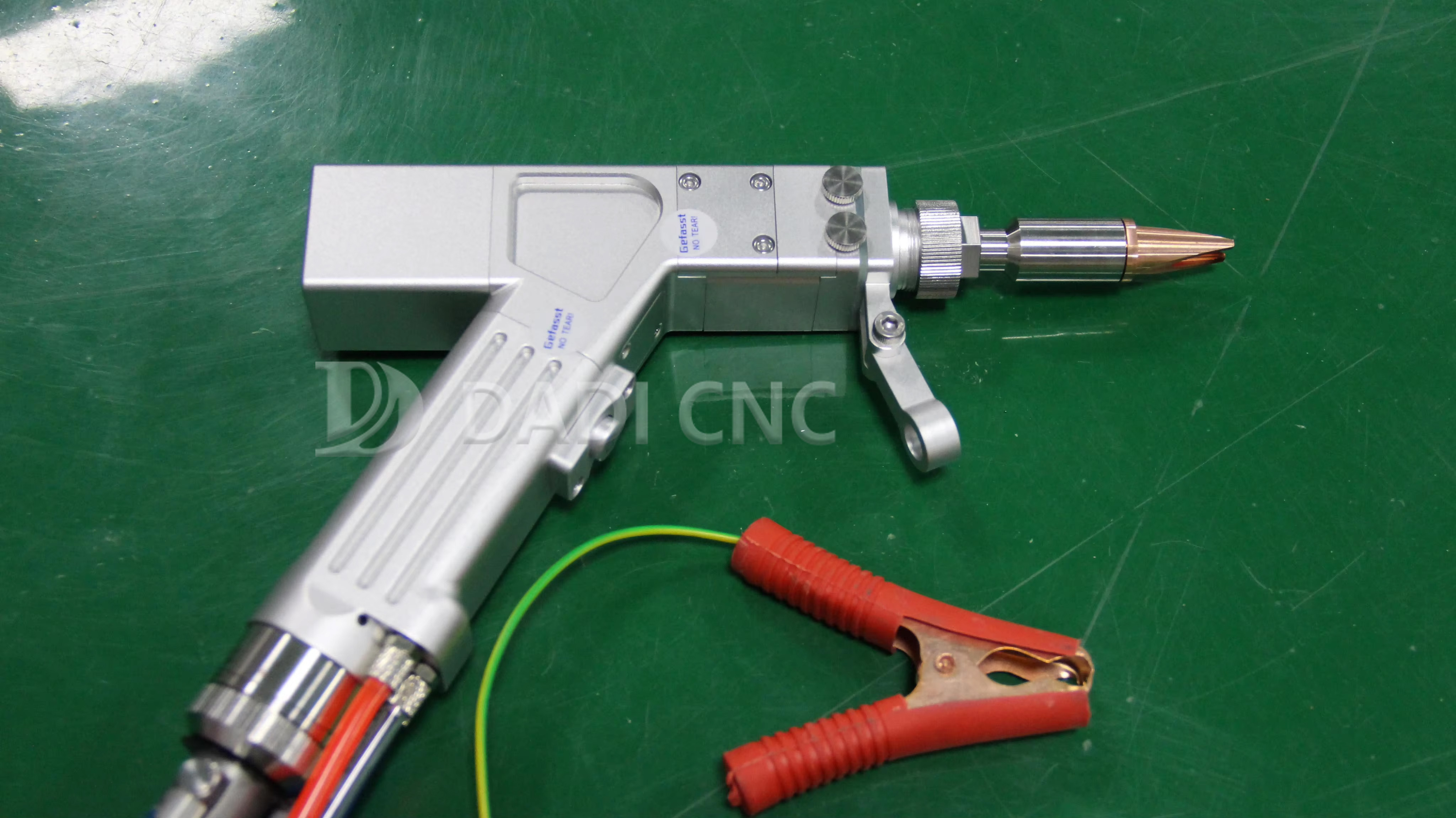

There have the red safety clip on the side of the laser head. The operator must fix the clip on the metal materials, then the machine could normal working. This is the protection for the operator, which give the more safe working environment.

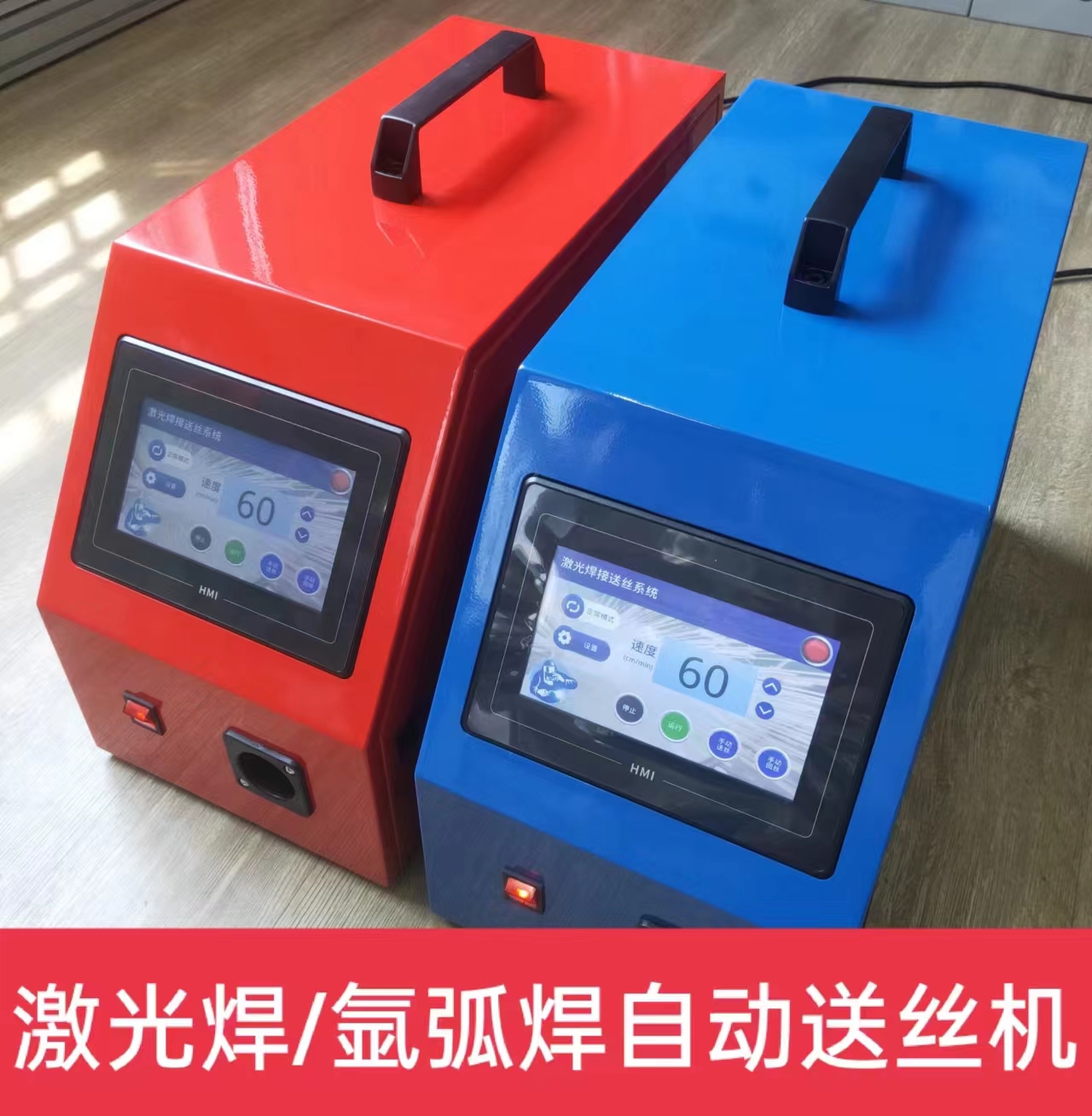

With Standard automatic wire feeding system and dual motors, The forward and reverse and the speed of wire feeding can be adjusted through the control panel. Note: Standard is Single Feeder.

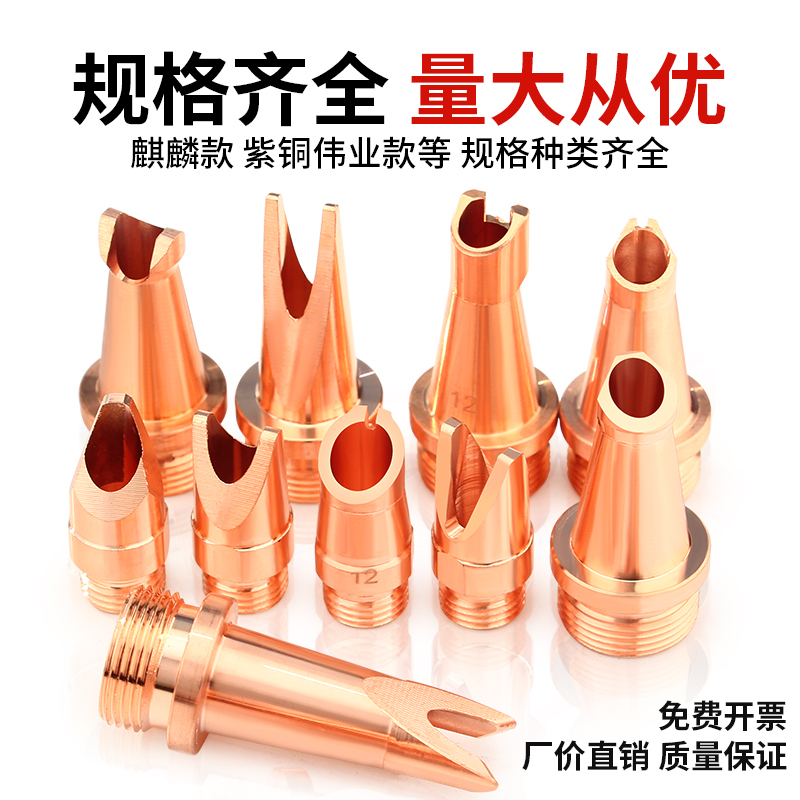

Different shapes of nozzles are suitable for different jobs. Need to replace with grooved nozzles when used with a wire feeder. When switching to cutting mode, a special nozzle for cutting is required.
The super brand system has a double-layer protective lens to protect the reflector from damage to the greatest extent. At the same time, the temperature control system will stop working once the temperature is too high.
Kitchen and bathroom industry, advertising industry, door and window industry, mold industry, stainless steel products industry, handicraft industry, furniture industry, home appliance industry, auto parts.
| Shipment Method | Sea freight, land freight, air freight, international express, etc. |

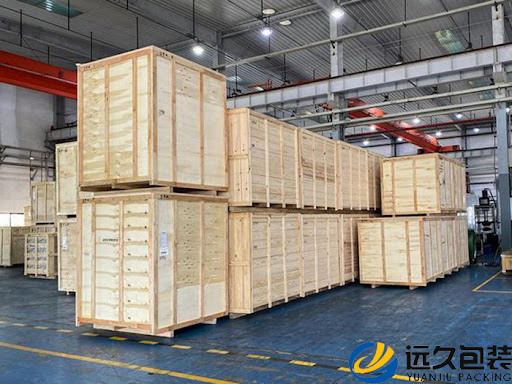

| Package Method | Wooden Case |
| Noted | If you need to ship by air, please let us know before purchase, and you need to empty the gas in the water cooler before shipment. |
