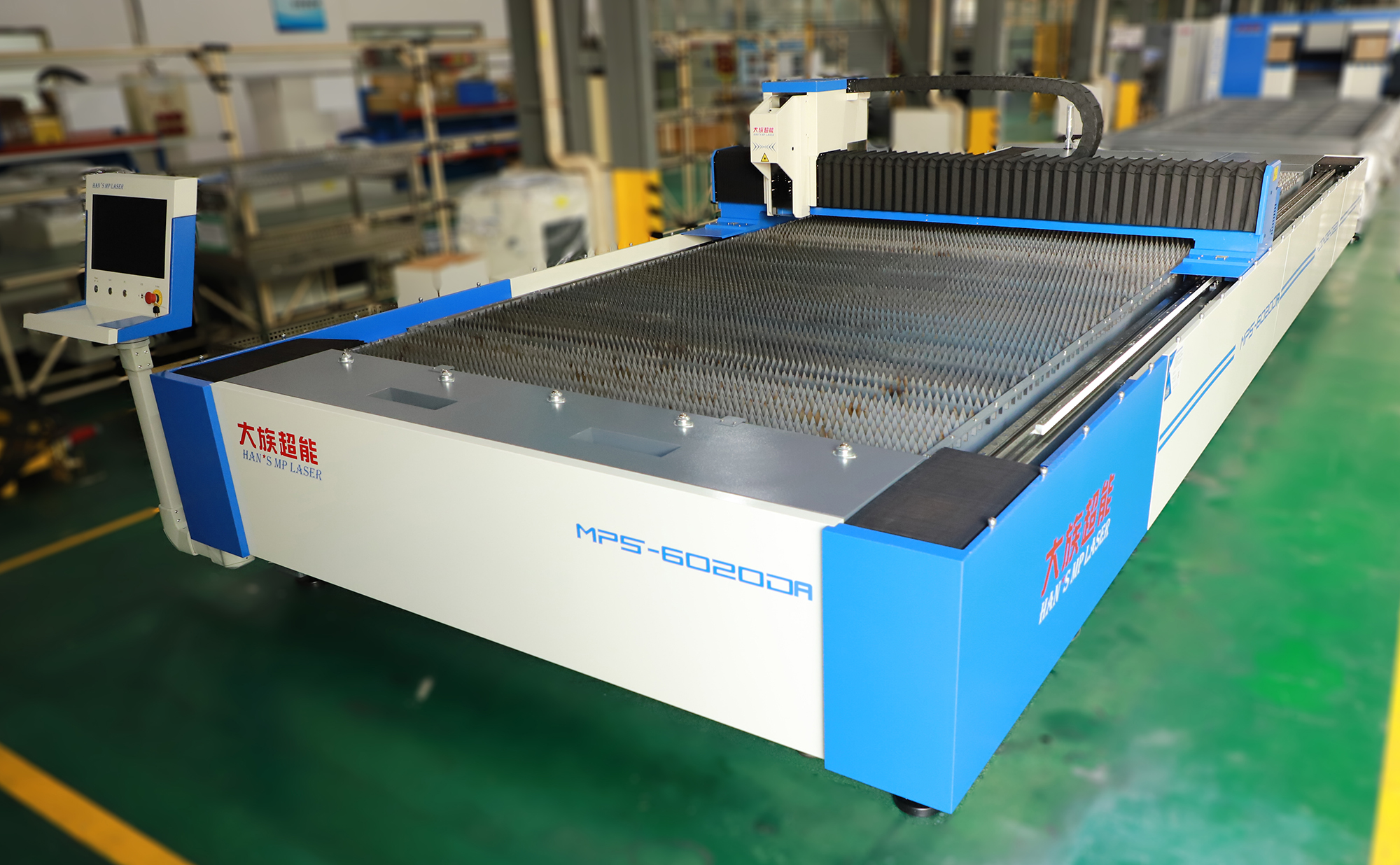

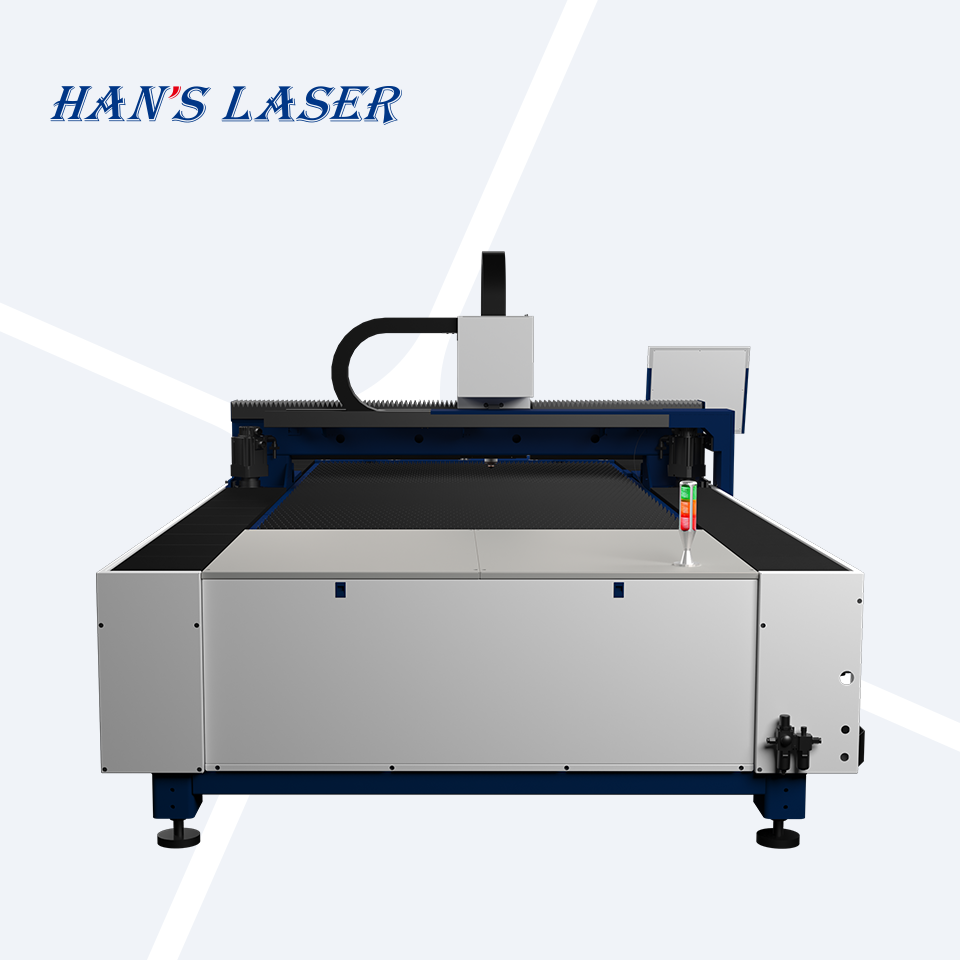

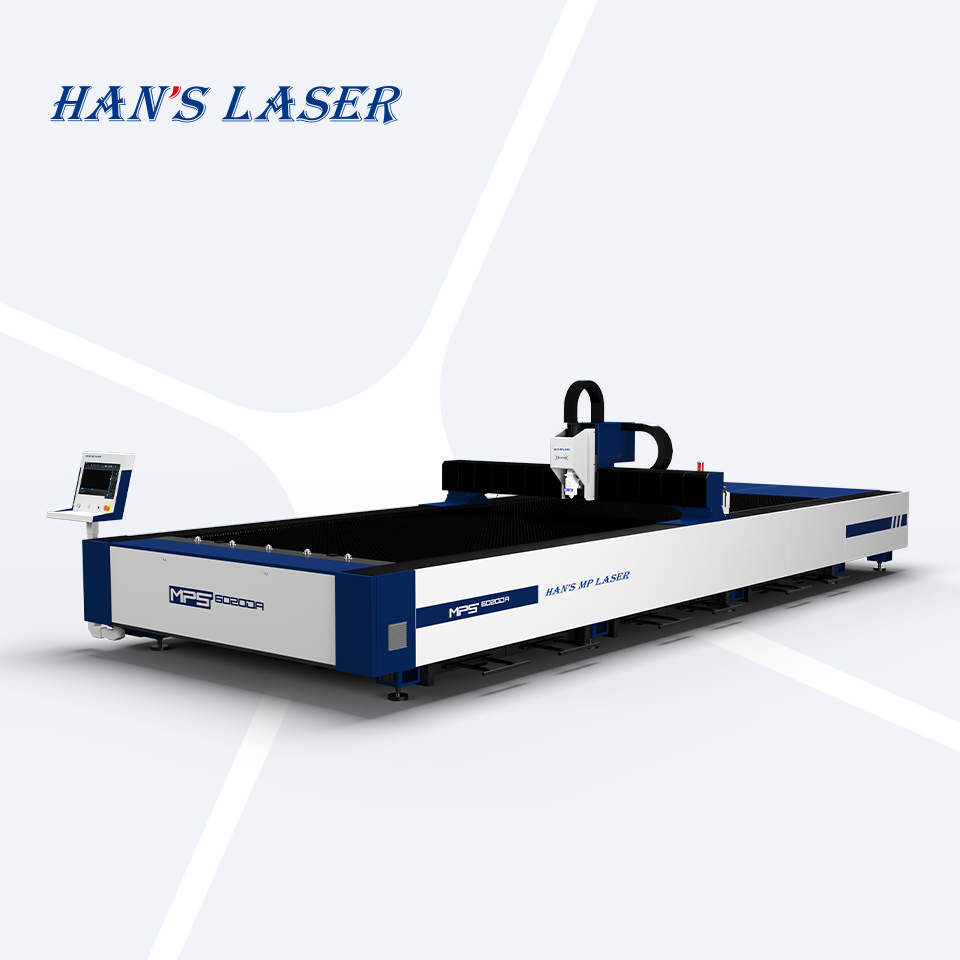

Fiber Laser Cutting Machine

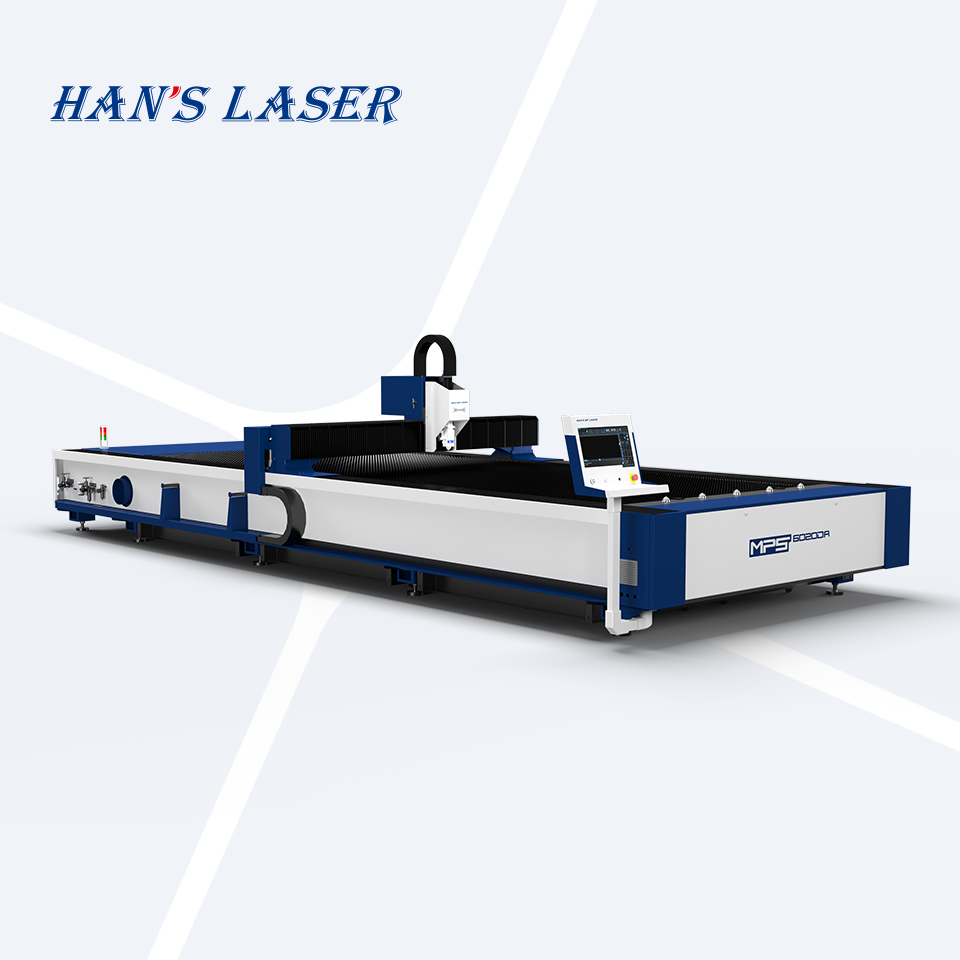

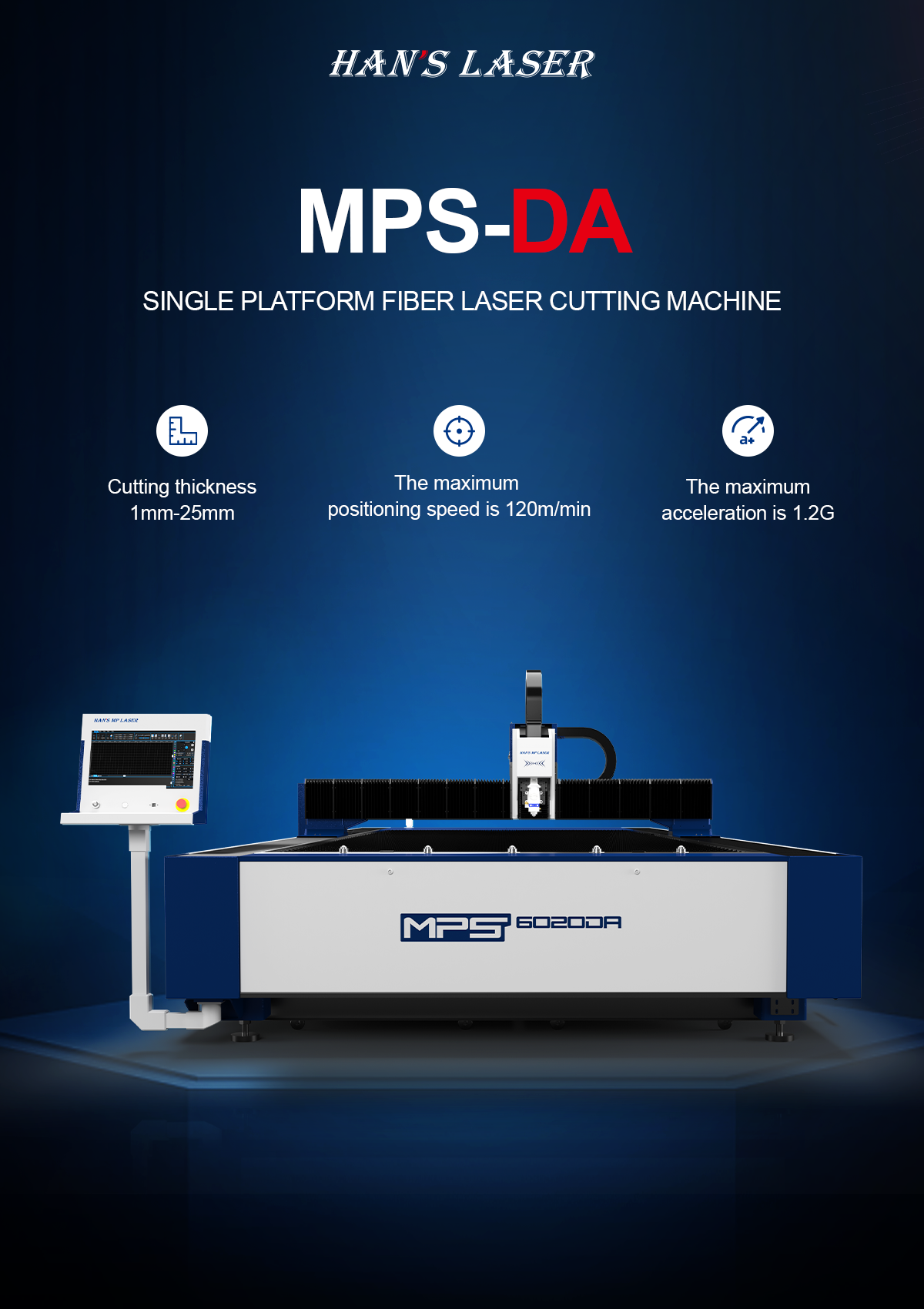

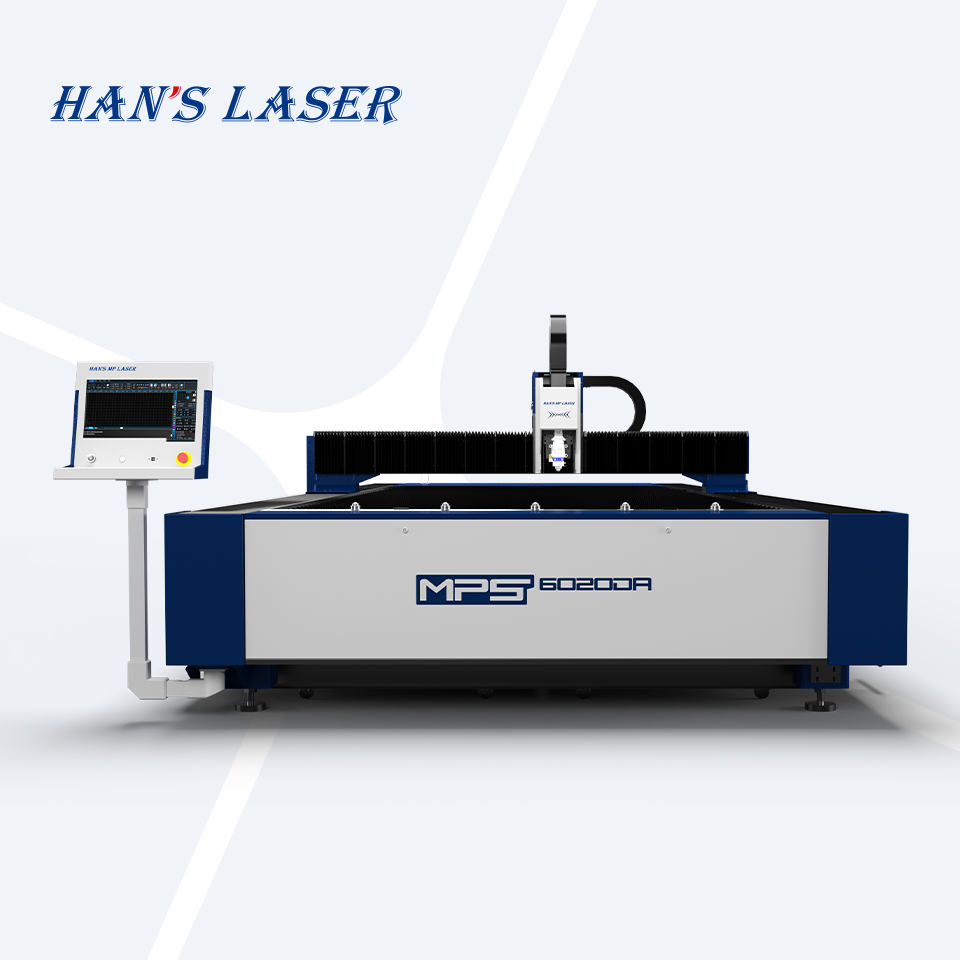

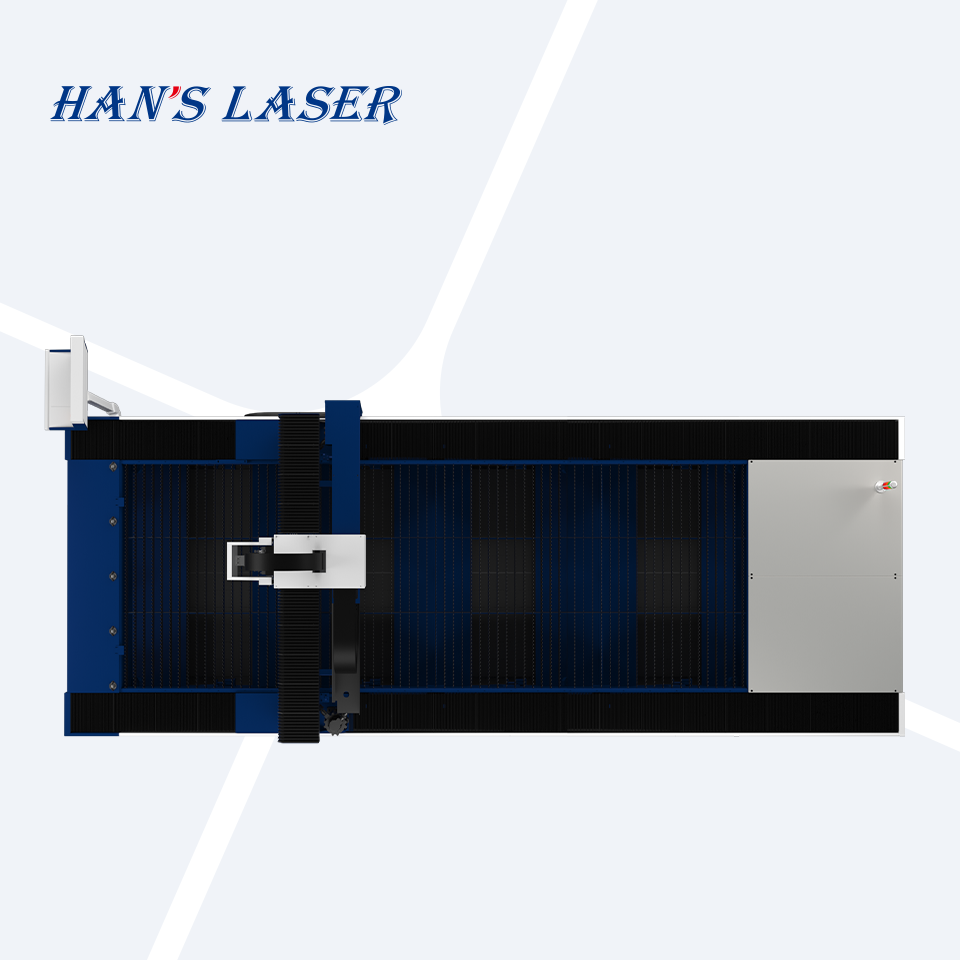

MPS-DA series laser cutting machine utilizes gear rack transmission structure, effectively ensure the running speed and accuracy, which can be widely used in general sheet metal cutting. MPS-4020DA/MPS-6020DA is main for wide and long metal plate laser processing customer demand. MPS-DA series is an open structure fiber laser cutting machine with superior performance, stability and high cost performance.
- Contemporary design: Open structure without cover, showing the cutting processing completely.
- High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics.
- Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability.
- Easy operation & intelligent: Adopt the professional digital control system, achieving the digital control system with the features of good performance, high reliability and convenient operation.
- Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three types of auxiliary gas can be choose freely by customer.
| Item |
MPS-6020DA |
| Processing area |

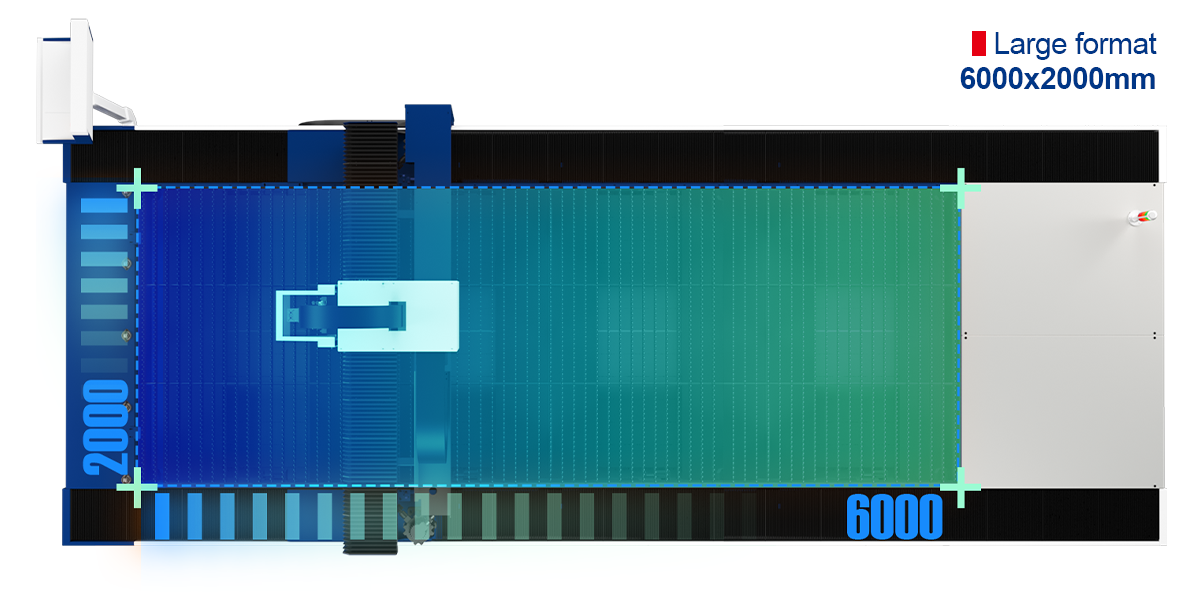

6000mm×2000mm |
| X, Y axis location accuracy |
±0.05mm/m |
| X, Y axis repeat location accuracy |
±0.03mm |
| Max running speed |
100m/min |
| Max running acceleration |
1.0G |
| Max load of worktable |
1800kg |
| Power supply |
380V/50HZ |
| Machine tool weight |
About 6T |
| Dimension(L*W*H) |
8500mm×2900mm×2000mm |

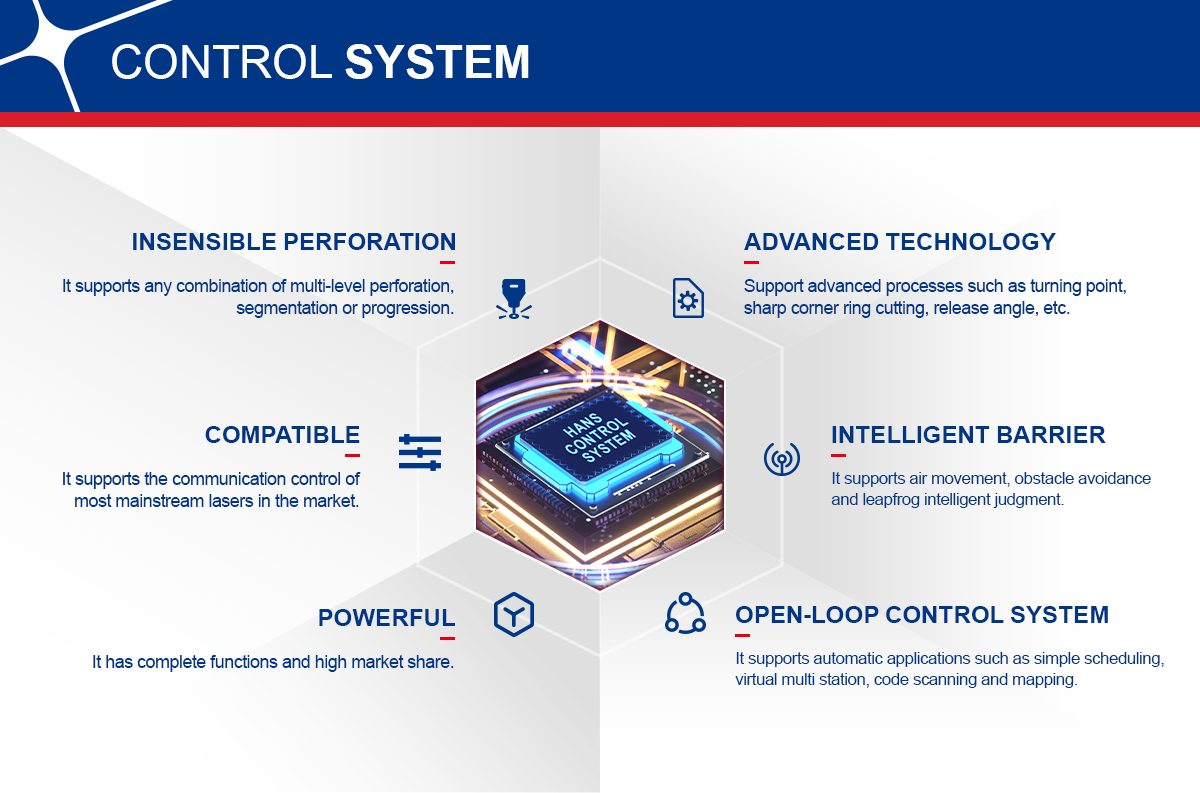

- Control system is more rational, well-developed and stable; with a central controller to control the timing of switching equipment, well protected key components of life.
- The software interface with user-friendly design, supports AI, DXF, PLT, Gerber and other graphical data formats.
- Control cabinet electrical key components are from high-end global manufacturing centers.

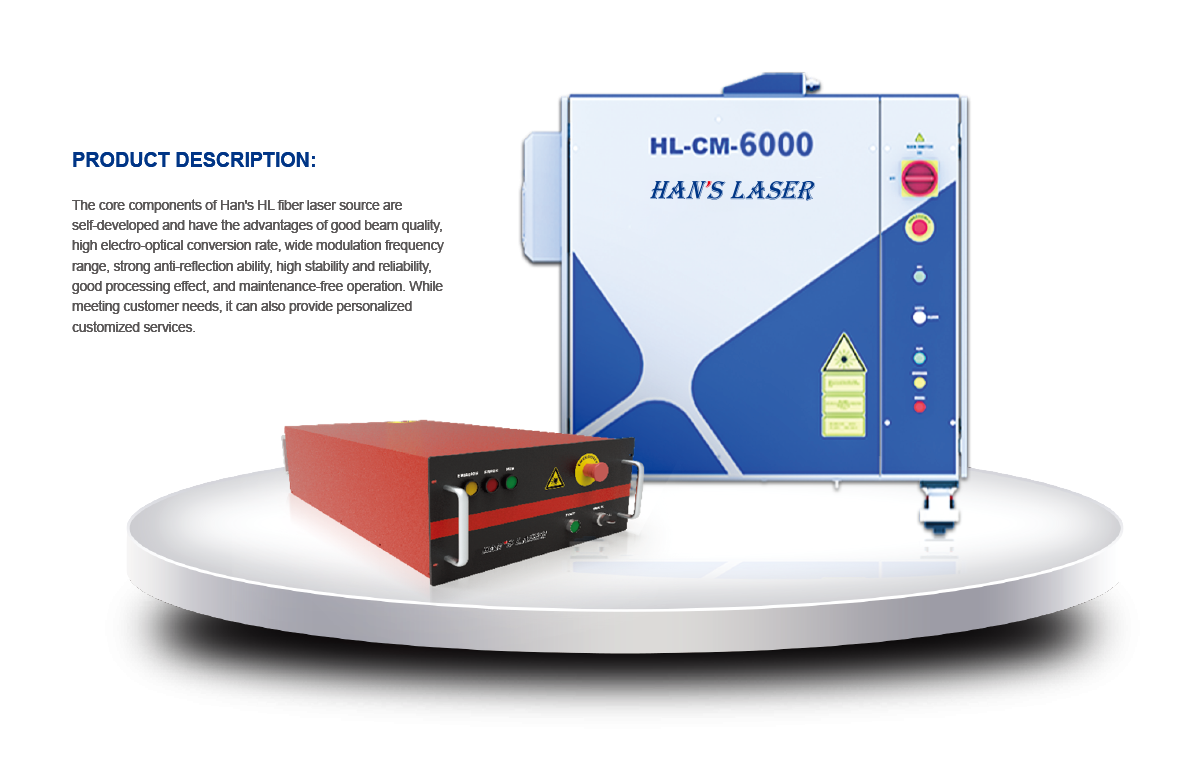

- Unique combination of innovative optical fibers and advanced laser technologies guarantee long-term stability.
- Industrial-grade quality – high reliability & durability in harsh manufacturing environments.
- Outstanding back-reflection protection – safe processing of highly reflective materials.
- 43% photoelectric conversion efficiency, to reduce power consumption.
- Remote diagnostic software for fast support.

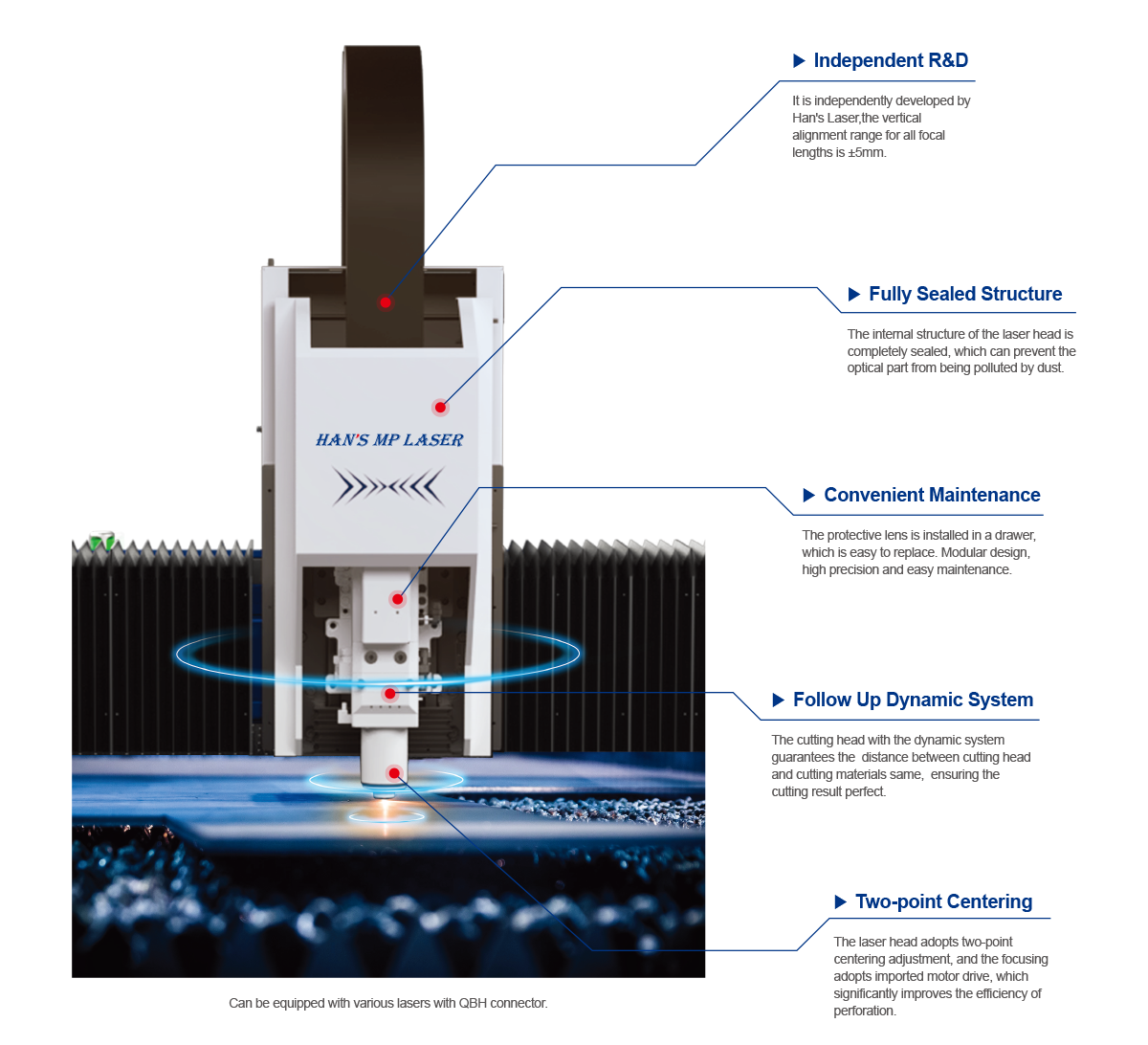

- IR&D laser head, focal length up to ±5mm
- Proven sealed dust proof design
- Focal two-point centering adjustment
- Servo-motor driven head, fast and efficient
- Permanent secondary protective window
- Compatible with main brand QBH connector

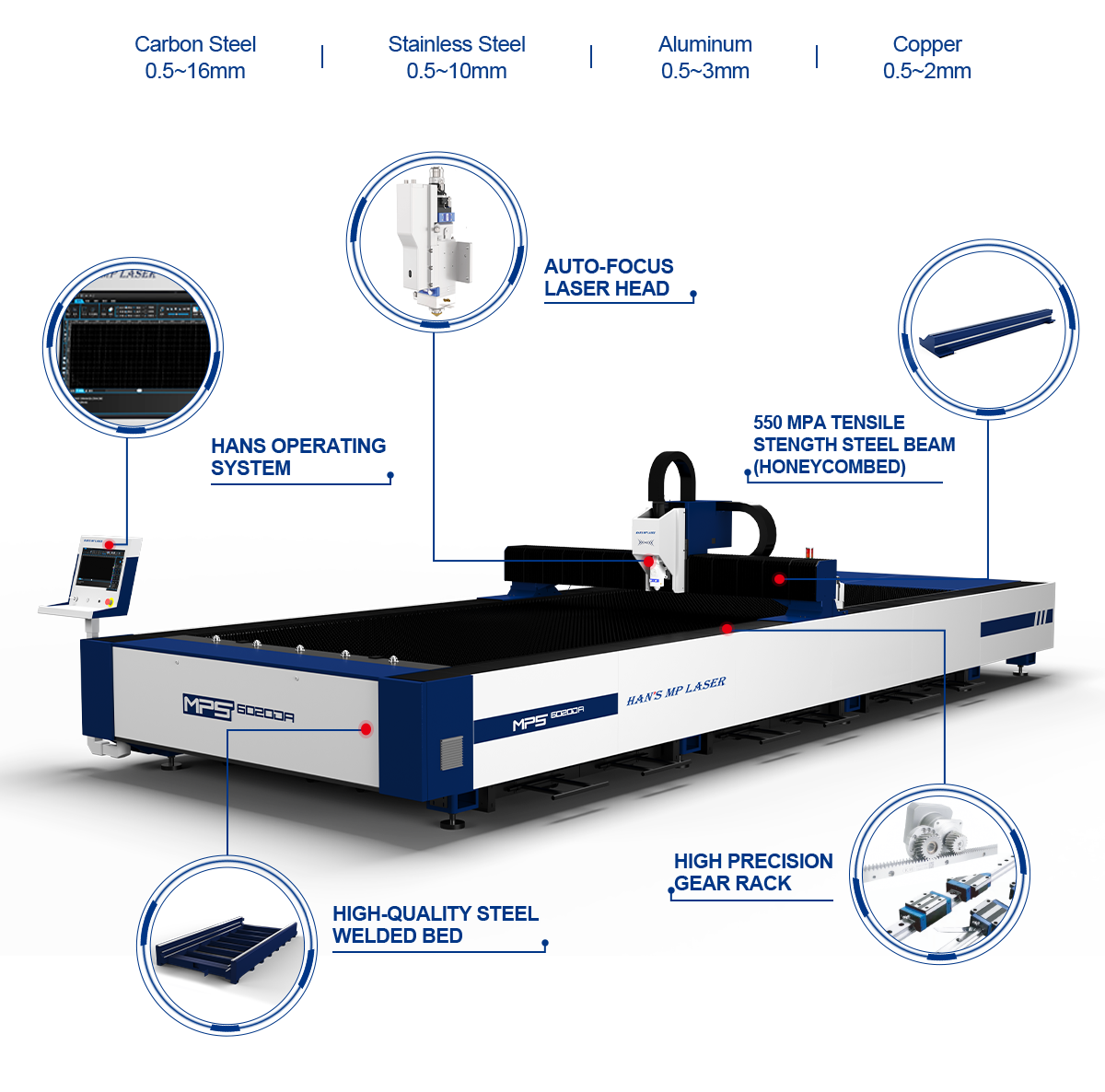

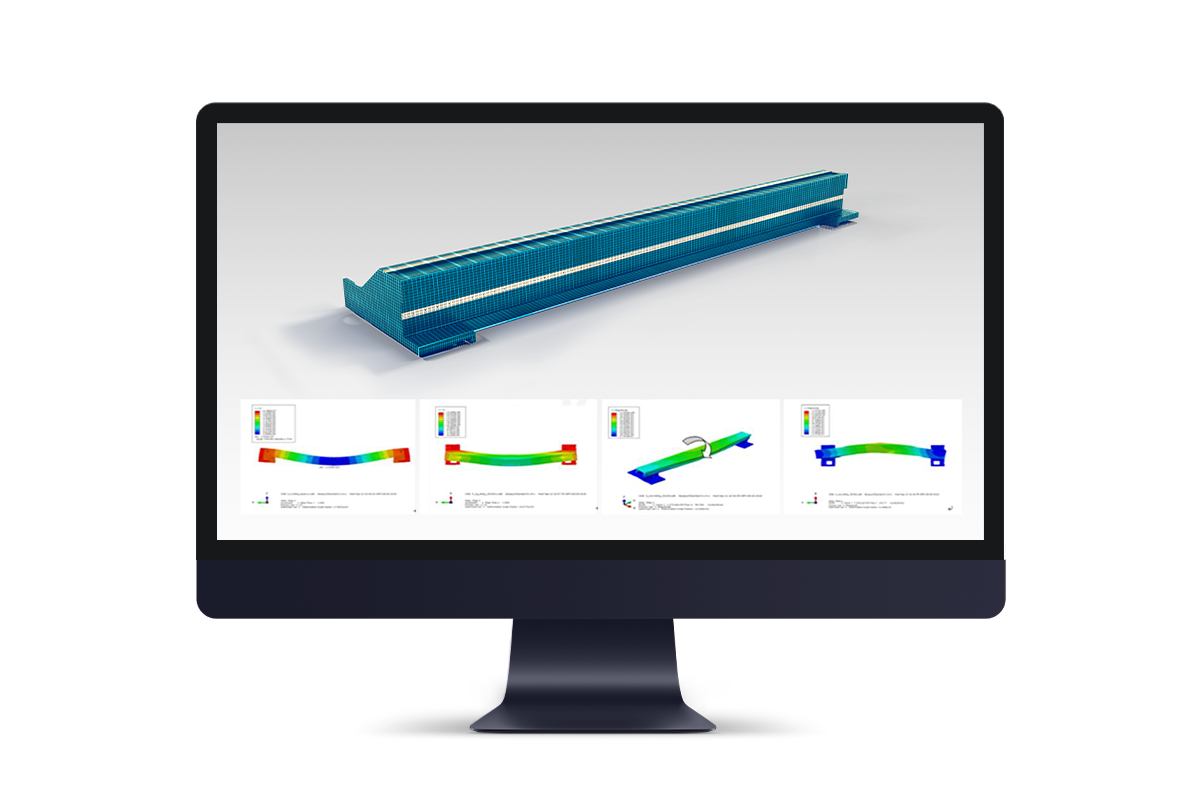

- The honeycomb beam passes CAE Analysis and stimulation before machining that guarantees quality of machine.
- Q235 tensile strength mild steel features outstanding quality in the industry.

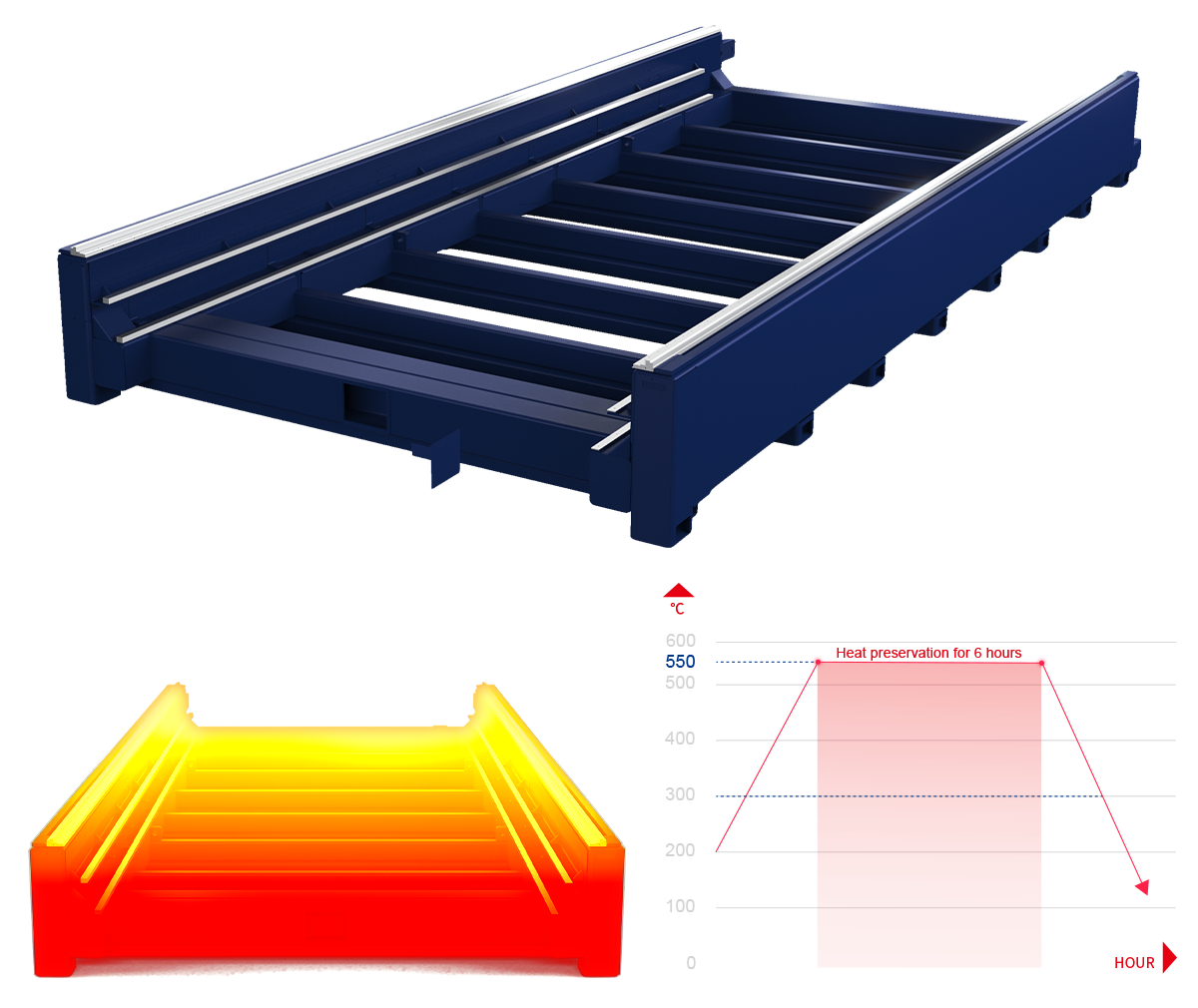

- 12h+ heat treatment and machining technology ensures long-term stable and reliable use of the beam structure.

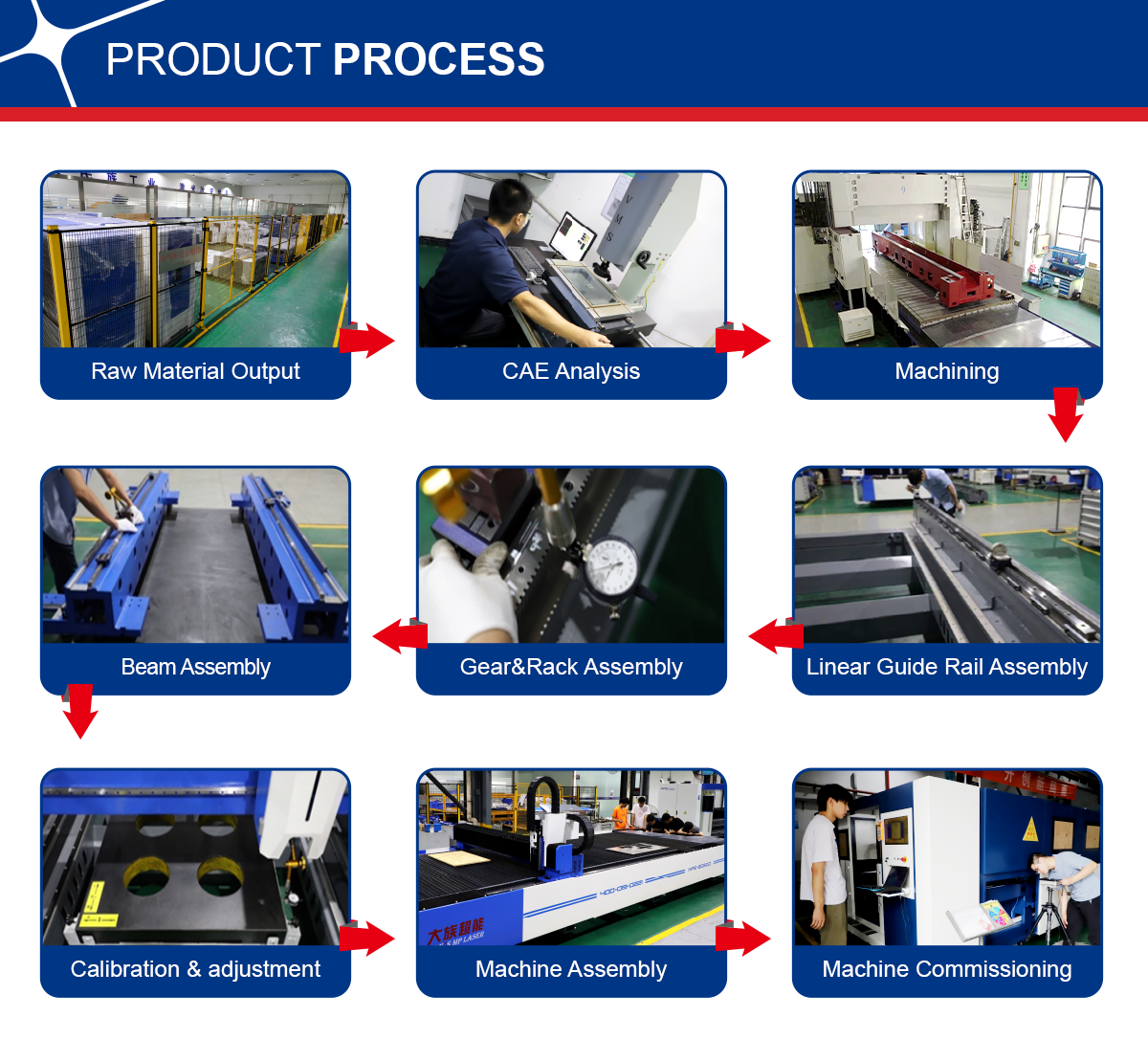

- Machining by five-axis gantry precision machining master machine, one-time processing to ensure the overall processing quality of the machine tool and the assembly accuracy of the whole machine.
- Zoning dust ventilation system deal with two-side dust generated during laser processing, makes your production more ecological.
Increasing Efficiency on the Production Floor
230 Sets
High-Precision Machining Centers
Up to 75%
Machined Parts of Machine
25,000 Pcs
Annual Output Capacity
| Material |
Thickness (mm) |
1000W |
1500W |
2000W |
3000W |
Gas |
| Stainless steel |
1 |
16.0-20.0 |
24.0-30.0 |
27.0-35.0 |
30.0-40.0 |
N2 |
| Stainless steel |
3 |
2.1-2.8 |
2.7-4.0 |
4.0-5.5 |
7.0-9.0 |
N2 |
| Stainless steel |
6 |
/ |
0.6-1.0 |
1.0-1.5 |
1.5-2.1 |
N2 |
| Stainless steel |
8 |
/ |
/ |
0.4-0.6 |
0.8-1.2 |
N2 |
| Stainless steel |
10 |
/ |
/ |
/ |
0.5-0.7 |
N2 |
| Carbon steel |
1 |
9.0-15.0 |
9.0-15.0 |
9.0-15.0 |
9.0-15.0 |
O2 |
| Carbon steel |
6 |
1.2-1.6 |
1.6-2.0 |
1.8-2.4 |
2.2-3.0 |
O2 |
| Carbon steel |
16 |
/ |
/ |
0.5-0.7 |
0.6-0.8 |
O2 |
| Carbon steel |
20 |
/ |
/ |
/ |
0.4-0.6 |
O2 |
| Aluminum |
1 |
8.0-10.0 |
12.0-20.0 |
20.0-28.0 |
26.0-32.0 |
N2 |
| Aluminum |
5 |
/ |
/ |
0.9-1.5 |
2.0-2.5 |
N2 |
| Aluminum |
6 |
/ |
/ |
/ |
1.0-1.6 |
N2 |
| Brass |
1 |
8.0-10.0 |
12.0-20.0 |
20.0-26.0 |
24.0-30.0 |
N2 |
| Brass |
4 |
/ |
0.8-1.2 |
1.2-2.0 |
2.5-3.0 |
N2 |
| Brass |
5 |
/ |
/ |
0.6-1.0 |
1.8-2.2 |
N2 |
Kitchenware industry, Fitness equipment application, Agricultural machinery, Elevator manufacturing, Furniture industry, Automobile manufacturing, Medical apparatus and instruments, Bicycle manufacturing, School tools, etc.
- The warranty is 12 months after the acceptance is signed.
- Any problems of the parts happens during the warranty period, qualified after-sale service engineers will provide telephone or on-site service at any time. Free replacement parts are provided for the damage caused due to the quality of the equipment, excluding conventional disposable parts (for example, fibers, optical lenses, cutting nozzles, etc.) or due to false operation by the clients.
- If the warranty expires, a wide range of preferential technical support is still provided, and machine tool and auxiliary equipment are maintained on a regular basis. Full maintenance services, daily advice, and guidance for equipment maintenance and improvements are actively provided.
- Sufficient spare parts are maintained to provide timely technical service and replacement.
- Engineers are appointed to visit clients and provide technical support on a regular basis.

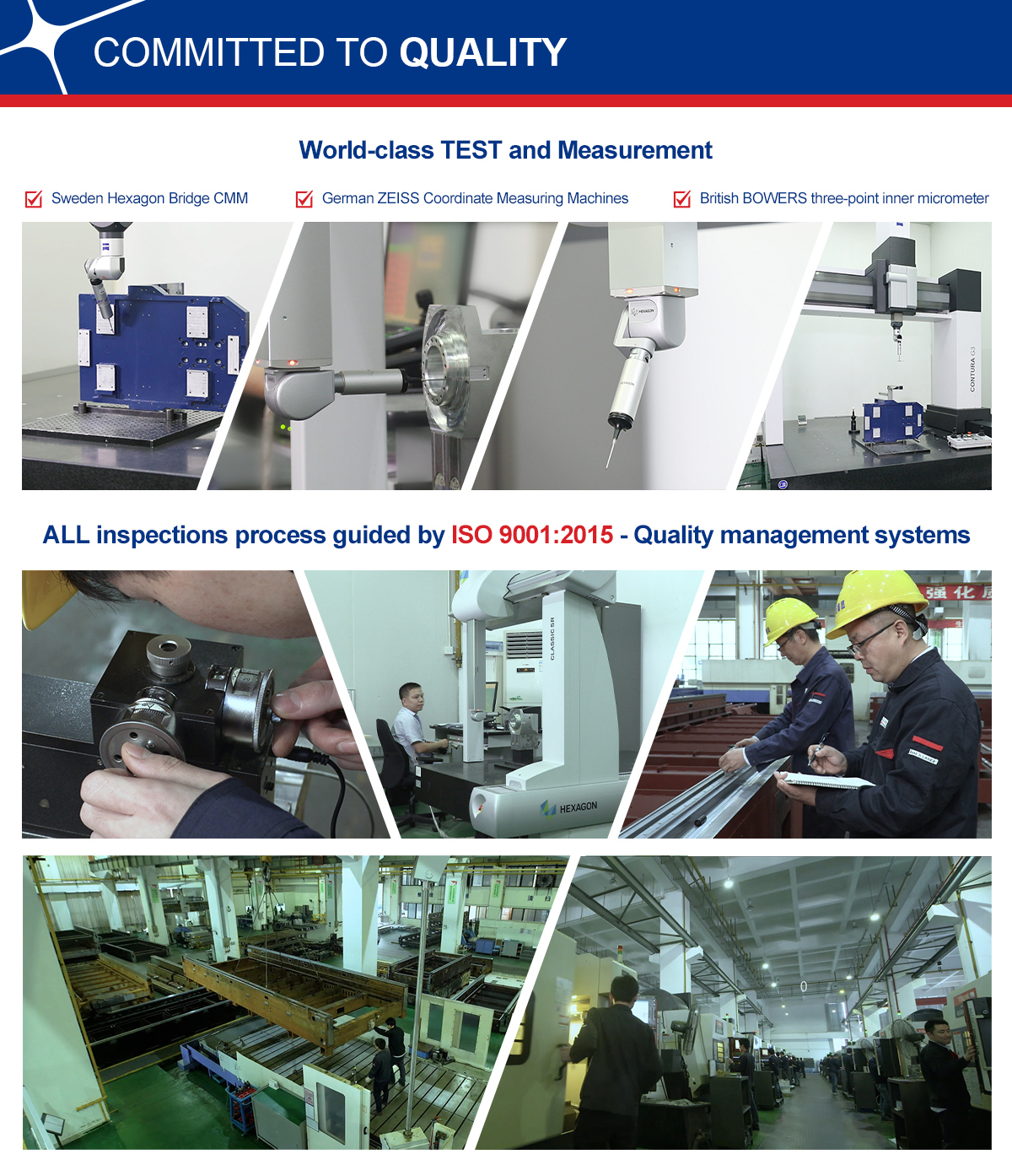

Strong production and manufacturing capabilities are backed by a world-class machining center, featuring more than 230 CNC machining machines and high-precision testing equipment.

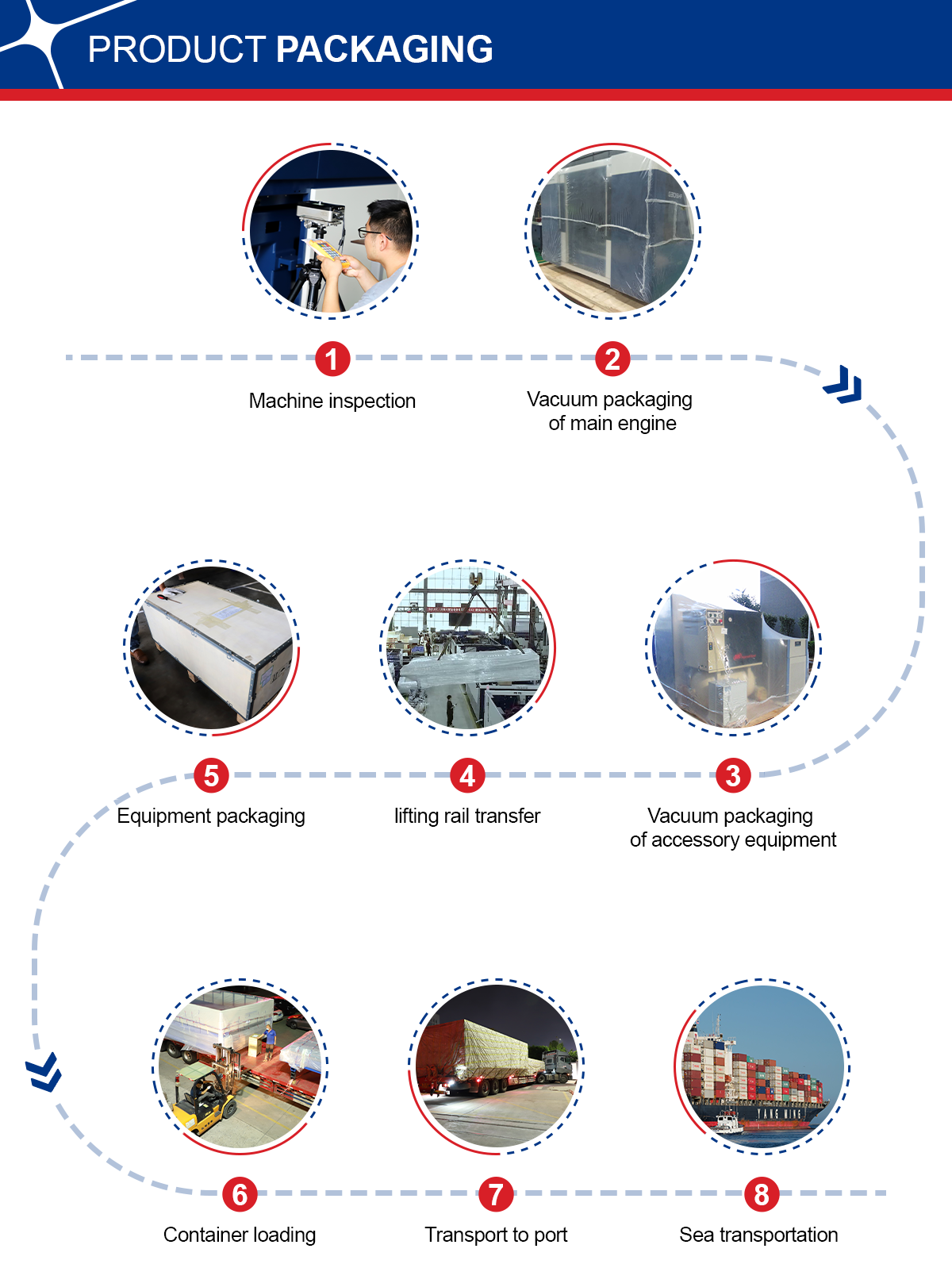

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
I know nothing about this machine, what kind of machine should I choose?
Just tell us what you want to achieve using the laser machine, and we will provide professional solutions and suggestions customized for your application.
Can the machine be customized according to my requirements?
Yes, we have a strong technical team with rich industry experience. Our goal is to meet your specific production requirements.
What about after-sales service?
We offer 24-hour online video support to solve your technical problems, and we are also capable of providing overseas on-site service worldwide.
When I get this machine, I don’t know how to use it. What should I do?
We will send an instructional video and an English manual with the machine. If you still have doubts, we can communicate via phone, email, or online chat.
If problems happen to this machine during the warranty period, what should I do?
We supply free replacement parts during the machine warranty period if the issue is quality-related. We also provide lifelong after-sales service to keep your machine running efficiently.

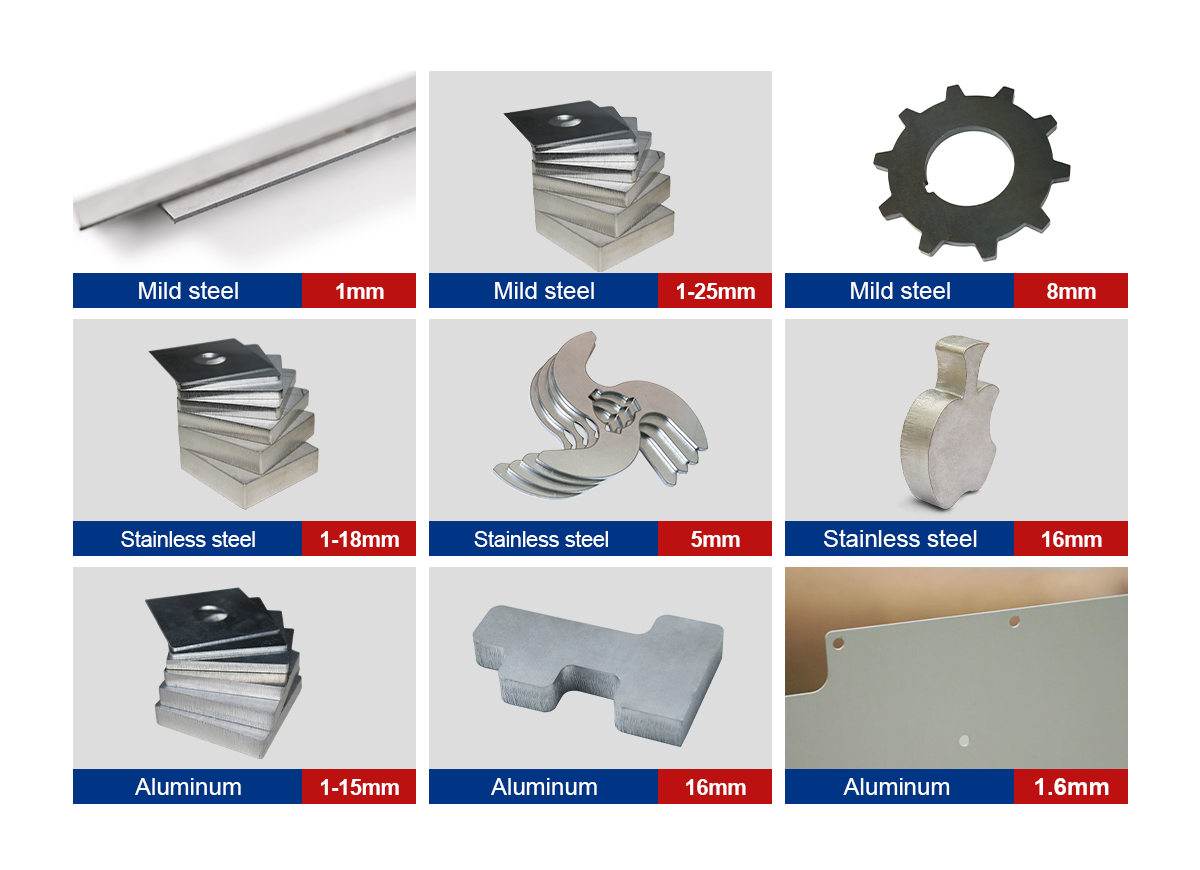

What materials can this fiber laser cutting machine process?
This fiber laser cutting machine is highly efficient at cutting various metals including Stainless Steel, Carbon Steel, Aluminum, Brass, and other reflective metal sheets.
