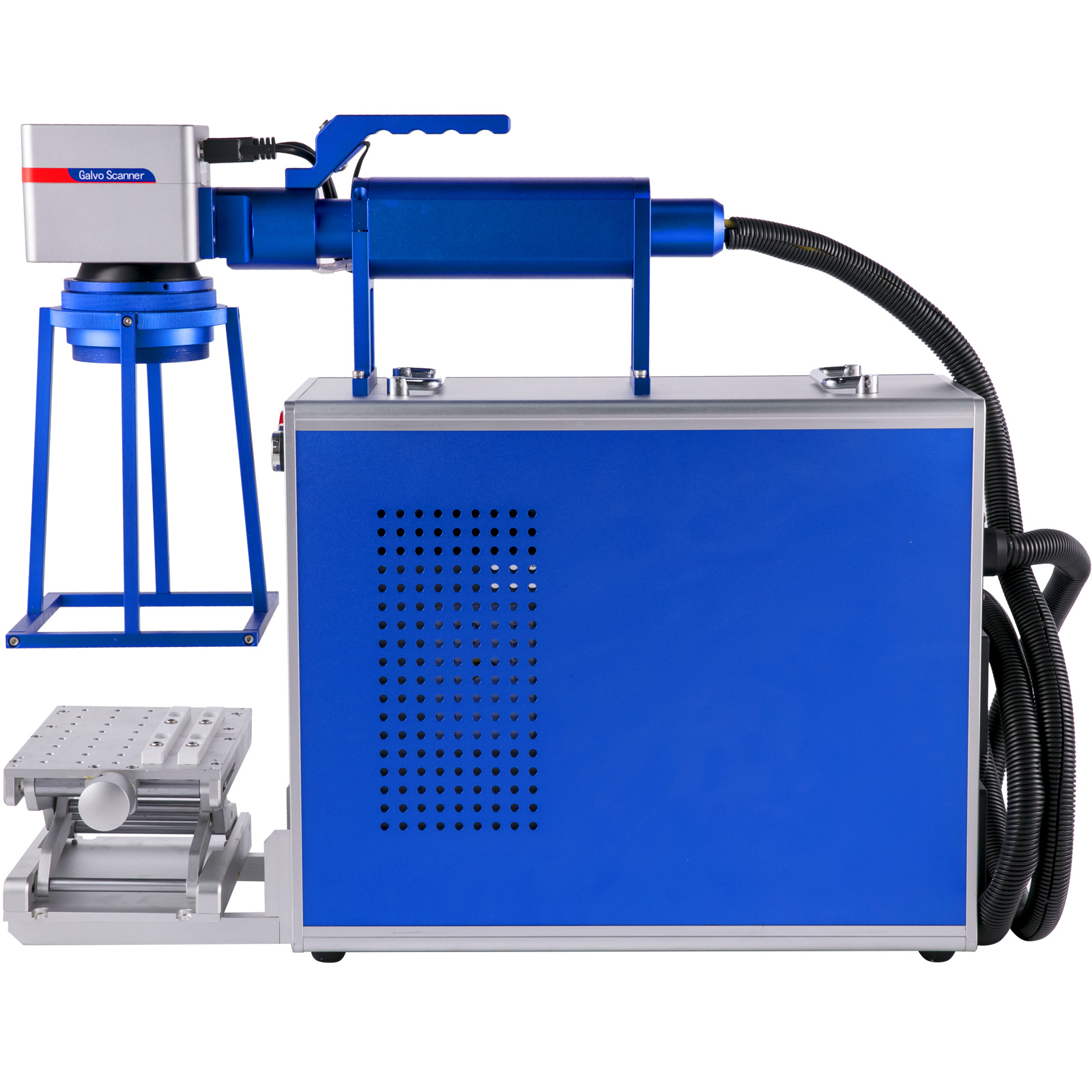

The fiber laser engraver supports two different ways to mark: hand-held marking and fixed marking. Its well-designed optical system is stable and precise, realizing simple and accurate positioning. The hand-held structure brings marking convenience to large devices, making it suitable for marking on a variety of metals and non-metallic materials.
Here we will provide you with a 20W/30W/50W fiber laser marking machine for your option.
| Laser wavelength: | 1064 +/- 3 nm |
| Beam quality: | < 2 |
| Laser Q-hopping frequency: | 20khz - 80khz |
| Working area: | 110 x 110 mm |
| Marking depth: | ≤ 1 mm |
| Whole machine power: | ≥ 600W |
| Minimum line width: | 0.01 mm |
| Minimum character: | 0.15 mm |
| Repeatability: | 0.0001 mm |
| Scanning speed: | 10000 mm/s |
| Output power: | 10% - 100% adjustable |
| Service life: | 100,000 hours |
| Compatible system: | Windows |
| Data input: | USB |
| File format: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
| Cooling method: | Air cooling |

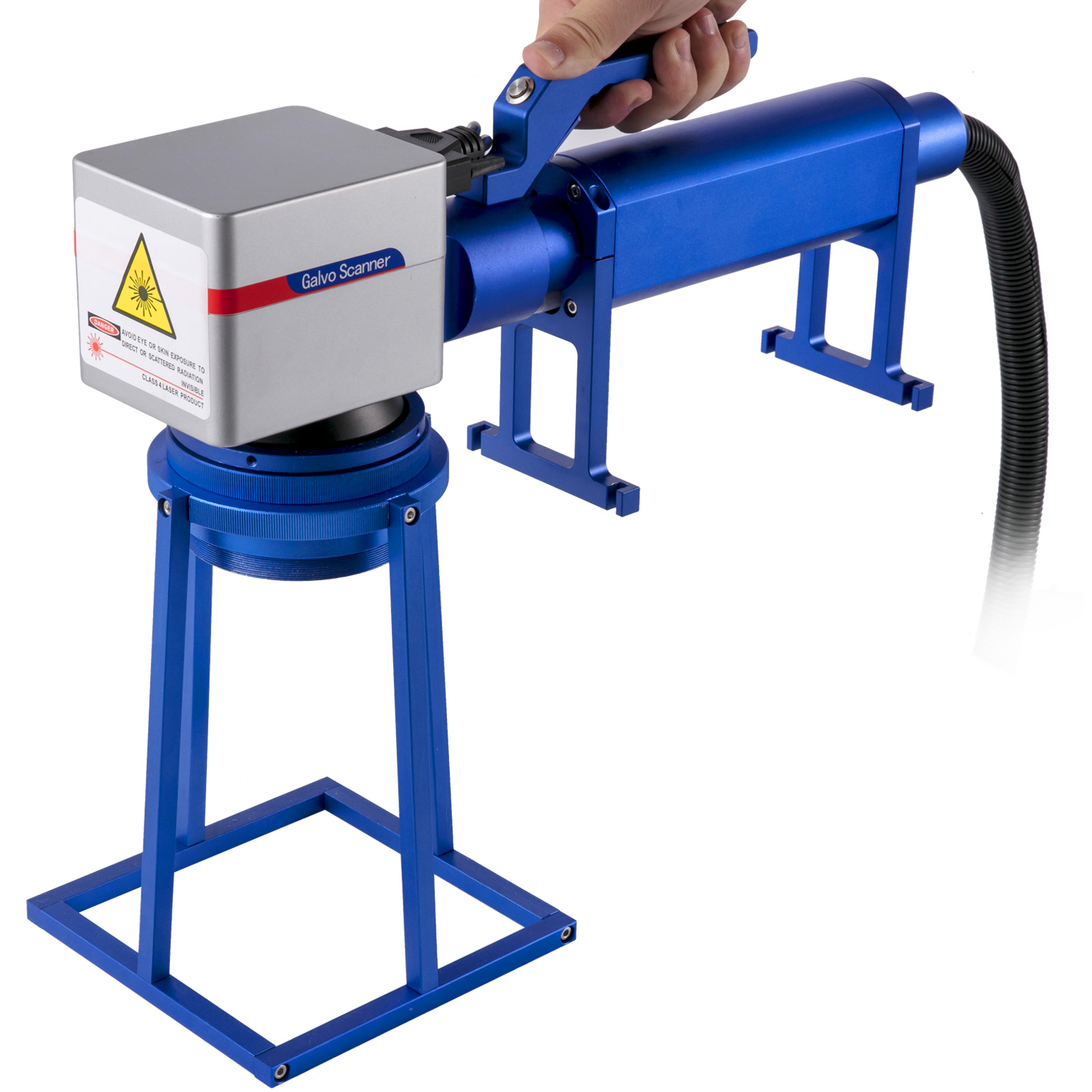

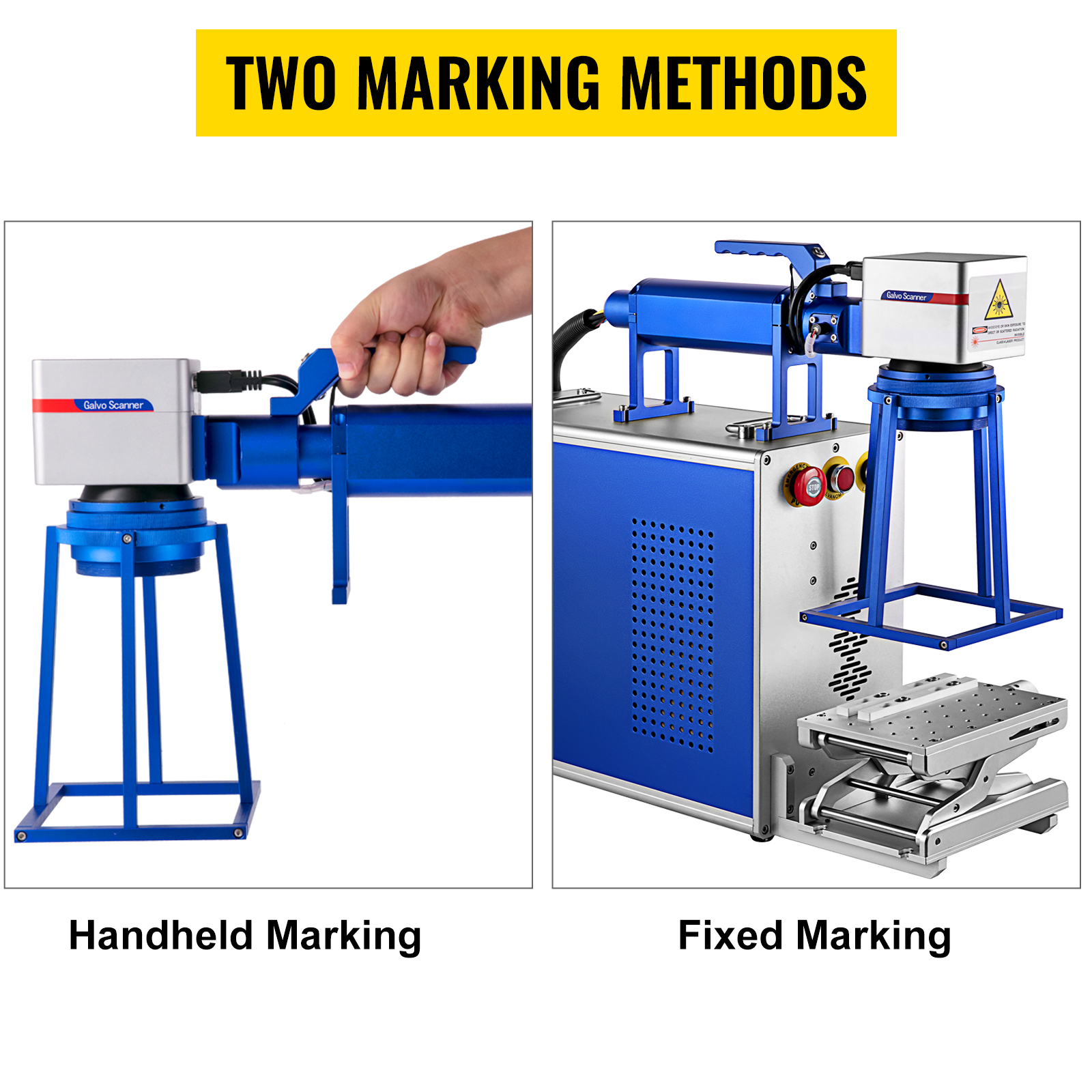

Different from the single-function fiber engraver, ours supports both hand-held and fixed marking to improve work efficiency. What's more, the hand-held way is more flexible and suitable for more scenarios.

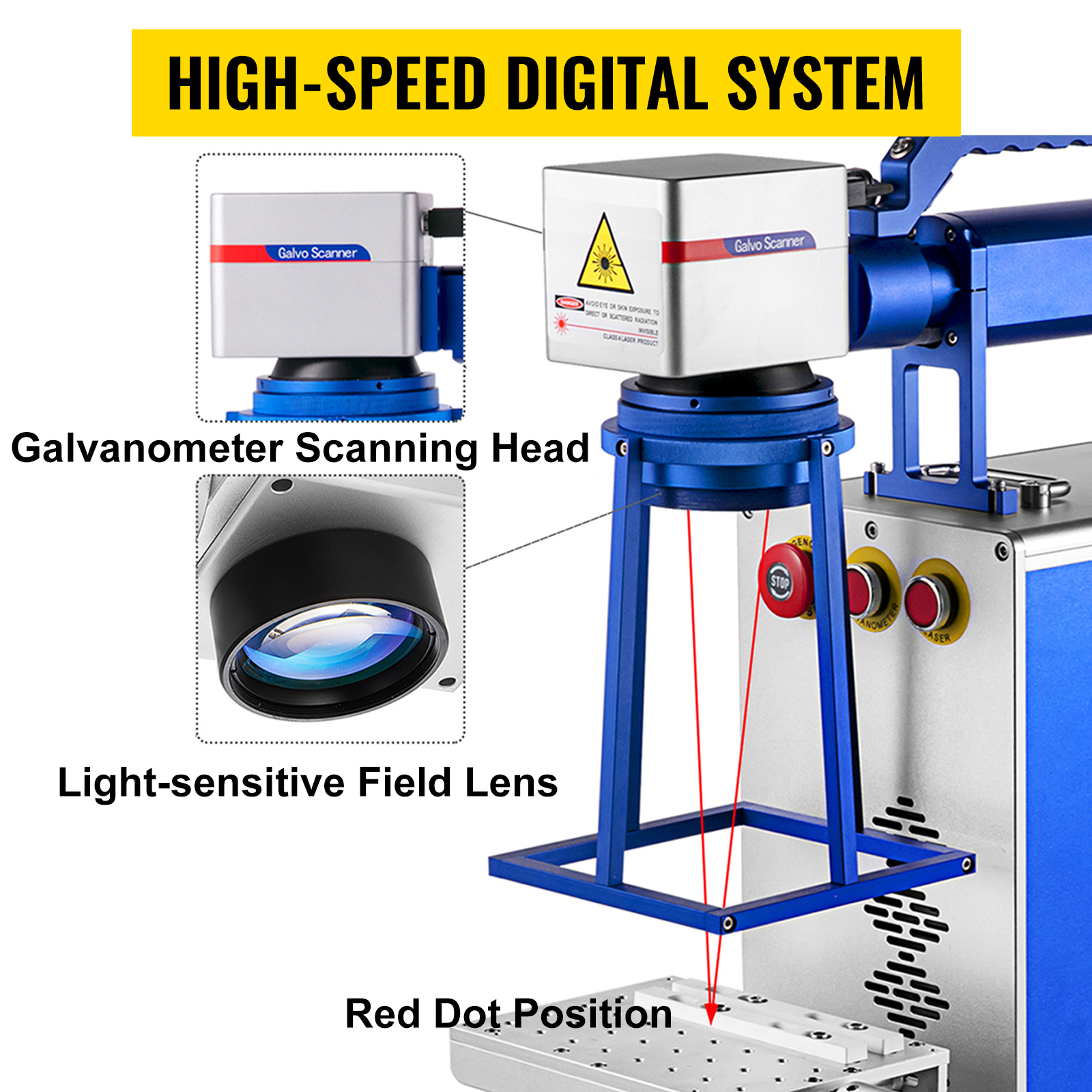

As long as the thickness of marked material is entered in the software, the machine can manually focus to an appropriate position. And the imported galvanometer scanning head reduces the delay and increases the marking speed.

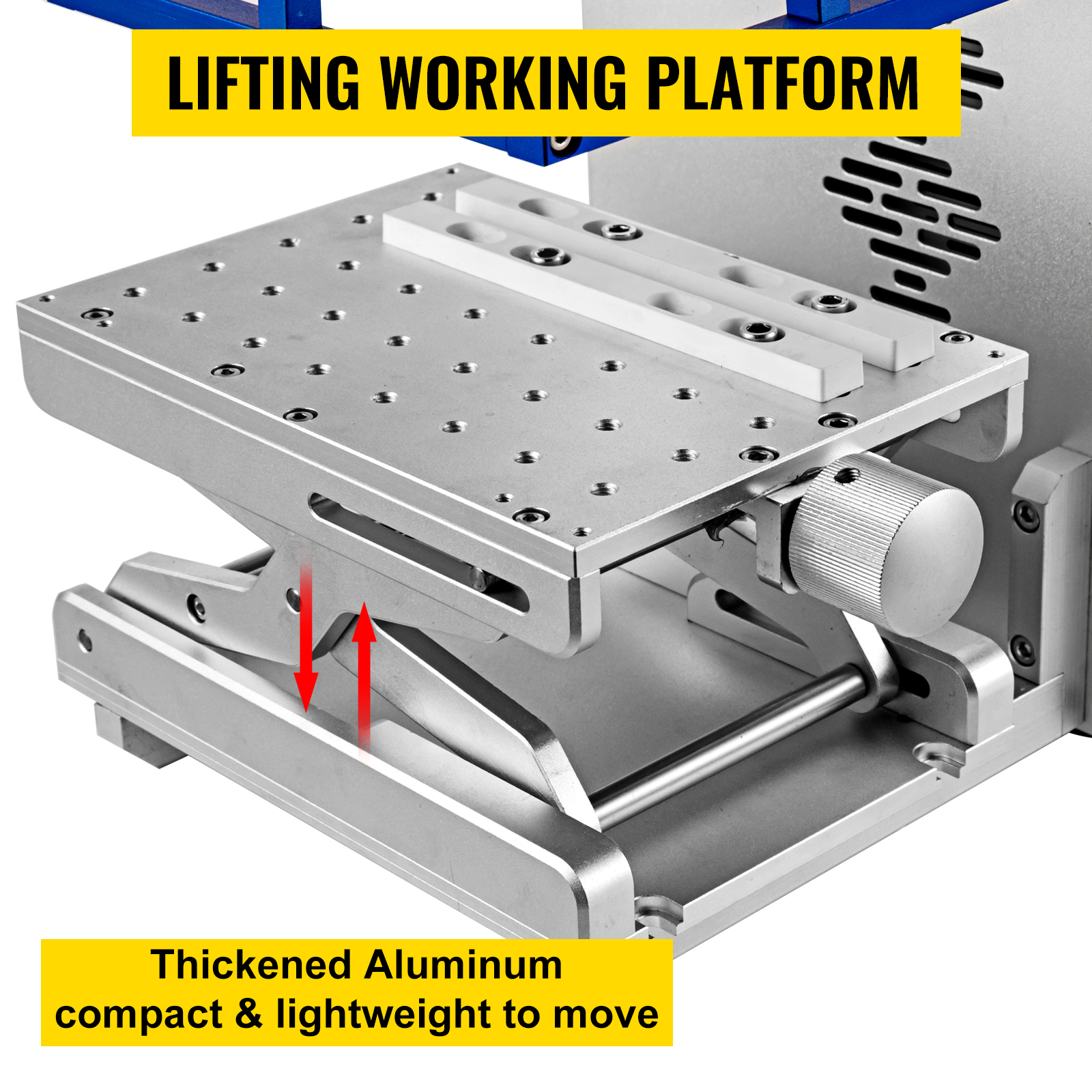

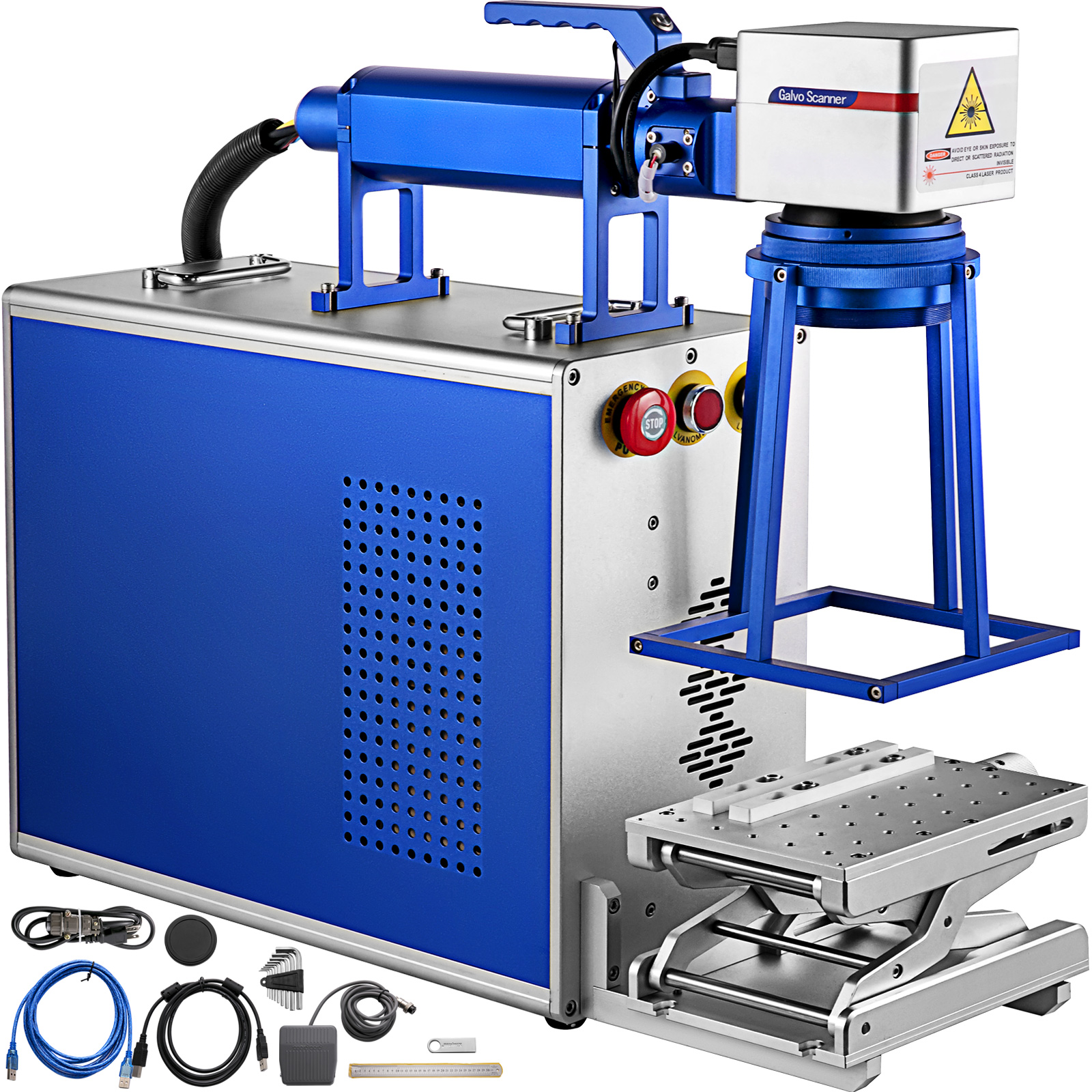

The metal engraving machine equips with a lifting platform constructed of thickened aluminum. You can flexibly adjust the machining direction through this workbench, which is stable and fast to operate.
The fiber laser cutting machine is characterized for its high compatibility: Windows XP, 7, 8, 10 (32-bit / 64-bit; not compatible with the macOS system), and various format files like PLT, PCX, etc.

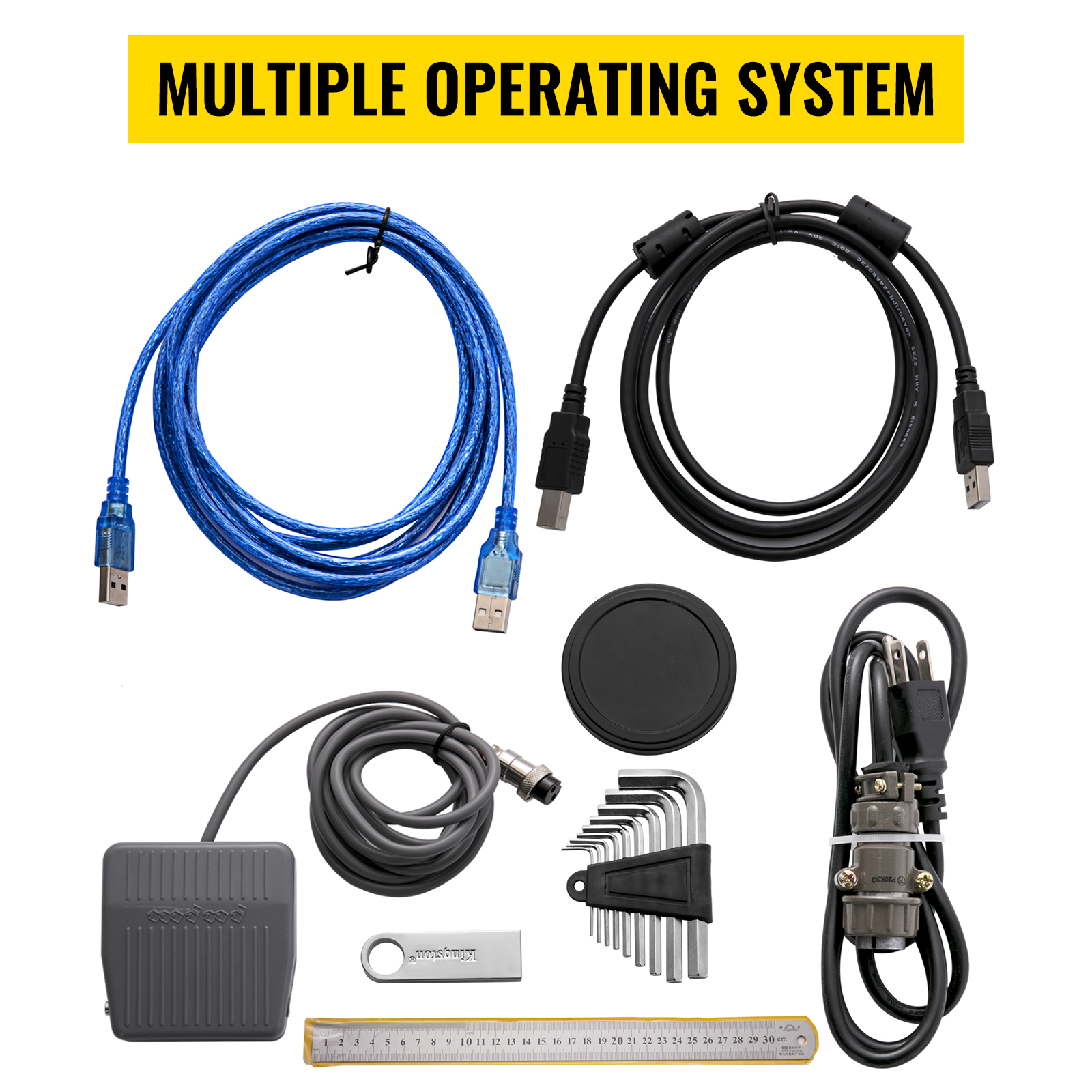

All the accessories you need will be provided, such as a foot pedal, power cable, data cable, screwdriver, U disk, scale, rubber cover, etc. That will bring a lot of conveniences for efficient engraving.
The fiber marking machine is widely applicable to various metals and non-metallic materials, especially for high hardness, high melting point, and brittle materials, making it an ideal tool for many industries.
| Business model | Manufacture & Trading |
| Minimum order quantity | 1 set |
| Payment | L/C; T/T |
The machine is designed to work on a wide array of metals (such as steel, copper, aluminum, and alloys) as well as various non-metallic materials, especially those with high hardness or brittleness.
Yes, the machine features a hybrid design that supports both hand-held marking and fixed workstation marking. This ensures optimal flexibility for handling both small parts and larger, bulky equipment.
It is fully compatible with Windows XP, 7, 8, and 10 (both 32-bit and 64-bit systems). Please note that macOS is not supported. It handles common formats including PLT, DXF, BMP, AI, DST, DWG, DXP, and LAS.

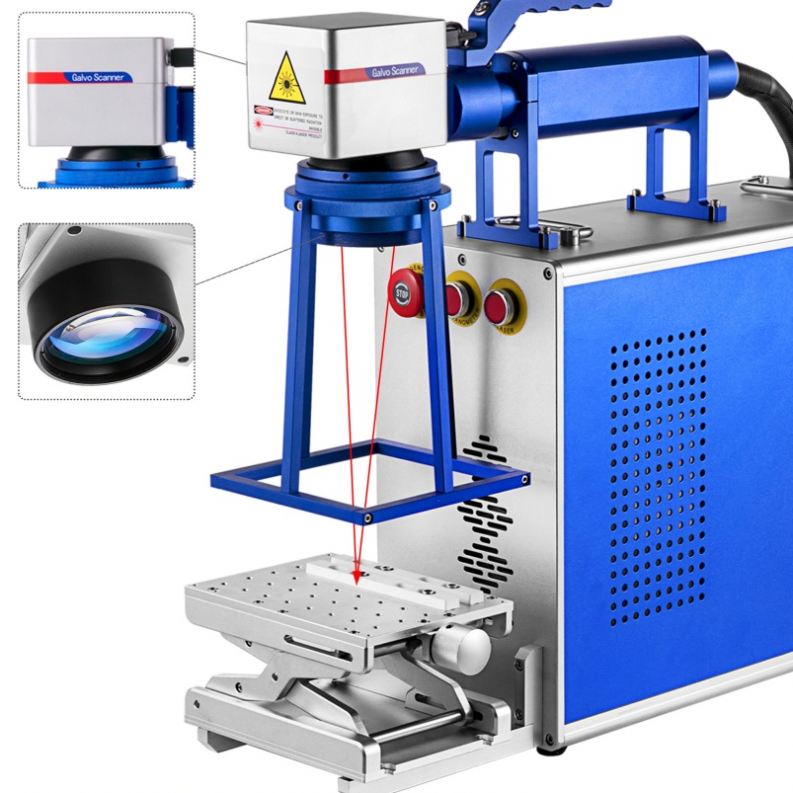

The system utilizes dual red lights for precise positioning. By aligning the galvanometer lens, field lens, and red dot system with the target thickness entered in the software, the red light aligns the focal distance quickly and accurately.
The fiber laser source is highly durable with an expected service life of up to 100,000 hours. The total machine power consumption is ≥600W and operates on standard AC220V/50Hz or AC110V/60Hz power lines.
