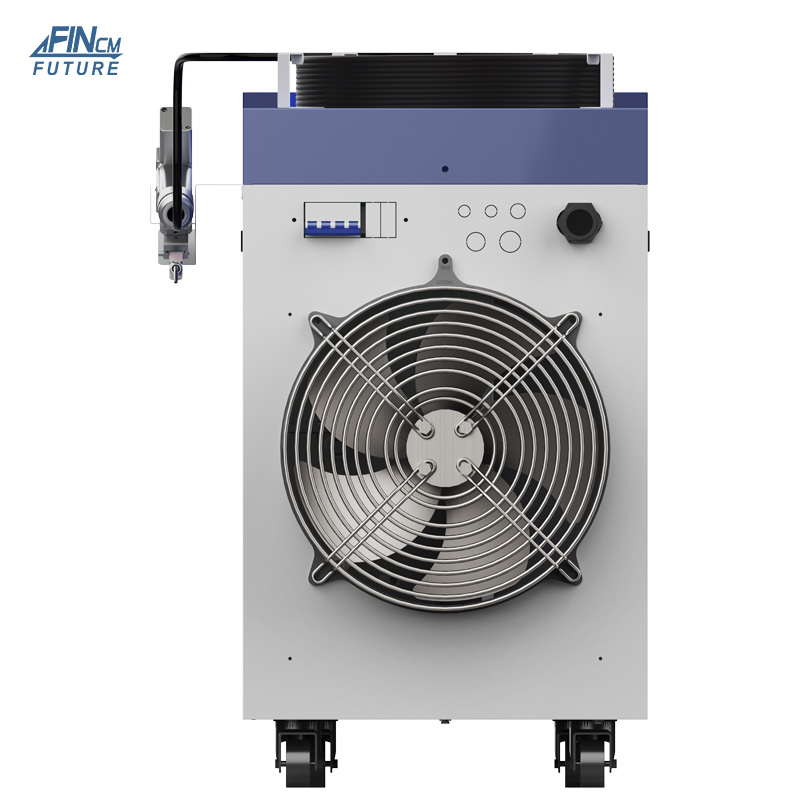

FINCM Future China Factory Price1.5KW 2KW 3KW Water Cool Handheld Fiber Laser Cutting Welding Cleaning Machines 4 in 1 for Metal

1 / 5

FINCM Future China Factory Price1.5KW 2KW 3KW Water Cool Handheld Fiber Laser Cutting Welding Cleaning Machines 4 in 1 for Metal

Send Inquiry

Product Description

Specification

Laser Power	1500W / 2000W / 3000W
Laser Source	RAYCUS / MAX
Fiber Cable Length	10m (Standard) / 15m / 20m
Wire Feeding Diameter	0.8 / 1.0 / 1.2 / 1.6 / 2.0
Voltage	220V / 380V
Operating Mode	Continuous
Working Environment Humidity Range	<70%
Operating Environment Temperature	-10℃ ~ 50℃
Cooling Type	Water Cooling
Wavelength	1070nm
Size/Weight	1100mm558mm1017mm / 160KG

Model	FW-1500	FW-2000	FW-3000
Power	1500 Watt	2000 Watt	3000 Watt
Max Welded Thickness (Recommend) - Stainless Steel	4mm / 0.16 in	6mm / 0.24 in	8mm / 0.31 in
Max Welded Thickness (Recommend) - Carbon Steel	4mm / 0.16 in	6mm / 0.24 in	10mm / 0.39 in
Max Welded Thickness (Recommend) - Aluminum Alloy	4mm / 0.16 in	6mm / 0.24 in	10mm / 0.39 in
Max Welded Thickness (Recommend) - Galvanized Sheet	4mm / 0.16 in	6mm / 0.24 in	11mm / 0.39 in

The above data is for reference only.

Product Description

Laser welding is a high-efficiency precision welding method that uses a laser beam with high energy density as the heat source. Laser welding can weld aluminum, stainless steel, and other metal materials, and provides high quality, consistent results across a wider range of materials and thicknesses.

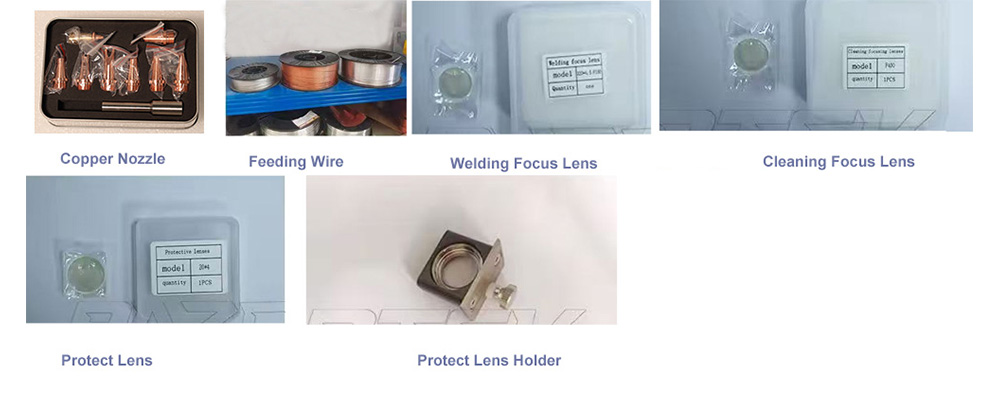

Consumable Parts

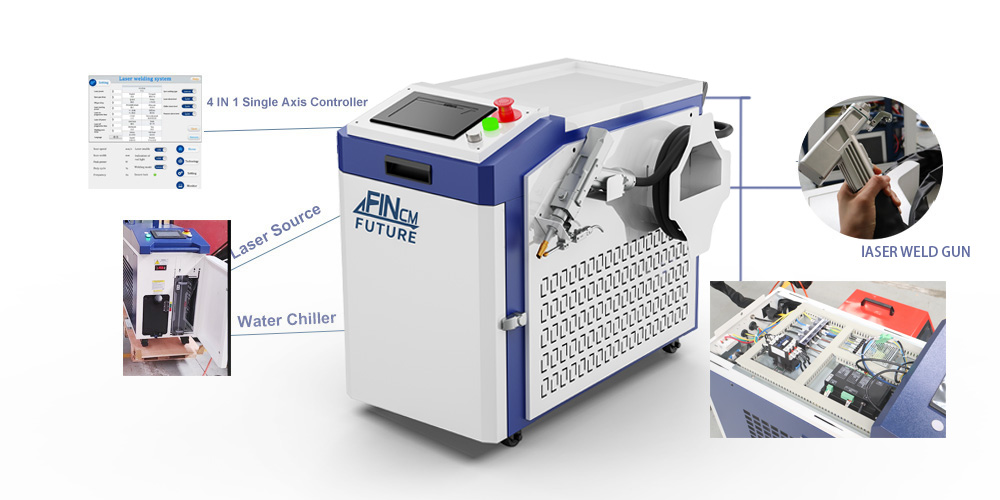

Portable Handheld Water Cooling Fiber Laser Welding Machines with S&A

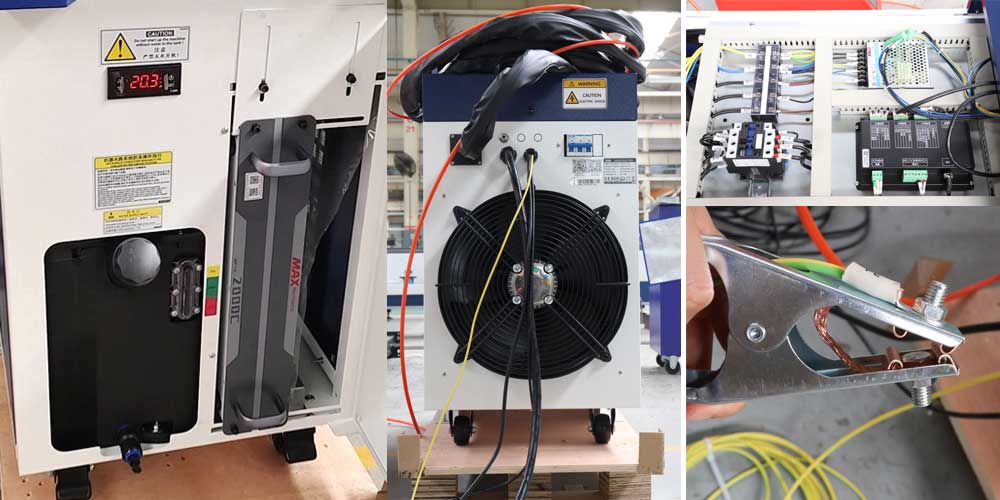

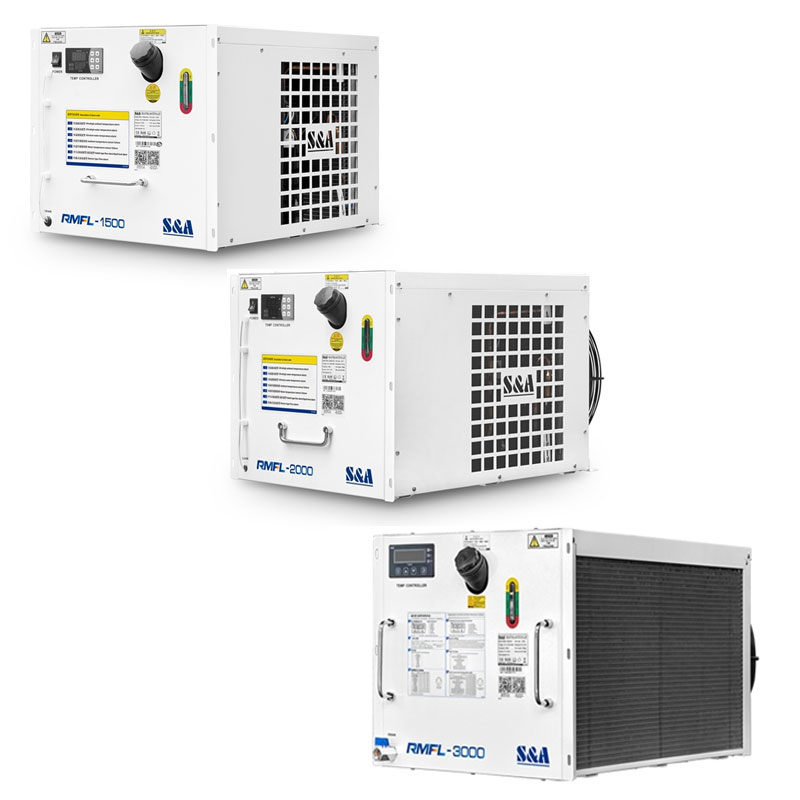

Water Chiller (S&A)

Double temperature controls: Intelligent temperature controller, controlling the temperature of the fiber laser and optics at the same time.
Integrated front handles: The front-mounted handles help move the chiller very easily.
Temperature stability: ±0.5°C
Integrated alarm functions: Compressor delay protection, compressor overcurrent protection, water flow alarm, temperature ultra-high/low alarm.

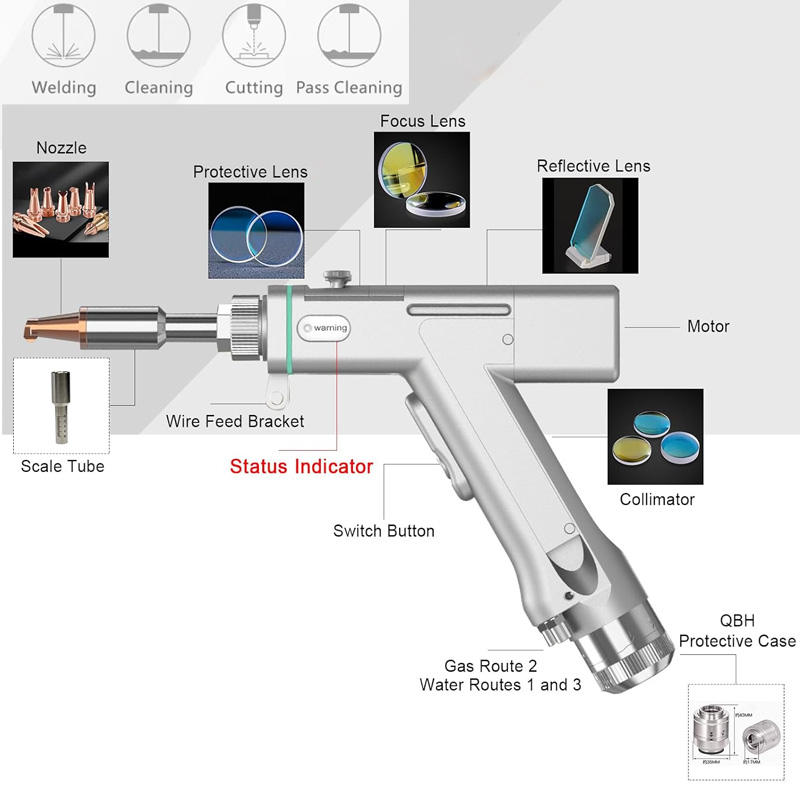

Laser Welding Gun

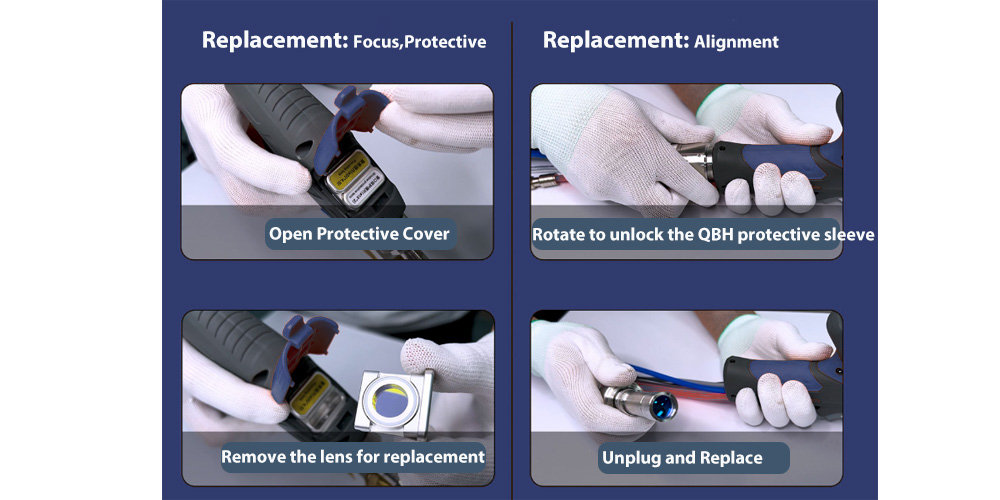

Focus mirror, protection mirror drawer, convenient replacement. Collimating lens is integrated with QBH for easy replacement.
Independent research and development of security detection system set up a number of security alarms, security and stability.
Optical structure optimization, high welding strength, small deformation, high penetration.

Laser Welding System

Support 19 languages.
Full touch screen operation interface, adjustable at any time. A variety of modes are optional.
Built-in intelligent alarm system. Multiple protections such as high temperature alarm, under voltage alarm, laser alarm, etc. Avoid machine damage and resulting losses.

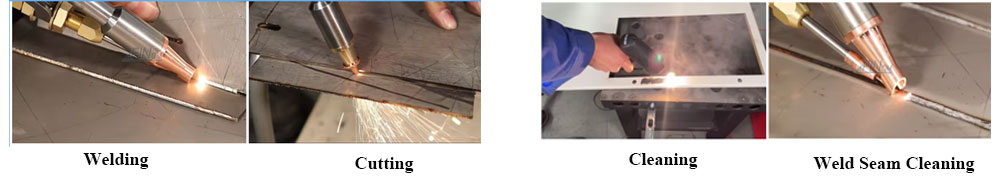

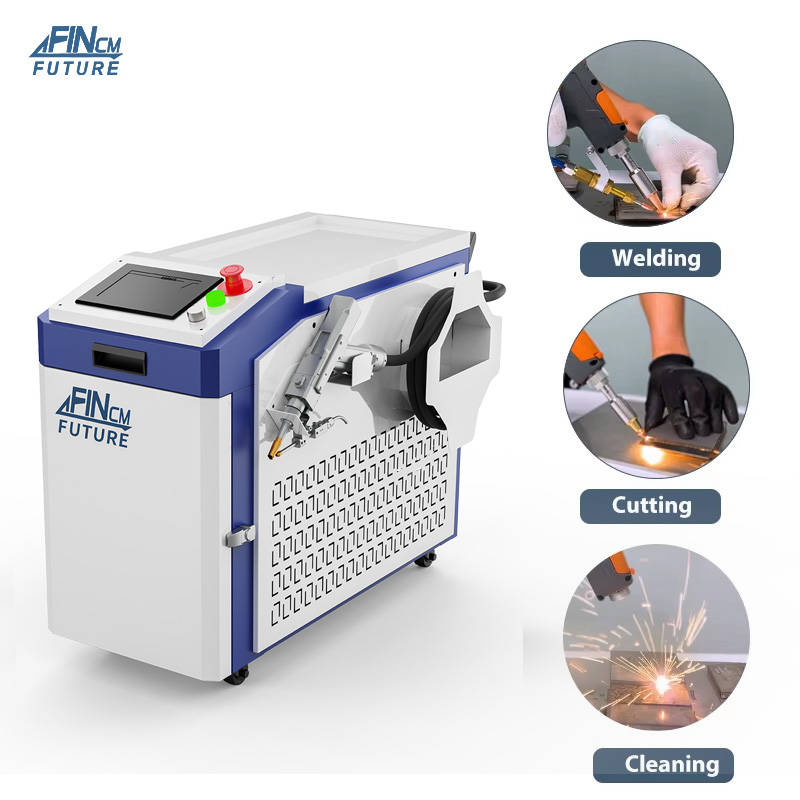

4 IN 1 Functions

★ Four working modes: welding + welding seam cleaning + cleaning + cutting. Simple switching, just need to replace the copper nozzle, switch the system.

Samples & Application

Application: It is suitable for cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furnishing and other industries.

Suitable Materials: Stainless steel, carbon steel, aluminum, galvanized sheet, copper, iron, etc.

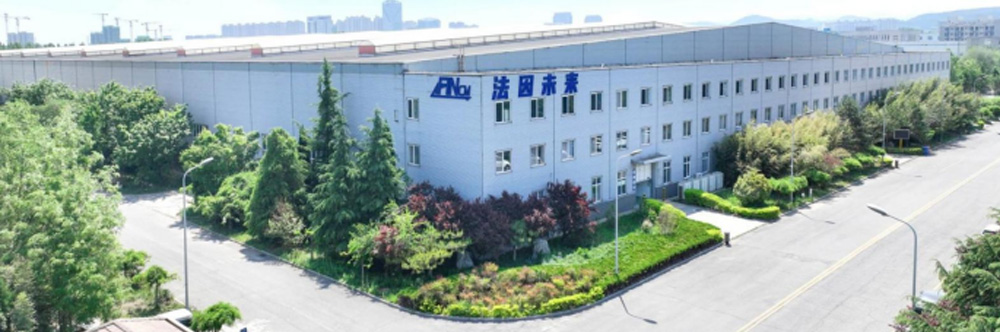

Profile Overview

✓ We invite you to personally experience our quality, rather than just taking our word for it. Seeing is believing!

Focusing on high-power laser cutting machines, metal pipe laser cutters, H-beam cutting machines, welding machines, and laser cleaning systems, our production line serves a wide range of metal processing needs.

Our factory is equipped with advanced production facilities and precision manufacturing equipment, supported by a comprehensive professional team covering design & R&D, manufacturing, and after-sales service—ensuring efficient production and responsive customer support. With a strict quality management system in place, we guarantee that every machine meets international standards and satisfies the diverse processing requirements of customers worldwide.

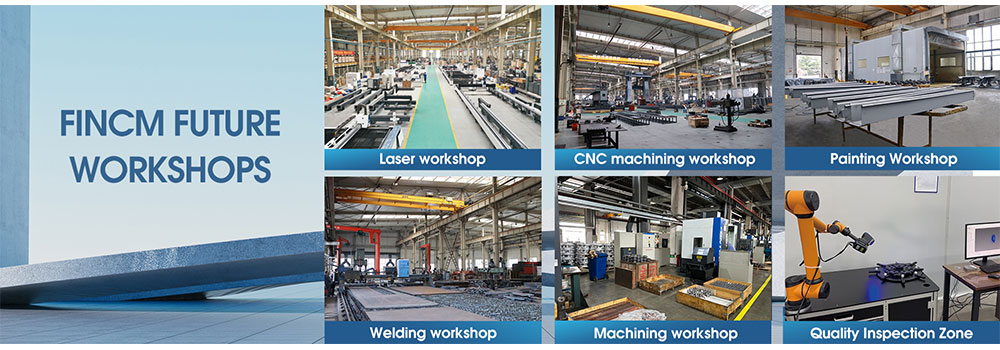

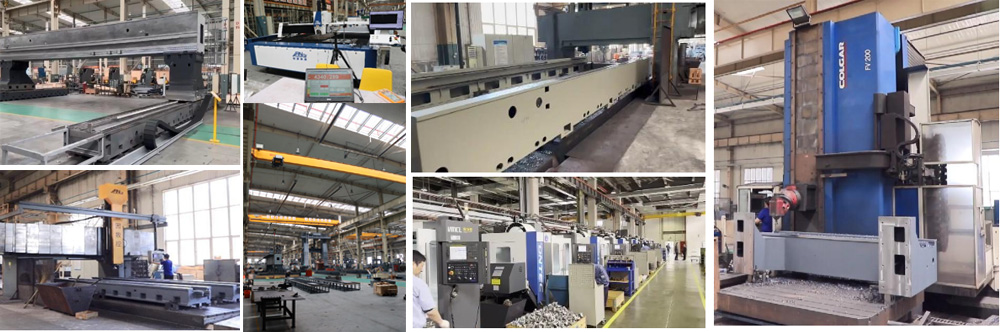

Workshops

Exhibition

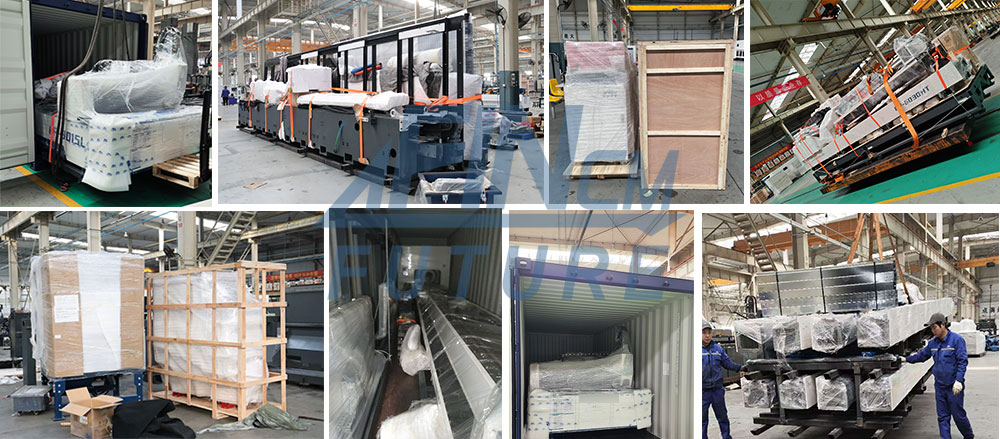

Packing & Delivery

Our Service

Delivery and Installation

The equipment will be delivered to the designated installation site at the customer's facility. Specialized engineers will be dispatched to carry out the installation on-site.

Commissioning and Debugging

Upon completion of the installation, comprehensive commissioning and debugging will be conducted to ensure the equipment operates properly and fully meets the customer's functional requirements.

On-Site Training

Engineers will provide on-site training at the customer’s facility. The training will cover equipment maintenance, safety precautions, standard operating procedures, and basic troubleshooting techniques to ensure the customer’s team can operate and maintain the equipment effectively.

Final On-Site Acceptance

After completing all of the above steps, final on-site acceptance shall be conducted by the customer. The assigned engineer may only leave the site once acceptance is formally confirmed.

Frequently Asked Questions

Q: What are the core applications and compatible materials for this laser welding machine?

A: The machine is suitable for cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel furniture industries. It welds materials including stainless steel, carbon steel, aluminum, galvanized sheet, copper, and iron.

Q: What are the "4 in 1" functions and how do you switch between them?

A: The four modes are welding, welding seam cleaning, cleaning, and cutting. You can easily switch between these tasks by replacing the copper nozzle and configuring the system accordingly.

Q: What safety protections does the built-in system offer?

A: The system features multiple safety protections, including a high-temperature alarm, under-voltage alarm, and laser alarm systems. These security detections help prevent machine damage and operational losses.

Q: What is the role of the dual temperature control in the S&A Water Chiller?

A: The double temperature control system simultaneously regulates the temperatures of both the fiber laser source and the optics to ensure system stability. It has a temperature stability rating of ±0.5°C.

Q: What services are provided for installation and training?

A: We dispatch specialized engineers to carry out on-site installation, commissioning, and system debugging. Additionally, the team provides on-site training on equipment maintenance, standard operating procedures, and basic troubleshooting before final acceptance.

Q: How many languages does the touch-screen laser welding system support?

A: The touch-screen system features an easy-to-use control interface that supports 19 different languages.
