CNC Plasma Flame Cutting Machine Use StatAi CC-M3 2-Axis CNC Controller With 10.4" True Color LCD And USB File Transfer
1 / 5

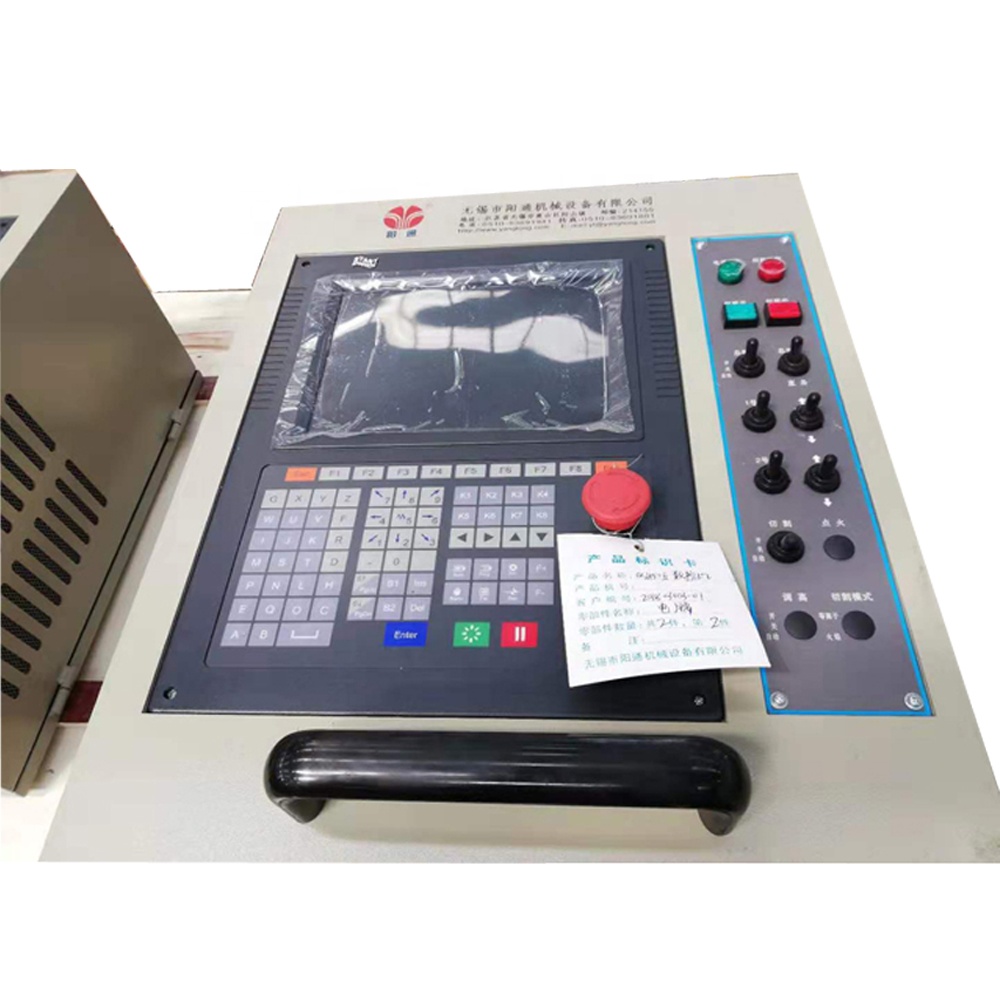

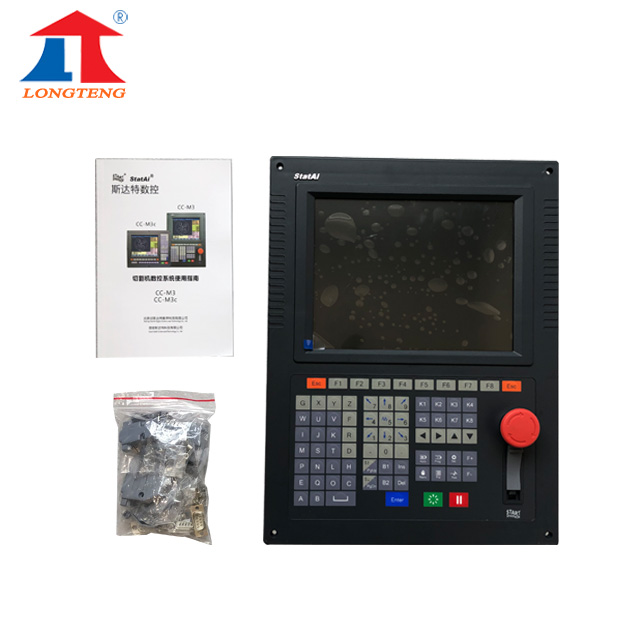

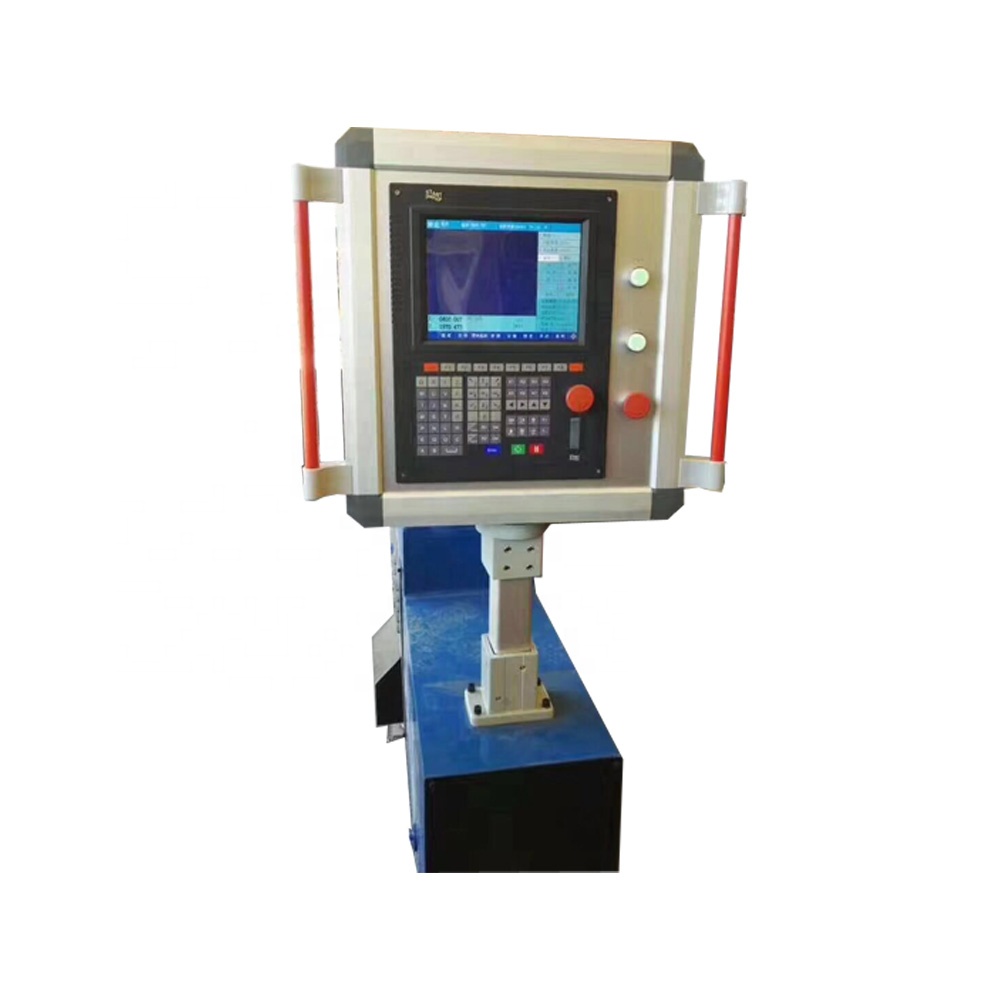

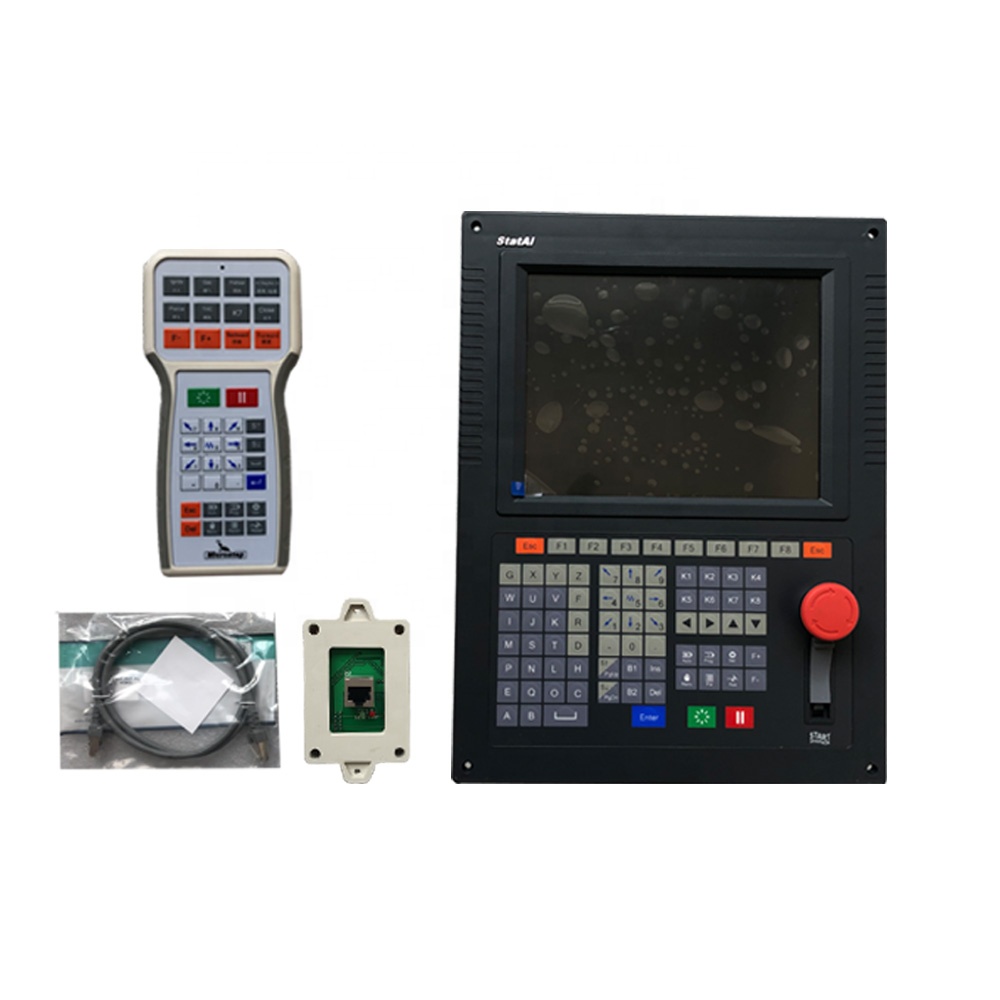

CNC Plasma Flame Cutting Machine Use StatAi CC-M3 2-Axis CNC Controller With 10.4" True Color LCD And USB File Transfer
CC-M3 cutting machine numerical control system is a standard type control system designed for gantry cutting machine. It is suitable for large and medium sized cutting machines with perfect plasma and flame cutting technology.
Basic Parameters
Parameter
Specification
Processor
industrial ARM chip
Display
10.4" color LCD
Input/Output
20 optoelectronic isolation input/output
Axis number
2 Axes
Communication
RS232*2, USB*1, RS485*1
Store space
4G
CC-M3 dimension
410*310*67mm
CC-M3C dimension
355*285*65mm
Working temperature
0~+40ºC
Store temperature
-40~+60ºC

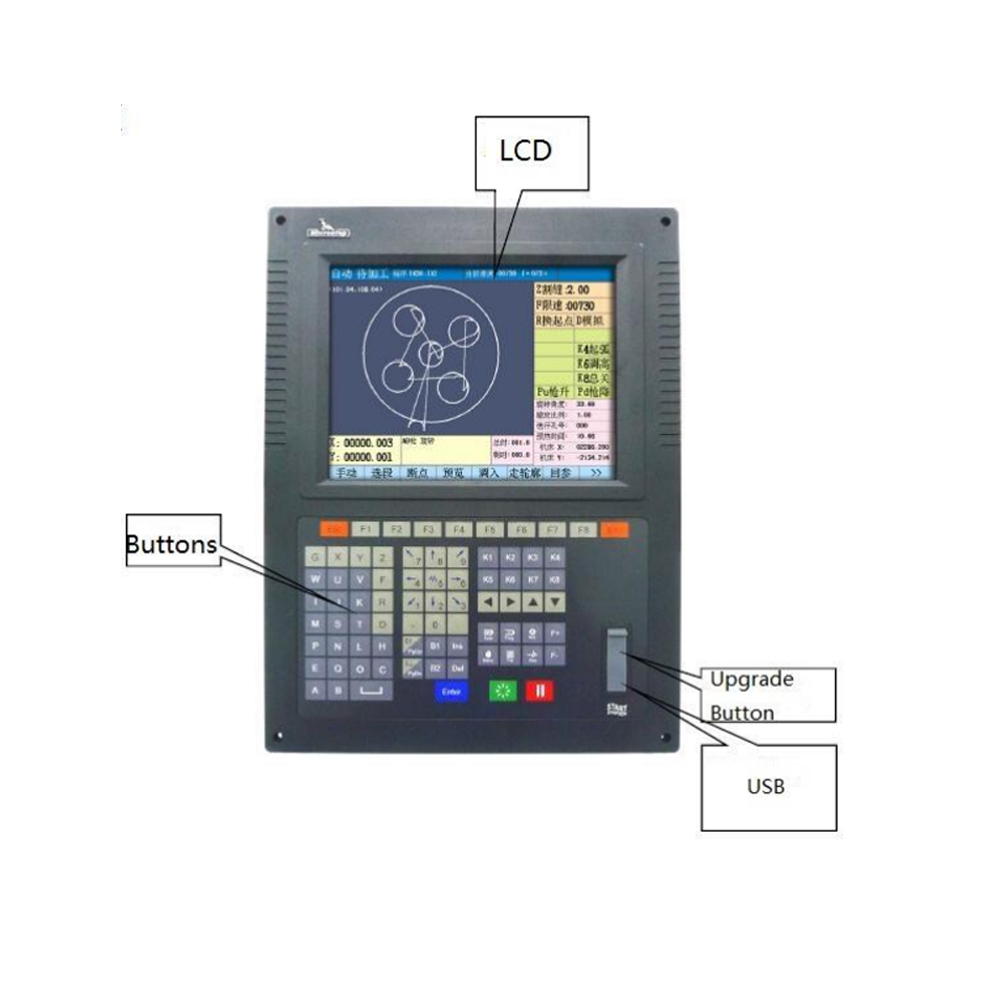

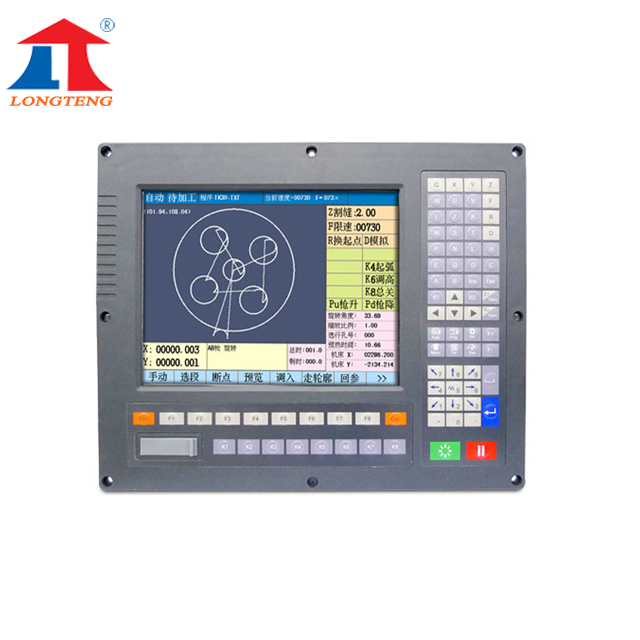

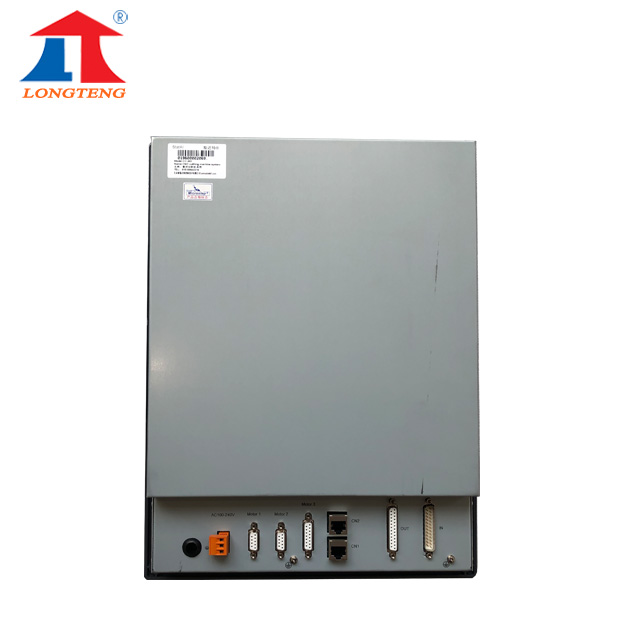

CC-M3C CNC Controller Layout
Functional Features
It adopts industrial ARM chip, large scale integration of high-speed hardware difference, low power consumption, low heating, no forced heat dissipation, stable and reliable hardware.
It has the preprocessing function of cutting program, the new electronic gear regulation, the automatic acceleration and deceleration function of the inflection point, etc.
There are two operating interfaces, dynamic graphics display. Dynamic simulation of machining trajectory, real-time display of cutting state and input/output status.
It is equipped with a standard library, which can be easily used by users. It can also be programmed manually with built-in or external keyboards.
It is fully compatible with CAD/CAM nesting software such as IBE and FASTCAM. Using a USB flash drive to read programs and software upgrades; The control system can be used for almost all 2-D cutting machine control. Built-in plasma, flame, marker timing (special process requirements can also be increased).

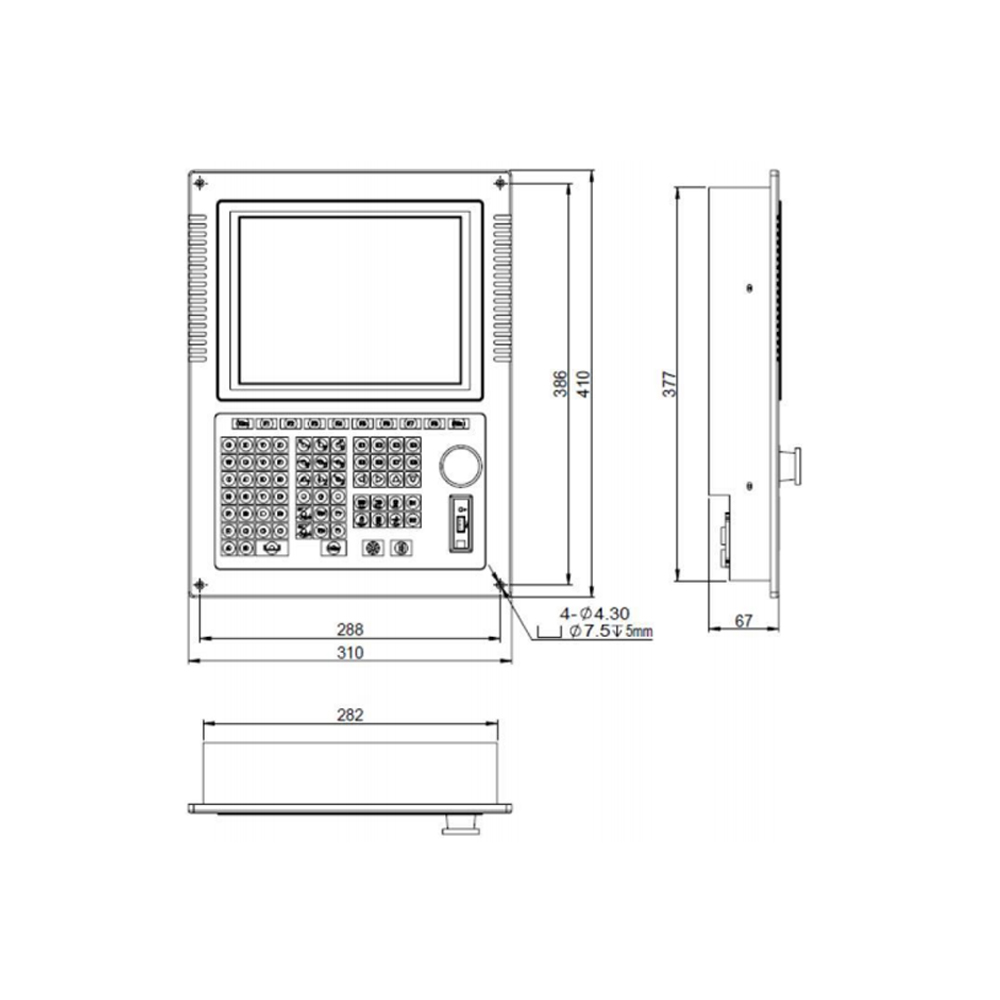

Installation Dimensions & Diagrams
Frequently Asked Questions
Q1When the machine can’t work well, what should I do?
Support is online 24 hours a day. They can check issues with the engineers and provide you with solutions as soon as possible.
The system comes with a one-year warranty. If any issues occur under normal use, new parts will be sent to you by air free of charge.
An operation CD and manual are offered along with the machine to ensure easy operation.
Q2What kinds of payment methods are accepted?
We accept T/T, Paypal, Western Union, or Trade Assurance orders.
Q3Can you produce the product according to customers' request?
Sure, we are a professional manufacturer. Simply provide us with your drawings or specific requirements for customization.
Q4Which CAD/CAM nesting software does the CC-M3 system support?
The control system is fully compatible with professional CAD/CAM nesting software such as IBE and FASTCAM.
Q5What are the main cutting technologies compatible with this controller?
It supports both plasma and flame cutting technologies, ideal for gantry and large/medium-sized 2D cutting machines.
Q6What hardware features make this controller stable and reliable?
It features an industrial ARM chip, large-scale hardware difference integration, low power consumption, and low heating, making forced heat dissipation unnecessary.
