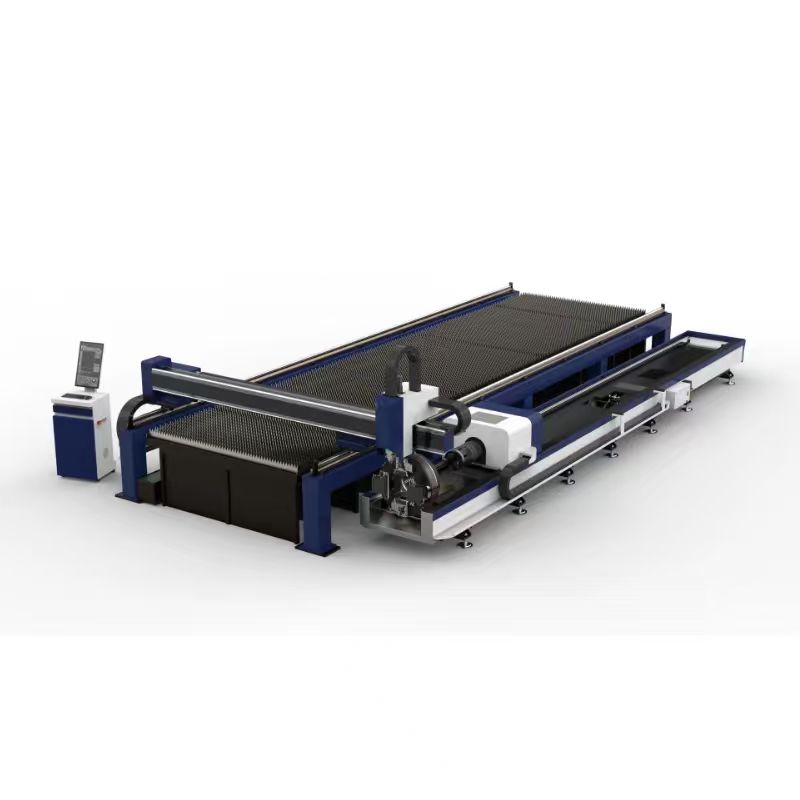

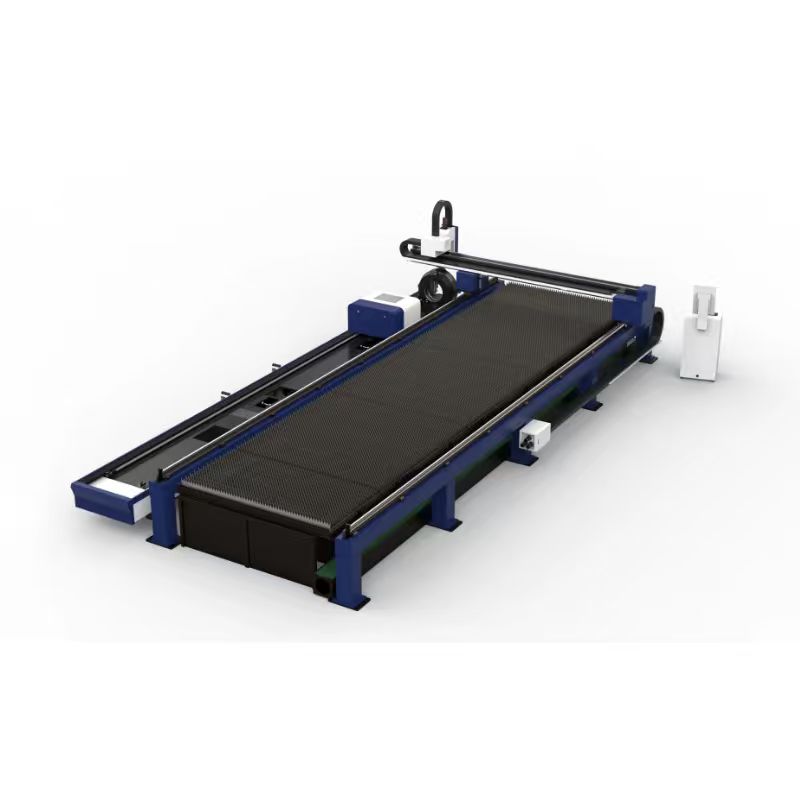

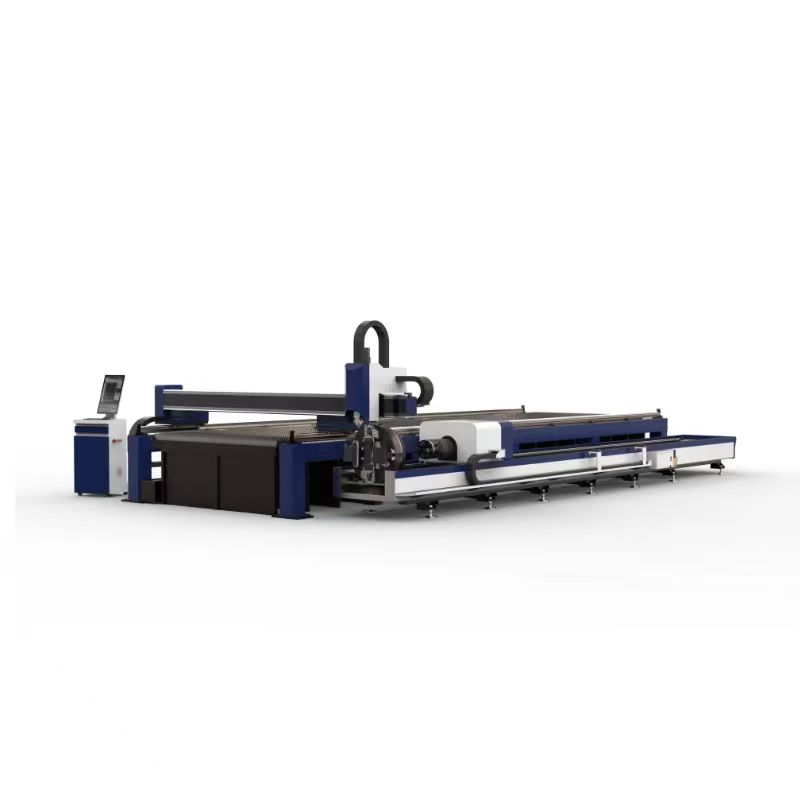

2025 CNC Fiber Laser Cutting Machine Gantry Type For Sheet Metal Pipe Tube Plate Laser Cutting Sheet Pipe Supports AI 3D

Product Overview

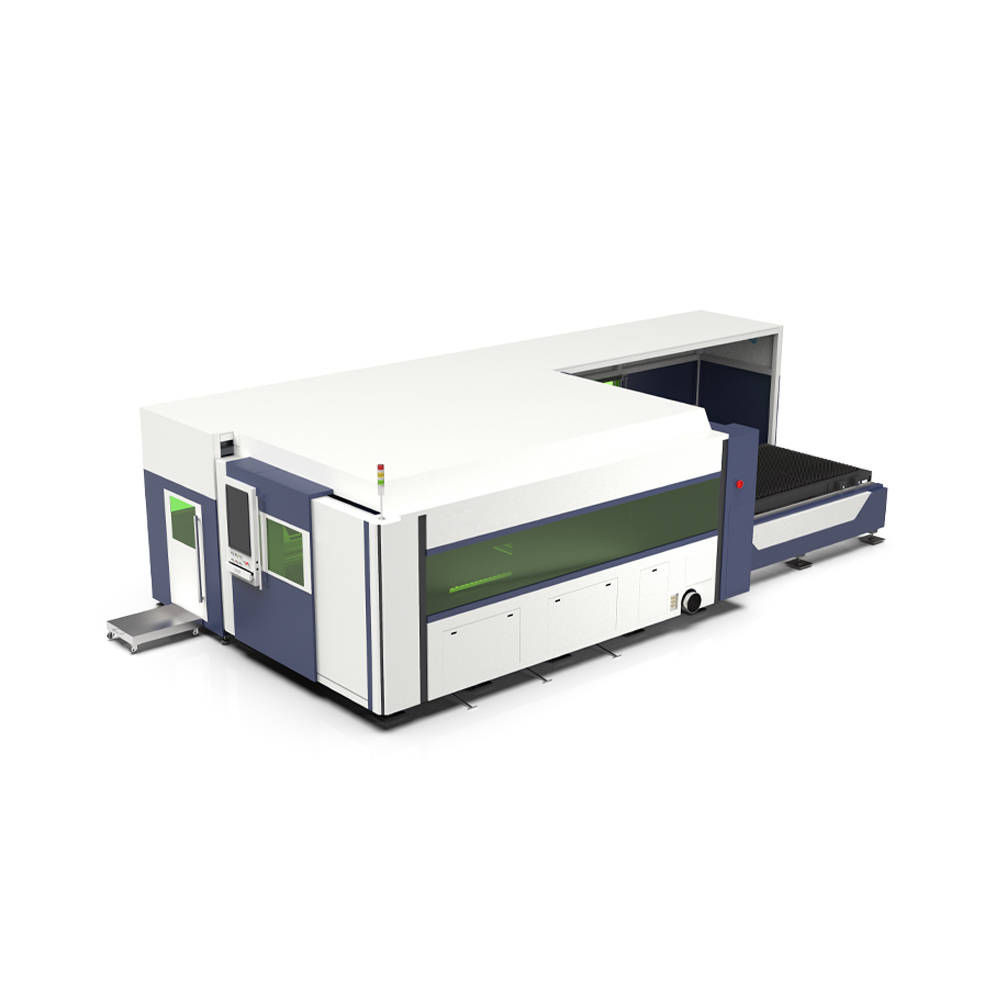

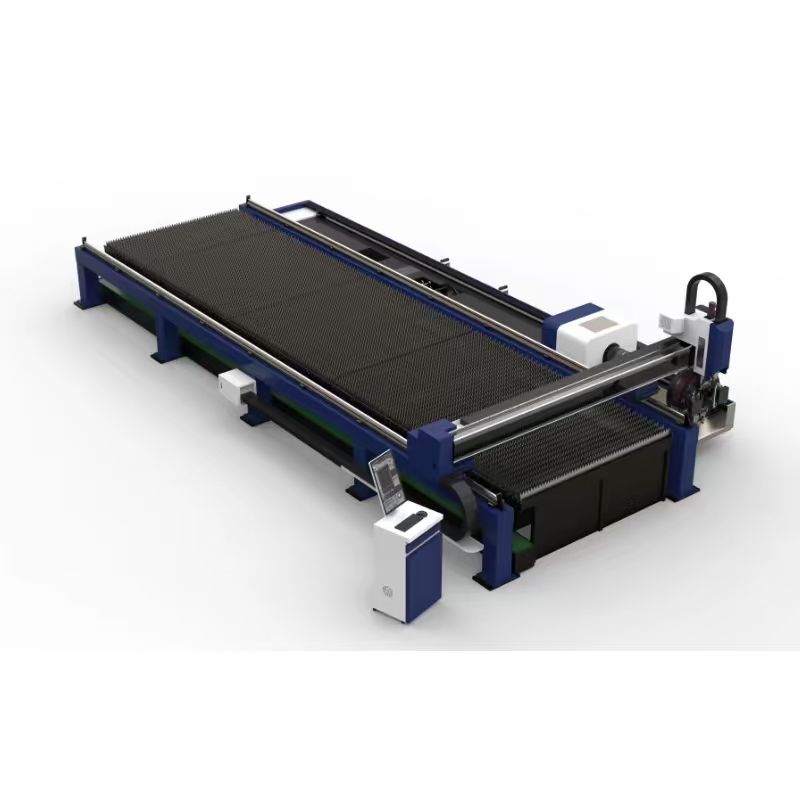

Cylion High Power Fiber Laser Cutting Machine

Cylion Versatile JLMS series plate and tube integrated laser cutting machine has multiple functions and can cut sheet metal and metal pipes. Thanks to JLMS's safe and reliable conversion of plate and tube cutting function, it has multiple functions, stable machining accuracy, efficient cutting ability, accurate positioning, and solves the cutting scheme of multiple types of workpieces. It can save more than 50% of space and bring higher production efficiency. It is a multifunctional laser cutting machine with high cost performance. 1500W ~ 8000W optional.

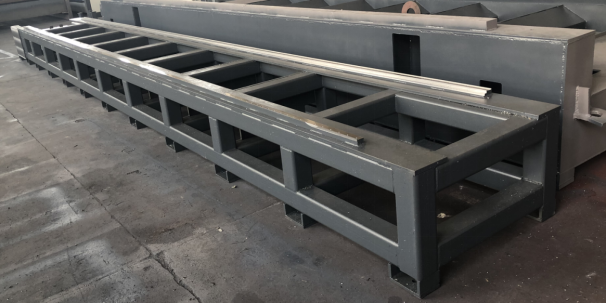

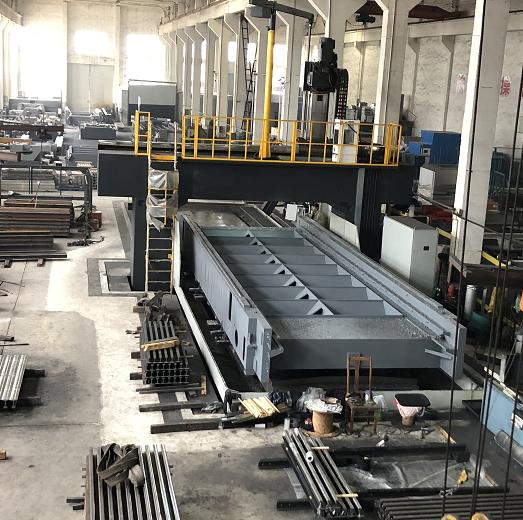

Heavy Duty Machine Body

Plate Welding with Stiffener Inside

Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That’s why top brand machines body all are plate welding design.

Machines over 6 meters are welded with 16mm and 20mm steel plates. We promise that our customers' machine tools will not deform in ten years, and the quality is the best advertisement.

Formats & Cutting Capabilities

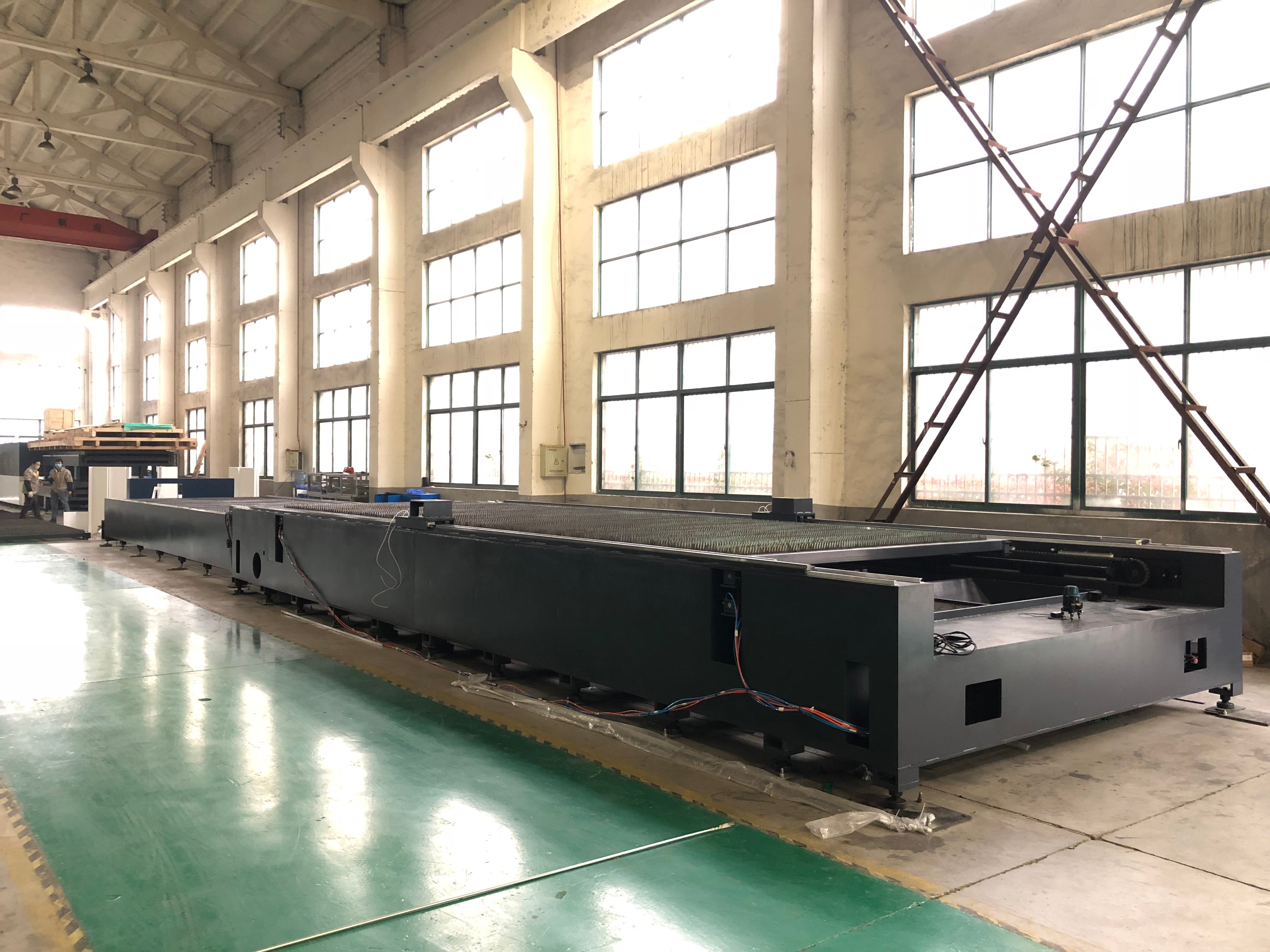

Cutting Ultra-large Format

Formats Available: 3000x1500mm, 4000x2000mm, 6000x2500mm, 8000x2500mm

High-Power Capabilities

Cutting Power: 1500W-8000W
Cutting Thickness: ≤80mm

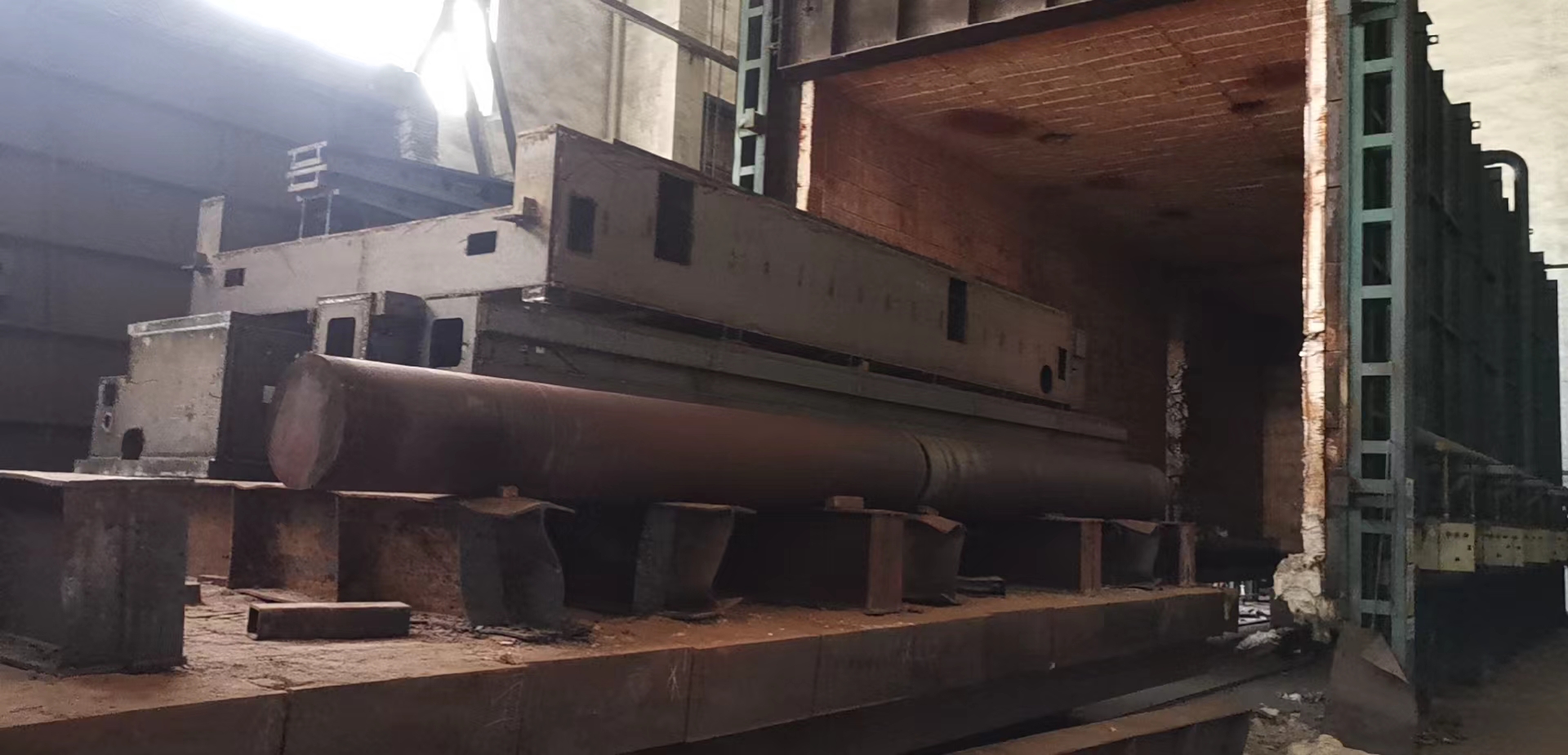

Annealing Stress Process

Own large equipment steel structure heat treatment furnace annealing treatment, Completely eliminate internal stress, plate welding structure Multi-process lean processing, long-term use without deformation, no migration, Ensure high precision cutting.

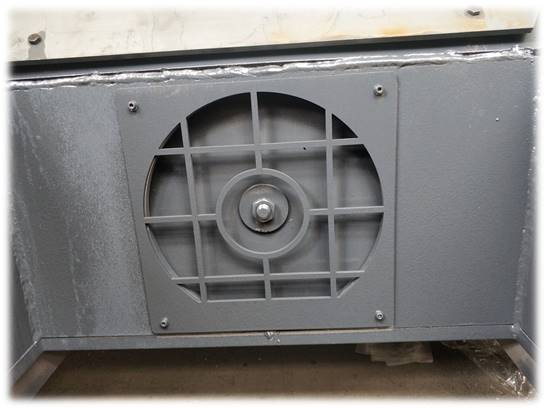

Dust Removal Channel

The cutting area adopts the partition dust removal design, with large air volume dust removal, filtration system, clean dust removal thoroughly, green environmental protection.

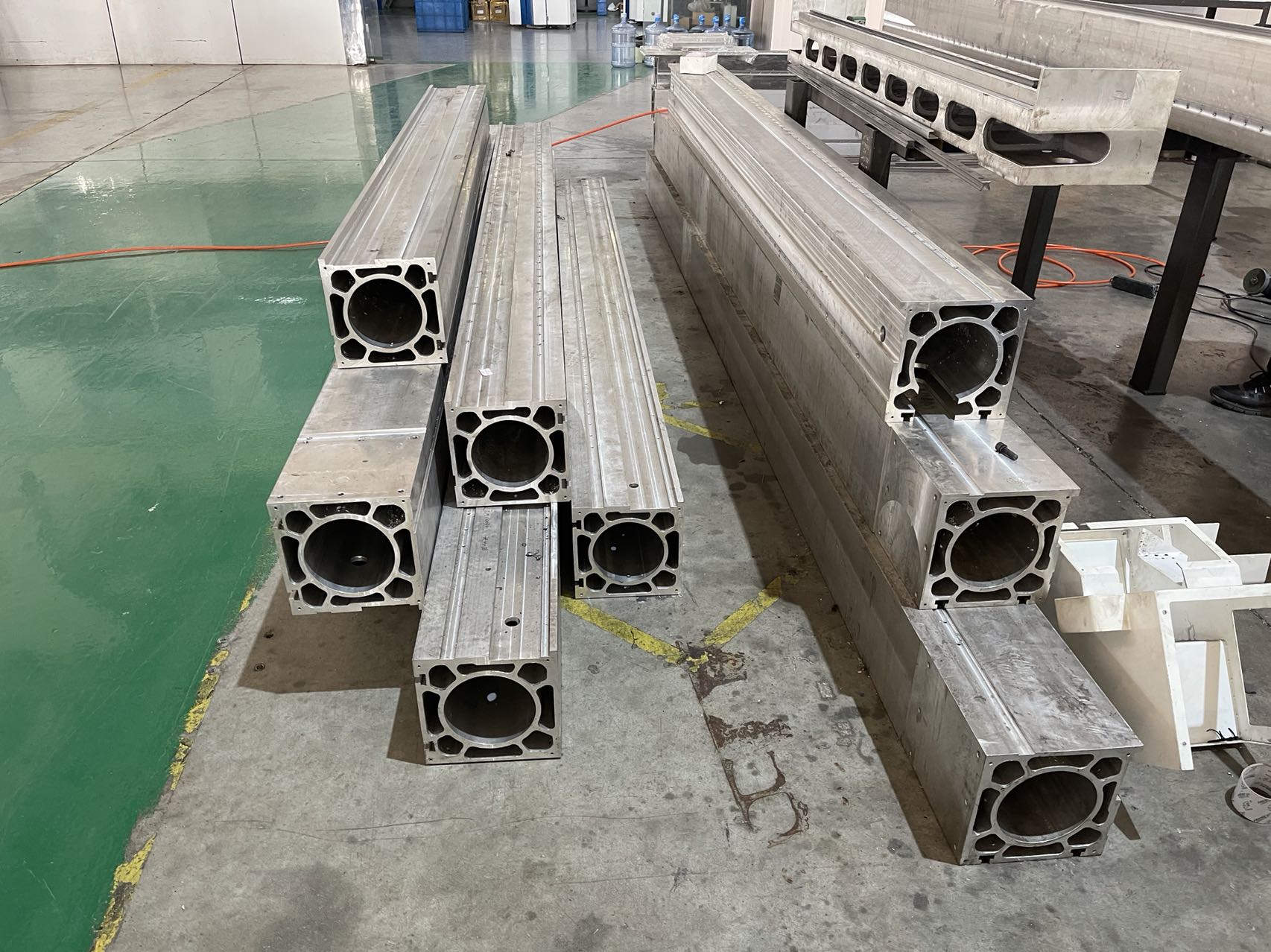

Aviation Aluminum Gantry Beam

Overall Aluminum Casting Method

Lightweight gantry design of aviation aluminum, cutting freely, high-speed operation with small inertia, speed and acceleration switch freely, quick action response, accurate control.

Tempering and annealing eliminate internal stress, guaranteeing the strength, rigidity, and stability of the beam. The precision of the beam is maintained long-term, providing an effective foundation for high-speed laser cutting.

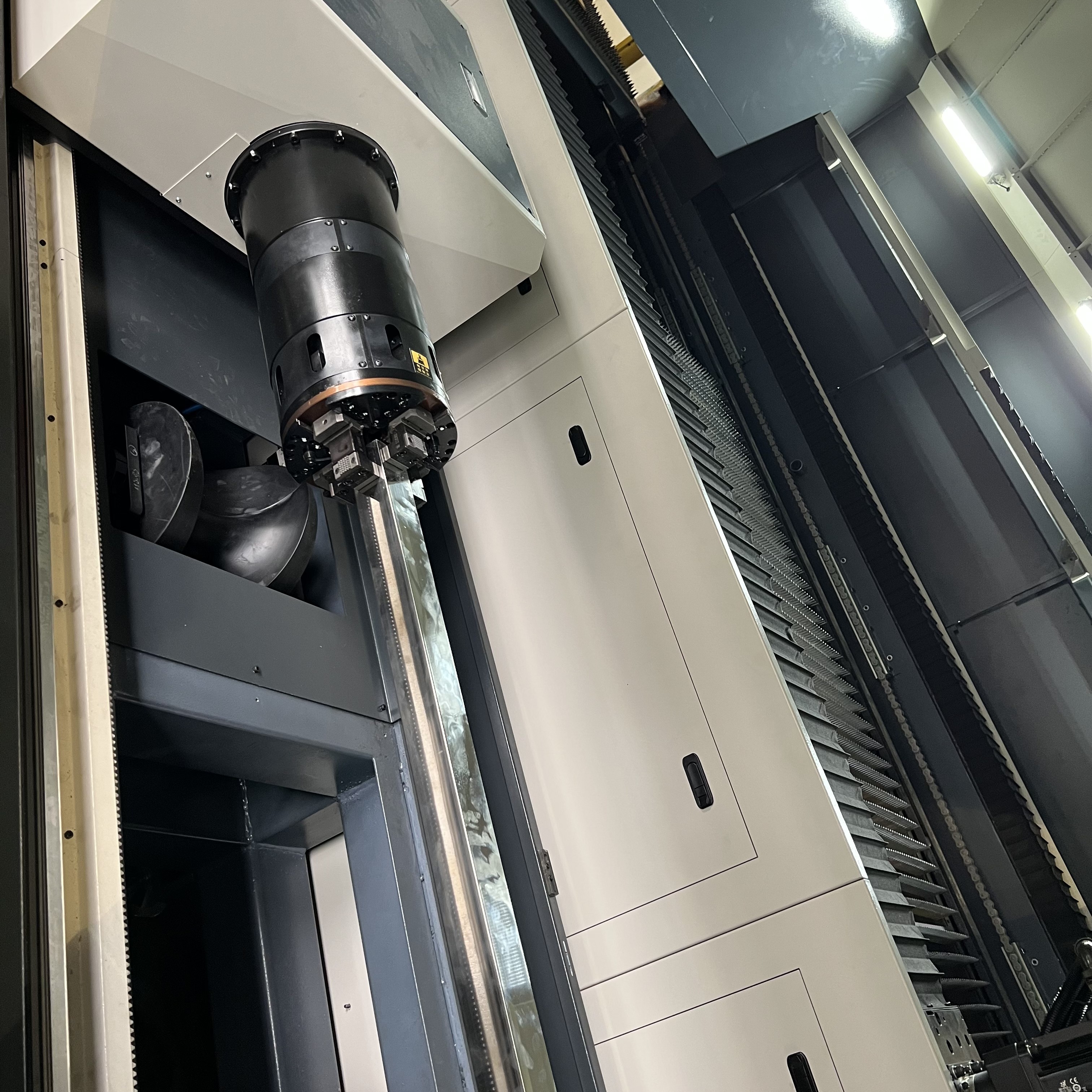

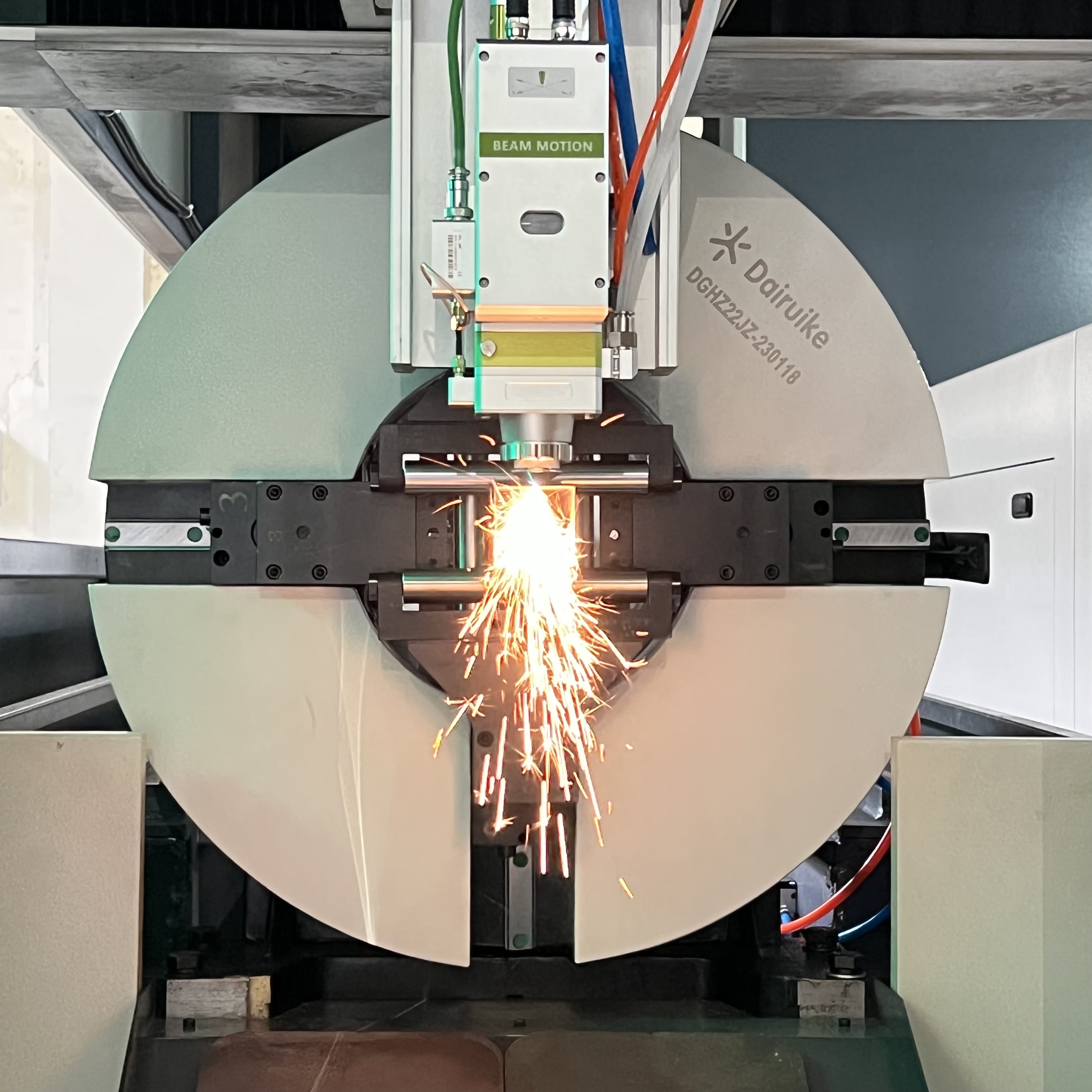

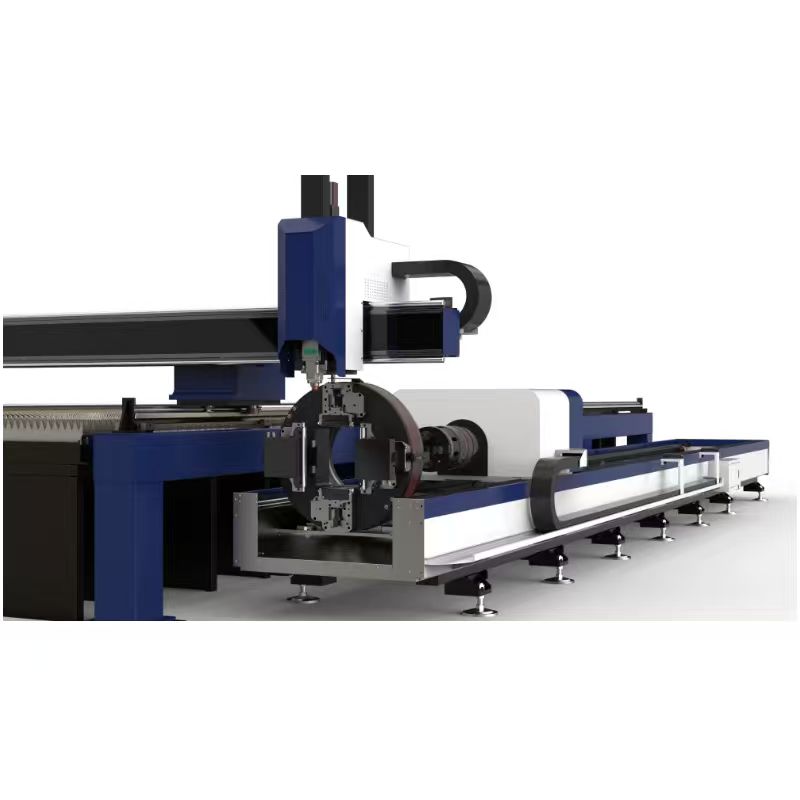

Double Pneumatic Chucks

Fast & Secure Clamping

2~3 times faster than traditional electric chucks. 2 rows of rollers are adopted for a wide range of clamping and high cutting precision. Dual support frame for 6m tube. Dual motive chucks are compatible with a variety of pipes with no need to replace or adjust clamps. Special support avoids sagging and deformation of pipes, improving cutting accuracy and prolonging the service life of the chuck.

Pneumatic Chuck Precision

Pneumatic clamping opening, large and constant clamping force, no looseness and slip of heavy pipe, ensuring cutting accuracy. Versatile setup cuts pipes with ease. It can process square pipe, rectangular pipe, L, U and H profiles.

Processing Dimensions:
Round pipe: Φ 50mm-360mm
Square pipe side length: 50*50mm-250*250mm

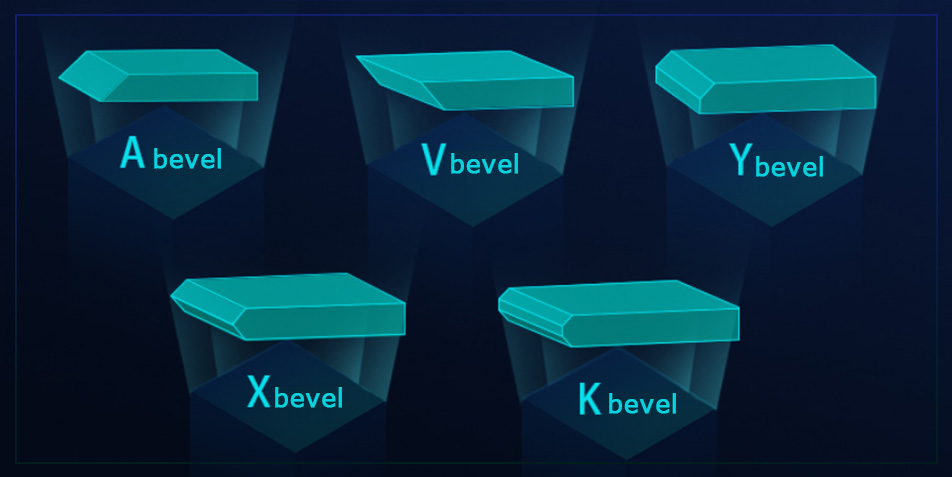

Bevel Cutting Precision

Multi-Angle Molding

A variety of types of bevel molding. Meets the requirements of any groove of A / K / Y / X / V types less than 45 degrees.

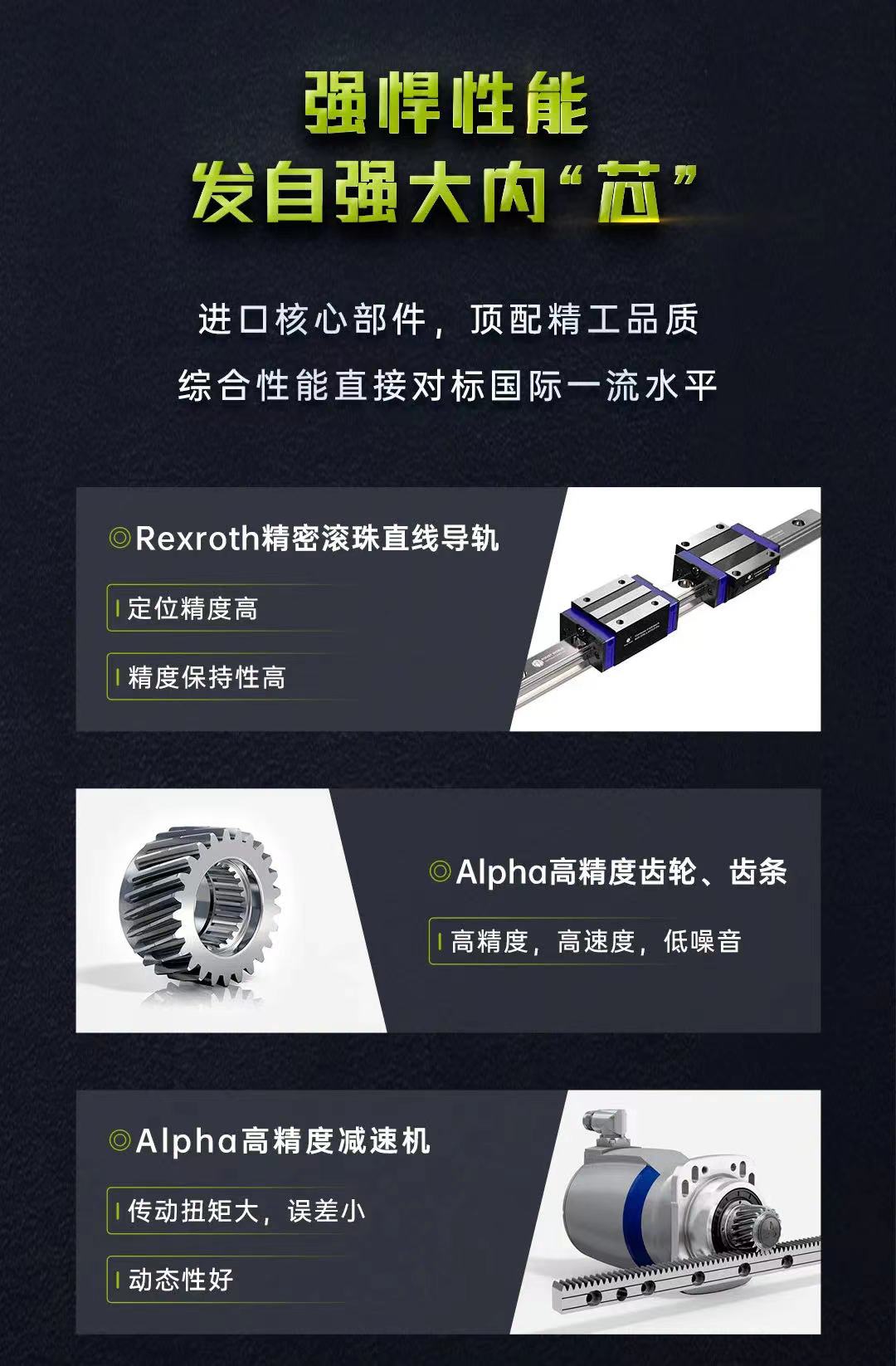

Premium Core Components

Linear Guide

High positioning accuracy and high accuracy retention.

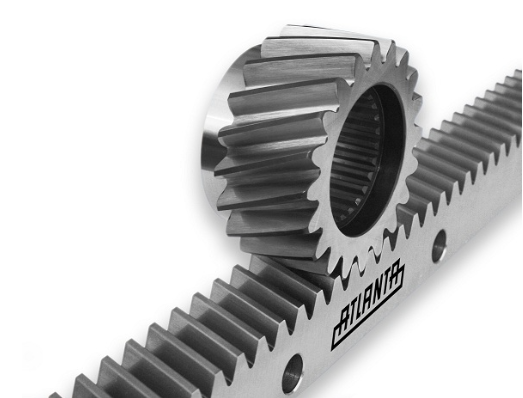

Pinion and Rack

High precision, high speed, and low noise operation.

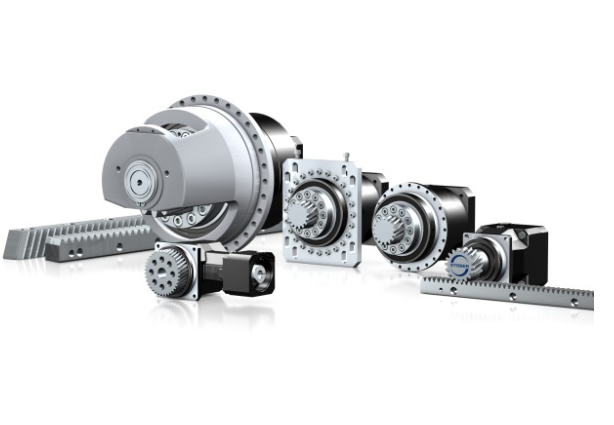

Reducer

Large transmission torque, small error, and good dynamic performance.

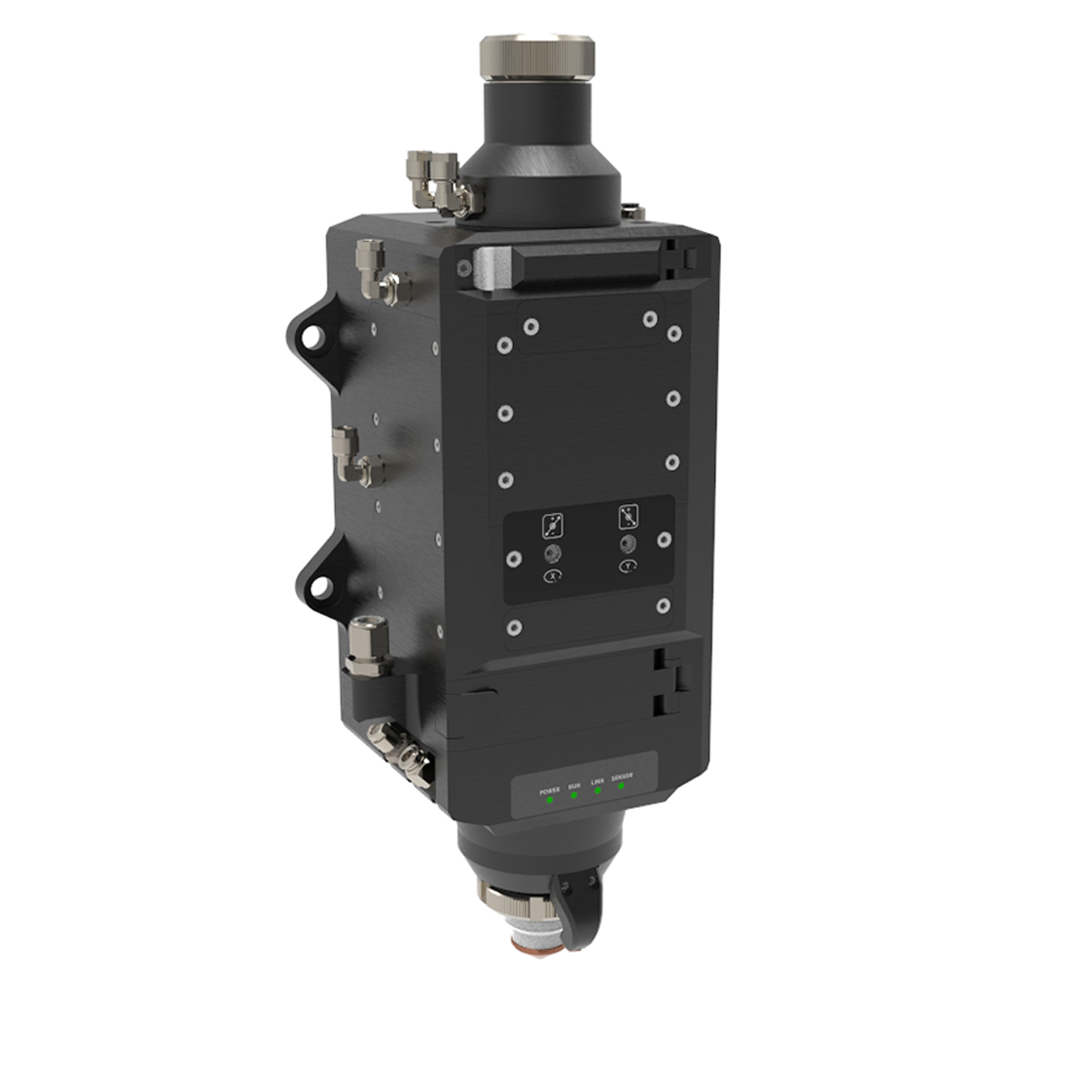

Laser Cutting Head

Automatic height sensing, autofocus, and remote assistance compatibility for lower operational costs.

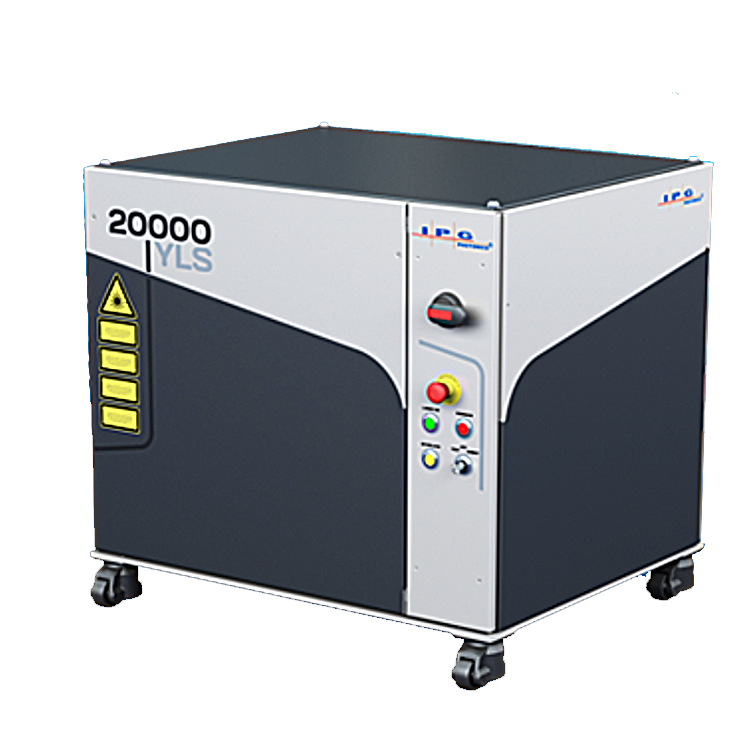

Fiber Laser Source

Electro-optic conversion rate exceeds 35% with excellent beam quality.

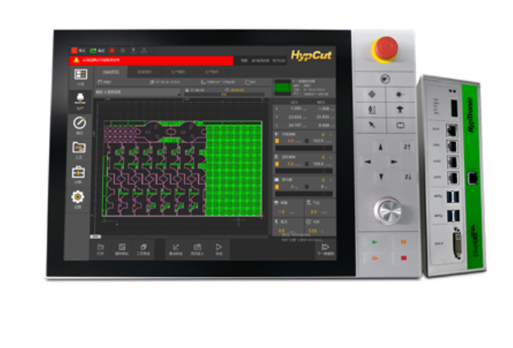

Control System

Bus control configuration to improve efficiency. Powerful and easy to operate.

Every item in our products has a variety of brand models to choose from. You can specify your requirements for custom configurations.

Technical Specifications

Model	3015	4020	6015	6020	8025
Processing format (L x W)	3000×1500mm	4000×2000mm	6000×1500mm	6000×2000mm	8000×2500mm
X-axis stroke	3050mm	4050mm	6050mm	6050mm	8050mm
Y-axis stroke	1550mm	2050mm	1550mm	2050mm	2550mm
Z-axis stroke	150mm	150mm	150mm	150mm	150mm
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Maximum acceleration	0.6 - 1.2G
Laser power	1500W - 8000W (Optional)

*All technical parameters are subject to the latest technical solutions.

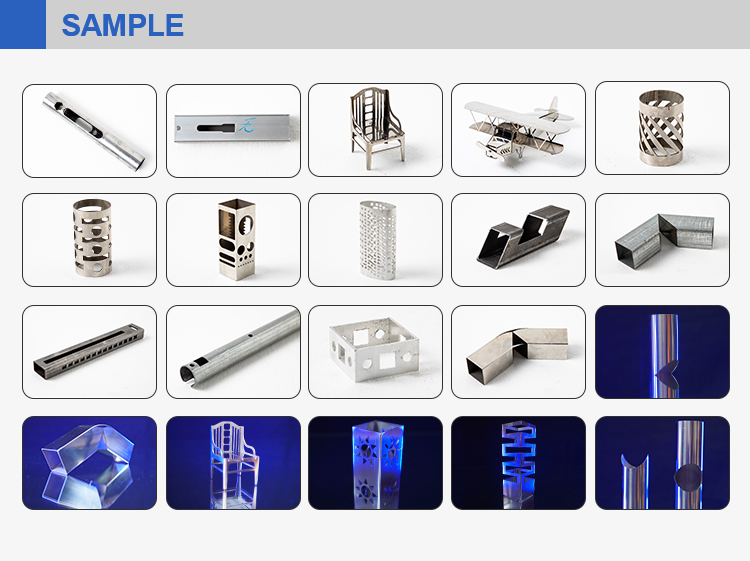

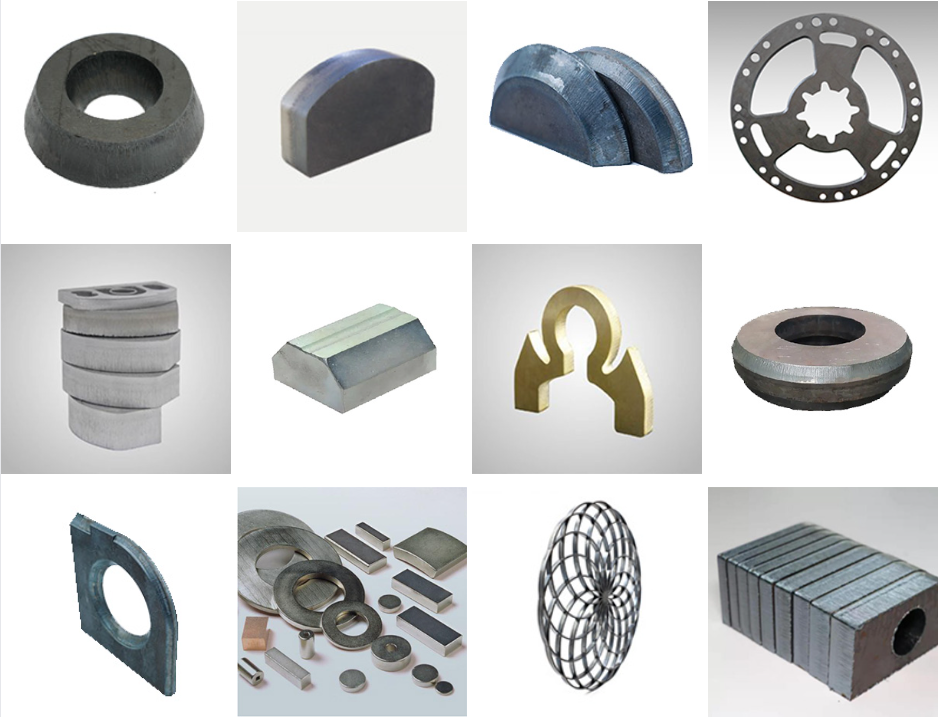

Cutting Samples

The straight cutting effect of the thin plate can reach the quality of the plane machine. Maximum ±45 degree bevel, can be cut with gradient bevel. Can meet various types of groove requirements.

Metal Materials & Application Industries

Suitable Metal Materials

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Application Industries

Fiber laser cutting machines are widely used in the automation industry, advertising, kitchenware, sheet metal processing, cabinets, fitness equipment, aviation, aerospace, electronics, electrical appliances, subway parts, automotive, food machinery, textile machinery, engineering machinery, precision parts, shipbuilding, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, and decorations.

Certifications

Our equipment holds CE, ISO, SGS and other international standards certificates, ensuring safety, quality compliance, and reliable operation.

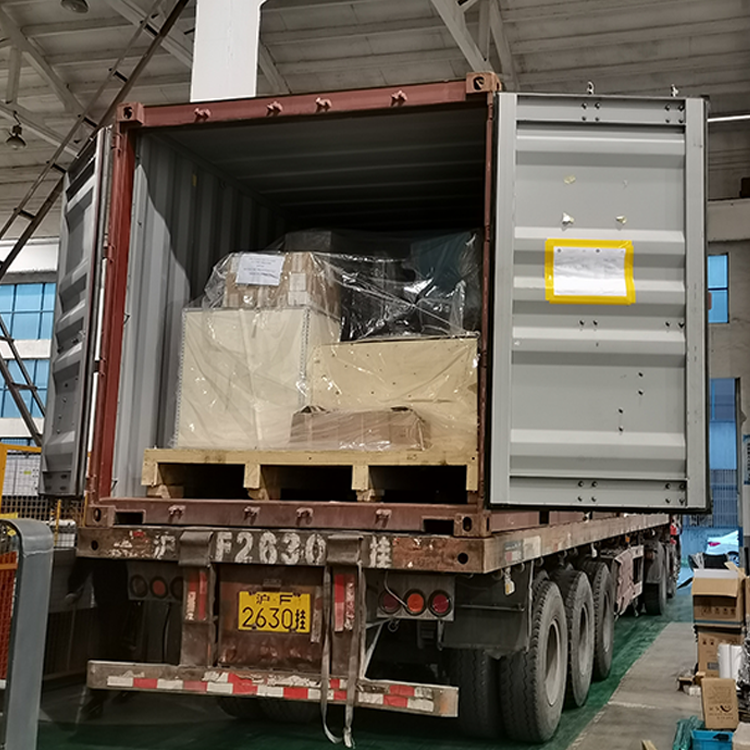

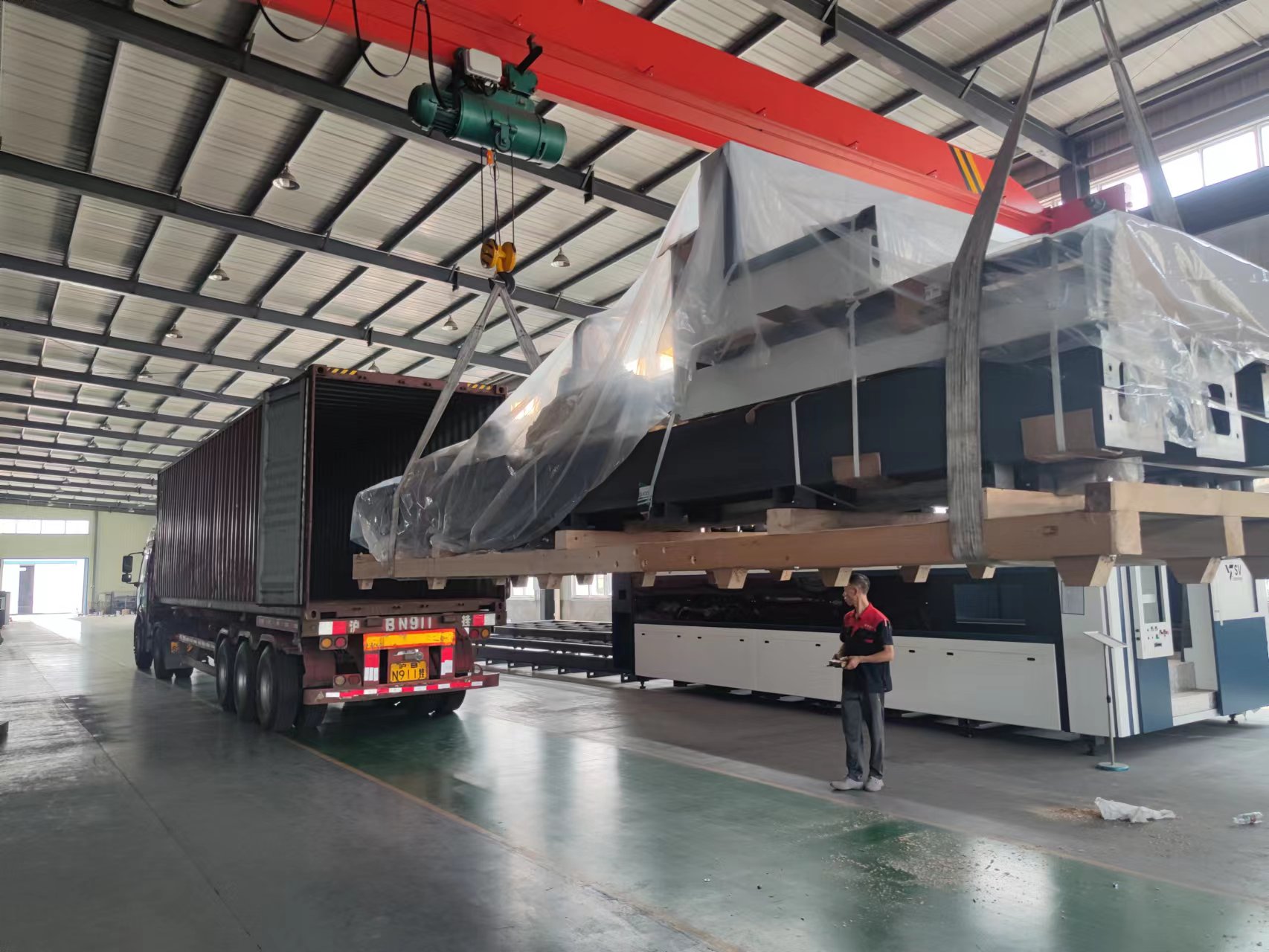

Packaging & Transportation

We review our product packaging with a focus on waste-reduction, resource-saving, and optimal transport protection.

Our wooden case is after fumigation treatment. Needs no timber inspection, saving shipping time.

All spare parts of the machine are covered by soft materials, primarily using pearl wool.

The outermost layer is a wooden case with fixed formwork.

The bottom of the wooden case features a firm iron jack, convenient for handling and transport.

Frequently Asked Questions (FAQ)

I know nothing about this machine, what kind of machine should I choose?

It is very easy to choose. Just clarify what you want to achieve by using a CNC laser machine, and we can provide configuration solutions and suggestions based on your materials and production requirements.

How can I choose the most suitable machine?

Please identify what kind of processes you want to perform (engraving, cutting, or marking), the types of metals you work with, your required maximum cutting thickness, and the necessary workspace size.

What should I do if I don't know how to operate the machine after receiving it?

An English user manual is supplied with the equipment. We also coordinate with technical staff to assist you with installation and setup. If needed, on-site maintenance services are also available for commissioning and training.

If problems occur during the warranty period, how are they resolved?

We supply replacement parts free of charge during the warranty period if the machine encounters performance issues. Lifelong after-sales technical service is also provided.

Can I get samples before placing an order?

Yes, we are pleased to prepare and offer cutting samples based on your specifications.

What metal materials can this fiber laser cutting machine process?

This machine is suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and various other metals.
