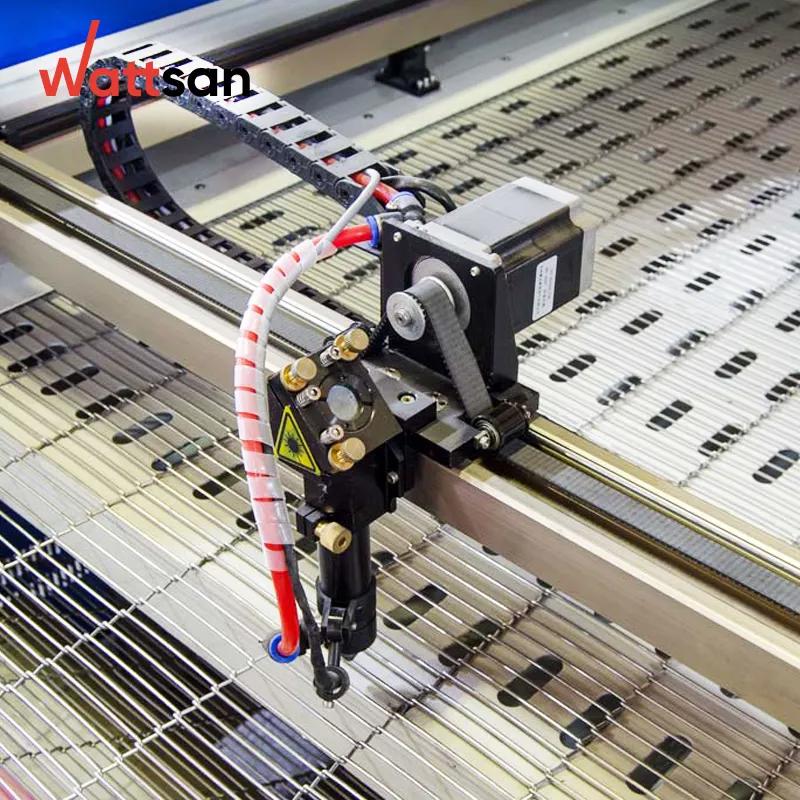

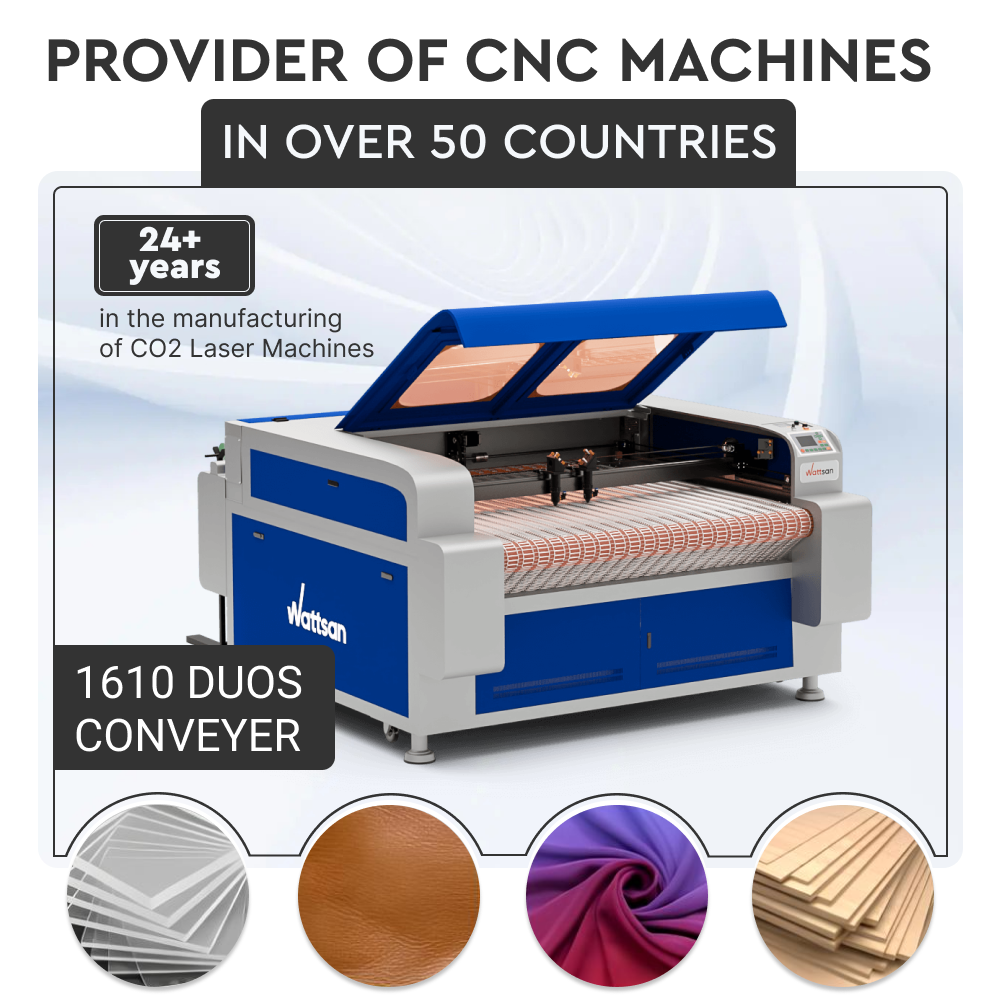

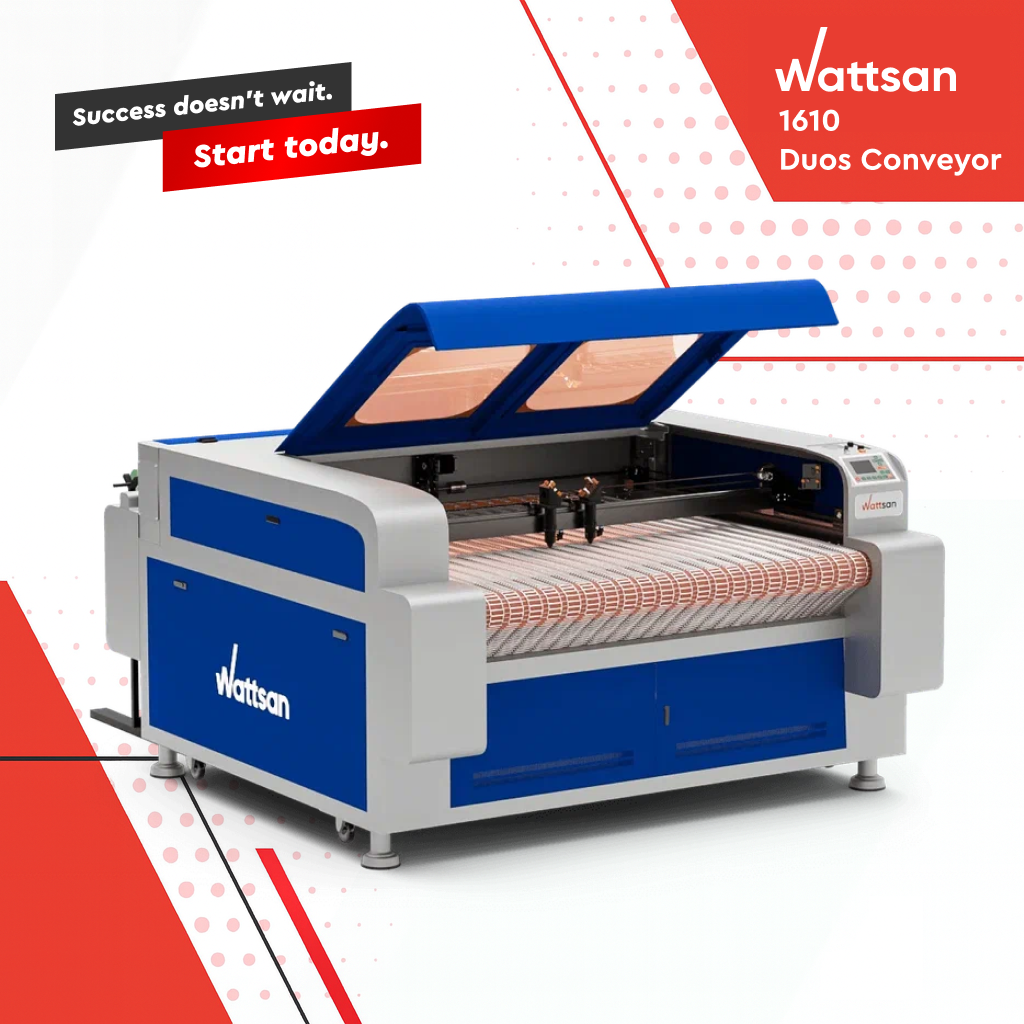

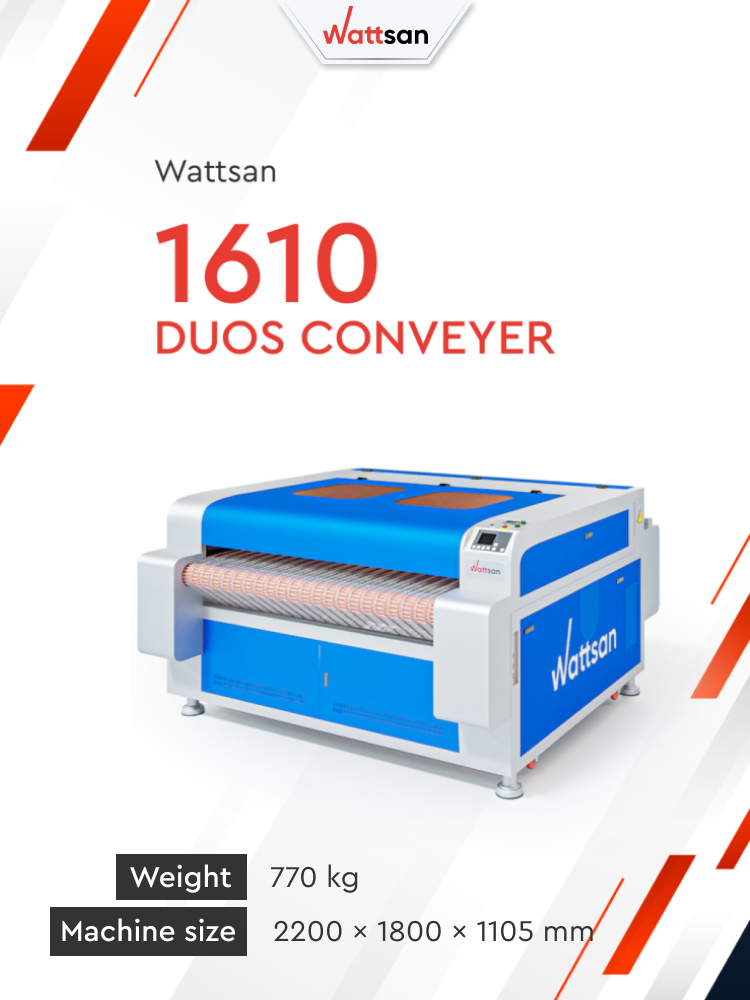

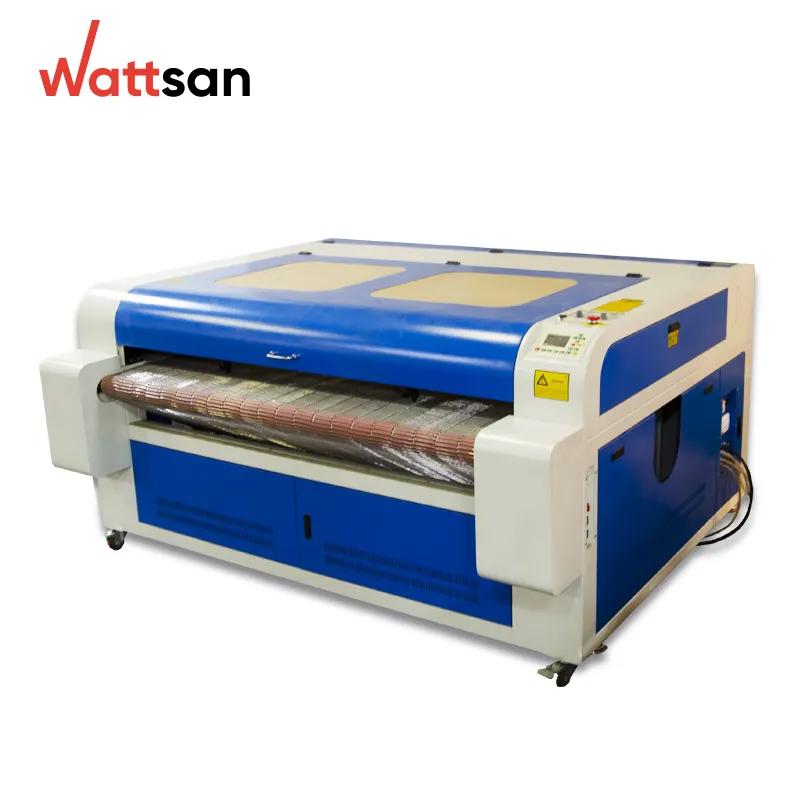

The 1610 Duos Conveyor CO2 laser cutting machine is a high-efficiency solution tailored for textile businesses, souvenir manufacturers, and small-batch production. Equipped with two laser heads and a conveyor table, it provides high-speed continuous cutting of fabrics, leather, eco-leather, felt, and other rolled materials. The working area of 1600×1000 mm perfectly fits standard fabric rolls up to 155 cm, making it ideal for apparel, accessories, or home textiles.
The dual-head configuration doubles productivity, while the conveyor system enables automated feeding and seamless operation without manual repositioning. Beyond textiles, the machine also handles wood, acrylic, cardboard, rubber, and plexiglass, offering full flexibility for engraving and cutting a wide range of materials.
Precision mechanics eliminate the issue of fabric shifting, allowing you to cut soft materials without additional fixing, reducing post-processing time and waste. Whether you're scaling up production or launching a new product line, the 1610 Duos is the perfect tool for fast, consistent, and precise laser work.
| Model | 1610 Duos Conveyor |

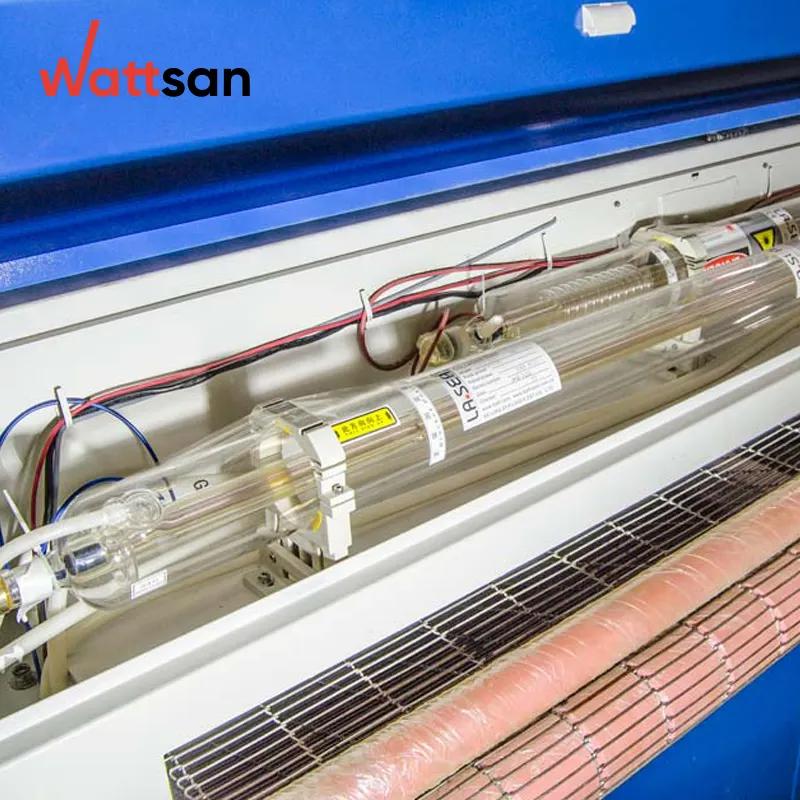

| Laser type | Sealed CO2 laser tube |
| Application | Cutting, engraving |
| Warranty | 1 year |
| Dimensions | |
| Working area | 1600 * 1000 mm |
| Machine size (L * W * H) | 2200 mm * 1800 mm * 1105 mm +315 mm |
| Packing size | 2300 * 1980 * 1200 mm |
| Weight | 770KG |
| Optics | |
| Laser power | 100-120W |
| Engraving depth | 3 mm |
| Max cutting thickness (wood) | 10-13 mm |
| Diameter of mirrors | 25mm |
| ZnSe lens | o20 f-50 |
| Focal length | 50mm |
| Laser tube life | 10000 h |
| Mechanics | |
| Table model | Net Table |
| Lifting table | No |
| Lowering depth of the work table | 40mm |
| Control system | Ruida 6445G |
| Cutting speed | 0-400mm/s |
| Engraving speed | 0-600mm/s |
| Cooling | Water |
| Electric power supply | 220V |
| Power consumption | 3500 |
| Through table | Yes (Y-axis) |
| X-axis structure | Roller metal, metal rollers |
| Y-axis structure | Roller metal, metal rollers |
| Engine on X | 57-H350C / SH |
| Engine Y | 57-H350C / SH |
| Engine for the second head | 57-H350B |
We will deliver the equipment according to the requirements convenient for you:
We are accountable for transportation from the factory to the indicated destination. Hence, all documents related to it are under our responsibility, such as way bill, invoice, packing list.
Package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Package.
We provide a complete documentation package for each country:
