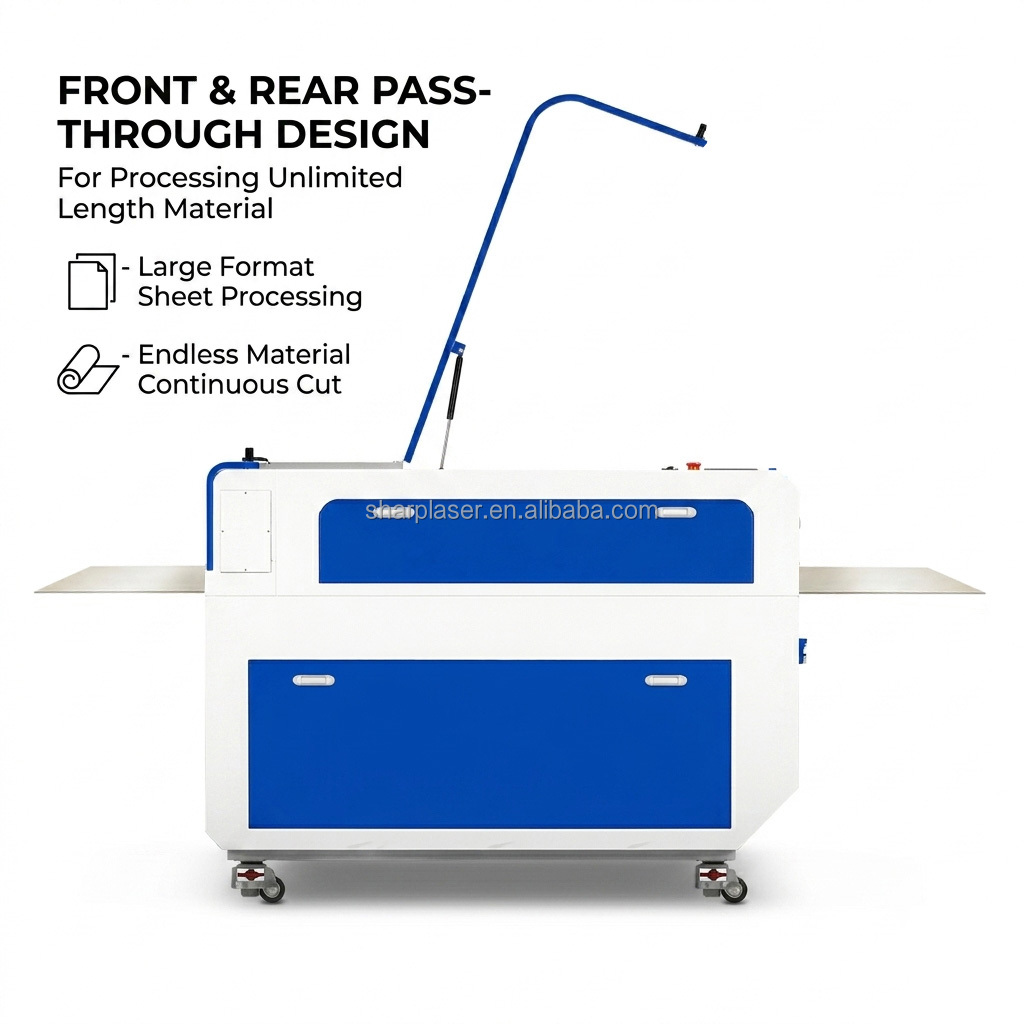

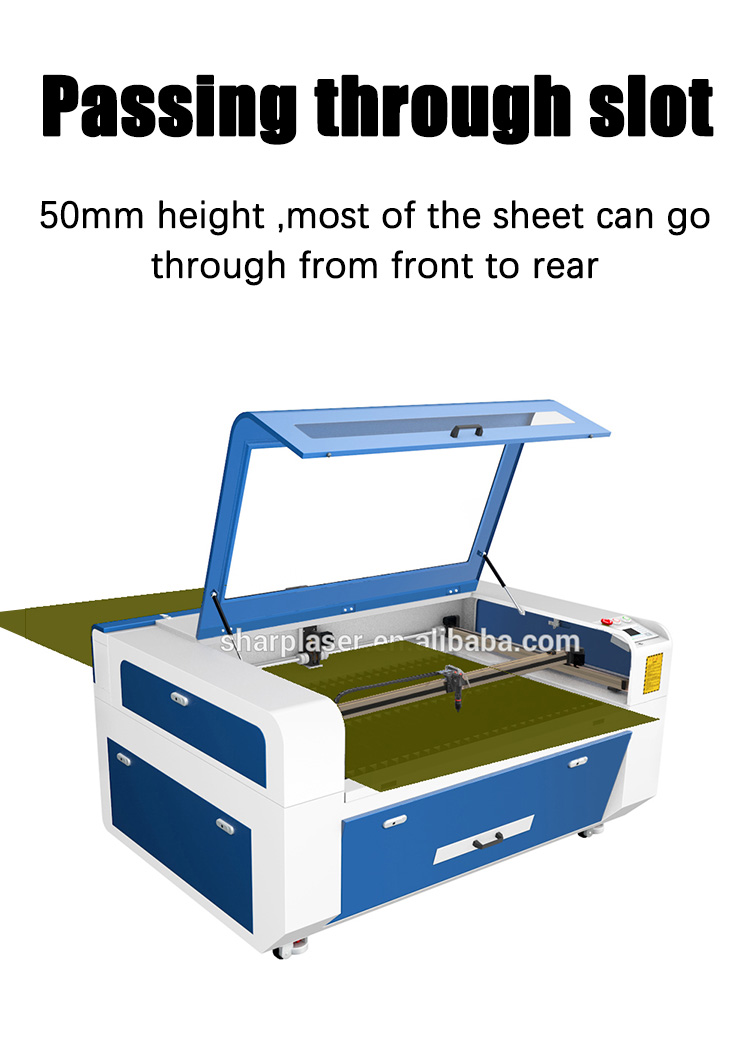

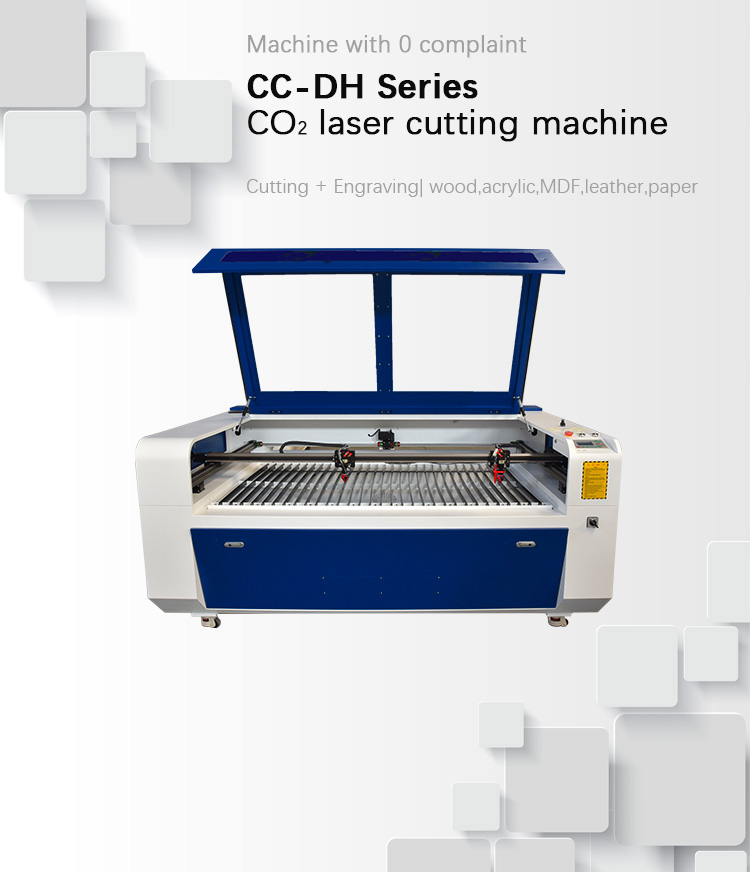

The laser cutter is a CO2 standing laser cutting machine designed for efficient processing of plastics, wood, textiles and many more. Available in different workstation sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.
| Material | Engrave | Cut |
|---|---|---|
| Acrylic | √ | √ |
| Glass | √ | × |
| Laminates | √ | √ |
| Leather | √ | √ |
| Paper | √ | √ |
| Plastics | √ | √ |
| Stone | √ | × |
| Textiles | √ | √ |
| Wood | √ | √ |
| Metal | × | × |

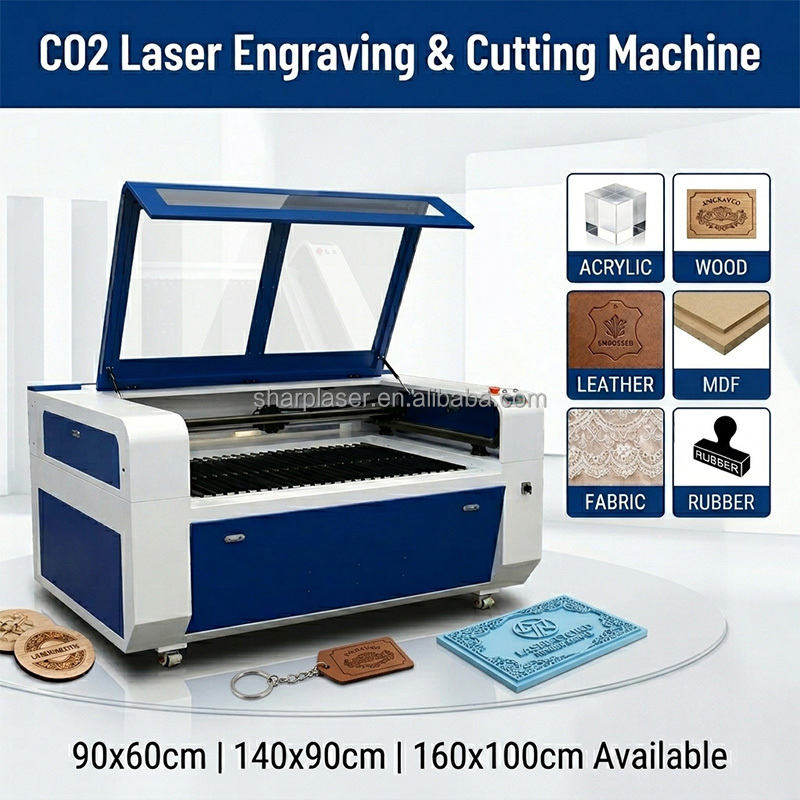

| Name | CO2 Laser Engraving Cutting Machines |
|---|---|
| Model | CC0906 / CC1409 / CC1610 |
| Working area | 900*600mm / 1400*900mm / 1600*1000mm |
| Laser power | 80W, 100W, 130W, 150W |
| Laser type | CO2 laser tube, RECI brand, >10000 hrs service life |

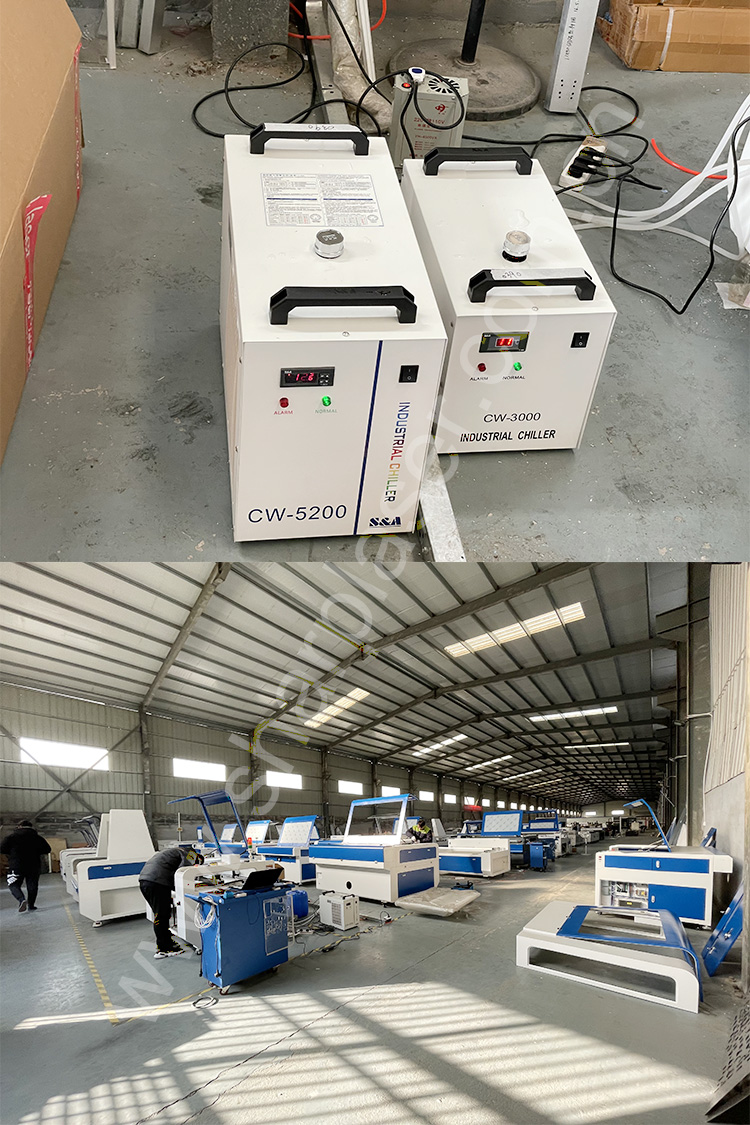

| Cooling ways | Water cooling |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-40000mm/min |
| Laser output control | 0-100% controlled by software |
| Min engraving size | English letters, 1*1mm |
| Scanning resolution | 4000DPI |
| Locating accuracy | ≤0.01mm |

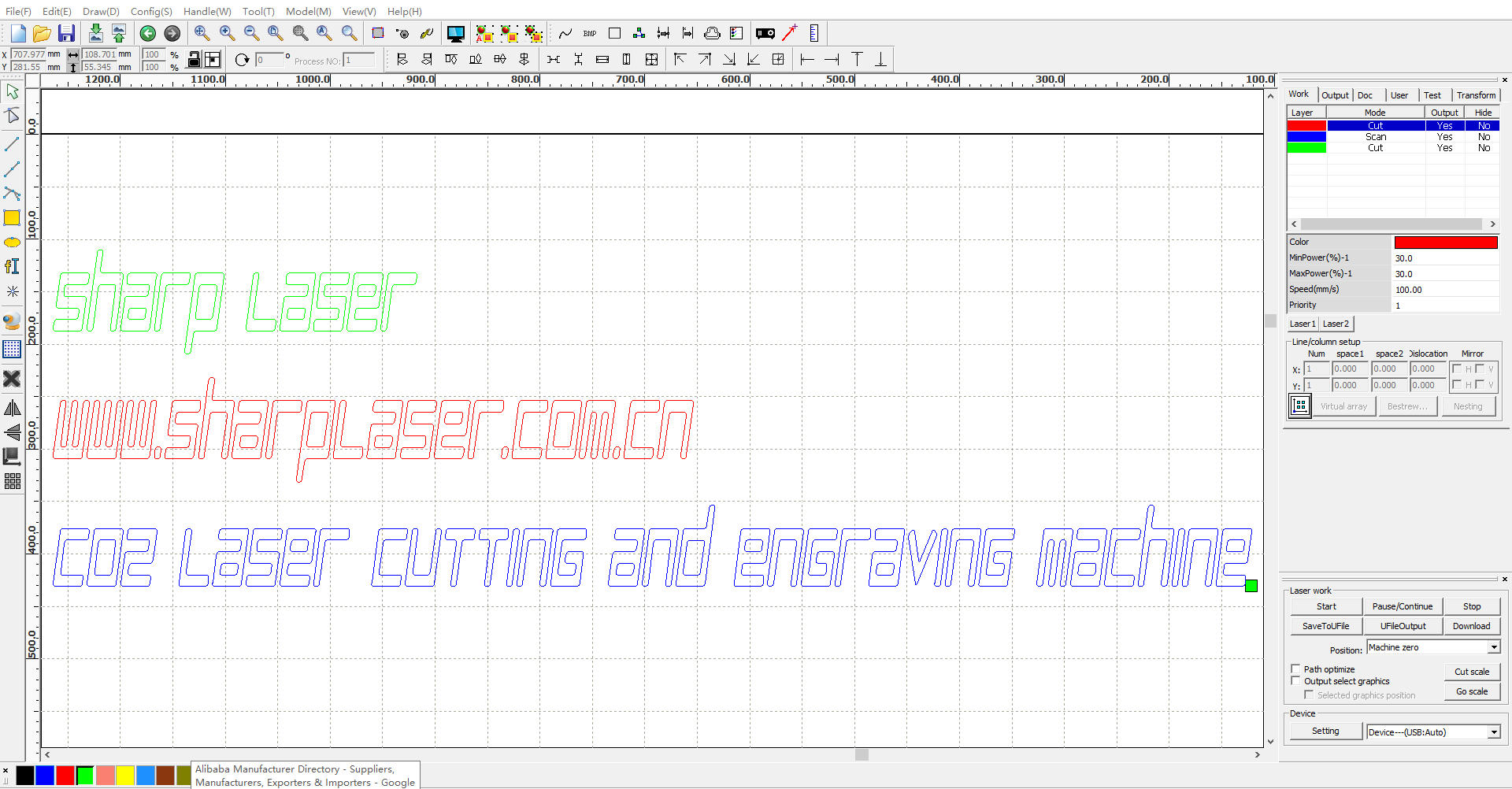

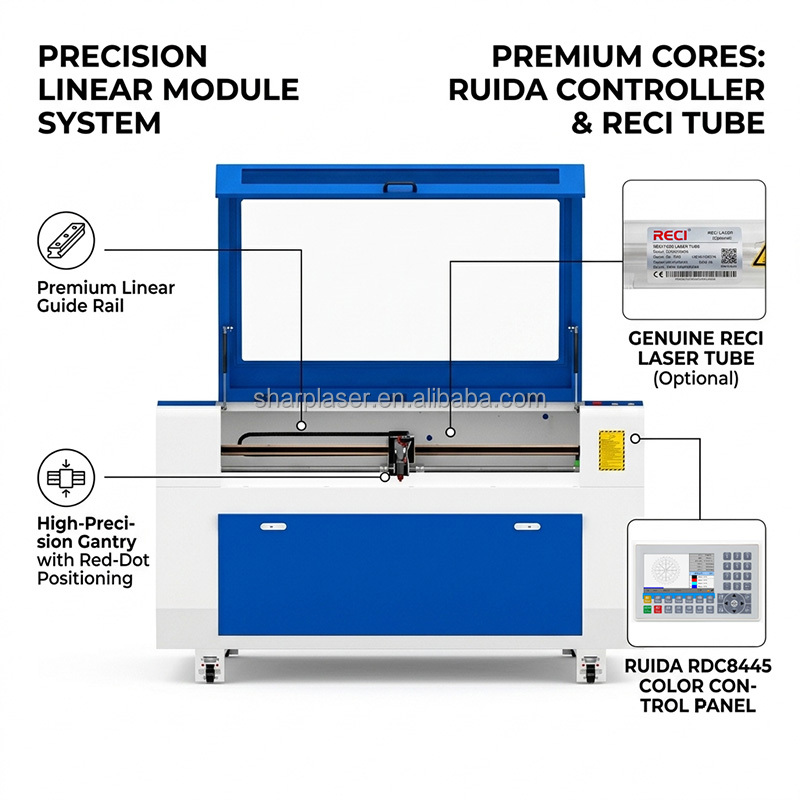

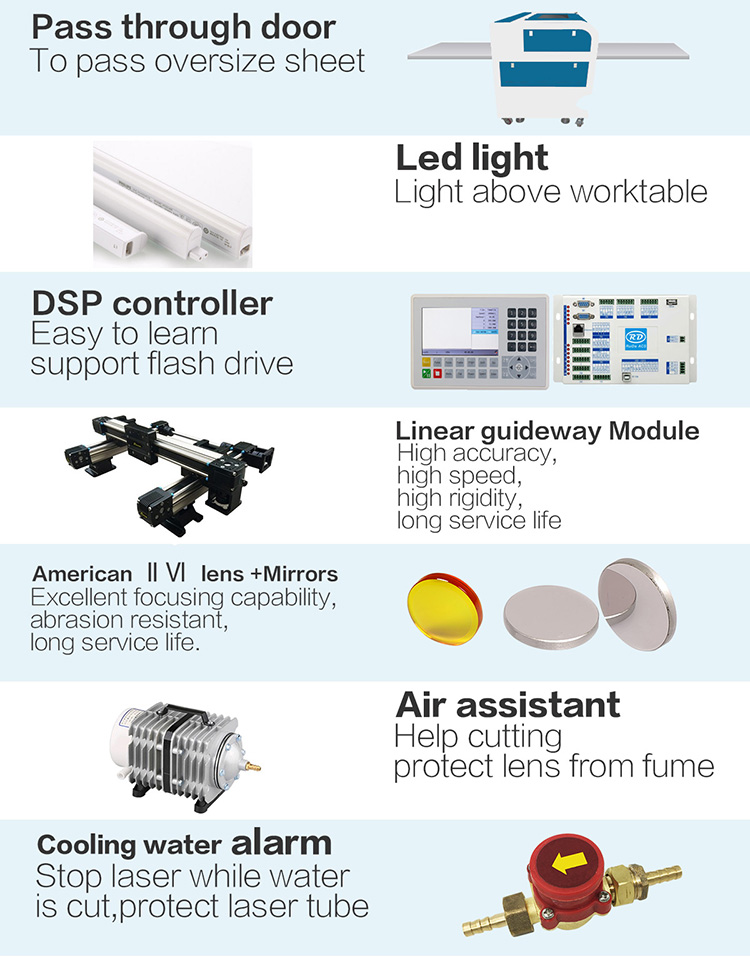

| Controlling software | DSP controlling system, RDWORKS V8 |
| Format supported | DST, PLT, DXF, AI, LAS, BMP, JPG, PNG, etc |
| Software environment | Windows XP / 7 / 8 / 10 |
| Compatible software | Coreldraw, Autocad |
| Color separation output | Yes |
| Slope engraving | Yes |

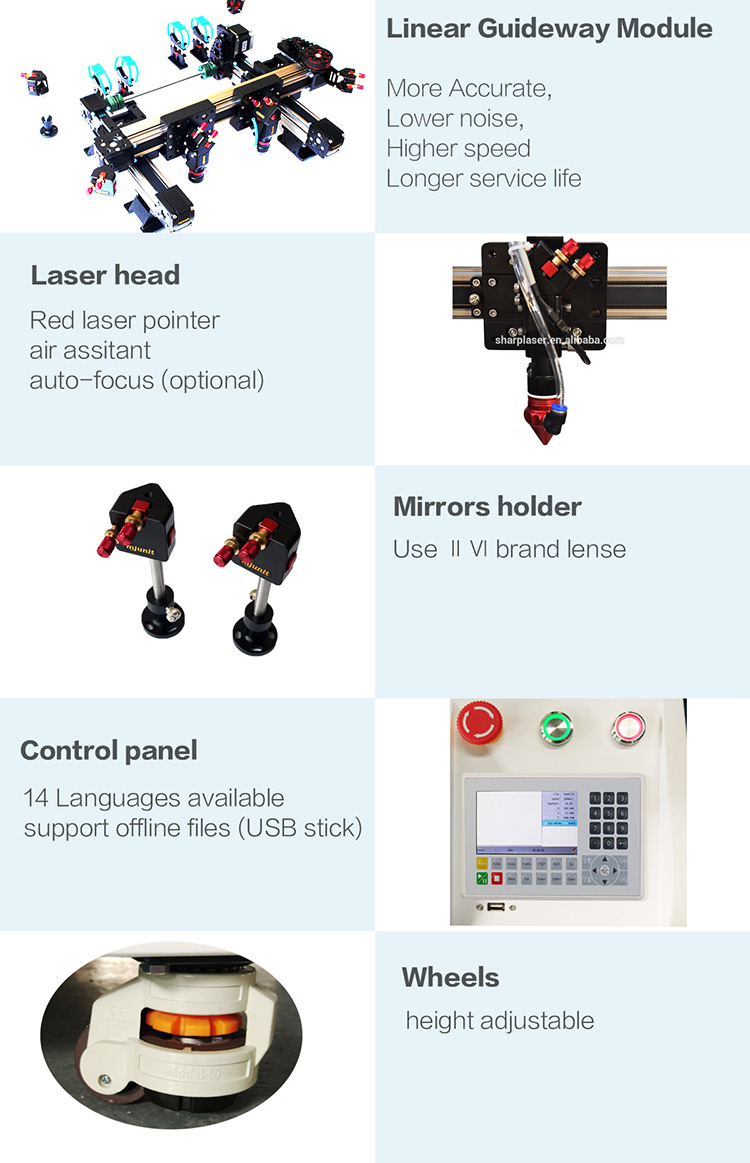

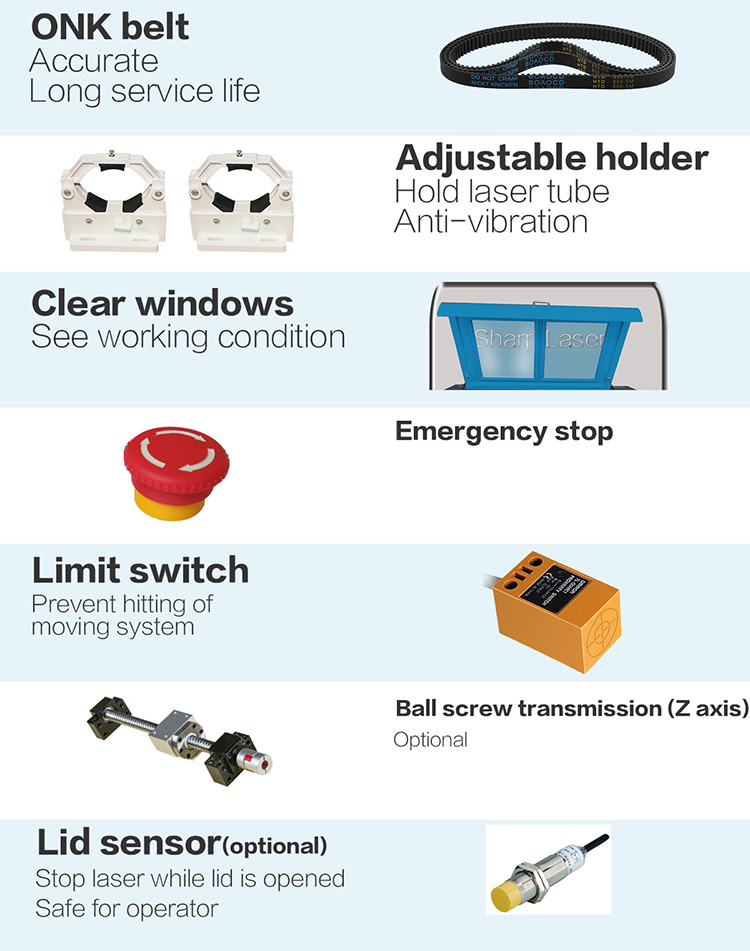

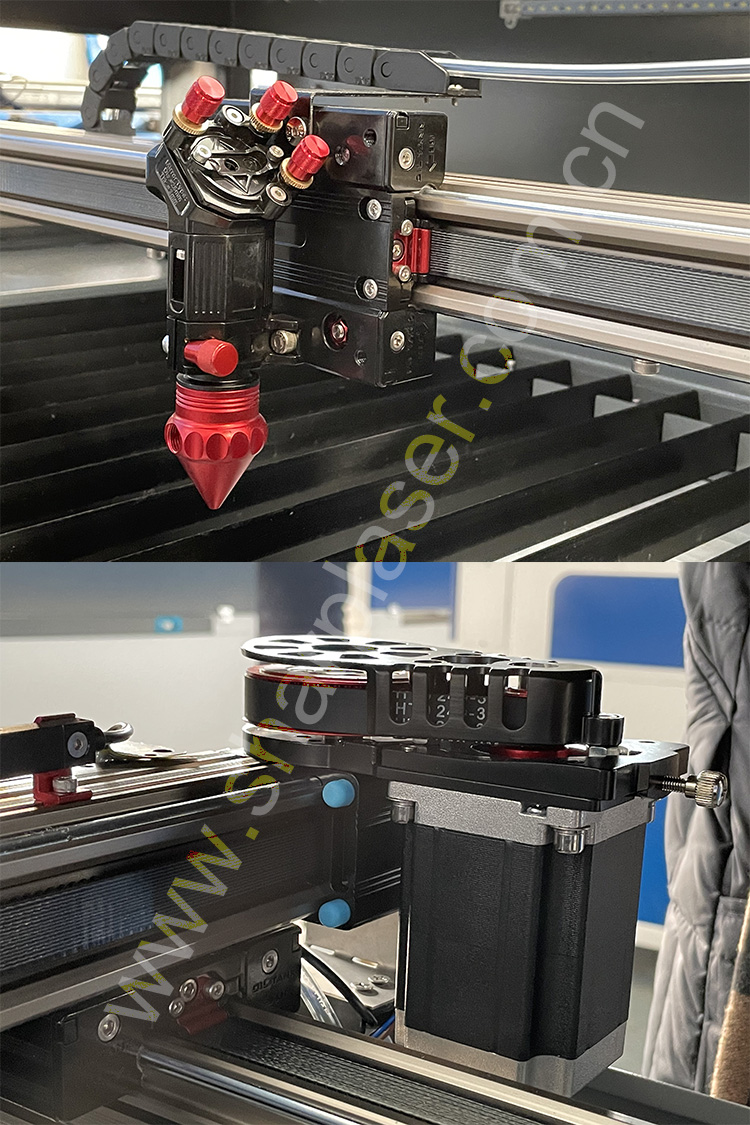

| Driving system | High precision stepper motor with belt |

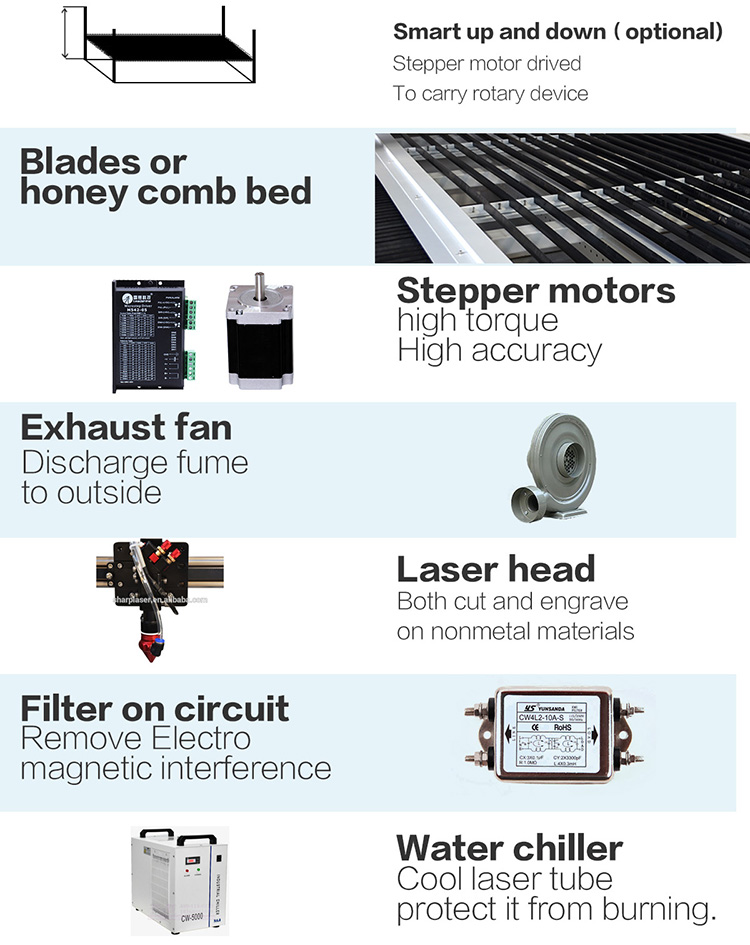

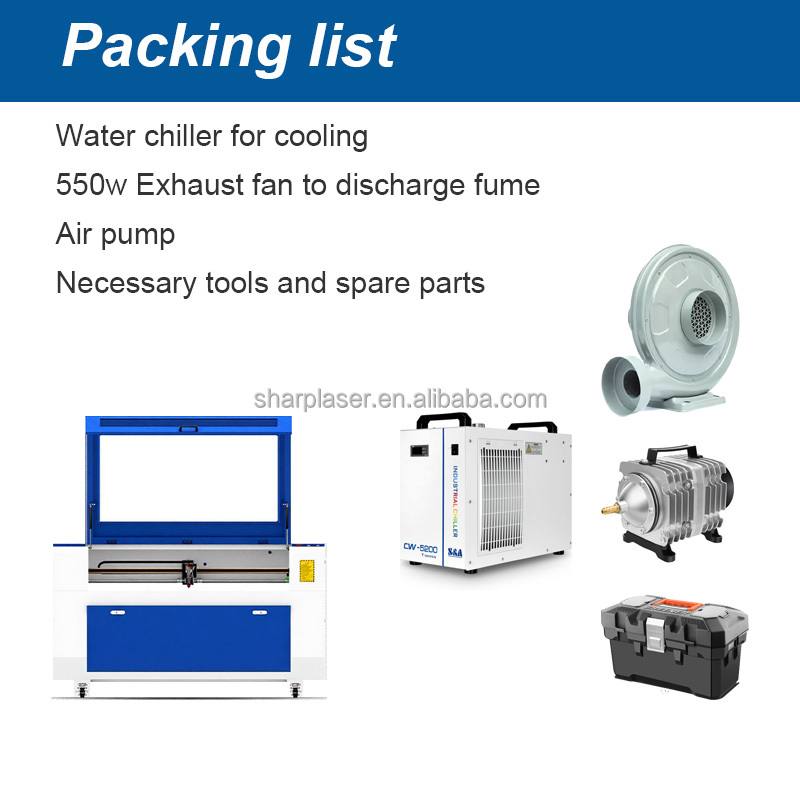

| Auxiliary accessories | Exhaust fan, fume tubes, air pump |
| Working table | Blades table or Honey comb |
| Applicable materials | Acrylic, wood, plywood, MDF, glass, stone, plastic, rubber, leather |
| Working environment | Temperature: 0-45°C, Humidity: 5-95% (no condensate water) |
| Power supply | 110V/220V, 50Hz/60Hz |
| Weight | 360kg |
| Dimension | 180*130*110cm |

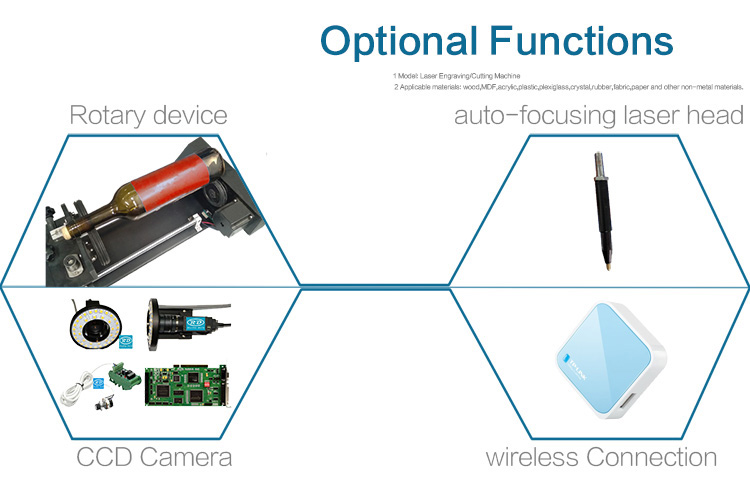

Wireless Smart Control: This machine can use Wifi control, eliminating the need for wire connections to the computer. A single computer can control multiple machines concurrently.
Applicable Materials: Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
