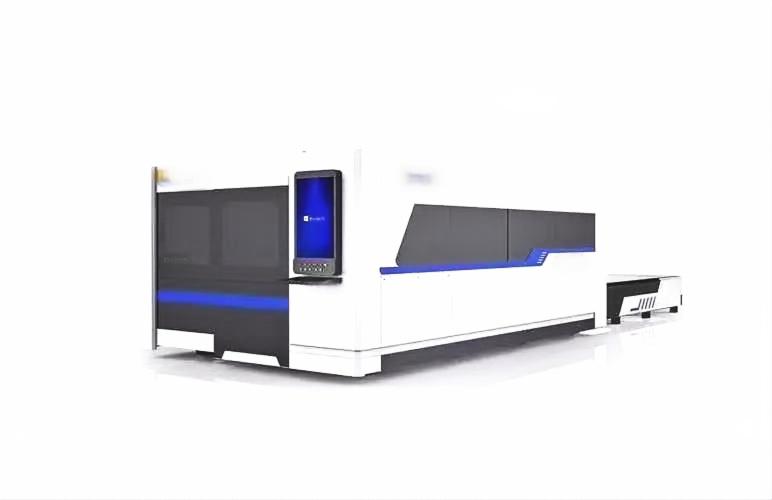

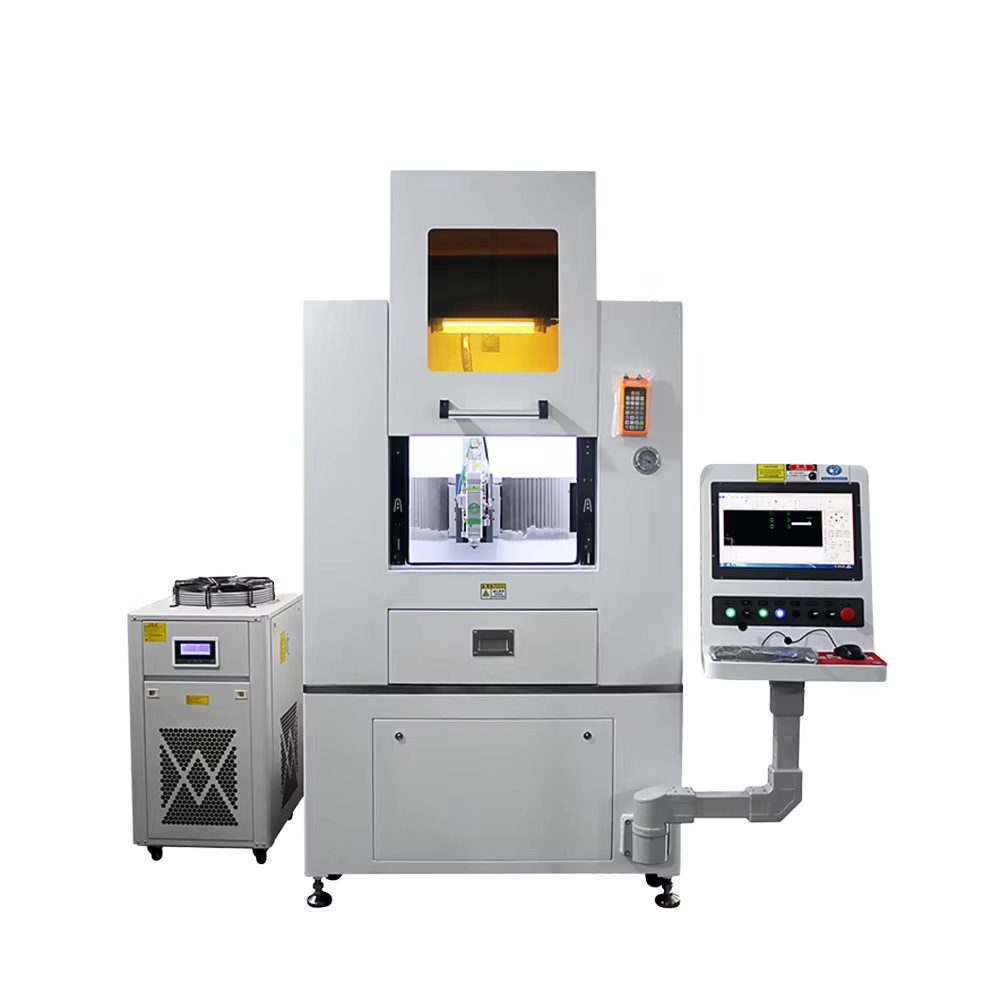

High Efficiency Portable Stainless Steel Fiber Laser Cutting Machine Medium High Power Factory Direct Yaskawa Hiwin Control

Seiko Manufacturing and Excellent Quality

Four advantages to provide you with a better experience:

Superior Beam Quality: Fiber laser cutting beam quality, high electro-optical conversion efficiency, good reliability, smooth cutting surface, and strong software compatibility.
Non-contact Cutting: Minimal thermal deformation, high cutting precision, fast cutting speed, and rapid piercing speed.
Simple Operation: User-friendly and convenient operating system ensuring automatic and smart cutting.
Cost-efficient & Eco-friendly: Low carbon, environmental protection, high efficiency, and low processing cost. Ideal for processing complex workpieces.

Technical Specifications

Model	PFT-3015H / PFT-4015H / PFT-6025H
Working Area	3000mm1500mm 4000mm1500mm 6000mm*2500mm	Reposition Accuracy	±0.03mm/1000mm
Laser Type	Fiber laser generator	Graphic Format Supported	CAD, DXF, etc.
Laser Power	3kw/6kw/12kw/20kw/30kw/60kw	Working Environment	Temp: 0-40℃, Humidity: ≤80%, No condensation
Transmission System	Gantry double-drive structure	Voltage	220V/380V / 50HZ/60HZ
Lubrication System	Full-automatic	Overall Dimension	750022802250MM
Maximum Speed	120m/min	Gross Weight	4800kg
Max Accelerated Speed	1.5G	Position Accuracy	±0.02mm/1000mm

Configuration List

NO.	Model	Name	Quantity	Remarks
1	PFT-3015H	Fiber laser cutting machine	1 set	PFT
2	Laser source	3KW/6KW/12KW/20kw/30KW/60kw	1 set	Raycus/MAX
3	Water chiller	Special water chiller for fiber laser generator	1 set	Hanli/S&A
4	Laser head	High accuracy professional fiber laser head	1 set	BLT/Raytools
5	Control system	FSCUT/NCStudio/Raytools	1 set	Cypcut/Weihong
6	Servo motor	High speed servo motor	6 sets	DELTA
7	Reducer	French Motoreducer	5 sets	French Motoreducer
8	Electric components	Famous	1 set	Schneider/Omron
9	Guide rail	Famous	1 set	HIWIN
10	Rack	Famous	1 set	YYC
11	Proportional valve	Famous	1 set	SMC
12	Voltage stabilizer	Standard	1 set	Standard
13	Computer	Industrial computer	1 set	Standard

Key Component Advantages

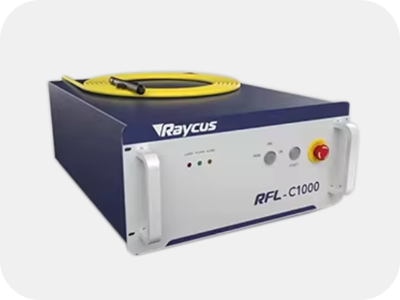

Raycus laser source

Small size, light weight, easy integration; high power, excellent beam quality; low energy consumption; suitable for different applications.

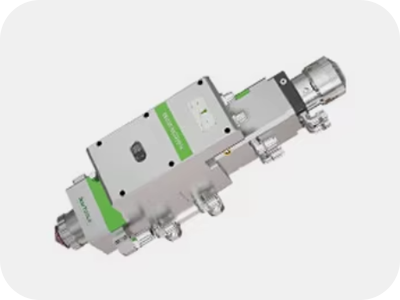

Laser cutting head

Anti-collision, automatic height adjustment, precise cutting, a variety of brands for choice.

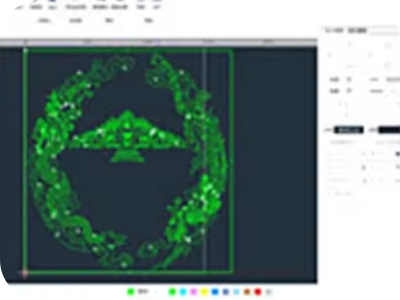

Cypcut system

Simple operation, making metal cutting more intelligent and convenient.

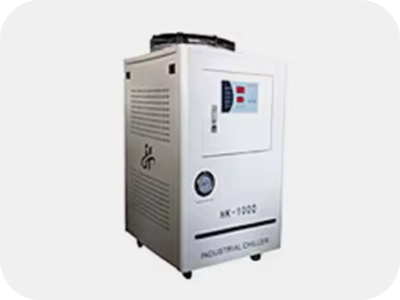

Special domain chiller

Equipped with a suitable power chiller to prevent machine overheating and ensure machine life.

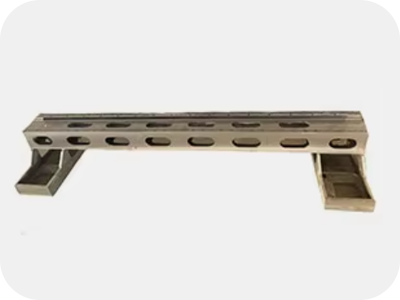

Stretched Aluminium Beam

High density, high rigidity, light weight, good dynamic performance, strong deformation resistance, and high flexibility.

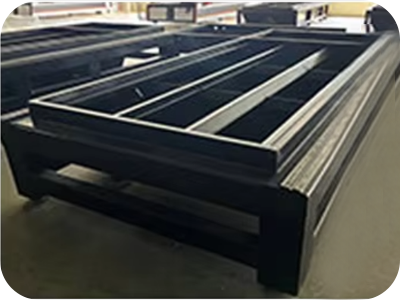

Newly Upgraded Welding Bed

Stress annealing treatment to maintain the extremely high stability and cutting accuracy of the bed.

Performance Advantages

High-performance laser device associated with a stable operation system enables optimal cutting effects.
Perfect cooling, lubrication, and dedusting systems ensure stable, efficient, and durable performance of the whole machine.
Single countertop makes plates loading and unloading available during cutting, which improves processing efficiency.
Large-size closed enclosure improves dedusting effects and avoids optical pollution.
Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
Gantry structure and in-block aluminum cast cross beam make the device highly rigid, stable, and antiknock.
It could cut metal in various materials rapidly and precisely, and realize excellent and stable cutting effects.

Applications & Materials

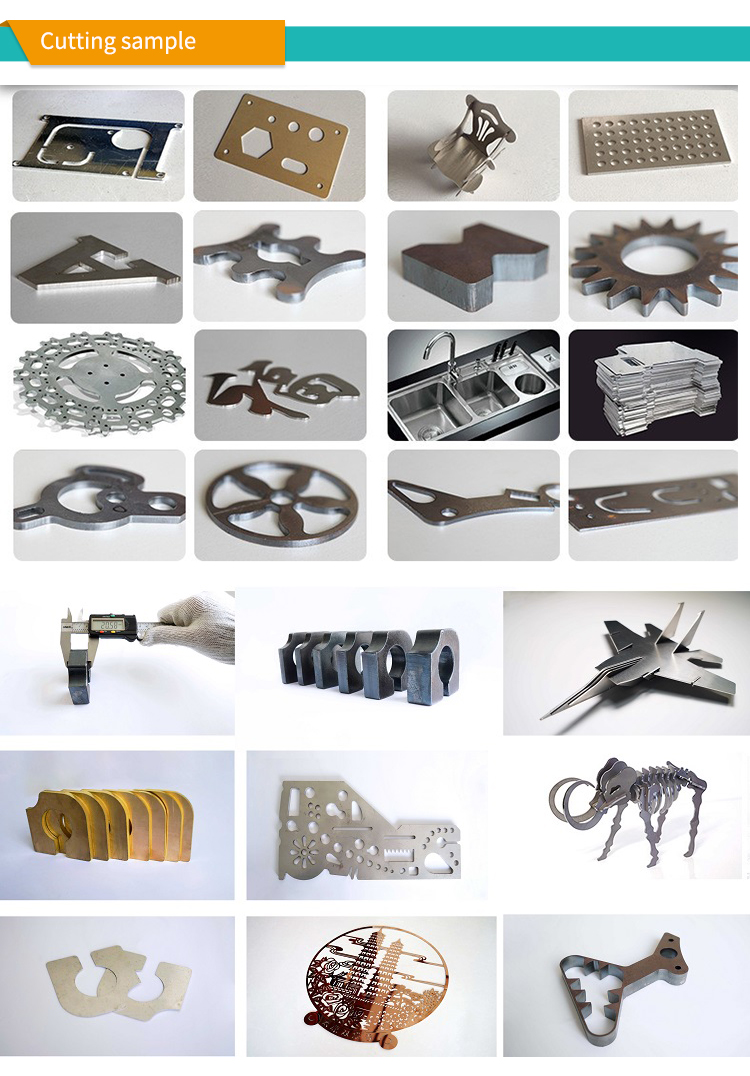

The fiber laser cutting machine is suitable for metal cutting with Stainless Steel, Mild Steel Plate (tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Different cutting thickness depends on the selected laser power. It is widely used in manufacturing:

Billboards, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Elevator Panel Cutting, Auto Parts, Electronic Parts, Nameplates, etc.

Frequently Asked Questions

How to install and run the machine?

Our technician has installed the machine before shipping. For some small parts installation, we will send a detailed training video and user manual along with the machine. 95% of customers can learn by themselves.

What should I do if the machine goes wrong?

If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will respond within 24 hours to solve it for you.

Are you a factory or trading company?

We are a factory with extensive manufacturing experience, ensuring top quality and factory-direct technical support.

What is your MOQ?

We do not have an MOQ. Whether you order 1 set or 100 sets, we will provide you with our full dedication and support.

How does your factory perform quality control?

Quality is our priority. Each laser machine is tested through 24 items. After all 24 items are passed, our QC team performs a 48 to 72 hours reliability test. Our laser machines have gained CE certification.

What materials can this fiber laser cutting machine process?

It is designed for cutting various metal plates and tubes, including Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Titanium, and other galvanized sheets.
