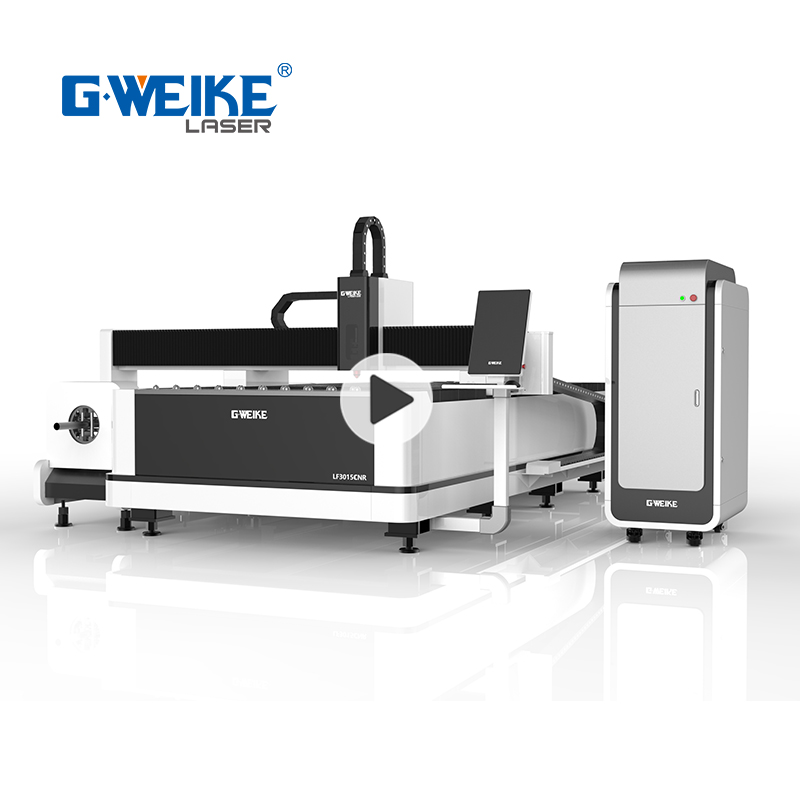

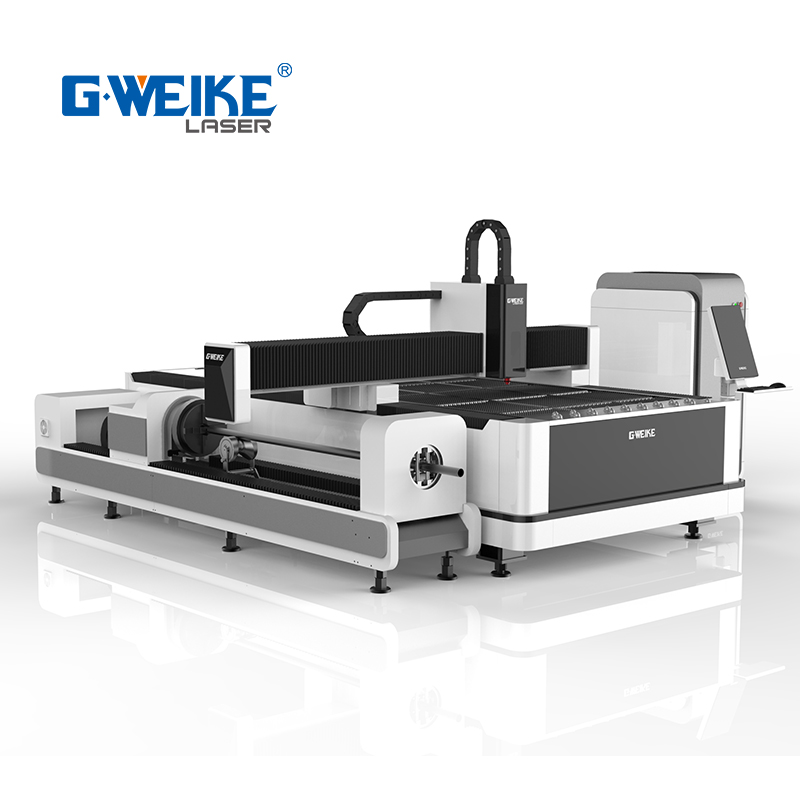

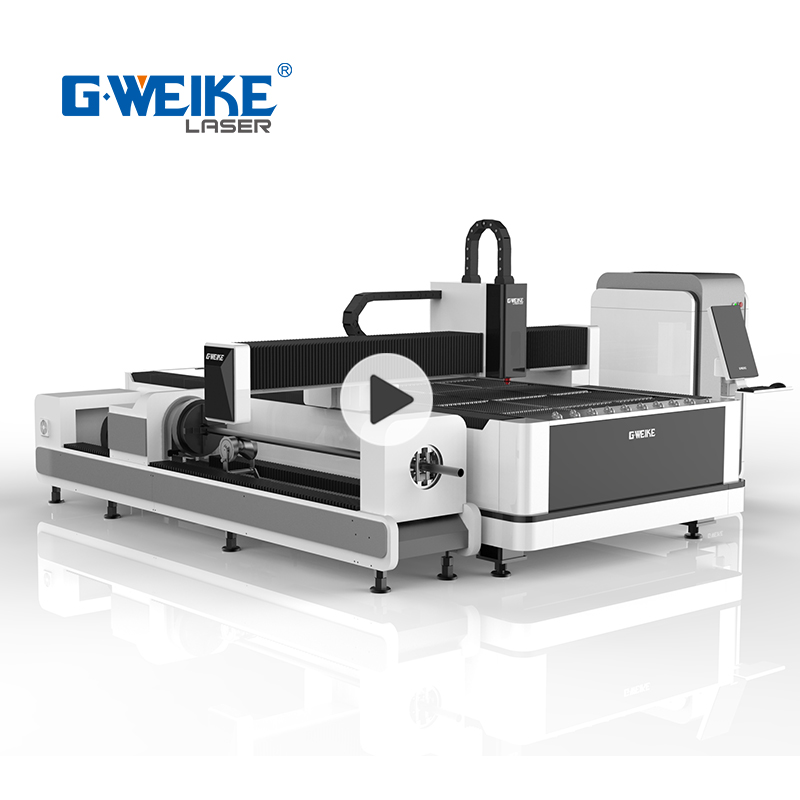

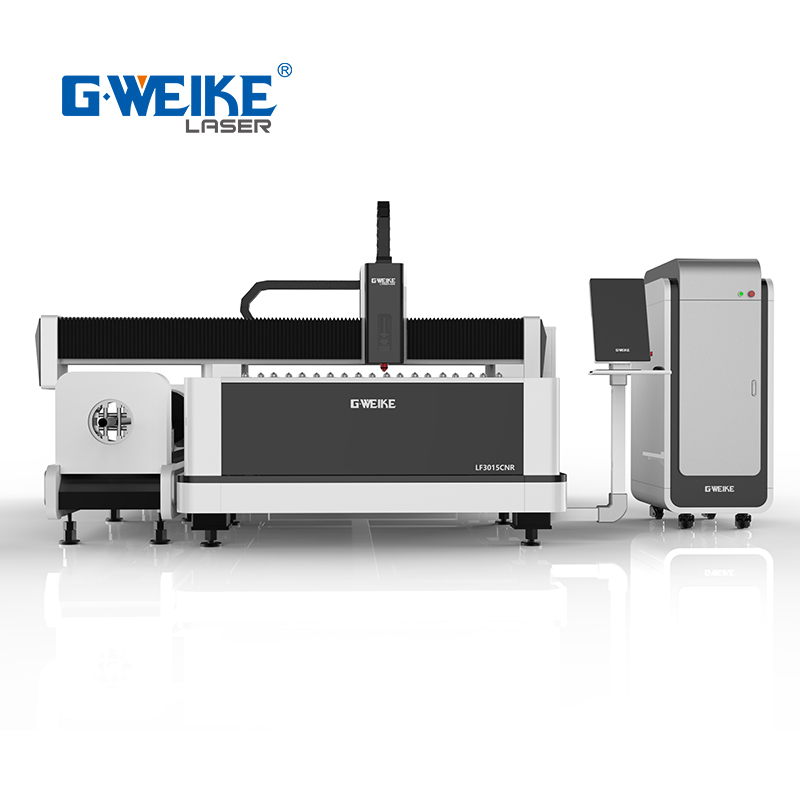

| Technical Parameters of fiber laser cutting machine for 10 mm plate and tube stainless steel | |
|---|---|
| Machine Model | LF3015CNR |
| Laser Power | 1000W 2000W 3000W 4000W 6000W 8000W (Optional) |
| Dimensions | 4600*2450*1700mm |
| Working Area | 3000mm x 1500mm |
| Repeat Positioning Accuracy | ±0.02mm |
| Max Speed | 120m/min |
| Max Acceleration | 1.5G |
| Voltage and Frequency | 380V/50Hz/60Hz/60A |

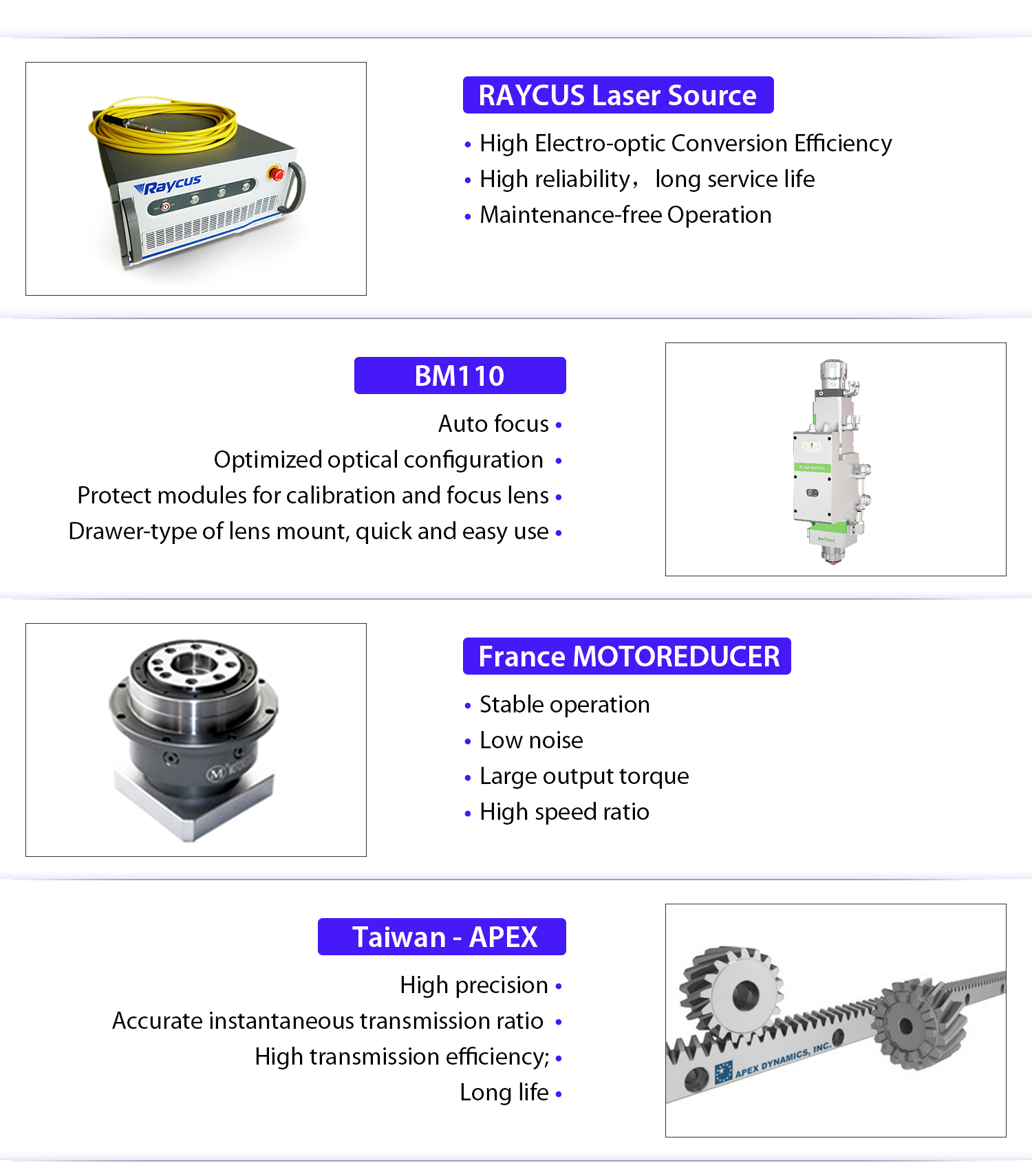

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

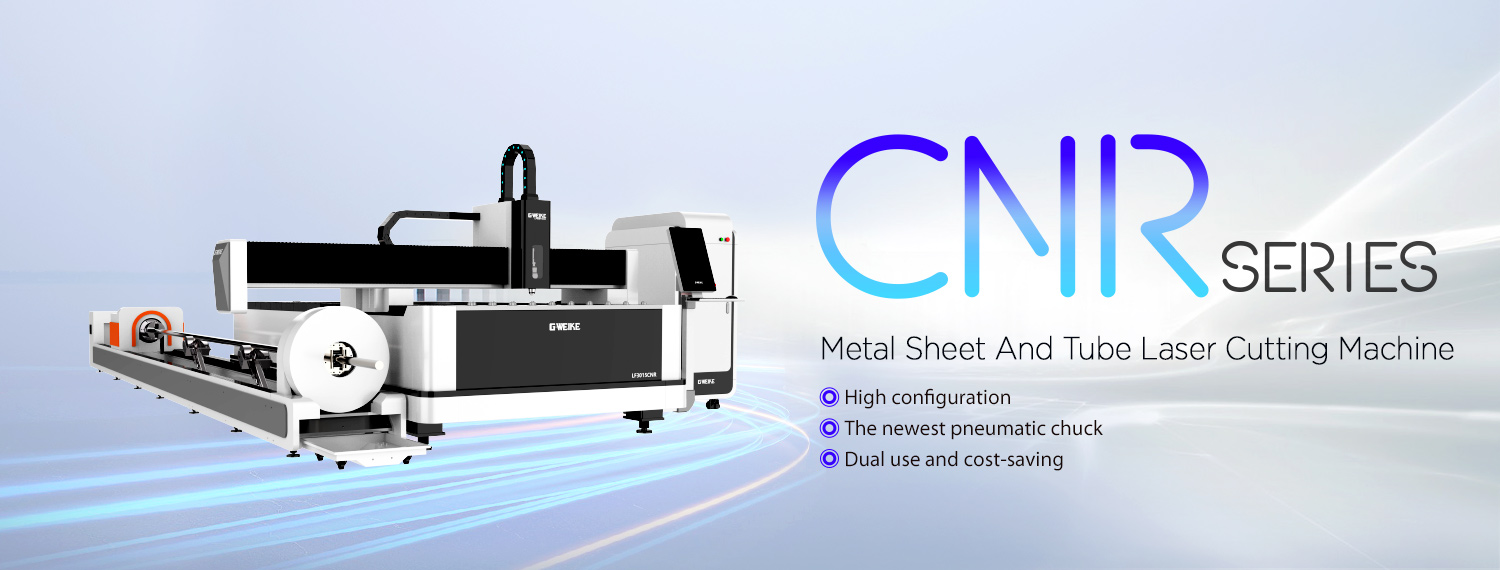

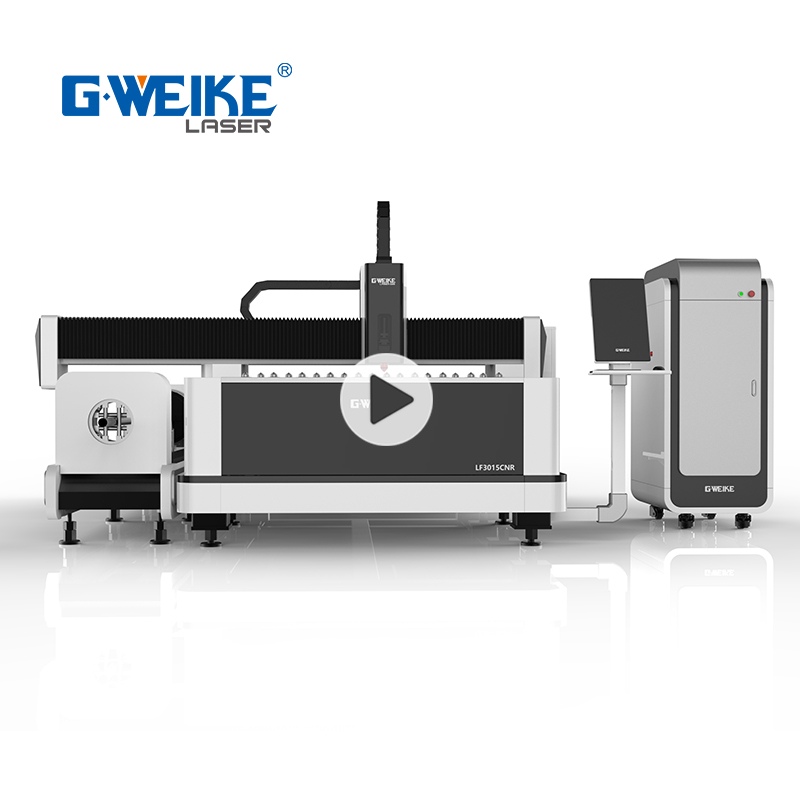

CNR series fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

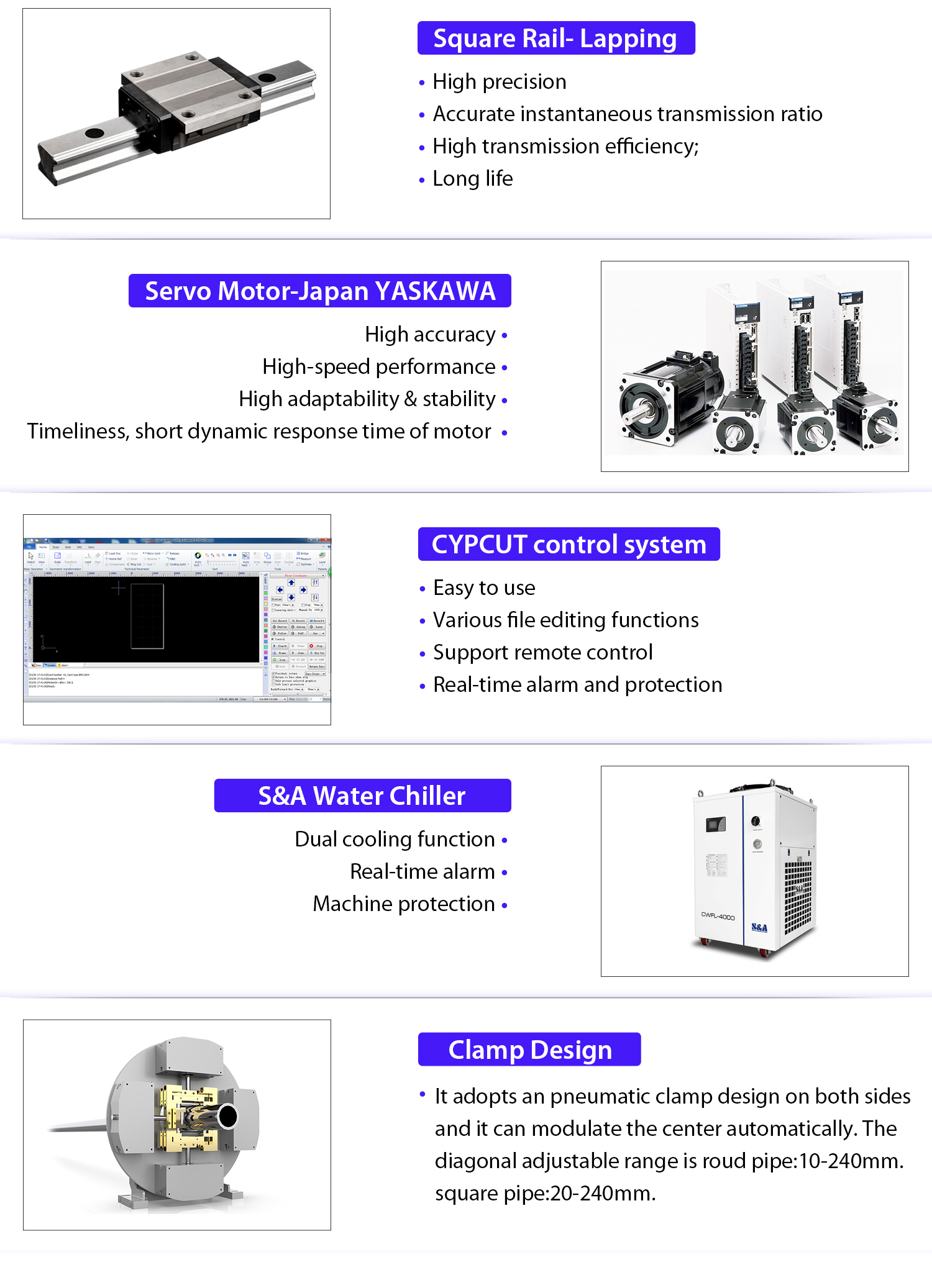

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm.
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
All our machines have these safety certificates. You can ask for the electronic version of the certificate with our sales staff for confirmation. We have agents in Europe and America, so you don't have to worry about the customs clearance of the machines.
Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
You need to confirm with our engineers in the group now what the problem is, and our engineers will check if they can solve it by remote technical guidance. If it can't be solved remotely, we will send DHL express to replace the parts for you quickly.
Now we have RECI, RAYCUS and IPG. RECI is famous for the CO2 laser tube, also product high quality fiber laser source. RAYCUS is No.1 laser source manufacturer in China, IPG is the NO.1 in the world.
