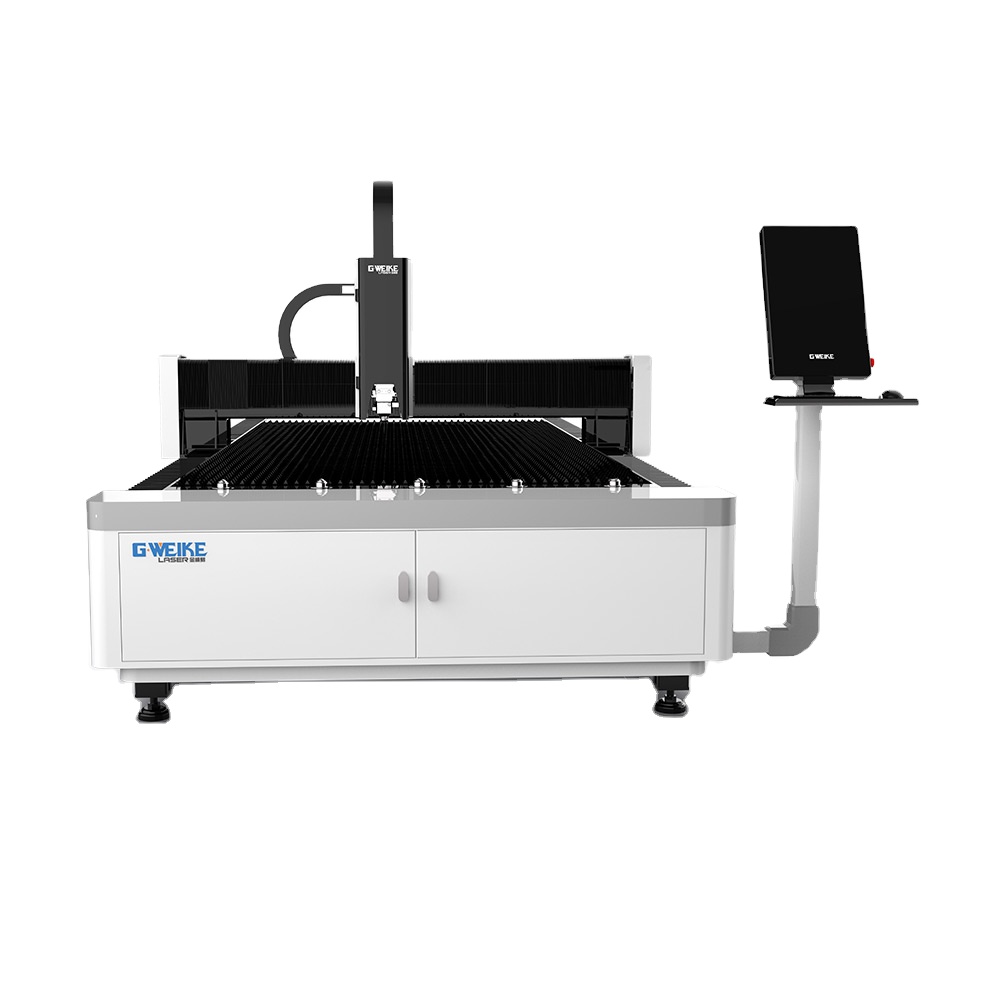

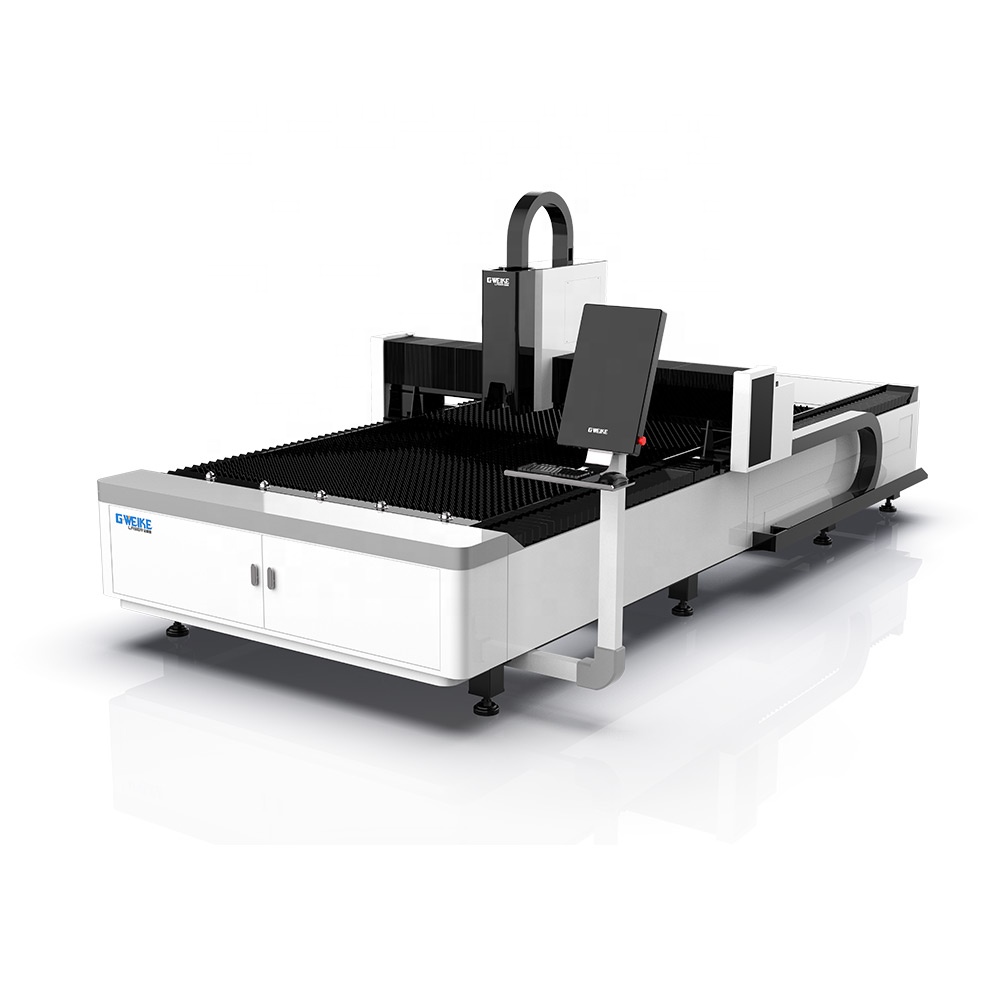

Jigsaw Machine
1 / 5
| Parameter | Specification |
|---|---|

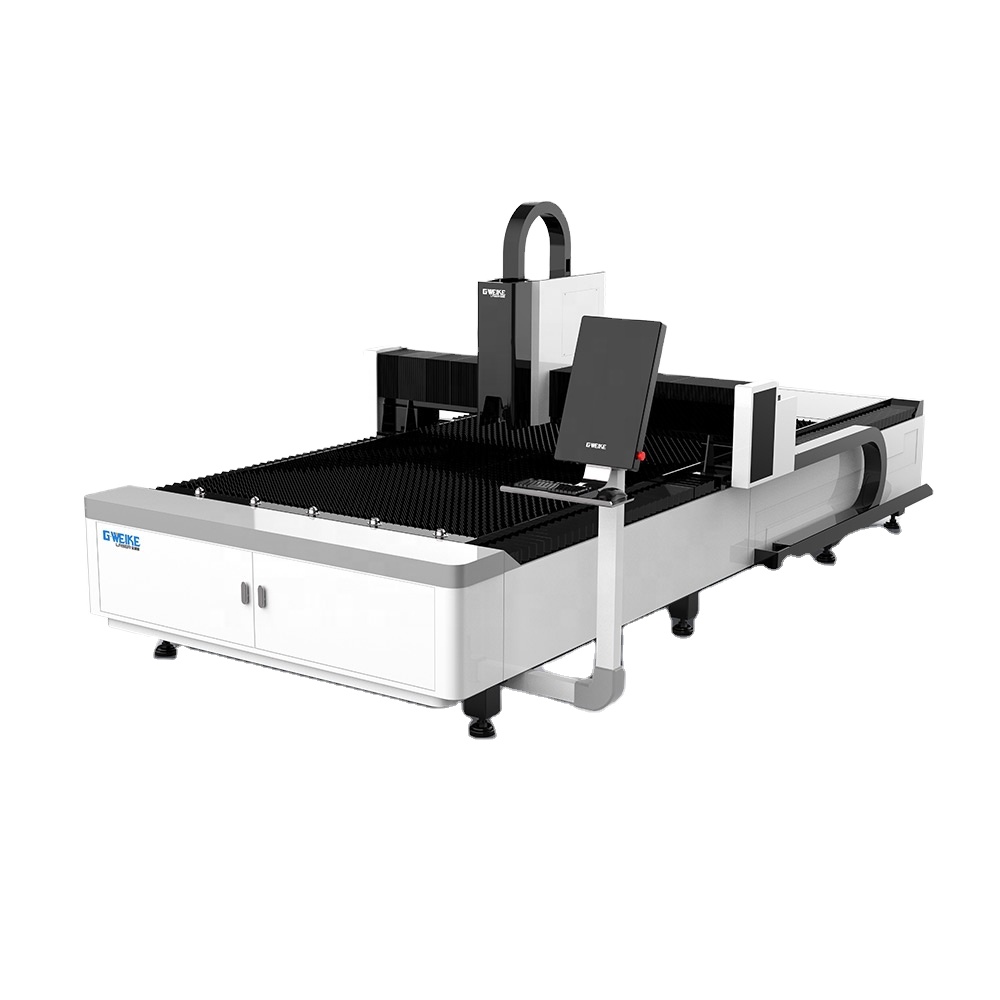

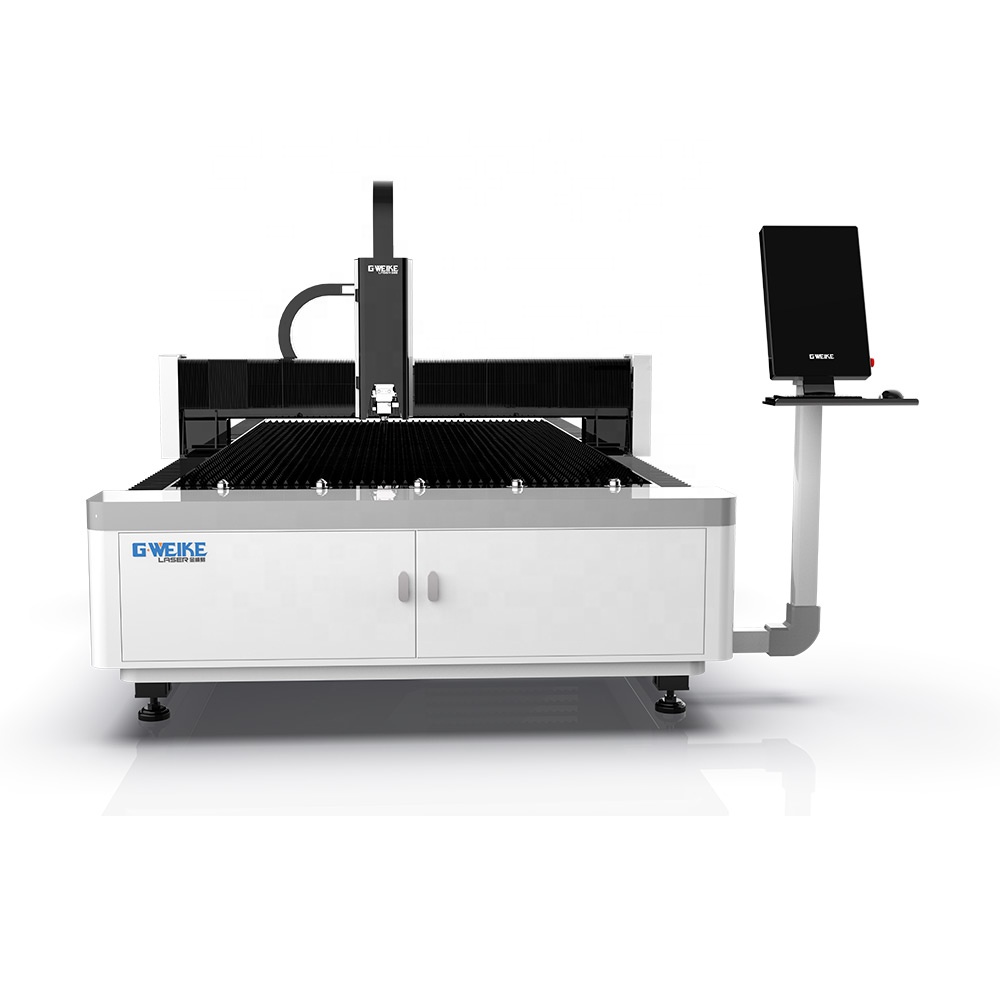

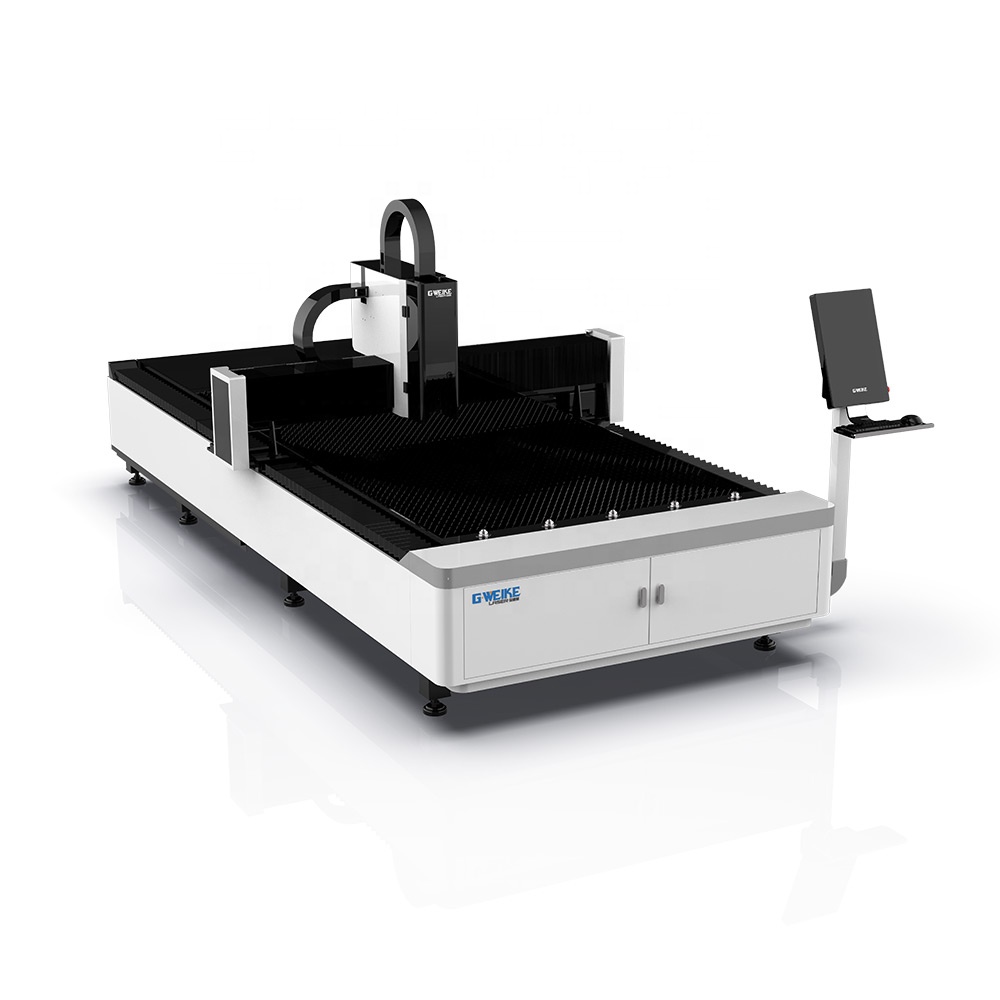

| Machine model | LF3015E PRO |
| Laser power | 1000W / 2000W / 3000W |
| Dimensions | 4600*2450*1700mm |
| Working area | 3000mm x 1500mm |
| Repeat positioning accuracy | ±0.02mm |
| Maximum speed | 60m/min |
| Voltage and frequency | 220V/380V 50Hz/60Hz |

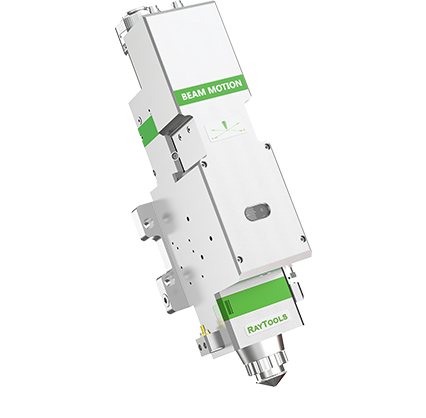

Without manual focusing: The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger adjustment range: Adjustment range -10 mm ~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long service life: Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

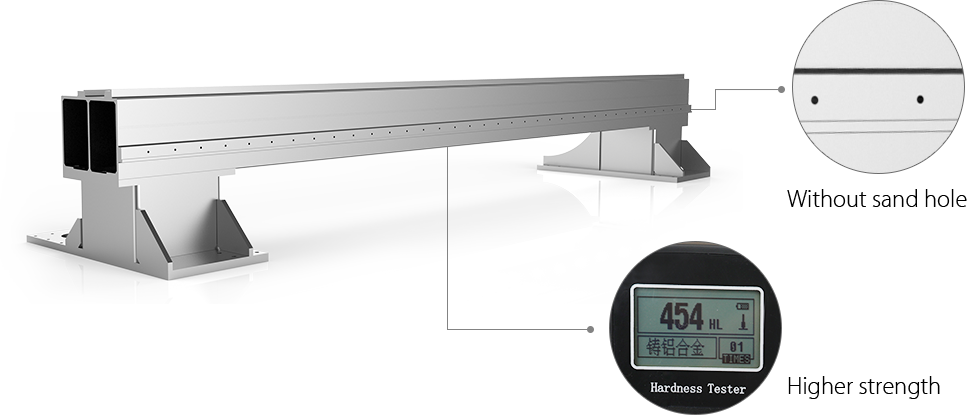

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increases the processing speed.

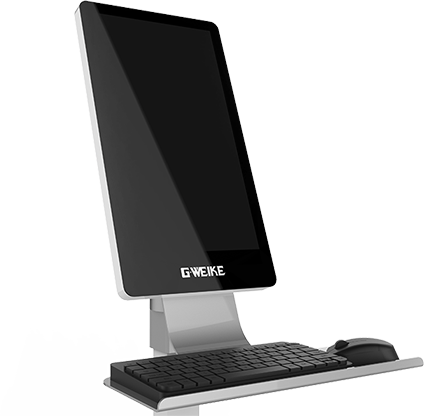

Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast, wider view, low power consumption as well as high resolution.
In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.

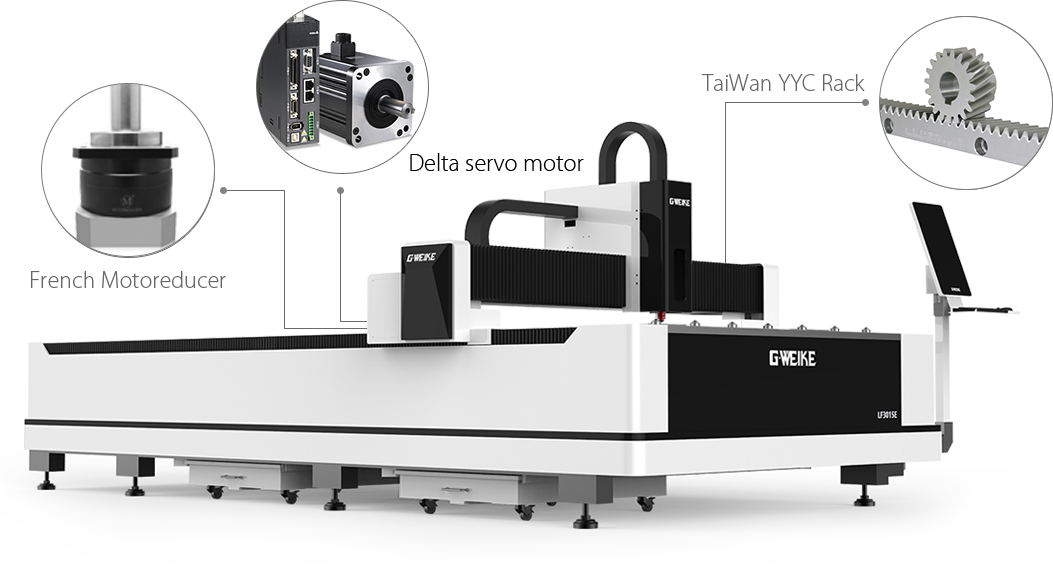

This fiber laser cutting machine is equipped with Delta servo motor, French Motoreducer and Taiwan YYC rack. The repeat positioning accuracy of the machine tool can reach 0.02mm, and the working life is more than 10 years.
