Jigsaw Machine
1 / 5

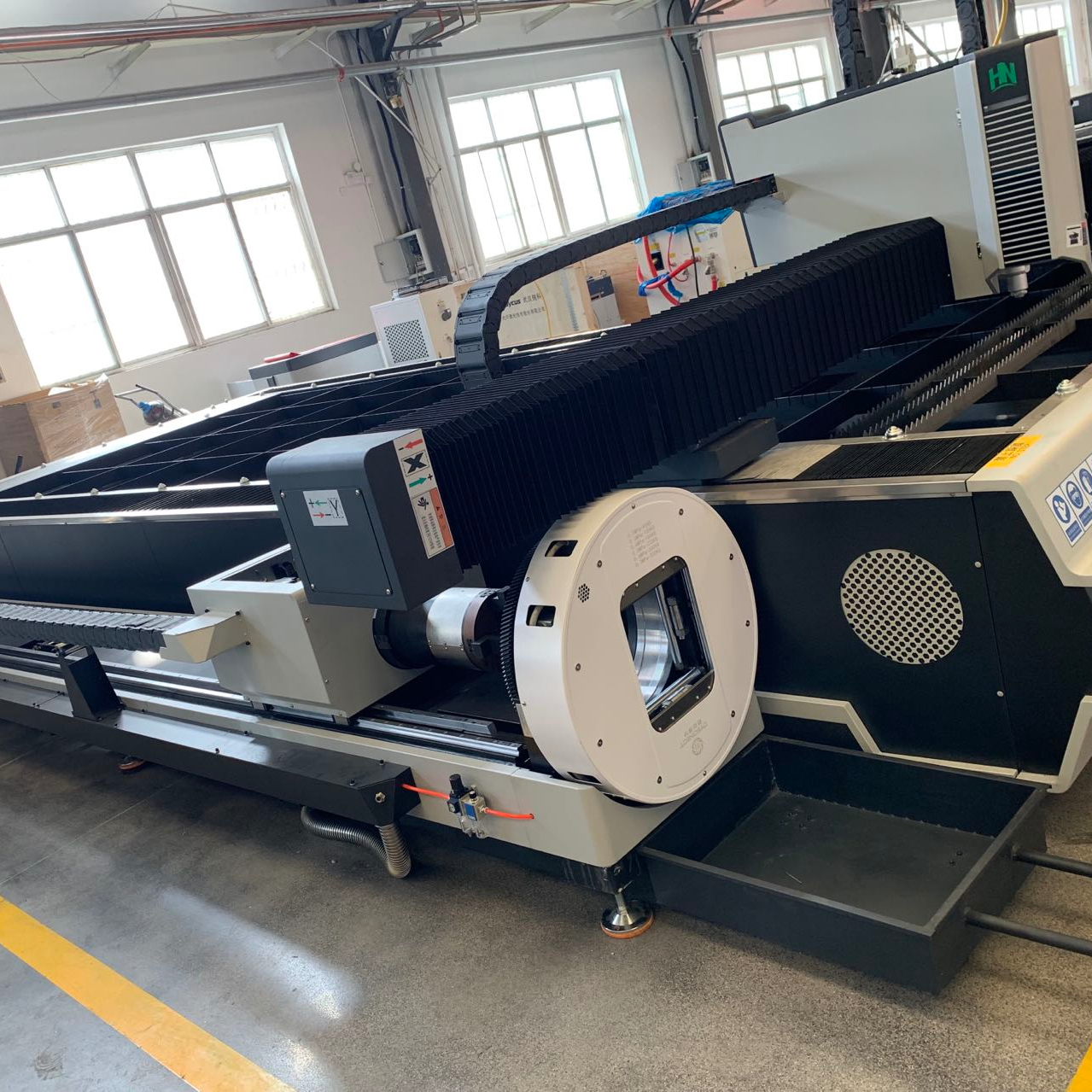

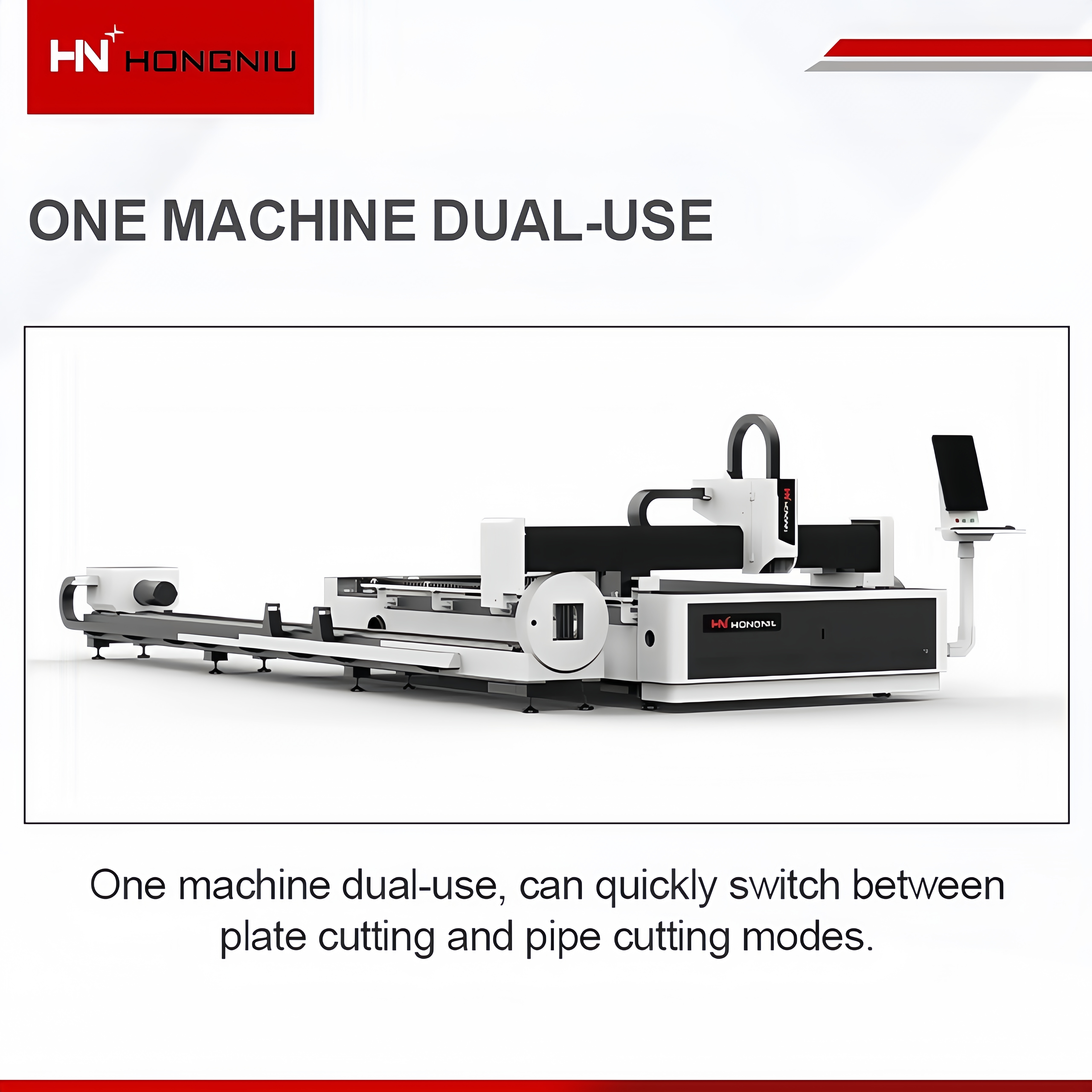

Intelligent switching between plate and tube dual stations. Quickly switch between plate cutting and pipe cutting modes without replacing equipment. Supports processing round tubes, square tubes, angle steels, and channel steels to meet complex production demands.
Equipped with independent processing areas for plate and pipe to avoid material interference, optimize space utilization, and boost operational safety.
Space-saving design that offers high aesthetic value, ergonomic convenience, and flexible viewing adjustments for operators.

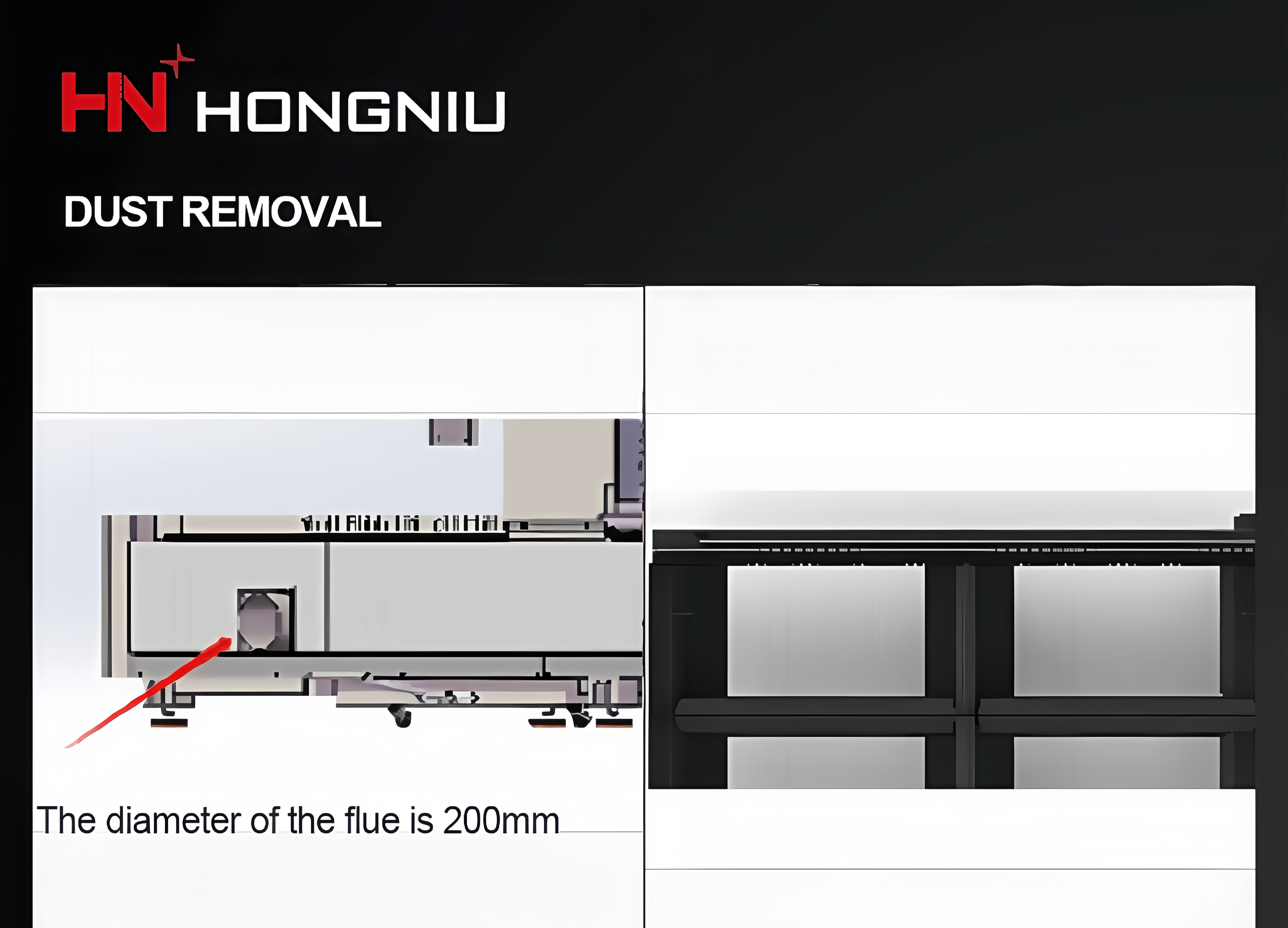

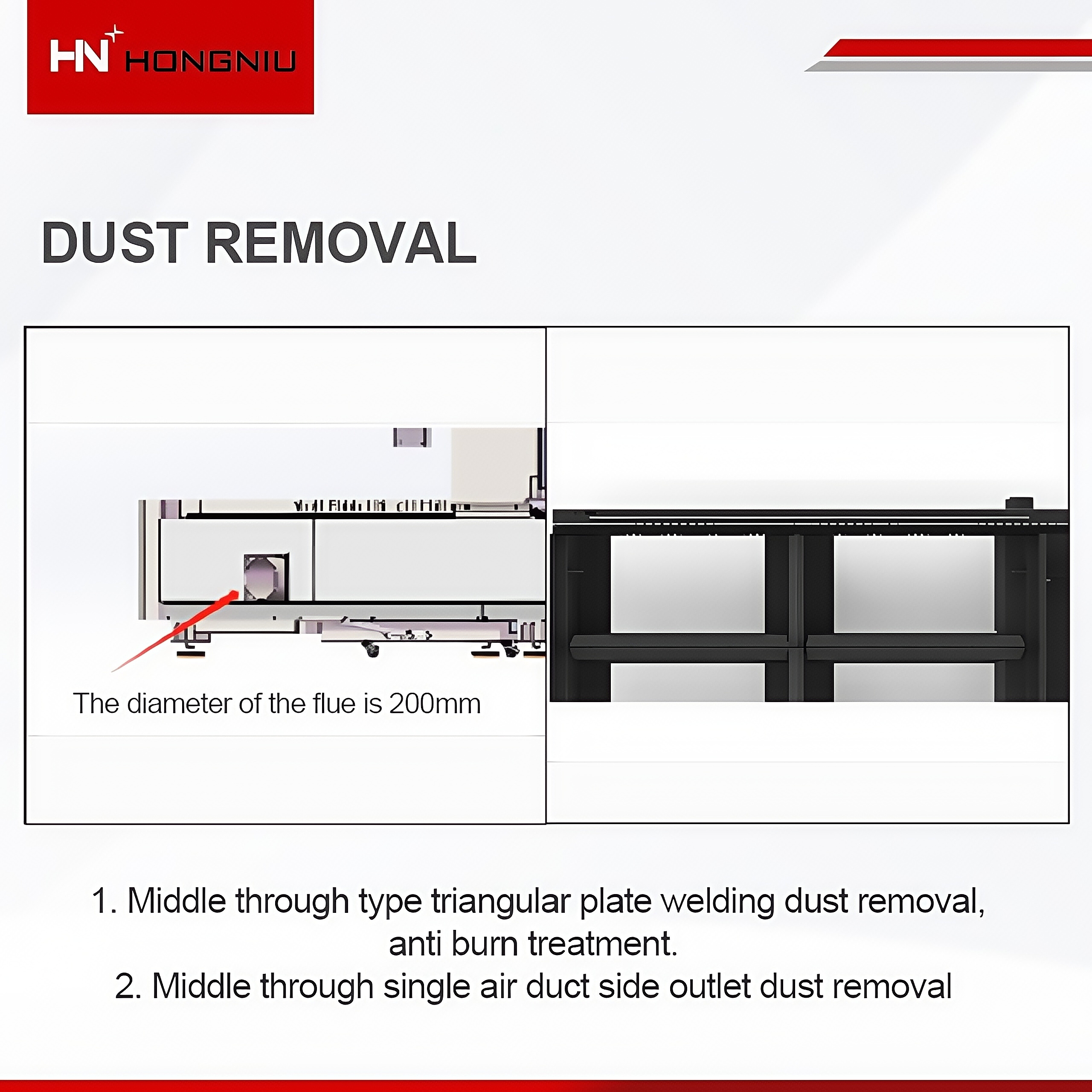

Features dual air ducts and a large aperture to secure a smoke-free processing workshop, keeping the surrounding air clean and safe.

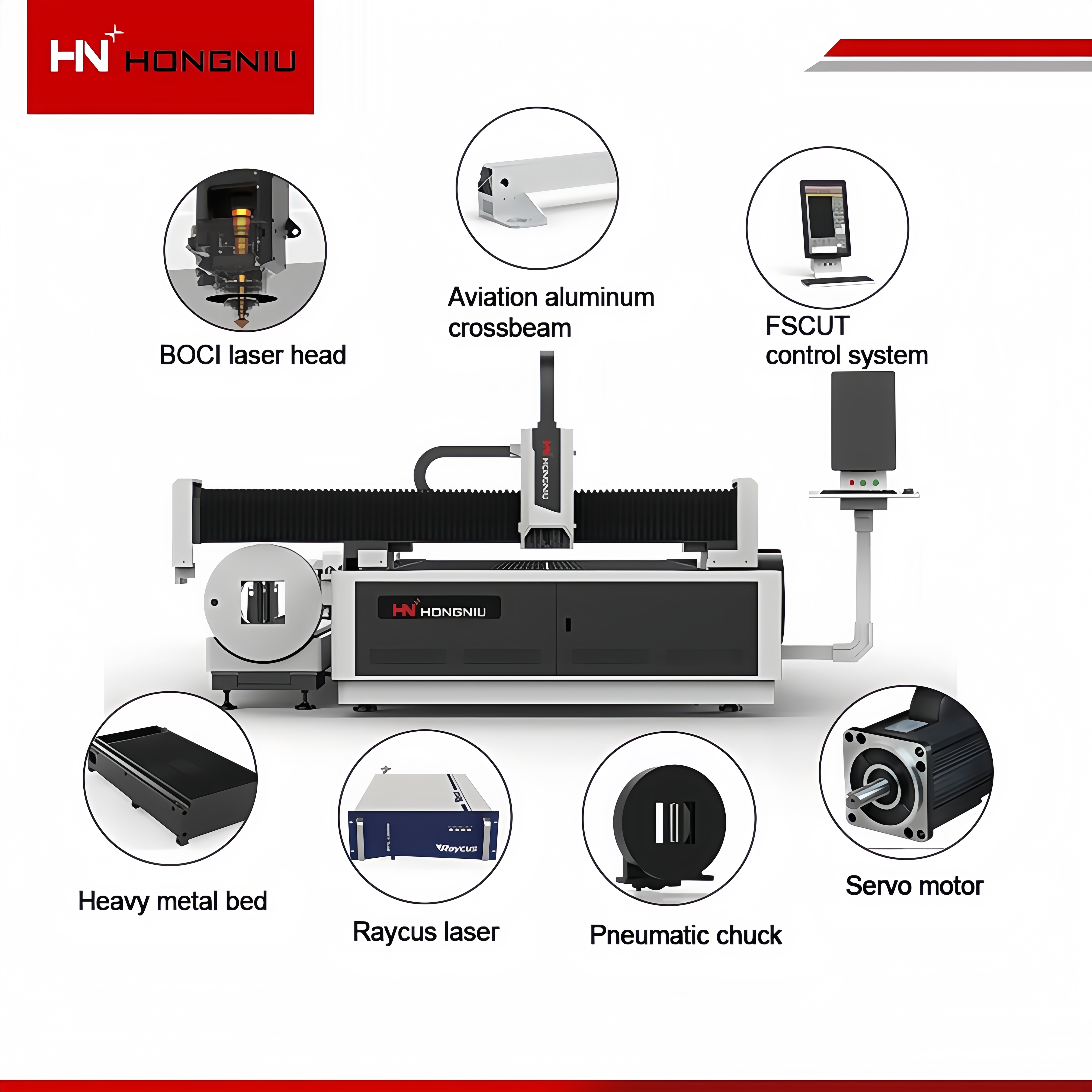

| Parameter | Value / Details |
|---|---|
| Model | 3015LR |
| Working Area | 3000 * 1500mm |
| Laser Power | 1.5 - 12kw |
| Motor and Drivers | Raycus / Max / RECI / IPG |
| Repetitive Positioning Accuracy | DELTA / Fuji / Yaskawa |
| Laser Head | BOCI / RAYTOOLS |
| Electric Components | Schneider |
| Electronic Proportional Valve | Japan SMC / Germany Lanny |
| Reducer | High-precision |
| Rack and Rail | High-precision |
| Control System | Fscut |
| Power Supply | 2800kgs / 3500kgs / 4200kgs |
| Gross Weight | 22.3kw / 28.6kw / 38kw |
| Machine Size | 8400 * 3600 * 1900mm |

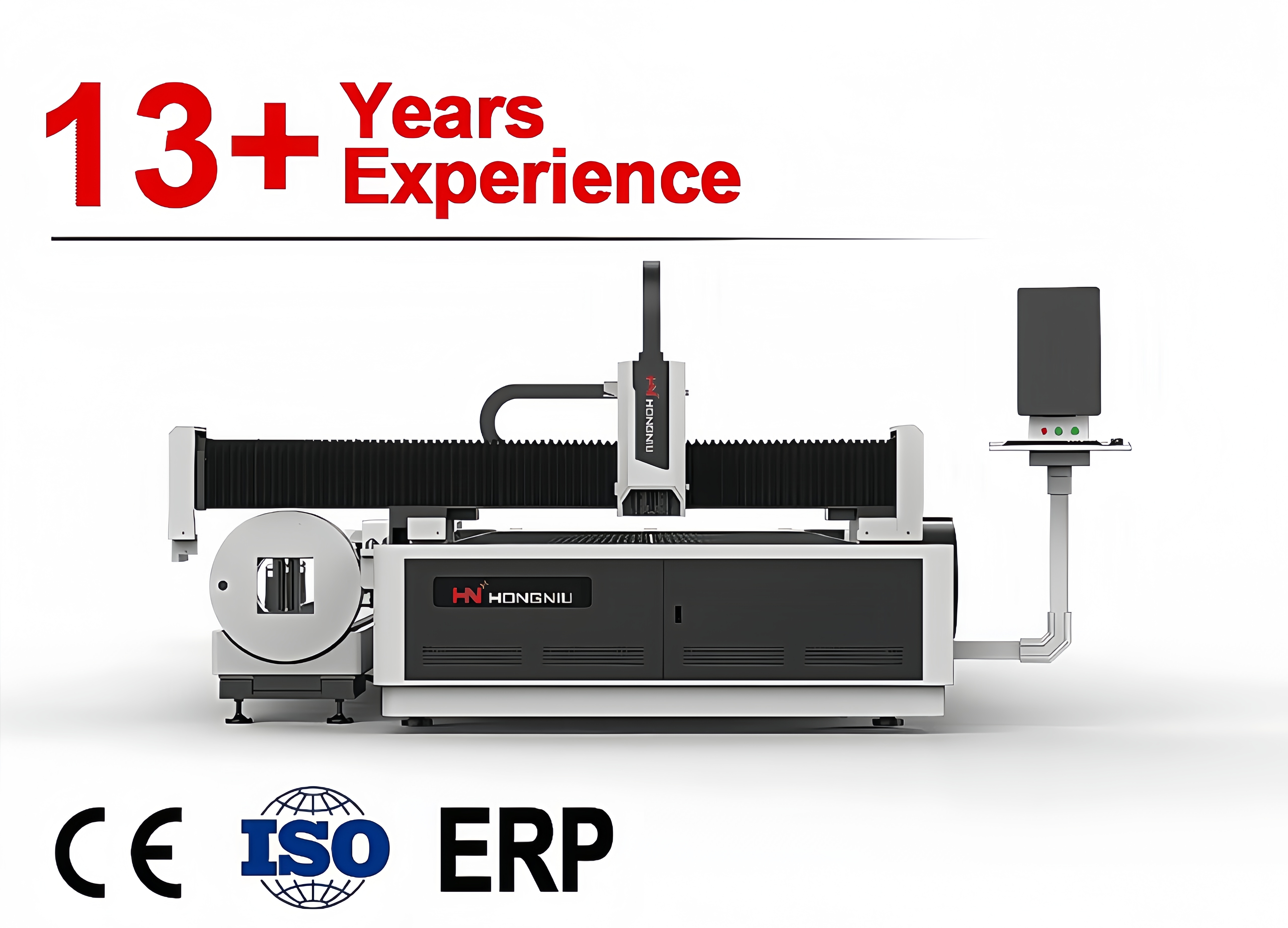

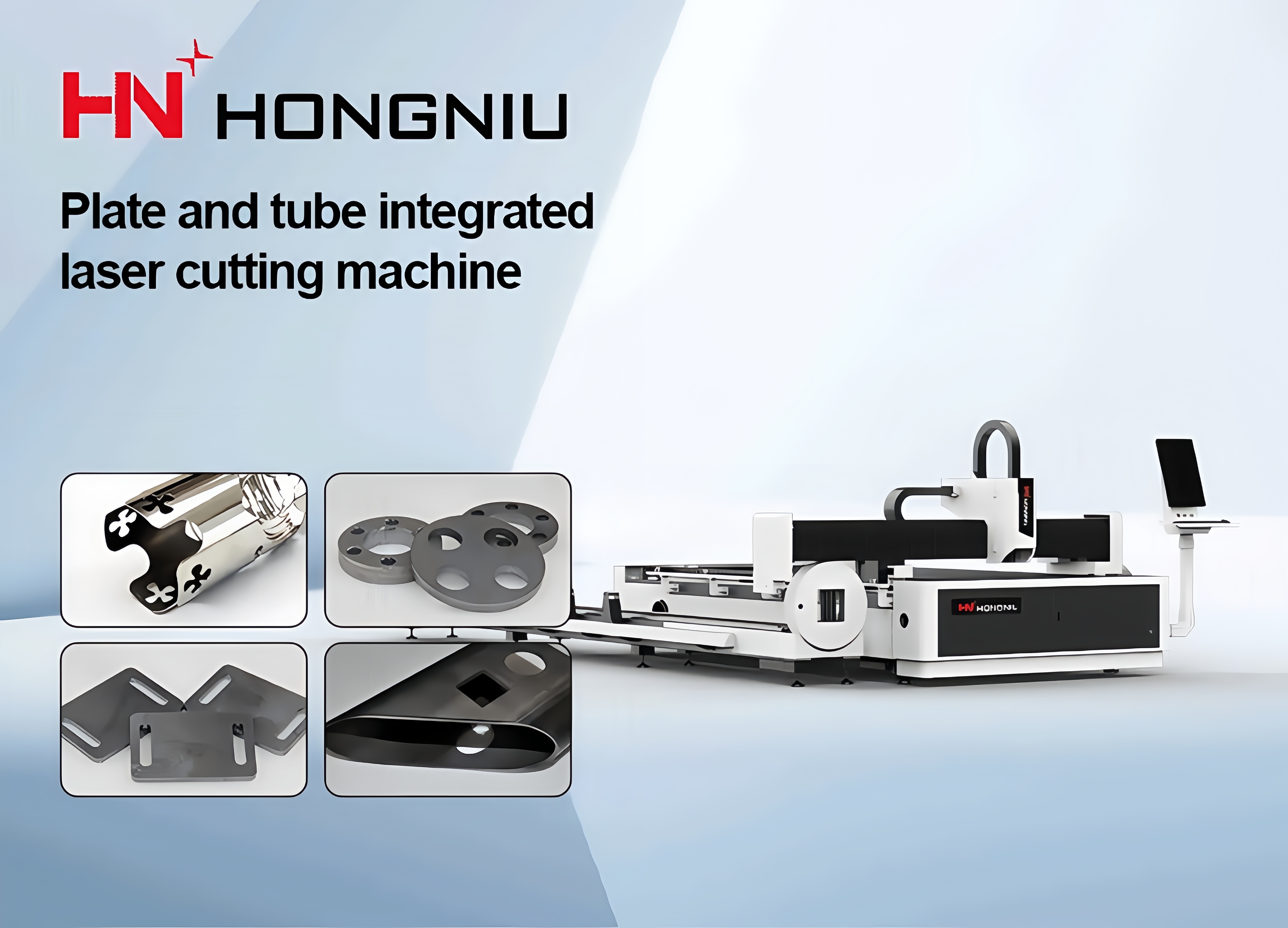

The machine tool features an integrated plate-and-tube design to fulfill dual requirements for both tube and plate cutting. Equipped with an extraction fan to remove cutting fumes, it significantly improves the production environment. It shields against glare and flying sparks from cutting residues, ensuring operator safety.

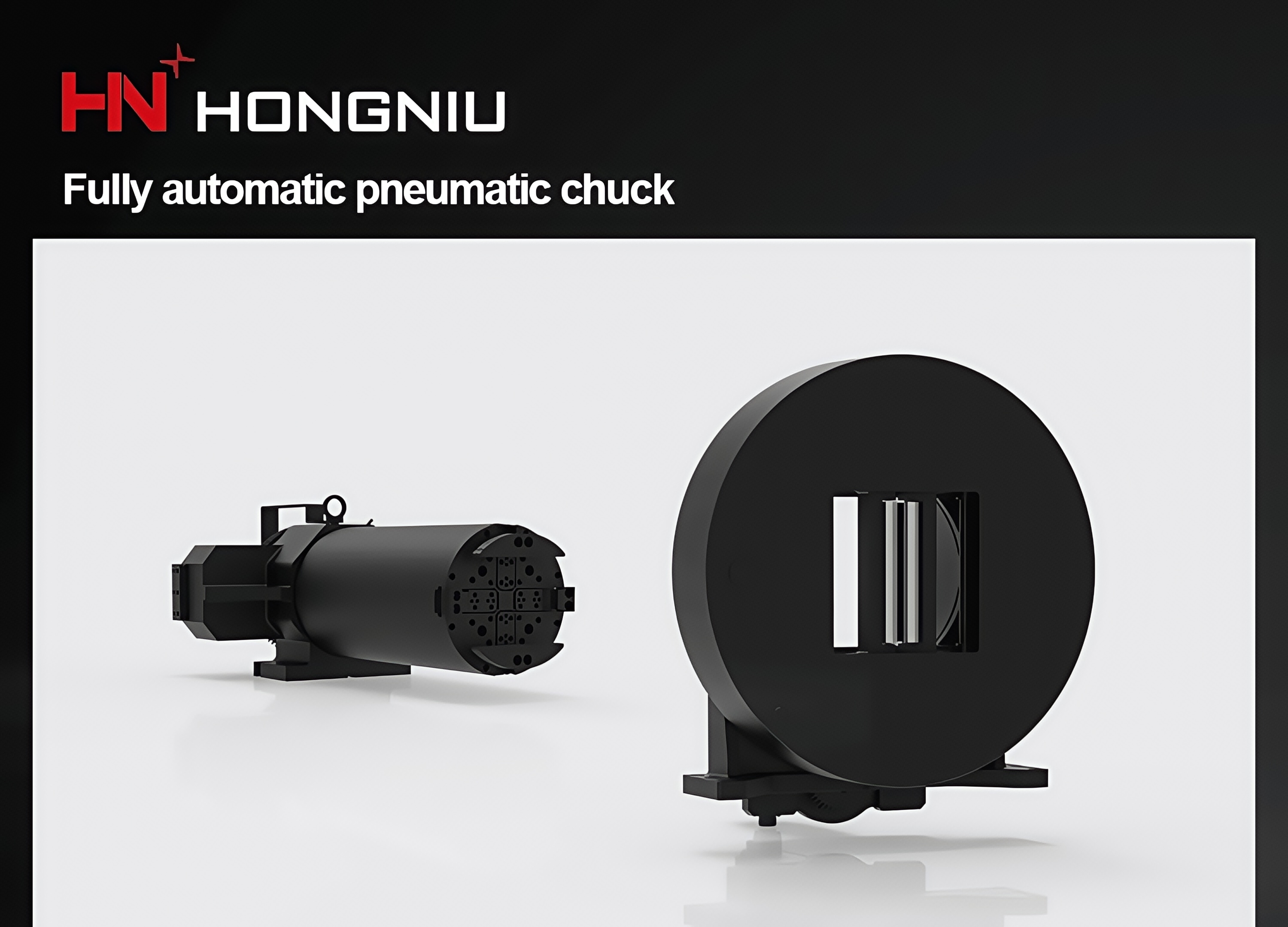

The fully automatic dual pneumatic chuck delivers stable and efficient performance. One-touch clamping with automatic centering achieves speeds three times faster than conventional electric chucks.

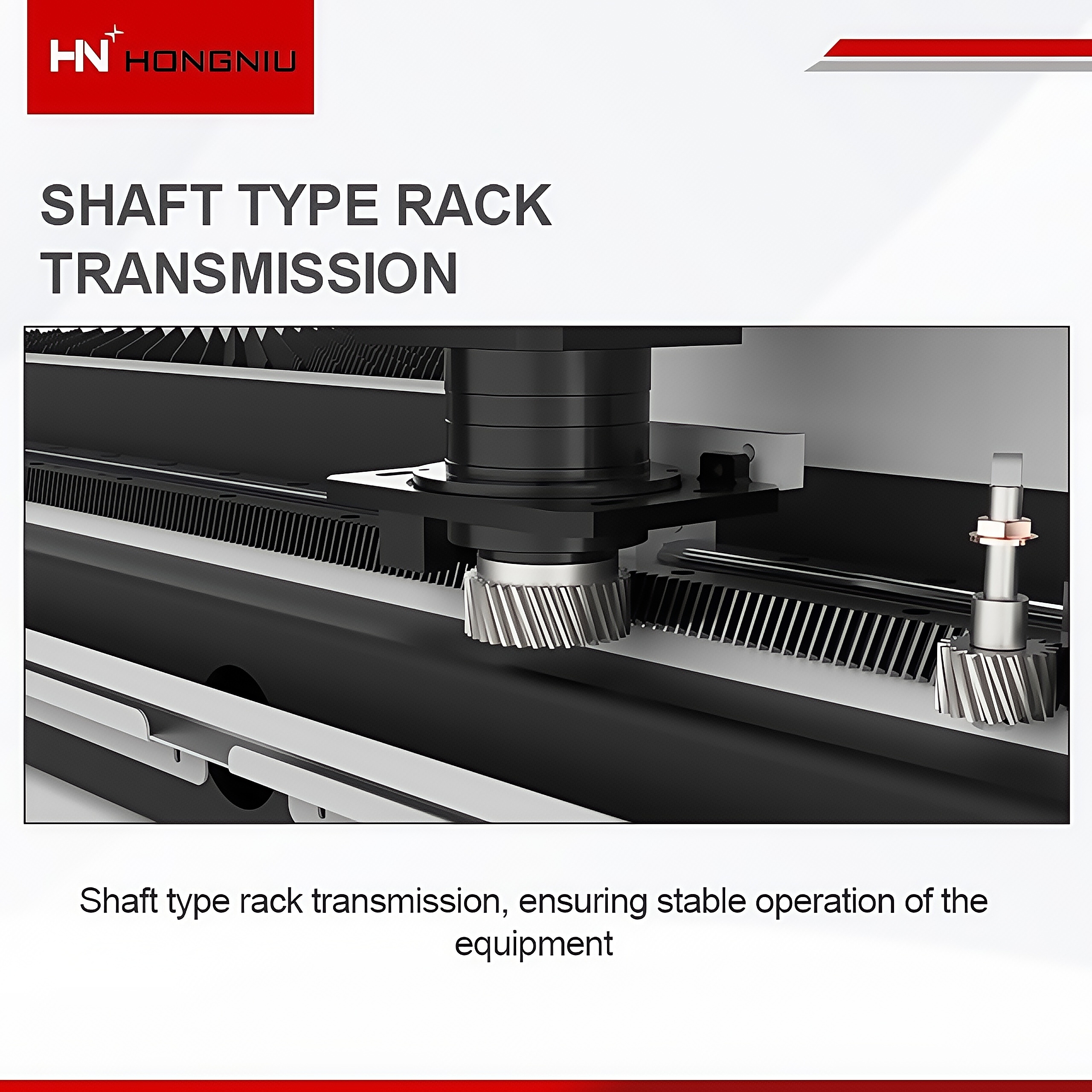

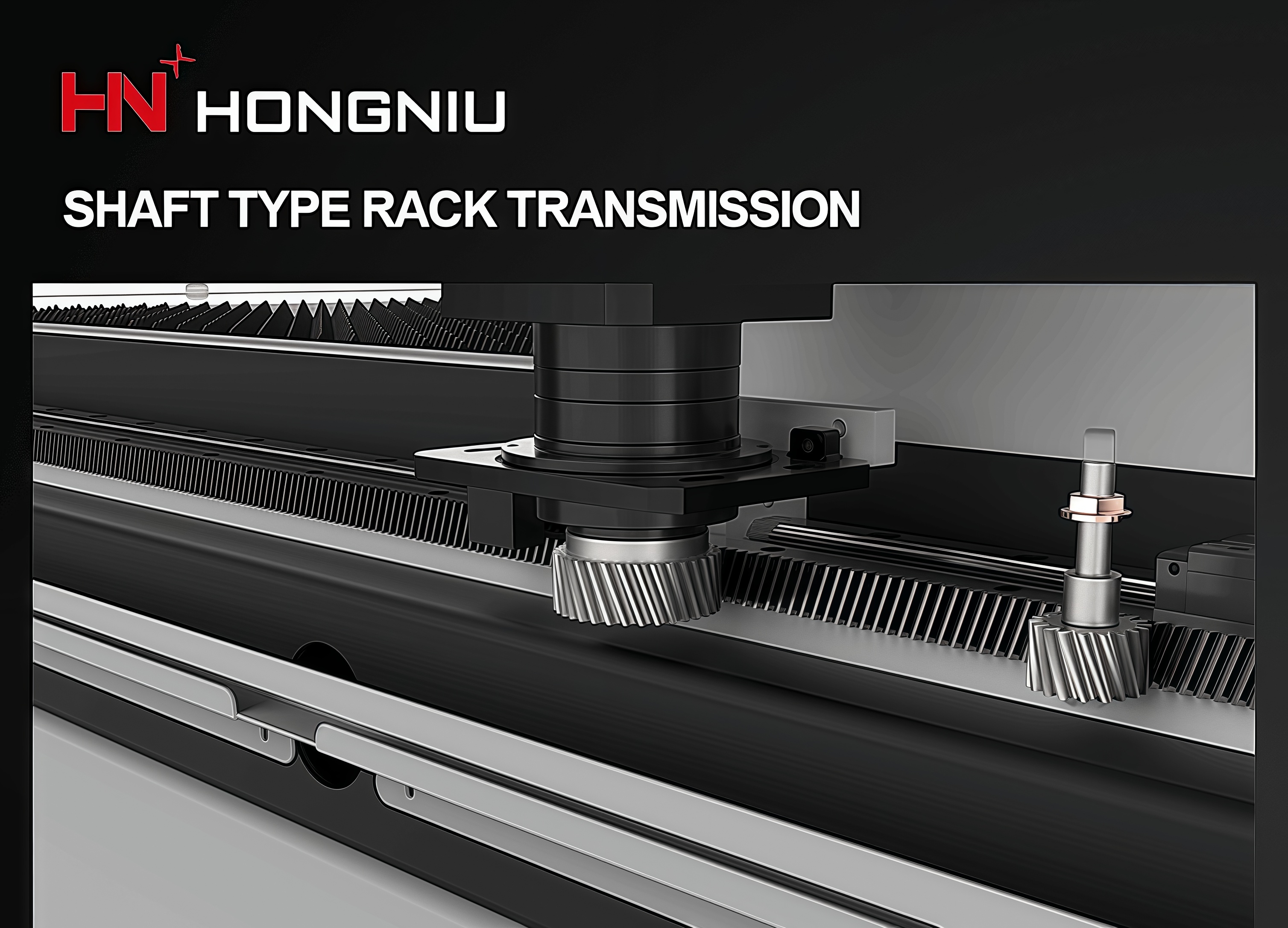

Utilizes a reliable shaft-type rack transmission system, ensuring stable, vibration-free, and high-speed operation of the equipment over long duty cycles.

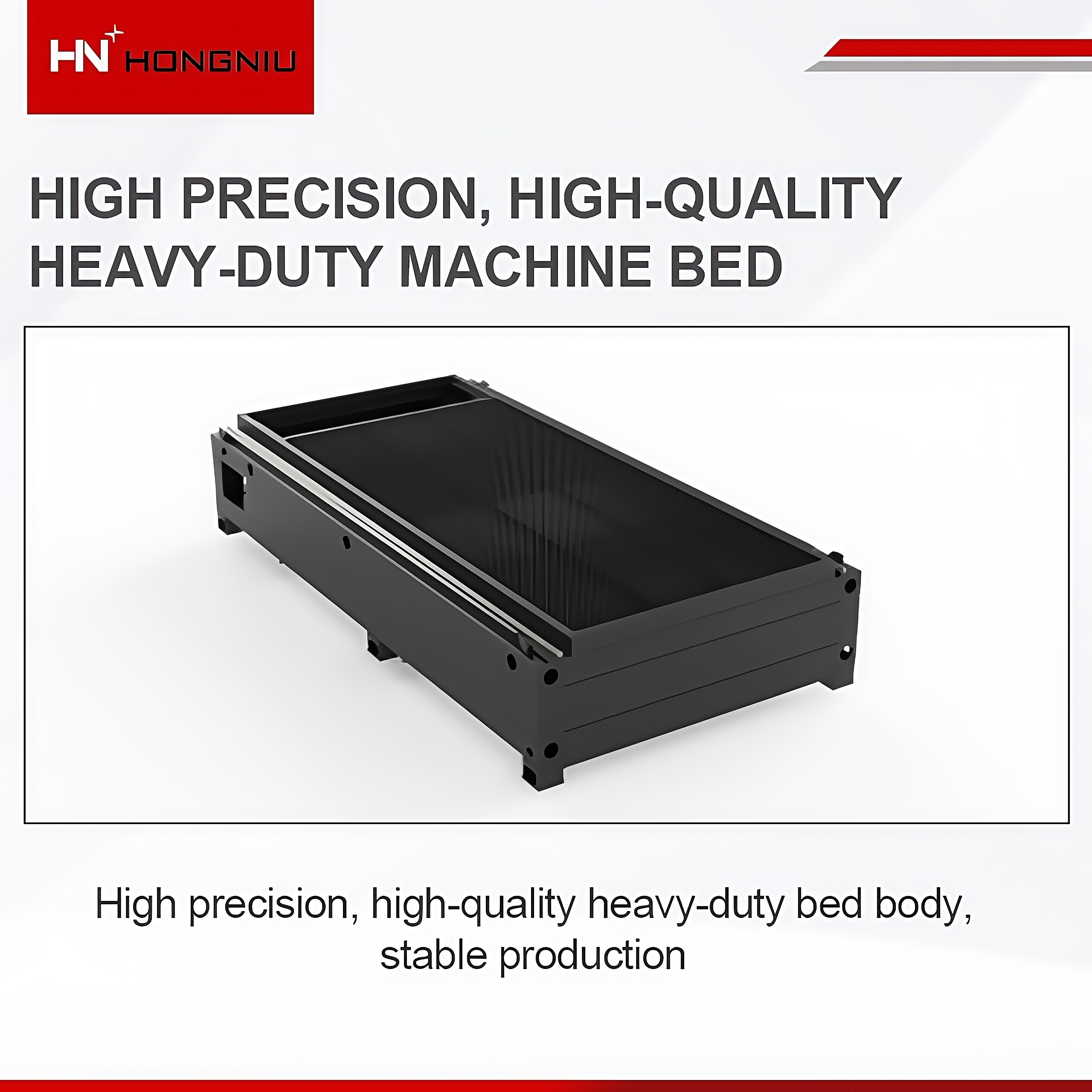

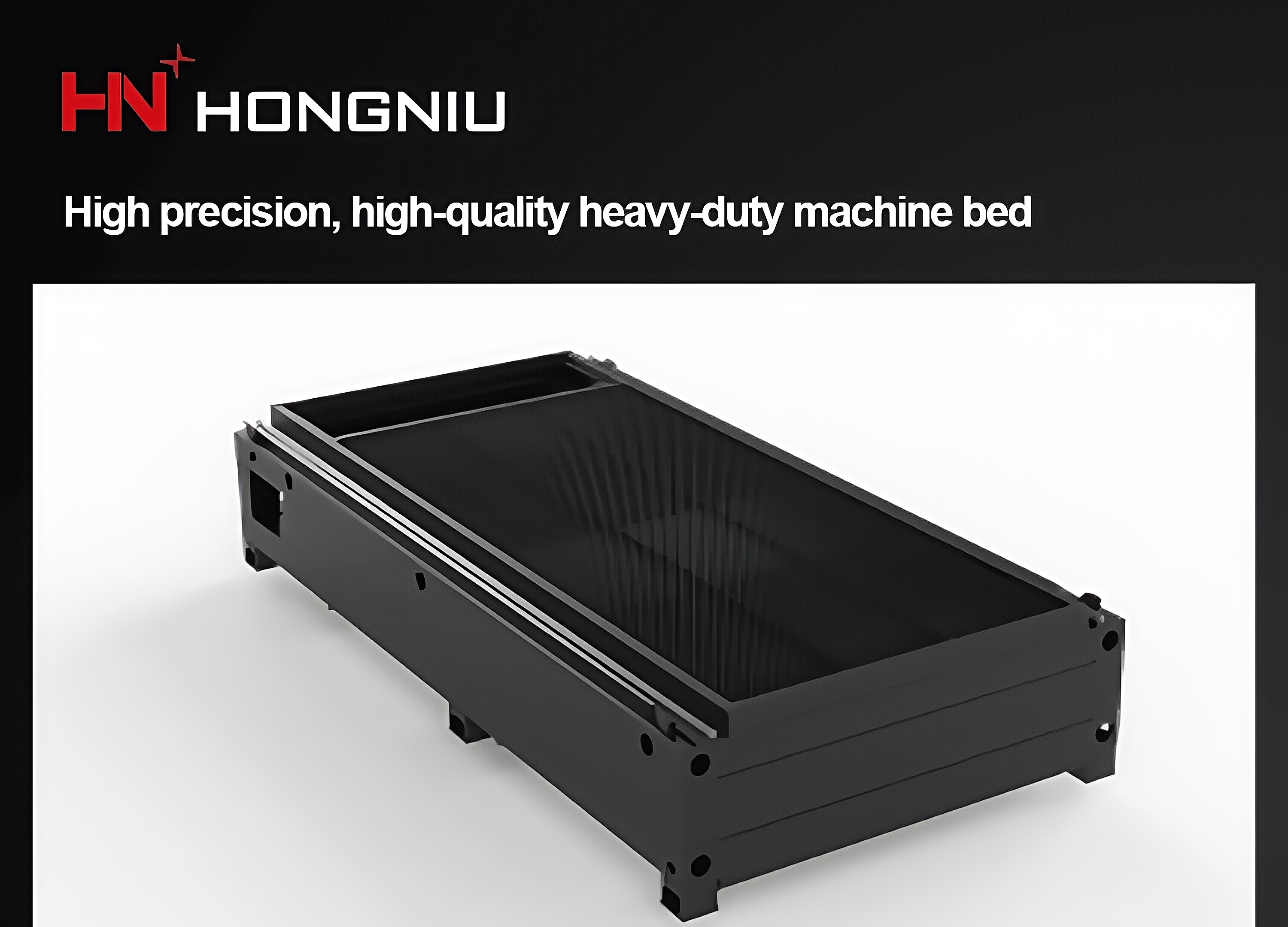

The machine employs a fully welded structure validated through finite element analysis. Post-annealing stress relief followed by precision machining effectively resolves stresses arising from welding and processing. This enhances rigidity and stability, extending the equipment's service life.

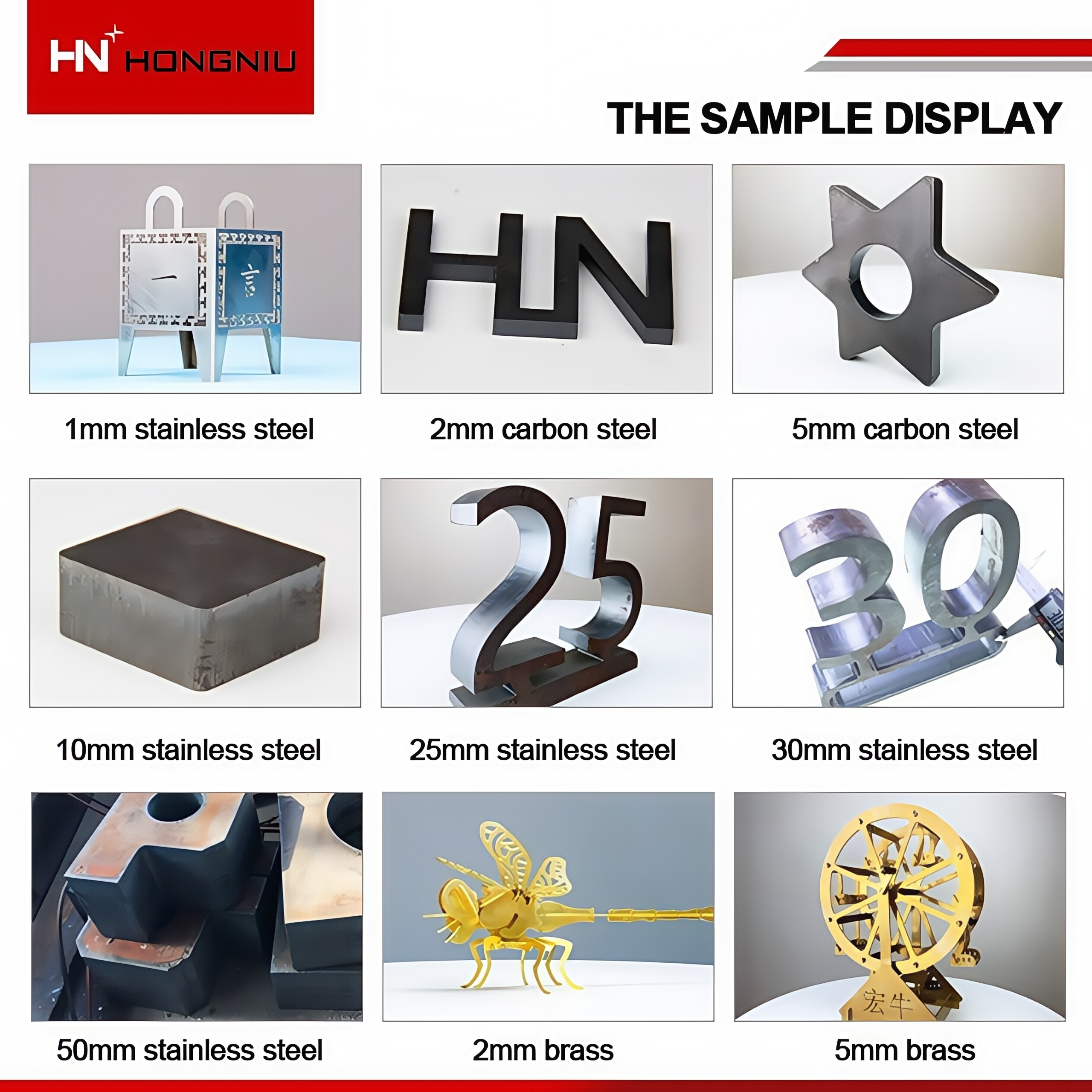

Cutting a wide variety of metal plates and pipes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, alloy plates, rare metals, and other material processes.
Kitchenware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air conditioning, elevators, hotel metal supplies processing, and more.
A leading manufacturer of fiber laser cutting machines, offering a wide range of solutions with cutting-edge technology. Our machines include fiber laser cutting machines, Tube fiber laser cutting machines, Sheet & Tube dual-use fiber laser cutting machines, 3D fiber laser cutting machines, and Hand-held welding machines. All products are CE and FDA certified, and we hold ISO 9001 certification. With a global presence in over 180 countries, we also provide OEM services to over 100 manufacturers. Trust us for innovative fabricating machinery solutions.
We have earned numerous patent certificates in areas such as design, technology, and branding, including CE certification, ISO certification, certificate of origin, and other related certifications. These achievements reflect our commitment to quality, innovation, and meeting international standards.
We offer lifetime comprehensive technical support for your product. Rest assured that your investment is fully protected.
Experienced technicians are available from 9:00 AM to 6:00 PM (Monday to Sunday). Enjoy lifetime online support in multiple languages via WhatsApp, WeChat, email, Facebook, and Instagram.
By 2025, on-site services are provided in over 80 countries and regions including Canada, Mexico, the United States, Russia, Italy, Poland, Brazil, India, Turkey, Thailand, Australia, and more.
This machine cuts a wide variety of metal plates and pipes. It is primarily applicable for stainless steel, carbon steel, manganese steel, galvanized sheets, various alloy plates, rare metals, and other metals.
The machine utilizes an integrated design that allows operators to switch intelligently between plate cutting and pipe cutting modes without replacing equipment. It processes profiles such as round tubes, square tubes, angle steels, and channel steels.
The fully automatic dual pneumatic chuck delivers stable, self-centering, and secure clamping. One-touch clamping achieves operating speeds up to three times faster than traditional electric chucks.
All products are fully CE and FDA certified. Our production and management systems are ISO 9001 certified, assuring the highest levels of quality and safety compliance.
We provide a comprehensive 5-year warranty alongside lifetime technical support. Online technical assistance is open 7 days a week, and local on-site services are available in over 80 countries.
Yes, we support full customization options. We offer factory direct supply, professional OEM services, competitive pricing structures, and maintain sufficient stock to fulfill custom needs.
