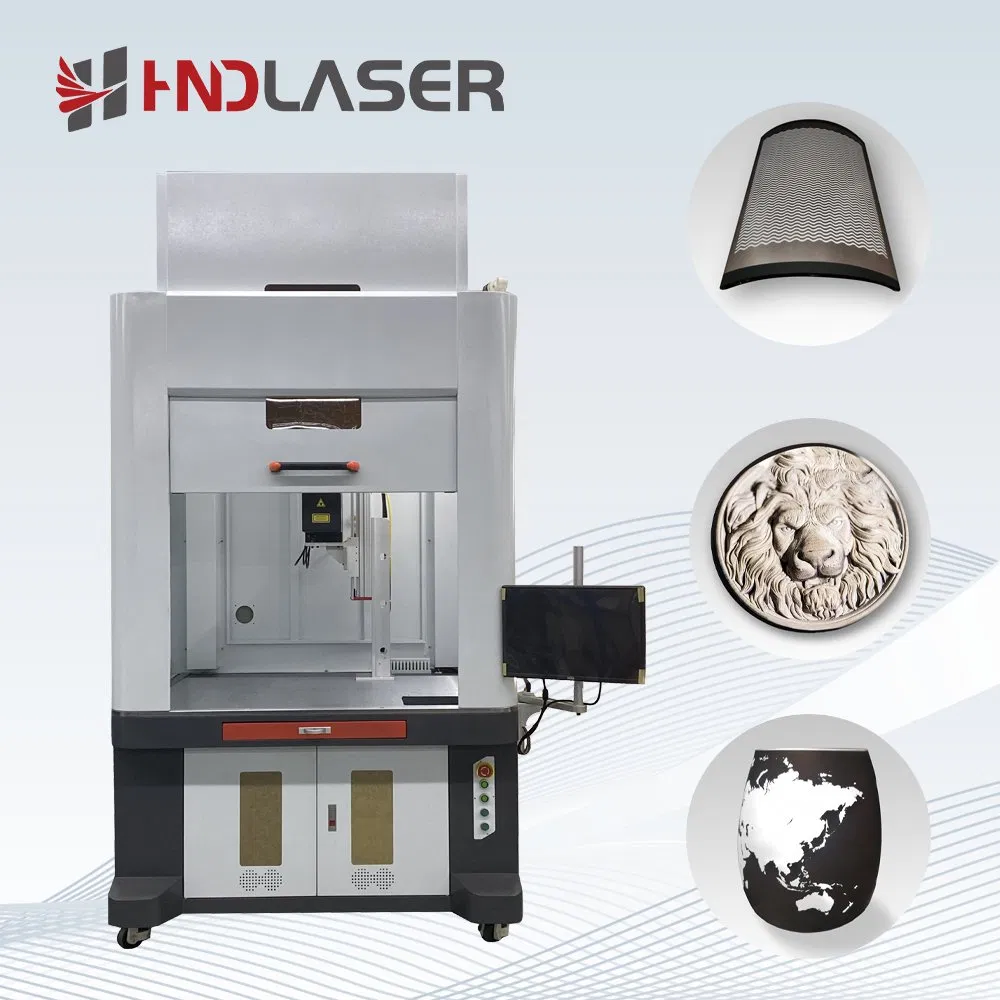

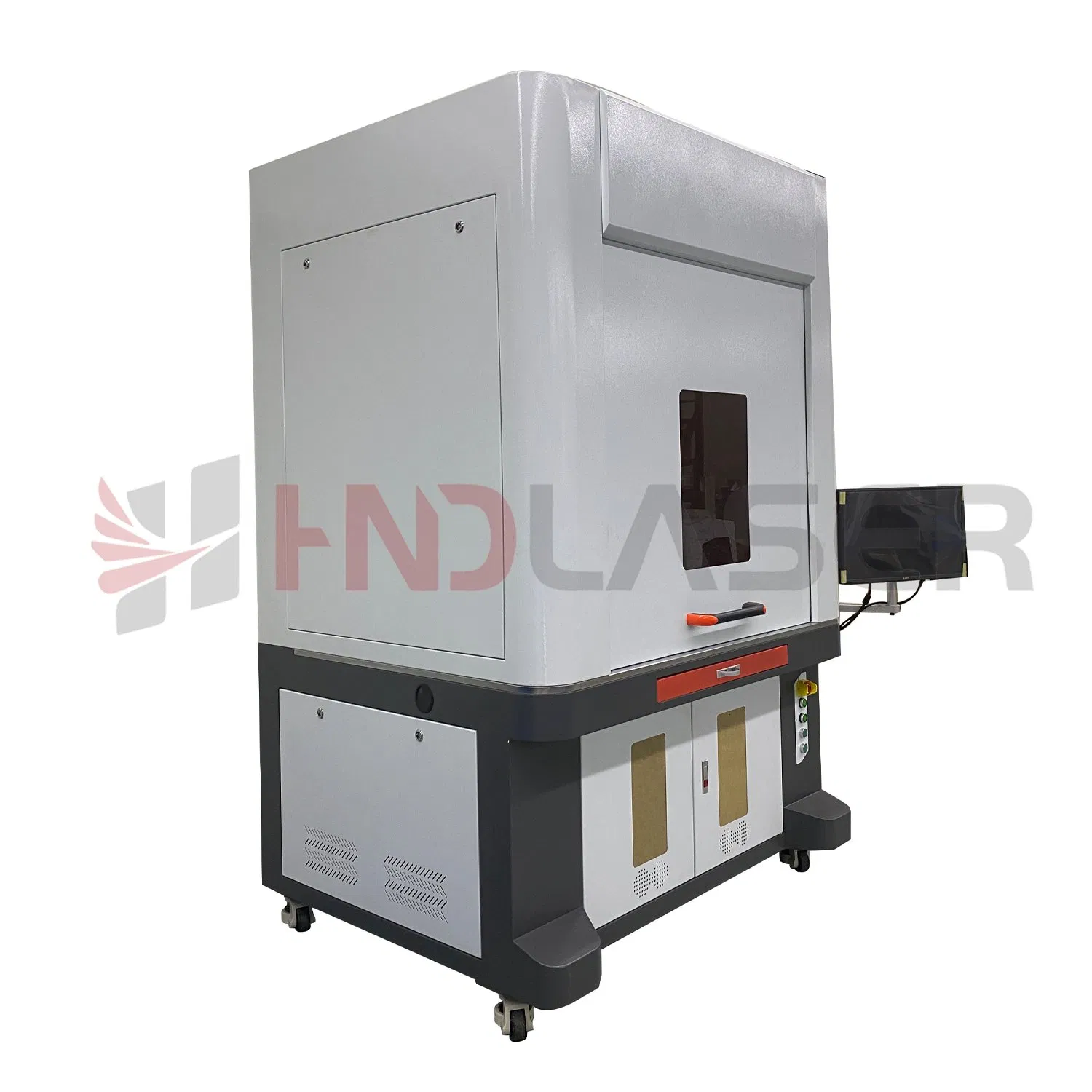

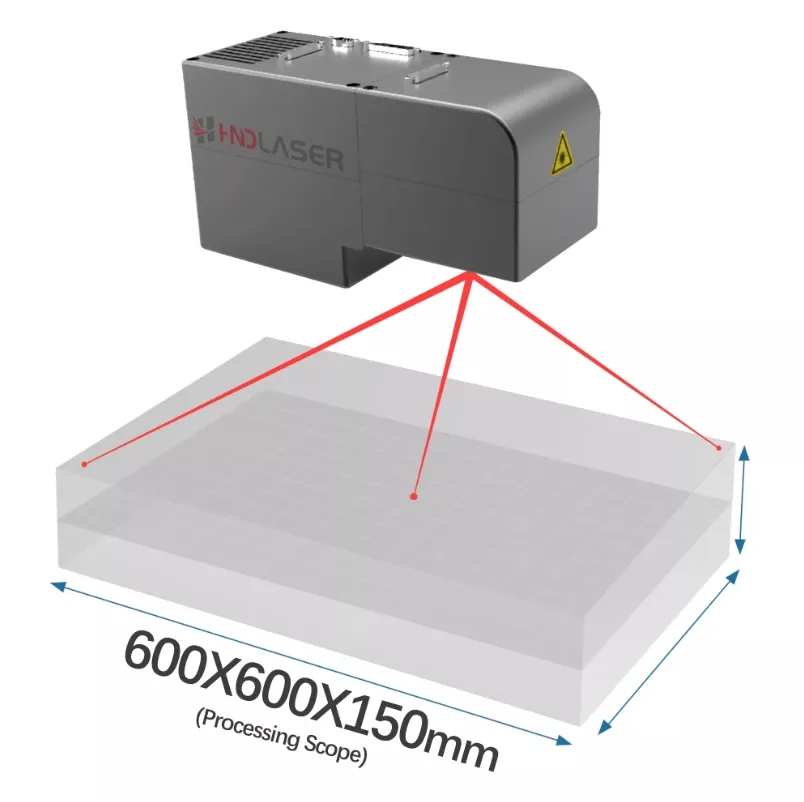

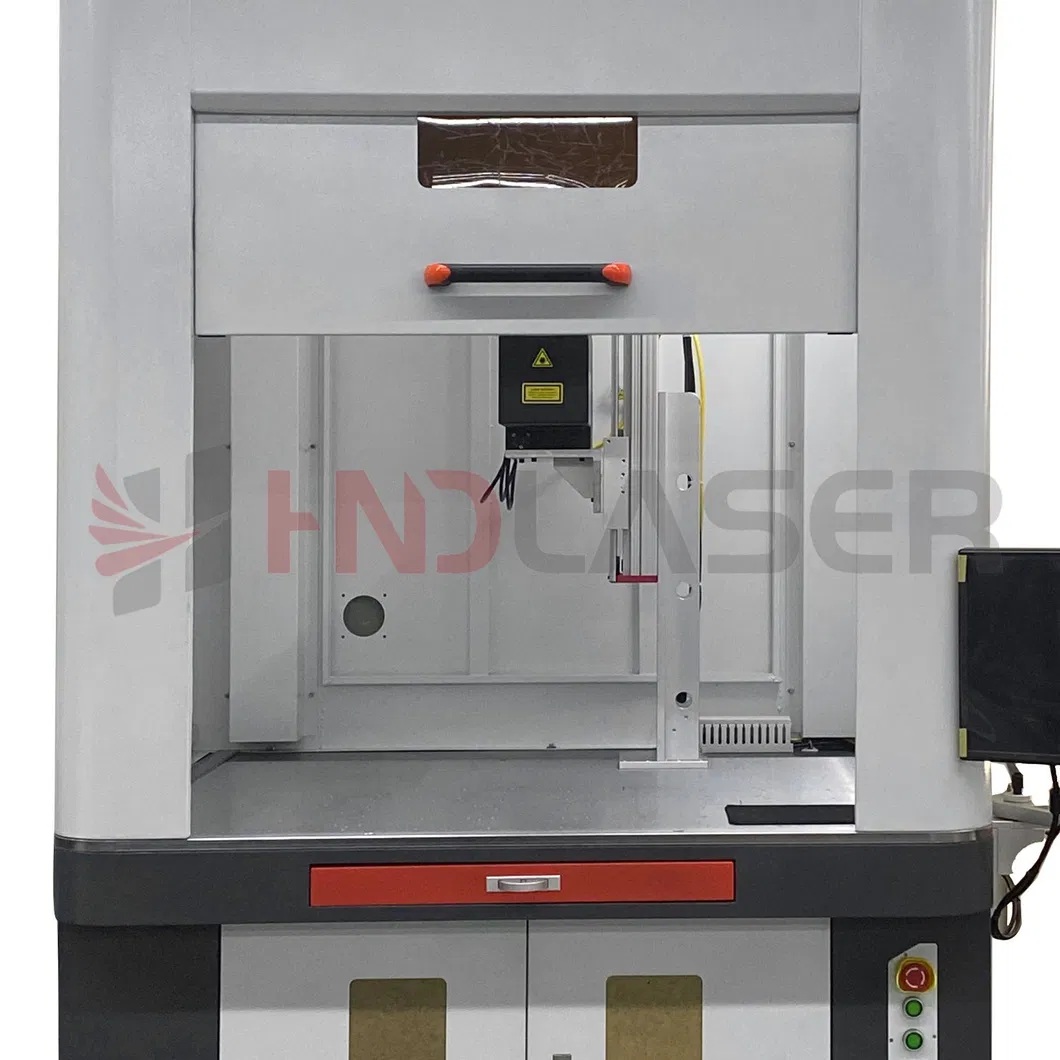

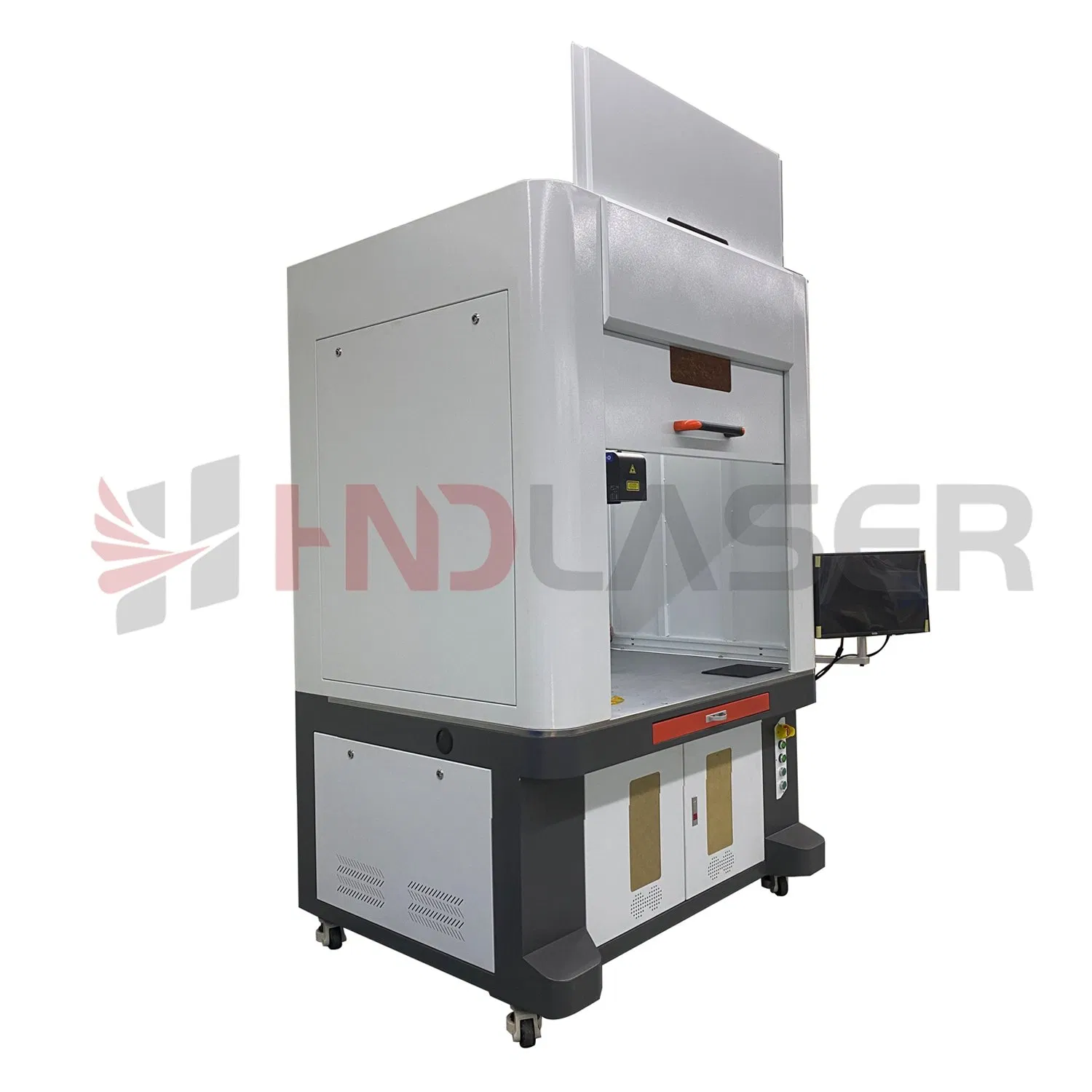

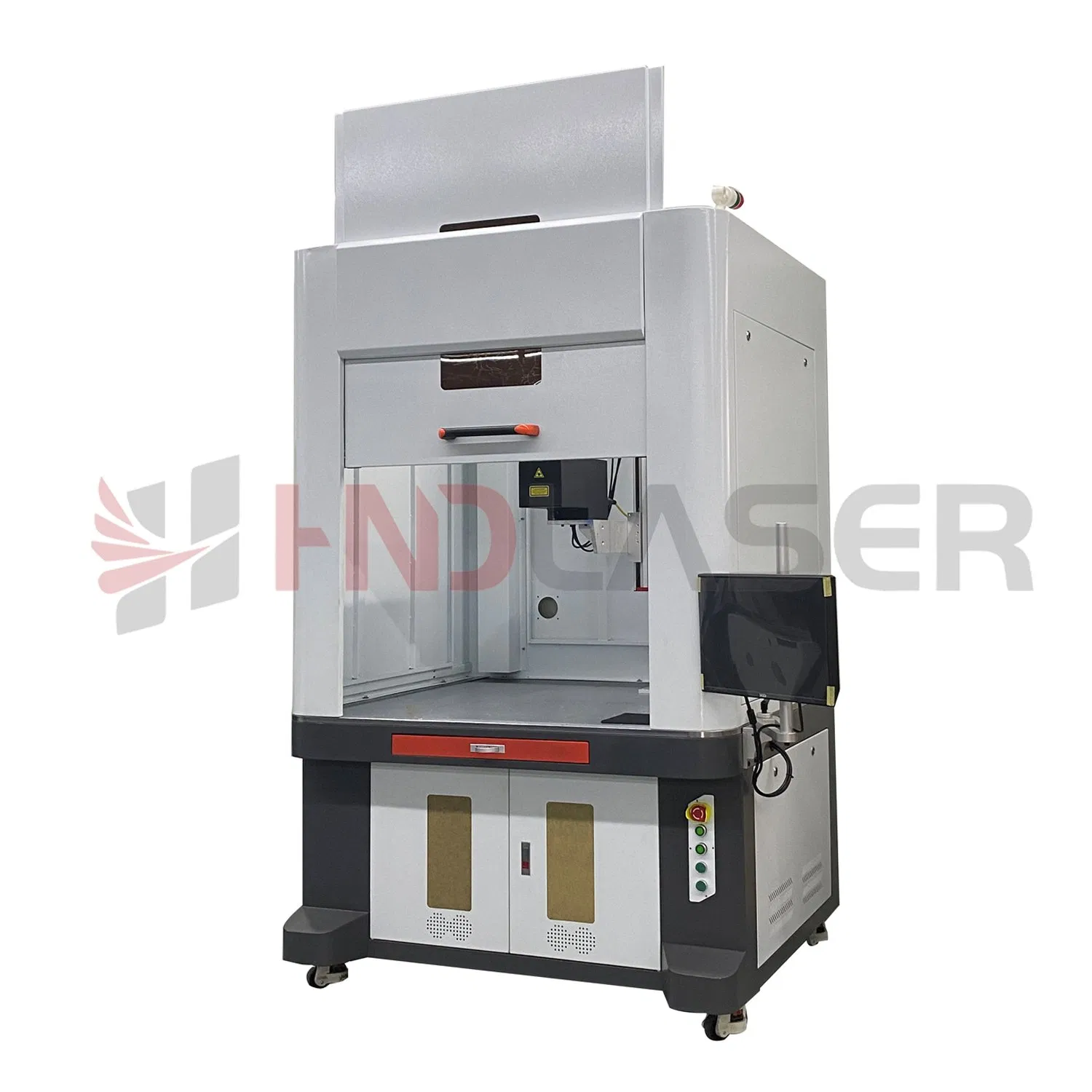

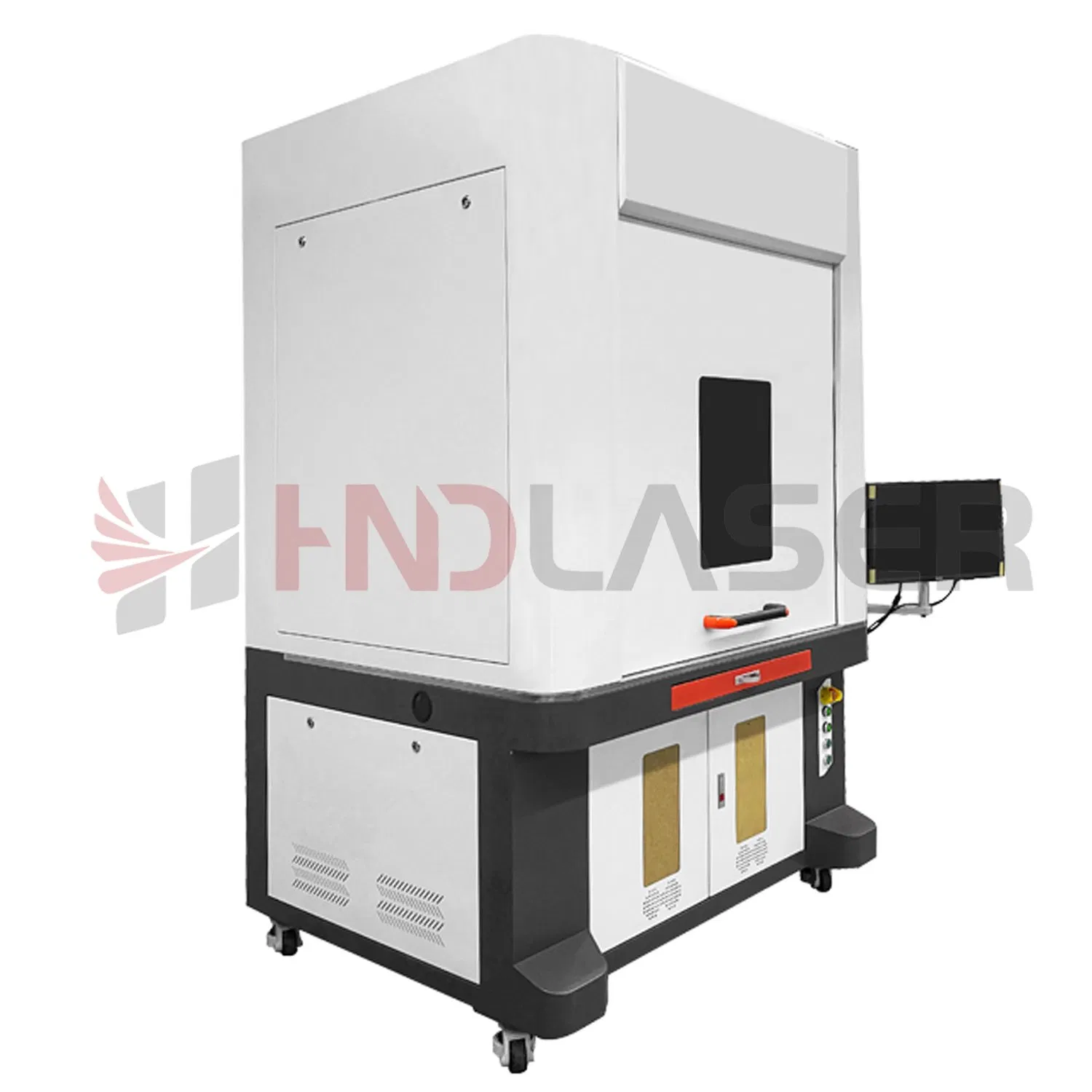

High-power laser engraving system, which can be equipped with a maximum of 4KW laser and a water-cooled 3D galvanometer, can efficiently process large-format products. The commonly used 3D galvanometer has a marking range of 600mm×600mm and a Z-axis adjustable range of 0-150mm. This enables it to engrave in both the negative and positive focal directions, greatly broadening its application areas.
Large marking range: The commonly used 3D galvanometer system can mark in a range of 600mm×600mm, which is suitable for the processing needs of large-size products.
High-precision control: 3D galvanometer system can realize micron-level control precision to ensure consistent marking results over a wide range.
0-150mm Z-axis adjustment: The Z-axis of the galvanometer system is adjustable from 0-150mm, making it possible to mark on material surfaces of different heights. The laser focus position can be automatically adjusted according to changes in the shape and height of the workpiece.
Negative-focus and positive-focus marking: It is possible to engrave both in the negative-focus direction (upward) and in the positive-focus direction (downward), which greatly increases the flexibility and applicability of marking.
| NO. | Project | Parameter |
|---|---|---|
| 1 | Model number | HF10XX-3D |
| 2 | Laser power | 30W/50W/100W/200W (Optional) |
| 3 | Laser level | Class IV (IEC 60825-1) |
| 4 | Laser type | Pulse Fiber Laser |
| 5 | Wavelength | 1064nm |
| 6 | Marking field | 100/150/200/300/400/500/600 (optional) |
| 7 | Max. Marking depth | 20-200mm |
| 8 | Marking speed | ≤10000mm/s(optional) |
| 9 | Marking line width | 0.01-0.2mm |
| 10 | Min character size | 0.015mm |
| 11 | Repeat accuracy | 0.01mm |
| 12 | Cooling method | Air-cooled/Water-cooled |
| 13 | Laser source expected life | >100,000 hours |
| 14 | Standard user interface | PC/Touch panel |
| 15 | Consumables | No |
| 16 | Temperature | 0-45ºC |
| 17 | Power consumption | 1000 W |
| 18 | Electrical requirement | L/N/PE 100 - 240 VAC, 50/60 Hz |

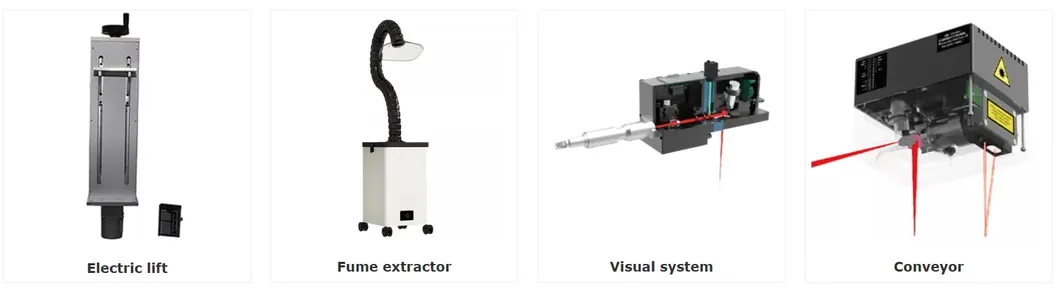

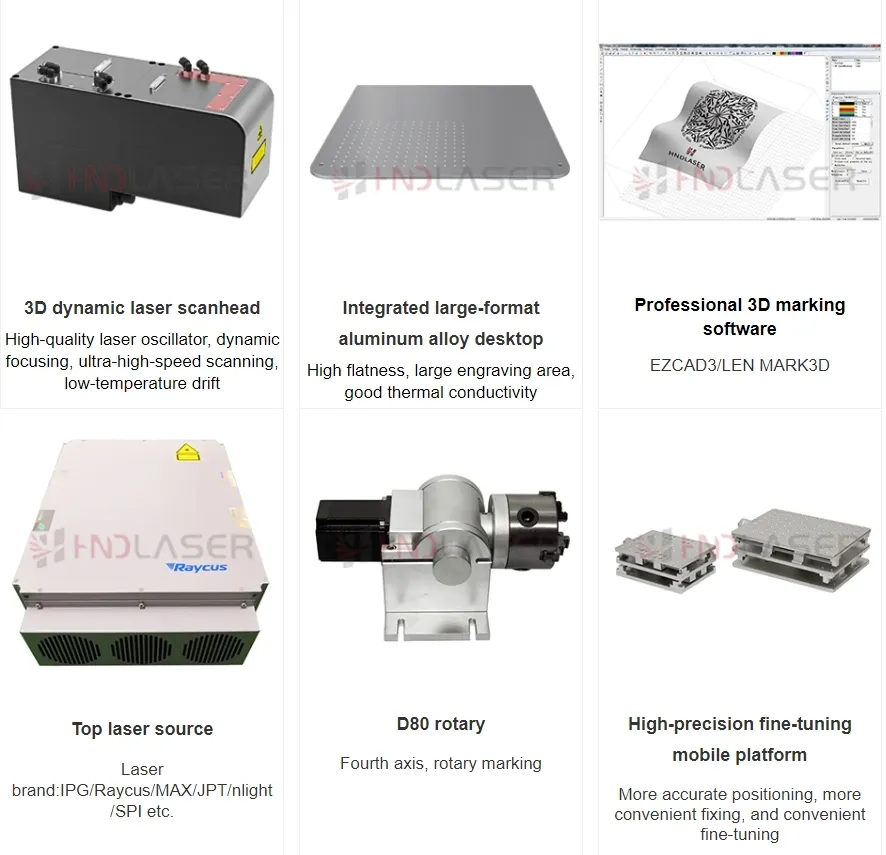

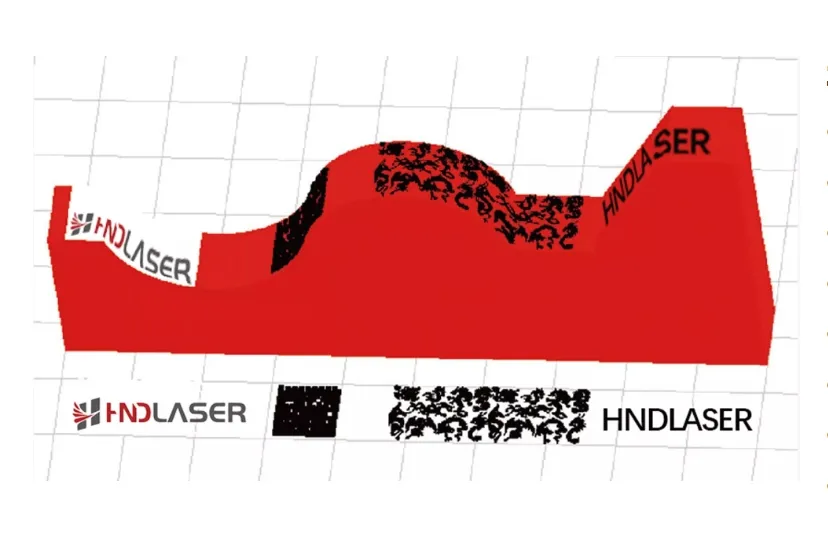

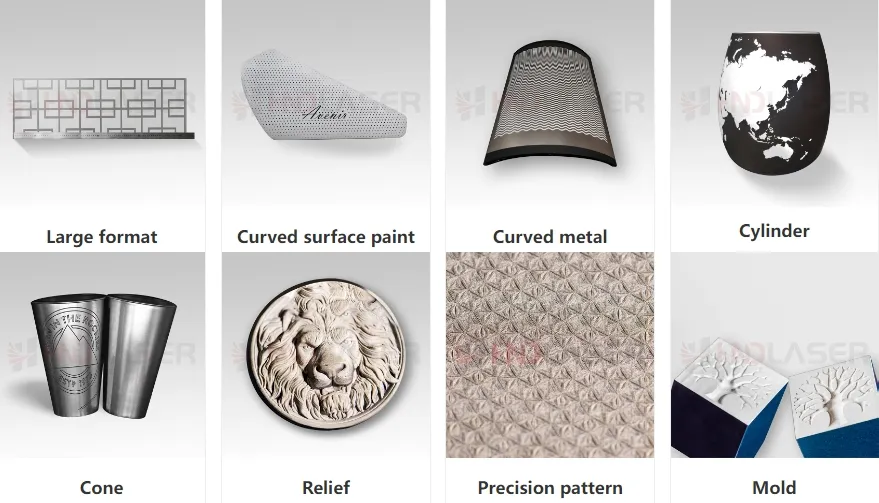

Complex curved surface marking: The 3D galvanometer system can automatically adjust the laser focus according to the height change of the curved surface to ensure high-quality marking effect on complex curved surfaces. Suitable for the identification and decoration of complex curved products such as automotive parts, aerospace equipment, etc.
Multi-layer marking: By adjusting the Z axis, the 3D galvanometer system can achieve multi-level deep marking, which is suitable for materials such as metal and stone that require deep engraving.
Efficient processing: High-power laser combined with the efficient scanning capability of the 3D galvanometer can complete deep marking in a short time and improve production efficiency.
| Materials | Reaction | Materials | Reaction | ||
|---|---|---|---|---|---|
| Metal | Stainless steel | √√ | Plastic | PE | √ |
| Aluminum | √√ | PP | - | ||
| Anodized aluminum | √√ | PVC | √√ | ||
| Brass | √√ | PPR | √ | ||
| Coated metal | √√ | ABS | √ | ||
| Copper | √ | PET | - | ||
| Gold, silver, nickel, platinum | √ | Nylon | √ | ||
| Carbon steel | √√ | MPP | - | ||
| Titanium | √√ | PC | - | ||
| Ceramics | Ceramic | √ | Ceramic | Electrical and medical ceramic | √ |
Eradicate consumable replacement expenses. Reliant solely on electrical power, this setup represents a one-time robust investment that ensures completely maintenance-free operation.
Utilizing advanced ink-free technology and solvent-free processing, the machine guarantees odorless and safe operation. It operates using non-toxic and non-corrosive materials.
A minimally wasteful framework guaranteeing 100% resource utilization with zero emissions produced during continuous operation.
Through precisely controlled indentation depth, markings remain resistant to oxidation and experience no color degradation. Highly recommended for critical traceability.

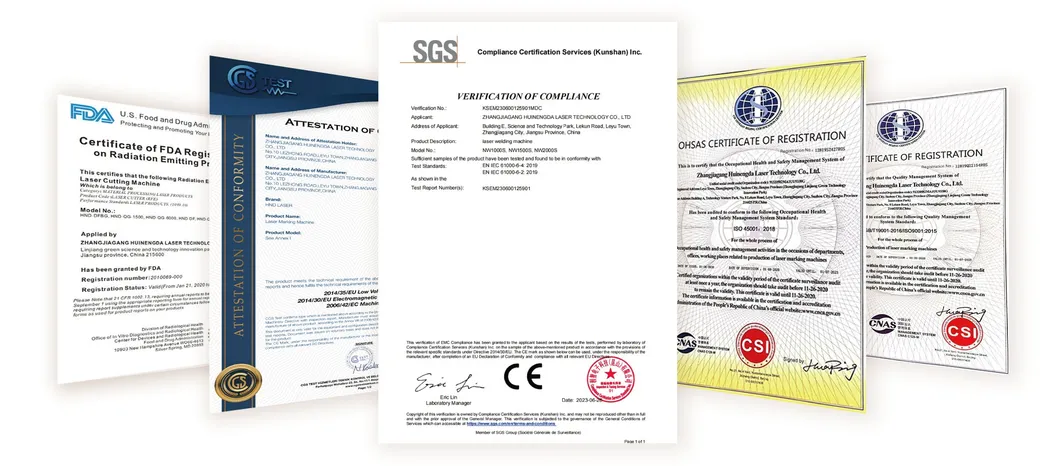

Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.
