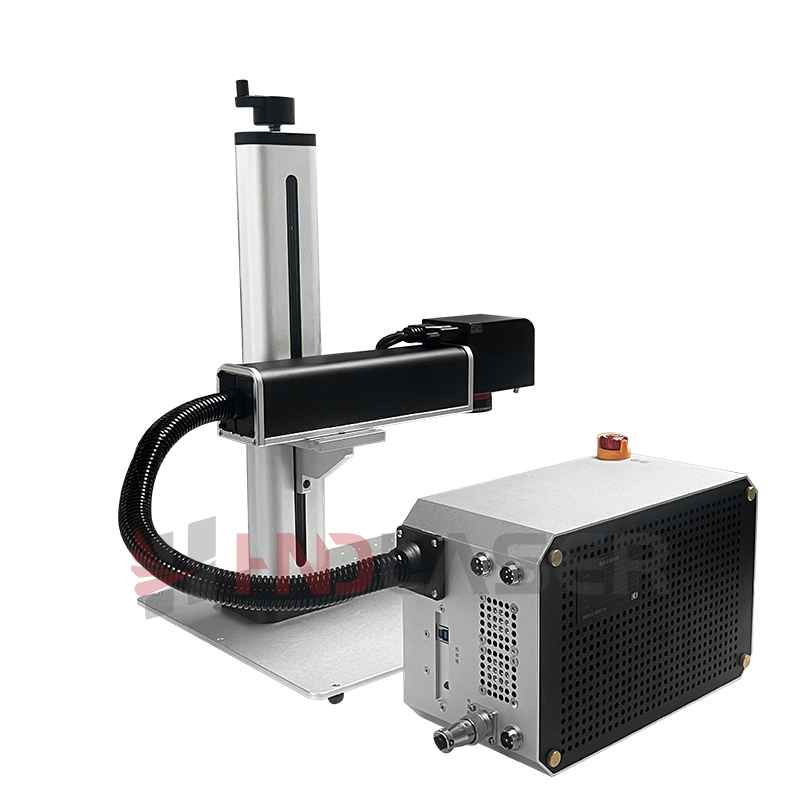

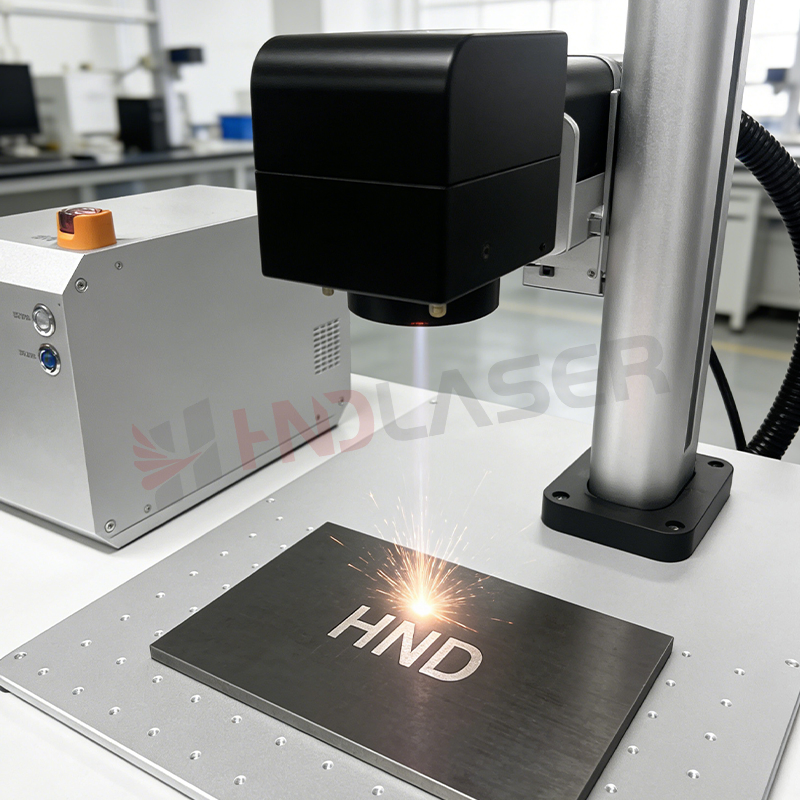

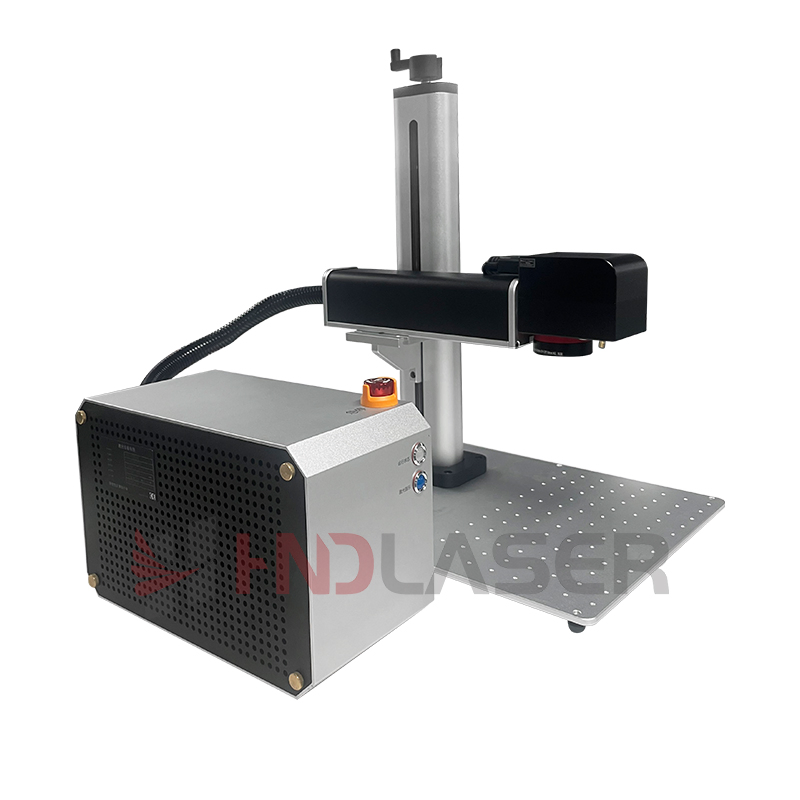

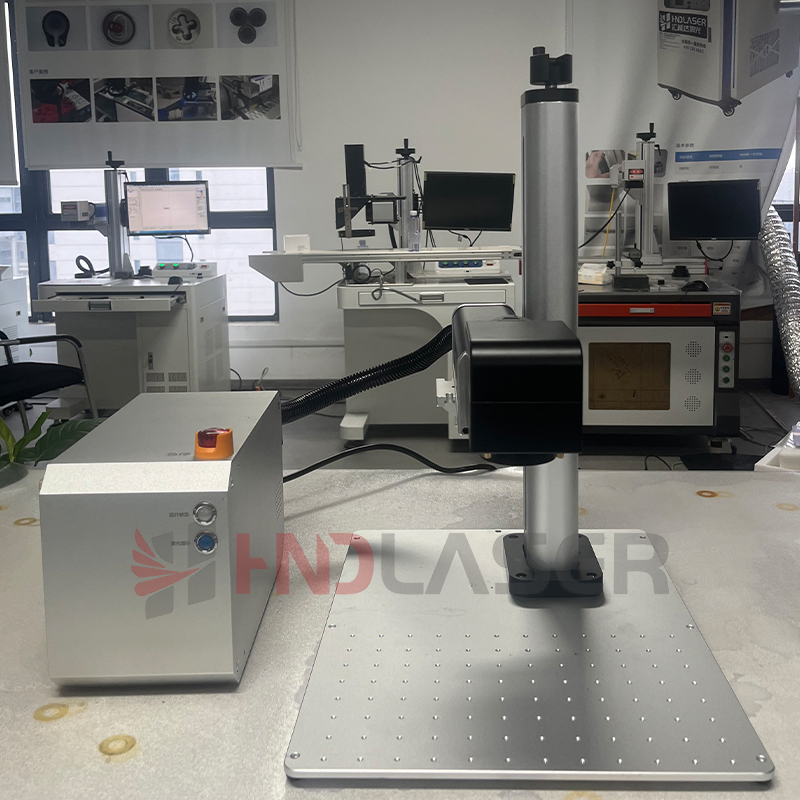

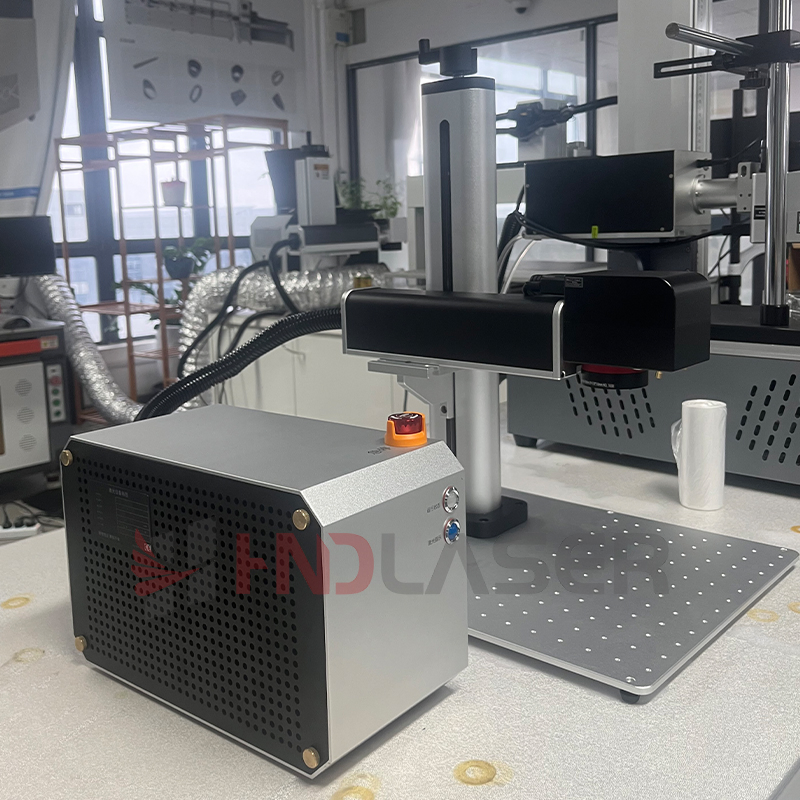

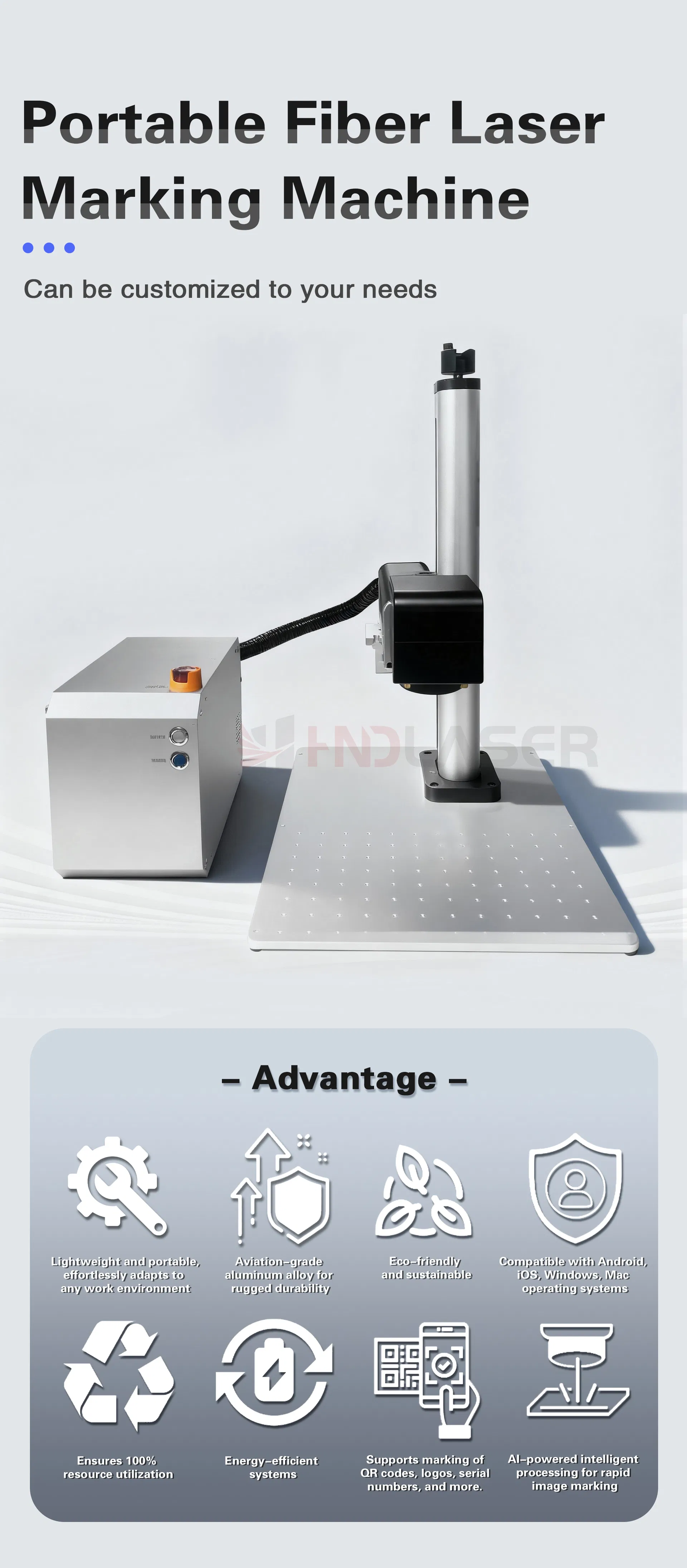

The desktop split fiber laser marking machine series is designed for small and medium factories, production lines, brands, and custom workshops. It offers 20W/30W/50W power options, a compact split structure, and easy portability, making it suitable for permanent, high-contrast marking on metals and selected plastics. The machine uses a reliable pulsed fiber laser and high-speed galvo scanner to quickly mark QR codes, barcodes, logos, serial numbers, dates, nameplates, and fine graphics with clear, durable results.
NO.
Project
Parameter
1
Model number
HF10XX-A
2
Laser power
30W/50W/100W/200W (Optional)
3
Laser level
Class IV (IEC 60825-1)
4
Laser type
Pulse Fiber Laser
5
Wavelength
1064nm
6
Marking field
100*100-300*300mm/600*600mm (optional)
7
Marking depth
≤0.01mm
8
Marking speed
≤10000mm/s(optional)
9
Marking line width
0.01-0.2mm
10
Min character size
0.015mm
11
Repeat accuracy
0.01mm
12
Cooling method
Air-cooled
13
Laser source expected life
>100,000 hours
14
Standard user interface
PC/Laptop
15
Consumables
No
16
Temperature
0-45ºC
17
Power consumption
700 W
18
Electrical requirement
L/N/PE 100 - 240 VAC, 50/60 Hz
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
Materials
Reaction
Materials
Reaction
Metal
Stainless steel
√√
Plastic
PE
√
Aluminum
√√
PP
-
Anodized aluminum
√√
PVC
√√
Brass
√√
PPR
√
Coated metal
√√
ABS
√
Copper
√
PET
-
Gold, silver, nickel, platinum
√
Nylon
√
Carbon steel
√√
MPP
-
Titanium
√√
PC
-
Ceramics
Ceramic
√
Electrical/Medical
Electrical and medical ceramic
√
Frequently Asked Questions
What materials can this split fiber laser marking machine process?
The machine is highly effective on all metals (including stainless steel, aluminum, brass, copper, carbon steel, and titanium), selected plastics (such as PVC, PE, ABS, PPR, nylon), and ceramics.
What are the available laser power configurations?
It offers multiple power configurations including 20W, 30W, 50W, 60W, and up to 100W/200W optional power to suit different marking speeds and material depths.
How long does the laser source last, and does it require maintenance?
The pulse fiber laser source has an expected lifetime of over 100,000 hours and requires no consumables, making it virtually maintenance-free.
Is this fiber laser marking machine easy to transport and install?

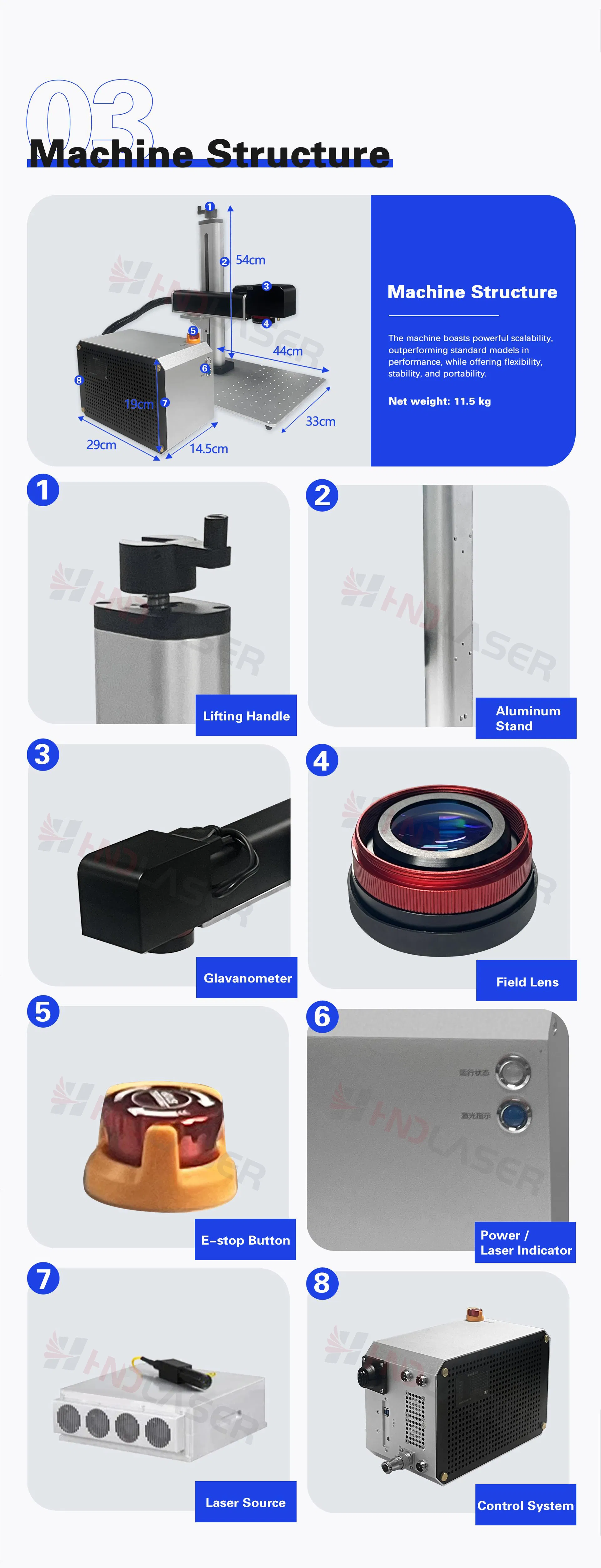

Yes, it features a compact split design with no extra cables and an all-in-one setup, making it highly portable and suitable for small spaces or desktop setups.
How does the focusing system work?
It uses a dual red light focusing system with an outline indication to help operators quickly and accurately adjust the focal length for precise marking.
Is there any extra electrical requirement for operation?
The machine works with standard electrical configurations of L/N/PE 100 - 240 VAC at 50/60 Hz, with a power consumption of around 700 W.
