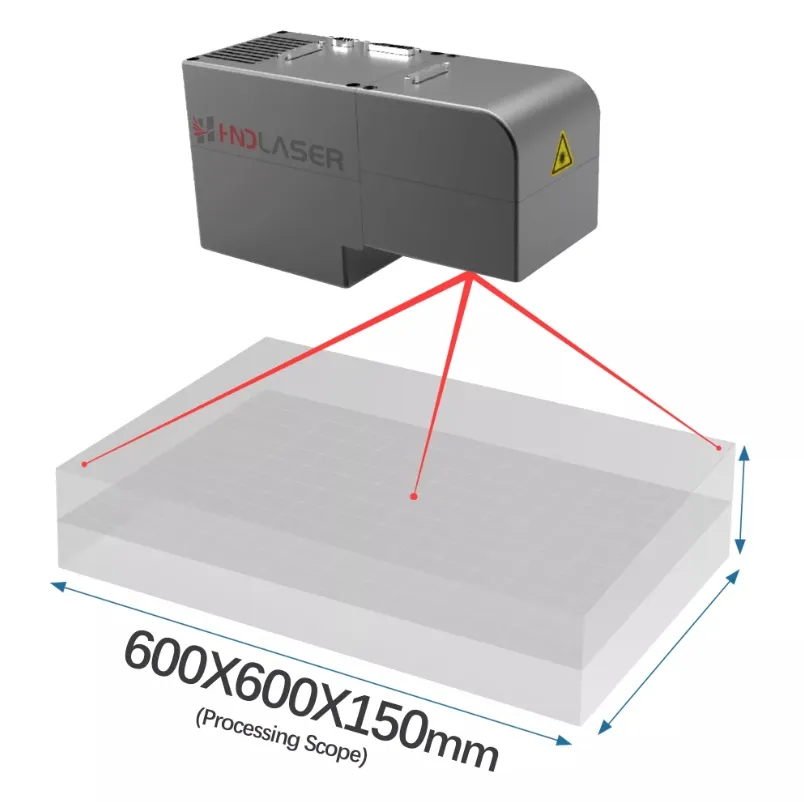

Auto Focus: The Z-axis of the galvanometer system automatically adjusts the focus, dynamically adjusting the laser focus position in response to changes in the height of an object's surface, ensuring that each marking point is in the optimal focus position. This auto-focus function ensures high quality marking results, and consistent and accurate marking regardless of changes in surface height.
High-speed scanning: The high-speed galvanometer allows for rapid movement of the laser beam, dramatically increasing marking speeds and making it suitable for mass production needs. High-speed scanning not only improves productivity, but also reduces waiting time and meets high throughput requirements.
High Accuracy: The precise control of the galvanometer system enables micron-level marking accuracy.

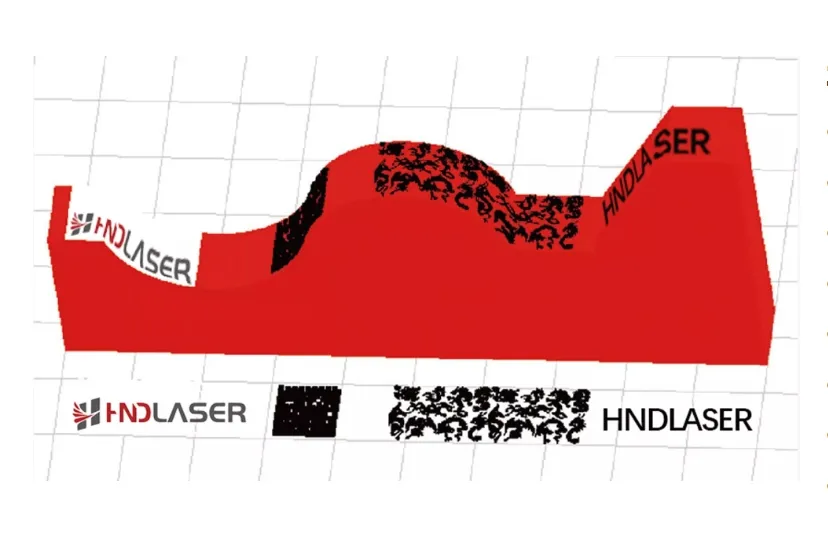

Complex Graphics Processing: 3D marking software can process complex three-dimensional graphic data, generate accurate marking paths, and support multi-level and multi-dimensional marking effects.
Automatic compensation: The software can automatically compensate the laser marking path according to the three-dimensional shape of the object surface to ensure consistent and accurate marking results.
Flexibility and compatibility: 3D marking software is usually highly flexible and compatible with different types of galvanometer systems and lasers, adapting to a wide range of application requirements.
| NO. | Project | Parameter |
|---|---|---|
| 1 | Model number | HF10XX-3D |
| 2 | Laser power | 30W/50W/100W/200W (Optional) |
| 3 | Laser level | Class IV (IEC 60825-1) |
| 4 | Laser type | Pulse Fiber Laser |
| 5 | Wavelength | 1064nm |
| 6 | Marking field | 100/150/200/300/400/500/600 (optional) |
| 7 | Max. Marking depth | 20-200mm |
| 8 | Marking speed | ≤10000mm/s(optional) |
| 9 | Marking line width | 0.01-0.2mm |
| 10 | Min character size | 0.015mm |
| 11 | Repeat accuracy | 0.01mm |
| 12 | Cooling method | Air-cooled/Water-cooled |
| 13 | Laser source expected life | >100,000 hours |
| 14 | Standard user interface | PC/Touch panel |
| 15 | Consumables | No |
| 16 | Temperature | 0-45ºC |
| 17 | Power consumption | 1000 W |
| 18 | Electrical requirement | L/N/PE 100 - 240 VAC, 50/60 Hz |

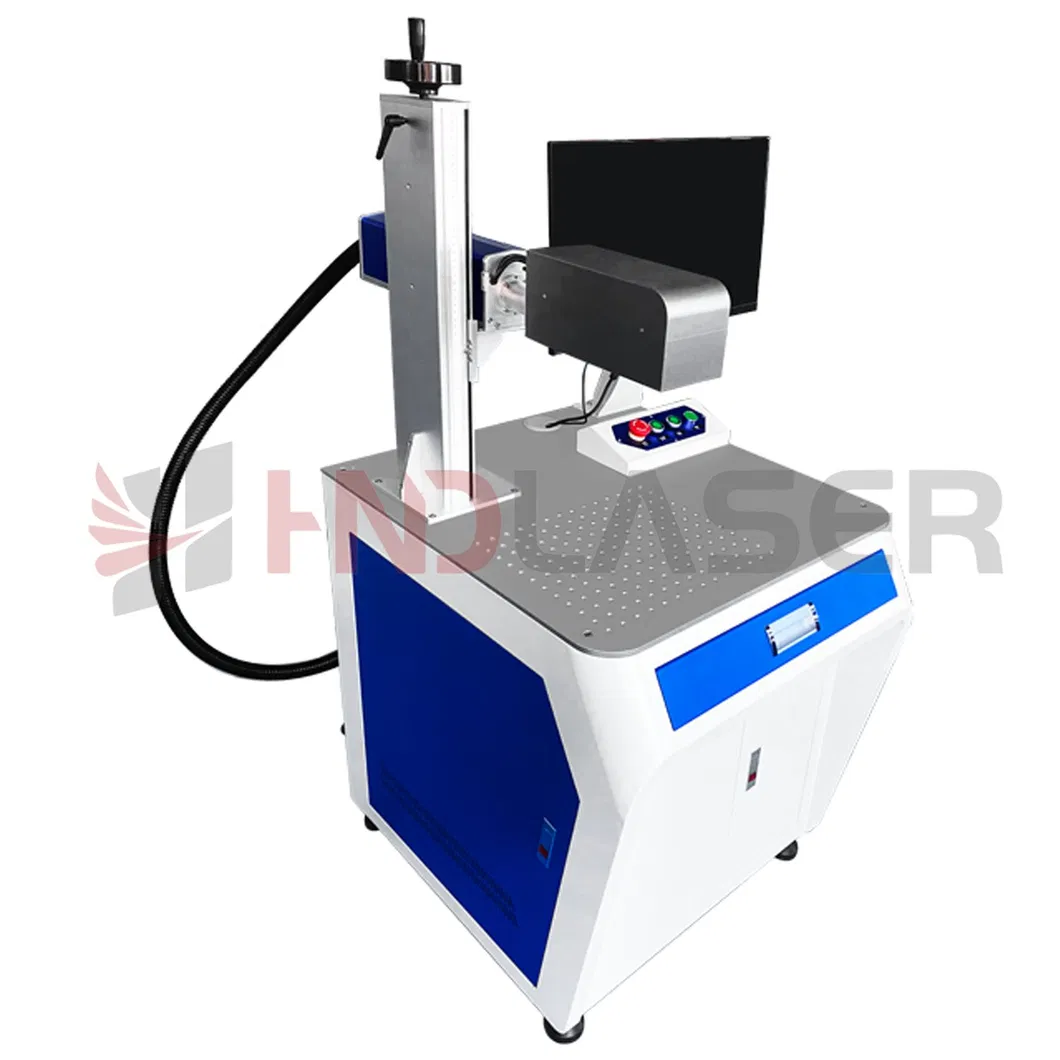

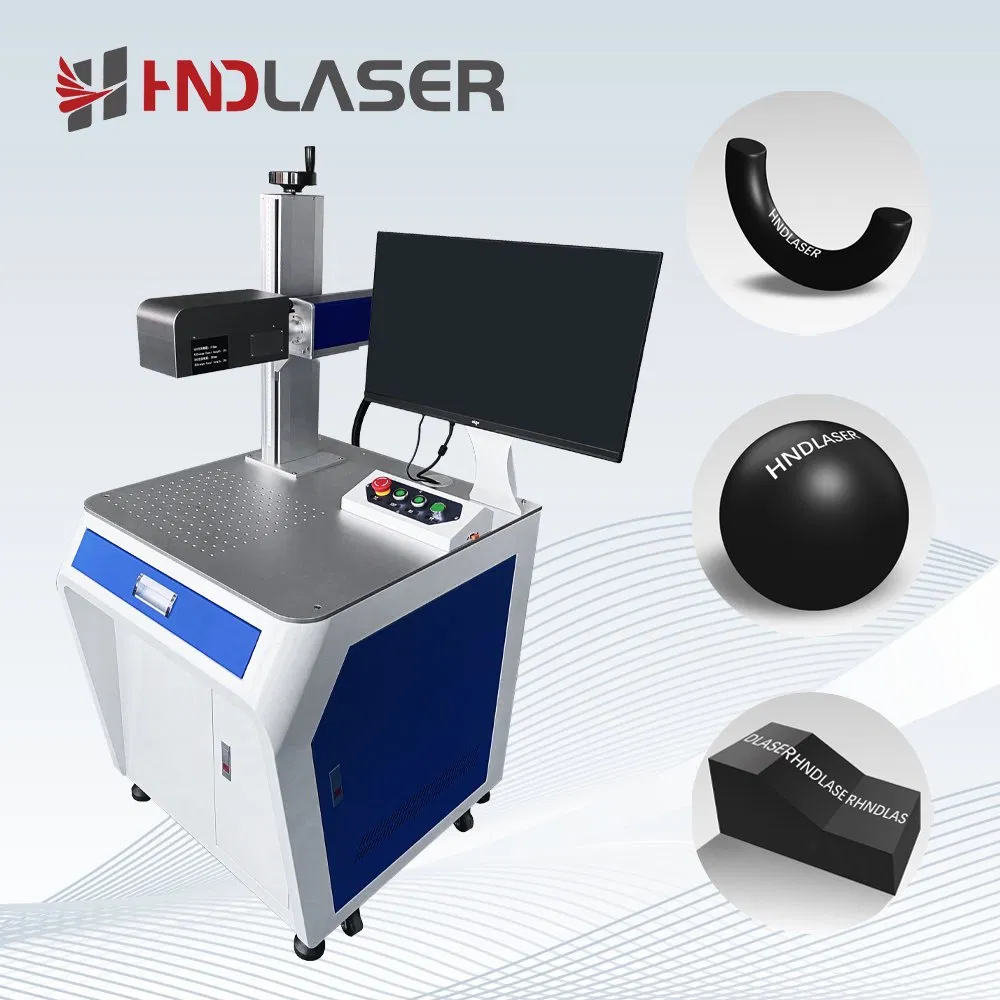

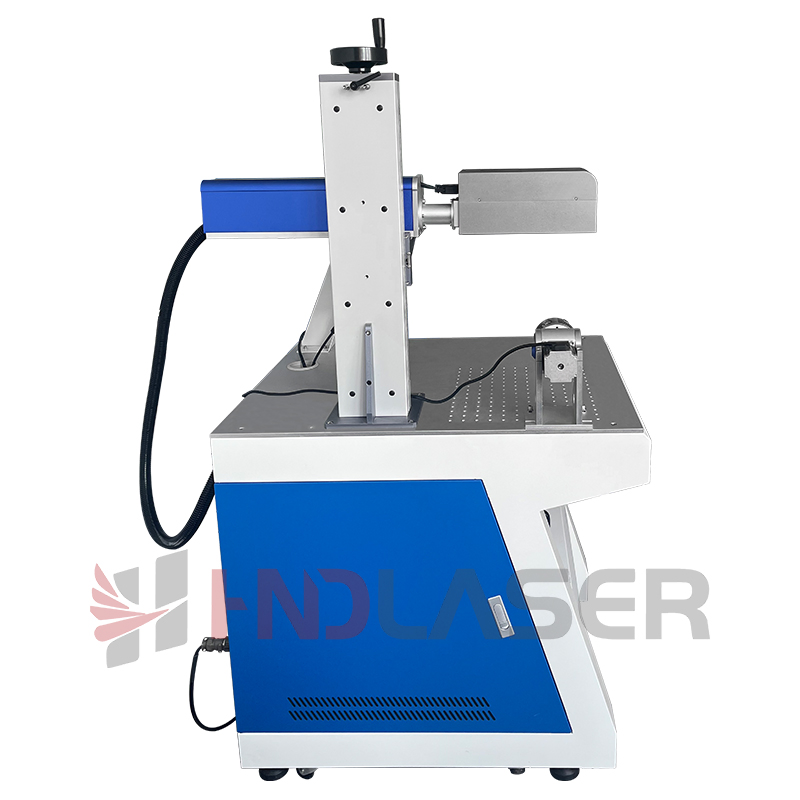

At the core of this technology is the laser itself. A 3D laser marking machine uses a focused laser beam controlled by advanced software to engrave intricate designs with unmatched precision. The laser adjusts its focus dynamically to account for the 3D features of the object, ensuring clarity and consistency even on complex surfaces.

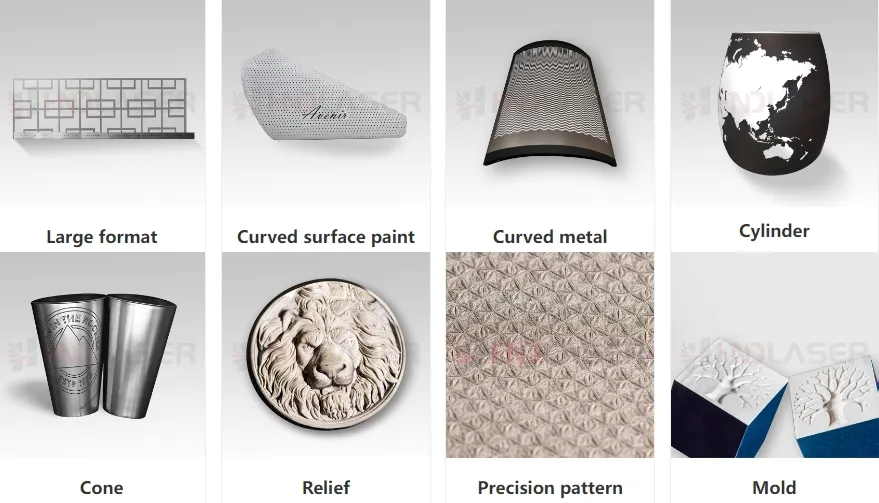

The result is precision and customization at an unprecedented level. Whether you need to mark logos, serial numbers, or intricate patterns, 3D laser marking offers the perfect solution for any design challenge.
| Material Group | Specific Material | Reaction Level | Material Group | Specific Material | Reaction Level |
|---|---|---|---|---|---|
| Metal | Stainless steel | √√ | Plastic | PE | √ |
| Aluminum | √√ | PP | - | ||
| Anodized aluminum | √√ | PVC | √√ | ||
| Brass | √√ | PPR | √ | ||
| Coated metal | √√ | ABS | √ | ||
| Copper | √ | PET | - | ||
| Gold, silver, nickel, platinum | √ | Nylon | √ | ||
| Carbon steel | √√ | MPP | - | ||
| Titanium | √√ | PC | - | ||
| Ceramics | Ceramic | √ | Ceramic Spec | Electrical & medical ceramic | √ |
* Legend: √√ Exceptional Reaction | √ Admirable Reaction | - Unsatisfactory Reaction
Eradicate ongoing consumable replacement expenses. The marking unit is reliant solely on standard electrical power, serving as a one-time robust investment that promises virtually maintenance-free operation.
Utilizes entirely ink-free and solvent-free marking technology. Delivers odorless, non-toxic, safe, and non-corrosive operations, maintaining a clean workspace environment.
Minimally wasteful architecture guaranteeing high-efficiency resource utilization with zero operational emissions produced during marking cycles.
Offers precisely controlled indentation depth resistant to oxidation and color degradation. Significantly enhances component traceability with reliable output.
Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.
