| NO. | Project | Parameter Details |
|---|---|---|
| 1 | Model number | HF10XX |
| 2 | Laser power | 30W/50W/100W/200W (Optional) |
| 3 | Laser level | Class IV (IEC 60825-1) |
| 4 | Laser type | Pulse Fiber Laser |
| 5 | Wavelength | 1064nm |
| 6 | Marking field | 110*110mm-300*300mm/600*600/1000*1000mm (optional) |
| 7 | Marking depth | ≤0.01mm |
| 8 | Marking speed | ≤10000mm/s(optional) |
| 9 | Marking line width | 0.01-0.2mm |
| 10 | Min character size | 0.015mm |
| 11 | Repeat accuracy | 0.01mm |
| 12 | Cooling method | Air-cooled |
| 13 | Laser source expected life | >100,000 hours |
| 14 | Standard user interface | PC/Laptop |
| 15 | Consumables | No |
| 16 | Temperature | 0-45ºC |
| 17 | Power consumption | 700 W |
| 18 | Electrical requirement | L/N/PE 100 - 240 VAC, 50/60 Hz |
| Materials | Reaction | Materials | Reaction | ||
|---|---|---|---|---|---|
| Metal | Stainless steel | √√ | Plastic | PE | √ |
| Aluminum | √√ | PP | - | ||
| Anodized aluminum | √√ | PVC | √√ | ||
| Brass | √√ | PPR | √ | ||
| Coated metal | √√ | ABS | √ | ||
| Copper | √ | PET | - | ||
| Gold, silver, nickel, platinum | √ | Nylon | √ | ||
| Carbon steel | √√ | MPP | - | ||
| Titanium | √√ | PC | - | ||
| Ceramics | Ceramic | √ | Special | Electrical and medical ceramic | √ |

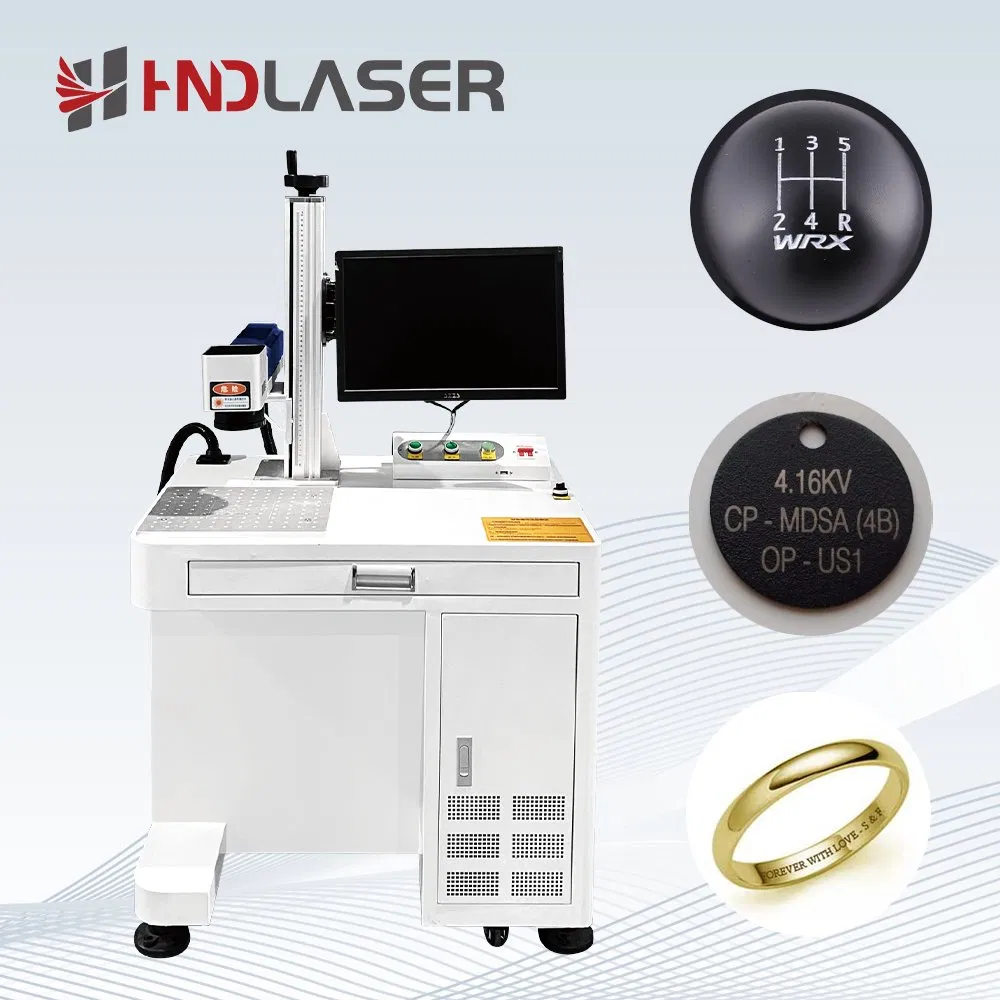

The machine is ideal for engraving a wide range of metals, including stainless steel, aluminum, anodized aluminum, brass, copper, carbon steel, and titanium. It is also compatible with plastics like PE, PVC, PPR, ABS, and Nylon, as well as ceramics.
We offer multiple laser power configurations depending on your requirements, including 30W, 50W, 100W, and 200W variants, allowing you to choose the optimal setup for speed and marking depth.
Under standard laboratory conditions, the pulse fiber laser source features an outstanding operational lifespan of over 100,000 hours, ensuring long-term reliability and minimal maintenance.
No, this system utilizes an integrated air-cooling mechanism. This eliminates the need for bulky water chillers, making the equipment compact, highly efficient, and low maintenance.

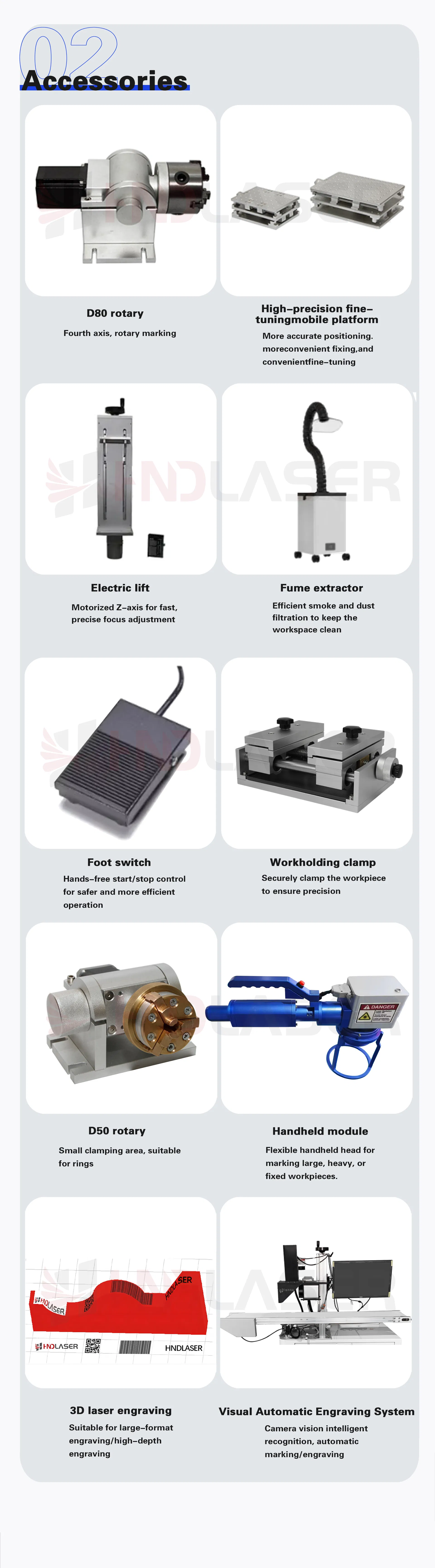

For seamless integration and remote control, the machine supports USB, Ethernet, and RS232 interfaces. It also allows configuration with rotary attachments for curved/cylindrical workpieces and DIY computer setups.
The machine supports marking speeds up to 10,000 mm/s with a positioning accuracy of 0.01 mm, making it suitable for both rapid prototyping and detailed, high-precision industrial outputs.
