| Model | Budget 5 | Budget 6 | Budget 7 |
|---|---|---|---|
| Work Space | 500*300mm | 600*400mm | 700*500mm |
| Laser Power | 40W-60W | 40W-60W | 40W-80W |
| Machine Weight | 120kg | 140kg | 160kg |
| Machine Size | 1000*680*430mm | 1100*780*430mm | 1200*880*530mm |
| Z-axis Travel | 150mm | 150mm | 150mm |
| Repeat Precision | ±0.1mm | ±0.1mm | ±0.1mm |
| Positioning Precision | <0.1mm | <0.1mm | <0.1mm |
| Cooling | Built-in Water Pump | Built-in Water Pump | Built-in Water Pump |
| Air Supply | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump |
| Exhaust Blower | Built-in Blower | Built-in Blower | Built-in Blower |
| Optional | Rotary Device, Fume Extractor, Honeycomb Table | ||

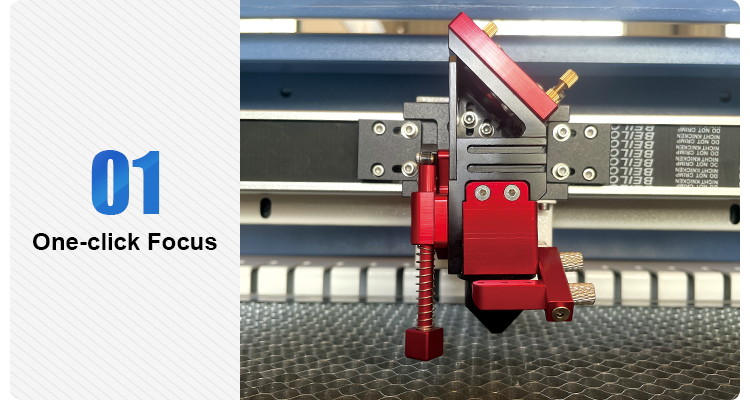

Automatic Focusing Laser Head Allow Quickly And Safely Set The Focal Height.

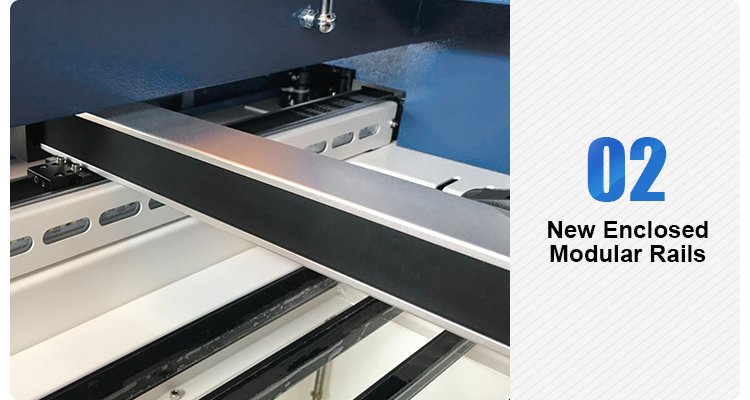

New Aluminum Enclosed Module Guide Rail With 1900mm/s Running Speed.

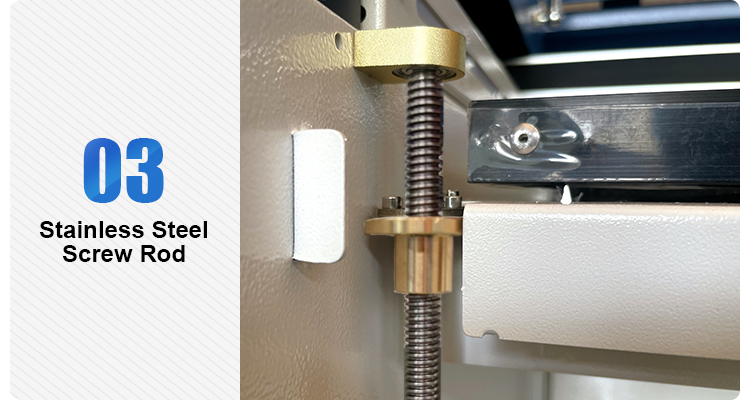

The Up-Down Travel Is 170mm To Allow a Wheel Or Chuck Type Rotary Device And Allowing For Engraving On Large Objects.

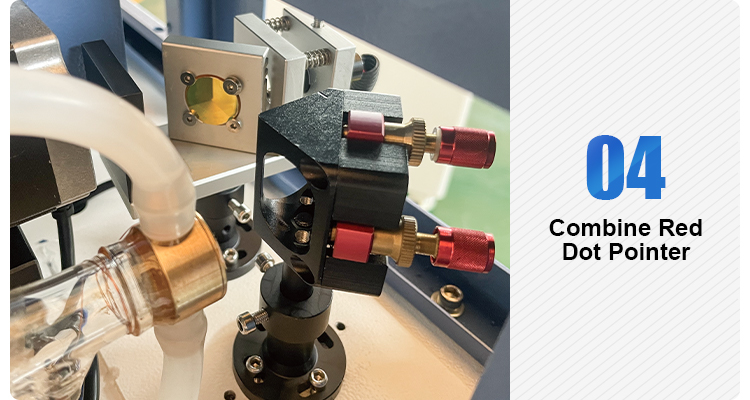

The In-Line Beam Combiner Allows Easy Mirror Alignment During Set-Up And General Maintenance.

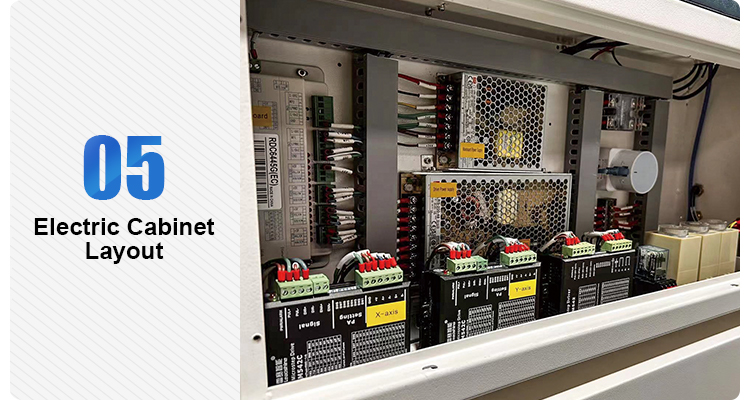

The Power Distribution Cabinet Has Neat Wiring, Correct Markings, Strong And Weak Current Separation, And High Safety.
The automatic focusing laser head allows you to quickly, safely, and accurately set the focal height, improving setup efficiency and ensuring high engraving precision.
The machines feature a new aluminum enclosed module guide rail that supports high-speed operations of up to 1900mm/s for fast and stable production.
Yes, with a Z-axis travel of 150mm (and up-down travel up to 170mm), you can easily integrate a wheel or chuck type rotary device to engrave on large and cylindrical objects.
Yes, the models feature a built-in water pump for cooling, a built-in air pump for air supply, and a built-in blower for exhaust ventilation, ensuring a compact footprint.
Optional accessories include a Rotary Device for round engraving, a Fume Extractor for air filtration, and a Honeycomb Table for better material support.
Absolutely. The power distribution cabinet features neat wiring, correct safety markings, and complete separation between strong and weak currents to ensure maximum operational safety.
