Jigsaw Machine
1 / 5
| Machine Name | Laser Marking Machine |
| Laser power | 3W/5W/10W/15W/20W/30W/50W/60W/100W/200W |
| Laser wavelength | 1064nm |
| Repetition frequency | 20-80KHz |
| Carving line speed | ≤7000mm/s |
| Minimum Line | 0.01mm |
| Repeat accuracy | ±0.001mm |
| Control interface | USB |
| Laser life | More than one hundred thousand hours |
| Rated voltage | 220V/110V |
| Cooling method | Air cooling |

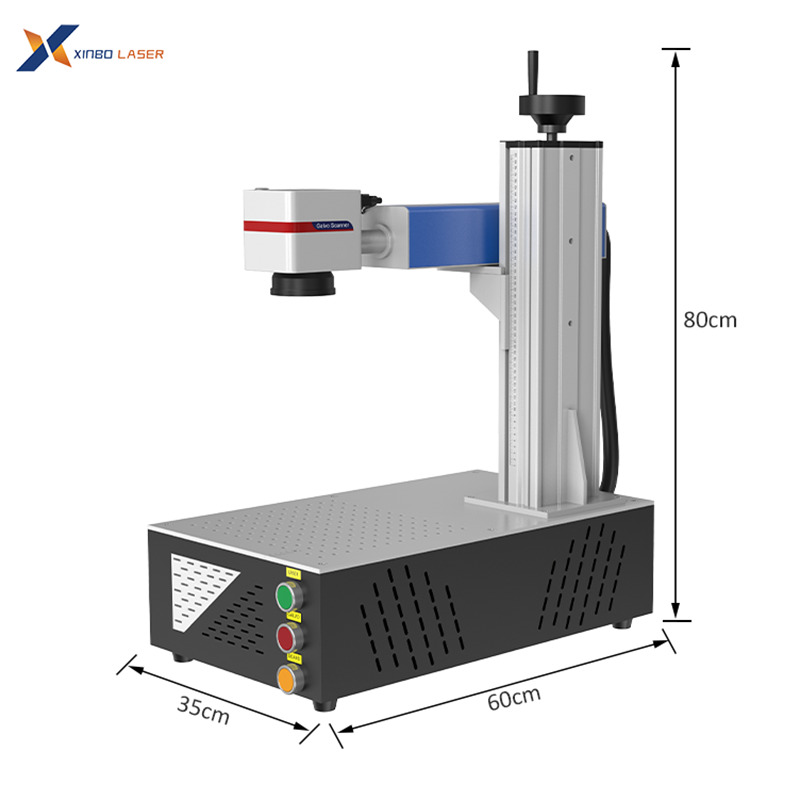

| Machine size | 80*35*60cm |
| Net weight | 35kg |
Professional manufacturer of laser equipment integrating scientific research, production, sales, service and trade. Adhering to the business philosophy of "quality first, service first" and continuously improving manufacturing level, innovation ability and high-quality service standards.
This system supports a wide range of power choices to fit different application demands, including 3W, 5W, 10W, 15W, 20W, 30W, 50W, 60W, 100W, and 200W configurations.
The laser source has an exceptional operating life of more than 100,000 hours, offering long-term reliability and minimal maintenance requirements.
The machine offers outstanding marking precision with a minimum line width of 0.01 mm and a repeat accuracy of ±0.001 mm, making it suitable for intricate engraving tasks.
The system utilizes an integrated air cooling method, which provides efficient thermal management without the need for external water chiller systems.
It features a standard USB control interface, ensuring seamless connectivity and compatibility with modern control software and computers.
The laser operates at a standard wavelength of 1064nm, which is highly efficient for marking and engraving on a variety of metals and hard materials.
