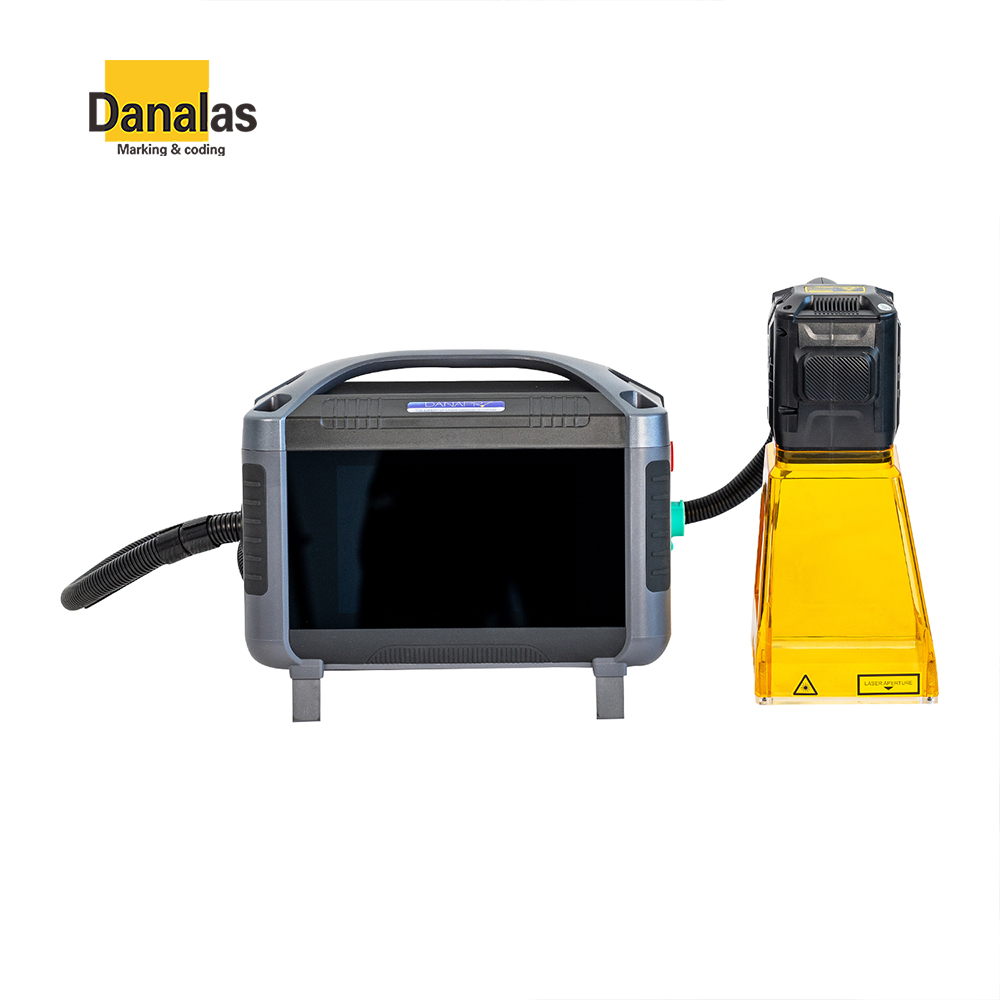

In modern industrial production and on-site operations, an efficient, convenient, and multifunctional marking tool is crucial. Our portable handheld laser marking machine is meticulously designed to meet your marking needs in various scenarios.
| DANA-7020 Technical Specifications Table | |
|---|---|
| Laser Type | Fiber Laser Generator (Generation II) |
| Output Power | 20W |
| Marking Area | 70×70mm, 100×100mm (optional) |
| Galvanometer | High-precision two-dimensional scanning system |
| Laser Wavelength | 1064nm |
| Focal Lens | 130mm |
| Marking Speed | ≤7000mm/s |
| Main Control | Integrated motherboard, 8-inch capacitive full-lamination screen |
| Operating System | Linux system |
| Marking Line Types | Dot matrix and vector integrated machine |
| Line Width | 0.03mm |
| Repeat Positioning Accuracy | 0.01mm |
| Positioning Method | Red light positioning, focusing |
| Number of Printable Character Lines | Any number within the effective marking range |
| Printing Speed | 800 characters (depending on material and content) |
| Fonts | Chinese, English, numbers, traditional Chinese, etc. (standard font library) |
| File Formats | BMP, DXF, HPGL, JPEG, PLT |
| Barcodes | CODE39, CODE128, CODE126, QR |
| Power Supply | 110V/220VAC, 324Wh15Ah |
| Overall Power Consumption | ≤250W |
| Operating Temperature | 0-40°C |
| Weight | 8-8.8kg (8kg for plug-in version, 8.8kg for battery version) |

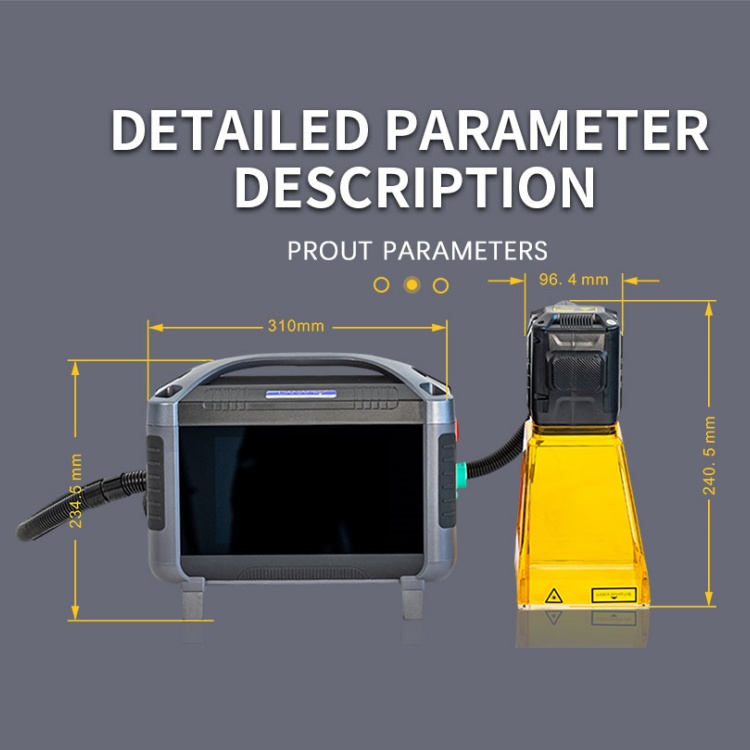

The entire machine weighs only 8kg, is compact and lightweight, equipped with a carrying handle, making it easy to move and suitable for various scenarios.
The battery has a large capacity that supports long working hours on a single charge, reducing frequent recharging and enhancing work efficiency.
An 8-inch fully laminated LCD screen with one-touch activation, offering simple and quick operation. Equipped with a Linux system and an 8-core processor, it ensures high security levels, stable performance, and fast response.
This portable handheld laser marking machine stands out in the industrial marking field with its lightweight and portable design, robust battery life, and efficient marking performance. It is suitable for marking tasks in various complex environments, easily handling both large workpieces and confined spaces.
Supports text, patterns, QR codes, barcodes, Excel files, and more. Also compatible with vector graphics like PLT/JPG/DXF/BMP, meeting diverse file format import and reading needs.

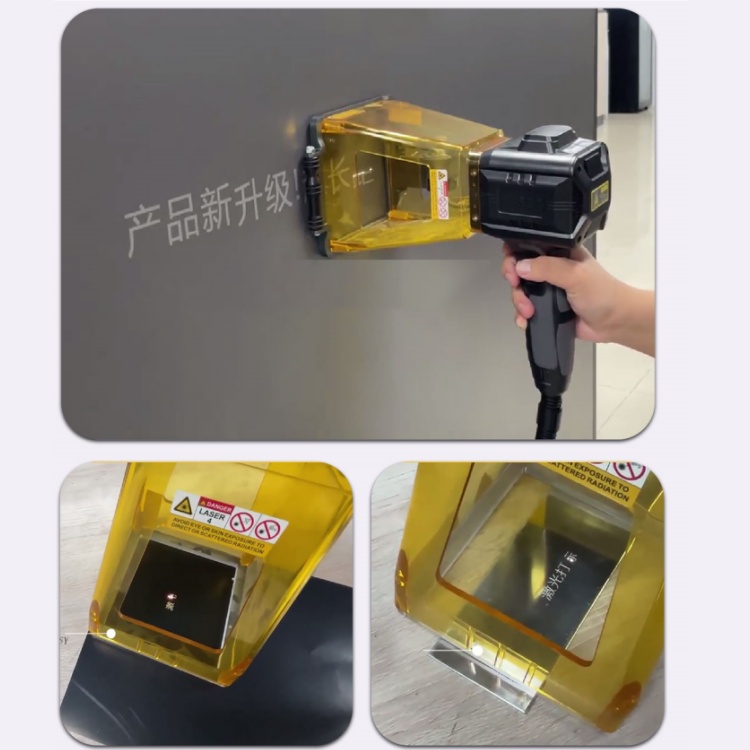

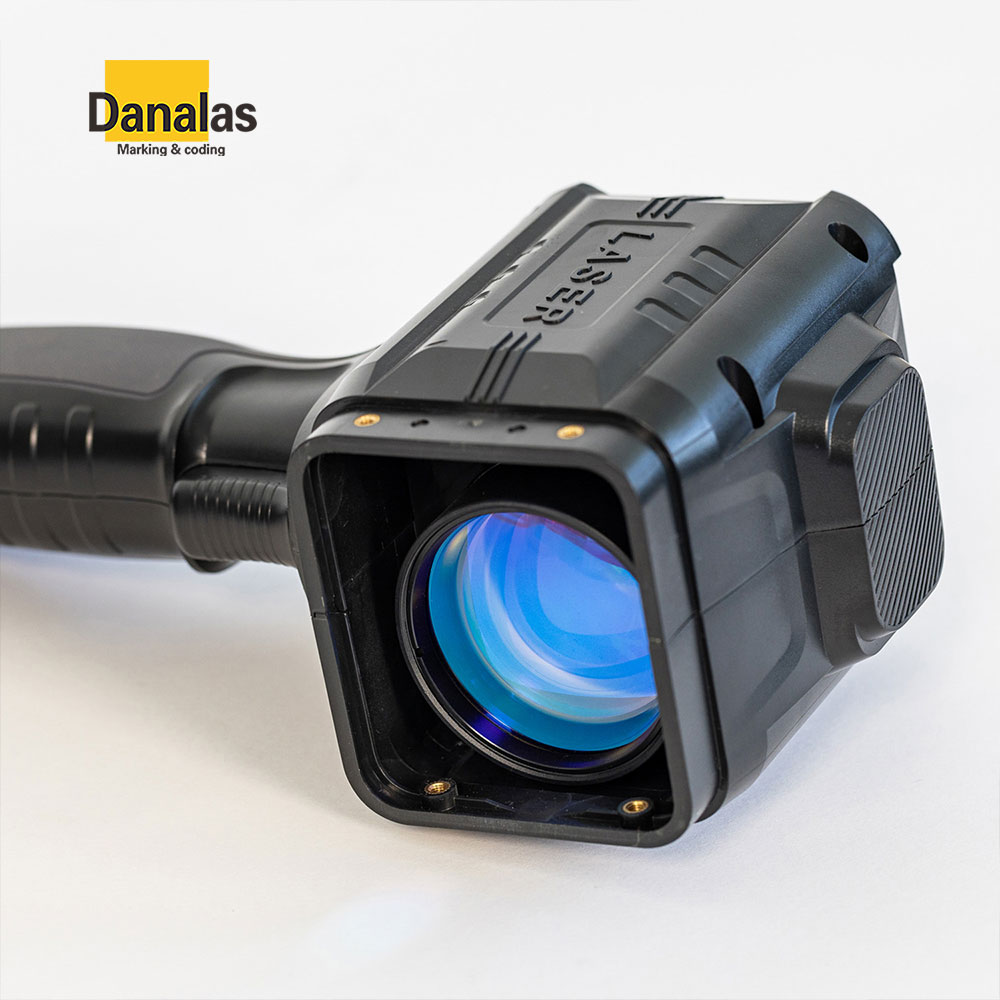

The handle is ergonomically designed and coated with anti-slip material, ensuring comfort and stability during extended use.
Available in two options, 220V/110V plug-in and lithium battery versions, catering to different working environment needs. The lithium battery version has a large built-in battery ensuring long working hours without power interruption. It supports simultaneous charging and battery swapping modes, achieving unlimited endurance.
DANA-70 series are Fiber Laser Static Printing device, they are suitable for metal and non-metal materials.

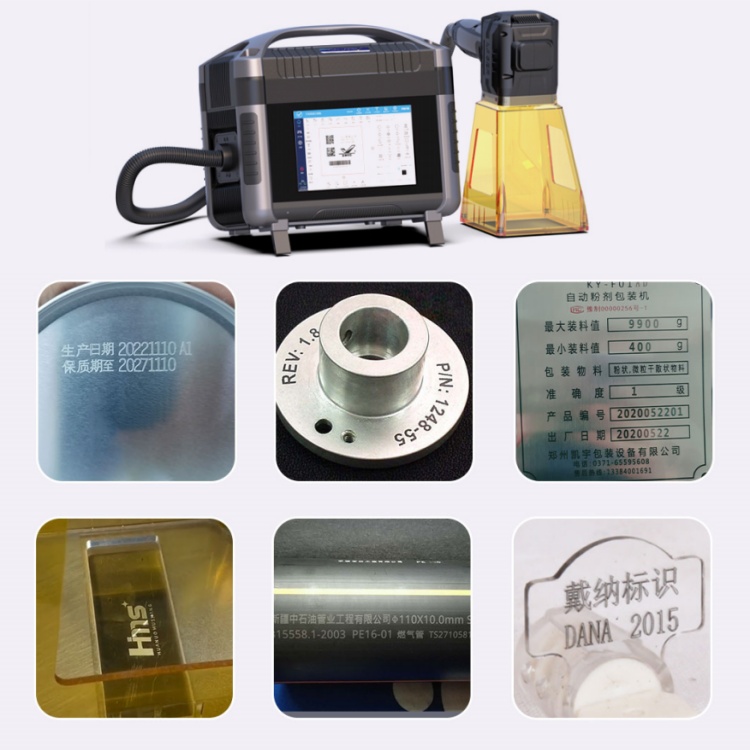

This portable handheld laser marking machine is widely used in industries such as electronic components, IT, automotive parts, hardware tools, precision instruments, gifts and jewelry, medical equipment, etc. it can easily handle these typical applications. Its high precision, efficient marking capability, and flexible convenient operation make it the ideal choice for marking in various industries.
