| Parameter Specifications | |
|---|---|
| Laser Power: | 20W 30W |
| Beam quality M2: | <1.5 |
| Frequency: | 20-100KHZ |
| Marking size: | 110x110mm; 175x175mm; 300x300mm |
| Max marking speed: | ≤9000mm/s |
| Scanner: | φ10 Sino famous brand zbtk |
| Power supply: | AC 220V±15% 50HZ |
| Control system: | Ezcad, original JCZ with dogkit |
| Graphic format supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |

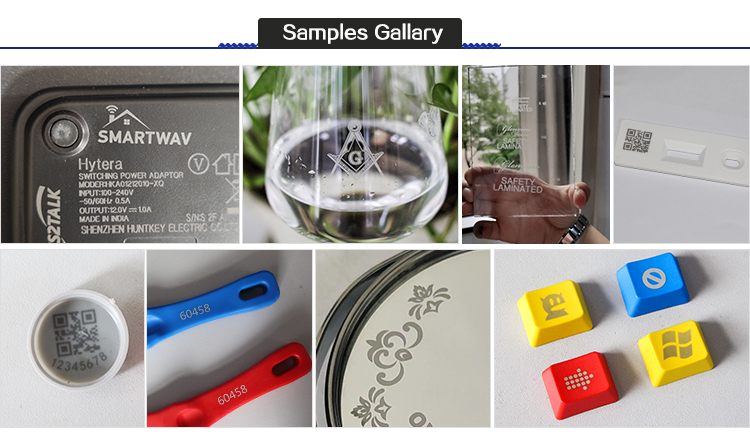

| Applicable materials: | Plastic, PVC, Glass, Silicon, Acrylic, Leather, almost non-metallic and metallic materials |
| Weight: | Portable type 54kg; Desktop type with water cooling chiller about 150kg |
| Packing: | Dishware, food, beverages, smoking and alcohol, plastic packing bag, etc. |
3W UV laser marking machine takes 355nm pumped purple light laser device as the light source and takes advantage of previous generations of machines to gain smaller diameter of focusing spot and fine marking effect. The metal absorbs purple light higher than infrared and is therefore more suitable for marking on metal and glass materials compared with infrared pump machines. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements.
Adopting doubling technique of intracavity frequency has greatly improved the stability of laser. Design on laser cavity adopts a series of optimization methods, so as to ensure the beam quality as the fundamental mode.
The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power.
Better pulse consistency of laser produces the same carving effect, making it highly suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
High efficiency of the photoelectric conversion, long service life, superior overall performance, good stability, and low energy consumption.
Automatic in a rotary table (optional item), convenient feeding, fast speed, and high efficiency.
Supports logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
Capable of marking date, bar codes, and two-dimension codes automatically.
Trade Assurance is a free payment protection service for buyers. The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount agreed between you and the supplier.

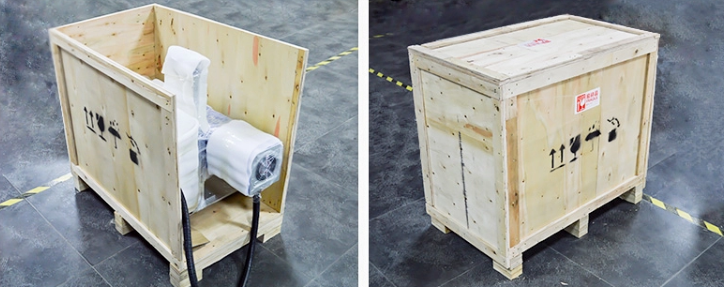

Unique exporting standard wooden case for bird ring laser marking machine.
10000+ customer's choice. Trustworthy factory.
Mature after-sale system, providing you excellent laser art and technical support.
