Product Description

20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
Dynamic Focus JCZ 3D Laser Engraving Machine Metal Color Marking
60W Fiber Laser Engraving Marking Machine with EZCAD 3 Software

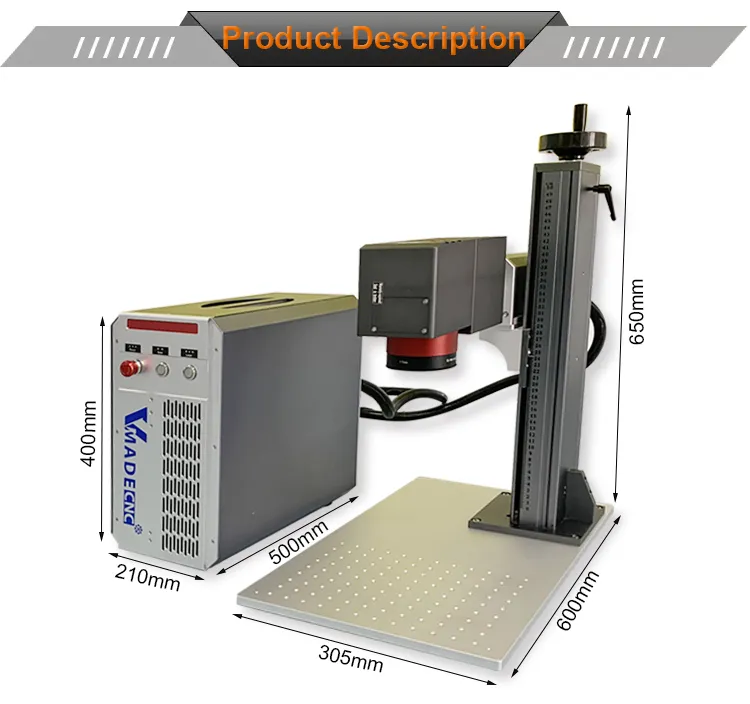

Product Description

Dynamic Focus JCZ 3D Laser Engraving Machine Metal Color Marking 60W Fiber Laser Engraving Marking Machine with EZCAD 3 Software. It can mark logo, barcode, serial number, date, portrait, images and any design.

Differences between 2D and 3D laser marking machine
  • 3D means Dynamic focusing: Compared with ordinary 2D laser machines, 3D laser marking machines adopt a different galvo head. Ordinary 2D scanning heads only have two mirrors, but 3D scanning heads have three mirrors. The third mirror can move forward and backward. This is the key technology of 3D laser marking machines.
  • Outstanding functions: The outstanding functions of 3D laser marking machines are deep engraving, relief engraving and curve metal marking.
  • Curve surface marking: When a 2D laser needs to mark curved surfaces, one rotary fixture must be added. However, a 3D laser marking machine can mark curved metals directly. Higher speed and higher precision. Mostly, it is easy to operate.
  • System setup: The 3D laser marking machine comes with a 3D galvanometer head and 3D software. Other parts are almost the same as 2D laser marking machines.
Fiber 3D Laser Marking Machine - Features
Laser Source Raycus / JPT / IPG / MAX brand.
Control Card Original EZCAD 2.14.9 / EZCAD 3 version.
Laser Power 20w 30w 50w 60w 70w 100w.
Marking Area 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm.

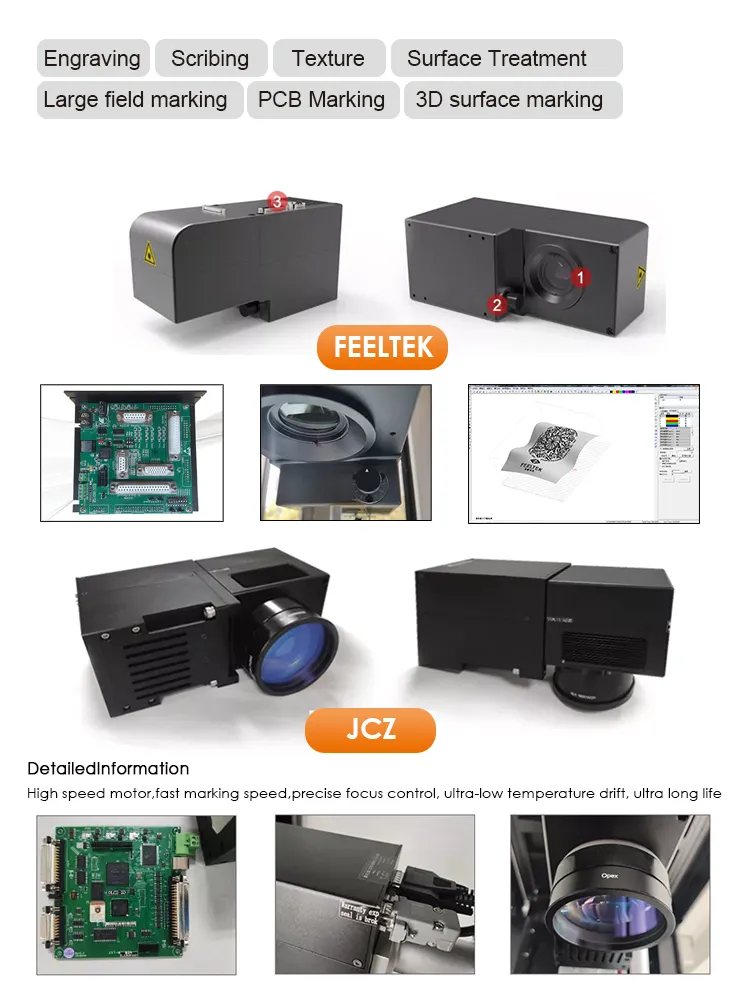

Galvo Head Sino-galvo JD2206 / 3D Feeltek / 3D JCZ.
Column Stand Manual / Electric , 50cm / 68cm / 80cm.
Optional Rotary Fixture 50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm etc.
More Optional Parts Conveyor table / Vacuum system / Electric XY table.
Product Parameters
Technical parameters
Model VLF-D-20W VLF-D-30W VLF--D-60W VLF-D-100W
Laser source JPT M7 20W JPT M7 30W JPT M7 60W JPT M7 100W
Pulse Frequency 30KHZ-100KHZ
Cooling Way Air cooling
Marking area 110x110mm---300x300mm(Optional)
Marking speed 8000mm/s
Position accuracy ≤0.001mm
Laser module life 100000 Hours
Control program Genuine EZCAD control system compatible with win7/8/10
Operation environment Working temperature: 0°-40°
Storage temperature: -10°-60°. Humidity: 30% - 85%.
Graphic format supported JPG/BMP/DXF/PLT
Package Size 99*42*79CM
Package Weight 60Kg
Packaging & Shipping
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery

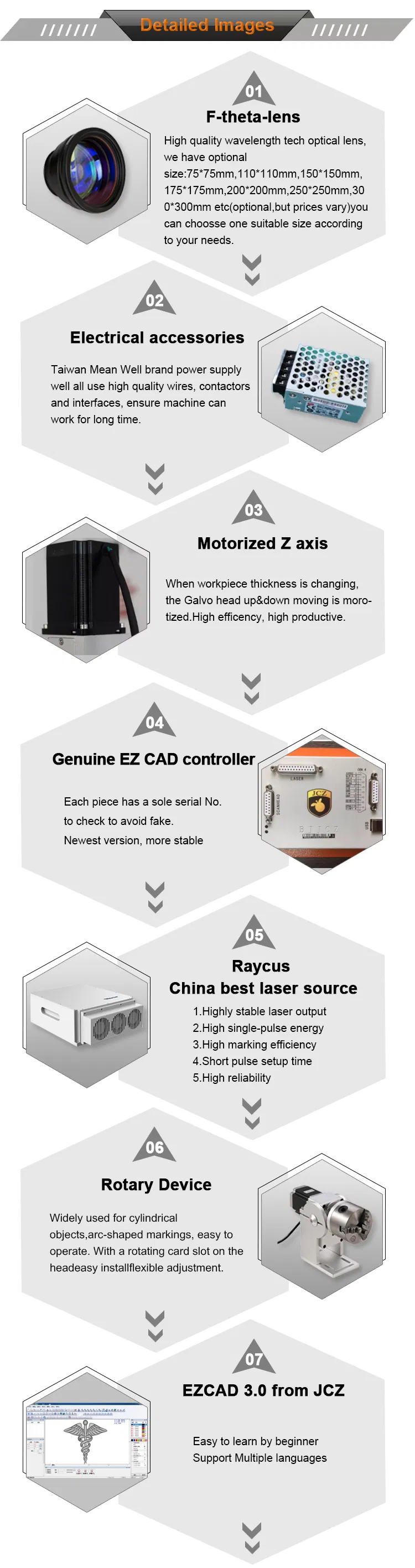

Detailed Photos
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery

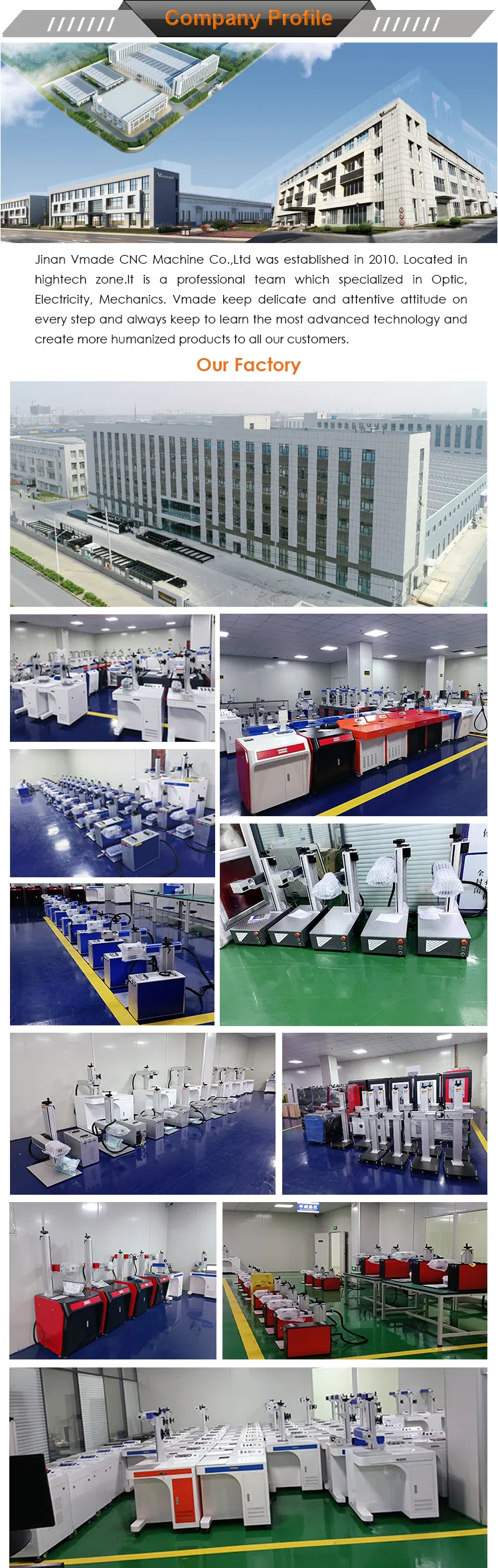

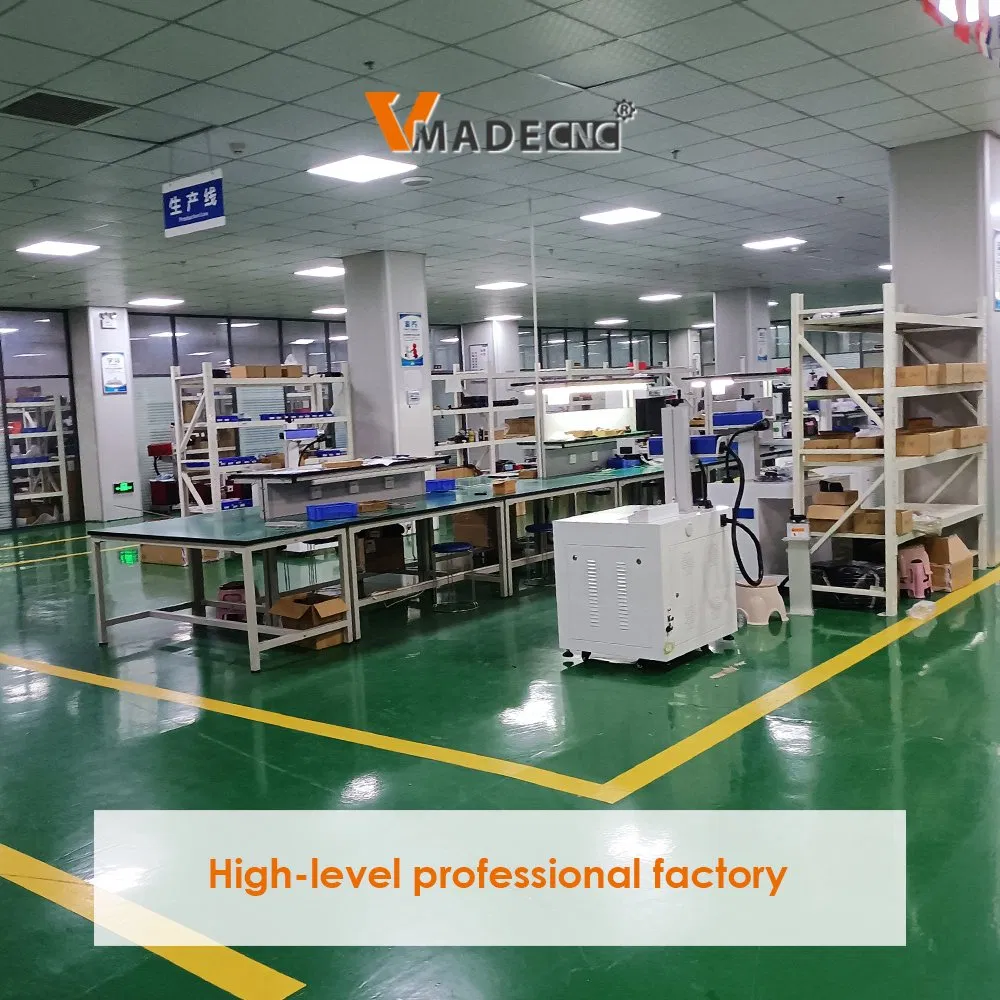

Company Profile
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
Certifications
20W 30W 50W 100W Jpt M7 3D Mopa Laser Marking Machinery
Frequently Asked Questions
What is the primary difference between a 2D and a 3D laser marking machine?

A 3D laser marking machine features a dynamic focusing head containing three mirrors instead of two. The third mirror moves forward and backward dynamically, allowing the machine to engrave curved metals directly and perform deep/relief engraving without needing an extra rotary fixture.

Which laser sources and power levels are compatible with this machine?

The system supports premium laser sources including JPT M7, Raycus, IPG, and MAX. Available power configurations range from 20W up to 100W depending on your application needs.

Which control systems and operating software are used?

This equipment comes standard with the genuine EZCAD control system (EZCAD 2.14.9 / EZCAD 3 version) and is fully compatible with Windows 7, 8, and 10 operating systems.

What file formats does the marking software support?

The EZCAD control program supports major graphic and vector formats, including JPG, BMP, DXF, and PLT.

What is the expected operating life of the laser module?

The high-quality fiber laser module is highly durable, offering an estimated service life of approximately 100,000 hours under optimal operating conditions.
