Product Description

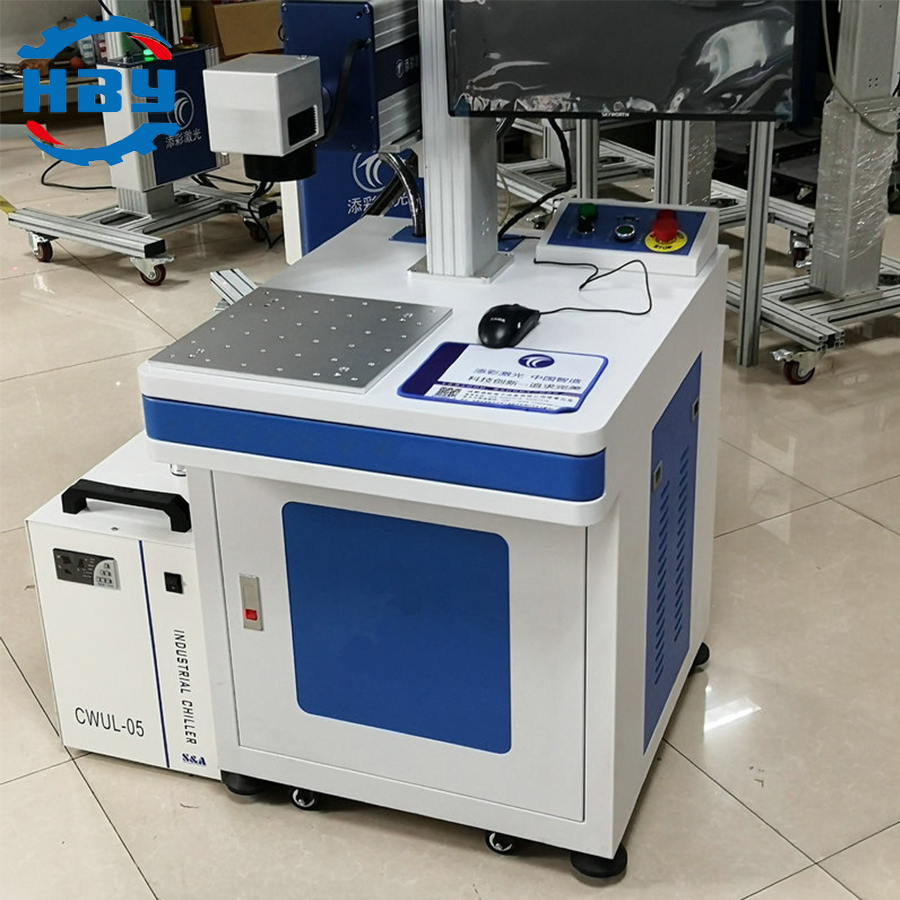

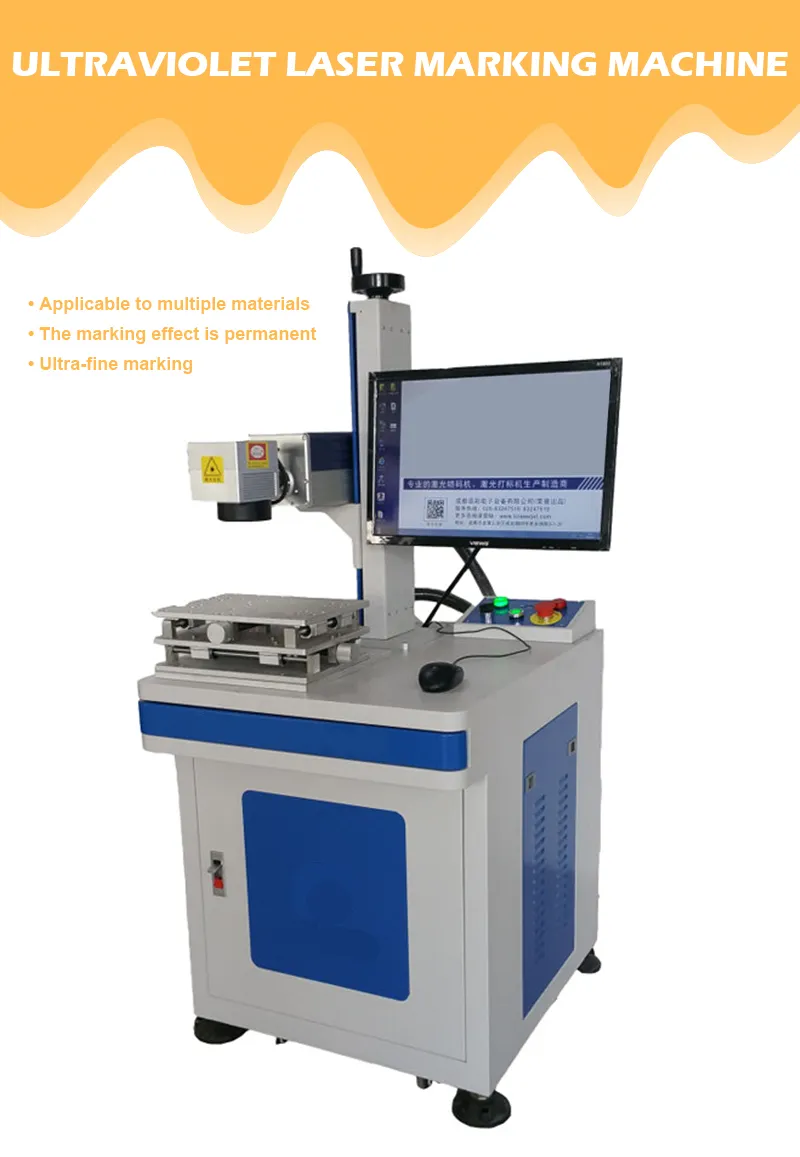

ZY-Z3 UV laser marking machine is a new generation of laser marking machine system developed by using laser technology. It uses UV laser to output laser, and then realizes marking function through high-speed scanning galvanometer system. The UV laser marking machine has high electro-optical conversion efficiency. The machine adopts third-order intracavity frequency doubling technology. Compared with infrared laser, the 355 UV light focusing spot is very small. The effect of marking is to directly break the molecular chain of the material through short-wavelength laser, which greatly reduces the mechanical deformation and thermal deformation of the material (cold light). Because it is mainly used for ultra-fine marking and engraving, it is particularly suitable for marking food and medical packaging materials, drilling micropores, high-speed division of glass materials, and complex graphic cutting of silicon wafers and other application industries.

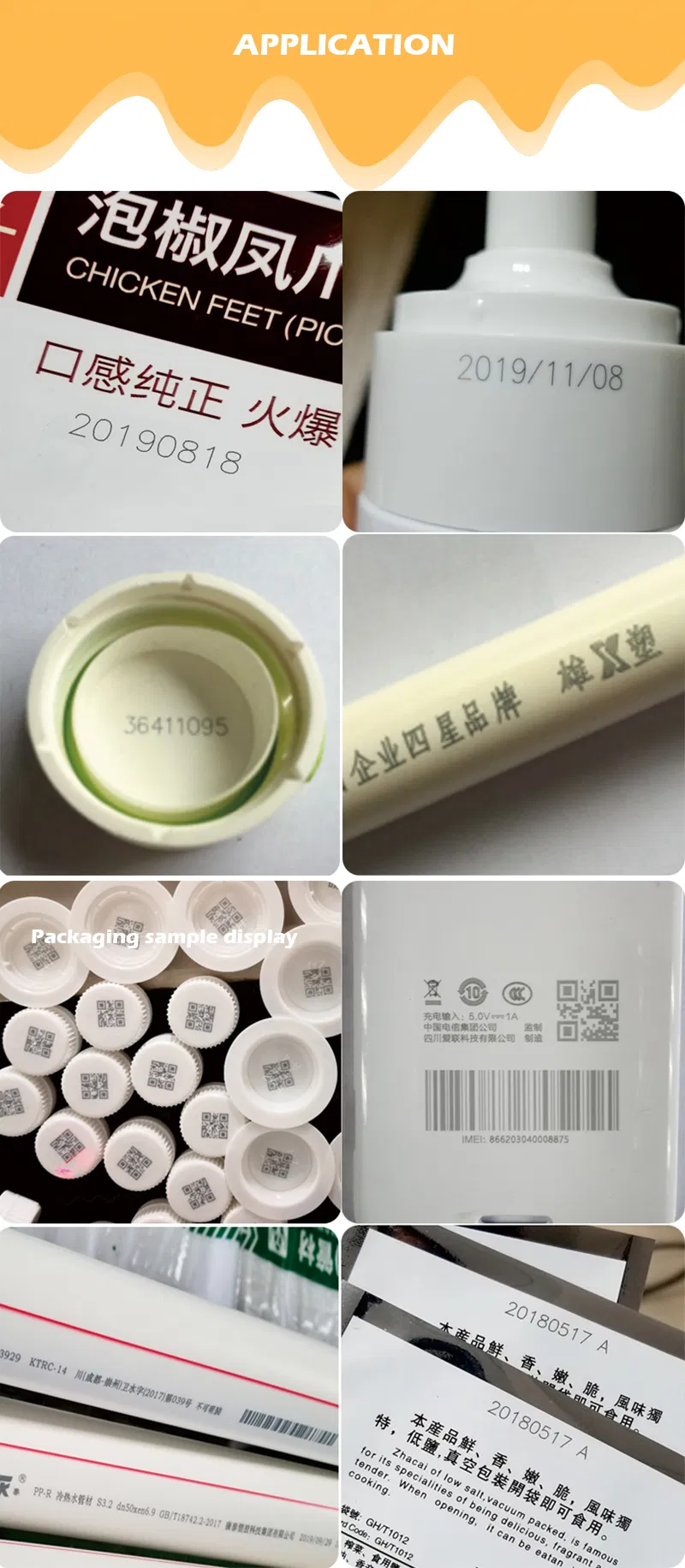

Application

• Mainly used in the ultra-fine processing market, marking the surface of packaging bottles of medicines, cosmetics, videos and other polymer materials, the effect is very fine, the marking is clear and firm, better than inkjet coding;
• Flexible PCB board marking, dicing, silicon wafer micro-hole, blind hole processing;
• LCD liquid crystal glass QR code marking, glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.

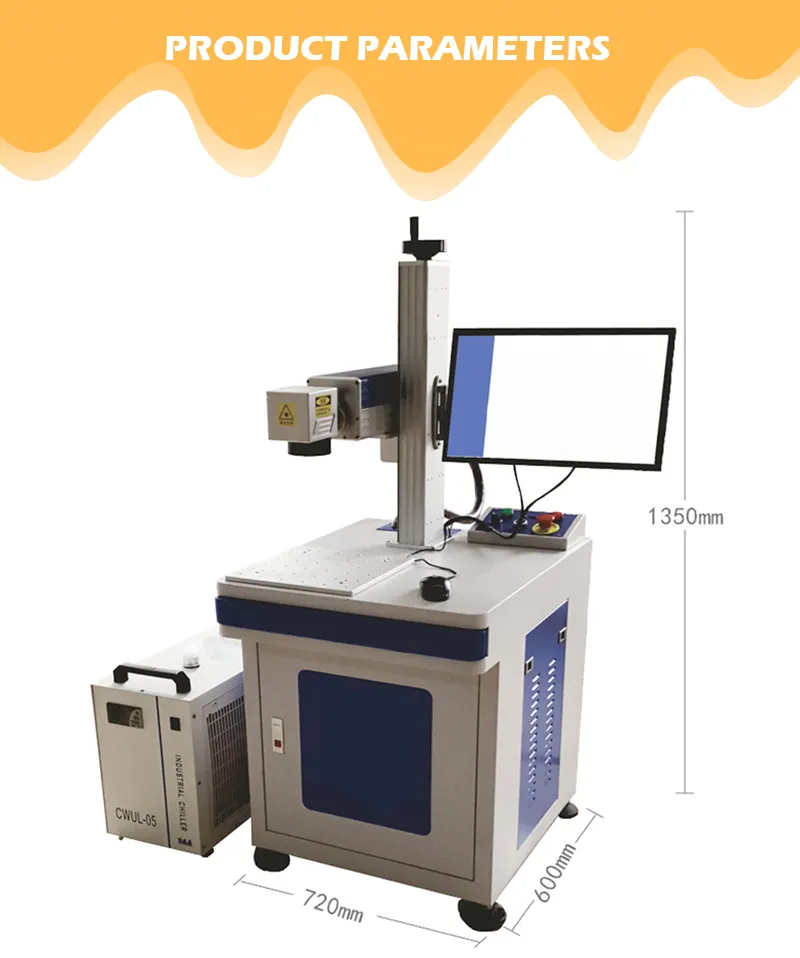

Technical Parameters

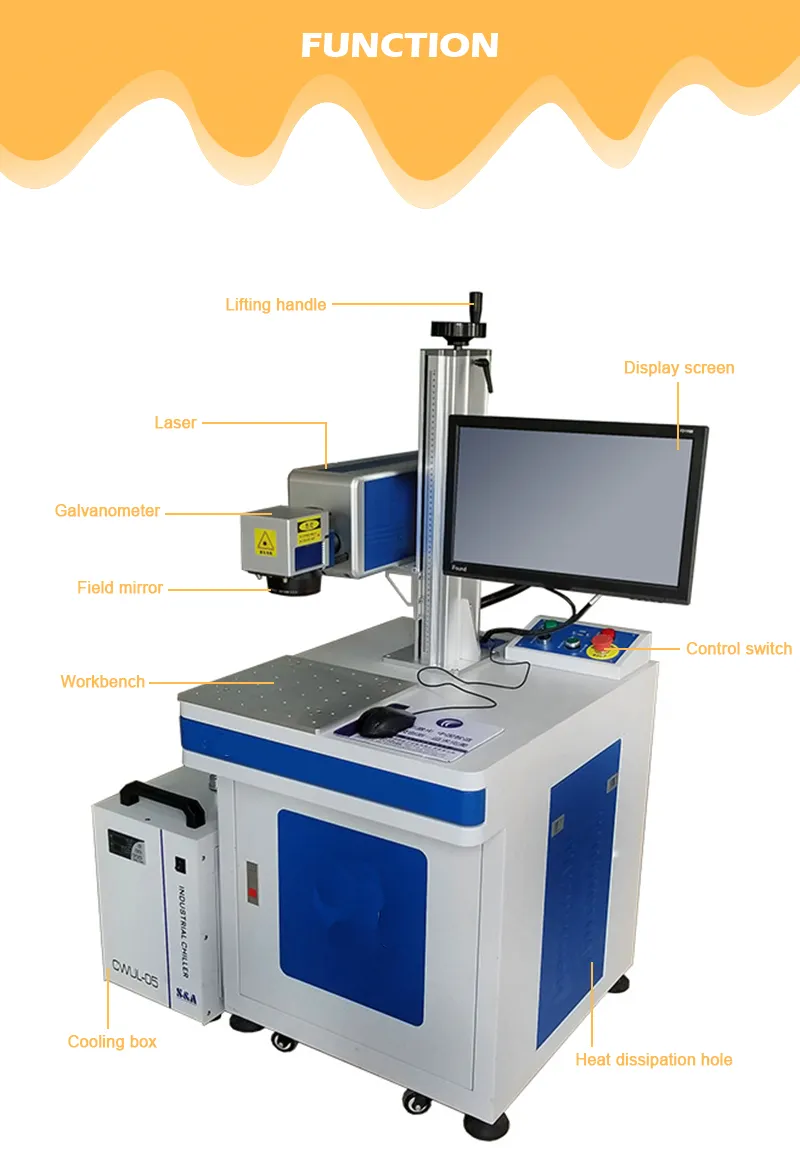

Function

• UV laser can perform ultra-fine marking because of its very small focused spot and small processing heat-affected zone. It is the product of choice for customers who have higher requirements for marking effects.
• UV laser is suitable for processing almost all materials except copper.
• Flexible and convenient operating system: the operation process is user-friendly and the equipment has good operation stability;
• The control software is compatible with AutoCAD, CorelDRAW, Photoshop and other software outputs;
• It can realize automatic arrangement and modification of text symbols, graphic images, barcodes, QR codes, serial numbers, etc.;
• It supports multiple file formats such as PLT, PCX, DXF, BMP, JPG, and can directly use TTF fonts;
• CCD automatically identifies, tracks and locates;

Detailed Features

• High beam quality, very small spot, can achieve ultra-fine marking;
• Marking quality: 355nm output wavelength reduces the thermal impact on the workpiece;
• The marking effect is fine and can be processed repeatedly, and the high-precision and fine spot guarantees the marking result;
• The marking process is non-contact, and the marking effect is not easy to change;
• The heat-affected area is very small, the marking and cutting results are precise and smooth, the side walls are steep, there will be no thermal effect, and the material will not deform or burn;
• Suitable for processing materials with large thermal radiation reaction;
• It can cooperate with the production line, automatically feed and discharge materials, and is suitable for marking on most metal and non-metal materials;
• In addition to copper materials, many materials absorb 355nm ultraviolet light, so UV ultraviolet lasers can be suitable for processing more types of materials.
