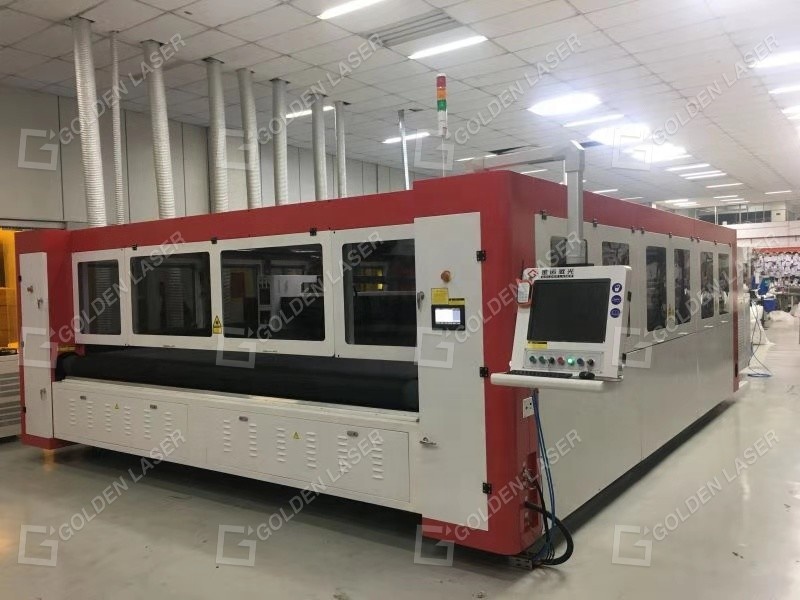

Making the processing safer and reducing fume and dust that may be generated during processing. It is available with Full Enclosed option to meet class 1 laser product safety protection.

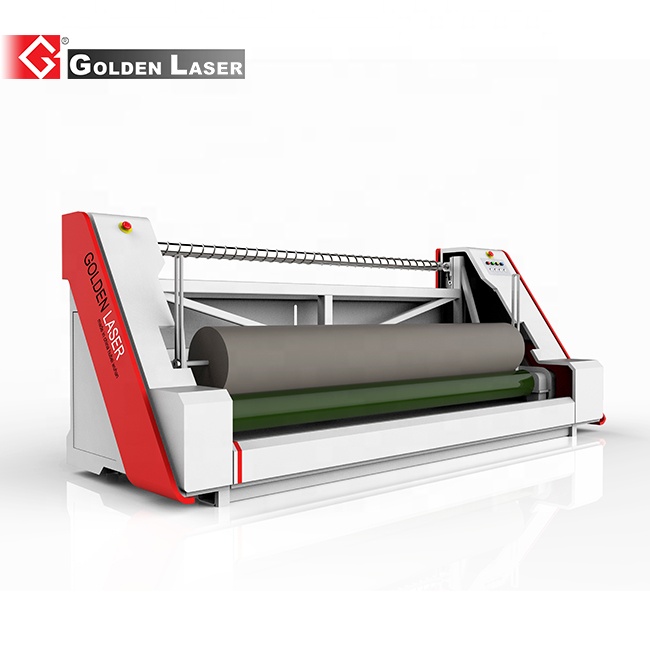

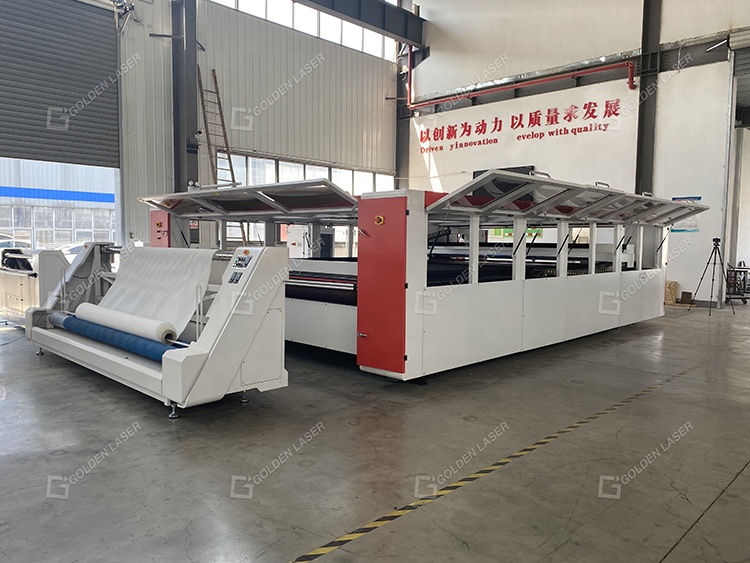

It is a feeding unit which runs synchronous with the laser cutter. The feeder will transfer the roll materials to the cutting table after you put the rolls on the feeder. You can set the different feeding speeds according to the main machine speed. The feeder has the sensor to ensure accurate positioning of the material. The feeder can be equipped with different shaft diameters for different rolls. The different pneumatic roller will be used for the textiles with different tension, thickness... This unit helps you to realize a completely automated cutting process.

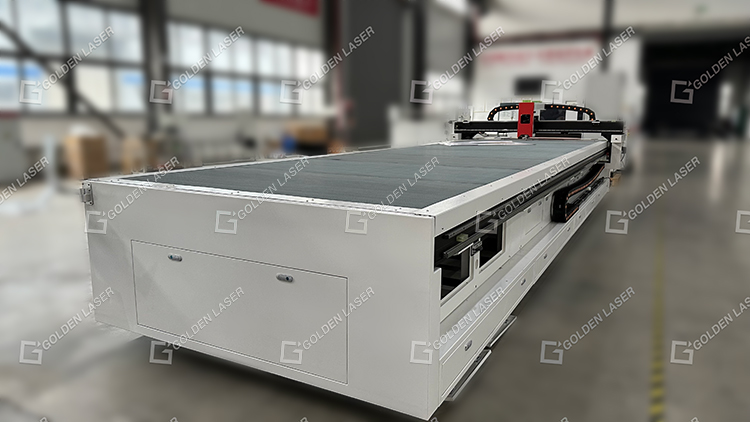

The vacuum table is under the cutting table, there is a series of holes in the surface of the table pull the material down onto the surface. The vacuum table allows full access to the surface, there is nothing to get in the way of the laser beam while it is cutting. With the strong exhaust fans together, it also helps to prevent the smoke and dust when cutting.

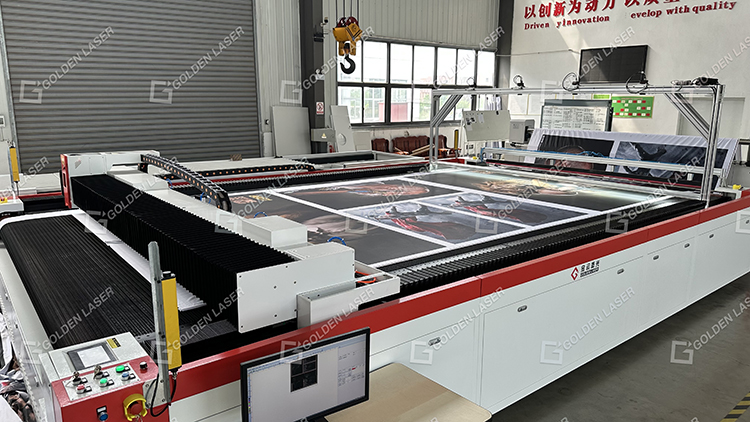

The vision system is an important option when you want to cut the contours. No matter for printing contour or embroidery contour, you will need this device to read the contour or special data for positioning and cutting. Contour scanning and marks scanning are suitable for different application. We offer different vision options for different applications.

1. Mark pen: For most of the laser cutting pieces, especially for textiles, it has to be sewn after cutting. You can use the mark pen to make the marks on the cutting piece to help the workers for easy sewing. You can also use the mark pen to make some special marks on the cutting piece such as the serial number of the product, the size of the product, the manufacture date of the product and etc...You can choose different color mark pens according to the color of your materials.
2. Ink-jet printing: Comparing with the "mark pen" the ink-jet printing technology is a non-touch process, so it can be used for many more different types of materials. And there are different inks for an option such as volatile ink and non-volatile ink, so you can use it in different industries.

The red dot pointer helps as a reference to check where the laser beam will land on to your material by tracing a simulation of your design without activating the laser. As well as your starting point.

Basic two laser heads: The two laser heads are mounted on the same gantry, which allow for two same patterns to be cut simultaneously.
Independent dual heads: The independent dual heads can cut different designs at the same time. It increases the cutting efficiency and production flexibility at the largest degree.

Galvo laser uses high-speed, motor-driven mirrors to steer the laser beam through a lens. Depending on the position within the laser marking field, the beam impacts the material at a greater or lesser angle of inclination. The marking field size is defined by the deflection angle and the focal length of the optics. Since there are no movable parts (with the exception of the mirrors) the laser beam can be guided over the work-piece at extremely high speeds with high precision and reliability, making them ideal when short cycle times and high-quality markings are required.

Increased level of automation during the unloading and sorting process also accelerates your subsequent manufacturing processes.
