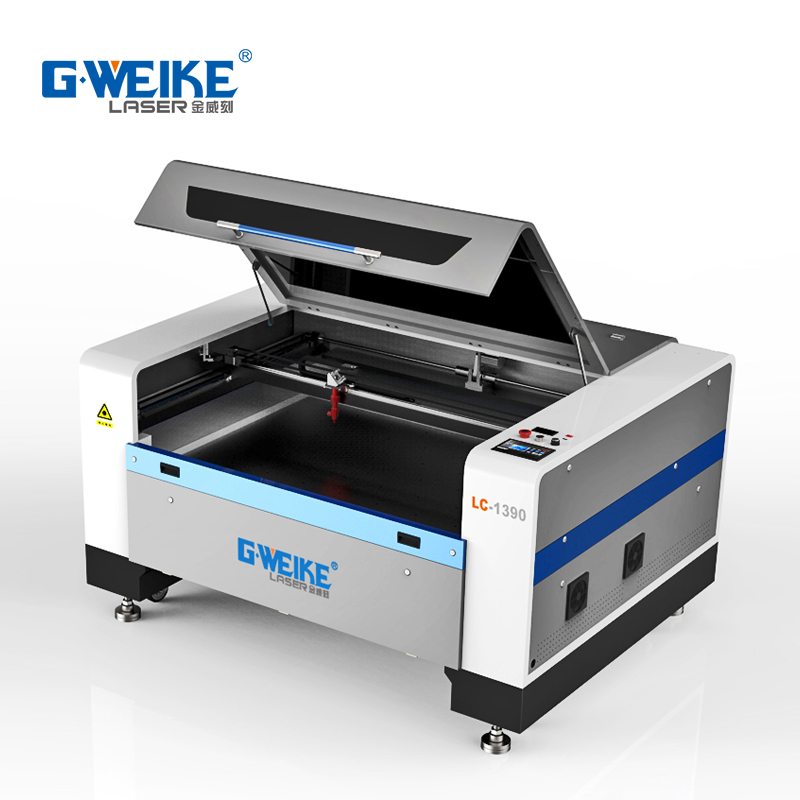

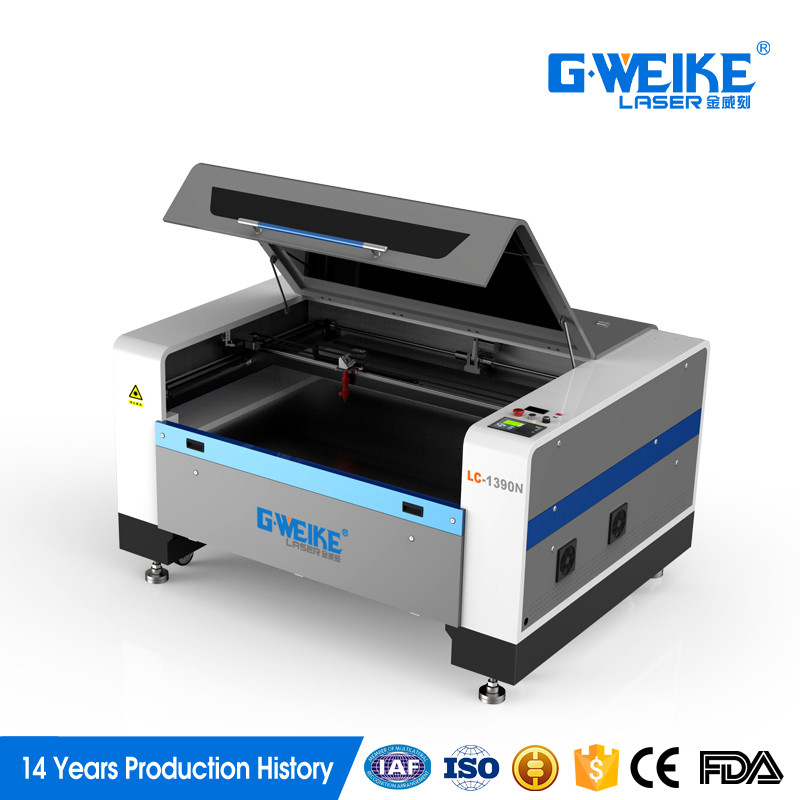

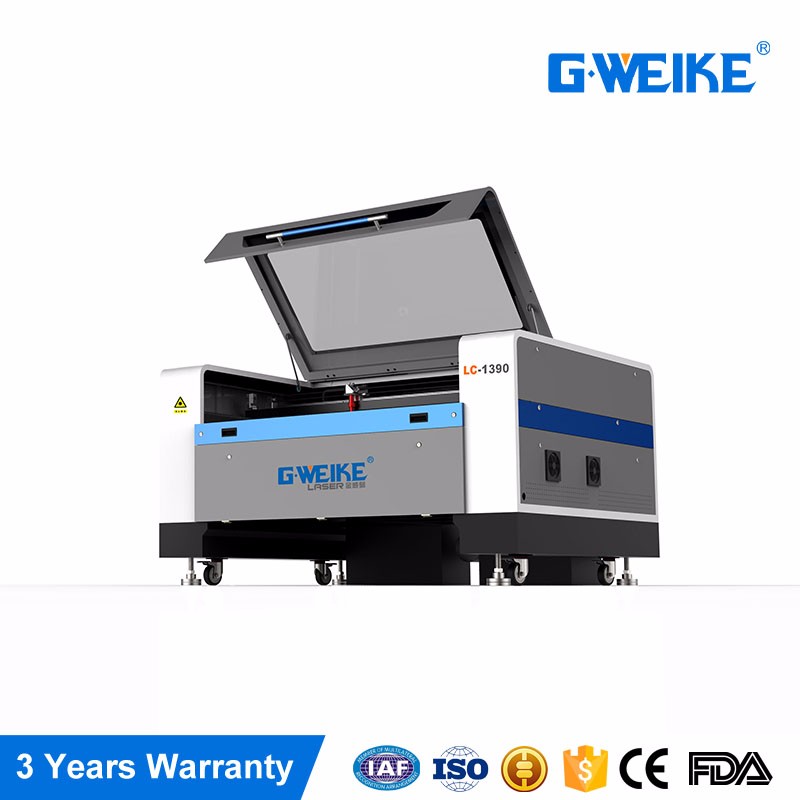

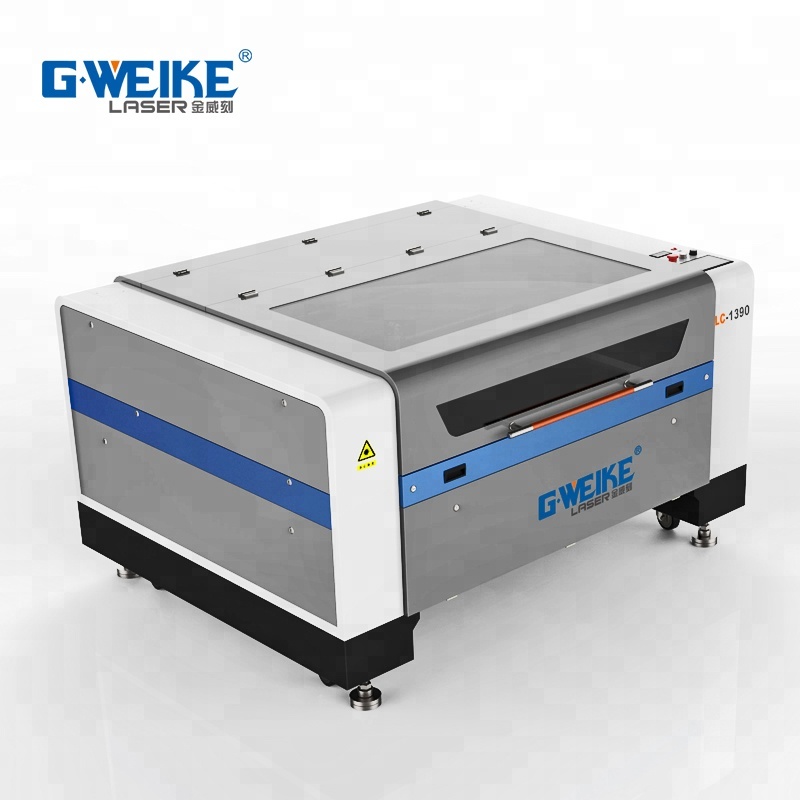

Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
1 / 5
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price
Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price

Hot Sales G WEIKE LC1390N Co2 Laser Engraving Cutting Machine Price

Send Inquiry

Product Description

Specification
Key Points
  • Laser Power: 80W, 130W, 150W, 260W
  • Cutting Area: 1300mm x 900mm
  • Certifications: CE, ISO, IA certified
  • Space-saving Design: The rear part of the machine features a cave-in structure to optimize workshop space.
Advantages
  • 1. Multi-Format Software Support: English version software supporting 10 commonly used graphic formats.
  • 2. Offline DSP Control: Equipped with a DSP off-line control system and convenient USB interface.
  • 3. Premium Optics: US imported focusing lenses, with choices of 4" and 2.5" focal lengths.
  • 4. Rapid Focusing: Simple focus adjustments via a two-button operation, taking only 3 seconds for high efficiency.
  • 5. Red Dot Alignment: Includes a red dot alignment pointer to assist in positioning materials accurately.

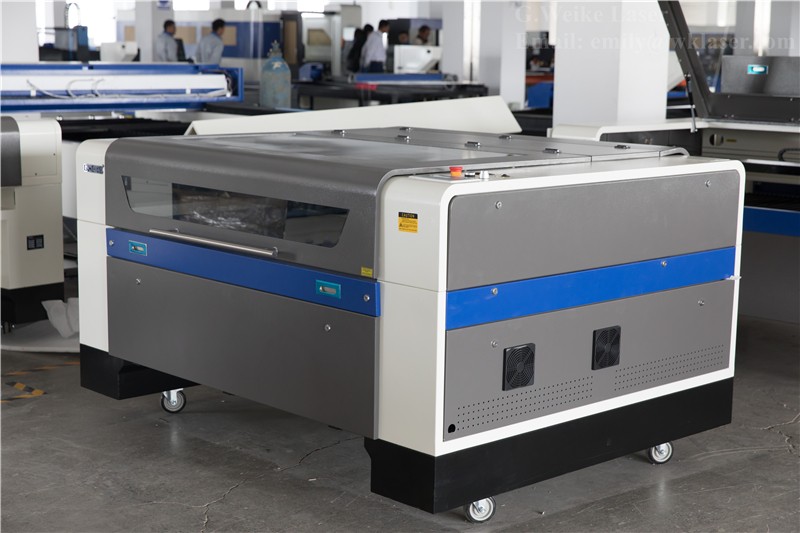

Co2 Laser Engraving Cutting Machine
  • 7. Unlimited Feeding Capability: Designed with an un-limited feed-through door. An optional auto-feeding system allows continuous roll material processing.
  • 8. Dynamic Air Assist: Provided with an air compressor setup to blow away debris and smoke, preventing ignition risks.
  • 9. Integrated Extraction: High-efficiency exhaust fan and vacuum table draw fumes away while flattening thin materials.
  • 10. Complete Toolkit: Packages include one set EXLAS, exhaust fan, air assist compressor, tool box, training materials, and a three-year warranty.
Technical Parameters
Technical Specifications of LC1390N Laser Cutter
Parameter Details
Model LC1390n Laser Cutter
Laser Power 60W, 80W, 100W, 130W, 150W, 180W (Optional)
Working Area 900 * 1300mm
Whole Machine Size 1820 * 1310 * 1070mm
Engraving Speed 0 - 60,000mm/min
Resetting Positioning Accuracy ±0.05mm
Working Voltage AC 110 - 220V±10%, 50 - 60Hz
Gross Power <1,000W
Operating Temperature 0 - 45°C
Operating Humidity 5 - 95%
Minimum Shaping Character English 1 x 1mm
Graphic Format Supported BMP, PLT, DST, DXF, AI
Driving System Stepper Motor
Cooling Mode Water-cooling and protection system
Auxiliary Equipment Exhaust fans, air-exhaust pipe
Controlling Software DSP control system
Compatible Software CorelDraw, AutoCAD, Photoshop
Features
Key Features of LC1390N Laser Cutter
  • Efficient Processing: Produces clean cut edges without burrs, reducing secondary operations.
  • Versatility: Capable of cutting various material thicknesses effortlessly.
  • Contactless Work: Zero material deformation due to advanced contactless thermal processing.
  • Highly Controllable: Excellent repeatability and precise accuracy across all operations.

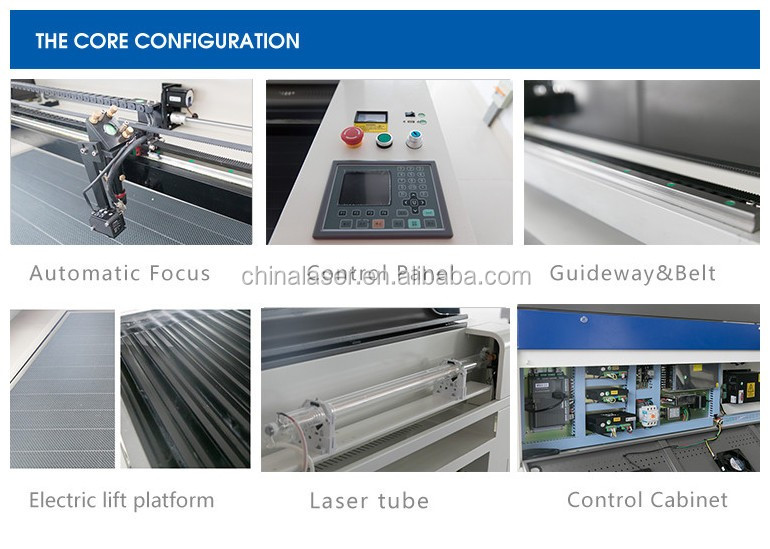

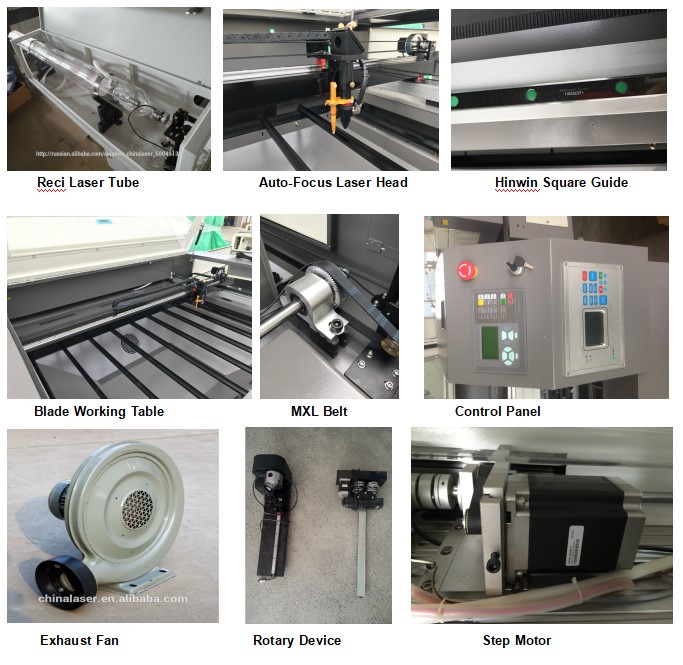

Laser Machine Design Laser Machine Features
Design & Component Details
Premium Laser Tube
Features high-frequency pulse engraving with a low pre-ionization threshold state (4mA current). Ideal for high-power, long lifetime cuts on thick acrylic panels and knife mold systems.

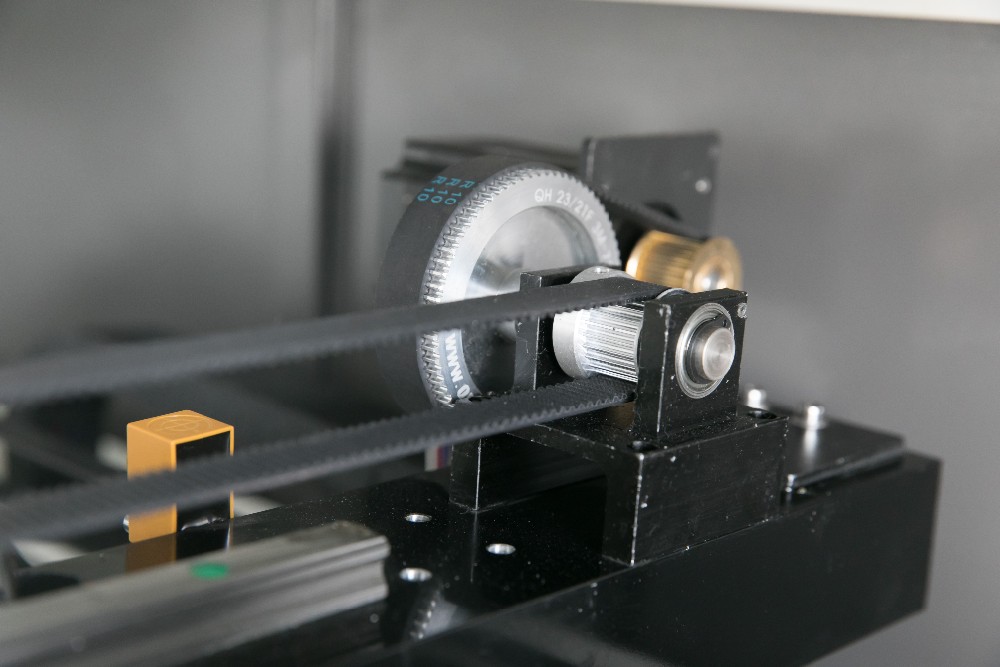

Linear Guide System
Equal load ratings in all directions (radial, reverse radial, and lateral) with self-aligning capabilities to compensate for installation misalignments, ensuring high-speed accuracy.
High-Torque Stepper Motor
3-phase stepping motor system ensuring low noise, minimal vibration, higher acceleration capability, and smooth linear running.
Constant Optical Path DSP System
Semi-flight optical layout keeps the beam size and intensity uniform across the entire working bed area.
The Accessory

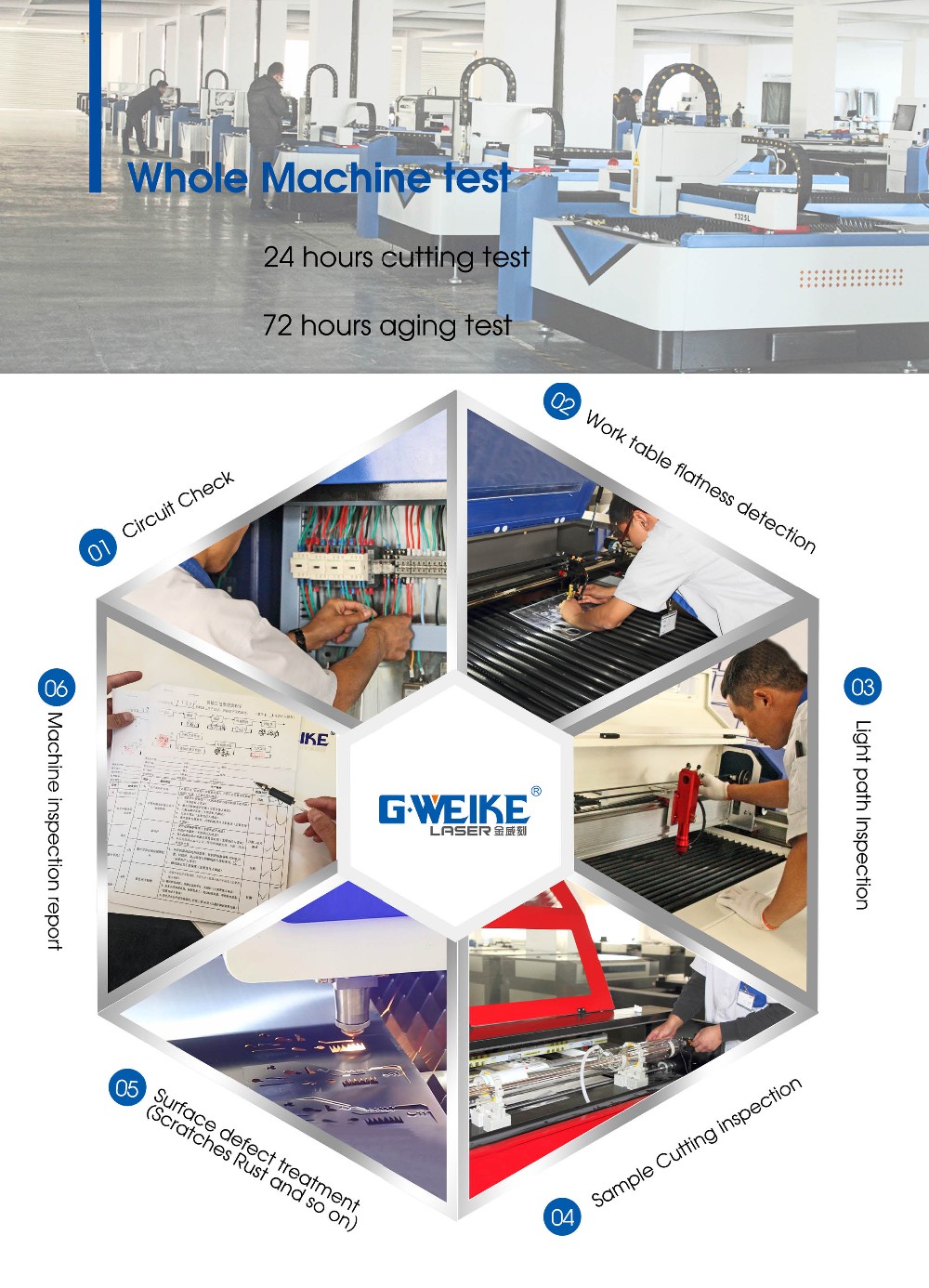

We implement strict quality inspections throughout every stage of the manufacturing process to guarantee the performance of each accessory.
Laser Accessories Quality Control
Sample Show
Below are examples of cuts and engravings created using the LC1390N CO2 laser cutting system:
Laser Cutter Material Samples
Applications
Main Materials: Wood, organic glass, plastic, garments, paper, leather, rubber, and other non-metallic materials.
Applicable Industries: Advertising, arts and crafts, toys, computerized embroidery and clipping, garments, architectural modeling, and decoration.
Application Fields
Exhibition Show
Exhibition Gallery
Certificates
Product Certificates
Our Services
1. Pre-sales Service
  • Free Sample Making: Send your material files (DXF or standard vector formats) to our testing facility, and we will perform sample processing and return the results to you.
  • Custom Solutions: We customize configuration options according to your processing requirements to achieve optimal efficiency.
Service Flowchart
2. After-sale Service
  • User Manuals: Comprehensive user manuals and guided installation videos in English are provided.
  • Remote Assistance: The machinery supports WIFI connectivity, allowing engineers to diagnose and guide operations remotely.
  • Technical Training: We offer a 5-day free hands-on training course at our training center.
  • On-site Services: Door-to-door engineering and commissioning services can be scheduled globally.
Inquiry Guidelines
To help us configure the best system for your project, please prepare the following details with your inquiry:
  • What materials do you need to cut or engrave?
  • What is the maximum thickness of these materials?
  • What is the maximum layout size of your working pieces?
Frequently Asked Questions
What materials can the LC1390N laser cutter process?
This system cuts and engraves a wide range of non-metallic materials, including wood, organic glass, plastic, garments, paper, leather, rubber, and similar materials.
What are the laser power and working dimensions of the machine?
The machine features a generous working area of 1300mm x 900mm. The laser power options range from 60W, 80W, 100W, 130W, 150W, up to 180W or 260W to match varying thickness demands.
Does the software support standard design formats?
Yes. The English version control software is fully compatible with 10 standard graphic formats, including BMP, PLT, DST, DXF, and AI, allowing simple integration with CorelDraw, AutoCAD, and Photoshop.
What auxiliary systems are included with the laser cutter?
The package includes a comprehensive suite of tools: an exhaust fan with air-exhaust piping to remove smoke, an air assist compressor to protect cuts, a dedicated toolbox, manual videos, and the EXLAS control software.
How long is the warranty period for the LC1390N?
This laser machine is backed by an industry-standard three-year warranty, reflecting our strict production and QC control measures.
How is the focusing handled on this machine?
Focusing is simple and automated. You can quickly configure focus settings by touching two control buttons, taking only 3 seconds to complete with high precision.
