Fiber laser using an integrated overall structure, and no any pollution, and air cooled power coupling loss, with other lasers do not have the high efficiency, long life span and low maintenance properties.
Fiber laser marker laser marking applications with many unique advantages. Unlike conventional solid-state lasers use a YAG laser media, fiber laser using a long as Yb-doped double-clad fiber laser and high efficiency multimode laser diode pumping.
Electronic components, electrical appliances, telecommunications, auto parts, precision hardware, gifts and jewelry, medical equipment, instruments, eyeglasses and clocks and sanitary ware industry. (Note: Not suitable for highly reflective material).
| Average output power | 5W, 10W, 20W (continuous or pulse) |
| Laser wavelength | 1064nm |
| Power adjustment range | 10-100% |
| Repetition rate | 20-80KHz |
| Laser beam quality m2 | 1.4-1.8 |
| Divergence angle | 0.3mrad |
| Mark | Static or mobile marking |
| Marking LineWidth | 0.01-0.2mm |
| Minimum focusing spot | 0.01mm |
| Minimum character height | 0.2mm |
| Re-precision | 0.2um |
| Marking speed | ≤7000mm/s |
| Supported formats | Graphics, text, bar codes, two-dimensional codes, automatic marking the date, frequency, lot number, serial number, file links |
| Mark character types | Vector and bitmap graphics, text |
| Operating system | Windows XP, supporting PLT, PCX, DXF, BMP etc file format |
| Marking range | 50x50 / 100x100 / 150x150mm |
| Dimensions (L*W*H mm) | 550 x 900 x 1200 |
| Electrical requirement | 100-240V, Single phase, 500W |

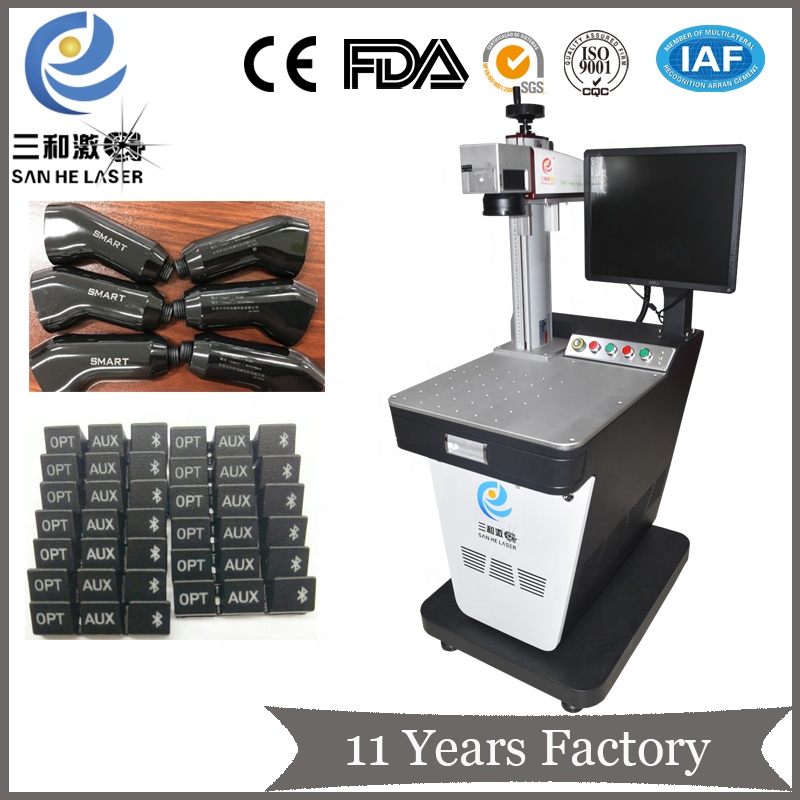

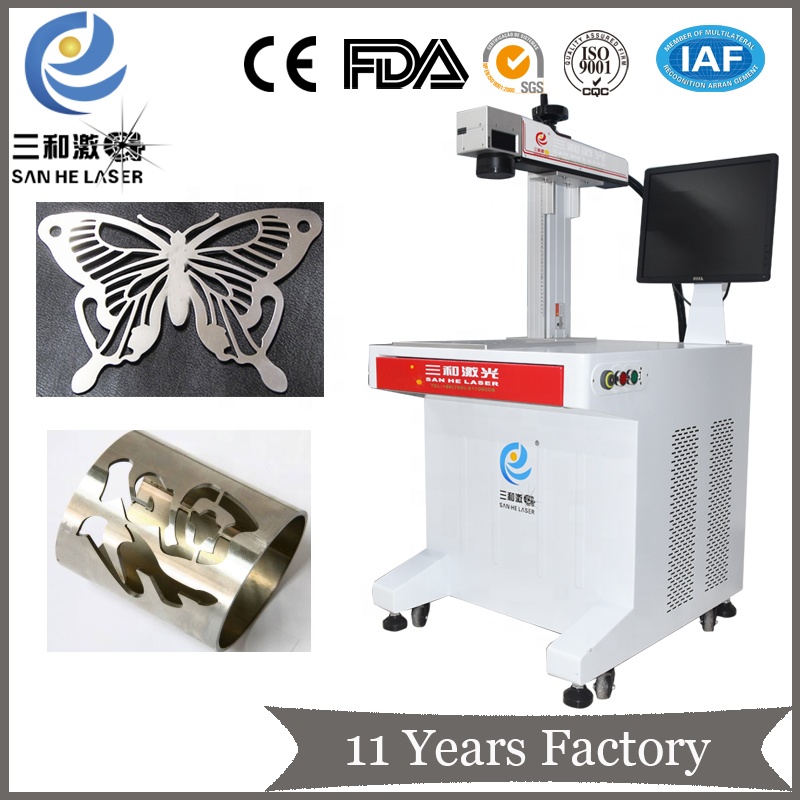

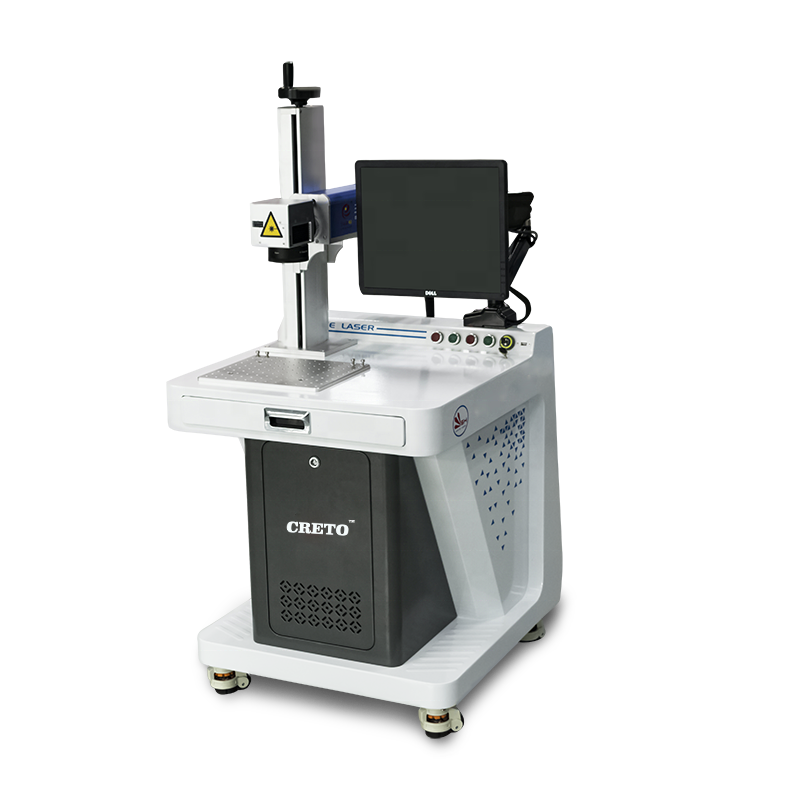

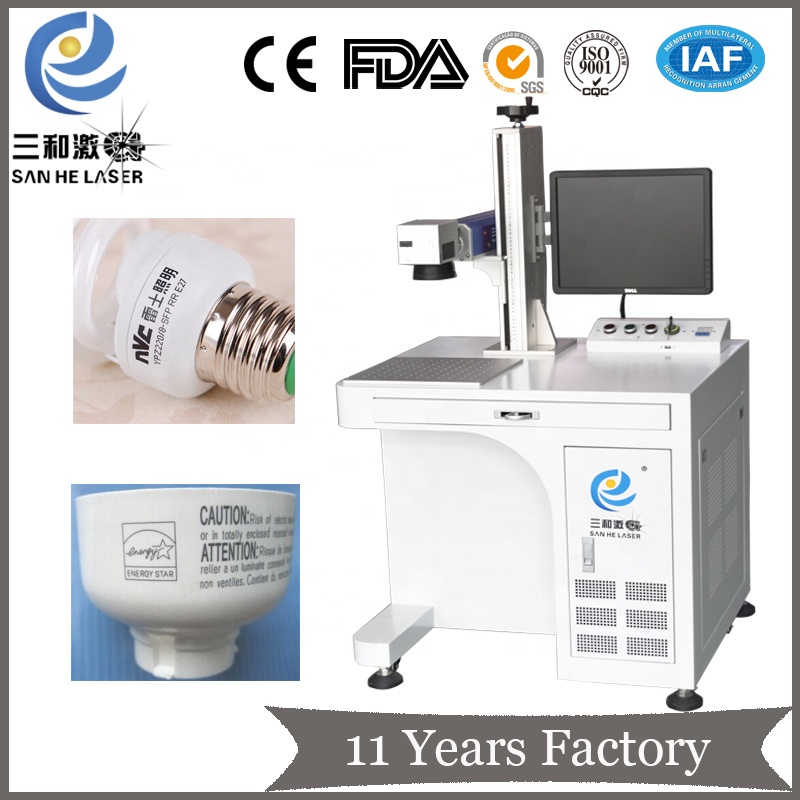

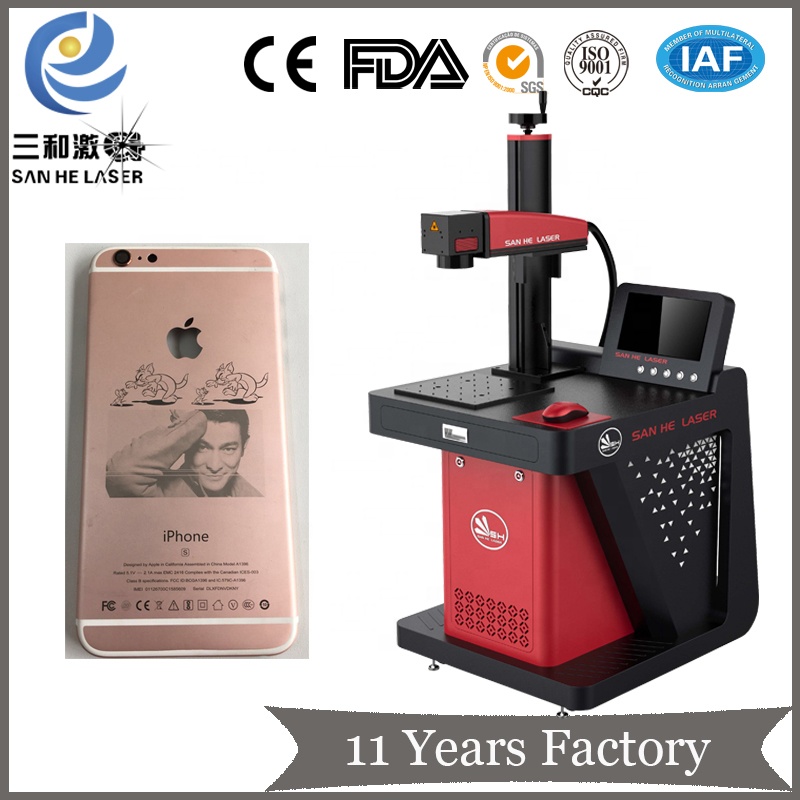

The fiber laser marking machine is highly versatile and can perform marking tasks on both metal and non-metal materials. However, it is not suitable for highly reflective materials.
This machine utilizes high-efficiency fiber laser technology, providing an extremely long working life of up to 100,000 working hours with virtually no maintenance required.
Fiber lasers offer excellent beam quality with a gathering spot diameter of less than 20um. They generate significantly thinner lines compared to traditional solid-state systems, make highly efficient use of power (consuming less than 600W), and run with air cooling instead of complex external cooling.
The system runs on Windows XP and supports common design and vector file formats including PLT, PCX, DXF, and BMP. It can automatically mark dates, serial numbers, lot numbers, barcodes, and 2D codes.
The key models available are 3HE-FM5 (5W), 3HE-FM10 (10W), and 3HE-FM20 (20W), providing options in average output power to suit different marking depth and speed requirements.
